Siemens TC35 User Manual

s

TC35Terminal

User Guide

www.siemens.com/wm

www.siemens.com/wm

be inspired

Wireless
Modules

Safety information

Radio devices have limitations in the vicinity
of electronic devices:

• Switch the TC35 Terminal off when you
are in a hospital or near medical devices
like pacemakers or hearing aids. The
Terminal may interfere with the operation
of these devices.

• Switch the TC35 Terminal off when flying.
Secure it so that it cannot be switched on
inadvertently.

• Switch the TC35 Terminal off when you
are near petrol stations, fuel depots,
chemical plants or blasting operations.
The Terminal can disturb the operation of
technical equipment.

• Interference can occur if the device is
used near televisions, radios or PCs.

• In order to avoid possible damage, we
recommend that you only use the
specified accessories. These have been
tested and shown to work well with the
Terminal. However, the warranty does not
cover these accessories.

The warranty does not apply in the event
of improper use.

1

Contents

Safety information ................................ 1

Contents ................................................. 2

Overview ................................................ 4

Front view.......................................... 4

Rear view ........................................... 4

Product description............................... 5

Highlights ........................................... 6

Applications ....................................... 6

Features.................................................. 7

Product data....................................... 7

Certification........................................ 7

Audio.................................................. 7

SMS ................................................... 7

Data ................................................... 7

Fax ..................................................... 7

Supplementary services .................... 8

External interfaces ............................. 8

Accessories ....................................... 8

Installation ............................................. 9

Package contents /

scope of delivery................................ 9

Safety and installation information..... 9

Attaching theTerminal....................... 9

Interface description........................... 11

Plug-in power supply unit ................ 11

Handset connector .......................... 15

Antenna connector

FME (male) ...................................... 21

RS232 interface ............................... 23

Startup ................................................. 26

Switching onTerminal ..................... 26

Switching off /

resetting the Terminal...................... 27

2

Contents

Operating states / LED ........................ 29

POWER DOWN ............................... 30

Network search ............................... 31

Standby............................................ 31

Talk .................................................. 31

AT command control .......................... 32

SW update ........................................... 33

Compatibility ....................................... 34

Compatibility withthe predecessor,

the M20Terminal ............................ 34

Certification / maintenance ................ 35

Certification...................................... 35

Maintenance tips ............................. 35

Index ..................................................... 36

3

Overview

Front view

Rear view

Plug-in power

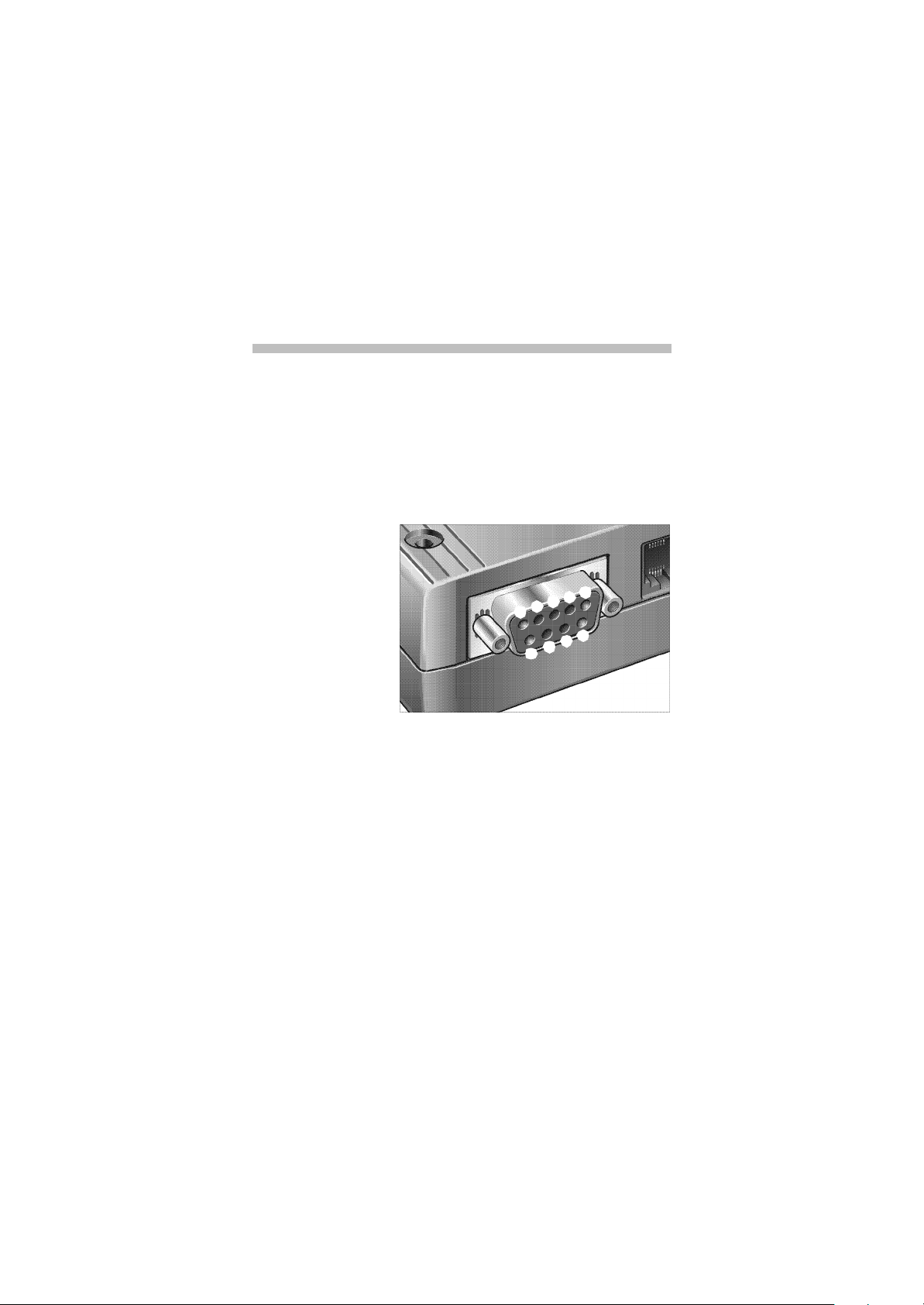

RS232 interface
(9-pin D-Sub)

LED display

Antenna
connector

Handset
connector

4

Mini-SIM
card holder

Product description

The TC35 Terminal is a compact GSM
modem for the transfer of data, voice,
SMSand faxes in GSM networks. Industrial
standard interfaces and an integrated
SIMcard reader mean it can be used rapidly,
easily and universally as a dual band GSM
Terminal. Its performance band width and
the robust housing make it easier to quickly
implement new applications in areas such as
telemetry and telematics.

The features, functions and interfaces of the
GSM Terminal TC35 T are described below.

The functionality of the Terminal
corresponds to the features of the TC35
module, to which a SIM card reader, an
RS232 interface, an analog interface for the
handset interface and a greater supply
voltage range have been added.

All the external interfaces of the GSM
Terminal TC35 T are integrated permanently
in the housing. The plug-in connections are
standardised and suitable for use under
vibration.

5

Product description

Highlights • Dual-band EGSM900 / GSM1800

• Data, voice, SMS and fax

• R&TTE approval, GCF approval

• Easy to integrate

• Industrial interfaces

• LED display

• Wide input voltage range

• Highly compact, light and powerful

Applications • Fleet management

• Teleservice

• Security systems

• Telematics

• Telemetry

• Remote monitoring

• Remote meter reading

• Vending machines

6

Features

Product data • Dual-band EGSM900 and GSM1800

• Certified in accordance with GSM
phase2/2+

• Output performance:
– Class 4 (2 W) for EGSM900
– Class 1 (1 W) for GSM1800

• Control via AT commands

• Input voltage range +8V ... +30V

• Dimensions: 65 x 74 x 33mm

• Weight: approx. 130g

Certification • R&TTE approval

• GCF approval

Audio • Half rate (HR)

• Full rate (FR)

• Enhanced full rate (EFR)

SMS • Point-to-point MT and MO

• SMS cell broadcast

• Text and PDU mode

Data • CSD up to 14.4kbps

• USSD

• Non-transparent mode

• V.110, V.32

Fax • Group 3, classes 1, 2

7

Features

Supplementary

services

• Phone book

• Multiparty

• DTMF (Dual Tone Multi Frequency)

External interfaces • Connector for plug-in power supply unit

• Handset audio interface

• Mini-SIM card holder

• Antenna connector FME (male)

• RS232 interface (V.24/V.28 on the Sub-D
socket)

Accessories Antennae, SIM cards, power supply units,

RS232 cables, handsets and a mounting kit
for top-hat rails can be obtained from
different manufacturers. Recommended
suppliers are listed in the corresponding
interface description.

8

Installation

Package contents /

scope of delivery

Safety and

installation

information

Attaching

theTerminal

• Package unit:
TC35 Terminal
and user guide L36880-N8600-A100

• TC35 Terminal S30880-S8600-A10

• User guide A31008-H8600-A1-*-7619

• The Terminal should be installed and set
up only by qualified personnel.

• Connect a fast 1.25A fuse to the incoming
line for the positive supply voltage to
protect the Terminal.

• If a power supply unit is used to supply the
TC35 Terminal, it must meet the demands
placed on SELV circuits in accordance with
EN60950. When using batteries and
accumulators, adhere to the relevant
regulations.

• The maximum permissible connection
length between the TC35 Terminal and
the supply source is 3m.

• Your supplier will be pleased to provide
you with a detailed technical description
and technical support for the SIEMENS
TC35 Terminal.

The TC35 Terminal can be attached with two
screws. Use screws approx.50 mm long
and Ø 3mm. The TC35 Terminal can be
attached to a top-hat rail using an additional
fixture (see the following page).

9

Installation

Mounting kit for top-hat rail installation

The TC35 Terminal can be attached to a
35mm top-hat rail using this mounting kit.
There are two screws that are used tofix the
top-hat rail adapter to the TC35 Terminal.
The TC35 Terminal can be inserted onto the
top-hat rail using this adapter.

10

Interface description

The following interfaces are available on the
TC35Terminal:

• Connector for the plug-in power supply
unit

• Handset connector

• Mini-SIM card holder

• Antenna connector FME (male)

• RS232 interface (V.24/V.28 on the D-Sub
socket)

Plug-in power

supply unit

The TC35 Terminal receives its power supply
in a wide voltage range (+8 V ... +30 V) via
the power supply connectors. Two
additional control lines are used for
switching the Terminal on/off (resetting). The
connection is implemented by a 6-pin Mini­Western connector.

Connector for the plug-in power supply unit

1 +

3

4

2

1

5

6

2 free

3 PD_IN
4 IGT_IN

5 free

6 GND

11

Interface description

Purpose of the connectors/connections

Signal
name

+ 1 I Positive supply voltage

PD_IN 3 I Reset input

IGT_IN 4 I Ignition input

GND 6 I Negative supply voltage

PIN I/O Description Parameters

connection

2 Free

high active

high active

5 Free

connection
Reference potential for
PD_IN and IGT_IN

Use and operation

The power supply is implemented by the
+- and the GND wire. To switch the TC35
Terminal on, proceed as follows:

– Either activate the DTR control line via the

RS232 interface

– Or connect IGT_IN to +. This connection

has already been set up in the specified
plug-in power supply unit below, see
"Connectible plug-in power supply unit" on
page14.

+8V...+30V
max. 33V for
1min

U

>+5V

IH

(>3.5s)
U

<+2V

IL

U

> +5V

IH

(>200ms)
U

<+2V

IL

0V

12

Interface description

Polarity reversal protection

Polarity reversal protection is implemented
by means of a power diode. The diode has a
reverse voltage of 400V.

Overvoltage protection

Overvoltages are suppressed by a Zener
diode after the polarity reversal protection
diode.

Fuses

A permanently installed, non-replaceable
fuse in the TC35 Terminal ensures electrical
safety in the event of faults. Connect a fast

1.25A fuse to the supply line of the positive

supply voltage for general protection of the
Terminal, see "Safety and installation
information" on page9.

13

Interface description

Interference immunity

• The cable length must not exceed 3m

• Current carrying capacity <1.5A (Western
modular jack)

• Nominal signal range: 0...+30V

• Max. load current 1.5A

• Electrical fast transient burst
requirements in accordance with
ETS 300-342-1

• Surge immunity requirements in
accordance with ETS 300-342-1

• Electrostatic discharge requirements in
accordance with ETS 300-342-1

• Immunity RF common mode

0.15–80MHz in accordance with
ETS 300-342-1

• Transients and surges in a vehicular
environment

• Voltages dips and interruption

Connectible plug-in power supply unit

Item Order no. Supplier

Plug-in power supply
unit for the TC35
Terminal

39001 Sphere Design

Saarpfalz-Park 10
D-66450 Bexbach Saar
Tel.: +49 6826 / 5200-0
Fax: +49 6826 / 5200-25
E-mail: [e-mail]

14

Interface description

Handset connector The handset is connected via a 4-pin Mini-

Western socket. The audio interface has a
symmetrical design. The audio interface can
be configured by AT commands.
Threeaudio modes are prepared in the GSM
module for this purpose.

Mode 1 (default):

The "Handset for Cellular Engine Siemens
Terminal M20T, MC35T, TC35T, DSB35"
can be connected to the TC35 Terminal
(approved configuration and recommended
handset).

Mode 4:

Any handset can be connected to the
TC35Terminal. The audio parameters can be
adapted by means of AT commands. New
approval must be obtained for this
combination.

Mode 5:

The frequency responses have a linear
setting in this mode for any audio
equipment. Echo suppression and side tone
are switched off.

15

Interface description

Handset connector

2

1

Purpose of the connectors/connections

Signal
name

MICN 1 DC:O

MICP 4 DC:O

EPN 2 O Earpiece

EPP 3 O Earpiece

PIN I/O Description Parameters

Microphone input

AC:I

minus

Microphone input

AC:I

plus

connector

connector

1 MICN

3

4

2 EPN
3 EPP
4 MICP

DC (no load):

U

=6.0V±10%

0

(MICP)
U

=0V (MICN)

0

R

=4.7k (MICP)

i

R

=4.7k (MICN)

i

AC: U

imax

Z

=2kΩ

i

=1.03V

Gain range:0...42dB

U

=3.7VPP, no load

0max

R

=15Ω

i

Gain range:–18...0dB

PP

16

Interface description

Use and operation

A connected handset can be used when the
customer application initiates the TALK state
with AT commands via the RS232 interface.

Interference immunity

• The connecting cable must not exceed
3m in length.

• Electrical fast transient burst
requirements (cable is >3m)

• Surge immunity requirements not
specified

• Electrostatic discharge requirements in
accordance with ETS 300-342-1

• Immunity RF common mode

0.15–80MHz in accordance with
ETS300-342-1

Connectible handset

Item Order no. Supplier

Votronic handset
Handset for
the TC35 Terminal

HH-SI-30.3/
V1.1/0

Votronic GmbH
Saarbrücker Str. 8
D-86386 St. Ingbert
Tel.: [phone]
Fax: [phone]

17

Interface description

SIM card connector

The connector is intended for 3V SIM cards
in accordance with GSM11.12 phase2 to
operate the Terminal.

The SIM card (3V type) must be inserted in
the card holder to put the TC35 Terminal into
operation.

1. Make sure that there is no voltage applied
to the TC35 Terminal.

2.Operate the eject mechanism (yellow pin
next to the card holder) to open the card
holder by pressing it down with a pen, for
example.

18

Interface description

3.Insert the SIM card in the SIM card holder
and push it back into the housing.

19

Interface description

Purpose of the connectors/connections

Signal
name

CCIN 24 I Input for detection

CCRST 25 O Restart R

CCIO 26 I/O Date input/output Input: R

CCCLK 27 O Clock R

CCVCC 28 O Supply voltage CCVCC

CCGND 29 X

PIN I/O Description of the

GSM module
connectors

of the SIM card;

high active

Use and operation

A SIM card holder from Molex with a SIM_IN
contact is used. Only when the card holder
is inserted is the switched closed.

The card can only be replaced when the
GSM engine is in the POWER DOWN state.

Parameters

R

=100kΩ to GND

i

U

iLmax

@I=0.1mA

U

iHmin

U

=220Ω

0

Output: R

=220Ω

0

CCVCC

I

=50mA

max

=0.4V

=1.95V

=3.3V

iHmax

≥ 1MΩ

i

=220Ω

0

=2.84V

min

=2.96V

max

20

Interface description

The Bootbox BB35 enables software to be
updated via the SIM interface. The Bootbox
is connected instead of a SIM card (see
"Bootbox BB35" on page33).

Interference immunity

Electrostatic discharge requirements in
accordance with ETS 300-342-1

Antenna connector

FME (male)

Signal name PIN I/O Description

RF Inner I/O RF input/output

GND Outer X Frame connection

A dual band antenna (GSM 900/1800) can
beconnected to the RF interface. The
connection is implemented as a 50
(male) coaxial jack.

Antenna connector

Inner

Purpose of the connectors/connections

Ω FME

Outer

21

Interface description

Transmission type and method

• Digitally modulated RF burst signal

• GMSK in accordance with GSM05.04

• Half duplex

• Bidirectional

Interference immunity

• Electrostatic discharge requirements in
accordance with ETS 300-342-1

• Electrical fast transient burst
requirements (cable is >3m)

• Surge immunity requirements not
specified

• Electrostatic discharge requirements in
accordance with ETS 300-342-1

• Immunity RF common mode

0.15–80 MHz in accordance with
ETS300-342-1

Connectible antenna

Item Order no. Supplier

Dual-band antenna
(900/1800MHz)
Magflex Dual

300574 Dynaflex Antennen

Vertriebs GmbH
Genker Str. 16
D-53842 Troisdorf
Tel.:[phone]
Fax:[phone]

22

Interface description

RS232 interface The RS232 interface is the interface for the

application software and the connection to
the PC. The customer application
communicates with the TC35 Terminal or
the TC35 GSM engine by means of
ATcellular commands. The RS232 interface
is implemented as a 9-pin D-Sub socket with
a screw fitting.

RS232 interface – 9-pin D-Sub

1

2

3

4

5

6

7

8

9

23

Interface description

Purpose of the connectors/connections

Signal
name

DCD 1 O The functions

RXD 2 O logical 1=low <–5V

TXD 3 I active high >2.4V

DTR 4 I active high >2.4V

GND 5 0V

DSR 6 O active high >5V

RTS 7 I active high >2.4V

CTS 8 O active high >5V

RI 9 O active high >5V

PIN I/O Description Parameters

correspond to those
of a serial interface
on the basis of a
V.24 protocol.

Use and operation

In order to control the Terminal and transfer
data, the customer application (e.g. host
computer) is connected via the RS232 cable.

active high >5V
low <–5V

logical 0=high >+5V

low <1.8V

low <1.8V

low <–5V

low <1.8V

low <–5V

low <–5V

24

Interface description

Interference immunity

• The connecting cable must not exceed

1.8m in length.

• Nominal signal range: ±15V

• Max. load current 1A

• Electrical fast transient burst
requirements not specified

• Surge immunity requirements not
specified

• Electrostatic discharge requirements in
accordance with ETS 300-342-1

• Immunity RF common mode

0.15–80MHz in accordance with
ETS300-342-1

Connectible RS232 connecting cable

Item Order

RS232 connecting cable
9-pin D-Sub
extension 1:1

no.

300574 Tecline

Supplier

Behrener Str. 8
D-66117 Saarbrücken
Tel.:[phone]
Fax:[phone]

25

Startup

Before startup, the components required for
your application must be connected. The
SIM card must be inserted in a deenergized
state.

The TC35 Terminal is ready for operation
when supply voltage is applied and the
ignition line is activated. If the
recommended plug-in power supply unit is
used, the ignition line is already connected
to the supply voltage line, and the TC35
Terminal is thus immediately switched to
the active state. It starts the network search
and registers with network operator. Please
read the following conditions for switching
the Terminal on and off:

26

Switching

onTerminal

Simply applying supply voltage (+ to pin 1
and GND to pin 6) alone is not enough to
switch on the TC35 Terminal.

It can be switched on in two different ways:

Activation of the IGT_IN ignition signal
on the power supply connection

The switching regulator is switched on with
the IGT_IN=high signal. When the
switching regulator is switched on, VBAT is
generated as the operating voltage for the
GSM module. This still does not activate the
GSM module. Triggered by VBAT, a
transistor switch generates the IGT ignition
signal with a delay of approx. 100ms for the
GSM module. Only then is it switched on.
(Itexits the POWER DOWN operating
state.)

Startup

In its energized state, the GSM module
provides the supply voltage (VDD). VDD
ensures that the switching regulator
remains on, even when its closing condition
is lost (i.e. IGT_IN=low).

Explanation:
VBAT=operating voltage for the GSM
module
VDD=supply voltage from the module

Activation of the RS232 control line DTR

The TC35 Terminal can be switched on in the
same way as via IGT_IN by activating the
RS232 control line DTR (high signal).

Note

The TC35 Terminal is switched on
immediately using the recommended plug­in power supply unit (see the above
explanation on startup).

Switching off /

resetting the

Terminal

The Terminal can be switched off in two
different ways:

Using a software command by means of
an AT command

A software shutdown via an AT command is
always advisable for a controlled shutdown
of the TC35 Terminal. In this case, the GSM
module signs off before the watchdog
condition results in the specific switching off
of the supply voltages.

27

Startup

Activation of the PD_IN reset signal on
the power supply connection

The POWERDOWN line on the GSM
module is connected to the watchdog input
pin of the power supply ASIC, which can
only be switched off by changing the
watchdog condition. To do this, the PD_IN
Terminal reset line is active (high) for at least

3.5s. This results in immediate, "hard"

disconnection, with the TC35 Terminal
unable to sign off correctly from the base
station in the STANDBY and TALK operating
states .
In the case of this hardware shutdown, the
software is no longer able to respond before
the voltage is switched off. This corresponds
to a direct, unannounced disconnection of
the operating voltage. In the application you
can switch off or reset the module without
interrupting the input voltage supply.

28

Operating states / LED

LED

The LEDs display the following operating
states of the Terminal:

Operating state LED

After connecting the plug­in power supply unit

POWER DOWN Off

– Network search or
– no SIM card is inserted

or

– no PIN is entered

(via PC) or

– no GSM network is

available

STANDBY
(registered in the network)

Connection (TALK) On

On for 2 s

Flashes rapidly

Flashes slowly

29

Operating states / LED

Note:

Usually, the network search takes only a
fewseconds till the Terminal is registered. If
the flashing continues, this means that no
SIM card is inserted, no PIN number is
entered or no GSM network is available.

POWER DOWN Once the operating voltage is applied (+ and

GND), the TC35 Terminal is in the POWER
DOWN state.

The operating voltage for the GSM module
is disconnected (the switching regulator is
off). In other words, the software of the
GSM module is not active.

A transition to the POWER DOWN state
always occurs in the following
circumstances:

• When the Terminal (module) is shut down
by means of AT commands (e.g. sleep
mode).

• When the external reset line is active.

30

Operating states / LED

Network search

(no SIM card,

no PIN number,

no GSM network)

Standby In the STANDBY state, the TC35 Terminal is

Talk In TALK mode a connection has been

In the network search state, the TC35
Terminal searches for a GSM network. All
the components in the GSM Terminal
(module) that are not required are shut down
in several stages by the energy-saving
software.

This state is reached:

• From the POWER DOWN state: by an
active ignition (on) signal at the power
supply connection or

• From the TALK or STANDBY state: when
the network is lost (out of range)

ready to send and receive and registered in
the network. Paging is performed with the
GSM network in order to obtain
synchronisation with the GSM network
(repetition rate dependent on the
BSPA_Mutiframe=2...9 parameter). All
the components that are not required are
shut down in several stages by the energy­saving software. Power consumption in this
state depends on the current network
availability.

established between two subscribers via
the GSM network. Power consumption is at
the maximum and depends on the GSM
network availability and several connection
settings (e.g. DTX off/on, FR/EFR/HR,
hopping sequences and antenna coupling).

31

AT command control

The TC35 Terminal is controlled and
programmed by means of AT commands.
The AT command structure corresponds to
the TC35 module used. The AT commands
can be obtained from the ICM WM home
page: www.siemens.com/wm.

32

SW update

A SW update for the TC35 Terminal takes
place via the RS232 interface or the SIM
interface. These interfaces must be
designed in such a way that the upgrading
ofthe TC35 Terminal is integrated in the
application. The software can be obtained
from the ICM WM home page. The SW
package is self-unpacking and menu-driven.
The Bootbox BB35 is required for updating
via the SIM interface.

Ordering data for the Bootbox:

Item Product code Source

Bootbox
BB35

L36880-N8102-A100 Via the indirect sales channel,

orders can be placed with your
distributor or system integrator.

Via the direct sales channel (local
companies), orders can be
placed with ICM WM by using
the familiar sales structure.

33

Compatibility

Compatibility

withthe

predecessor, the

M20Terminal

Interfaces M20 Terminal TC35 Terminal Compa-

Power supply unit Mini-Western

Audio interface Mini-Western

Antenna connector FME (female) FME (male) No

PC interface RS232 interface RS232 interface Yes *2)

The direct predecessor of the TC35 Terminal
is the M20 Terminal.

The antenna connector is not compatible.

The modified version (passive version) of the
Votronic handset must be operated at the
audio interface in accordance with
HH-SI-30.3/V1.1/0.

The following table shows the compatibility:

Hardware:

tible

Mini-Western

socket

socket

*1) The studio interface is no longer available
with the TC35 Terminal.

*2) All the control lines are brought out of
the TC35T.

Software:

The command set of the M20 Terminal has
been modified and extended for the TC35
Terminal and is thus not 1:1 compatible. A
migration paper with the modifications is
available at the ICM WM home page on the
Internet.

socket

Mini-Western
socket

Yes

Yes *1)

34

Certification / maintenance

Certification The TC35 with its IMEI number is approved

for operation in GSM networks and
complies with the following EU directives:

• Directive 89/336/EEC on electromagnetic
compatibility

• Directive 98/13/EC, CTR 19 and CTR 20,
on telecommunications Terminal
equipment

• Directive 98/13/EC, CTR 31 and CTR 32,
on telecommunications Terminal
equipment

• Directive 73/23/EEC on low voltage,
supplemented by Directive 93/68/EEC

Maintenance tips • Treat the SIM card with the same care as

your credit card. Do not bend or scratch
the SIM card or expose it to static
electricity.

• Wipe the Terminal housing with a moist or
antistatic cloth. Do not use a chemical
cleaning agent.

35

Index

A

Accessories 8
Antenna connector 4, 11, 21
AT command control 32
Audio 7

B

Bootbox 33

C

Certification 7, 35
Compatibility 34

D

Data 7

E

External interface 8

F

Fax 7
Features 7
Fuses 13

H

Handset connector 4, 11, 15

I

Installation 9
Interface description 11

L

LED 4, 29

M

Maintenance 35
Mini-SIM card holder 4, 11

N

Network search 31

O

Operating state 29
Overview 4
Overvoltage 13

P

Package contents / scope of
delivery 9
Plug-in power supply unit 4, 11
Polarity reversal 13
Power down 30
Product data 7
Product description 5

R

RS232 interface 11, 23

S

Safety and installation
information 9
Safety information 1
SIM card connector 18
SMS 7
Standby 31
Startup 26
SW update 33
Switching off 27
Switching on 26

T

Talk 31
Top-hat rail installation 10

36

Issued by Siemens AG
ICM Wireless Modules
Haidenau Platz 1, D-81667 Munich
Germany

www.siemens.com/wm

Subject to changes in technology and availability.

Order no.: A31008-H8600-A1-1-7619

Printed in Germany

be inspired

Wireless
Modules
