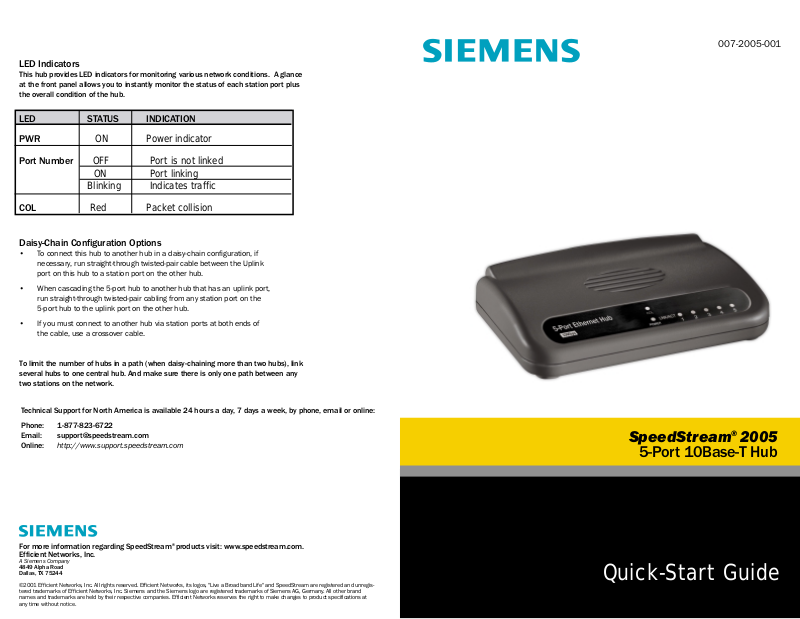

Siemens SpeedStream 2005 User guide

SpeedStream® 2005

5-Port 10Base-T Hub

Quick-Star t Guide

007-2005-001

LED Indicators

This hub provides LED indicators for monitoring various network conditions. A glance
at the front panel allows you to instantly monitor the status of each station port plus
the overall condition of the hub.

LED STATUS INDICATION

PWR ON Power indicator
Port Number OFF Port is not linked

ON Port linking

Blinking Indicates traf fic

COL Red Packet collision

Daisy-Chain Configuration Options

• To connect this hub to another hub in a daisy-chain configuration, if
necessary, run straight-through twisted-pair cable between the Uplink
port on this hub to a station port on the other hub.

• When cascading the 5-por t hub to another hub that has an uplink port,
run straight-through twisted-pair cabling from any station port on the
5-port hub to the uplink port on the other hub.

• If you must connect to another hub via station ports at both ends of
the cable, use a crossover cable.

To limit the number of hubs in a path (when daisy-chaining more than two hubs), link
several hubs to one central hub. And make sure there is only one path between any
two stations on the network.

For more information regarding SpeedStream® products visit: www.speedstream.com.
Efficient Networks, Inc.

A Siemens Company

4849 Alpha Road
Dallas, TX 75244

©2001 Efficient Networks, Inc. All rights reserved. Efficient Networks, its logos, "Live a Broadband Life" and SpeedStream are registered and unregis­tered trademarks of Efficient Networks, Inc. Siemens and the Siemens logo are registered trademarks of Siemens AG, Germany. All other brand
names and trademarks are held by their respective companies. Efficient Networks reserves the right to make changes to product specifications at
any time without notice.

Technical Support for North America is available 24 hours a day, 7 days a week, by phone, email or online:

Phone: [phone]
Email: [e-mail]
Online: http://www.support.speedstream.com

Package Contents

Your package includes the following:

Before you begin:

Step

1

Hardware Installation

1. Select an appropriate location.

2. Connect your workstation to any available RJ-45 port on the hub using twisted-pair cable.

All end-node devices must be within 328 ft (100 meters) of the connected hub.
Using the hub in a stand-alone configuration, you can network up to 5 workstations.

RJ-45 Ports

There are 5 RJ-45 station ports, each providing a 10Mbps Ethernet channel.

• To connect to a workstation or server, attach a straight-through
shielded/unshielded twisted-pair cable to any station port.

• To connect to another compatible hub, run straight-through twisted­pair cabling from the “Uplink” port on this hub to a station port on
the other hub.

• To connect to another hub, you may also run straight-though twisted­pair cabling from a station port on any of the hubs to an uplink
port on another hub.

5

-P

ort Ethernet H

ub

1

0

M

b

p

s

C

O

L

POWER

LINK/ACT

1

2

3

4

5

12VDC 0.5A

5

4

3

2

1

Uplink

RJ-45

Power

Ethernet Hub (5-port 10Base-T) AC Power Adapter

Safety and Quick-Start Guide Extended Warranty

Certifications and Registration Card

Information

SpeedStream® 2005

5-Port 10Base-T Hub

5

4

L
O
C

3

b

T
C
A

u

/

2

K

H

N
I

L

t

1

e
n
r
e

h
t
E

t

R
E

r

W

o

O
P

P

-

5

s

bp

M

Safety and Certifications

S

p

e

e

d

S

t

10

®

re

a

m

Quick-Start Guide
