Siemens SIMOTICS TN N-compact 1LH8, SIMOTICS TN N-compact Series Operating Instructions & Installation Instructions
Page 1
www.siemens.com/drives
Operating Instructions
Installation Instructions
Low-voltage motor
SIMOTICS TN Series N-compact
Type 1LH8
Edition 06/2017
Page 2
06.06.2017 10:16
V15.00
Page 3
Low-voltage motor
SIMOTICS TN Series N-compact
Type 1LH8
Introduction
1
Operating Instructions
Installation Instructions
Safety information
Description
Preparations for use
Assembly
Electrical connection
Start-up
Operation
2
3
4
5
6
7
8
Maintenance
Spare parts
Disposal
Service and Support
Technical data
Quality documents
9
10
11
A
B
C
Edition 06/2017
Page 4
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will be
used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to property
damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions. Qualified
personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended or
approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software described.
Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the information in
this publication is reviewed regularly and any necessary corrections are included in subsequent editions.
Siemens AG
Process Industries and Drives
Postfach 48 48
90026 NÜRNBERG
GERMANY
Document order number: A5E03472650
Ⓟ 06/2017 Subject to change
Copyright © Siemens AG 2017.
All rights reserved
Page 5
Table of contents
1 Introduction.................................................................................................................................................11
1.1 About these instructions.........................................................................................................11
1.2 Compiling personal documents..............................................................................................11
2 Safety information.......................................................................................................................................13
2.1 Information for the nominated person in control of the electrical installation.........................13
2.2 The five safety rules...............................................................................................................13
2.3 Qualified personnel................................................................................................................14
2.4 Safe handling.........................................................................................................................14
2.5 Electrostatic sensitive devices...............................................................................................16
2.6 Interference immunity.............................................................................................................17
2.7 Influence on the line power supply through a strongly irregular torque..................................17
2.8 Interference voltages when operating the converter..............................................................17
2.9 Electromagnetic fields when operating electrical power engineering installations.................18
3 Description..................................................................................................................................................19
3.1 Comparison of IEC and GOST (D47) standards....................................................................20
4 Preparations for use...................................................................................................................................25
4.1 Safety-related aspects to consider when configuring the plant..............................................25
4.2 Observing the operating mode...............................................................................................25
4.3 Ensuring cooling.....................................................................................................................25
4.4 Cooling water quality..............................................................................................................25
4.5 Thermal motor protection.......................................................................................................26
4.6 Interlock circuit for anti-condensation heating (option)...........................................................27
4.7 Support base for IM B5 construction type..............................................................................27
4.8 Noise emissions.....................................................................................................................27
4.9 Rotational speed limit values.................................................................................................28
4.10 Phase synchronization during supply system switching........................................................28
4.11 Voltage and frequency fluctuations during line operation......................................................28
4.12 System-inherent frequencies.................................................................................................29
4.13 Torsional loading of the drive train due to faults in the electrical supply................................29
4.14 Transport and storage............................................................................................................29
4.14.1 Transport markings................................................................................................................30
4.14.2 Checking the delivery.............................................................................................................30
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 5
Page 6
Table of contents
4.14.3 Lifting and transportation........................................................................................................30
4.14.4 Securing the rotor...................................................................................................................31
4.14.5 Transporting the machine set.................................................................................................33
4.14.6 Storage...................................................................................................................................33
4.14.7 Protecting the cooling water circuit during storage................................................................36
4.14.8 Protection against corrosion...................................................................................................36
4.15 Converter operation...............................................................................................................37
4.15.1 Supply line configuration........................................................................................................37
4.15.2 Converter input voltage..........................................................................................................37
4.15.3 Reducing bearing currents.....................................................................................................38
4.15.4 Converter operation on a grounded network..........................................................................40
4.15.5 Insulated bearings when operating the converter..................................................................40
5 Assembly....................................................................................................................................................43
5.1 Preparations for installation....................................................................................................43
5.1.1 Requirements for installation..................................................................................................43
5.1.2 Insulation resistance and polarization index..........................................................................44
5.1.3 Testing the insulation resistance and polarization index........................................................45
5.1.4 Preparing the mating faces....................................................................................................47
5.2 Lift the machine to where it will be installed, and position it...................................................47
5.2.1 Preconditions for correct alignment and secure attachment .................................................47
5.2.2 Checking the load handling attachments...............................................................................48
5.2.3 Removing the rotor shipping brace........................................................................................48
5.2.4 Removing the rotor shipping brace from machines with vertical type of construction............49
5.2.5 Removing anti-corrosion protection.......................................................................................49
5.2.6 Mounting the output elements................................................................................................50
5.2.7 Lifting and transporting the machine......................................................................................51
5.2.8 Draining condensation...........................................................................................................53
5.2.9 Putting the machine down......................................................................................................54
5.2.10 Roughly aligning the machine................................................................................................54
5.3 Installing the machine............................................................................................................55
5.3.1 Safety instructions for installation...........................................................................................55
5.3.2 Selecting fixing screws...........................................................................................................55
5.3.3 Preconditions for smooth, vibration-free operation................................................................56
5.3.4 Aligning the machine to the driven machine and attaching it to it (IM B3 / IM B35)...............56
5.3.5 Aligning the machine to the driven machine and attaching it to it (IM B5).............................58
5.3.6 Aligning the machine to the driven machine and attaching it to it (IM V1, IM V10)................59
5.3.7 Axial and radial forces ...........................................................................................................59
5.4 Connecting the cooling water supply.....................................................................................60
6 Electrical connection...................................................................................................................................63
6.1 Basic rules..............................................................................................................................64
6.2 Terminal box..........................................................................................................................65
6.2.1 Terminal box 1XB9629...........................................................................................................65
6.3 Preparation.............................................................................................................................65
6.3.1 Checking winding connections...............................................................................................65
6.3.2 Terminal designation..............................................................................................................66
6.3.3 Selecting cables.....................................................................................................................66
6.3.4 Connecting the grounding conductor.....................................................................................66
SIMOTICS TN Series N-compact 1LH8
6 Operating Instructions 06/2017
Page 7
Table of contents
6.3.5 Connecting the machine for a specific direction of rotation....................................................67
6.4 Introducing and routing the cables.........................................................................................67
6.4.1 Inserting the cable into the terminal box................................................................................67
6.4.2 Laying cables.........................................................................................................................68
6.4.3 Connecting cables with cable lugs.........................................................................................68
6.4.4 Use of aluminum conductors..................................................................................................69
6.4.5 Using single-stranded cables.................................................................................................70
6.4.6 Internal equipotential bonding................................................................................................70
6.4.7 Stepless mating face for sealing in the terminal box cover (not for GT640)..........................70
6.4.8 Minimum air clearances.........................................................................................................70
6.5 Connecting the auxiliary circuits.............................................................................................71
6.5.1 Selecting cables.....................................................................................................................71
6.5.2 Connecting temperature monitoring for the stator winding....................................................71
7 Start-up.......................................................................................................................................................73
7.1 Checks to be carried out prior to commissioning ..................................................................73
7.2 Converter operation...............................................................................................................74
7.2.1 Operation on a converter with a low pulse frequency............................................................75
7.3 Measuring the insulation resistance before commissioning...................................................75
7.4 Greasing the roller bearings prior to commissioning..............................................................76
7.5 Setpoint values for monitoring the bearing temperature........................................................77
7.6 Set values for monitoring the winding temperature................................................................77
7.7 Test run..................................................................................................................................78
7.8 De-energizing.........................................................................................................................79
8 Operation....................................................................................................................................................81
8.1 Safety guidelines in operation................................................................................................81
8.2 Switching off the anti-condensation heating...........................................................................82
8.3 Switching on the machine......................................................................................................83
8.4 Regreasing roller bearings.....................................................................................................83
8.5 Switching off the water-cooling system..................................................................................83
8.6 Switching on again after an emergency switching-off............................................................83
8.7 Stoppages..............................................................................................................................83
8.7.1 Avoidance of condensation or formation of condensation within the machine.......................84
8.7.2 Avoidance of frost and corrosion damage in the cooling system...........................................84
8.7.3 Avoidance of damage to roller bearings during stoppages....................................................85
8.7.4 Shaft grounding brushes (option)...........................................................................................85
8.7.5 Measurement of the insulation resistance after an extended stoppage.................................85
8.8 Decommissioning the machine..............................................................................................86
8.9 Re-commissioning the machine.............................................................................................86
8.10 faults.......................................................................................................................................86
8.10.1 Inspections in the event of faults............................................................................................86
8.10.2 Electrical faults.......................................................................................................................88
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 7
Page 8
Table of contents
8.10.3 Mechanical faults...................................................................................................................89
8.10.4 Cooling system faults.............................................................................................................90
8.10.5 Roller bearing faults...............................................................................................................91
9 Maintenance...............................................................................................................................................93
9.1 Inspection and maintenance..................................................................................................93
9.1.1 Safety instructions for inspection and maintenance...............................................................93
9.1.2 Measurement of the insulation resistance and polarization index in the context of
maintenance work..................................................................................................................95
9.1.3 Inspections in the event of faults............................................................................................95
9.1.4 First inspection after installation or repair..............................................................................95
9.1.5 General inspection.................................................................................................................96
9.1.6 Servicing the roller bearings...................................................................................................97
9.1.7 Servicing the water-jacket cooling..........................................................................................97
9.1.8 Servicing and maintaining the anti-condensation heating......................................................97
9.1.9 Regreasing intervals and types of grease for operating roller bearings.................................97
9.1.10 Sealing the rolling-contact bearings ("Increased degree of protection" option)...................101
9.1.11 Cleaning the cooling water ducts.........................................................................................102
9.1.12 Touch up any damaged paintwork.......................................................................................102
9.1.13 Maintaining terminal boxes..................................................................................................102
9.2 Corrective Maintenance.......................................................................................................103
9.2.1 Prepare servicing work.........................................................................................................103
9.2.2 Seal the motor......................................................................................................................104
9.2.3 Screws with preCOTE coating.............................................................................................104
9.2.4 Roller-contact bearings........................................................................................................105
9.2.4.1 Removing roller bearing.......................................................................................................105
9.2.4.2 Remove V ring.....................................................................................................................106
9.2.4.3 Removing the labyrinth sealing ring.....................................................................................106
9.2.4.4 Assembling the rolling-contact bearings..............................................................................107
9.2.4.5 Install the V ring...................................................................................................................108
9.2.4.6 Installing the V ring ("Increased degree of protection" option).............................................109
9.2.4.7 Installing the labyrinth sealing ring.......................................................................................110
10 Spare parts...............................................................................................................................................113
10.1 Ordering data.......................................................................................................................113
10.2 Using commercially available spare parts............................................................................113
10.3 Ordering spare parts via the Internet...................................................................................113
10.4 Anti-condensation heating....................................................................................................114
10.5 Stator and rotor....................................................................................................................115
10.6 Drive end rolling-contact bearings with bearing housing......................................................116
10.7 Drive end rolling-contact bearings without bearing housing.................................................117
10.8 Roller bearings, DE - end shield with integrated bearing cover...........................................118
10.9 Non-drive end rolling-contact bearings with bearing housing..............................................119
10.10 Non-drive end rolling-contact bearings without bearing housing.........................................120
10.11 Roller bearings, NDE - end shield with integrated bearing cover.........................................121
10.12 Rolling-contact bearings with speed sensor assembly........................................................122
SIMOTICS TN Series N-compact 1LH8
8 Operating Instructions 06/2017
Page 9
Table of contents
10.13 Terminal box 1XB9629.........................................................................................................124
11 Disposal....................................................................................................................................................125
11.1 RoHS - restricting the use of certain hazardous substances...............................................125
11.2 Preparing for disassembly....................................................................................................125
11.3 Dismantling the machine......................................................................................................126
11.4 Disposal of components.......................................................................................................126
A Service and Support.................................................................................................................................129
B Technical data..........................................................................................................................................131
B.1 Tightening torques for screw and bolt connections..............................................................131
C Quality documents....................................................................................................................................133
Index.........................................................................................................................................................135
Tables
Table 3-1 Machine design ..........................................................................................................................19
Table 3-2 Data on the rating plate...............................................................................................................21
Table 3-3 Rolling-contact bearing variants..................................................................................................22
Table 4-1 Cooling water specification .......................................................................................................26
Table 5-1 Stator winding insulation resistance at 40° C..............................................................................45
Table 5-2 Permissible deviations for aligning the machine with flexible coupling.......................................57
Table 6-1 Terminal designations using the 1U1-1 as an example..............................................................66
Table 6-2 Determining the cross-section of the grounding conductor.........................................................66
Table 6-3 Minimum air clearance dependent on rms value of the alternating voltage U
.........................70
rms
Table 7-1 Set values for monitoring the bearing temperatures before commissioning...............................77
Table 7-2 Set values for monitoring the bearing temperatures in normal operation ..................................77
Table 7-3 Set values for monitoring the winding temperatures during commissioning...............................77
Table 7-4 Set values for monitoring the winding temperatures in normal operation ..................................78
Table 8-1 Electrical faults .......................................................................................................................88
Table 8-2 Mechanical faults on water-cooled machines ...........................................................................89
Table 8-3 Cooling system faults .............................................................................................................90
Table 8-4 Roller bearing faults ...............................................................................................................91
Table 9-1 Checks after assembly or repair .................................................................................................95
Table 9-2 Checks that have to be performed during the general inspection...............................................96
Table 9-3 Criteria for selecting roller bearing greases.................................................................................98
Table 9-4 Roller bearing greases for vertical and horizontal types of construction ....................................99
Table 9-5 Alternative greases with NLGI class 2 for motors of horizontal construction..............................99
Table 10-1 Spare parts for stators and rotors ............................................................................................115
Table 10-2 Spare parts for drive end roller bearings with bearing housing ................................................116
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 9
Page 10
Table of contents
Table 10-3 Spare parts for drive end roller bearings without bearing housing ...........................................117
Table 10-4 Spare parts for roller bearings, DE............................................................................................118
Table 10-5 Spare parts for non-drive end roller bearings with bearing housing .........................................119
Table 10-6 Spare parts for non-drive end roller bearings without bearing housing ....................................120
Table 10-7 Spare parts for roller bearings, NDE ........................................................................................121
Table 10-8 Spare parts for roller bearings with speed sensor assembly ....................................................122
Table 10-9 Additional spare parts for terminal box 1XB1631 with split cable entry.....................................123
Table 10-10 Spare parts for terminal box 1XB9629 ...................................................................................124
Table B-1 Tightening torques for bolted connections with a tolerance of ±10%........................................131
Figures
Figure 3-1 Schematic diagram of rating plate .............................................................................................20
Figure 4-1 Axial fastening of the rotor...........................................................................................................32

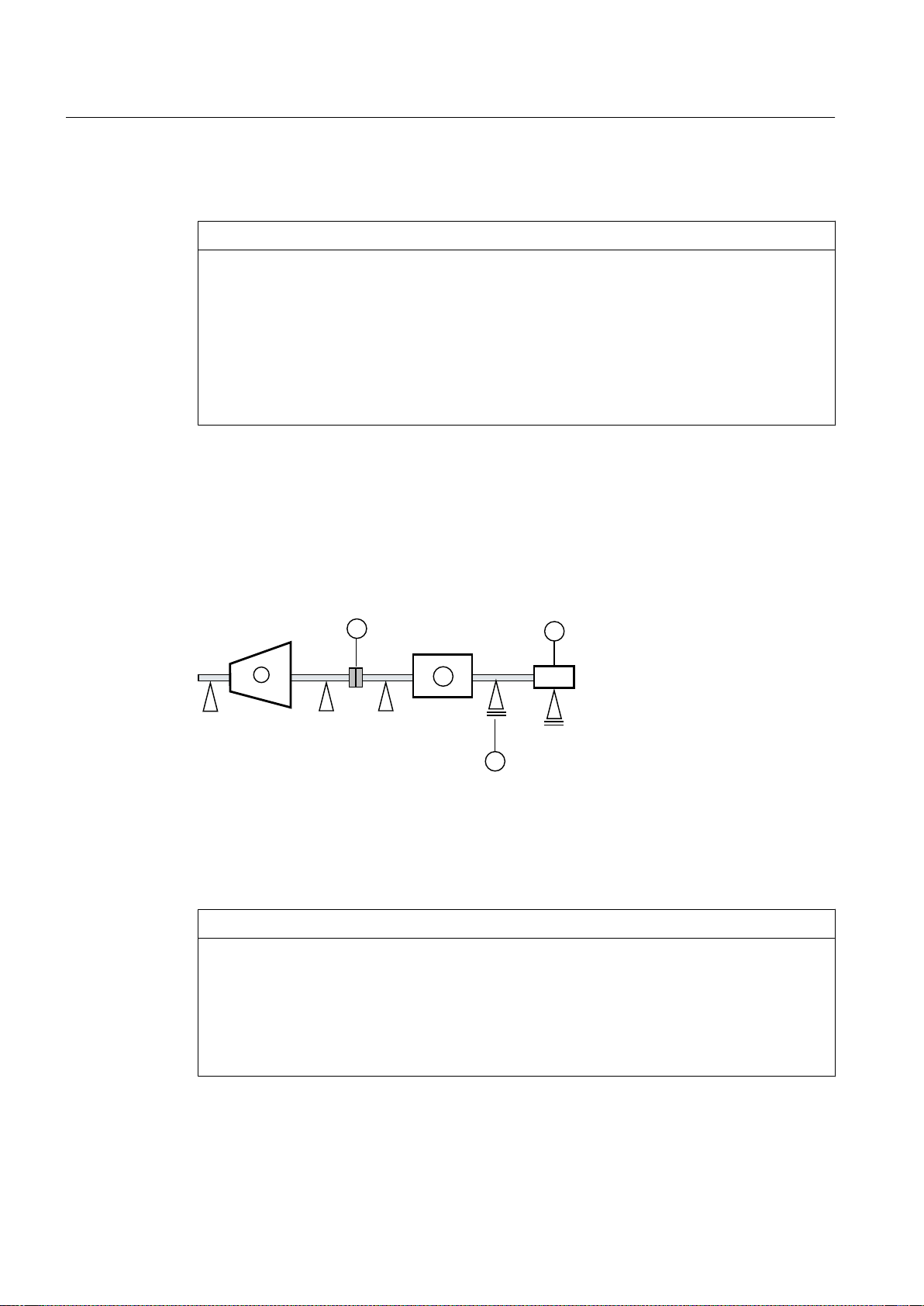

Figure 4-2 Schematic representation of a single drive.................................................................................40

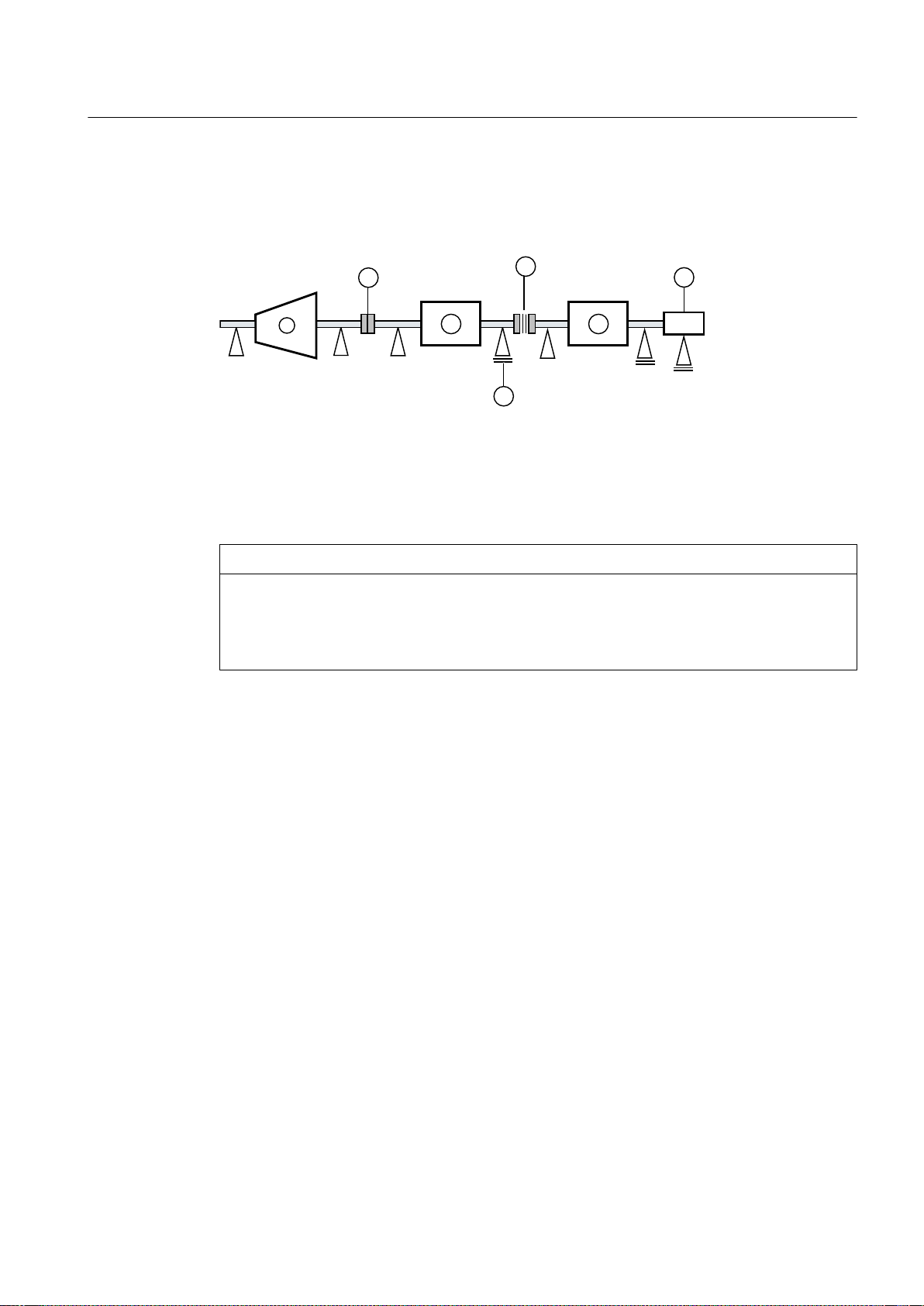

Figure 4-3 Schematic representation of a tandem drive...............................................................................41

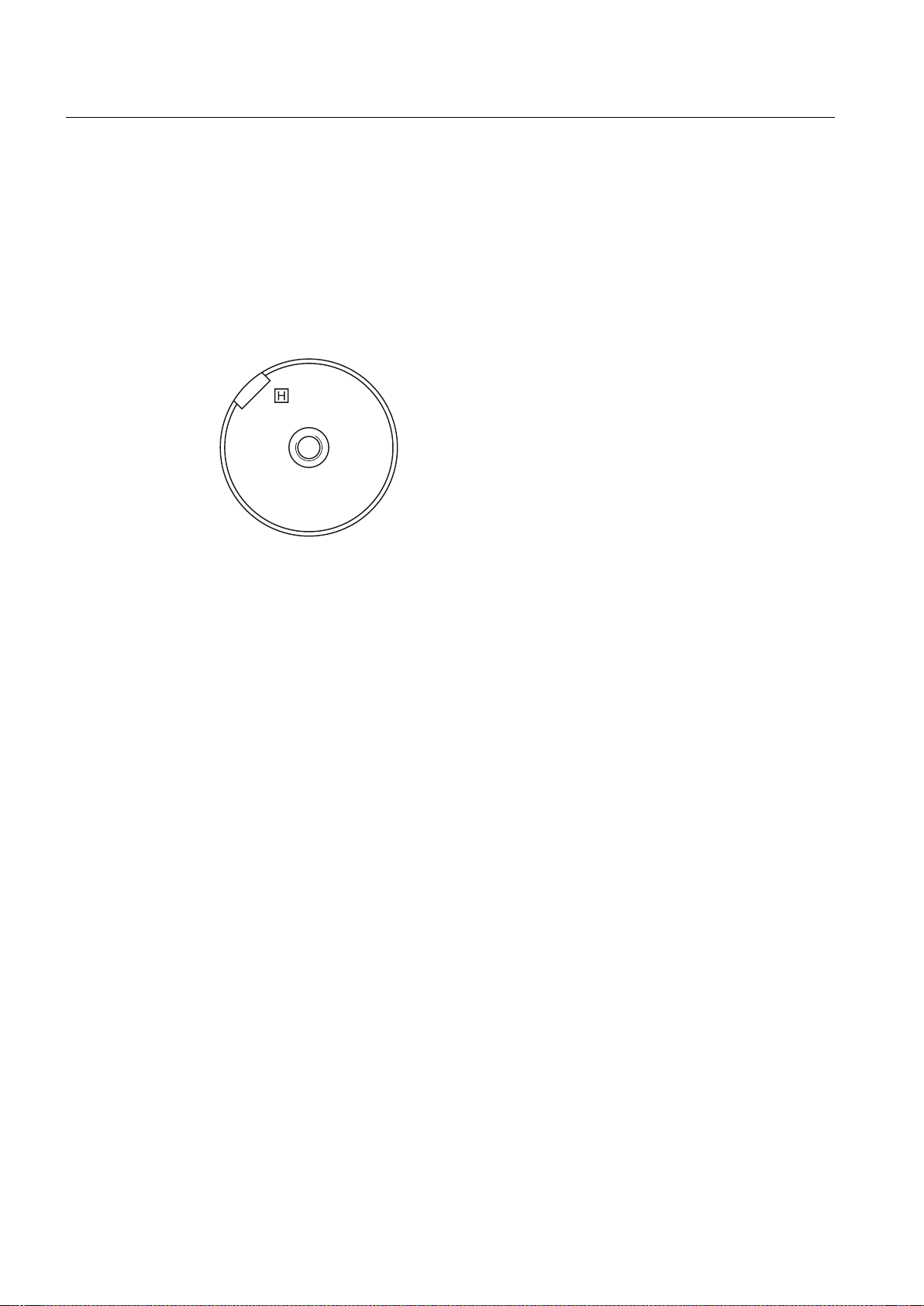

Figure 5-1 Balancing type on the drive-end side..........................................................................................50
Figure 5-2 Schematic diagram of the water drain holes...............................................................................53

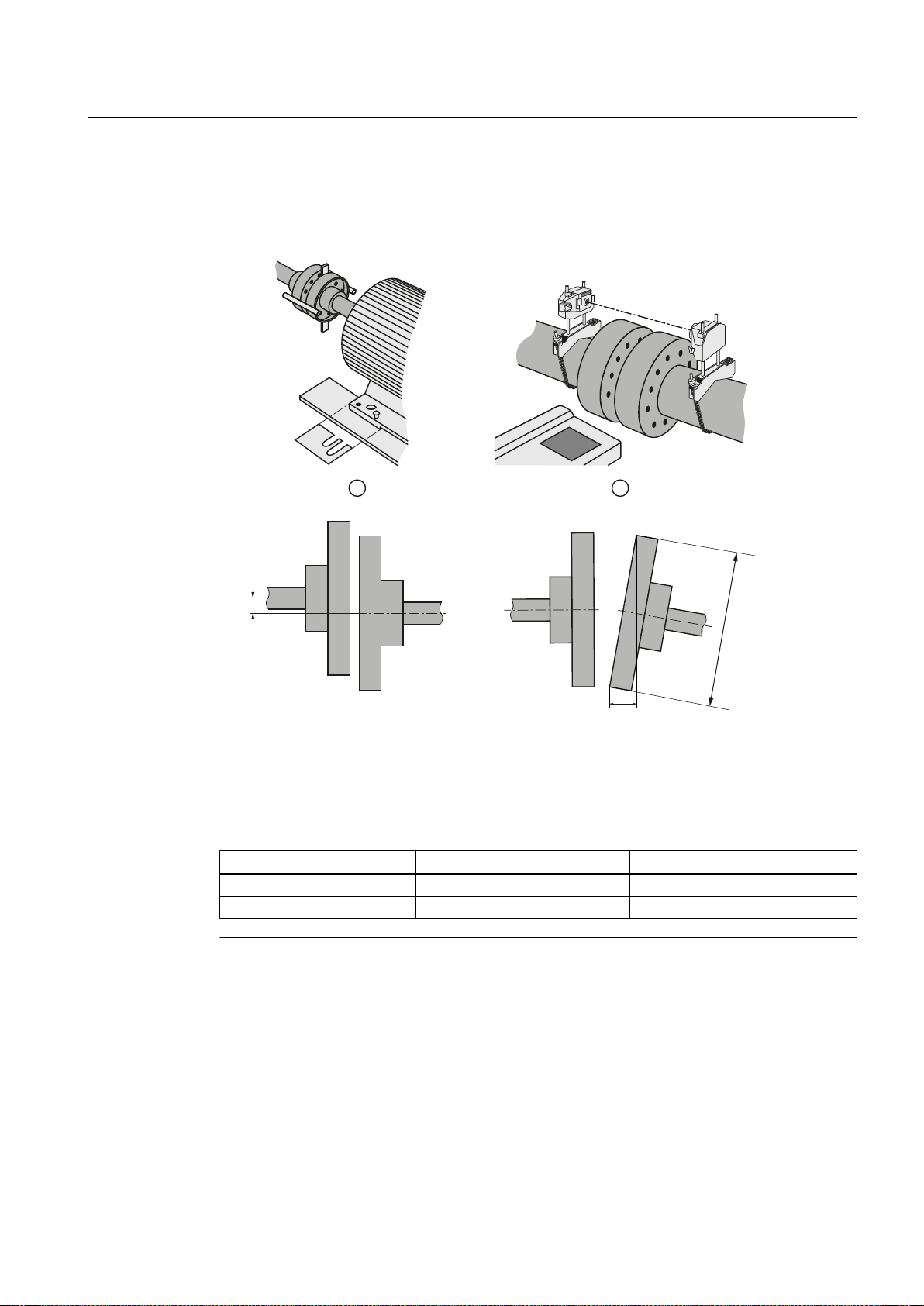

Figure 5-3 Schematic diagram: Aligning the machine to the driven machine...............................................57

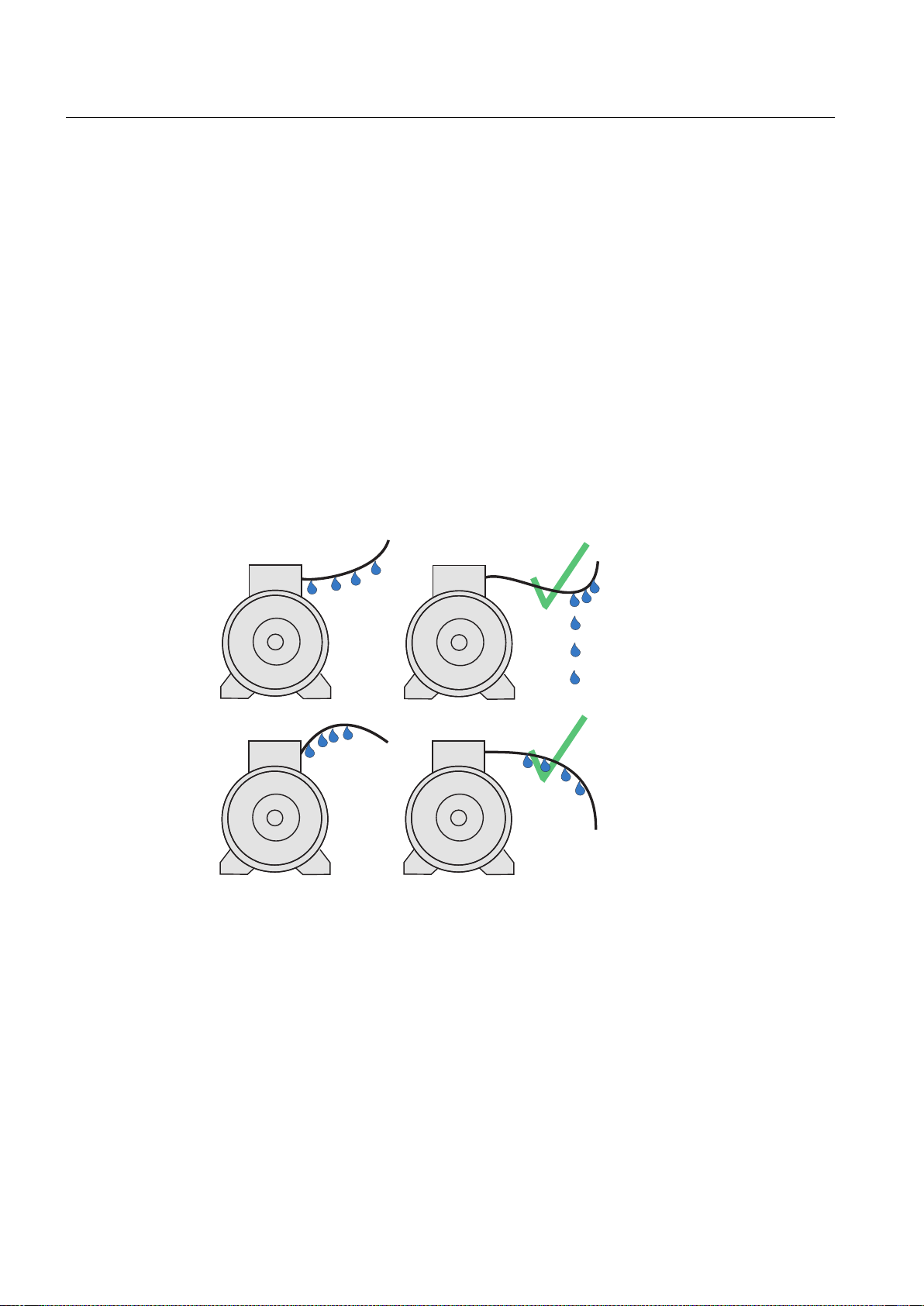

Figure 6-1 Water drip loop............................................................................................................................64

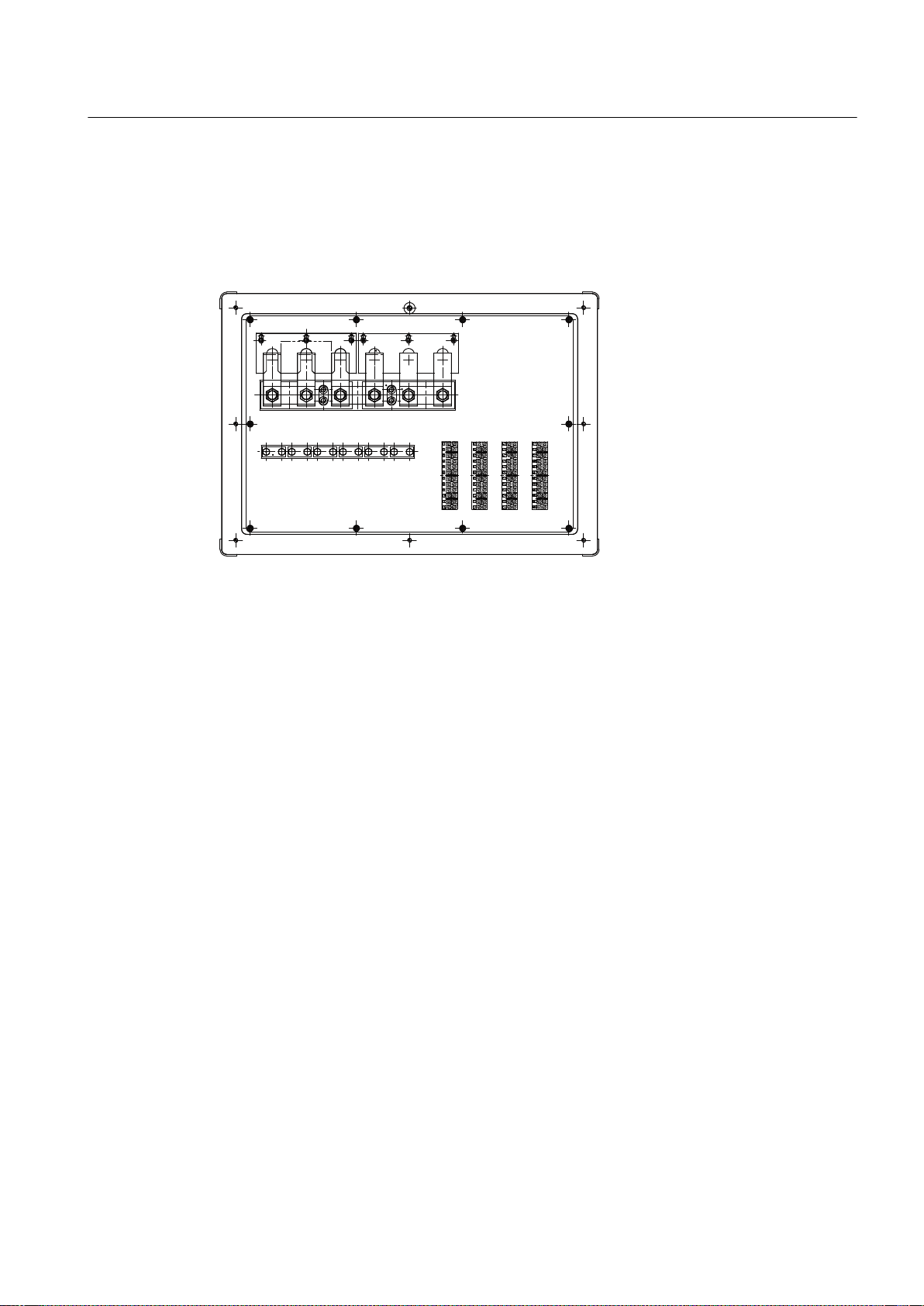

Figure 6-2 Terminal box 1XB9269................................................................................................................65

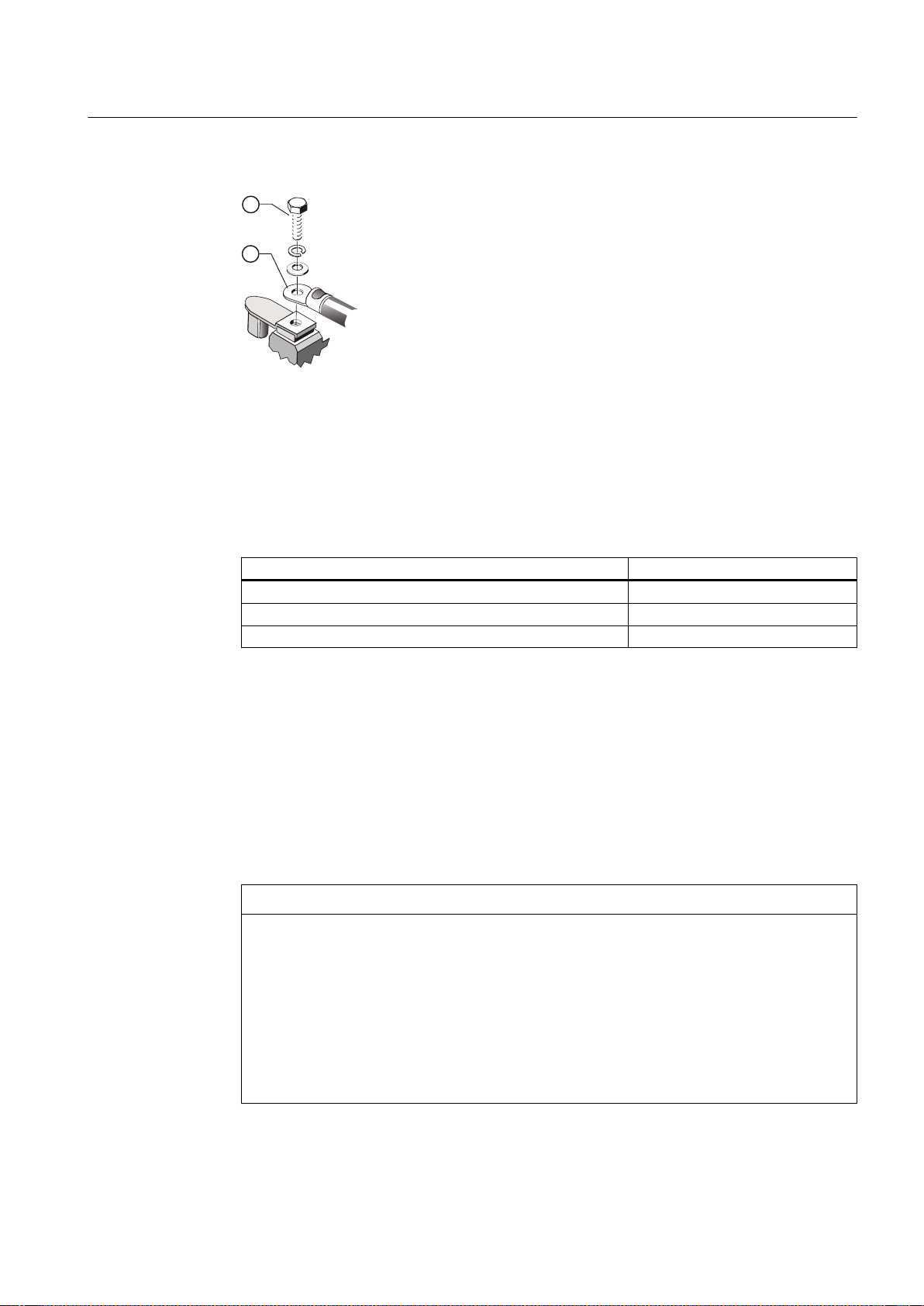

Figure 6-3 Connection with cable lug and fixing screw (schematic diagram)...............................................69
Figure 9-1 Remove the V ring.....................................................................................................................106
Figure 9-2 Disassembling the labyrinth sealing ring (schematic diagram).................................................107
Figure 9-3 Install the V ring.........................................................................................................................109
Figure 9-4 Roller-contact bearing with grease chamber (schematic diagram)...........................................110
Figure 9-5 Position the set screws for the labyrinth sealing ring on the outer bearing cover.....................111
Figure 10-1 Overview of stator and rotor......................................................................................................115
Figure 10-2 Drive end roller bearings with bearing housing.........................................................................116
Figure 10-3 Drive end roller bearings without bearing housing....................................................................117
Figure 10-4 Roller bearings, DE - end shield with integrated bearing cover................................................118
Figure 10-5 Non-drive end roller bearings with bearing housing..................................................................119
Figure 10-6 Non-drive end roller bearings without bearing housing.............................................................120
Figure 10-7 Roller bearings, NDE - end shield with integrated bearing cover..............................................121
Figure 10-8 Speed sensor assembly............................................................................................................122
Figure 10-9 Terminal box 1XB9629..............................................................................................................124
SIMOTICS TN Series N-compact 1LH8
10 Operating Instructions 06/2017
Page 11
Introduction
1.1 About these instructions
These instructions describe the machine and explain how to handle it, from initial delivery to
final disposal of the equipment. Keep these instructions for later use.
Read these operating instructions before you handle the machine and follow the instructions
to become familiar with its design and operating principles and thus ensure safe, problem-free
machine operation and long service life.
Please contact the Service Center if you have any suggestions on how to improve this
document.
See also
Service and Support (Page 129)
Text format features
The warning notice system is explained on the rear of the inside front. Always follow the safety
instructions and notices in these instructions.
1
In addition to the safety-related warning notices which you must read, you will find the text in
these instructions is formatted in the following way:
1. Handling instructions are always formatted as a numbered list. Always perform the steps
in the order given.
● Lists are formatted as bulleted lists.
– Lists on the second level are hyphenated.
Note
A Note is an important item of information about the product, handling of the product or the
relevant section of the document. Notes provide you with help or further suggestions/ideas.
1.2 Compiling personal documents
On the Internet pages in Industry Online Support you have the possibility of compiling personal
documents using the function Documentation (
en/documentation)
Using the "Documentation" function, from Product Support manuals, you can compile your
own "Documentation". However, you can also include other Product Support content such as
FAQs or characteristics in the documentation that you compile.
https://support.industry.siemens.com/My/ww/
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 11
Page 12
Introduction
1.2 Compiling personal documents
In the "Documentation" function, you have the option of creating your own compiled documents
in your own structure and managing them. You can delete or shift individual chapters or topics.
Further, using the note function you can import your own content. The compiled
"documentation" can be exported as PDF, for example.
Using the "Documentation" function, you can efficiently compile your own plant or system
documentation. The "Documentation" compiled in a specific language can also be
automatically exported in one of the other available languages.
The full functionality is only available for registered users.
SIMOTICS TN Series N-compact 1LH8
12 Operating Instructions 06/2017
Page 13
Safety information
2.1 Information for the nominated person in control of the electrical installation
This electric machine has been designed and built in accordance with the specifications
contained in Directive 2014/35/EU ("Low-Voltage Directive") and is intended for use in
industrial plants. Please observe the country-specific regulations when using the electric
machine outside the European Community. Follow the local and industry-specific safety and
setup regulations.
The persons responsible for the plant must ensure the following:
● Planning and configuration work and all work carried out on and with the machine is only
to be done by qualified personnel.
● The operating instructions must always be available for all work.
● The technical data as well as the specifications relating to the permissible installation,
connection, ambient and operating conditions are taken into account at all times.
● The specific setup and safety regulations as well as regulations on the use of personal
protective equipment are observed.
Note
2
Use the services and support provided by the appropriate Service Center (Page 129) for
planning, installation, commissioning, and servicing work.
You will find safety instructions in the individual sections of this document. Follow the safety
instructions for your own safety, to protect other people and to avoid damage to property.
Observe the following safety instructions for all activities on and with the machine.
2.2 The five safety rules
For your own personal safety and to prevent material damage when carrying out any work,
always observe the safety-relevant instructions and the following five safety rules according
to EN 50110‑1 "Working in a voltage-free state". Apply the five safety rules in the sequence
stated before starting work.
Five safety rules
1. Disconnect the system.
Also disconnect the auxiliary circuits, for example, anti-condensation heating.
2. Secure against reconnection.
3. Verify absence of operating voltage.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 13
Page 14
Safety information
2.3 Qualified personnel
4. Ground and short-circuit.
5. Provide protection against adjacent live parts.
To energize the system, apply the measures in reverse order.
2.3 Qualified personnel
All work at the machine must be carried out by qualified personnel only. For the purpose of
this documentation, qualified personnel is taken to mean people who fulfill the following
requirements:
● Through appropriate training and experience, they are able to recognize and avoid risks
and potential dangers in their particular field of activity.
● They have been instructed to carry out work on the machine by the appropriate person
responsible.
2.4 Safe handling
Workplace safety depends on the attentiveness, care, and common sense of the personnel
who install, operate, and maintain the machine. In addition to the safety measures cited, as a
matter of principle, the use of caution is necessary when you are near the machine. Always
pay attention to your safety.
Also observe the following to prevent accidents:
● General safety regulations applicable in the country where the machine is deployed.
● Manufacturer-specific and application-specific regulations
● Special agreements made with the operator
● Separate safety instructions supplied with the machine
● Safety symbols and instructions on the machine and its packaging
WARNING
Live parts
Electric machines contain live parts.
Fatal or severe injuries and substantial material damage can occur if the covers are removed
or if the machine is not handled, operated, or maintained properly.
● Always observe the “five safety rules" (Page 13) when carrying out any work on the
machine.
● Only remove the covers using the methods described by these operating instructions.
● Operate the machine properly.
● Regularly and professionally maintain the machine according to the instructions provided
in Chapter "Maintenance".
SIMOTICS TN Series N-compact 1LH8
14 Operating Instructions 06/2017
Page 15
Safety information
2.4 Safe handling
WARNING
Rotating parts
Electric machines contain dangerous rotating parts.
Fatal or severe injuries and substantial material damage can occur if the covers are removed
or if the machine is not handled, operated, or maintained properly.
● Only remove the covers using the methods described by these operating instructions.
● Operate the machine properly.
● Regularly and correctly maintain the machine.
● Secure free shaft extensions and other rotating part such as couplings and pulley belts
so that they cannot be touched.
WARNING
Hot surfaces
Electric machines have hot surfaces. Touching hot surfaces can result in severe burns.
● Allow the machine to cool before starting work on the machine.
● Only remove the covers using the methods described by these operating instructions.
● Operate the machine properly.
CAUTION
Hazardous substances
Chemical substances required for the setup, operation and maintenance of machines can
present a health risk.
Poisoning, skin damage, cauterization of the respiratory tract, and other health damage may
result.
● Read the information in these operating instructions and the product information supplied
by the manufacturer.
● Observe the relevant safety regulations and wear the personal protective equipment
specified.
CAUTION
Flammable substances
Chemical substances required for the setup, operation and maintenance of machines may
be flammable.
Burns and other damage to health and material may result.
● Read the information in these operating instructions and the product information supplied
by the manufacturer.
● Observe the relevant safety regulations and wear the personal protective equipment
specified.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 15
Page 16
Safety information
2.5 Electrostatic sensitive devices
WARNING
Noise emissions
During operation, the machine's noise emission levels can exceed those permitted at the
workplace, which can cause hearing damage.
Take steps to reduce noise, such as introducing covers and protective insulation or adopting
hearing protection measures, so that the machine can be operated safely within your system.
2.5 Electrostatic sensitive devices
ESD protective measures
NOTICE
Electrostatic discharge
Electronic modules contain components that can be destroyed by electrostatic discharge.
These components can be damaged or destroyed if they are not handled correctly. To protect
equipment against damage, follow the instructions given below.
● Only touch electronic modules if you absolutely have to work on them.
● The body of the person concerned must have been electrostatically discharged and
grounded immediately before any electronic modules are touched.
● Electronic modules should not be brought into contact with electrically insulating materials,
such as:
– Plastic film
– Plastic parts
– Insulating table supports
– Clothing made of synthetic fibers
● Always place electrostatic sensitive devices on conductive bases.
● Always pack, store and transport electronic modules or components in conductive
packaging, such as:
– Metallized plastic or metal containers
– Conductive foam material
– Domestic aluminum foil
SIMOTICS TN Series N-compact 1LH8
16 Operating Instructions 06/2017
Page 17
The necessary ESD protective measures for electrostatic sensitive devices are illustrated once
6LW]SODW]
6WHKSODW]
6WHK6LW]SODW]
EE
D
F
D
IIIII
D
FF
H
GG
H
G
again in the following drawings:
a = conductive floor surfaceb = ESD table c = ESD shoes
d = ESD overall e = ESD wristband f = cabinet ground connection
2.6 Interference immunity
By selecting suitable signal cables and evaluation units, companies operating complete plants
and systems must ensure that the interference immunity of the machine is not diminished.
Safety information
2.6 Interference immunity
2.7 Influence on the line power supply through a strongly irregular torque
A strongly irregular torque, for example with the drive of a reciprocating motor, forces a nonsinusoidal motor current. The emerging harmonics can have an impermissible influence on
the line power supply via the connection lines.
2.8 Interference voltages when operating the converter
WARNING
Interference voltages when operating the converter
When a converter is in operation, the emitted interference varies in strength depending on
the converter (manufacturer, type, interference suppression measures undertaken). On
machines with integrated sensors (e.g. PTC thermistors), interference voltages caused by
the converter may occur on the sensor lead. This can cause faults which can result in eventual
or immediate death, serious injury or material damage.
● Comply with the EMC information provided by the manufacturer of the converter. This is
how you prevent the limit values stipulated by IEC/EN 61000-6-3 for the drive system
(consisting of the machine and converter) from being exceeded.
● You must put appropriate EMC measures in place.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 17
Page 18
Safety information
2.9 Electromagnetic fields when operating electrical power engineering installations
2.9 Electromagnetic fields when operating electrical power engineering
installations
WARNING
Interference to electronic devices caused by electrical power equipment
Electrical power equipment generate electric fields during operation. Potentially lethal
malfunctions can occur in medical implants, e.g. pacemakers, in the vicinity of electrical power
equipment. Data may be lost on magnetic or electronic data carriers.
● It is forbidden for people with pacemakers to enter the vicinity of the machine.
● Protect the personnel working in the plant by taking appropriate measures, such as
erecting identifying markings, safety barriers and warning signs and giving safety talks.
● Observe the nationally applicable health and safety regulations.
● Do not carry any magnetic or electronic data media.
SIMOTICS TN Series N-compact 1LH8
18 Operating Instructions 06/2017
Page 19
Description
Applications
3
This electrical machine has been designed for a wide range of drive and energy conversion
applications. The machines are characterized by extreme ruggedness, long service life, and
overall reliability. They are also highly versatile, allowing them to be tailored to specific
functions.
Details of the supplied machine and permissible operating conditions can be found in this
documentation.
The machine was designed in accordance with the ordering party's specification and may only
be used for the contractually agreed purpose. The permissible operating conditions are
specified on the rating plate. The technical data are described in the catalog.
WARNING
Risk of explosion
This machine is not designed for use in hazardous areas. An explosion can occur if the
machine is operated in these areas. This can result in death, serious injury or material damage.
● Never operate this machine in hazardous areas.
Machine design
The regulations and standards used as the basis to design and test this machine are stamped
on the rating plate.
The machine design basically complies with the subsequent standards. Please refer to the EU
Declaration of Conformity for the versions of the harmonized standards referenced.
Table 3-1 Machine design
Feature Standard
Rating and performance IEC/EN 60034‑1
Degree of protection IEC/EN 60034‑5
Cooling IEC/EN 60034‑6
Type of construction IEC/EN 60034‑7
Terminal markings and direction of rotation IEC/EN 60034‑8
Noise emission IEC/EN 60034‑9
Starting characteristics, rotating electrical machines IEC/EN 60034‑12*
Vibration severity grades IEC/EN 60034‑14
Vibration limits DIN ISO 10816-3
* For machines in line operation only
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 19
Page 20
10$; 0,1
5RWRU648&$*(./(1,(&
*HZ:WW
1R16,0%7K&O)
,3
9
+]
$
N:
Description
3.1 Comparison of IEC and GOST (D47) standards
See also
Quality documents (Page 133)
3.1 Comparison of IEC and GOST (D47) standards
Comparison of IEC and GOST standards
The IEC/EN standards correspond to the following GOST standards.
IEC/EN GOST
IEC/EN 60034-1 GOST R IEC 60034-1
IEC/EN 60034-5 GOST R IEC 60034-5
IEC/EN 60034-6 GOST R IEC 60034-6
IEC/EN 60034-7 GOST R IEC 60034-7
IEC/EN 60034-8 GOST R IEC 60034-8
IEC/EN 60034-9 GOST R IEC 60034-9
IEC/EN 60034-12 GOST R IEC 60034-12
IEC/EN 60034-14 GOST R IEC 60034-14
Rating plate
The rating plate shows the identification data and the most important technical data. The data
on the rating plate and the contractual agreements define the limits of proper usage.
Figure 3-1 Schematic diagram of rating plate
20 Operating Instructions 06/2017
SIMOTICS TN Series N-compact 1LH8
Page 21
Table 3-2 Data on the rating plate
Item Description Item Description
(1) Type of motor (12) Rated speed [rpm]
(2) Motor type (13) Starting current ratio
(3) Serial number (14) (empty)
(4) Type of construction (15) Certificate number
(5) Temperature class (16) Degree of protection
(6) Rated voltage [V] and connections (17) Rotor class
(7) Rated frequency [Hz] (18) Motor weight [kg]
(8) (Content depending on the version) (19) Additional information (optional)
(9) Rated current [A] (20) Maximum speed [rpm]
(10) Rated power [kW] (21) Country of manufacture / City
(11) Power factor [cos φ]
Efficiency requirement
According to EU Regulation (EC) No. 640/2009, the IE3 efficiency requirement for low-voltage
motors with a power of 7.5 kW to 375 kW for line operation has been in force since January
01, 2015.
Description
3.1 Comparison of IEC and GOST (D47) standards
Rotors
Cooling
From January 1, 2017, the IE3 efficiency requirement for motors with a power of 0.75 kW to
375 kW applies for line operation.
Efficiency IE2 still applies for motors that are operated from a converter.
Please note the applicable country-specific rules and regulations.
The rotor assembly is pressed onto the shaft together with the cage winding. The drive end of
the shaft usually has a cylindrical shaft end. Dependent on the design, a second shaft end
may be located at the non-drive end.
The cooling system is designed as a closed, internal cooling circuit. The heat lost from the
machine is dissipated partially via heat conduction and partially via the cooling air at the cooling
water flowing through the cooling pipes. A shaft-mounted fan ensures circulation of the cooling
air.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 21
Page 22
Description
3.1 Comparison of IEC and GOST (D47) standards
Roller-contact bearings
The machines are equipped with different types of rolling-contact bearings depending on the
version and the operating conditions described in the order. The different types are listed on
the lubricant plate of the machine. In converter operation an insulated bearing is usually
installed on the non-drive end. The following roller-contact bearing variants are available:
Table 3-3 Rolling-contact bearing variants
Version Rolling-contact bearing
Horizontal type of construc‐
tion, coupling output
Vertical type of construc‐
tion, coupling operation
● Drive end: Deep-groove ball bearing as a fixed bearing,
● Non-drive end: Deep-groove ball bearing as a floating bearing with
axial compression springs
● Drive end: Pairing of angular-contact ball bearing / deep-groove ball
bearing as a fixed bearing
● Non-drive end: Deep-groove ball bearing as a floating bearing with
axial compression springs
Rolling-contact bearing design for "Increased degree of protection" (option)
Improved sealing of the bearing units to prevent dust and water from getting in can be achieved
by positioning a grease chamber ahead of the actual bearing unit. Although the same grease
is used in both cases for reasons of convenience, a distinction is made here between
"lubricating grease" and "sealing grease" because of their different functions.
Layout
The spent lubricating grease collects in the space between the bearing housing and the outer
bearing cap. The latter also forms the sealing grease chamber with the labyrinth sealing ring
(optional). The second lubricating nipple containing the grease duct for pressing in the sealing
grease is also located in the outer bearing cap. The chamber is sealed off from the space
where the lubricating grease collects by a V-ring or a V-ring and felt ring combination which
prevents the sealing grease in the chamber from penetrating into the lubricating grease
collecting space. During operation, the sealing grease in the chamber slowly runs out via the
labyrinth and seals it, additionally removing dust from inside and around the outside of the
labyrinth ring.
Terminal box
The terminal box is positioned on the side of the machine. It is fixed to the machine and cannot
be exchanged.
Supplementary devices
Depending on the order, various supplementary devices can be installed or mounted. These
include sensors for bearing temperature monitoring or winding monitoring, for example.
SIMOTICS TN Series N-compact 1LH8
22 Operating Instructions 06/2017
Page 23
Anti-condensation heating (option)
The machine is fitted with anti-condensation heating. The connection data is listed on an
additional plate on the machine.
Leakage-water sensor
The leakage-water sensor is fitted in the machine enclosure and provides additional security
in the event of leakage.
Description
3.1 Comparison of IEC and GOST (D47) standards
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 23
Page 24
Description
3.1 Comparison of IEC and GOST (D47) standards
SIMOTICS TN Series N-compact 1LH8
24 Operating Instructions 06/2017
Page 25
Preparations for use
Good planning and preparation of machine applications are essential in terms of keeping
installation simple and avoiding errors, ensuring safe operation, and allowing access to the
machine for servicing and corrective maintenance.
This chapter outlines what you need to consider when configuring your plant in relation to this
machine and the preparations you need to make before the machine is delivered.
4.1 Safety-related aspects to consider when configuring the plant
A number of residual risks are associated with the machine. These are described in the chapter
titled "Safety information" (Page 13) and in related sections.
Take appropriate safety precautions (covers, barriers, markings, etc.) to ensure the machine
is operated safely within your plant.
4.2 Observing the operating mode
Observe the machine's operating mode. Use a suitable control system to prevent overspeeds,
thus protecting the machine from damage.
4
4.3 Ensuring cooling
Ensure that the machine is sufficiently cooled by the cooling air flow at the installation site:
● Ensure that the cooling air can flow in and out unobstructed. The full air flow provided by
the fan is only possible if air can freely enter the impeller. In the axial direction, ensure a
clearance of at least 1 x air intake diameter.
● Make sure that the machine does not draw in the hot discharged air again.
● For machines with a vertical type construction with an air intake from above, ensure that
the air inlets are protected against the ingress of foreign bodies and water.
4.4 Cooling water quality
● The cooling water must circulate in a closed cooling circuit.
● Avoid fluctuations in the oxygen content of the cooling water.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 25
Page 26
Preparations for use
4.5 Thermal motor protection
Table 4-1 Cooling water specification
Water analysis Measured values
pH > 7.5 - 10
Conductivity < 600 µS/cm
Chloride (Cl-) < 150 mg/l
Manganese (Mn
Fluoride (F) < 0.05 mg/l
Sulfate (SO
Copper (CU2+) < 0.1 mg/l
Silicic acid < 25 mg/l
Free carbon dioxide Without
Total salts < 1000 mg/l
Nitrate level < 20 mg/l
Suspended matter < 10 mg/l
Permanganate consumption < 12 mg/l
Total hardness on German water hardness scale < 12
Carbonate hardness on German water hardness
scale
Ammonium content < 10 mg/l
Iron content < 0.2 mg/l
2-)
2-
) < 150 mg/l
4
< 0.05 mg/l
< 12
Note
Order-specific agreements
Observe any order-specific agreements regarding the cooling water specification. These might
deviate from the named cooling-water specification.
Note
Maintenance
The cooling system is maintenance-free provided cooling water of the specified quality is used.
4.5 Thermal motor protection
The machine is equipped with PTC thermistors for direct monitoring of the motor temperature
to protect the machine against overheating during operation. Plan a corresponding circuit for
monitoring.
See also
Set values for monitoring the winding temperature (Page 77)
Setpoint values for monitoring the bearing temperature (Page 77)
SIMOTICS TN Series N-compact 1LH8
26 Operating Instructions 06/2017
Page 27
4.6 Interlock circuit for anti-condensation heating (option)
4.6 Interlock circuit for anti-condensation heating (option)
If the anti-condensation heating is operated while the machine is running, this can increase
the temperatures inside the machine.
● Install an interlock circuit that switches off the anti-condensation heating once the main
machine is switched on.
● Only switch on the anti-condensation heating after the machine has been switched off.
See also
Switching off the anti-condensation heating (Page 82)
4.7 Support base for IM B5 construction type
● For machines, type of construction IM B5, provide an additional support foot at the NDE.
The support foot is not included in the scope of supply.
● Use an appropriately sized support foot with the appropriate rigidity. The support foot must
be able to support the total weight of the machine.
The weight of the machine is stated on the rating plate, data on geometry is shown in the
dimension drawing.
Preparations for use
● There is a threaded hole M36 at the bottom of the machine where you can attach the support
foot.
WARNING
Missing support at the NDE
If the machine has no support at the NDE, the flange cannot hold the weight of the machine.
The machine or machine parts may loosen.
This can result in death, serious injury or material damage.
● Use an appropriately sized support base.
4.8 Noise emissions
WARNING
Noise emissions
During operation, the machine's noise emission levels can exceed those permitted at the
workplace, which can cause hearing damage.
Take steps to reduce noise, such as introducing covers and protective insulation or adopting
hearing protection measures, so that the machine can be operated safely within your system.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 27
Page 28
Preparations for use
4.9 Rotational speed limit values
4.9 Rotational speed limit values
WARNING
Excessively high speeds
Excessive rotational speed can lead to serious damage to the machine. This can result in
death, serious injury, or material damage.
● Avoid operation above the permissible speed by using the appropriate control function.
● Observe the speeds stamped on the rating plate.
4.10 Phase synchronization during supply system switching
NOTICE
Supply system switching
Damage to the machine may be caused when switching to another supply system with
different phasing.
● The phasing must be synchronized during switching. Use appropriate means to
synchronize the phasing.
4.11 Voltage and frequency fluctuations during line operation
If nothing else is stamped on the nameplate, then the permissible voltage fluctuation is ±5 %
and the permissible frequency fluctuation is ±2 %, corresponding to range A in
IEC / EN 60034‑1. Permissible fluctuations that go beyond this are specified on the nameplate,
e.g. voltage fluctuation of ±10 % corresponding to range B in IEC / EN 60034‑1.
The following applies: Under practical operating conditions a machine may sometimes have
to be operated outside the limits of Range A. Exceptions of this sort should be limited with
regard to the values that arise, how often and for how long they occur. Where possible and
within a reasonable time take corrective actions such as reducing the power. Such actions can
avoid thermal ageing leading to a reduction in the service life of the machine.
NOTICE
Overheating of the winding
Exceeding the permissible tolerances for voltage and frequency can lead to an impermissibly
high temperature rise in the windings and thus cause long-term damage to the machine.
SIMOTICS TN Series N-compact 1LH8
28 Operating Instructions 06/2017
Page 29
Preparations for use
4.12 System-inherent frequencies
4.12 System-inherent frequencies
NOTICE
System resonances
Excessive vibrations and system resonances can damage the machine set.
● Configure and match the system consisting of the foundation and machine set in such a
way that no system resonances can arise and result in the permissible vibration levels
being exceeded.
● The vibration limit values according to DIN ISO 10816-3 must not be exceeded.
4.13 Torsional loading of the drive train due to faults in the electrical supply
In the event of faults in the electrical connection during operation, excessive air gap torques
can lead to additional mechanical torsional load on the line shaft.
Note
The system planner is responsible for the entire drive train.
WARNING
Serious damage to the machine
If the configuration does not correctly recognize the mechanical torsional loadings of the shaft
assembly, this can lead to serious damage to the machine. This can result in death, serious
injury or material damage.
When planning the system, consider the configuration data.
Note
More information about this may be found in the catalog.
4.14 Transport and storage
When carrying out any work on the machine, observe the general safety instructions
(Page 13) and the specifications contained in EN 50110‑1 regarding safe operation on
electrical equipment.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 29
Page 30
Preparations for use
4.14 Transport and storage
4.14.1 Transport markings
The packing differs depending on the transport type and size. If not otherwise contractually
agreed, the packaging corresponds to the packing guidelines for International Standards for
Phytosanitary Measures (ISPM).
Note the symbols which appear on the packing. These have the following meanings:
Top Fragile material Keep dry Keep cool Center of
4.14.2 Checking the delivery
The components are assembled on an individual basis. When you take receipt of the delivery,
please check immediately whether the scope of the delivery matches up with the
accompanying documents. No claims relating to defects/items missing from the delivery will
be accepted if they are submitted at a later date.
● Report any apparent transport damage to the delivery agent immediately.
● Immediately report any apparent defects/missing components to your contact partner.
These Operating Instructions are part of the scope of delivery; keep them in a location where
they can be easily accessed.
4.14.3 Lifting and transportation
To safely lift and transport the machine, the following requirements must be met:
● Personnel operating cranes and fork-lift trucks must be appropriately qualified.
● If the machine is packed, depending on the weight, size and on-site conditions, lift crates
and transport frames using a fork-lift truck or a crane with slings. Use a crane or fork-lift
truck suitable for the load.
gravity
Do not use
hand hook
Attach here
● When lifting the machine, use only approved and undamaged sling guides and spreaders
of sufficient rated capacity. Check the lifting equipment prior to its use. The weight of the
machine is shown on the rating plate.
● When lifting the machine, refer to the information on the lifting plate.
– Comply with the specified spreading angles.
– Do not exceed the maximum lifting acceleration and lifting speed specified on the lifting
plate. Lift the machine without jerking it.
Acceleration a ≤ 0.4 g (≈ 4 m/s2 )
Velocity v ≤ 20 m/min
SIMOTICS TN Series N-compact 1LH8
30 Operating Instructions 06/2017
Page 31
Preparations for use
4.14 Transport and storage
WARNING
Transport for a different type of construction
If you do not transport or lift the machine in a position appropriate for its construction, the
machine can tip, slip into the lifting equipment or fall down. This can result in death, serious
injury or material damage.
● Use only the load carrying device on the stator frame for lifting.
● Use the load carrying device appropriate for the machine position.
● Only use suitable rope guiding or spreading devices.
WARNING
Center of gravity not centered
If the center of gravity of a load is not located centrally between the attachment points, the
machine can tip over or slip out of the lifting equipment and fall when it is being transported
or lifted. This can result in death, serious injury or material damage.
● Comply with the handling instructions on the machine when transporting it.
● Be aware of the possibility of different loads on the sling ropes or lifting straps and the
carrying capacity of the lifting equipment.
● Always take account of the center of gravity when transporting or lifting the machine. If
the center of gravity is not located centrally between the attachment points, then position
the hoisting hook above the center of gravity.
4.14.4 Securing the rotor
Depending on the version, the machine is fitted with a rotor shipping brace. This protects the
bearings against damage due to shock and vibration during transport or storage.
NOTICE
Vibration and shock during transport
Not using the rotor shipping brace can cause damage to the machine if it is jolted during
transport. Material damage can result.
● If the machine is fitted with a rotor shipping brace, this should always be used when
transporting the machine. The rotor shipping brace must be attached during the transport.
● Only remove it before pulling on the output element.
● For machines with a vertical type of construction:
– Do not remove the rotor shipping brace until the machine is in a vertical position.
– If a machine has to be transported in a horizontal position, the rotor must be fixed in
position before the machine is turned onto its side. Vertical machines can be supplied
in the horizontal position from the manufacturing plant.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 31
Page 32
ཱ
Preparations for use
4.14 Transport and storage
Alternative rotor bracing
● If you transport the machine after the output element has been pulled on, then you must
axially fix the rotor in another way.

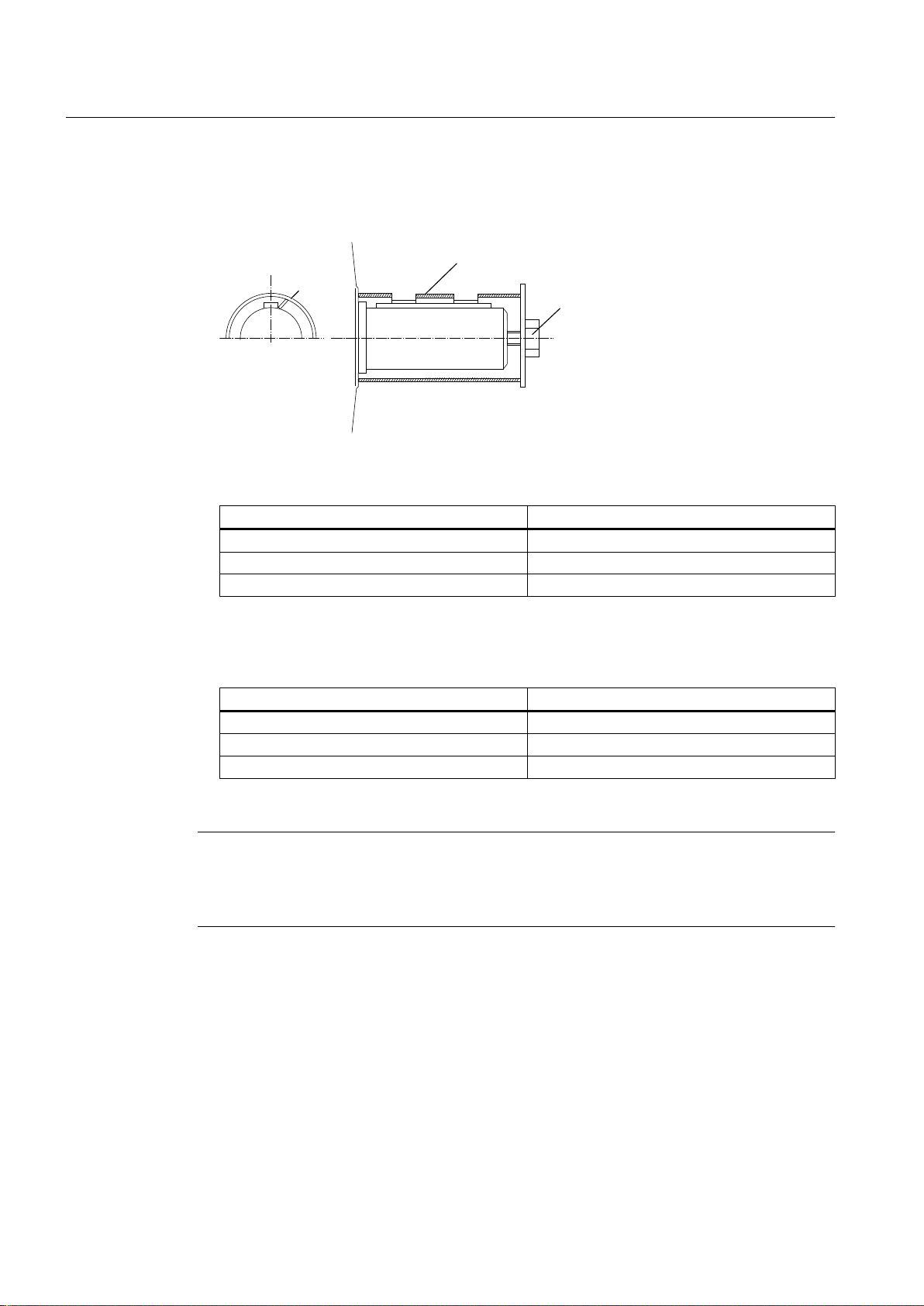

① Sleeve ② Shaft screw and washer
Figure 4-1 Axial fastening of the rotor
Thread in the shaft extension Tightening torque
M20 80 Nm
M24 150 Nm
M30 230 Nm
Tightening torques for other rotor shipping brace types
● The thread in the shaft extension indicates the rotor weight. This indirectly specifies the
required preload force when axially fastening the rotor.
Thread in the shaft extension Preload
M20 20 kN
M24 30 kN
M30 40 kN
Axial preload force for other rotor shipping brace types
Note
Store the rotor locking device
Be sure to store the rotor locking device. It must be remounted for possible disassembly and
transport.
SIMOTICS TN Series N-compact 1LH8
32 Operating Instructions 06/2017
Page 33
4.14.5 Transporting the machine set
WARNING
Falling down of the machine
The lifting lugs on the machine are designed only for the weight of the machine. If a machine
set is lifted and transported on a single machine, this can lead to mechanical failure of the
lifting lug. The machine or machine set may fall. This can result in death, serious injury or
material damage.
● Do not lift machine sets by attaching lifting tackle to the individual machines.
● Use only the equipment provided, e.g. the openings or lugs on the base plates, for
transporting machine sets. Note the maximum capacity of the lifting lug.
Note
Place the machine in a secure and raised position
In order to obtain easy and safe access to the underside of the machine, place it in a secure
and raised position.
Preparations for use
4.14 Transport and storage
DANGER
Standing under suspended loads
If the lifting gear or load handling attachments were to fail, the machine could fall. This can
result in death, serious injury or material damage.
● Never remain under or in the immediate vicinity of the machine when it is raised.
4.14.6 Storage
You must correctly store the machine if you do not install and use it after it has been delivered.
NOTICE
Bearing seizure damage if incorrectly stored
If storage conditions are inappropriate there is a risk of bearing seizure damage. Resulting
damage can include scoring (brinelling) and corrosion.
● Follow the storage guidelines.
Preconditions and preparations
● Only store goods in undamaged packaging. Unpack the goods if the packaging is damaged.
Correctly store the goods corresponding to the type.
● Repair any damage to the packaging before putting the equipment into storage insofar as
this is necessary to ensure proper storage conditions.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 33
Page 34
Preparations for use
4.14 Transport and storage
General instructions for storage
Wherever possible, store the machine in a storage room. The place of storage must satisfy
the following general conditions:
● Select a sufficiently sized dry and horizontal place of storage that is above flood level and
free of vibration (v
– The place of storage must be well ventilated as well as free of dust and frost. Provide
protection against extreme weather conditions. Ensure that the temperature remains
stable in the range from 10 °C to 50 °C – or 50 °F to 120 °F. The room temperature
should be approx. 10 K above the outside temperature. The temperature should not fall
below ‑20° C.
– The relative humidity of the air should be less than 60%.
– The floor of the place of storage must be sufficiently strong. The maximum permissible
floor loading or storage compartment loading may not be exceeded.
– The ambient air must not contain any harmful gases.
● Protect the machine from shocks and humidity.
● Position machines, devices and crates on pallets, wooden beams or foundations that
protect them against rising damp and water.
≤ 0.2 mm/s).
eff
● Ensure that the air circulation under the equipment is not impeded.
– Place wooden spacer blocks between the covers and the machine.
– Covers or tarpaulins must not trail on the floor around the machine.
Storing outdoors
When storing the machines outside, the storage location must comply with the following
conditions:
● The ground must be sufficiently strong. Prevent the machine from sinking into the ground.
● Covers or tarpaulins used to protect the equipment against the weather must not make
contact with the surfaces of the equipment. Otherwise air circulation under the stored items
will be prevented.
Protection against humidity
If a dry storage space is not available, protect the machine as follows against humidity:
● Wrap the machine in humidity-absorbent material.
● Wrap the machine in plastic film:
– Place a humidity meter inside the plastic film.
– Place desiccant within the plastic film.
– Pack the machine air-tight.
● Inspect the machine regularly.
SIMOTICS TN Series N-compact 1LH8
34 Operating Instructions 06/2017
Page 35
NOTICE
Improper storage or transport
Damage to bearings can result from improper storage or transport.
● On machines that have been supplied with a rotor shipping brace, secure the rotor as per
● Protect the motor against strong radial shocks and vibration when storing, as the rotor
● If the customer has already mounted parts, such as a coupling or belt pulley, the bearings
Long-term storage
If you are storing a machine for more than six months, you must check its condition every six
months. Store the machine in accordance with the specifications in Section "Storage
(Page 33)", and if possible, packed.
Preparations for use
4.14 Transport and storage
the notes on transportation (Page 31).
shipping brace cannot completely absorb these forces.
can be damaged during transport. In this case, make sure that the customer uses a rotor
locking device.
● Check the motor for damage.
● Carry out any necessary maintenance work.
● Make sure that the storage conditions are such that condensation cannot form in the motor.
● If the machine is not sealed in plastic film, continually and slightly heat the machine, e.g.
with anti-condensation heating (if available), and ensure that the air circulates in the storage
room.
Storage for longer than three months
Lubricate the machine after every two years of storage.
1. Unpack the machine.
2. Remove the rotor shipping brace, if one is being used.
3. When stored for longer than two years, lubricate with twice the grease quantity in
accordance with the lubricant plate. This ensures that the grease is evenly distributed and
covers all surfaces. Corrosion damage is avoided.
NOTICE
Damage to roller bearings
Roller bearings can be damaged when kept in the same or almost the same position.
Every three months, manually rotate the rotor through five revolutions. Make sure that the
resting position of the roller bearings after the rotor has been turned is different from what
it previously had been. Use the feather key as a reference point, if present.
4. Replace the corrosion protection.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 35
Page 36
Preparations for use
4.14 Transport and storage
5. Reattach the rotor shipping brace, if present.
6. Pack the machine again.
4.14.7 Protecting the cooling water circuit during storage
Anti-freeze protection
When supplied, the machine is not filled with cooling water, so that there is no risk of frost
damage. The cooling circuit is protected with an anti-corrosion emulsion.
Protecting the cooling circuit against corrosion
You protect the cooling circuit against corrosion when the machine has already been in
operation and is then placed in storage or put out of operation.
1. Completely drain the cooling ducts. To be completely certain, use compressed air to clean
the cooling water ducts so that they are completely empty.
2. Flush the cooling water ducts with a corrosion-protection emulsion to avoid the buildup of
rust.
4.14.8 Protection against corrosion
If the machine is stored in dry conditions, then apply the subsequently listed anti-corrosion
measures:
● Storage up to six months:
Apply a coat of corrosion protective compound to all accessible bare metal parts such as
the exposed shaft extension, flange or machine feet.
● Storage for longer than six months:
Apply a coat of anti-corrosion compound which provides long-term protection, e.g.
Tectyl 506.
● Inspect the machine regularly and apply an additional coating of corrosion protection if
necessary.
Document all preservation measures taken so that they can be reversed before the machines
are put back into service.
SIMOTICS TN Series N-compact 1LH8
36 Operating Instructions 06/2017
Page 37
4.15 Converter operation
The following chapter is relevant only to machines of series 1PQ8 or if the machine was ordered
for operation on the rectifier.
Note
The order number shows whether the machine was ordered for operation with converter: the
9th digit of the order number features the letter "P" or "Q".
4.15.1 Supply line configuration
NOTICE
Asymmetric voltage load during operation on a TN system in delta connection
An asymmetric voltage load of the machine winding can occur during operation on a TN
system in delta connection with a grounded line conductor. Winding damage can result.
● Do not operate the machine on a TN system with a grounded line conductor.
Preparations for use
4.15 Converter operation
NOTICE
Ground fault during operation on an IT system
If a ground fault occurs when connected to an IT supply system, the insulation is excessively
stressed. Winding damage can result.
● If possible, complete the process within two hours.
● Rectify the fault cause.
● Deploy a ground fault monitoring.
4.15.2 Converter input voltage
The insulation system of SIMOTICS machines significantly exceeds the requirements of stress
category C (IVIC C = high stress). If voltage peaks higher than those specified according to
IVIC C can occur, then observe the data in the respective Catalog (http://w3app.siemens.com/
mcms/infocenter/content/en/Pages/order_form.aspx):
● For a line voltage (converter input voltage) up to max. 480 V and operation connected to a
SINAMICS G / SINAMICS S converter with uncontrolled/controlled infeed: Comply with the
guidelines for configuring motor and converter.
● For line voltages (converter input voltages) higher than 480 V, motors, which are ordered
for converter operation, have an appropriate insulation system.
● Operation with a converter from another manufacturer: Comply with the permissible voltage
peaks according to IEC 60034-18-41 in accordance with stress category C, dependent on
the particular line voltage (converter input voltage) and the motor insulation system.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 37
Page 38
Preparations for use
4.15 Converter operation
NOTICE
Material damage caused by an excessively high supply voltage
The insulation system will be damaged if the supply voltage is too high for the insulation
system. This can completely destroy the machine.
● Comply with the peak voltages as laid down in the guidelines above.
4.15.3 Reducing bearing currents
Taking the following actions will reduce the bearing currents:
● Ensure that the contacts are established over a large area. Solid copper cables are not
suitable for high frequency grounding because of the skin effect.
Equipotential bonding conductors:
Use equipotential bonding conductors:
● Between motor and driven machine
● Between motor and converter
● Between the terminal box and the RF grounding point at the motor enclosure.
Selecting and connecting the cable:
As far as possible, use symmetrically arranged, shielded connection cables. The cable
shielding, made up of as many strands as possible, must have good electrical conductivity.
Braided shields made of copper or aluminum are very suitable.
● The shield is connected at both ends, at the motor and converter.
● To ensure good discharging of high-frequency currents, provide contacting over a large
surface area:
– as contact established through 360° at the converter
– at the motor, for instance with EMC glands at the cable entries
SIMOTICS TN Series N-compact 1LH8
38 Operating Instructions 06/2017
Page 39
/
3(
3(
3(
/
//
//
3(
/
/
/
Preparations for use
4.15 Converter operation
● If the cable shield is connected as described, then it ensures the specified equipotential
bonding between the motor enclosure and converter. A separate RF equipotential bonding
conductor is then not necessary.

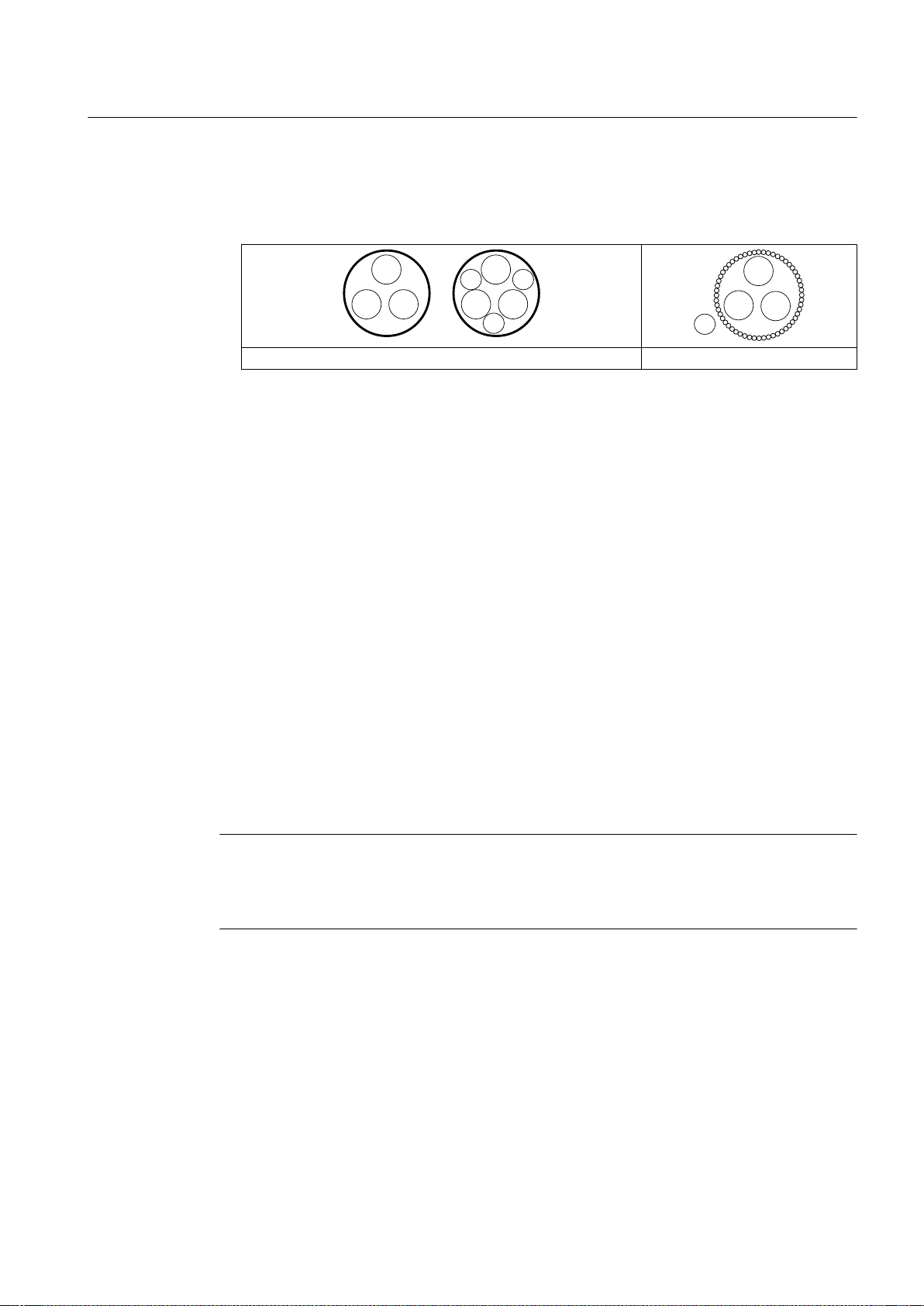

Concentric copper or aluminum shield Steel armor
● If the cable shield is not connected due to special secondary conditions, or not adequately
connected, then the specified equipotential bonding is not provided. In this particular case,
use a separate RF equipotential bonding conductor:
– Between the motor enclosure and protective ground rail of the converter.
– Between motor enclosure and driven machine
– Use braided flat copper straps or high-frequency cables with finely-stranded conductors
for the separate RF equipotential bonding cable.
– Ensure that the contacts are established over a large area.
Overall system design
To specifically reduce bearing currents, you must consider the system as a whole, which
comprises the motor, converter, and driven machine. The following measures support you
when reducing bearing currents and help to avoid damage:
● In the overall system, set up a properly meshed grounding system with low impedance.
● Use the common-mode filter (damping cores) at the converter output. The Siemens sales
representative is responsible for selection and dimensioning.
● Limit the rise in voltage by using output filters. Output filters dampen the harmonic content
in the output voltage.
Note
Converter documentation
The operating instructions for the converter are not part of this documentation. Refer also to
the configuration information for the converter.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 39
Page 40
Preparations for use
4.15 Converter operation
4.15.4 Converter operation on a grounded network
NOTICE
Damage resulting from protective conductor currents
When the machine is operated on a converter with current limiter, but without ground-fault
monitoring, protective conductor currents of up to 1.7 times the external conductor current
can arise if there is a ground fault on the output side. Neither the PE conductors of normally
rated multi-core connecting cables nor the PE connecting points of normal terminal boxes
are suitable for this purpose. Material damage can result.
● Use an appropriately sized PE conductor.
● Connect the PE conductor to the grounding terminal on the motor enclosure.
4.15.5 Insulated bearings when operating the converter
If the machine is operated from a low-voltage converter, insulated bearings are fitted at the
NDE and an insulated encoder with insulated bearings (option).
Comply with the plates on the machine relating to bearing insulation and possible bridges.
① Driving machine ④ Insulated bearings
② Motor ⑤ Insulated tachometer fitting
③ Coupling
Figure 4-2 Schematic representation of a single drive
NOTICE
Bearing damage
The bearing insulation must not be bridged. Bearing currents can damage bearings.
● Also for subsequent installation work, such as the installation of an automatic lubrication
system or a non-insulated vibration sensor, make sure that the bearing insulation cannot
be bridged.
● Contact the Service Center, if necessary.
40 Operating Instructions 06/2017
SIMOTICS TN Series N-compact 1LH8
Page 41
Tandem operation
Preparations for use
4.15 Converter operation
If you connect two motors in series in "tandem operation", install an insulated coupling between
the motors.
① Driving machine ④ Insulated bearings
② Motor ⑤ Insulated tachometer fitting
③ Coupling ⑥ Insulated coupling
Figure 4-3 Schematic representation of a tandem drive
See also
NOTICE
Bearing damage
Bearing currents can flow if the coupling between the motors of the tandem drive is not
insulated. This can damage the DE bearings of both motors.
● Use an insulated coupling to link the motors.
Service and Support (Page 129)
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 41
Page 42
Preparations for use
4.15 Converter operation
SIMOTICS TN Series N-compact 1LH8
42 Operating Instructions 06/2017
Page 43
Assembly
See also
5
Observe the following when carrying out any work on the machine:
● Comply with the general safety instructions
● Comply with the applicable national and sector-specific regulations at the place of
installation
● When using the machine within the European Union, comply with the specifications laid
down in EN 50110‑1 regarding safe operation of electrical equipment.
Safety information (Page 13)
Note
Loss of conformity with European directives
In the delivery state, the machine corresponds to the requirements of the European directives.
Unauthorized changes or modifications to the machine lead to the loss of conformity with
European directives and the loss of warranty.
5.1 Preparations for installation
5.1.1 Requirements for installation
The following requirements must be satisfied prior to starting installation work:
● Staff have access to the operating and installation instructions.
● The machine is unpacked and ready for mounting at the installation location.
Note
Measure the insulation resistance of the winding before starting installation work
Wherever possible, measure the insulation resistance of the winding before starting
installation work. If the insulation resistance lies below the specified value, take appropriate
remedial measures. These remedial measures may necessitate the machine being
removed again and transported.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 43
Page 44
Assembly
5.1 Preparations for installation
NOTICE
High temperatures
The motor components get very hot during operation. High temperatures can damage
mounting parts such as the cable insulation.
● Temperature-sensitive parts such as normal cables or electronic components must not
rest against or be attached to mounted machine parts.
● Only use heat-resistant mounting parts. The connecting cables and cable entries must be
suitable for the ambient temperature.
5.1.2 Insulation resistance and polarization index
Measuring the insulation resistance and polarization index (PI) provides information on the
condition of the machine. It is therefore important to check the insulation resistance and the
polarization index at the following times:
● Before starting up a machine for the first time
● After an extended period in storage or downtime
● Within the scope of maintenance work
The following information is provided regarding the state of the winding insulation:
● Is the winding head insulation conductively contaminated?
● Has the winding insulation absorbed moisture?
As such, you can determine whether the machine needs commissioning or any necessary
measures such as cleaning and/or drying the winding:
● Can the machine be put into operation?
● Must the windings be cleaned or dried?
Detailed information on testing and the limit values can be found here:
"Testing the insulation resistance and polarization index" (Page 45)
SIMOTICS TN Series N-compact 1LH8
44 Operating Instructions 06/2017
Page 45
5.1.3 Testing the insulation resistance and polarization index
WARNING
Hazardous voltage at the terminals
During and immediately after measuring the insulation resistance or the polarization index
(PI) of the stator winding, hazardous voltages may be present at some of the terminals.
Contact with these can result in death, serious injury or material damage.
● If any power cables are connected, check to make sure line supply voltage cannot be
delivered.
● Discharge the winding after measurement until the risk is eliminated, e.g. using the
following measures:
– Connect the terminals with the ground potential until the recharge voltage drops to a
non-hazardous level
– Attach the connection cable.
Assembly
5.1 Preparations for installation
Measure the insulation resistance
1. Before you begin measuring the insulation resistance, please read the operating manual
for the insulation resistance meter you are going to use.
2. Make sure that no power cables are connected.
3. Measure the winding temperature and the insulation resistance of the winding in relation
to the machine enclosure. The winding temperature should not exceed 40° C during the
measurement. Convert the measured insulation resistances in accordance with the formula
to the reference temperature of 40° C. This thereby ensures that the minimum values
specified can be compared.
4. Read out the insulation resistance one minute after applying the measuring voltage.
Limit values for the stator winding insulation resistance
The following table specifies the measuring voltage and limit values for the insulation
resistance. These values correspond to IEEE 43‑2000 recommendations.
Table 5-1 Stator winding insulation resistance at 40° C
VN [V] V
U ≤ 1000 500 ≥ 5
1000 ≤ U ≤ 2500 500 (max. 1000) 100
2500 < U ≤ 5000 1000 (max. 2500)
5000 < U ≤ 12000 2500 (max. 5000)
U > 12000 5000 (max. 10000)
[V] RC [MΩ]
Meas
U
= rated voltage, see the rating plate
rated
U
= DC measuring voltage
meas
RC = minimum insulation resistance at reference temperature of 40° C
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 45
Page 46
Assembly
5.1 Preparations for installation
Conversion to the reference temperature
When measuring with winding temperatures other than 40° C, convert the measuring value to
the reference temperature of 40° C according to the following equations from IEEE 43-2000.
(1)
(2)
RC = KT · R
KT = (0.5)
T
(40-T)/10
RCInsulation resistance converted to 40° C reference temperature
kTTemperature coefficient according to equation (2)
RTMeasured insulation resistance for measuring/winding temperature T
in °C
40 Reference temperature in °C
10 Halving/doubling of the insulation resistance with 10 K
T Measuring/winding temperature in °C
In this case, doubling or halving the insulation resistance at a temperature change of 10 K is
used as the basis.
● The insulation resistance halves every time the temperature rises by 10 K.
● The resistance doubles every time the temperature falls by 10 K.
For a winding temperature of approx. 25° C, the minimum insulation resistances are 20 MΩ
(U ≤ 1000 V) or 300 MΩ (U > 1000 V). The values apply for the complete winding to ground.
Twice the minimum values apply to the measurement of individual assemblies.
● Dry, new windings have an insulation resistance of between 100 and 2000 MΩ, or possibly
even higher values. An insulation resistance value close to the minimum value could be
due to moisture and/or dirt accumulation. The size of the winding, the rated voltage and
other characteristics affect the insulation resistance and may need to be taken into account
when determining measures.
● Over its operating lifetime, the motor winding insulation resistance can drop due to ambient
and operational influences. Calculate the critical insulation resistance value depending on
the rated voltage by multiplying the rated voltage (kV) by the specific critical resistance
value. Convert the value for the current winding temperature at the time of measurement,
see above table.
Measuring the polarization index
1. To determine the polarization index, measure the insulation resistances after one minute
and ten minutes.
2. Express the measured values as a ratio:
PI = R
insul 10 min
Many measuring devices display these values automatically following the measurement.
For insulation resistances > 5000 MΩ, the measurement of the PI is no longer meaningful and
consequently not included in the assessment.
R
(10 min)
46 Operating Instructions 06/2017
/ R
insul 1 min
/ R
(1 min)
≥ 2 Insulation in good condition
< 2 Dependent on the complete diagnosis of the insulation
Assessment
SIMOTICS TN Series N-compact 1LH8
Page 47
5.2 Lift the machine to where it will be installed, and position it
NOTICE
Damage to insulation
If the critical insulation resistance is reached or undershot, this can damage the insulation
and cause voltage flashovers.
● Contact the Service Center (Page 129).
● If the measured value is close to the critical value, you must subsequently check the
insulation resistance at shorter intervals.
Limit values of the anti-condensation heating insulation resistance
The insulation resistance of the anti-condensation heating with respect to the machine housing
should not be lower than 1 MΩ when measured at 500 V DC.
5.1.4 Preparing the mating faces
Assembly
Prepare the foundation faces dependent on the machine type:
● Mounting on a foundation
– Ensure that the foundation faces are flat and free of contaminations.
– Check the dimensions of the mounting-foot holes.
● Flange connection
– Clean the flange before installation. Ensure that the flange surfaces are flat and perfectly
clean.
– Check the geometry of the flange.
● Wall mounting
– Ensure that the wall faces are flat and free of contaminations.
– Check the dimensions of the mounting-foot holes.
– Support the machine from below, e.g. using a wall bracket or by bolting it.
5.2 Lift the machine to where it will be installed, and position it
5.2.1 Preconditions for correct alignment and secure attachment
Detailed specialist knowledge of the following measures is required in order to correctly align
and securely fit the equipment.
● Preparing the foundation
● Selecting and mounting the coupling
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 47
Page 48
Assembly
5.2 Lift the machine to where it will be installed, and position it
● Measuring the concentricity and axial eccentricity tolerances
● Positioning the machine
If you are not familiar with the prescribed measures and procedures, then you can make use
of the services offered by the local Service Center (Page 129).
5.2.2 Checking the load handling attachments
Inspect the load handling attachments such as the load stands, lifting eyes and ring bolts and
also the lifting gear, before lifting the machine:
● Inspect the load handling attachments on the machine for possible damage. Replace any
load handling attachments that are found to be damaged.
● Check before use that the load handling attachments are correctly secured.
● When lifting the machine, use only approved and undamaged lifting gear of sufficient rated
capacity. Check these before using them.
WARNING
The machine can be dropped
If the load handling attachments and lifting gear are damaged or not correctly secured,
the machine may be dropped during lifting. This can result in death, serious injury or
material damage. Inspect the load handling attachments and lifting gear before use.
5.2.3 Removing the rotor shipping brace
If a rotor shipping brace is attached to the machine, remove it at the last possible moment,
for example, when you are ready to push on the output or drive element.
Note
Store the rotor locking device
Be sure to store the rotor locking device. It must be remounted for possible disassembly and
transport.
SIMOTICS TN Series N-compact 1LH8
48 Operating Instructions 06/2017
Page 49
5.2 Lift the machine to where it will be installed, and position it
5.2.4 Removing the rotor shipping brace from machines with vertical type of construction
NOTICE
Removing the rotor shipping brace in the horizontal position.
Dismantling the rotor shipping brace when the machine is in a horizontal position could
damage the bearings.
● Only remove the rotor shipping brace when the machine is in a vertical position.
NOTICE
Turning the motor over without rotor shipping brace
Failure to fit the rotor shipping brace can result in damage to the bearings while the machine
is being turned onto its side.
● Fix the rotor in place before you turn the machine into a horizontal position.
Assembly
5.2.5 Removing anti-corrosion protection
Machined, bare metallic surfaces of the motor, such as the shaft end, fitted key, foot and flange
surfaces, are treated with an anti-corrosion agent.
1. Remove this layer of anti-corrosion agent from the mounting surfaces of the motor by wiping
it away with an absorbent cloth or paper sheet.
NOTICE
Damage to the machine surface
Using metal objects such as scrapers, spatulas, or plates to remove the anti-corrosion
protection could result in damage to the surfaces of the machine parts.
2. Then lightly oil the bare surfaces again.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 49
Page 50
Assembly
5.2 Lift the machine to where it will be installed, and position it
5.2.6 Mounting the output elements
Balance quality
The rotor is dynamically balanced. For shaft extensions with featherkeys, the balancing type
is specified using the following coding on the face of the drive end of the shaft:
● "H" means balancing with a half feather key
● "F" means balancing with a whole feather key.

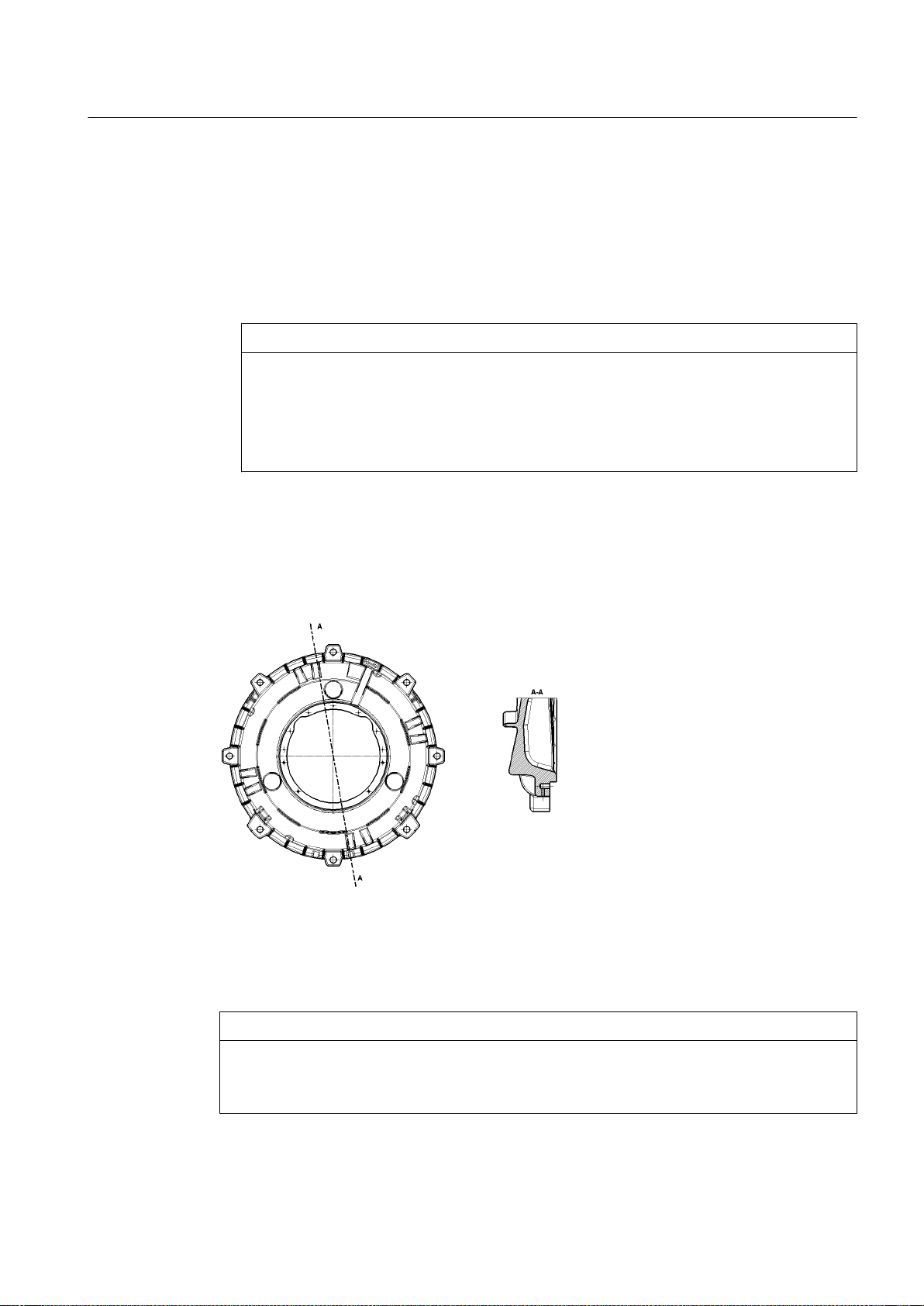

Figure 5-1 Balancing type on the drive-end side
Pushing on the power output elements
● Prerequisites:
– The coupling and/or the output element must be appropriately dimensioned for the
operating case at hand. The balance quality must satisfy the following requirements.
– Comply with the coupling manufacturer's instructions.
– Make sure that the balancing type of the transmission element correctly matches the
type of balance of the rotor.
– Use only ready drilled and balanced transmission elements. Check the hole diameters
and the balancing status before pulling them on. Thoroughly clean the shaft extension.
● Pulling on:
– Warm up the transmission elements to expand them before pulling them on. Select the
temperature difference for the heating process to suit the coupling diameter, fit and
material. See the coupling manufacturer's instructions.
– Power output elements may only be pushed on or pulled off with the correct equipment.
The output element must be pulled on in one continuous operation using the front thread
holes in the shaft or pulled on by hand.
– Do not strike it with a hammer, as this would damage the bearings.
SIMOTICS TN Series N-compact 1LH8
50 Operating Instructions 06/2017
Page 51
Shaft extensions with feather key
To maintain the balancing quality, you have the following options:
● If the output element is shorter than the feather key with balancing type "H", then you must
machine off the section of feather key protruding from the shaft contour and output element.
Alternatively, ensure that the weights are compensated to achieve the appropriate balance
quality.
● If the transmission element is drawn up on to the shoulder of the shaft, you must ensure
that the part of the coupling groove where the feather key is not inserted is taken into
consideration when balancing the coupling.
The following applies for all 2-pole machines and 4-pole machines with a frequency ≥ 60 Hz:
● The feather key must be shortened if the coupling hub is shorter than the feather key.
● The center of gravity of the coupling half should be within the length of the shaft end.
● The coupling used must be prepared for system balancing.
The number of poles of the machine is specified on the rating plate (in the designation of
the motor type).
Assembly
5.2 Lift the machine to where it will be installed, and position it
WARNING
The feather key can fall out
The feather keys are only locked against falling out during shipping. If a machine with two
shaft extensions does not have an output element on one shaft extension, the feather key
can fall out during operation.
Death or serious injury can result.
● If the machine is to be operated without output elements, secure the feather key on the
free shaft extension so that it cannot be flung out.
● To avoid imbalance, for balancing type "H", reduce the weight of the feather key to 60 %
of the original weight.
5.2.7 Lifting and transporting the machine
To safely lift and transport the machine, the following requirements must be met:
● Personnel operating cranes and fork-lift trucks must be appropriately qualified.
● If the machine is packed, depending on the weight, size and on-site conditions, lift crates
and transport frames using a fork-lift truck or a crane with slings. Use a crane or fork-lift
truck suitable for the load.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 51
Page 52
Assembly
5.2 Lift the machine to where it will be installed, and position it
● When lifting the machine, use only approved and undamaged sling guides and spreaders
of sufficient rated capacity. Check the lifting equipment prior to its use. The weight of the
machine is shown on the rating plate.
● When lifting the machine, refer to the information on the lifting plate.
– Comply with the specified spreading angles.
– Do not exceed the maximum lifting acceleration and lifting speed specified on the lifting
plate. Lift the machine without jerking it.
Acceleration a ≤ 0.4 g (≈ 4 m/s2 )
Velocity v ≤ 20 m/min
WARNING
Transport for a different type of construction
If you do not transport or lift the machine in a position appropriate for its construction, the
machine can tip, slip into the lifting equipment or fall down. This can result in death, serious
injury or material damage.
● Use only the load carrying device on the stator frame for lifting.
● Use the load carrying device appropriate for the machine position.
● Only use suitable rope guiding or spreading devices.
WARNING
Center of gravity not centered
If the center of gravity of a load is not located centrally between the attachment points, the
machine can tip over or slip out of the lifting equipment and fall when it is being transported
or lifted. This can result in death, serious injury or material damage.
● Comply with the handling instructions on the machine when transporting it.
● Be aware of the possibility of different loads on the sling ropes or lifting straps and the
carrying capacity of the lifting equipment.
● Always take account of the center of gravity when transporting or lifting the machine. If
the center of gravity is not located centrally between the attachment points, then position
the hoisting hook above the center of gravity.
Note
Place the machine in a secure and raised position
In order to obtain easy and safe access to the underside of the machine, place it in a secure
and raised position.
DANGER
Standing under suspended loads
If the lifting gear or load handling attachments were to fail, the machine could fall. This can
result in death, serious injury or material damage.
Never remain under or in the immediate vicinity of the machine when it is raised.
SIMOTICS TN Series N-compact 1LH8
52 Operating Instructions 06/2017
Page 53
5.2.8 Draining condensation
Under the following conditions it is possible that condensation may accumulate within the
machine:
● Wide fluctuations in the ambient temperature, such as direct sunlight combined with high
atmospheric humidity
● Intermittent operation or load fluctuations during operation
NOTICE
Damage due to condensate
If the stator winding is damp, its insulation resistance will be reduced. This can result in
voltage flashovers that can seriously damage the windings. Condensate can also cause
rust to form within the machine.
Ensure that condensate can drain away.
Ensure that condensate can drain away
Assembly
5.2 Lift the machine to where it will be installed, and position it
In the bearing shields on the DE and NDE, water drainage holes are situated below or opposite
the regreasing devices. They are sealed with screw plugs. Depending on the type of
installation, the water drainage holes are located at the bottom.
Figure 5-2 Schematic diagram of the water drain holes
1. Regularly remove the screw plugs to allow the condensate to drain away.
2. Replace them when you have finished.
NOTICE
The degree of protection is reduced
Nominally the degree of protection of the machine is reduced to IP44 when the screw plug is
removed.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 53
Page 54
Assembly
5.2 Lift the machine to where it will be installed, and position it
5.2.9 Putting the machine down
Requirements
The following preconditions must be satisfied before setting down the machine at the
installation location:
● The mating faces must be clean.
● The anti-corrosion protection paint has been removed from the mating faces, such as the
machine mounting feet, flange, ...
● There is no condensation present within the machine.
Setting down the machine
● Set down the machine slowly and carefully at the installation location to avoid any impact.
See also
Draining condensation (Page 53)
5.2.10 Roughly aligning the machine
Requirement
The transmission element such as a coupling half has already been pulled on.
Roughly aligning the machine
● For horizontal positioning, push the motor sideways across the foundation. When doing so,
ensure that the axial position is maintained.
SIMOTICS TN Series N-compact 1LH8
54 Operating Instructions 06/2017
Page 55
5.3 Installing the machine
5.3.1 Safety instructions for installation
WARNING
Inappropriate fastening material
If screws of an incorrect property class have been selected or if they have been fastened to
an incorrect tightening torque, they may break or become loose. This will cause the machine
to move, which could damage the bearings. The rotor could smash into the machine enclosure
and machine parts could be flung out of place. This can result in death, serious injury or
material damage.
● Comply with the required property classes for screwed connections.
● Tighten the screwed connections to the specified tightening torques.
WARNING
Assembly
5.3 Installing the machine
Incorrect alignment
If the machine has not been properly aligned, this will mean the fastening parts are subjected
to stress/distortion. Screws may become loose or break, the machine will move, machine
parts could be flung out of place. This can result in death, serious injury or material damage.
● Carefully align the machine to the driven machine.
NOTICE
Improper handling
Mounting parts such as temperature sensors or speed sensors are attached to the machine
and could be ripped off or destroyed as a result of improper handling. This could lead to
machine malfunctions, extending even to total loss of the machine.
● Where necessary, use suitable steps when performing installation work on the machine.
● Do not stand on cables or attachments during installation. Do not use attachments as
steps.
5.3.2 Selecting fixing screws
● Unless specified otherwise, use mounting bolts with at least strength class 8.8 to ISO 898‑1.
In this way you guarantee that the machine is securely mounted and the forces can be
transferred through the torque.
● Take into account the maximum forces occurring in the case of a fault such as short circuit
or system transfers in phase opposition.
– When selecting the bolts
– When designing the foundation
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 55
Page 56
Assembly
5.3 Installing the machine
See also
Tightening torques for screw and bolt connections (Page 131)
5.3.3 Preconditions for smooth, vibration-free operation
Preconditions for smooth, vibration-free operation:
● Stable foundation design
● Precise alignment of the machine
● Correct balancing of parts to be fitted to the shaft end.
● Maintaining the vibration velocity according to ISO 10816‑3
5.3.4 Aligning the machine to the driven machine and attaching it to it (IM B3 / IM B35)
1. Refer to any instructions for aligning the driven machine and those of the coupling
manufacturer.
2. Align the machines with coupling output to the driven machine in such a manner that the
center lines of the shafts at the operating temperature do not have any parallel or angular
offset. This ensures that no additional forces affect their bearings during operation.
If the thermal change of the motor and the driven machine is different, couple in the cold
state with an appropriate alignment offset. The alignment offset to be set in the cold state
must be determined and specified by the system specialist.
3. For the vertical positioning (x→0), place thin shims over a large surface area under the
machine feet. The number of shims should be kept as low as possible, i.e. stack as few as
possible. This also prevents the machine being subjected to any stress/distortion. Use the
existing tapped holes for the forcing-off bolts to raise the machine.
The balance state of the shaft (full-key or half-key balancing) and alignment errors primarily
influence the service life of the bearing, especially for high motor speeds or when using
rigid couplings.
SIMOTICS TN Series N-compact 1LH8
56 Operating Instructions 06/2017
Page 57
'
[
\
Assembly
5.3 Installing the machine
4. When positioning the machine, ensure that a uniform axial gap (y→0) is maintained around
the coupling.
5. Fix the machine to the foundation. The choice of fixing elements depends on the foundation
and is the plant operator's responsibility.
① Plates placed under the motor for alignment
② Laser alignment
Figure 5-3 Schematic diagram: Aligning the machine to the driven machine
Table 5-2 Permissible deviations for aligning the machine with flexible coupling
Max. speed n
n
≤ 1500 rpm x
max
1500 rpm < n
max
≤ 3600 rpm x
max
Note
Machine expansion
When performing alignment, make allowance for the thermal expansion of the machine due
to rising temperature.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 57
Max. parallel offset x Max. angular offset y
= 0.08 mm y
max
= 0.05 mm y
max
= 0.08 mm / 100 mm ∅ D
max
= 0.05 mm / 100 mm ∅ D
max
Page 58
Assembly
5.3 Installing the machine
5.3.5 Aligning the machine to the driven machine and attaching it to it (IM B5)
The standard flange is provided with a centering. The choice of fit for the mating flange on the
driven machine is the system manufacturer's or the plant operator's responsibility.
Note
If the machine is not fitted with a standard flange, align the machine to suit the driven
machine.
Procedure
The machine axis must be horizontal when it is lifted and the flange must be parallel to the
mating flange, so as to avoid seizing and stressing. Otherwise damage to the centering will
result.
1. Grease the centering flange with assembly paste to make the process easier.
2. Screw three studs into tapped holes spaced about 120° apart around the driven machine
flange. The studs act as positioning aids.
3. Position the machine so that its axis is aligned with that of the driven machine, but not yet
quite touching. Advance the machine slowly towards the driven machine; advancing too
quickly risks damaging the centering.
4. If necessary, rotate the machine into the right position so that the clearance holes in the
flange are central to the tapped holes.
5. Move the machine fully up against the mating flange so that it is fully in contact.
6. Fix the machine using the flange fixing bolts, finishing by replacing the studs.
There is a threaded hole M36 at the bottom of the machine where you can fasten the support
base.
● Mount the support base so that no additional mechanical tensions can occur in the housing.
WARNING
Mechanical tensions
The machine may be damaged by additional mechanical tensions in the housing caused
by incorrect mounting of the support base. The machine or machine parts may loosen
during operation.
This can result in death, serious injury or material damage.
● Mount the support base so that no additional mechanical tensions can occur in the
housing.
See also
Tightening torques for screw and bolt connections (Page 131)
SIMOTICS TN Series N-compact 1LH8
58 Operating Instructions 06/2017
Page 59
Assembly
5.3 Installing the machine
5.3.6 Aligning the machine to the driven machine and attaching it to it (IM V1, IM V10)
The standard flange is provided with a centering. The choice of fit for the mating flange on the
driven machine is the system manufacturer's or the plant operator's responsibility.
Note
If the machine is not fitted with a standard flange, align the machine to suit the driven machine.
Procedure
The machine axis must be vertical when it is lifted and the flange must be parallel to the mating
flange, so as to avoid seizing and stressing. Otherwise damage to the centering will result.
1. Grease the centering flange with assembly paste to make the process easier.
2. Screw in two studs into tapped holes on opposite sides of the driven machine flange. The
studs act as positioning aids.
3. Lower the machine slowly toward the driven machine and into the centering, so that the
flanges do not quite touch. Lowering too quickly risks damaging the centering.
4. If necessary, rotate the machine into the right position so that the clearance holes in the
flange are central to the tapped holes.
5. Lower the machine completely onto the mating flange so that it is fully in contact; then
remove the studs.
6. Fix the machine using the flange fixing bolts.
See also
Tightening torques for screw and bolt connections (Page 131)
Alignment accuracy
The coaxial characteristic of the shafts of electrical machines and driven machine may not
exceed 0.05 mm in diameter.
5.3.7 Axial and radial forces
You can obtain the permissible values for axial and radial forces by contacting the Siemens
Service Center (Page 129) or referring to the machine catalog.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 59
Page 60
Assembly
5.4 Connecting the cooling water supply
NOTICE
Damage to bearings or the shaft
Large output masses and their centers of gravity outside the shaft extensions can lead to
resonance in operation. This can result in damage to the bearings and shaft.
Ensure that the permissible loads for the forces on the shaft extension are adhered to in
accordance with the catalog data or configuration data.
5.4 Connecting the cooling water supply
Seen from the shaft extension, connection of the water is possible from the right and from the
left.
NOTICE
Cooling water connection pipe
If the cooling water cannot flow freely, the machine will not be cooled properly. The machine
will overheat, which could result in material damage or even a write-off.
● Remove the flange cover plate.
● Insert the gaskets correctly.
1. For the pipes, select materials with the required chemical composition in accordance with
the water conditions. Also consider the pressure load and compatibility with the materials
from which the cooler is made.
2. Route and support the water pipes so that the connecting flanges are not exposed to
excessive stress or strain or vibration loads.
3. Rinse out the water circuit before you connect the cooling water supply to the motor. This
removes deposits and foreign bodies so that they cannot make their way into the cooling
circuit.
4. Should there be a possibility of the cooling water containing dirt and foreign bodies, install
suitable filters in the cooling-water feed pipe.
5. Connect the cooling circuit to the machine.
Filling the cooling circuit
1. Fill the cooling circuit with water until the air is completely forced out of the cooling circuit.
2. Perform a pressure check to see whether the cooling water supply is airtight. In doing so,
do not exceed the maximum test pressure. The maximum permissible pressure can be
found on the rating plate.
If you do not then put the machine into operation, you must implement the measures necessary
during stoppages.
SIMOTICS TN Series N-compact 1LH8
60 Operating Instructions 06/2017
Page 61
Assembly
5.4 Connecting the cooling water supply
NOTICE
Bleed air from the cooling ducts
If the cooling ducts are not completely filled with water, sufficient machine cooling cannot be
guaranteed and the machine may overheat.
Ensure that the air is bled from the cooling ducts during filling and that the cooling ducts are
completely filled with water.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 61
Page 62
Assembly
5.4 Connecting the cooling water supply
SIMOTICS TN Series N-compact 1LH8
62 Operating Instructions 06/2017
Page 63
Electrical connection
Observe the following when carrying out any work on the machine:
● Comply with the general safety instructions
● Comply with the applicable national and sector-specific regulations at the place of
installation
● When using the machine within the European Union, comply with the specifications laid
down in EN 50110‑1 regarding safe operation of electrical equipment.
See also
Safety information (Page 13)
Note
Service Center
If you require support when electrically connecting up the machine, please contact the Service
Center (Page 129).
6
See also
NOTICE
Connected parts can loosen
If you use fixing elements made from the wrong material or apply the wrong tightening torque,
this could impair current transfer or cause connecting parts to become loose. This could result
in material damage to the machine or even in total failure, which could in turn lead indirectly
to material damage to the system.
● Tighten the screwed connections to the specified tightening torques.
● Observe any specifications regarding the materials from which fixing elements must be
made.
● When performing servicing, check the fastenings.
Tightening torques for screw and bolt connections (Page 131)
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 63
Page 64
;
;
Electrical connection
6.1 Basic rules
6.1 Basic rules
The following generally applies to electrical connections:
● Ensure that there is a safe and reliable PE ground connection before starting any work.
● The connecting cables can be sealed and secured at every cable entry point into the
terminal box.
● Lay the connecting cables and in particular the PE conductor in the terminal box in an open
arrangement so that chafing of the cable insulation is prevented.
● Connect the machine in such a way that a permanent, safe electrical connection is
maintained. Avoid protruding wire ends.
● Lay and secure external auxiliary cables separately from the main cable. Elements with
cable ties may be present for this purpose.
● In case of high humidity or when installed outside, water drops can move along the cable
jacket and enter the motor through the cable entry and cable gland.
If you route the cable with an appropriate loop then water doesn't enter the terminal box,
but simply drips off.
Figure 6-1 Water drip loop
SIMOTICS TN Series N-compact 1LH8
64 Operating Instructions 06/2017
Page 65
6.2 Terminal box
6.2.1 Terminal box 1XB9629
Electrical connection
6.2 Terminal box
Figure 6-2 Terminal box 1XB9269
The terminal box 1XB9629 has been manufactured as welded design and is permanently
connected with the machine. For this reason, it cannot be rotated.
For more information, see:
● Inserting the cable into the terminal box (Page 67)
● Connecting cables with cable lugs (Page 68)
6.3 Preparation
6.3.1 Checking winding connections
With an open winding design, i.e. when the windings start and end directly at the terminal box
(see the "Terminal marking" (Page 66) section), the connections are made using jumpers in
the terminal box. The jumpers for the open connection must not be removed when testing the
winding; refer to the relevant circuit diagram.
● Check that the connections (star or delta) comply with the specifications on the rating
plate.
● Ensure that the connection values correspond to the information on the rating plate.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 65
Page 66
Electrical connection
6.3 Preparation
6.3.2 Terminal designation
According to IEC / EN 60034‑8, the following basic definitions apply to the terminal
designations for 3-phase machines:
Table 6-1 Terminal designations using the 1U1-1 as an example
1 U 1 - 1 Designation
x Index for pole assignment for pole-changing machines where applicable. A lower
index signifies a lower speed. Special case for split winding.
x Phase designation U, V, W
x Index for winding start (1) or end (2) or if there is more than one connection per
winding
x Additional indices for cases in which it is obligatory to connect parallel power feed
cables to several terminals with otherwise identical designations
6.3.3 Selecting cables
Take the following criteria into account when selecting the connecting cables:
● Rated current
● Rated voltage
● If required, service factor
● System-dependent conditions, such as ambient temperature, routing type, cable crosssection as defined by required length of cable, etc.
● Configuration notes
● Requirements according to IEC/EN 60204‑1
● Dimensioning for bundled cable routing, e.g. according to DIN VDE 0298 Part 4 or
IEC 60364-5-52
6.3.4 Connecting the grounding conductor
The grounding conductor cross-section of the machine must be in full conformance with the
installation specifications, e.g. according to IEC / EN 60204-1.
Table 6-2 Determining the cross-section of the grounding conductor
Cross-section of the line conductor S [mm²] Cross-section of the grounding conductor [mm²]
S > 35 S/2
Grounding connections are located at the struts of the base plate of the stator frame. Hexagon
bolts are located at the marked connection points for the grounding conductor. The grounding
conductor can be connected as follows:
● With stranded cables with cable lugs
● With flat cables with cable end designed accordingly
SIMOTICS TN Series N-compact 1LH8
66 Operating Instructions 06/2017
Page 67
6.4 Introducing and routing the cables
Connecting the grounding conductor
● Ensure that the connecting surface is bare and is protected against corrosion using a
suitable substance, e.g. acid-free Vaseline.
● Locate the flat and spring washers under the bolt head.
● Check that the maximum permissible clamping thickness of 10 mm for the cable lug or strap
is not exceeded.
● Fasten the clamping screw according to the following table.
Bolt Screw-in depth: Tightening torque
M10 x 30 20 mm 52 Nm
● Use the connecting terminals designated for the grounding conductor in the terminal box.
6.3.5 Connecting the machine for a specific direction of rotation
If the machine has one shaft extension or two shaft extensions with different diameters, the
direction of rotation when looking at the front of the single or the thicker shaft extension is
defined as follows:
Electrical connection
● If you connect the power cables in the phase sequence L1, L2, L3 to U, V, W, the resulting
rotation will be clockwise.
● If you interchange two connections, e.g. L1, L2, L3 to W, V, U, the resulting rotation will be
counter-clockwise.
● On machines which are only allowed to run in one direction, the rating plate shows an arrow
which indicates the permitted direction of rotation, and it also specifies the terminal
connections in the required phase sequence.
NOTICE
Incorrect direction of rotation
The machine will not be adequately cooled if it is operated other than how it was originally
ordered or with the incorrect direction of rotation. This can result in machine damage.
Observe the direction of rotation data on the nameplate.
6.4 Introducing and routing the cables
6.4.1 Inserting the cable into the terminal box
The connection cables are inserted into the terminal box via an exchangeable cable entry
plate. The cable entry plate is not drilled by default. This enables you to adapt the number and
size of the boreholes to the rated conditions.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 67
Page 68
Electrical connection
6.4 Introducing and routing the cables
The cable entry plate features a customized design according to the corresponding order.
Insert the cable into the terminal box
1. Unscrew the cable entry plate.
2. Drill the required number of holes or tapped holes in the required size into the cable entry
plate.
3. Fit the required cable glands.
4. Route the cables through the cable glands.
5. Fit the cable entry plate to the terminal box with the assembled cables.
– Lay the cables and in particular the PE conductor in the terminal box in an open
arrangement so that chafing of the cable insulation is prevented.
– Lay and secure external auxiliary cables separately from the main cable. Elements with
cable ties are attached to the floor of the terminal box next to the walls.
6. Connect the ends of the cables to the terminals in accordance with the circuit diagram. The
circuit diagram is located in the cover of the terminal box.
Refer to the "Connecting cables..." section for more information.
6.4.2 Laying cables
● Lay the cables in accordance with IEC/EN 60364-5-52.
● Use EMC cable glands for fixed cables. Screw the EMC cable glands into the threaded
holes in the entry plate, which can be unscrewed.
● Use shielded cables whose shields are conductively connected to a large area of the
terminal box of the motor via EMC cable glands.
● In the case of aluminum connecting bars, insert a steel washer between the cable lug and
the connecting bar. This prevents contact corrosion.
● Arrange the exposed connecting cables in the terminal box so that the PE conductor has
excess length and the insulation of the cable strands cannot be damaged.
● Close off unused bushings with a metal threaded plug. This is the way to achieve a high
frequency-proof shielding.
6.4.3 Connecting cables with cable lugs
1. Select the cable lugs according to the required cable cross-section and fixing screw or stud
size. Information about the maximum cross-section for the respective standard terminal
box design can be found in the catalog.
A sloped/angular arrangement of the supply cables is only permitted provided the required
minimum air clearances are met.
2. Remove the insulation from the conductor ends so that the remaining insulation reaches
almost up to the cable lug ①. Connect only one conductor per cable lug.
SIMOTICS TN Series N-compact 1LH8
68 Operating Instructions 06/2017
Page 69
Electrical connection
6.4 Introducing and routing the cables
3. Fasten the cable lug to the end of the conductor correctly, e.g. by squeezing.
Figure 6-3 Connection with cable lug and fixing screw (schematic diagram)
4. Insulate the cable lug sleeves where necessary to ensure minimum air clearances and the
creepage distance are maintained.
5. Place the cable lug on the terminal support. If you are using a disconnecting link, check its
positioning.
For terminal boxes 1XB7740 and 1XB7750, place the cable lug on the busbar.
6. Tighten the fixing element ② with the corresponding tightening torque:
Fixing element Tightening torque
Fastening screw M12 20 Nm
Fixing screws M16 40 Nm
Fixing nuts M12 20 Nm
6.4.4 Use of aluminum conductors
If you are using aluminum conductors, then comply with the following:
● Use only cable lugs that are suitable for connecting aluminum conductors.
● Immediately before inserting the aluminum conductor, remove the oxide layer from the
contact areas on the conductor and/or the mating piece. Do this using a brush or file.
● Then grease the contact areas immediately using neutral Vaseline. This prevents a new
oxide layer from forming.
NOTICE
Aluminum flow due to contact pressure
Aluminum flows following installation due to the contact pressure. The connection using
clamping nuts can loosen as a result. The contact resistance increases, obstructing the
current from being conducted. This can result in fire and material damage to the machine
– or even in total failure, as well as material damage to the plant or system due to machine
failure.
● Retighten the clamping nuts after approximately 24 hours and then again after
approximately four weeks. Make sure that the terminals are de-energized before you
tighten the nuts.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 69
Page 70
Electrical connection
6.4 Introducing and routing the cables
6.4.5 Using single-stranded cables
NOTICE
High temperatures from induced eddy currents
With high currents and where several single-stranded cables are used instead of multiplestranded cables, high temperatures can result in the cable entry area due to induced eddy
currents. This can result in material damage or even a machine failure.
● After commissioning, ensure that the temperature limits of the connected power cables
are not exceeded during operation. This temperature effect can be reduced by altering
the conditions at the entry points or by using modified cable entry plates after consultation
with the manufacturing plant.
● Use a cable entry plate made of non-ferrous metal.
6.4.6 Internal equipotential bonding
Between terminal box cover and terminal box enclosure, the cover fixing screws serve as
equipotential bonding.
A special external ground conductor is only installed if, for example, flat seals are mounted
without additional support.
When performing any installation work, you must always take care to ensure that all
equipotential bonding measures remain effective.
6.4.7 Stepless mating face for sealing in the terminal box cover (not for GT640)
The sealing face of the terminal box cover is formed by the terminal box enclosure and the
cable entry element. Therefore make sure these parts are correctly aligned, so as to ensure
the seal and hence the degree of protection.
Align the cable entry support and the cable entry plate to the terminal box enclosure so that
the sealing surface between the terminal box and the terminal box cover form a flat face. There
must be no steps in the sealing area.
6.4.8 Minimum air clearances
After proper installation, verify that the minimum air clearances between non-insulated parts
are maintained. Be aware of any protruding wire ends.
Table 6-3 Minimum air clearance dependent on rms value of the alternating voltage U
Rms value of the alternating voltage V
≤ 500 V 8 mm
≤ 630 V 10 mm
Minimum air clearance
rms
SIMOTICS TN Series N-compact 1LH8
rms
70 Operating Instructions 06/2017
Page 71
≤ 800 V 12 mm
≤ 1000 V 14 mm
≤ 1250 V 18 mm
Values apply at an installation altitude of up to 2000 m.
When determining the required minimum air clearance, the voltage value in the table may be increased
by a factor of 1.1, so that the rated input voltage range is taken into account during general use.
6.5 Connecting the auxiliary circuits
6.5.1 Selecting cables
Take the following criteria into account when selecting the connecting cables for the auxiliary
circuits:
● Rated current
● Rated voltage
Electrical connection
6.5 Connecting the auxiliary circuits
● System-dependent conditions, such as ambient temperature, routing type, cable crosssection as defined by required length of cable, etc.
● Requirements according to IEC/EN 60204‑1
6.5.2 Connecting temperature monitoring for the stator winding
The stator winding is monitored for thermal loading by temperature sensors embedded in the
stator winding.
The connecting cables of the temperature sensors are routed to the main or auxiliary terminal
box, depending on the version. The connection and assignment of the terminals is specified
in the circuit diagram.
WARNING
Hazard due to electric shock
The installation of the temperature sensors for the winding monitoring with respect to the
winding is implemented according to the requirements for basic insulation. The temperature
sensor connections are located in terminal boxes, safe to touch, and have no protective
separation. This is the reason that in the case of a fault, a hazardous voltage can be present
at the measuring sensor cable. When touched, this can result in death, severe bodily injury
and material damage.
● When connecting the temperature sensor to external temperature monitoring devices,
when required, apply additional measures to fully comply with the requirements set out in
IEC 60664-1 or IEC 61800-5-1 "Hazard due to electric shock”.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 71
Page 72
Electrical connection
6.5 Connecting the auxiliary circuits
SIMOTICS TN Series N-compact 1LH8
72 Operating Instructions 06/2017
Page 73
Start-up
Observe the following when carrying out any work on the machine:
● Comply with the general safety instructions
● Comply with the applicable national and sector-specific regulations at the place of
installation
● When using the machine within the European Union, comply with the specifications laid
down in EN 50110‑1 regarding safe operation of electrical equipment.
See also
Safety information (Page 13)
7.1 Checks to be carried out prior to commissioning
Once the system has been correctly installed, you should check the following prior to
commissioning:
7
Note
Checks to be carried out prior to commissioning
The following list of checks to be performed prior to commissioning does not claim to be
complete. It may be necessary to perform further checks and tests in accordance with the
specific situation on-site.
● The machine is undamaged.
● The machine has been correctly installed and aligned, the transmission elements are
correctly balanced and adjusted.
● All fixing screws, connection elements, and electrical connections have been tightened to
the specified tightening torques.
● The operating conditions match the data provided in accordance with the technical
documentation, such as degree of protection, ambient temperature, etc..
● Moving parts such as the coupling move freely.
● All touch protection measures for moving and live parts have been taken.
Second shaft extension
If the second shaft extension is not used:
● The feather key is secured to prevent it from being thrown out, and for balancing type "H"
(standard type), its weight is reduced to 60 % of the original weight.
● The unused shaft extension is covered and protected against accidental contact.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 73
Page 74
Start-up
7.2 Converter operation
Cooling
● Check that the machine cooling is available for commissioning.
● The water cooling is switched on. The data can be found on the rating plate.
● Cooling water of the configured quality is used.
Electrical connection
● The grounding and equipotential bonding connections have been made correctly.
● The machine is connected so that it rotates in the direction specified.
● Appropriately configured control and speed monitoring functions ensure that the motor
cannot exceed the permissible speeds specified in the technical data. For this purpose,
compare the data on the rating plate or, if necessary, the system-specific documentation.
● The minimum insulation resistance values are within tolerance.
● Minimum air clearances have been maintained.
● Any supplementary motor monitoring devices and equipment have been correctly
connected and are functioning correctly.
● All brakes and backstops are operating correctly.
● At the monitoring devices, the values for "Warning" and "Shutdown" are set.
See also
Set values for monitoring the winding temperature (Page 77)
Setpoint values for monitoring the bearing temperature (Page 77)
7.2 Converter operation
The following chapter is relevant only to machines of series 1PQ8 or if the machine was ordered
for operation on the rectifier.
Note
The order number shows whether the machine was ordered for operation with converter: the
9th digit of the order number features the letter "P" or "Q".
Converter operation
● If the design of the motor requires connection to a particular converter type, the rating plate
will contain corresponding additional information.
● The converter is correctly parameterized. The parameterization data is specified on the
rating plate of the machine. Information about the parameters is available in the operating
instructions for the converter.
SIMOTICS TN Series N-compact 1LH8
74 Operating Instructions 06/2017
Page 75
7.3 Measuring the insulation resistance before commissioning
● Any supplementary motor monitoring devices and equipment have been correctly
connected and are functioning correctly.
Start-up
● In continuous operation, the motor cannot exceed the specified upper speed limit n
undershoot the lower speed limit n
The permissible acceleration time to the limit speed n
min
.
min
assignment.
7.2.1 Operation on a converter with a low pulse frequency
NOTICE
Increased motor temperature
If the pulse frequency is less than the rated pulse frequency, then increased motor losses
occur. This results in a higher motor temperature.
● Reduce the power to prevent exceeding the temperature class and to avoid consequential
premature thermal aging of the insulation.
● Contact the Service Center if necessary.
WARNING
Dangerous voltage via the converter
As long as the feeding converter is switched on, or the DC link of the converter is not
discharged, there can be a voltage at the motor terminals even when the rotor is not moving.
The voltage is up to 1000 V, depending on the converter type.
depends on the parameter
max
or
Ensure that the five safety rules (Page 13) are followed before working on the motor.
● The bearing insulation should be implemented as shown on the plates.
7.3 Measuring the insulation resistance before commissioning
Measuring the insulation resistance and polarization index (PI) provides information on the
condition of the machine. It is therefore important to check the insulation resistance and the
polarization index at the following times:
● Before starting up a machine for the first time
● After an extended period in storage or downtime
● Within the scope of maintenance work
The following information is provided regarding the state of the winding insulation:
● Is the winding head insulation conductively contaminated?
● Has the winding insulation absorbed moisture?
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 75
Page 76
Start-up
7.4 Greasing the roller bearings prior to commissioning
As such, you can determine whether the machine needs commissioning or any necessary
measures such as cleaning and/or drying the winding:
● Can the machine be put into operation?
● Must the windings be cleaned or dried?
Detailed information on testing and the limit values can be found here:
"Testing the insulation resistance and polarization index" (Page 45)
7.4 Greasing the roller bearings prior to commissioning
The following information assumes that the specified storage conditions have been complied
with.
General specifications
● Pay attention to the instructions on the lubricant plate.
● Regrease in portions. The shaft must rotate so that the new grease can be distributed in
the bearings.
Regreasing the roller bearings prior to commissioning
● If the period between delivery and commissioning is more than a year and less than four
years:
– Re-grease the roller bearings with twice the amount of grease specified on the lubricant
plate.
– Check the bearing temperature, as far as possible.
Regreasing roller bearings before commissioning
You must regrease the roller bearings under the following conditions:
● If the machine has been in storage for more than four years.
● If the machine has not been stored in accordance with the specifications in the "Storage"
section.
Procedure
1. Remove the bearing, regreasing pipes, grease nipples and the bearing cap.
2. Flush out the old grease.
3. Check the bearings before regreasing. If necessary, install new bearings.
4. Lubricate the bearings and reinstall the bearing components.
SIMOTICS TN Series N-compact 1LH8
76 Operating Instructions 06/2017
Page 77
7.5 Setpoint values for monitoring the bearing temperature
See also
Regreasing intervals and types of grease for operating roller bearings (Page 97)
Stoppages (Page 83)
Transport and storage (Page 29)
7.5 Setpoint values for monitoring the bearing temperature
Prior to commissioning
If the machine is equipped with bearing thermometers, set the temperature value for
disconnection on the monitoring equipment before the first machine run.
Table 7-1 Set values for monitoring the bearing temperatures before commissioning
Set value Temperature
Disconnecting during commissioning 120 °C
Start-up
Normal operation
Measure the normal operating temperature of the bearings Top at the installation site in °C. Set
the values for shutdown and warning according to the operating temperature Top.
Table 7-2 Set values for monitoring the bearing temperatures in normal operation
Set value Temperature
Warning in normal operation Top + 5 K ≤ 115 °C
Disconnection in normal operation Top + 10 K ≤ 120 °C
See also
Thermal motor protection (Page 26)
7.6 Set values for monitoring the winding temperature
Prior to commissioning
Before running the machine for the first time, set the temperature value for shutdown on the
monitoring device.
Table 7-3 Set values for monitoring the winding temperatures during commissioning
Set value Temperature
Shutdown 145 °C
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 77
Page 78
Start-up
7.7 Test run
Normal operation
Measure the normal operating temperature T
for shutdown and warning according to the operating temperature T
depend on the design of the insulation system or the temperature class of the machine. The
data can be found on the rating plate.
Table 7-4 Set values for monitoring the winding temperatures in normal operation
Set value Insulation class 155(F) Insulation class 180(H)
Warning Top + 10 K ≤ 145 °C Top + 10 K ≤ 170 °C
Shutdown Top + 15 K ≤ 155 °C Top + 15 K ≤ 180 °C
7.7 Test run
After installation or inspection, carry out a test run:
1. Start up the machine without a load. To do this, close the circuit breaker and do not switch
off prematurely. Check whether it is running smoothly.
Switching the machine off again while it is starting up and still running at slow speed should
be kept to a bare minimum, for example for checking the direction of rotation or for checking
in general.
Allow the machine to run down before switching it on again.
2. If the machine is running smoothly and evenly, switch on the cooling equipment. Continue
to observe the machine for a while in no-load operation.
at the installation site in °C. Set the values
operation
. The set values
operation
3. If it runs perfectly, connect a load.
NOTICE
Thermal overload of motors connected directly to the line supply
In addition to the load torque, the ramp-up (accelerating) time is essentially influenced by
the moment of inertia to be accelerated. While ramping up when connected to the line
supply, the inrush (starting) current is a multiple of the rated current. This can result in
thermal overload. This can damage the motor.
As a consequence, when ramping up, observe the following:
● Monitor the ramp-up time and number of consecutive starts.
● Comply with the limit values and/or ramp-up conditions specified in the catalog or the
order documentation.
SIMOTICS TN Series N-compact 1LH8
78 Operating Instructions 06/2017
Page 79
Start-up
7.8 De-energizing
4. During the test run, check and document the following:
– Check whether it is running smoothly.
– Document the voltage, current and power values. As far as possible, document the
corresponding values of the driven machine.
– If this is possible using the available measuring equipment, check the bearing and stator
winding temperatures until they have reached steady-state values.
– Check the machine for noise or vibrations on the bearings or bearing shields as it runs.
5. In case of uneven running or abnormal noise, switch off the machine. As the machine runs
down, identify the cause.
– If the mechanical operation improves immediately after the machine is switched off, then
the cause is magnetic or electrical.
– If the mechanical running does not improve immediately after switching the machine off,
then the cause is mechanical.
- Imbalance of the electrical machine or the driven machine
- The machine set has not been adequately aligned
- The machine is being operated at the system resonance point. System = motor, base
frame, foundation, ...
NOTICE
Serious damage to the machine
If the vibration values in operation are not maintained in accordance with DIN ISO 10816-3,
then the machine can be mechanically destroyed.
● During operation, observe the vibration values in accordance with DIN ISO 10816‑3.
7.8 De-energizing
● If the controller does not do this automatically, switch on any anti-condensation heating
during stoppages. This will avoid the formation of condensation.
● Do not switch on the anti-condensation heating for at least two hours after the motor has
been switched off. This prevents damage to the winding insulation.
● Do not switch off the water-cooling system immediately after switching off the machine.
Wait for the machine to cool. This will prevent the accumulation of residual heat.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 79
Page 80
Start-up
7.8 De-energizing
SIMOTICS TN Series N-compact 1LH8
80 Operating Instructions 06/2017
Page 81
Operation
Observe the following when carrying out any work on the machine:
● Comply with the general safety instructions
● Comply with the applicable national and sector-specific regulations at the place of
installation
● When using the machine within the European Union, comply with the specifications laid
down in EN 50110‑1 regarding safe operation of electrical equipment.
See also
Safety information (Page 13)
8.1 Safety guidelines in operation
WARNING
Live parts
8
Terminal boxes accommodate live parts and components. If you open the terminal box cover,
this can result in death, serious injury or material damage.
● When the machine is in operation, the terminal boxes must remain closed at all times.
Terminal boxes may be opened only when the machine is stopped and de-energized.
WARNING
Rotating and live parts
Rotating or live parts are dangerous. If you remove the required covers, this can result in
death, serious injury or material damage.
● Any covers that prevent live electrical or rotating parts from being touched, ensure
compliance with a particular degree of protection or are required for ensuring proper air
flows, and hence effective cooling, must not be opened during operation.
WARNING
Fire hazard resulting from hot surfaces
Certain parts of the machine become hot during operation. Severe burns can result from
contact with these parts.
● Check the temperature of parts before touching them. If required, apply suitable protective
measures.
● Allow the machine to cool before starting work on the machine.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 81
Page 82
Operation
8.2 Switching off the anti-condensation heating
WARNING
Faults in operation
Deviations from normal operation such as increased power consumption, temperatures or
vibrations, unusual noises or odors, tripping of monitoring devices, etc., indicate that the
machine is not functioning properly. This can cause faults which can result in eventual or
immediate death, serious injury or material damage.
● Immediately inform the maintenance personnel.
● If you are in doubt, immediately switch off the motor, being sure to observe the systemspecific safety conditions.
NOTICE
Risk of corrosion due to condensate
Humid air can condense inside the machine during operation as a result of intermittent duty
or load fluctuations. Condensate can collect inside the motor. Damage such as rust can result.
● Make sure that any condensation can drain away freely.
8.2 Switching off the anti-condensation heating
NOTICE
Excessive machine temperature
If the anti-condensation heating is operated while the machine is running, this can increase
the temperatures inside the machine. This can result in material damage.
● Make sure that the anti-condensation heating is switched off before the machine is
switched on.
● Only operate anti-condensation heating when the machine is switched off.
See also
Interlock circuit for anti-condensation heating (option) (Page 27)
De-energizing (Page 79)
SIMOTICS TN Series N-compact 1LH8
82 Operating Instructions 06/2017
Page 83
8.3 Switching on the machine
1. If at all possible, run the machine without load and check that it is running smoothly.
2. If it runs perfectly, connect a load.
NOTICE
Thermal overload of motors connected directly to the line supply
In addition to the load torque, the ramp-up (accelerating) time is essentially influenced by
the moment of inertia to be accelerated. While ramping up when connected to the line
supply, the inrush (starting) current is a multiple of the rated current. This can result in
thermal overload. This can damage the motor.
As a consequence, when ramping up, observe the following:
● Monitor the ramp-up time and number of consecutive starts.
● Comply with the limit values and/or ramp-up conditions specified in the catalog or the
order documentation.
3. If this is possible using the available measuring equipment, check the bearing and stator
winding temperatures.
Operation
8.3 Switching on the machine
8.4 Regreasing roller bearings
Refer to the regreasing instructions for the roller bearings on the lubricant plate.
8.5 Switching off the water-cooling system
Do not immediately switch off the water-cooling system after switching off the machine. First
wait for the machine to cool down. This will prevent the accumulation of residual heat.
8.6 Switching on again after an emergency switching-off
● Check the machine before recommissioning the driven machine after an Emergency Off.
● Eliminate all the causes that have led to the emergency off
8.7 Stoppages
The stoppage is a shutdown for a period of time, during which the machine is stopped but
remains at the location of use.
Under normal ambient conditions, e. g. the stopped machine is not exposed to any vibration,
no increased level of corrosion, etc. in general, the following measures are necessary during
stoppages.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 83
Page 84
Operation
8.7 Stoppages
NOTICE
Damage due to improper storage
Damage may occur to the motor if it is not stored properly.
If the machine is to be taken out of operation for more than 12 months, suitable anti-corrosion,
preservation, packaging, and drying measures must be taken.
See also
Transport and storage (Page 29)
Start-up (Page 73)
8.7.1 Avoidance of condensation or formation of condensation within the machine
● If the controller does not do this automatically, switch on any anti-condensation heating
during stoppages. This will avoid the formation of condensation.
● Do not switch on the anti-condensation heating for at least two hours after the motor has
been switched off. This prevents damage to the winding insulation.
8.7.2 Avoidance of frost and corrosion damage in the cooling system
● For avoidance of frost and corrosion damage, completely drain the water from the cooling
system. Then blow air through the cooling system to dry it.
If the cooling system cannot be drained because standby capability is required at short
notice, protect the cooling circuit against frost and corrosion damage. To do this, add
suitable additives to the cooling water.
NOTICE
Impairment of the heat transport
Additives such as anti-freeze and corrosive inhibitor can impair the heat transport.
Operate the motor only with the contractually agreed water quality.
For avoidance of deposits, the cooling water circuit must then be kept running. So as to be
certain of excluding the possibility of formation of condensation within the machine, the anticondensation heating should also remain switched on (if fitted).
SIMOTICS TN Series N-compact 1LH8
84 Operating Instructions 06/2017
Page 85
8.7.3 Avoidance of damage to roller bearings during stoppages
Extended stoppages at the identical or almost identical resting position of the roller bearings
can lead to damage such as brinelling or corrosion, for example.
● During stoppages, regularly start the machine up for a brief period once a month. As a
minimum, rotate the rotor several times.
If you have uncoupled the machine from the driven machine and secured the rotor with a
rotor shipping brace, then remove this before turning the rotor over or starting the machine
up.
Make sure that the resting position of the roller bearings after the rotor has been turned
over is different from what it previously had been. Use the fitted key or the coupling halves
as reference markers.
● During re-commissioning, refer to the information in the "Commissioning" section.
See also
Start-up (Page 73)
Greasing the roller bearings prior to commissioning (Page 76)
Operation
8.7 Stoppages
8.7.4 Shaft grounding brushes (option)
With non-encapsulated and non-sealed shaft grounding brushes, rust may form on the
brushes' running surface on the shaft after extended breaks in operation.
WARNING
Live parts
If the shaft grounding does not function correctly, the shaft can be at a high voltage level that
does not decay quickly enough when the machine comes to a standstill. This can lead to
death or serious injury as a result of electric shock, or bearing damage caused by current
flowing through the bearing.
● Regularly inspect the shaft grounding brushes and replace them if necessary.
● Keep the brushes' running surface clean: Regularly inspect the brushes' running surface
and remove any rust before starting the machine up.
8.7.5 Measurement of the insulation resistance after an extended stoppage
Measuring the insulation resistance and polarization index (PI) provides information on the
condition of the machine. It is therefore important to check the insulation resistance and the
polarization index at the following times:
● Before starting up a machine for the first time
● After an extended period in storage or downtime
● Within the scope of maintenance work
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 85
Page 86
Operation
8.8 Decommissioning the machine
The following information is provided regarding the state of the winding insulation:
● Is the winding head insulation conductively contaminated?
● Has the winding insulation absorbed moisture?
As such, you can determine whether the machine needs commissioning or any necessary
measures such as cleaning and/or drying the winding:
● Can the machine be put into operation?
● Must the windings be cleaned or dried?
Detailed information on testing and the limit values can be found here:
"Testing the insulation resistance and polarization index" (Page 45)
8.8 Decommissioning the machine
NOTICE
Damage as a result of an extended period out of service
If the machine is going to be out of service for longer than six months, then take the necessary
measures for preservation and storing. Otherwise damage to the machine will result.
Record the decommissioning steps. This log will be useful upon recommissioning.
8.9 Re-commissioning the machine
When you re-commission the machine, proceed as follows:
● Study the record made when the machine was decommissioned, and reverse the measures
that were taken for conservation and storage.
● Perform the measures listed in the "Commissioning" section.
See also
Start-up (Page 73)
8.10 faults
8.10.1 Inspections in the event of faults
Natural disasters or unusual operating conditions, such as overloading or short circuit, are
faults that overload the machine electrically or mechanically.
Immediately perform an inspection after such faults.
SIMOTICS TN Series N-compact 1LH8
86 Operating Instructions 06/2017
Page 87
Operation
8.10 faults
Correct the cause of the fault as described in the respective remedial measures section. Repair
any damage to the machine.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 87
Page 88
Operation
8.10 faults
8.10.2 Electrical faults
Note
If you are operating the motor with a converter, the operating instructions of the converter must
also be observed if electrical faults occur.
Table 8-1 Electrical faults
↓ Motor fails to start
↓ Motor accelerates sluggishly
↓ Rumbling noise during startup
↓ Rumbling noise during operation
↓ High temperature rise during no-load operation
↓ High temperature rise with load
↓ High temperature rise of individual winding sections
Possible causes of faults Remedial measures
X X X X Overload Reduce the load.
X Interrupted phase in the supply cable Check the switches and cables.
X X X X Interrupted phase in the feeder cable af‐
ter switching on
X Mains voltage too low, frequency too high Check the power supply conditions.
X Mains voltage too high, frequency too low Check the power supply conditions.
X X X X X Stator winding incorrectly connected Check the winding connection in the terminal box.
X X X X Winding short circuit or phase short cir‐
cuit in stator winding
X Incorrect direction of rotation Check the connection.
Check the switches and cables.
Determine the winding resistances and insulation
resistances. Carry out repair work after consulta‐
tion with the manufacturer.
SIMOTICS TN Series N-compact 1LH8
88 Operating Instructions 06/2017
Page 89
Operation
8.10 faults
8.10.3 Mechanical faults
The following table shows the possible causes of and remedial measures for mechanical faults.
Table 8-2 Mechanical faults on water-cooled machines
↓ Grinding noise
↓ Overheating
↓ Radial vibrations
↓ Axial vibrations
Possible causes of faults Remedial measures
X Rotating parts are grinding Establish the cause and realign the parts.
X Reduced cooling Check the water flow.
Consult the manufacturing plant if necessary.
X Rotor not balanced Decouple the rotor and then rebalance it.
X Rotor out of true, shaft bent Please consult the manufacturer.
X X Poor alignment Align the machine set and check the coupling ①.
X Coupled machine not balanced Rebalance the coupled machine.
X Shocks from coupled machine Investigate the coupled machine.
X X Fault originating from gearing Fix the gearing.
X X Resonance of the overall system comprising ma‐
chine and foundation
X X Changes in foundation Determine the cause and rectify it. Realign the ma‐
①
Note any changes taking place during warm up
Reinforce the foundation after consultation with the
manufacturer.
chine.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 89
Page 90
Operation
8.10 faults
8.10.4 Cooling system faults
The following table shows the possible causes of and remedial measures for faults on watercooled machines.
Table 8-3 Cooling system faults
↓ Overheating
↓ Water leaking
Possible causes of faults Remedial measures
X Reduced cooling Check the cooling water flow, increase the amount of cooling water if
necessary.
X Cooling water flow rate too low Consult the manufacturer. If the specified cooling water quality is ob‐
served, the cooling system is maintenance-free.
X Inlet temperature too high Set the correct upstream temperature.
X Cooling water supply switched off Switch on the cooling water supply.
X Cooling water contains too many or unsuit‐
able antifreeze and corrosion-protection
agents
X Leaks in the cooling system Consult the manufacturer.
X Defective cooling water connection Find the leak and seal it.
Use cooling water of the agreed quality.
SIMOTICS TN Series N-compact 1LH8
90 Operating Instructions 06/2017
Page 91
8.10.5 Roller bearing faults
Damage to roller bearings can be difficult to detect in some cases. If in doubt, replace the
bearing. Use other bearing designs only after consulting the manufacturer.
Table 8-4 Roller bearing faults
↓ Bearing overheats
↓ Bearing "whistles"
↓ Bearing "knocks"
Possible causes of faults Remedial measures
X High coupling pressure Align the machine more accurately.
X Belt tension too high Reduce the drive belt tension.
X Bearing contaminated Clean or replace the bearing. Check the seals.
X High ambient temperature Use a suitable high-temperature grease.
X X Insufficient lubrication Grease the bearings as instructed.
X X Bearing canted Properly install the bearing.
X X Insufficient bearing play Contact the Service Center.
X Excessive bearing play Contact the Service Center.
X X Bearing corroded Replace the bearing. Check the seals.
X Too much grease in bearing Remove surplus grease.
X Wrong grease in the bearing Use the correct grease.
X Friction marks on raceway Replace the bearing.
X Brinelling or scoring Replace the bearing. Avoid any vibration at standstill
Operation
8.10 faults
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 91
Page 92
Operation
8.10 faults
SIMOTICS TN Series N-compact 1LH8
92 Operating Instructions 06/2017
Page 93
Maintenance
Through careful and regular maintenance, inspections, and overhauls you can detect faults at
an early stage and resolve them. This means that you can avoid consequential damage.
Operating conditions and characteristics can vary widely. For this reason, only general
maintenance intervals can be specified here. Maintenance intervals should therefore be
scheduled to suit the local conditions (dirt, starting frequency, load, etc.).
Observe the following when carrying out any work on the machine:
● Comply with the general safety instructions
● Comply with the applicable national and sector-specific regulations at the place of
● When using the machine within the European Union, comply with the specifications laid
See also
Safety information (Page 13)
Note
Service Center
9
installation
down in EN 50110‑1 regarding safe operation of electrical equipment.
Please contact the Service Center (Page 129), if you require support with servicing,
maintenance or repair.
9.1 Inspection and maintenance
9.1.1 Safety instructions for inspection and maintenance
WARNING
Rotating and live parts
Electric machines contain live and rotating parts. Fatal or serious injuries and substantial
material damage can occur if maintenance work is performed on the machine when it is not
stopped or not de-energized.
● Perform maintenance work on the machine only when it is stopped. The only operation
permissible while the machine is rotating is regreasing the roller bearings.
● When performing maintenance work, comply with the five safety rules (Page 13).
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 93
Page 94
Maintenance
9.1 Inspection and maintenance
WARNING
Machine damage
If the machine is not maintained it can suffer damage. This can cause faults which can result
in eventual or immediate death, serious injury or material damage.
Perform regular maintenance on the machine.
CAUTION
Dust disturbances when working with compressed air
When cleaning with compressed air, dust, metal chips, or cleaning agents can be whirled up.
Injuries can result.
When cleaning using compressed air, make sure you use suitable extraction equipment and
wear protective equipment (safety goggles, protective suit, etc.).
NOTICE
Damage to insulation
If metal swarf enters the winding head when cleaning with compressed air, this can damage
the insulation. Clearance and creepage distances can be undershot. This may cause damage
to the machine extending to total failure.
When cleaning with compressed air, ensure there is adequate extraction.
NOTICE
Machine damage caused by foreign bodies
Foreign bodies such as dirt, tools or loose components, such as screws etc., can be left by
accident inside the machine after maintenance is performed. These can cause short circuits,
reduce the performance of the cooling system or increase noise in operation. They can also
damage the machine.
● When carrying out maintenance work, make sure that no foreign bodies are left in or on
the machine.
● Securely attach all loose parts again once you have completed the maintenance
procedures.
● Carefully remove any dirt.
Note
Operating conditions and characteristics can vary widely. For this reason, only general
intervals for inspection and maintenance measures can be specified here.
SIMOTICS TN Series N-compact 1LH8
94 Operating Instructions 06/2017
Page 95
Maintenance
9.1 Inspection and maintenance
9.1.2 Measurement of the insulation resistance and polarization index in the context of maintenance work
Measuring the insulation resistance and polarization index (PI) provides information on the
condition of the machine. It is therefore important to check the insulation resistance and the
polarization index at the following times:
● Before starting up a machine for the first time
● After an extended period in storage or downtime
● Within the scope of maintenance work
The following information is provided regarding the state of the winding insulation:
● Is the winding head insulation conductively contaminated?
● Has the winding insulation absorbed moisture?
As such, you can determine whether the machine needs commissioning or any necessary
measures such as cleaning and/or drying the winding:
● Can the machine be put into operation?
● Must the windings be cleaned or dried?
Detailed information on testing and the limit values can be found here:
"Testing the insulation resistance and polarization index" (Page 45)
9.1.3 Inspections in the event of faults
Natural disasters or unusual operating conditions, such as overloading or short circuit, are
faults that overload the machine electrically or mechanically.
Immediately perform an inspection after such faults.
9.1.4 First inspection after installation or repair
Perform the following checks after approximately 500 operating hours or at the latest six
months after commissioning:
Table 9-1 Checks after assembly or repair
Check When the
The stated electrical characteristics are being observed. X
The permissible bearing temperatures are not exceeded. X
The smooth running characteristics and machine running noise have not
deteriorated.
The motor foundation has no cracks and indentations. (*) X X
motor is
running
X
At stand‐
still
(*) You can perform these checks while the motor is running or at a standstill.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 95
Page 96
Maintenance
9.1 Inspection and maintenance
Additional tests may also be required according to the system-specific conditions.
NOTICE
Machine damage
When carrying out the inspection, if you detect any impermissible deviations from the normal
state, you must rectify them immediately. They may otherwise cause damage to the machine.
9.1.5 General inspection
Check that the installation conditions are observed. After approximately 16,000 operating
hours – or the latest after two years – we recommend that the following checks are performed:
Table 9-2 Checks that have to be performed during the general inspection
Checking When the
motor is
running
The electrical parameters are maintained X
The permissible bearing temperatures are not exceeded X
The smooth running characteristics and machine running noise have not
deteriorated
The foundation has no cracks or indentations. (*) X X
The machine is aligned within the permissible tolerance ranges. X
All the fixing bolts/screws for the mechanical and electrical connections have
been securely tightened
All the potential connections, grounding connections and shield supports are
correctly seated and properly bonded
The winding insulation resistances are sufficiently high (Page 77) X
Any bearing insulation is fitted as shown on the plates and labels X
The CABLES and insulating parts and components are in good condition
and there is no evidence of discoloring
Condensation can freely flow away. X
(*) This check can be made at standstill or when running.
X
X
X
X
At stand‐
still
If you detect any deviations during the inspection, you must rectify them immediately. They
may otherwise cause damage to the machine.
See also
Setpoint values for monitoring the bearing temperature (Page 77)
SIMOTICS TN Series N-compact 1LH8
96 Operating Instructions 06/2017
Page 97
Checking the cooling system
● With the machine stopped, check the condition of the cooling system:
– The cooling system is in good condition.
– The pressure drop between entry and exit has not increased appreciably.
9.1.6 Servicing the roller bearings
When inspecting rolling-contact bearings, it is generally not necessary to dismantle the
machines. The motor only has to be dismantled if the bearings are to be replaced.
9.1.7 Servicing the water-jacket cooling
● During each inspection, check whether a pool of water has collected under the machine.
Identify the cause: This can be condensation or a leak in the cooling system.
Maintenance
9.1 Inspection and maintenance
● Check any leakage water electrodes. Contact your Service Center (Page 129), if
necessary.
9.1.8 Servicing and maintaining the anti-condensation heating
The anti-condensation heating is maintenance-free. If it is defective, contact the
Service Center (Page 129).
9.1.9 Regreasing intervals and types of grease for operating roller bearings
The specified grease data applies to the data specified on the rating plate and for high-quality
grease in accordance with the specifications in these operating instructions. Because these
greases exceed significantly the requirements according to DIN 51825 and ISO 6743‑9, they
permit the specified relubrication intervals.
Initial lubrication
The grease specified on the lubricant plate is selected according to the operating conditions
known at the time of ordering and should be used for initial lubrication.
Grease selection criteria
High quality ISO‑L‑X BDEA3 lubricating grease according to ISO 6743-9 and K3K‑20
lubricating grease according to DIN 51825 with lithium soap as a thickener and an upper
service temperature of at least +130° C / +266° F are permissible for standard applications
without special requirements.
When selecting the lubricating grease, ensure that the technical data of the grease is suitable
for the application.
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 97
Page 98
Maintenance
9.1 Inspection and maintenance
The lubricating grease must satisfy the criteria listed in the table below and must match the
operating conditions. If different special lubricating greases are stated on the lubricant plate,
then different criteria apply.
Table 9-3 Criteria for selecting roller bearing greases
Criteria Standard Property, characteristic value Unit
Type of base oil - Mineral oil -
Thickener - Lithium Consistency in accordance with
NLGI class
Operating temperature range - At least -20° C ... +130° C °C
Dropping point DIN ISO 2176 At least +180° C °C
Basic oil viscosity DIN 51562-1
Additives -
FE9 test: A/1500/6000 DIN 51821-1/-2 F10 ≥50 h at +130 °C
Behavior in the presence of water DIN 51807 0 or 1 at a test temperature of +90° C Corrosive effect on copper DIN 51811 0 or 1 at a test temperature of +120° C Korr.°
Corrosion resistance (EMCOR) DIN 51802 /
Solid matter content, particle sizes >
25 µm
Suitability of bearings
Speed parameter nxdm
DIN 51818
ISO 11007
DIN 51813 <10 mg/kg mg/kg
- Suitable for the built-in motor bearings, seals and
● "3" for vertical and horizontal types of
construction
● "2" alternatively for horizontal type of
construction with reduced lubrication interval
● Approx. 100 mm²/s at 40 °C
● Approx. 10 mm²/s at 100 °C
● Anti-Oxidation (AO), Anti-Wear (AW)
● No solid lubricants
● Alternatively: Extreme-pressure (EP) only after
prior consultation with grease and bearing
manufacturers
F50 ≥100 h at +130 °C
0 - 0 Korr.°
these speeds
-
mm²/s
-
H
mm/min
Note
Deviating operating conditions and characteristics
Only use the grease type that is specified on the lubricant plate.
● If the operating conditions differ from those mentioned, other greases may only be used
after prior consultation with the manufacturer.
SIMOTICS TN Series N-compact 1LH8
98 Operating Instructions 06/2017
Page 99
Maintenance
9.1 Inspection and maintenance
Note
Use of other greases
If greases other than those named on the lubricant plate are used, it cannot be guaranteed
that they are compatible with the complete system.
● If you use greases that satisfy only the minimum requirements of DIN 51825 or ISO 6743-9,
then reduce the lubrication intervals by half or adapt them as appropriate.
● If in doubt, consult the manufacturer.
Recommended greases for roller bearings
For standard applications, the following high-quality greases are recommended for roller
bearings for vertical and horizontal motor constructions due to their technical properties:
Table 9-4 Roller bearing greases for vertical and horizontal types of construction
Manufacturer Grease type
Shell Gadus S2 V100 3
ExxonMobil Unirex N3
Esso
BP Energrease LS3
Fuchs Renolit H443 HD88
Lubcon Turmoplex 3
Addinol LM 3 EP
FAG Arcanol Multi 3
For motors of horizontal construction you can alternatively use greases with NLGI class 2.
However, this reduces the lubrication interval by 20%.
Table 9-5 Alternative greases with NLGI class 2 for motors of horizontal construction
Manufacturer Grease type
Shell Gadus S2 V100 2
ExxonMobil
Esso
BP Energrease LS2
Castrol Longtime PD2
Lubcon Turmogrease L 802 EP plus
Shell Retinax LX2
FAG Arcanol Multi 2
Unirex N2
SIMOTICS TN Series N-compact 1LH8
Operating Instructions 06/2017 99
Page 100
Maintenance
9.1 Inspection and maintenance
NOTICE
Diminished lubrication properties by mixing greases
The lubrication properties will be impaired if you mix different greases. This can result in
material damage.
● Avoid mixing greases. Only the manufacturer can provide a guarantee for the miscibility
of particular greases.
Lubrication data
Regreasing data are stated on the lubricant plate of the machine:
● Regreasing intervals in operating hours
● Regreasing amount in grams
● Grease type
Regrease the roller bearing at the latest every 12 months irrespective of the actual number of
operating hours.
NOTICE
Damage to roller bearings
The regreasing intervals for roller bearings are different from the servicing intervals for the
machine. The roller bearings may be damaged if the relubrication intervals are not adhered
to.
● Pay attention to the instructions on the lubricant plate.
Grease replacement intervals
The grease replacement intervals in these operating instructions or the regreasing intervals
indicated on the plate apply to the following conditions:
● Normal load
● Operation at speeds in accordance with rating plate
● Low-vibration operation
● Neutral ambient air
● High-quality roller bearing greases
In the case of unfavorable operating conditions, reduce the relubrication intervals after prior
consultation with the manufacturer.
