Page 1
SIMATIC RTLS
Localization systems
SIMATIC RTLS4030T
Device manual
06/2019
C79000-G8976-C520-02
Page 2
Legal information
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.
SIMATIC RTLS4030T
2 Device manual, 06/2019, C79000-G8976-C520-02
Page 3
Table of contents
English
1 Overview ................................................................................................................................................. 4
1.1 General ...................................................................................................................................................... 4
1.2 Delivery contents ....................................................................................................................................... 4
1.3 Power supply ............................................................................................................................................. 4
1.4 Areas of application ................................................................................................................................... 4
2 Layout ..................................................................................................................................................... 5
2.1 Dimensions ................................................................................................................................................ 5
2.2 Possible states of the LEDs ...................................................................................................................... 5
3 Installation, initial start-up, safety ............................................................................................................. 6
3.1 General information ................................................................................................................................... 6
3.2 Installation ................................................................................................................................................. 6
3.3 Battery replacement .................................................................................................................................. 6
3.4 Cleaning and maintenance ........................................................................................................................ 7
4 Technical data ......................................................................................................................................... 7
4.1 Radio ......................................................................................................................................................... 7
4.2 Power supply ............................................................................................................................................. 7
4.3 Environment and dimensions .................................................................................................................... 8
5 Approvals ................................................................................................................................................ 9
5.1 EU declaration of conformity ..................................................................................................................... 9
5.2 RoHS ......................................................................................................................................................... 9
5.3 RED ......................................................................................................................................................... 10
5.3.1 Protection of health and safety ............................................................................................................... 10
5.4 Recycling and disposal ............................................................................................................................ 11
SIMATIC RTLS4030T
Device manual, 06/2019, C79000-G8976-C520-02
3
Page 4
1 Overview
1.1 General
The transponder SIMATIC RTLS4030T represents the movable device considered for
localization within the SIMATIC Locating Manager localization network. It sends its positional
information to the localization network’s nodes (anchors and gateways) which transmit the data
to the localization server for computation and visualization.
1.2 Delivery contents
• 1 SIMATIC RTLS4030T (article number 6GT2700-3DA03)
• 1 VARTA 3 V Lithium CR123A battery
1.3 Power supply
The power supply of the device is realized via battery.
1.4 Areas of application
The device is designed for an operation temperature range from -10 to +50 °C. The battery of
the device needs to be exchanged in dry environments. The device is protected against water
splashing on all sides (IP54) and is therefore temporarily operational in outdoor applications.
SIMATIC RTLS4030T
4 Device manual, 06/2019, C79000-G8976-C520-02
Page 5
Status LED display (green)
Description
2 Layout

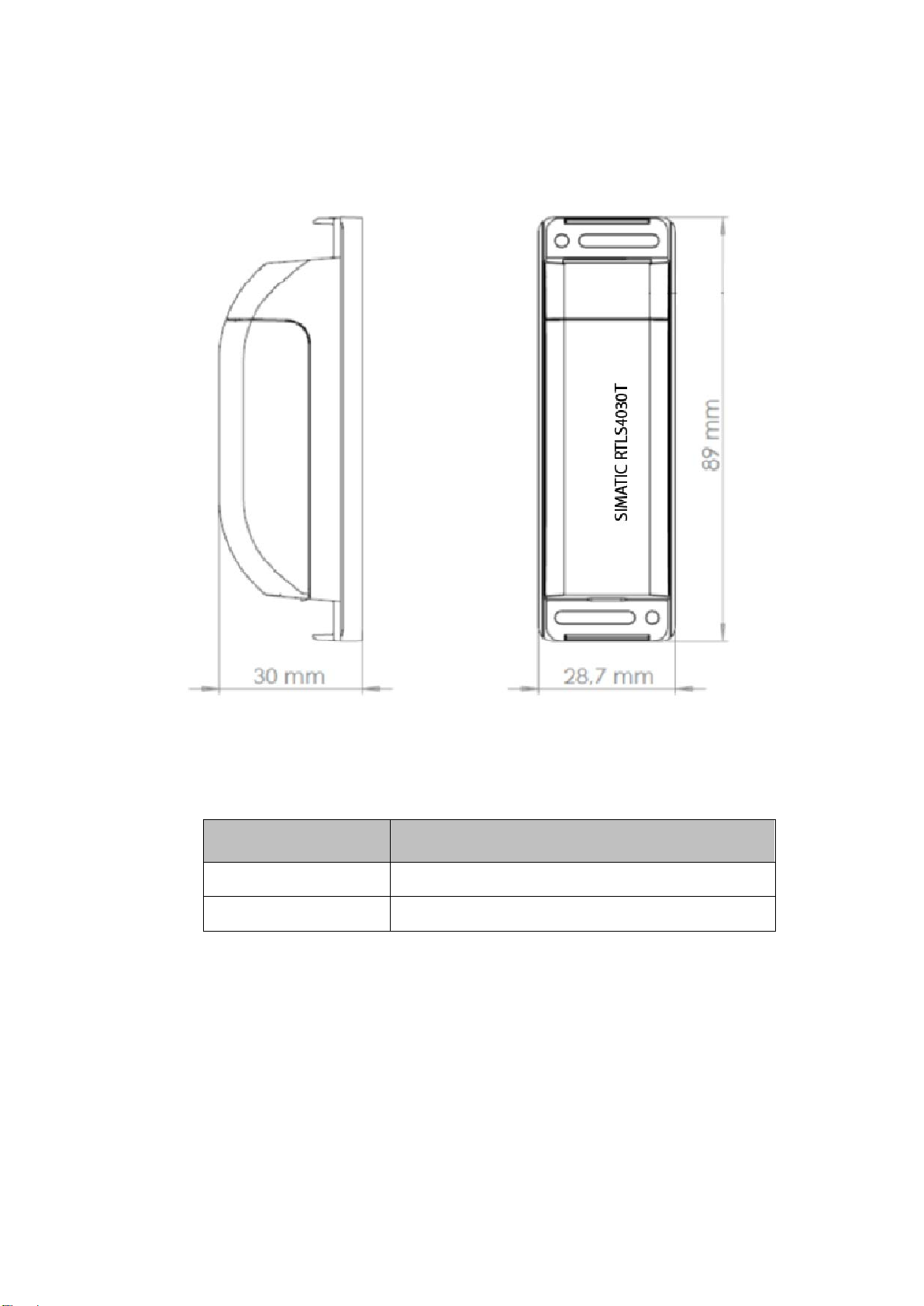

2.1 Dimensions
2.2 Possible states of the LEDs
Blinking Power-on
Flashing Movement starts
SIMATIC RTLS4030T
Device manual, 06/2019, C79000-G8976-C520-02
5
Page 6
3 Installation, initial start-up, safety
3.1 General information
• Carefully read all items listed in section 3. Installation, initial start-up, safety before installing the
devices in order to safeguard correct installation and operation.
• The devices can only be used in combination with the Locating Manager.
• Buildup, installation as well as the use of the tools and clients of the localization system are
described in the corresponding guides and manuals.
• For startup you have to reassemble the transponder:
- Insert the battery in the correct polarization as indicated in the battery case
- Mount the housing cover in the correct orientation:
first set the top site in the lower casing and snap in the bottom site to close the case
• Remove the batteries if you have to return the device.
3.2 Installation
• For an optimal location, the device has to be mounted such that it has a direct line of sight to the
infrastructure devices.
• Before usage of the device, check the device for damages such that it will not be damaged
during operation.
• The indicated operation temperature ranges must be satisfied.
• The device contains a Lithium battery. The improper use of batteries can cause fire and skin
burns.
• The case of the device must never be crushed, punctured or exposed to other mechanical
violence. Only for battery exchange it is allowed to open the case. Please pay attention to the
correct polarity of the batteries (labeling on the battery holder).
• Never expose the device to fire or temperatures above 50 °C.
Do not expose the device over a longer time to direct solar radiation.
3.3 Battery replacement
1. Open the housing at the designated recess on the left-hand side in an upwards direction using a
suitable tool (e.g. screwdriver).
2. Insert the battery in the battery compartment according to the polarity direction.
3. Close the housing again until you hear it click into place.
SIMATIC RTLS4030T
6 Device manual, 06/2019, C79000-G8976-C520-02
Page 7
Radio PULSE (Location)
Radio PHASE (Communication and optional location)
Power supply
3.4 Cleaning and maintenance
• It is forbidden to open the case for actions other than the battery exchange.
• The device should only be repaired or accessed for other work by an authorized technical
service company.
• Improperly opening or repairing the device can seriously endanger the user.
• Unauthorized opening of the device will annul the warranty claim of Siemens AG.
• Do not use any liquids as well as abrasive, caustic or flammable cleaning aids for cleaning the
housing.
4 Technical data
4.1 Radio
Wireless technology IEEE 802.15.4-2011 UWB
Frequency range 3100 MHz … 4800 MHz
Output power 0.037 mW (-41.3 dBm/MHz)
Antenna UWB antenna (built-in)
Wireless technology IEEE 802.15.4
Frequency range 2.40 … 2.48 GHz ISM-Band
Output power Max. 4 dBm (adjustable)
Band width 2 MHz; Data transmission via 802.15.4 channels (adjustable)
Antenna 2.4 GHz antenna (built-in)
4.2 Power supply
6000 MHz … 7000 MHz
Energy supply VARTA 3 V Lithium CR123A battery (1550 mAh)
Service life (at 20 °C) Standby: 1 year
SIMATIC RTLS4030T
Device manual, 06/2019, C79000-G8976-C520-02
Active time: 100% UWB-location at 1 sec: 6 months
7
Page 8
Environment and dimensions
4.3 Environment and dimensions
Case Plastic housing
IP-Protection IP 54
Dimensions approx. 89 x 29 x 30 mm
Weight approx. 90 g (incl. battery)
Operation temperature range -10 … +50 °C
Type of mounting 2 screws M5 or cable ties
SIMATIC RTLS4030T
8 Device manual, 06/2019, C79000-G8976-C520-02
Page 9
5 Approvals
5.1 EU declaration of conformity
You can find the current EU declaration of conformity for these products on the Internet pages
under Siemens Industry Online Support
(https://support.industry.siemens.com/cs/ww/en/ps/14970/cert
The products described in this document meet the requirements of the following EC directives:
• RoHS directive 2011/65/EU
Directive of the European Parliament and of the Council of 8 June 2011 on the
restriction of the use of certain hazardous substances in electrical and electronic
equipment, official journal of the EU L174, 01/07/2011, pages 88-110
• Radio equipment directive 2014/53/EU (RED, Radio Equipment Directive)
Directive of the European Parliament and of the Council of 16 April 2014 on the
harmonization of the laws of the Member States relating to the making available on the
market of radio equipment; official journal of the EU L153, 22/05/2014, pages 62-106
5.2 RoHS
RoHS directive (restriction of the use of certain hazardous substances)
The products described in these operating instructions meet the requirements of the EU
directive 2011/65/EU for the restriction of the use of certain hazardous substances in electrical
and electronic equipment.
)
Applied standard:
• EN 50581
Technical documentation for the assessment of electrical and electronic products with
respect to the restriction of hazardous substances
SIMATIC RTLS4030T
Device manual, 06/2019, C79000-G8976-C520-02
9
Page 10
5.3 RED
5.3.1 Protection of health and safety
The products described in this document meet the requirements of the applied standards:
Article 3 (1) a) protection of health and safety
• EN 62368-1
Information technology equipment - Safety - Part 1: General requirements
• EN 62311
Assessment of electronic and electrical equipment related to human exposure restrictions for
electromagnetic fields (0 Hz – 300 GHz)
The products described in these operating instructions meet the requirements of EU directive
2014/30/EU "Electromagnetic Compatibility" according to the designated standards for the
following areas of application.
Art. 3 (1) b) EMC:
• ETSI EN 301 489-1
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 1: Common technical requirements
• ETSI EN 301 489-17
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 17:
Specific conditions for Broadband Data Transmission Systems
• ETSI EN 301 489-33
Electromagnetic compatibility and radio spectrum matters (ERM) - Electromagnetic
compatibility for radio equipment and services - Part 33: Specific conditions for Ultra-
WideBand (UWB) devices
• EN 55011
Industrial, scientific and medical equipment - Radio-frequency disturbance characteristics -
Limits and methods of measurement
• EN 55032 Class A, Class B
Electromagnetic compatibility of multimedia equipment - Emission requirements
• EN 55035
Electromagnetic compatibility of multimedia equipment - Immunity requirements
• EN 61000-6-1
Electromagnetic compatibility (EMC) - Part 6-1: Generic standards - Immunity standard for
residential, commercial and light-industrial environments
• EN 61000-6-2
Electromagnetic compatibility (EMC) - Part 6-2: Generic standards - Immunity standard for
industrial environments
SIMATIC RTLS4030T
10 Device manual, 06/2019, C79000-G8976-C520-02
Page 11
Note
The
• EN 61000-6-3
Electromagnetic compatibility (EMC) - Part 6-3: Generic standards - Emission standard for
residential, commercial and light-industrial environments
• EN 61000-6-4
Electromagnetic compatibility (EMC) - Part 6-4: Generic standards - Emission standard for
industrial environments
Art. 3 (2) Efficient use of the radio spectrum
• ETSI EN 300 328
Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM
band and using wide band modulation techniques; Harmonised Standard covering the
essential requirements of article 3.2 of Directive 2014/53/EU
• ETSI EN 302 065-2
Short Range Devices (SRD) using Ultra Wide Band technology (UWB); Harmonised
Standard covering the essential requirements of article 3.2 of the Directive 2014/53/EU;
Part 2: Requirements for UWB location tracking
specified approvals apply only when the corresponding mark is printed on the device.
5.4 Recycling and disposal
The products are low in harmful substances, can be recycled and meet the requirements of the
Directive 2012/19/EU for disposal of waste electrical and electronic equipment (WEEE).
Do not dispose of the products at public disposal sites.
For environmentally compliant recycling and disposal of your electronic waste, please contact a
company certified for the disposal of electronic waste or your Siemens representative.
Note the different national regulations.
Mexico:
La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que
este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe
aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.
SIMATIC RTLS4030T
Device manual, 06/2019, C79000-G8976-C520-02
11
Loading...
