Spare parts list
Preliminary version July 2001
E382 E407E 081 01 02
This page intentionally left blank
SPARE PARTS LIST
E382 E407E 081 01 022 Siemens-Elema AB
SPARE PARTS LIST
Servo… List of contents
Note !
This spare parts list is valid for the following product article numbers:
64 87 800 E407E Servo… base unit The products listed in this document are not available in all countries.
For details please contact your Siemens representative.
List of contents:
Servo… Mobile cart (06486729) E407E Pages 4 - 7 Servo… Patient unit (06487800) E407E Pages 8 - 15 Servo… User interface (06487800) E407E Pages 16 - 19 Servo… Gas cylinder restrainer (06524339) E407E Pages 20 - 21 Servo… Holder (06487313) E407E Pages 22 - 23 Servo… Humidifier holder (06523935) E407E Pages 22 - 23 Servo… IV pole with holder (06481738) E407E Pages 22 - 23 Servo… Service tools, miscellaneous Pages 24 - 25
3Siemens-Elema AB
SERVO-I SPARE PARTS LIST
1 WHEEL WITH BRAKE 6567155 E407E
2 KNOCK PROTECTOR SET
ONE LEFT AND ONE RIGHT
3 WHEEL 6567148 E407E
4 GUIDE SYSTEM
TO DRAWER
5 COVER STRIP, 2.5 M
CUT TO LENGHT REQUIRED
6 CABLE HOLDER 6567197 E407E
7 GUIDE SYSTEM
TO CONSOLE PLATE
8 SECURITY KNOB 6586577 E407E
9 LOCKING HANDLE
TO CONSOLE PLATE
9 A TRACTION SPRING, 2 EACH
FOR LOCKING HANDLE
10 KICK PROTECTOR 6586569 E407E
6532597 E407E
6567189 E407E
6546076 E392E
6567163 E407E
6567205 E407E
6532506 E407E
4 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
6
5
Servo… Mobile Cart
7
8
9A
2 4
3
2
1
9
2
1
10
5Siemens-Elema AB
SERVO-I SPARE PARTS LIST
30 CLIP, 3 EACH 6533405 E407E
31 GUIDE SYSTEM
TO DRAWER FOR MANUAL
32 SUPPORT SLEEVE 6567221 E407E
33 RUBBER DAMPER, 5 EACH 6586551 E407E
34 LOCK CPL.
TO DRAWER FOR MANUAL
6567171 E407E
6397785 W6545
6 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
Servo… Mobile Cart
32
31
30
33
34
7Siemens-Elema AB
SERVO-I SPARE PARTS LIST
60 SCREW COVER, 10 EACH 6586825 E407E
61 FRONT COVER INCL. LABEL KIT 6586759 E407E
61 A LABEL KIT
ONE EA., ADULT, INFANT, UNIVERSAL
62 VENTILATION COVER 2 EA
WITH FILTER
63 COVER 6586767 E407E
64 HANDLE INCL. PIN 6449412 E407E
65 LID 6533652 E407E
66 FEET, 4 EACH 6532696 E407E
67 CIRCUIT BOARD GUIDE 6448398 E407E
68 CIRCUIT BOARD PC1770
SPECIFY SER. NR., HW LEVEL
69 CIRCUIT BOARD PC1780 6467869 E407E
70 GROUND SPRING, INCL. LABEL KIT 6533413 E407E
71 FAN COVER INCL. FILTER 6532613 E407E
72 FAN 6487842 E407E
73 MAINS INLET 6449362 E407E
6586833 E407E
6532605 E407E
6467562 E407E
74 FUSE 2.5AT 250V 5X20MM 10 EACH 6586924 E407E
75 CABLE DC/DC 6449370 E407E
8 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
62
61A
61
60

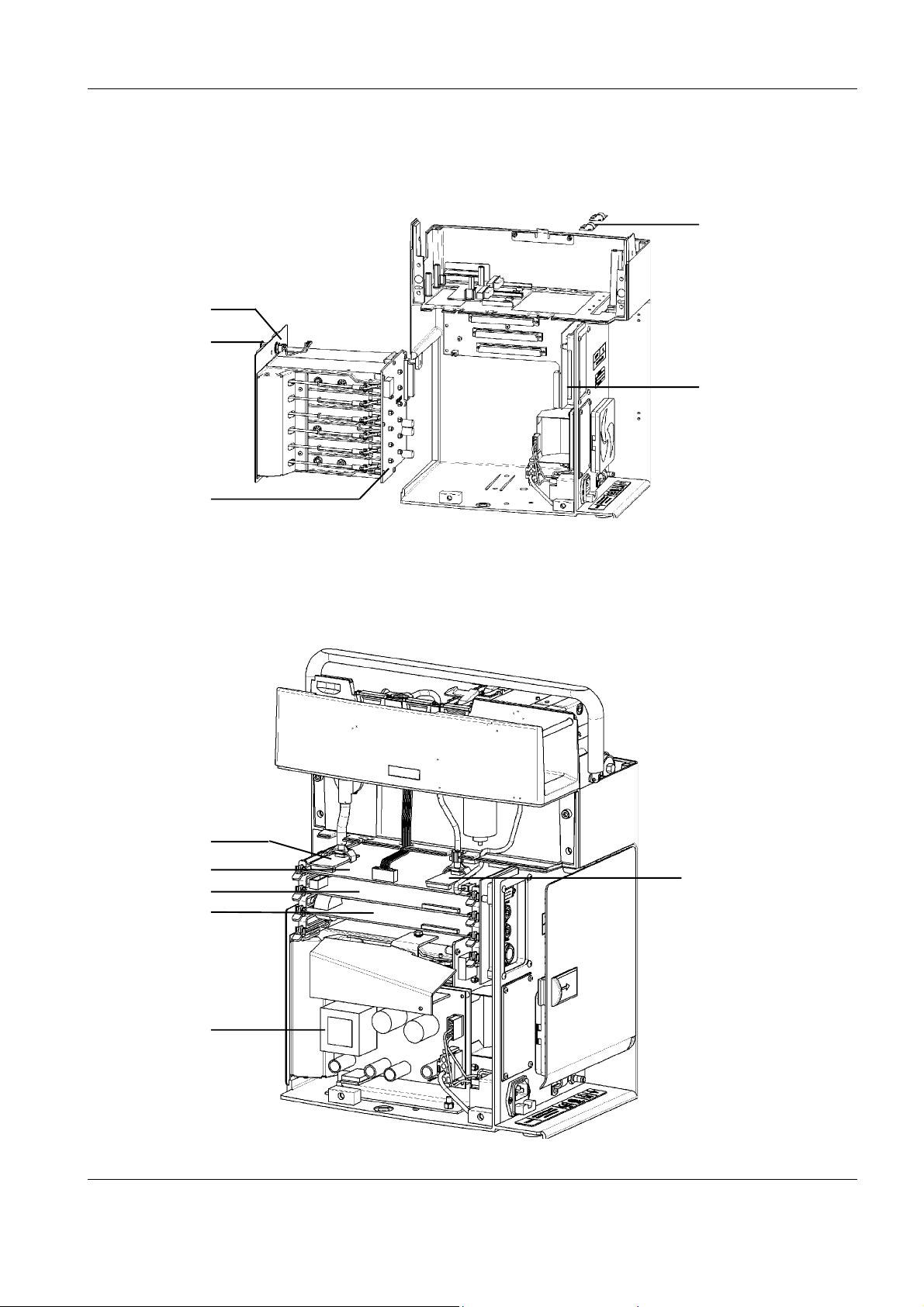

Servo… Patient unit
63 64
62
65
70
69
68
67
66
71
72
73, 74
75
9Siemens-Elema AB
SERVO-I SPARE PARTS LIST
90 CIRCUIT BOARD PC1775 6467711 E407E
91 PROTECTIVE COVER, 5 EACH 6532688 E407E
92 CONNECTOR 6342385 E400E
93 GROUND SPRING, 3 EACH 6169002 E380E
94 CIRCUIT BOARD PC1778 6467802 E407E
94 A FUSE, 10A, 32V, 10 EACH 6568054 E407E
95 AC/DC CONVERTER 6449800 E407E
96 CIRCUIT BOARD PC1772 6467620 E407E
97 CIRCUIT BOARD PC1771 6467596 E407E
98 CIRCUIT BOARD PC1784 6467984 E407E
99 CIRCUIT BOARD PC1781 6467893 E407E
100 BATTERY 6194687 E380E
10 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
92 91
90
Servo… Patient unit
93
94, 94A
99
98 97, 100 96, 100
95
99
11Siemens-Elema AB
SERVO-I SPARE PARTS LIST
120 MOISTURE TRAP 6448190 E407E
121 O-RING 26.2X3, 10 EACH 9344144 E361E
122 MEMBRANE 6586791 E407E
123 FILTER HOLDER 6449172 E407E
124 CIRCUIT BOARD PC1785 6468016 E407E
125 GASKET 6448166 E407E
126 CASSETTE COMPARTMENT 6586775 E407E
127 WATER TRAP SET 3 PIECES 6533975 E407E
128 LOCKING PIN 6586809 E407E
129 SEAL 6447895 E407E
130 EXPIRATORY VALVE COIL 6586742 E407E
131 PRESSURE TRANSDUCER TUBE 6533579 E407E
132 PULL MAGNET, INCL. BRACKET 6533728 E407E
133 INSPIRATORY PIPE W/O O2-CELL 6532662 E407E
134 TUBE 6532977 E407E
135 CONNECTOR MUFF 6448612 E407E
136 CABEL FOR O2-CELL 6487958 E407E
12 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
Servo… Patient unit
121
120
122
127
126
125
124 123
134 133
128 129
Note, part not
130
shown correctly
131
135 136
132
13Siemens-Elema AB
SERVO-I SPARE PARTS LIST
150 GAS MODULE O2, SERVO-I
INCL. ADAPTER
150 A NOZZLE UNIT, TYPE II 6463496 E380E
150 B MODULE ADAPTER O2, W. O-RINGS 6532654 E407E
6449313 E407E
151 GAS MODULE AIR, SERVO-I
INCL. ADAPTER
151 A NOZZLE UNIT, TYPE II 6463496 E380E
151 B MODULE ADAPTER AIR, W. O-RINGS 6532647 E407E
152 MODULE BRACKET 6488113 E407E
155 NIST CONNECTION O2 6169234 E380E
156 NIST CONNECTION AIR 6169242 E380E
157 MALE QUICK COUPLING O2 AGA 6169275 E380E
158 MALE QUICK COUPLING AIR AGA 6169283 E380E
159 DISS CONNECTION O2 6169259 E380E
160 DISS CONNECTION AIR 6169267 E380E
161 FRENCH STANDARD CONNECTION O2 6169192 E380E
161 A O2 NIPPLE FRENCH 9341553 E345E
162 FRENCH STANDARD CONNECTION AIR 6169200 E380E
6449305 E407E
162 A AIR NIPPLE FRENCH 9341561 E345E
163 O-RING 12.1X1.6, 10 EACH
ALSO INCL. IN POSITIONS 155-162
164 O-RING 14.1X1.6, 10 EACH
ALSO INCL. IN POSITION 161A, 162A
9131434 E345E
9131442 E345E
14 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
150A, 151A

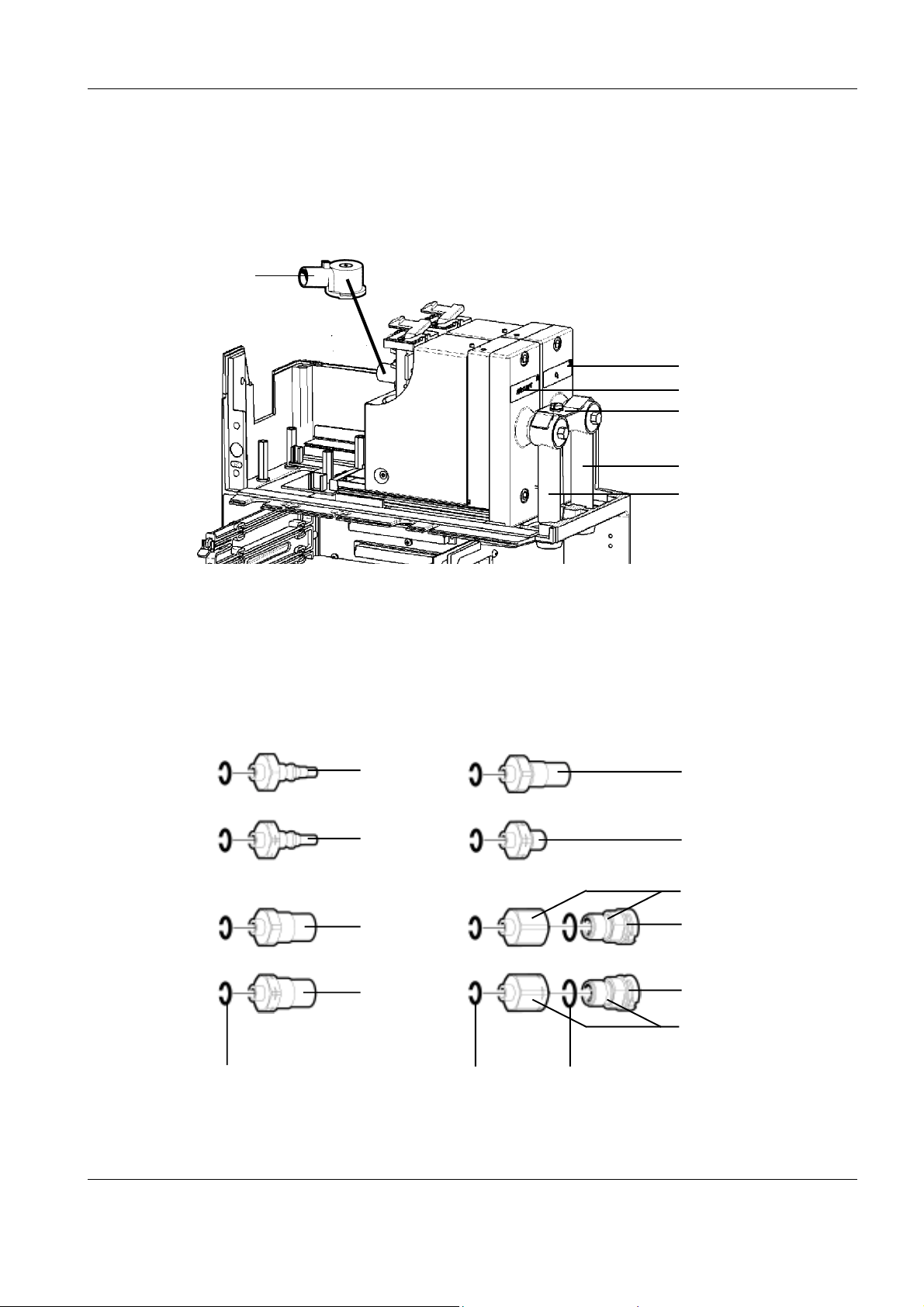

Servo… Patient unit
150 151
152
150B 151B
158
157
156
155
163
160
159
162 162A
161A 161
164163
15Siemens-Elema AB
SERVO-I SPARE PARTS LIST
180 KNOB, 35MM DIAMETER, BLUE 6532514 E407E
181 KNOB, 20MM DIAMETER, GRAY 6532522 E407E
182 KNOB COVER 6567353 E407E
183 CONTROL CABLE 2.9 METERS 6586932 E407E
184 CABLE REEL 6532548 E407E
185 PROTECTIVE COVER FOR CARD SLOT 6567262 E407E
186 LID 6593771 E407E
187 PLUG COVER 6567270 E407E
188 SCREW COVER, 5 EACH 6568393 E407E
16 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST

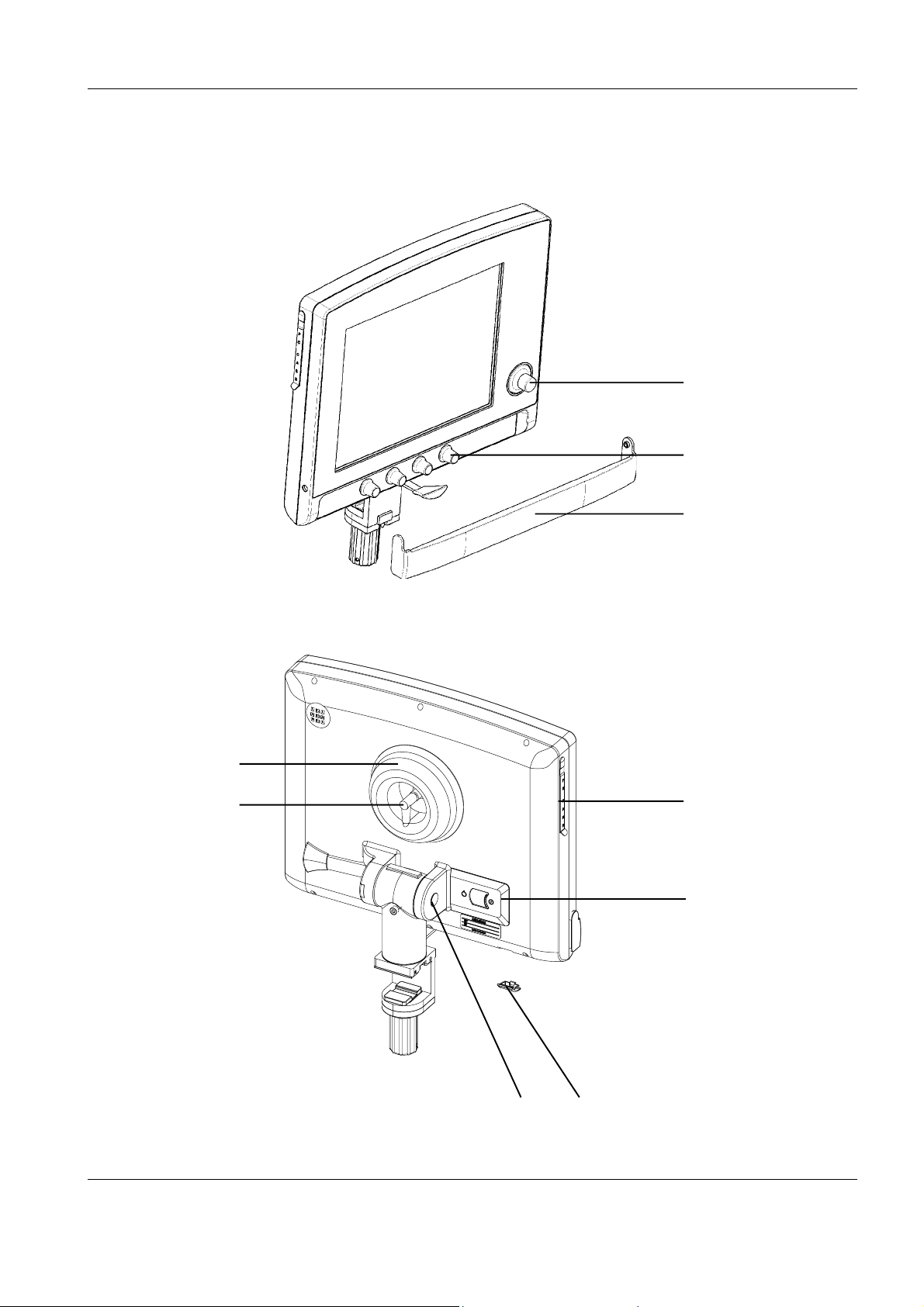

Servo… User interface
180
181
182
184
183
188
185
186
187
17Siemens-Elema AB
SERVO-I SPARE PARTS LIST
210 FRICTION DISC SET 5EA FOR TILT 6532571 E407E
211 LOCKING ARM FOR TILT 6532555 E407E
212 BACKLIGHT INVERTER 6567312 E407E
213 LOUDSPEAKER 6567320 E407E
214 BACKLIGHT KIT, 2 EACH 6567296 E407E
215 TOUCH SCREEN INCL. FRAME 6567239 E407E
216 ROTARY ENCODER WITH SWITCH 6567247 E407E
217 TFT DISPLAY 6567288 E407E
218 ROTARY ENCODER 6567254 E407E
219 CABLE TO DISPLAY 6567361 E407E
220 CIRCUIT BOARD PC1777 6467778 E407E
221 PLASTIC HANDLE 6532589 E407E
222 LOCKING ARM FOR ROTATION 6567338 E407E
223 FRICTION DISC SET 5EA, FOR ROT 6532563 E407E
224 GRIP PLATE 6567346 E407E
18 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
214
213
212
211
Servo… User interface
215
216
217 218
219
220
210
222
223
224
221
19Siemens-Elema AB
SERVO-I SPARE PARTS LIST
240 SECURING STRAP SET, 4 EACH 6586635 E407E
20 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST

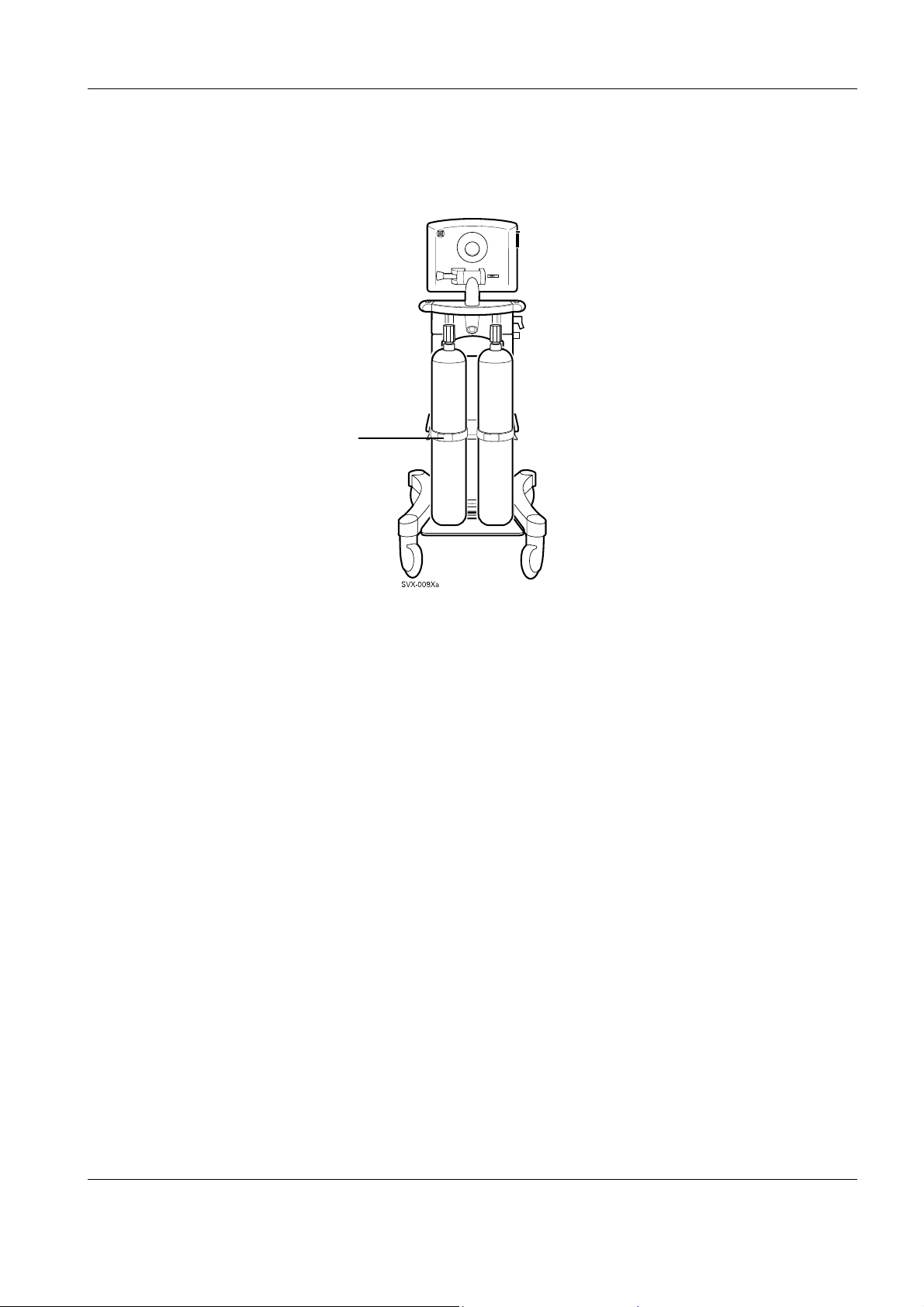

Servo… Gas cylinder restrainer
240
21Siemens-Elema AB
SERVO-I SPARE PARTS LIST
270 LOCKING DEVICE 6586692 E407E
271 LOCKING ARM 6586700 E407E
272 BRACKET FOR 25 MM RAIL 6586718 E407E
273 HOOK 2 EACH 6586726 E407E
274 SUPPORT 6586676 E407E
275 LOCKING KNOB, 2 EACH 6586684 E407E
276 PLASTIC KNOB 6586668 E407E
22 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
Servo… Holder, Humidifier holder, IV pole with holder
272
271
270
271
273
274
275
275
276
276
276
23Siemens-Elema AB
SERVO-I SPARE PARTS LIST
300 TOUCH UP PAINT, L. BLUE, 0.3L 6530260 W5810
301 TOUCH UP PAINT, WHITE, 0.3 L 6193986 W5810
302 SCREW LOCKING ADHESIVE 15ML 6604123 W5920
24 Siemens-Elema AB E382-E407E.081.01.02
SPARE PARTS LIST
300 301
302
Servo… Service tools and miscellaneous
25Siemens-Elema AB
Servo… – Spare parts list Order No.: 63 09 301 E407E
© Siemens-Elema AB, Electromedical Systems Division, 2001. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior permission of the copyright owner in writing. Subject to alterations without prior notice. Issued by Siemens-Elema AB, Electromedical Systems Division, SE-171 95 SOLNA, Sweden.
E382 E407E 081 01 02 02
Printed in Sweden
2 nd English edition,
July 2001
