Page 1

QMX3.P37 QMX3.P34/P74 QMX3.P02 QMX3.P70 QMX3.P30/P40

Wall

-mounted sensors and room operator units for

KNX/ETS and KNX/ACS

Technical principles

2018-09-14

Building Technologies

CM2N1602en_05

Page 2

About this document .............................................................................. 4

0.1 Revision history ......................................................................................... 4

0.2 Before you start ......................................................................................... 4

0.3 Abbreviations and naming conventions .................................................... 5

0.4 Reference documents ............................................................................... 5

1 Devices ..................................................................................................... 6

1.1 Type summary ........................................................................................... 6

1.2 Equipment combinations ........................................................................... 6

1.3 Variant and device parts ............................................................................ 7

1.4 Service and connection elements ............................................................. 8

1.5 Dimensions................................................................................................ 9

1.6 Environmental compatibility, disposal ..................................................... 10

1.6.1 General notes .......................................................................................... 10

1.6.2 Environmental declaration....................................................................... 10

1.6.3 Notes on FCC rules ................................................................................. 10

2 Safety and EMC optimization ............................................................... 11

2.1 Notes on safety ....................................................................................... 11

2.2 Device-specific regulations ..................................................................... 11

2.3 Notes on EMC optimization..................................................................... 11

3 Mounting and electrical installation .................................................... 12

4 Functionality / Use ................................................................................ 16

4.1 Overview ................................................................................................. 16

4.2 Use .......................................................................................................... 17

4.3 Display elements and buttons ................................................................. 18

4.4 Functions ................................................................................................. 19

4.4.1 Measuring................................................................................................ 19

4.4.2 Control and operation .............................................................................. 20

4.5 Application examples .............................................................................. 22

4.5.1 Room temperature control and operation via QMX3 .............................. 22

4.5.2 Presence dependent room climate control with operation

of all disciplines ....................................................................................... 23

4.5.3 Room temperature, humidity and air quality control ............................... 24

5 ETS engineering .................................................................................... 25

5.1 Engineering ............................................................................................. 25

5.2 Commissioning ........................................................................................ 25

5.3 Communication objects ........................................................................... 26

5.4 Room operator unit visualization and operation ..................................... 34

5.5 ETS Parameter description ..................................................................... 35

5.5.1 Room temperature sensor ...................................................................... 35

5.5.2 Room temperature control ...................................................................... 35

5.5.3 Room relative humidity sensor ................................................................ 37

5.5.4 Room relative humidity control ................................................................ 37

5.5.5 Room air quality sensor .......................................................................... 38

2 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Contents 2018-09-14

Page 3

5.5.6 Room air quality control .......................................................................... 38

5.5.7 Device display parameters ...................................................................... 38

5.5.8 HVAC operation and display ................................................................... 39

5.5.9 Operation and display: Relative humidity visualization ........................... 39

5.5.10 Display on QMX3.P70 Air quality indication LED .................................... 39

5.5.11 Operation and display: air quality............................................................ 40

5.5.12 Operation of light, shading and scenes .................................................. 40

5.6 Examples for the operation of touch keys and display elements ............ 42

6 ACS engineering ................................................................................... 44

6.1 Engineering ............................................................................................. 44

6.2 Commissioning........................................................................................ 44

6.3 ACS Parameter description .................................................................... 46

6.3.1 Communication ....................................................................................... 46

6.3.2 Universal temperature sensor ................................................................. 46

6.3.3 Room humidity sensor ............................................................................ 46

6.3.4 Room air quality sensor .......................................................................... 46

3 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Contents 2018-09-14

Page 4

0 About this document

Revision

Date

Changes

Section

Pages

• Communication objects

5.3 — 26

_03

2016-03-15

• Corrections/additions for V6.0

All

—

• Deleted section 5.1

_01

2013-07

First edition

—

Trademark(s)

Legal owner

KNX®

KNX Association, B - 1831 Brussels-Diegem Belgium

http://www.knx.org/

Trademarks

Quality assurance

0.1 Revision history

_05 2018-09-14 • Corrections/additions for V6.1

_04 2017-03-10 • Corrections/additions for V6.1

• Added QMX3.P40

_02 2015-04 • Corrections for V5.1

0.2 Before you start

The trademarks used in this document and their lawful owners are listed in the table below.. The use of trademarks is subject to international and domestic provisions of the law.

All product names listed in the table are registered (®) or not registered (™) trademarks of the owner listed in the table. These trademarks will not be indicated elsewhere in the text (e.g. by use of symbols such as ® and ™) due to the reference in this Section and to facilitate the reading of the text,

All

All —

5.3 —

This

document may be duplicated and distributed only with the express permission of Siemens, and may be passed only to authorized persons or companies with the required technical knowledge.

These documents were prepared with great care.

• The contents of all documents are checked at regular intervals.

• All necessary corrections are included in subsequent versions.

• Documents are automatically amended as a consequence of modifications and

corrections to the products described.

Please make sure that you are aware of the latest document revision date.

If you find any lack of clarity while using this document, or if you have any criticisms or suggestions, please contact your local POC at the nearest branch office. Addresses for Siemens RCs are available at www.siemens.com/sbt

4 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies About this document 2018-09-14

Page 5

Before using our products, it is important that you read the documents supplied

Abbr.

Description

ACS790

Engineering Tool for Synco devices

ETS

Engineering Tool Software http://www.knx.org/

KNX/ACS

Communication with KNX, configuration with ACS

KNX/ETS

Communication with KNX, configuration with ETS

Use of documents / Request to the reader

Abbreviations

Naming convention

with or ordered at the same time as the products (equipment, applications, tools etc.) carefully and in full.

We assume that persons using our products and documents are authorized and trained appropriately and have the technical knowledge required to use our products as intended.

For more details on the products and applications, please refer to:

• On the internet: "Technical product data and descriptions" at

www.siemens.com/gamma-td

• On the intranet (for Siemens employees only) at

http://step.bt.siemens.com/portal/index.html

• At your next Siemens branch office www.siemens.com/sbt or at your system suppliers.

• From the support team in the headquarters fieldsupport-

[email protected] if no local POC is available.

Siemens assumes no liability to the extent allowed under the law for any losses resulting from a failure to comply with the aforementioned points or for the improper compliance of the same.

0.3 Abbreviations and naming conventions

he term "room operator unit" in this document always refers to all types:

QMX3.P02. P30. P34, P70 und P74.

0.4 Reference documents

The following documents are available at www.siemens.com/gamma-td

[1] Data sheet N1602 [2] Mounting instructions M1692 [3] Word template for labels (QMX3.P02, P37) M1602.1 [4] KNX Standard, Volume 3: System Specifications, Part 7, Chapter 2: Data

oint Types (http://www.knx.org/

[5] Service- and Operating software ACS790 (Data sheet N5649)

)

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies About this document 2018-09-14

5 / 46

Page 6

1 Devices

Temperature sensor Sensor for humidity

Sensor for CO

Air quality indicator

with LED Segmented backlit

display and touchkeys «Green leaf» LED Parameterizable touch-keys with LED display

dow for labels

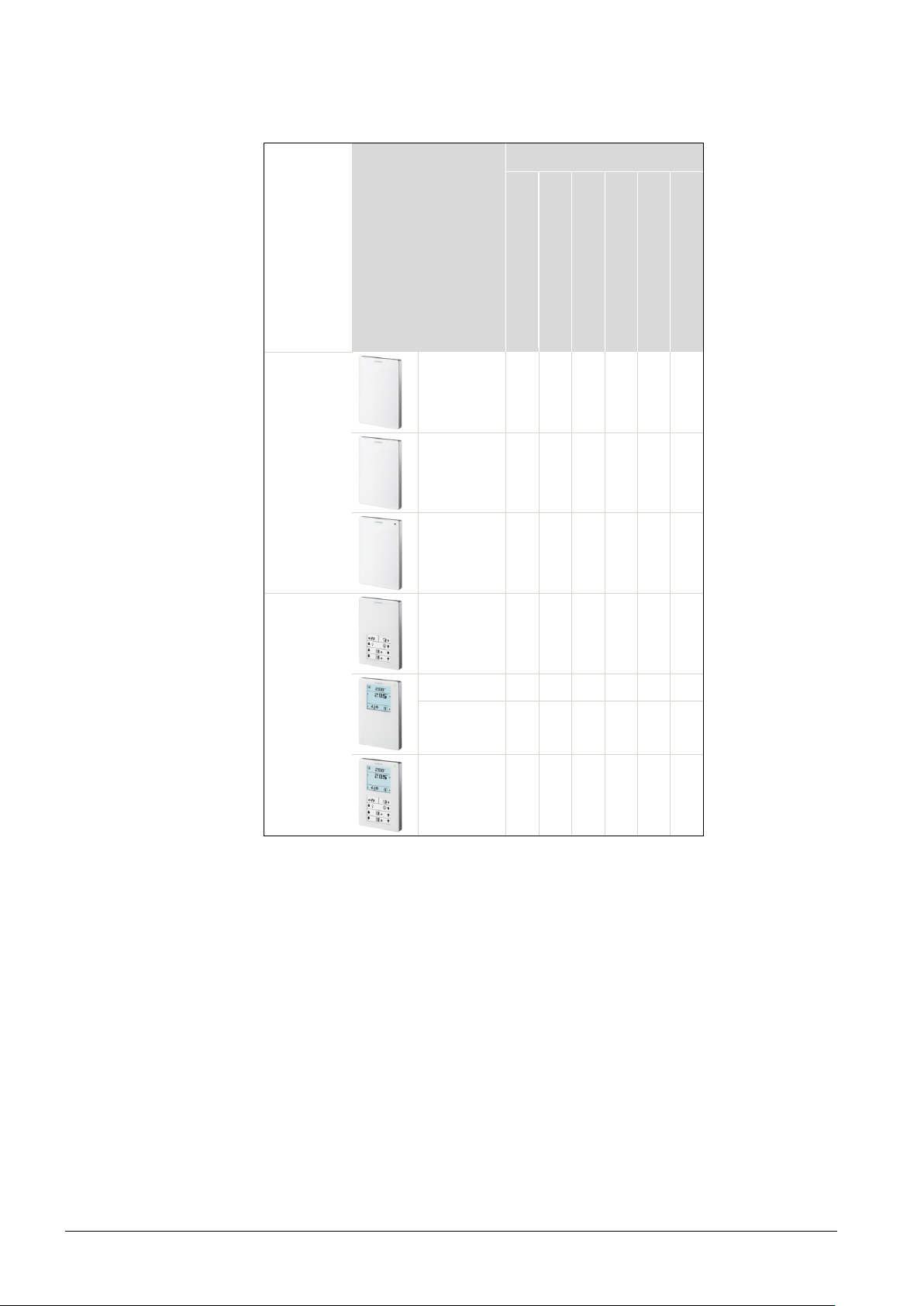

1.1 Type summary

Product number Stock number Features

Sensors QMX3.P30

S55624-H103

Win

QMX3.P40

QMX3.P70

Room operator units QMX3.P02

QMX3.P34

QMX3.P74

QMX3.P37

Accessories QMX3.MP1

S55624-H11 6

S55624-H104

S55624-H107

S55624-H105

S55624-H106

S55624-H108

S55624-H11 0 Base plate for conduit box / cavity wall box for 68 mm

X X

X X X X

X X X

X X X X X X

X X X X X

diameter hole 20 pcs. per package

1.2 Equipment combinations

The room operator units are KNX certified and can be connected to all suitable KNX devices, if the appropriate communication objects are available in the application.

Use in the following BAC systems:

• GAMMA Building Management Systems / third-party devices

• Building automation and control systems with ETS configuration

Integration of third-party devices and free configuration.

• Synco700 (with ACS configuration) can only use the sensor information of types QMX3.P30, QMX3.P40 and QMX3.P70.

6 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Devices 2018-09-14

Page 7

1.3 Variant and device parts

1602J01_01

Note

• T

he devices are designed for wall-mounting (A). A conduit box is optional. – Conduit box: Keep in mind the dimensions of the conduit box! – Cable conduits on the wall: Keep a distance of 30 mm (from above) /

20 mm (from below) to the base plate (B), so that the device (C) c

napped onto the base plate.

• The base plate (B) has screw holes for all common flush-mount boxes. The screw head height must not exceed 3 mm.

• The device (C) incorporates a KNX / PL-Link plug, a tool plug, and, depending on the type, sensor element, keys, LCD panel, window for the label. The cable can be pushed into channels on the rear.

• A KNX plug is enclosed with the devices

an be

The optional metal-reinforced base plate QMX3.MP1 (B1) serves for two purposes:

• It is more rigid so that it does not bend when fixed in the middle with two screws only (directly over a conduit box or a cavity wall box).

• It has a removable gray foam plate (B2) for mounting on a 68 mm diameter cavity wall box. The plate compensates for the jutting edge of the box (s m

ounting, page 13).

MX3.MP1 is supplied in boxes with 20 pcs.

7 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Devices 2018-09-14

Page 8

1.4 Service and connection elements

Connection

Service LED (red) and programming pin

Adhesive address labels

Simplifying engineering and commissioning

R1 QMX3... Room operator unit N1 Controller, actor

Twisted pair

Service LED (red)

ogramming pin

The s

ervice element functions are described Commissioning, sections 5.2 and 6.2.

The dev

ices are supplied with peel-off adhesive address labels containing the

unique KNX ID as alphanumeric and barcode display.

The addr

ess label can peeled off the device during mounting and stuck to a floor plan or similar. The floor plan thus contains the assignment of KNX IDs and physical installation location. This greatly simplifies the following steps. In addition, the procedure serves as the basis for the recommended engineering and commissioning process. If the adhesive labels are lost, all information is still available in printed form on the housing.

8 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Devices 2018-09-14

Page 9

1.5 Dimensions

133.4

115

88.4

1602M01_01

80.5

28.2

26.5

13.1

56.5

17.5

28.2

3.5

1602M02

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Devices 2018-09-14

9 / 46

Page 10

1.6 Environmental compatibility, disposal

Note

1.6.1 General notes

This device was developed and manufactured with environmentally compatible materials and procedures complying with all relevant environmental standards.

Note the following to dispose of the product following its useful life or in case of replacement:

• Do not dispose of the device as part of standard household garbage, but as

special waste from plastic and steel, ferrite-magnet components. This applies in particular to the PCB.

• For this reason, dispose of the components compatible with current

environmental, recycling, and disposal technologies.

Observe all local, applicable laws.

• The aim is to reuse as much of the basic materials as possible at the lowest

possible environmental impact. To this end, note any material and disposal notes in individual components.

1.6.2 Environmental declaration

The product environmental declaration CM2E1602 contains data on environmentally compatible product design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal)

1.6.3 Notes on FCC rules

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

10 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Devices 2018-09-14

Page 11

Please comply with these notes

General

regulations

Safety

KNX bus supply

Maintenance

Setting up cable ducts

Cable types

Separate cables

Unscreened cables

2 Safety and EMC optimization

2.1 Notes on safety

This section explains general and system-specific regulations for mains and operating voltages. It includes important information for your safety and the safety of the entire plant.

lease comply with the following general regulations during engineering and

P execution:

• Electrical and mains power ordinances for the given country.

• Other applicable, national regulations.

• Building installation regulations for the given country.

• Regulations of the utility company.

• Diagrams, cable lists, dispositions, specifications, and orders by the customer or

authorized engineering office.

• Third-party regulations, e.g. by the general contractor or building owner.

he electrical safety for building automation and control systems by Siemens is

T essentially based on safely separating low voltage from mains voltage.

2.2 Device-specific regulations

Warning,

Note permissible line lengths and topologies when planning and installing controllers and field devices featuring KNX bus connection. Make sure the bus supply complies with the KNX standard.

Do not open the device.

The device is maintenance free. Only the manufacturer can repair the device.

2.3 Notes on EMC optimization

When setting up cable ducts, separate strongly interfering cables from susceptible entities.

• Interfering cables: Motor cables especially from motors supplied by inverters, energy-supplying cables.

• Susceptible entities: Control cables, low voltage cables, interface cables, LAN cables, digital and analog signal cables.

oth types of cables may be in the same cable duct, but in separat

• B c

ompartments.

• If no three-sided, closed duct with separating wall is available, the interferi

ables must be separated by at least 150 mm from the others or placed i

c s

eparate ducts.

• Crossings of strongly interfering cables with possibly susceptible entities must be at a right angle.

• In exceptional cases, signal and interfering power cables may be run in parallel, resulting in a high interference risk.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Safety and EMC optimization 2018-09-14

e recommend to generally use unscreened cables. Comply with the manufacturer's installation recommendations for selecting unscreened cables. In general, unshielded twisted pair cables have sufficient EMC properties for technical building applications (including data applications) and do not require consideration of coupling to surrounding earth.

11 / 46

Page 12

3 Mounting and electrical installation

Service LED (red) Tool plug Programming pin

2602J02

)

Ambient conditions

Location (sensors, room operator units)

Mounting instructions

Mounting over a conduit box

1602J108

Comply with the following notes as well as the mounting instructions [2] to mount the room sensor.

Note the permissible ambient temperature and humidity. See data sheet [1] for environmental conditions.

he devices are suitable for wall mounting.

• T

• Recommended height: 1.50 m above floor.

• Do not mount the devices in recesses, shelves, behind curtains or doors, or

above or near heat sources.

• Avoid direct solar radiation and drafts.

• Seal the conduit box or the installation tube, as air currents can affect sensor

readings.

• Adhere to allowed ambient conditions.

• Moun

ting instructions M1602 are enclosed with the devices.

12 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Mounting and electrical installation 2018-09-14

he installing tube must be sealed or cold or warm air may enter the device and

*) T

cause faulty temperature readings by the internal sensor.

Page 13

se a metal-reinforced base plate QMX3.MP1 instead oft he standard base plate

Monting over a cavity wall box

223

U delivered with the room operator unit.

he installing tube must be sealed or cold or warm air may enter the device and

T cause faulty temperature readings by the internal sensor.

ixing the box on the cavity wall.

1 F 2 Fixing the QMX3.MP1 base plate on the box using 2 screws.

all mounting

4-wire cables (daisy chain wiring)

3 The gray foam plate (removable) compensates for the jutting edge of the box so

that the plate is aligned with the wall.

Remove the breakout on the housing before putting the cable into the gaining channel.

Remove the cable coating, as it will not fit in the gaining channel.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Mounting and electrical installation 2018-09-14

13 / 46

Page 14

Cable ducts on the wall

. 6

54 ± 0.15

Dismounting / service:

Labels for QMX3.P02, QMX3.P37

Insert label

1602Z106

1602J109

Keep a distance of 30 mm (from above) / 20 mm (from below) to the base plate, so that the device can be snapped onto the base plate.

30 mm

ample icons are available in the label

S template M1602.1 (Download from

www.siemens.com/gamma-td

)

Information. e.g. on room operator unit location or on room type (free text)

14 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Mounting and electrical installation 2018-09-14

Page 15

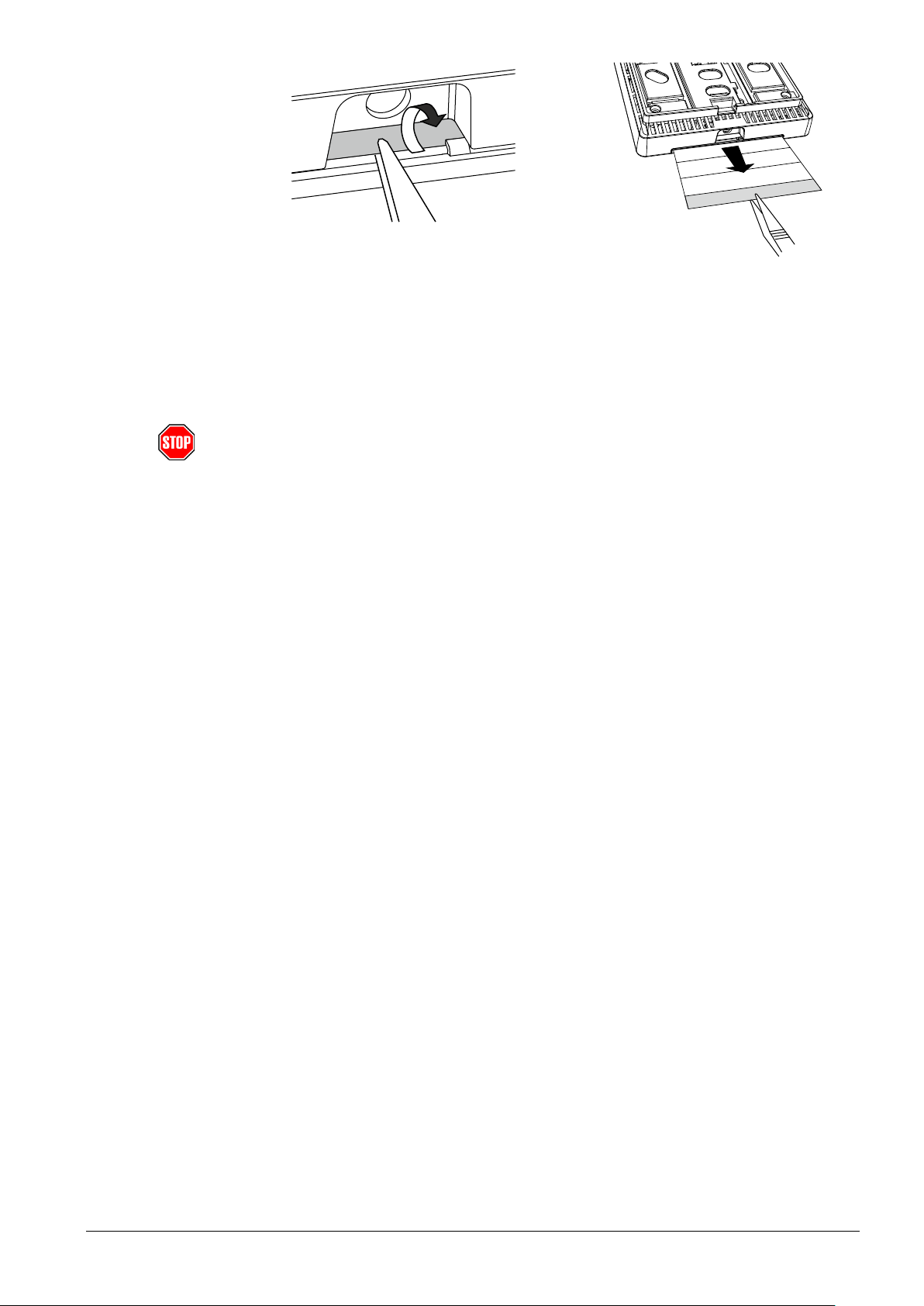

Remove label

Installation

Caution!

Bus cabling

1602J110

1602Z107

• Fol

low the KNX regulations

• For KNX wiring (topology, allowed cables and cable length), see the document

KNX bus [4].

• Use the correct cables for the KNX bus

• Do not interchange the wires of the KNX cable.

– The red terminal is for KNX + – The gray terminal is for KNX –

erve all local installation regulations.

• Obs

e devices are not protected against accidental connection to AC 230 V.

Inf

ormation in topology and addressing in KNX networks is available in document KNX bus [4]. The following information requires electrical installation as per the KNX-TP1 standard.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Mounting and electrical installation 2018-09-14

15 / 46

Page 16

4 Functionality / Use

Temperature sensor Humidity sensor CO

Air quality indicator with LED Display and op

touchkeys Operation of light, shading and

scenes

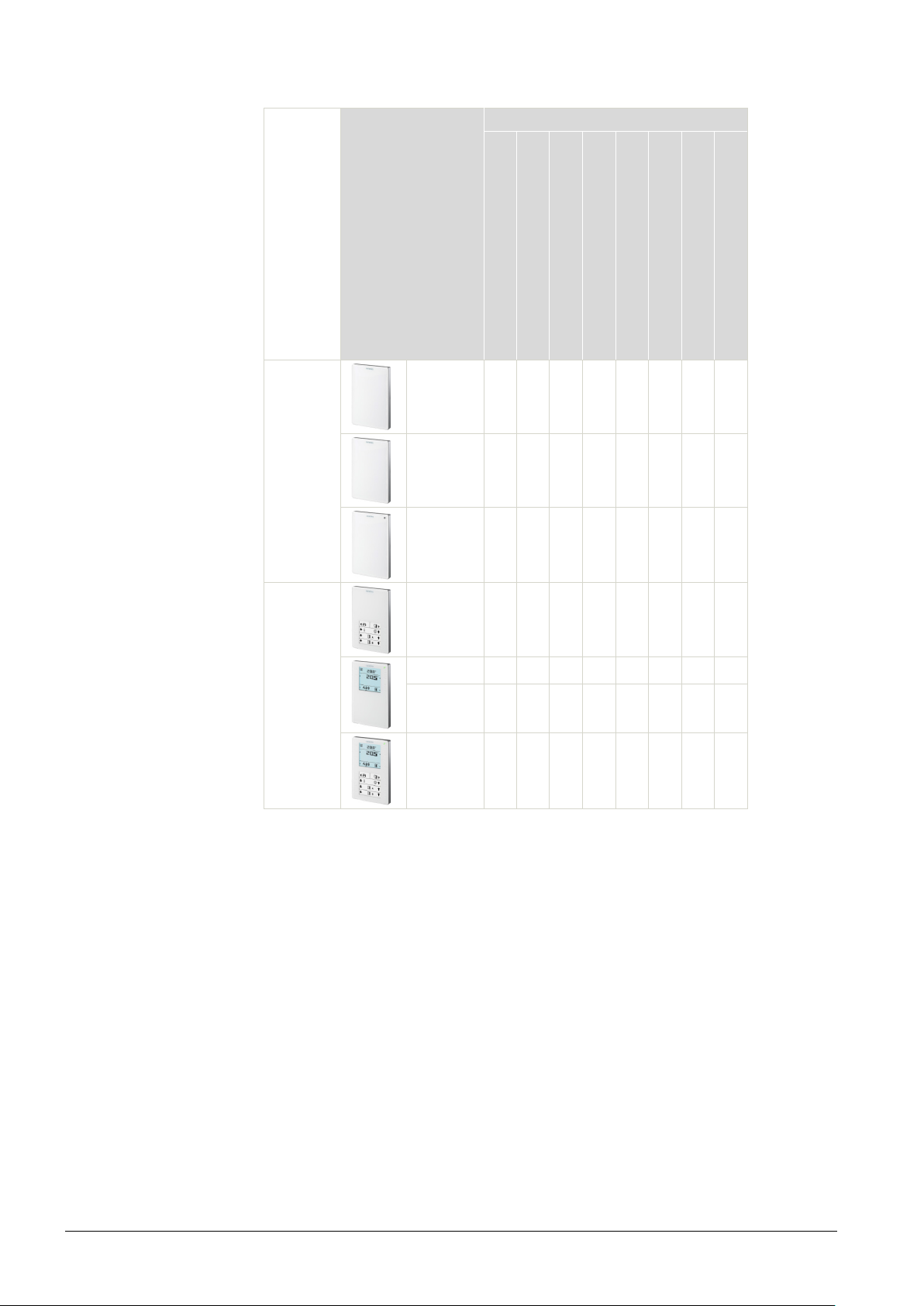

4.1 Overview

Typ

Sensors QMX3.P30 X

QMX3.P40 X X

QMX3.P70 X X X X

Funktion

eration with

sensor

Room

operator

units

QMX3.P02 X X

QMX3.P34 X X

QMX3.P74 X X X X

QMX3.P37 X X X

16 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

Page 17

4.2 Use

Details

Six complementary device types are available which can control HVAC and electric applications.

• Room temperature, humidity, and CO

cording to the demand and to energy efficiency criteria.

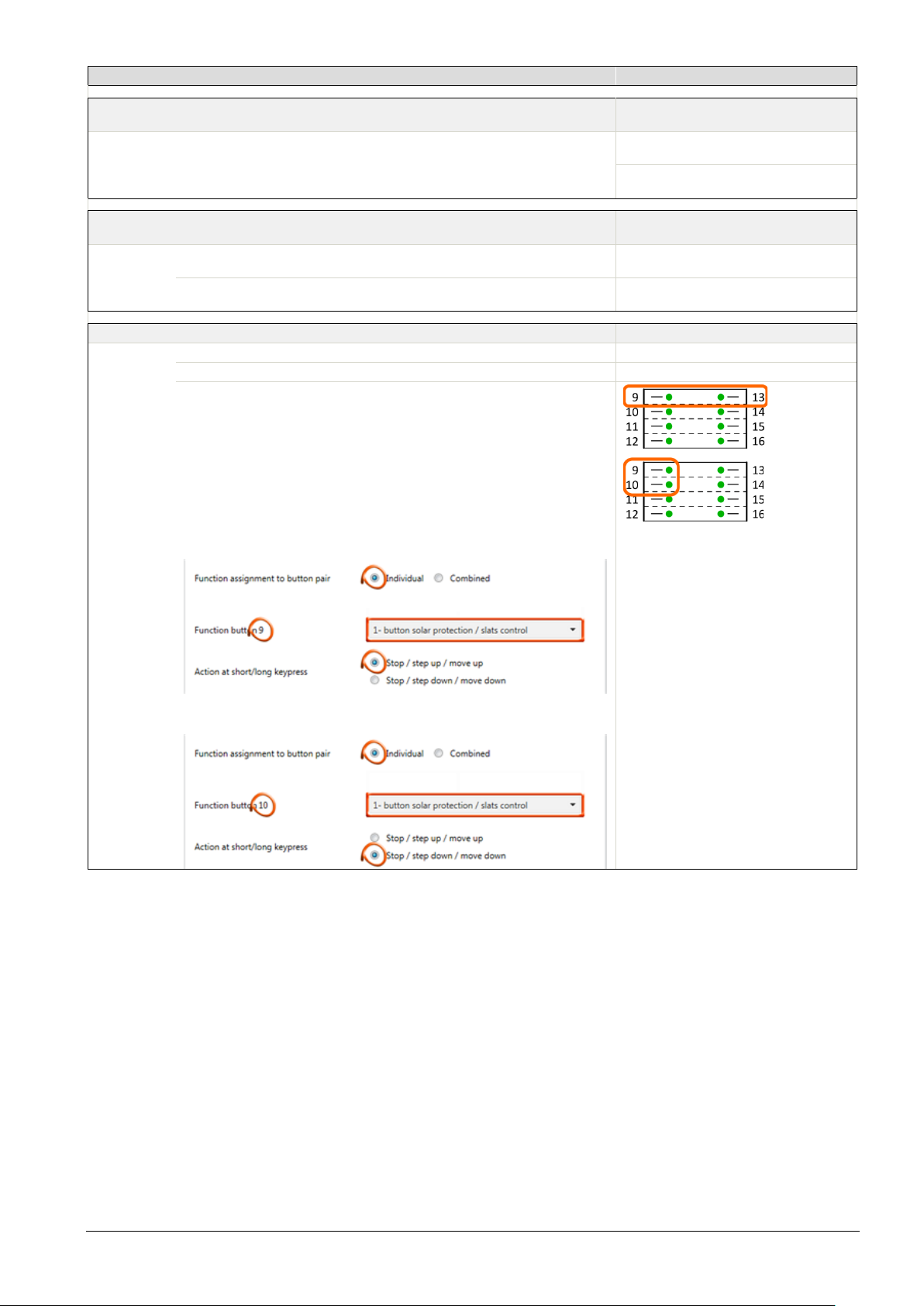

• Four freely parameterizable pairs of touchkeys can be configured for light

switching, dimming, blinds, scenes, sending values, etc.

he sensors in the room operator unit measure:

– Room temperature. – Relative room humidity. – CO

concentration in rooms with varying occupancy due to time or number of

people such as in museums, movie theaters, offices, meeting rooms, class

rooms, auditoriums, hospitals, living spaces.

he room operator units control and operate:

– Room temperature (via PID controller) – Humidity (via threshold value) – Air quality (via threshold value) – Fan stages (independent of temperature, air quality and humidity control

functions) – Room operating modes – Input of the occupancy state

content of the room are controlled

as well as – Switching of electrical equipment – Switching and dimming of lights – Control of shading / blinds – Selecting and saving of scenes

he room operator units with display show the following information about the

room: – Present room temperature, outdoor temperature. – Present room humidity, outdoor humidity . – Present room air quality . – State of window contacts – Device mode (e.g. heating, cooling).

17 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

Page 18

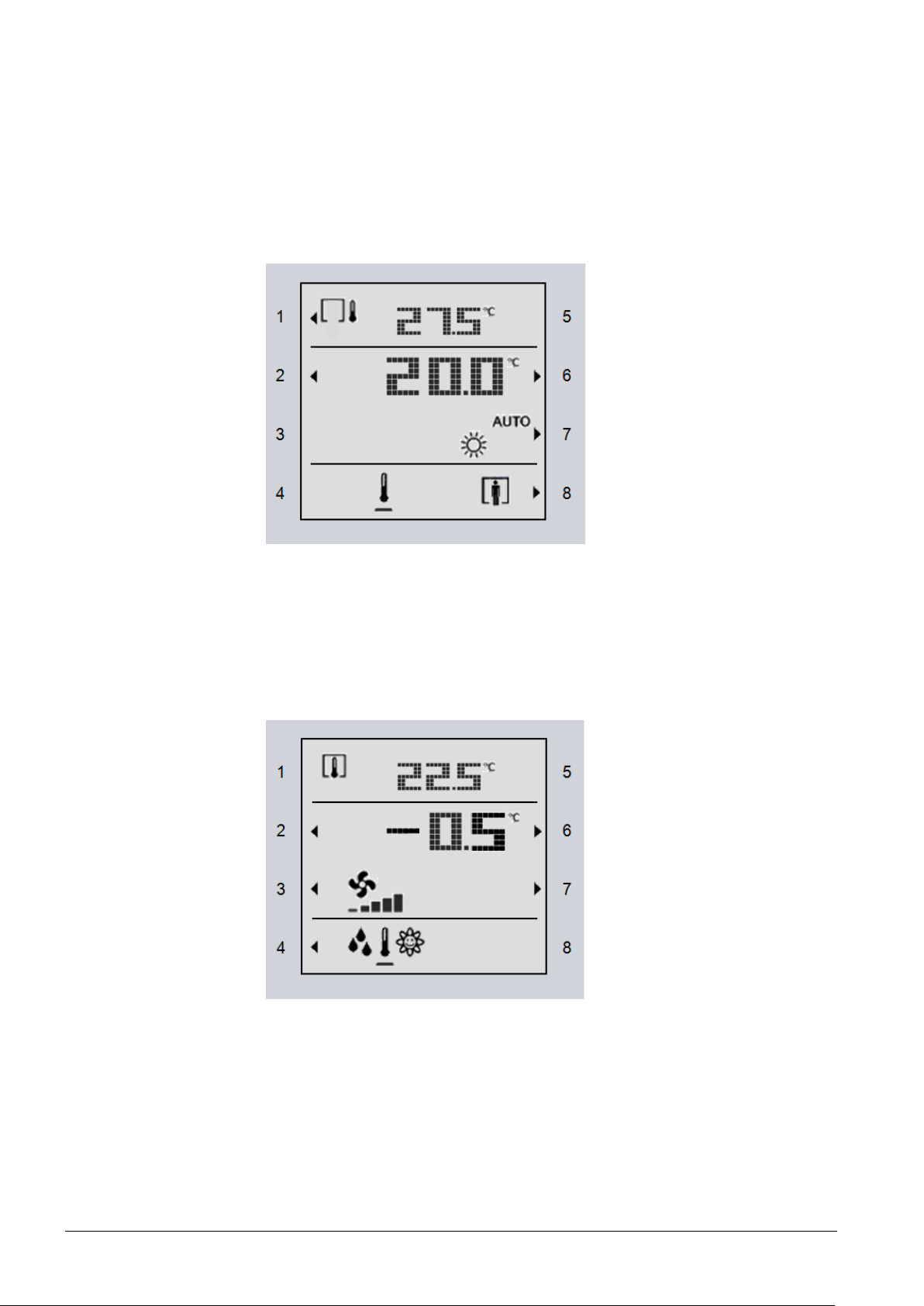

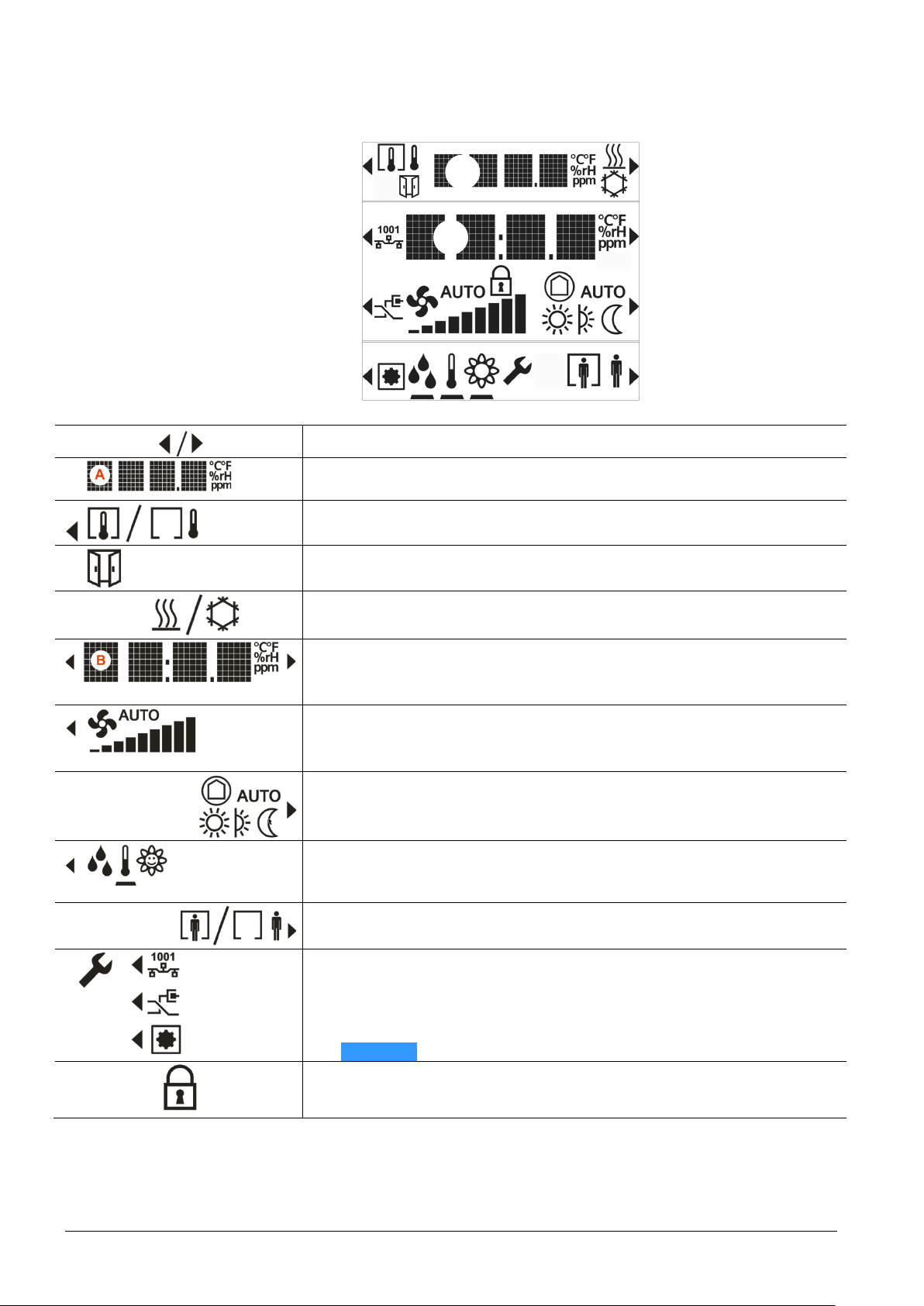

4.3 Display elements and buttons

Button

air quality in text, symbol, or ppm of CO

(temperature, humidity, CO2)

• Adjusting the setpoint using keys 2 and 6

operating mode is disabled)

information.

• Engineering functions (press keys 1 and 8 simultaneously during 5 s)

NOTICE This operation is irreversible!

• Indicates that the room operator unit is locked by the system.

– The display in line 1 shows the temperature from bus

• An arrow indicates that an element can be operated

• Temperature display in °C or °F / humidity in % r.H. /

• Toggling (key 1) between indoor and outdoor measurement

• Indication that a window is open (connected window switch is active)

• Display of the plant state (Heating or Cooling / inactive)

Note: No manual switchover!

• D

isplay of the relative or absolute setpoint for temperature (Comfort)

Setpoints for room humidity and room CO

• D

isplay of the present fan speed (when automatic)

• Adjusting the fan speed using key 3 (or keys 3 and 7 if operation of room

• Display of the room operating mode (when automatic)

• Adjusting the room operating mode using key 7

• Navigation: toggle the display / setpoint setting between temperature /

humidity / CO

• Operation of the occupancy state (presence switch, Comfort extension)

• Activate the Comfort extension using key 8 (only available if enabled)

– Programming mode (key 2), same function as programming pin

(service pin) on the back of the device – Connection test (Key 3) (not supported by ETS and ACS) – Reset device to factory settings (key 4)

– Operation is disabled

, using key 4. The black bar points to the displayed

concentration.

18 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

Page 19

The digits "0xxx" and "00xx" are displayed on power-up:

Temperature

(All Types)

Relative humi

(QMX3.P70, QMX3.P74)

CO2 concentration (QMX3.P70, QMX3.P74)

Air quality indication

(QMX3.P70)

0xxx is the FW version 00xx is the Build version

4.4 Functions

The room operator units with control functions can be integrated in a KNX network. The control functions for room temperature and ventilation allow for immediate control of suitable actuators to control heating, cooling, and ventilation.

4.4.1 Measuring

he room operator units measure the room temperature via an integrated sensing

dity

T element. The room temperature can be transmitted to other bus members and serves in KNX as control variable of the integrated room temperature controller. The outdoor temperature received via the KNX bus is only used for indication on the display and has no effect on the control.

he room operator units acquire the relative humidity in the room with the aid of a

T humidity sensing element integrated in the front module. The relative room humidity can be transmitted to other bus members and serves in KNX as control variable of the integrated ventilation controller.

The room operator units determine the CO

concentration via infrared absorption

measurement (NDIR). The sensor provides exact measurements at all times and does not require maintenance or recalibration thanks to an integrated, stable reference light source. The CO

concentration can be transmitted to other bus

members and serves in KNX as control variable of the integrated ventilation controller.

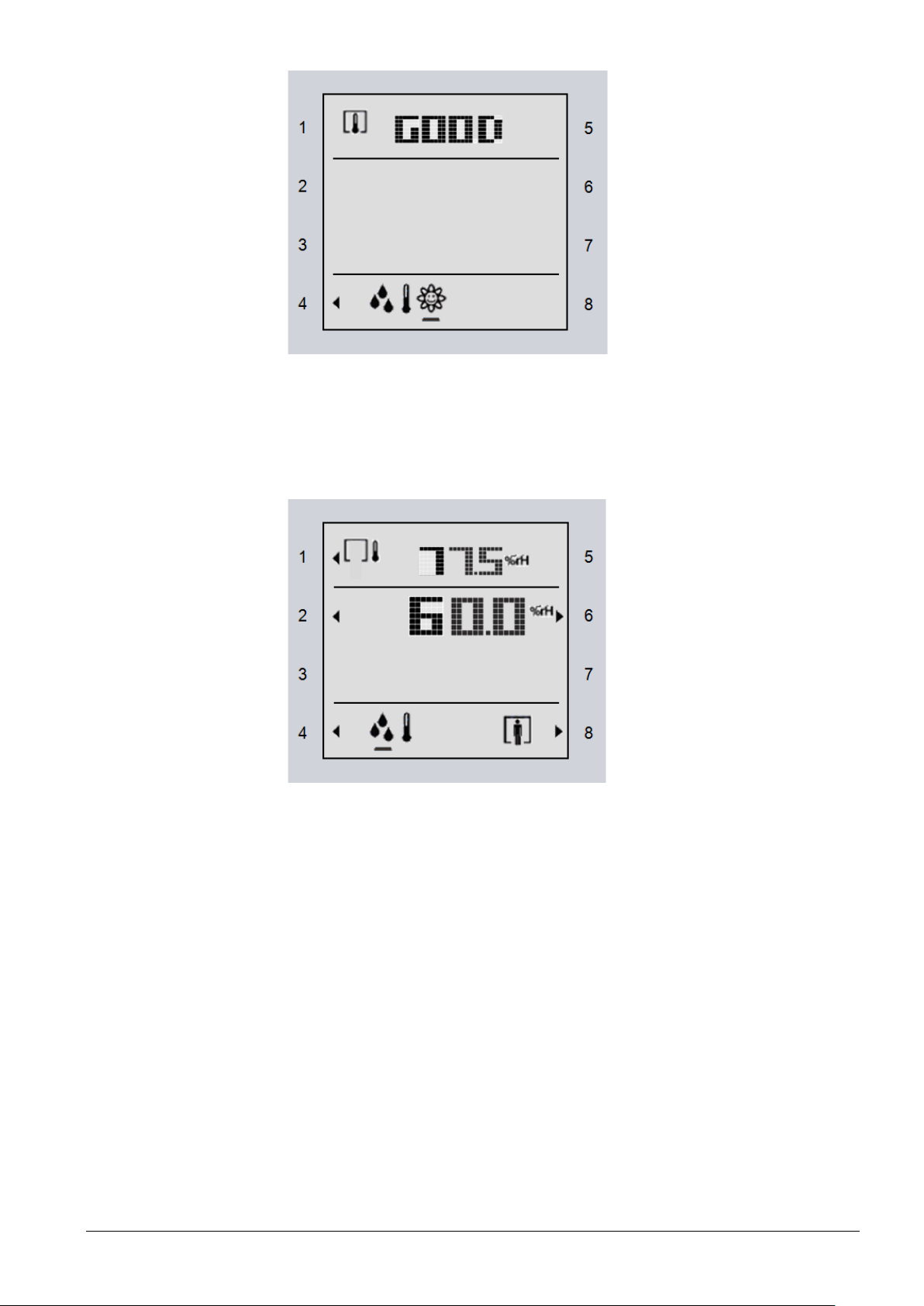

The background-lit symbol informs on the current level of CO2 in the room. The colors green / orange / red of the background lighting indicate good / moderte /

poor air quality. The display can be switched on or off by another bus member, e.g.

switch or timer.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

19 / 46

Page 20

4.4.2 Control and operation

PID control temperature Threshold value switch humidity Threshold value switch CO

Operation of light, shading and scenes Manual switching of ventilati

Room operating mode Presence function Only operation and display

Control functions (KNX all types)

Sensors

Typ

QMX3.P30 X X

QMX3.P40 X

QMX3.P70 X X X

Regelung und Bedienung

Room

operator

units

he room operator units can be connected via bus to suitable KNX heating,

QMX3.P02 X X X

QMX3.P34 X X X X X X

QMX3.P74 X X X X X X X

QMX3.P37 X X X X X X X

ventilating, and air conditioning actuators via integrated control functions for room temperature, humidity, and air quality.

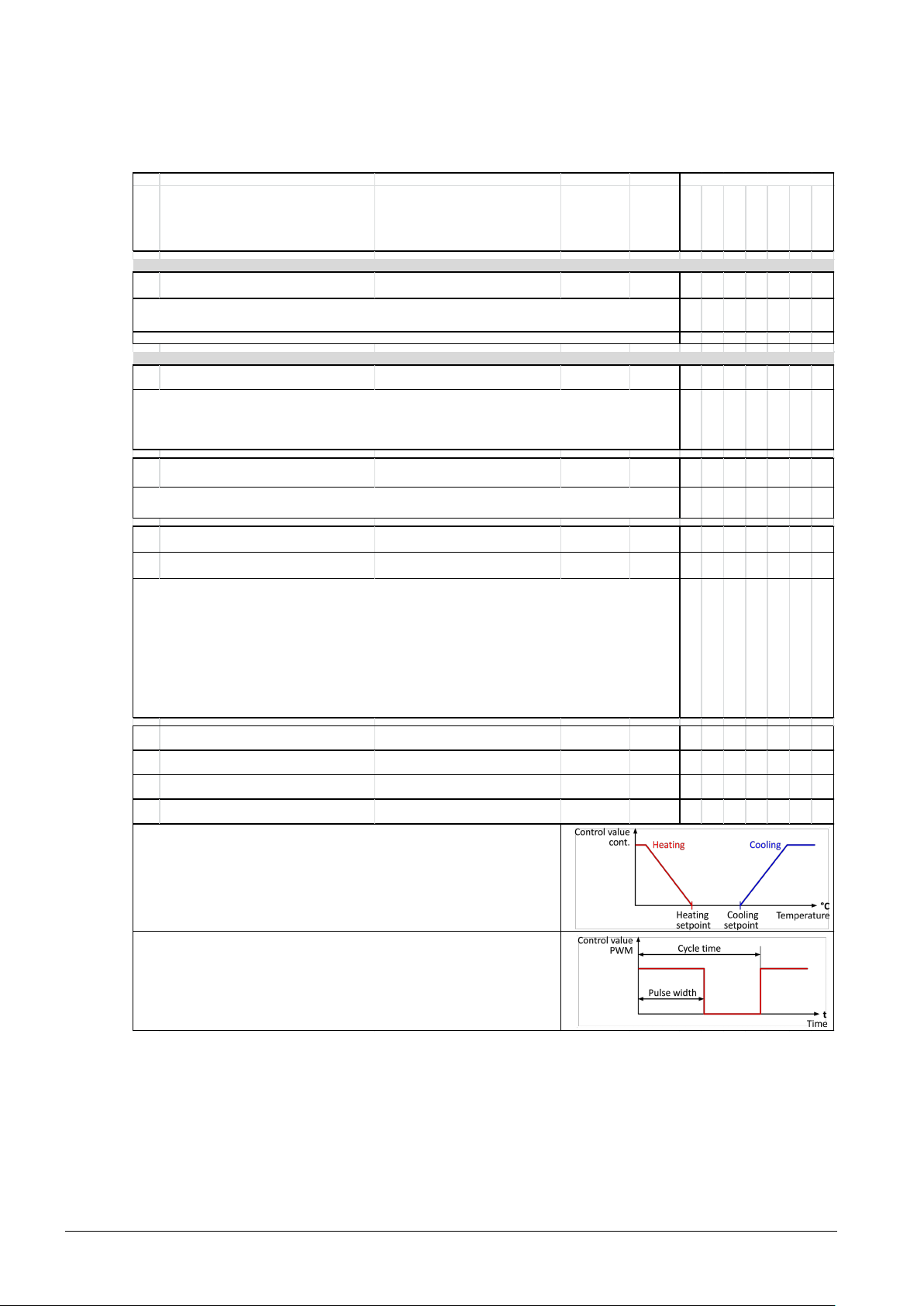

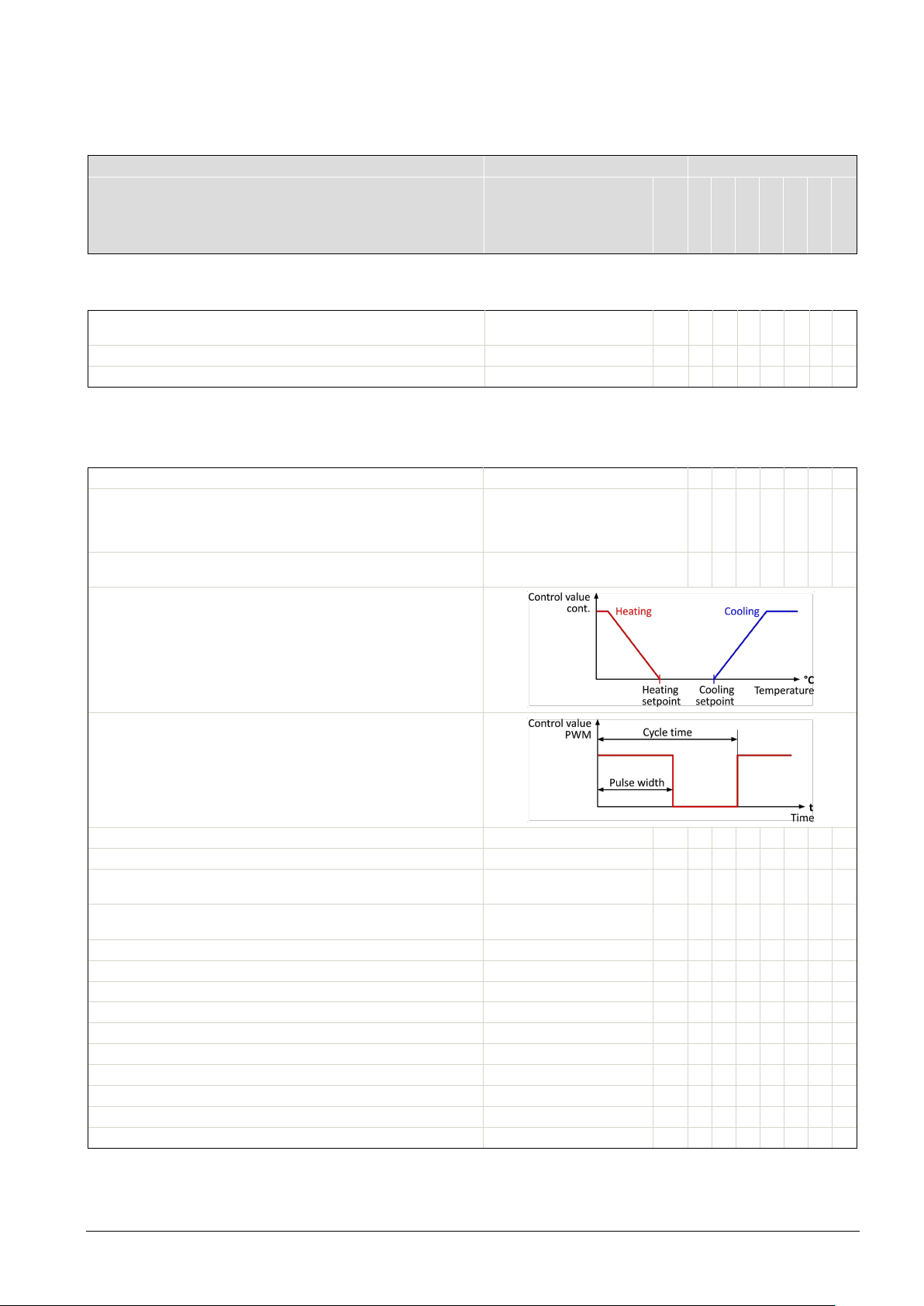

A proven PID controller for heating and cooling is provided to control the room temperature. The controller supplies a continuous or a pulse-width-modulated PID signal for one heating and one cooling actuator. The room temperature setpoints for the two operating modes heating and cooling as well as a blocking object can be set using the touchkeys and the display, or received from the bus. Changeover to the operating mode Heating/Cooling is automatic. Preset control parameters, adjusted for the heating type or cooling type, are available for selection.

20 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

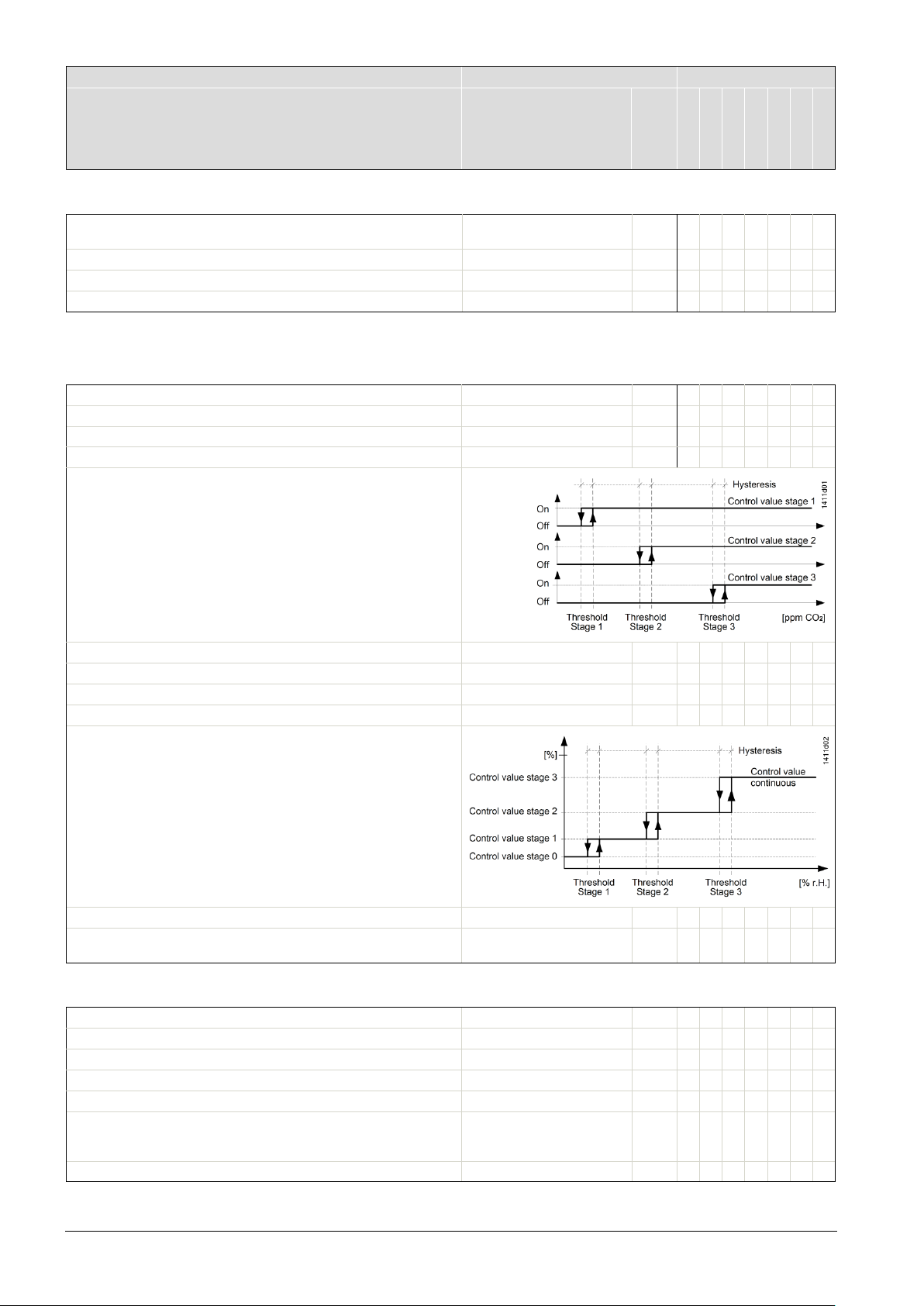

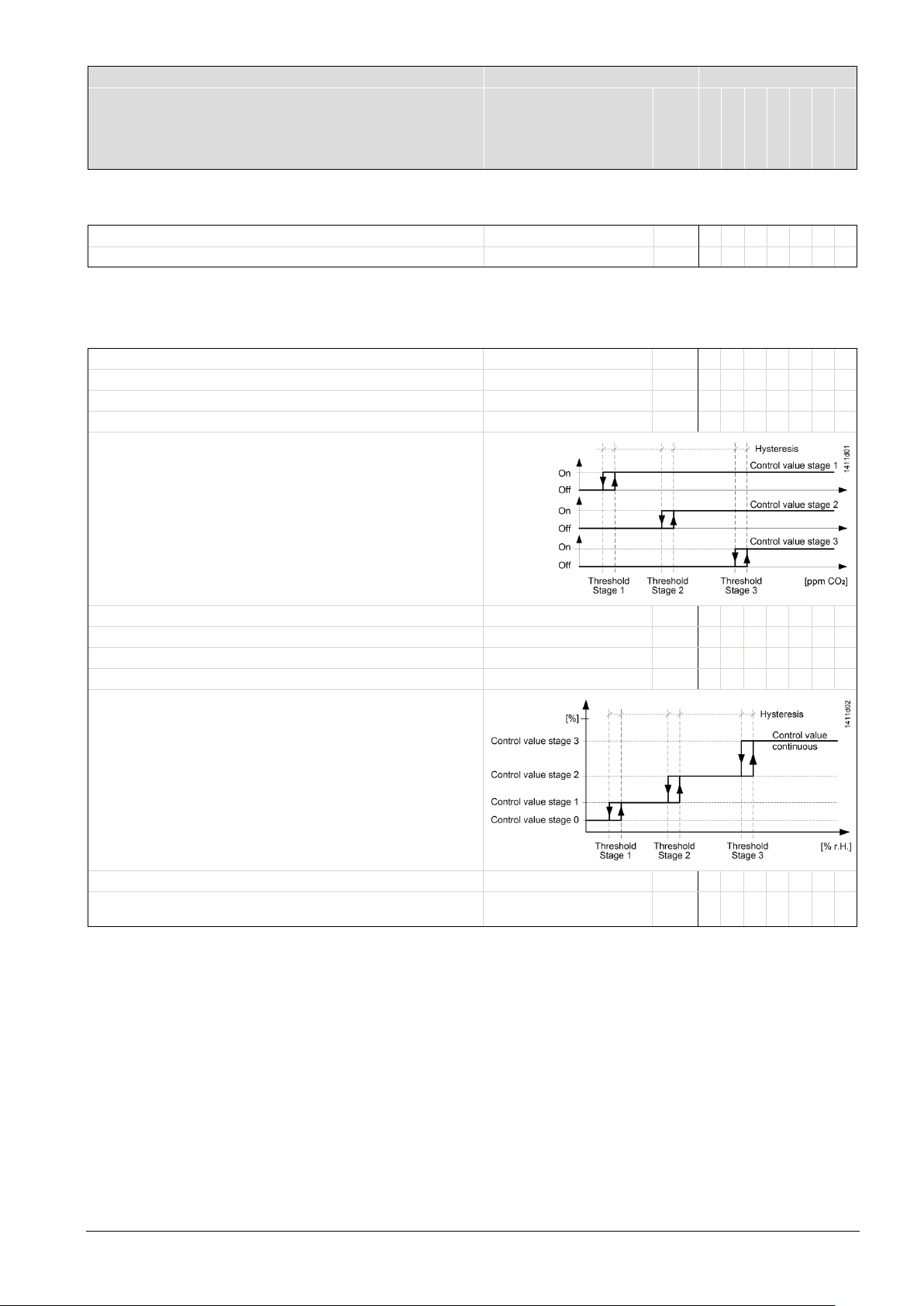

The integrated room humidity controller and room air quality controller can be used for ventilation control. For both controllers, the setpoints can be adjusted using touchkeys and display, or they can receive up to three switching point values via the bus. When the respective switching point is exceeded, up to three control signals and one quasi-continuous signal to control the ventilation actuators are transmitted to other bus members. In addition, a signal with the max. control value from both

Page 21

[ppm]

Typical CO2 concentration

<400

Outside air

700

City air

1000

Comfort limit

2000

Inacceptable indoor air quality

4000

Bedroom at poor ventilation

5000

Max. concentration for workspaces (MAC value)

Altitude [m]

500

1000

1500

2000

2500

3000

CO2 [ppm]

1000

1095

1201

1317

1445

1586

1740

Fan control (QMX3.P34, P74, P37)

controllers is available. The setpoint (from local operation or received via bus) directly influences the first threshold value (see description in sections 5.5.4 and 5.5.6).

Room temperature controller, humidity threshold value, and air quality threshold switching can be activated or deactivated. As a result, simple sensor function or room operation is possible also.

Manu

al room fan control can be enabled, offering three different types for selection such as single stage, 3 stages, or continuous from 0 to 100 percent. The 9 display bars change after 10% (display: 10% one bar, …100% 9 bars). For manual operation, a bar is added on each button press, corresponding to a change of +/11%. This function can be activated or deactivated. Fan control is independent of the room temperature. When the fan operating mode is Auto, the setpoint value via bus is executed.

Room operating modes (QMX3.P34, P74, P37)

Presence button (QMX3.P34, P74, P37)

Comfort extension (QMX3.P34, P74, P37)

Air quality measurement and assessment

(QMX3.P70, QMX3.P74)

he room operating modes can be controlled from Auto to Comfort, Pre-Comfort,

Economy, and Protection. This function can be activated or deactivated.

The presence button allows for manual changeover between Comfort and PreComfort. This function can be activated or deactivated. When activated, the Comfort extension is not available (key 8, see section 4.3).

hen the presence function is deactivated, Comfort can be extended. Extensions are set between 5 and 120 minutes in ETS. This function can be activated or deactivated (key 8, see section 4.3.

he following table provides information on assessing room air quality based on

T the determined CO

1500 Ventilation strongly recommended

concentration.

Notes on CO2 sensor

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

40000 Exhaled air

concentration measurements are influenced by air pressure and temperature.

The lower the air pressure, the lower the measured value. Temperature influence is corrected automatically. The sensor allows for correcting the determined measured value to the prevailing average air pressure at the mounting location. To do this, altitude [m above sea level] must be set. The correction has the following effect on an uncorrected measured value of 1000 ppm at normal conditions (0 m altitude, 25 °C):

• F

unction: The sensor determines the CO

concentration via infrared absorption

measurement (NDIR). The sensor is maintenance free in normal environments, thanks to the built-in self-correcting ABC (Automatic Baseline Correction) algorithm. This algorithm keeps track of the sensor’s lowest reading within

21 / 46

Page 22

days and corrects for any drift detected. The sensor also contains self-

Operation of light, shading and scenes

(QMX3.P37, QMX3.P02)

diagnostics to assure proper operation during lifetime.

se: Normal environments, such as offices, class rooms, hotel rooms, or other

• U

non-permanently occupied areas, typically reach at least once a week the CO

oncentration of fresh air of 400 ppm. However, exposure to a lowest CO

concentration other than fresh air, or incorrect altitude parameter setting, might result in reduced accuracy and incorrect operation.

• Rough handling during transport, storage or mounting might adversely affect accuracy during the first days of operation.

• The specified accuracy is reached after 25 days of continuous operation.

tons (individual or button pairs) and related LEDs can be parameterized

8 but individually. See Section 3 for button labels. Common functions such as switching (On, Off, toggle) or sending of values (percentage), dimming, or blinds control, 8-bit scene control with/without memorize are supported.

4.5 Application examples

Below are a few typical application examples for the QMX3.P30, P34, P70 and P74 room operator units.

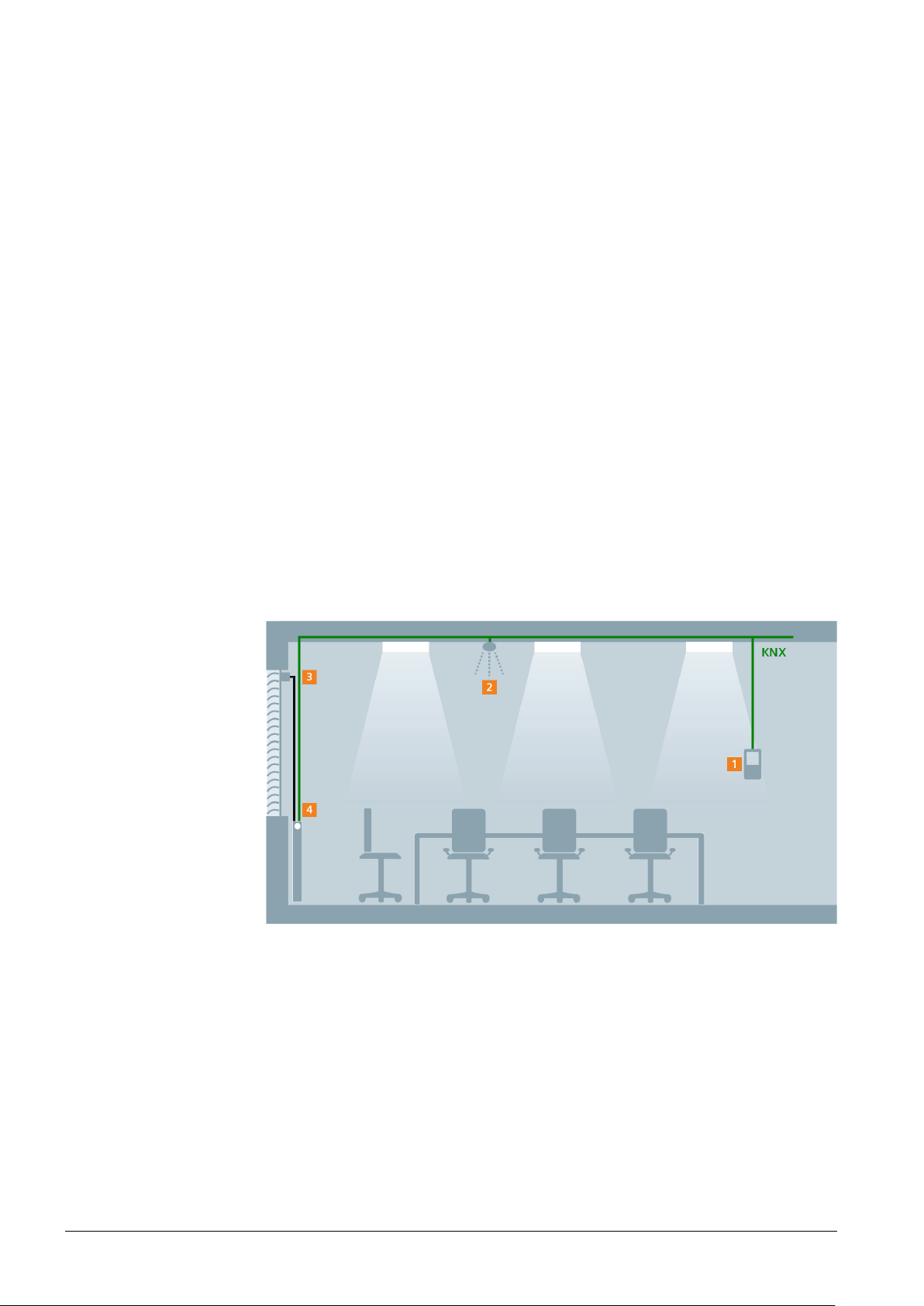

4.5.1 Room temperature control and operation via QMX3

Key (Possible combination of components)

1. Room operator unit QMX3.P34

2. Presence detector UP 258

3. Motoric valve actuator AP 562/02

4. Window contact S 290

22 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

his application is recommended for smaller offices with a single heater.

T The room operator unit measures and regulates room temperature and sends the regulation signal to the valve drive actuator via KNX bus.

In addition, window contacts and presence detectors influence the control behavior of the room operator unit and increase the room‘s energy efficiency. For example, if

Page 23

no one is in the room or if the window is open, the radiator valve closes and reduces the room temperature automatically. Up to 4 window contacts and presence detectors can be connected via KNX bus.

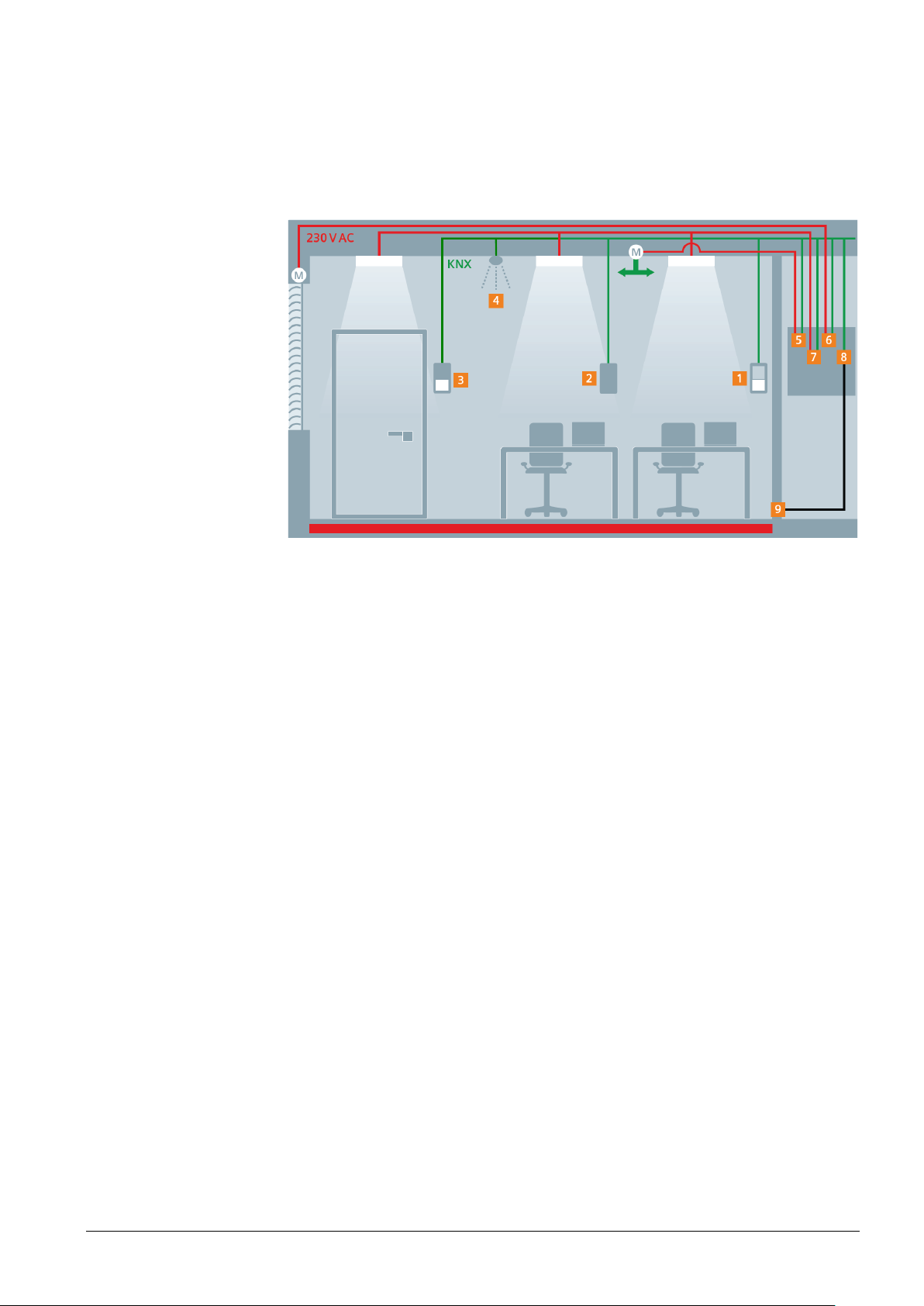

4.5.2 Presence dependent room climate control with operation of all disciplines

Key (Example of a possible combination of components)

1. Room operator unit QMX3.P02

2. Room sensor QMX3.P70

3. Room operator unit QMX3.P37

4. Presence detector UP 258

5. Switch actuator N 562/11 for fan

6. Shutter/blind actuators N 523/04

7. Universal dimmer N 528/31 with sub-module N 528/41

8. Thermal drive actuator N 605 for up to 6 rooms

9. Thermal valve actuator STA23 (up to 4 per room)

his application is especially suitable for rooms with several heaters, e.g. in offices,

lecture halls or conference rooms.

The room operator unit (1) measures and controls the room temperature and sends the control signal to the thermal actuator (8) via KNX bus. Together with the integrated room temperature control, the sensor provides for a comfortable room climate.

The Room operator unit (2) measures the air quality (CO

) in the room, controls the

ventilation as required and thus saves energy and costs. The buttons on the room operator unit (1 and 3) can be used to control shading, lighting and scenes for example.

Additional room operator units (1) can also be connected, e.g. in large rooms with several doors.

23 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

Page 24

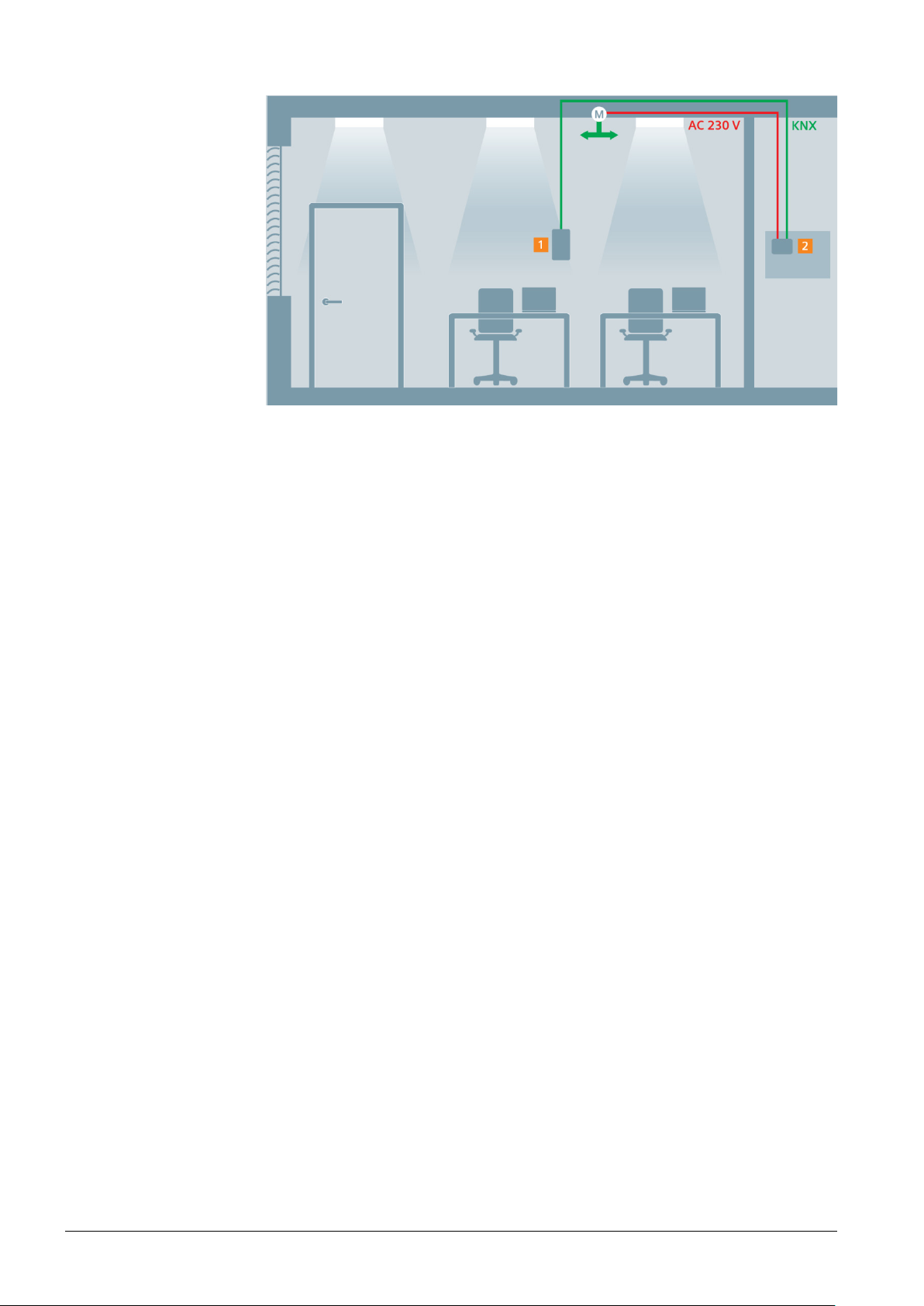

4.5.3 Room temperature, humidity and air quality control

Key (Possible combination of components)

1. Room sensor QMX3.P70, including – Temperature sensor

2. Air handling controller RMU7x0B

– Humidity sensor

sensor

– CO

The room operator unit (1) measures the room temperature, the room humidity, and the CO

concentration, and passes these values on to the controller (2) via the

KNX bus. The controller controls temperature, humidity and air quality of the corresponding room based on the measured values.

24 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies Functionality / Use 2018-09-14

Page 25

5 ETS engineering

Pushbutton actuation

Meaning

connection test.

pressed longer (> 2 s to 5 s).

This operation is irreversible.

LED indication

Meaning

Red

Device is in programming mode.

Product data

ETS version

Functionality of touch keys and display

Commissioning prerequisites

Pushbuttons

LED status indication

Switch-on response

5.1 Engineering

The product data (*.vd5 or *.knxprod) must be downloaded from the website and imported in the ETS for engineering. The product data is available at

www.siemens.com/hvac-td or www.siemens.com/gamma-td

f ETS3 is used, make sure to install first ETS3 patch (additional software column

I SW) for ETS3.0f  www.siemens.com/hvac-td

For ETS4, make sure the latest version is installed or at least version 4.1.2.

or a series of examples see section 5.6.

5.2 Commissioning

Prior to commissioning, all devices must be mounted as per the mounting instructions [2] and connected to the bus via bus connector as per to the bus topology (red to +, black to –). To check correct polarity of the wires for of a bus participant, press the programming pin if the bus is powered. If the service LED lights up, the polarity of the wires is correct

Short (< 2 s) Switch over to programming mode or acknowledge display of a

No functions are executed when the programming button is

Long (> 20 s)

Note!

Reset to factory settings.

This operation resets all user preference data and parameter settings to factory default.

All other indication types do not apply to KNX.

uring parameterization using the commissioning software, the input objects are

set to default values upon initial switch-on or following standard reset.

In the event of a bus voltage failure, the device detects the failure and saves the values received last to non-volatile memory. After bus power restoration, the saved status of all input objects is restored. The status values received via the bus for the LEDs of keys A1 to D2 are not stored.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

25 / 46

Page 26

5.3 Communication objects

Obj. Object name Function Type / Lengt h Fl

a gs

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Room temperature sensor

1 Room Temperature [°C] Temperature value in °C

9.001 2 bytes

CRT X X X X X X X

Room temper ature c ontroller

2 Room temp. controller operating mode

HVAC control type (0 = Auto, 1 = Heating, 3 = Cooling, 6 = Off)

20.105 1byte

CRWU X X X X X X X

3 Enable room temperature controller Controller on = 1 / off = 0

1.003 1 bit

CRWU X X X X X X X

4 Room temperature setpoint while cooling Cooling temp. setpoint in °C

9.001 2 bytes

CRWU X X X X X X X

5 Room temperature setpoint while heating Heating temp. setpoint in °C

9.001 2 bytes

CRWU X X X X X X X

6 Control value cooling - cont (0..100%)

5.001 1 byte

CRT X X X X X X X

7 Control value heating - cont (0..100%)

5.001 1 byte

CRT X X X X X X X

Control value cooling - on/off On/Off

1.001 1 bit

CRT X X X X X X X

Control value heating - on/off On/Off

1.001 1 bit

CRT X X X X X X X

The parameters Heating/cooling type adapt the controller to the heating type. In addition, the controller knows two control algorithms, one for modulating mode (0..100%) and one for PWM m ode (on/off). The parameter "Positioning signal type" selects the mode. The positioning signal type is the same for all operating m ode.

n modulating mode (Obj. 6, 7), for a modulating positioning signal ≠ 0, the applicable,

associated PWM output is "on".

Devices

Provides the room temperature value from the integrated sens or. Value of the outside temperature sensor: See object 53.

Must be placed in a group address to display the value on the display.

In the operating mode "Auto", the controller independently changes over between heating and cooling mode. But only either the cooling or heating mode is always active. If the object room temperature controller is enabled, the operating mode can changeover between "Off” (Obj. 3 = 0) and "Auto” (Obj. 3 = 1). The standard operating mode is "Auto”.

The operating m ode switches to "Auto" if the room temperature controller is enabled (1 = Controller on). The operating m ode switches to "Off" when s witching off (0 =

Controller off). The default value is controller on = 1.

The setpoints for cooling and heating mode do not lock out each other. In operating mode "Auto”, for cooling setpoint <

heating setpoint, the heating m ode is nevertheless active. The controller's comfort setpoints can be adjusted over the bus using these objects. As long as no other values are received by the bus or adjusted on the device with display, the received setpoints of objects 4 and 5 appl

y. Objects 4 and 5 act directly on the internal controller. The display on the device does not change! In other words, you can adjust the active cooling setpoint as desired using object 4 (without limiting by the heating setpoint) without this being visible on the display. The display for setpoint and operating m ode rem ain unchanged. Object 4 is once again overwritten if something is adjusted on the device (s etpoint and operating mode). In other words, you can influence the controller for short periods using both objects .

In PWM mode (Obj. 8, 9 as well as Obj. 6, 7), the cycle time and pulse length is adapted to the type of heating, the s etpoint, and the meas ured room temperature. The minim um cycle is 12 minutes; the minimum pulse length 4 minutes. The modulating positioning signal outputs values 0% or 100% in this operating mode.

The number and type of available objects as well as adjustable parameters can vary depending on basic configuration. For detailed documentation on KNX data point types, see [5].

26 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 27

Obj. Object name F

unction Type / Length Fl a g s

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Room temperature se tpoint, ope ra ting modes, window state , occ upanc y

10 Room temperature: Setpoint absolute [°C]

9.001 2 bytes

CRW

X X X X

11 Room temperature: Setpoint relative [K]

9.002 2 bytes

X X X X

12 Room temperature: Setpoints heating

222.100 6 bytes

CRWU

X X X X

X X X

13 Room temperature: Setpoints cooling

222.100 6 bytes

CRWU

X X X X

X X X

14 Room operating mode: Tim e switch

1= Comfort, 2 = Precomfort, 3 = Eco, 4 = Protection

20.102 1 byte

CRW

X X X X X X X

15 Room operating mode: Preselection

0 = Auto, 1= Comfort, 2 = Precomfort, 3 = Eco, 4 = Protection

20.102 1 byte

CRW

X X X X

16 Room operating mode: State

1= Comfort, 2 = Precomfort, 3 = Eco, 4 = Protection

20.102 1 byte

CRT

X X X X X X X

17 Comfort m ode: Timer button Activate comfort extension

1.017 1 bit CW

X X X X X X X

18 S

tate window 1 (1=open / 0=close) 1 = Open / 0 = Closed

1.019 1 bit

CRW

X X X X X X X

19 State window 2 (1=open / 0=close) 1 =

Open / 0 = Closed

1.019 1 bit

CRW

X X X X X X X

20 State window 3 (1=open / 0=close) 1 =

Open / 0 = Closed

1.019 1 bit

CRW

X X X X X X X

21 State window 4 (1=open / 0=close) 1 = Open / 0 = Closed

1.019 1 bit

CRW

X X X X X X X

22 Presence state 0 = non-occupancy / 1 = occupancy

1.018 1 bit

CRW

X X X X X X X

23 Room temperature: Setpoint Heating [°C]

9.001 2 bytes

CRT

X X X X X X X

24 Room temperature: Setpoint Cooling [°C]

9.001 2 bytes

CRT

X X X X X X X

160 Room temperature: Economy heating s etpoint Temperature (°C)

9.001 2 bytes

X X X X X X X

161 Room temperature: Precomfort heating setpoint Temperature (°C)

9.001 2 bytes

X X X X X X X

162 Room temperature: Comfort heating setpoint Temperature (°C)

9.001 2 bytes

X X X X X X X

163 Room temperature: Comfort cooling setpoint Temperature (°C)

9.001 2 bytes

X X X X X X X

164 Room temperature: Precomfort cooling setpoint Temperature (°C)

9.001 2 bytes

X X X X X X X

165 Room temperature: Economy cooling setpoint Temperature (°C)

9.001 2 bytes

X X X X X X X

The extension time can be configured. Units with display: Must be placed in a group address to display operation/s ymbol on the display.

These objects available only when PID control is enabled. Units with display: Objects must be placed in a group address to display open window symbol on the display.

(corresponds to object 55 for units with display)

(corresponds to object 56 for units with display)

This is a setpoint set. It can be used to adjust all heating setpoints (Comfort, Precomfort and Eco)

This is a setpoint set. It can be used to adjust all cooling setpoints (Comfort, Precomfort and Eco)

The controller operating mode mus t be set to Auto to receive operating modes from a time switch over the bus. The operating mode Auto remains until overwritten by another object (15 or 58).

Room operating mode is received over the bus. (corresponds to object 58 for units with display)

Room operating mode is provided to the bus .

Devices

Receives the occupancy state over the bus, e.g. from a presence detector.

The active heating setpoint can be read over the bus with object 23. Note: The Precomfort setpoint is adjusted if the com fort setpoint, visible on the display (visible s etpoint -3 K), is adjus ted bel

ow the Precomfort setpoint. The internal setpoints (Heating Comfort, Heating Precomfort, Heating Eco) can be adjusted

via bus using objects 160, 161 and 162, or us ing object set 12

The active cooling setpoint can be read over the bus with object 24. Note: The Precomfort setpoint is adjusted if the com fort setpoint, visible on the display (visible s etpoint +3 K), is adjus ted abov

e the Precomfort setpoint. The internal setpoints (Cooling Comfort, Cooling Precomfort, Cooling Eco) can be adjusted

via bus using objects 163, 164 and 165, or us ing object set 13

The initial Economy heating setpoint is adjus ted via bus using this object. These objects (160...165) must be activated in ETS: R

oom temperature control --> "Room temperature setpoints as comm unication objects "

The initial Precomfort heating setpoint is adjusted via bus using this object. See also object 160.

The initial Comfort heating s etpoint is adjus ted via bus using this object. See also object 160.

The initial Comfort cooling setpoint is adjusted via bus using this object. See also object 160.

The initial Precomfort cooling setpoint is adjusted via bus us ing this object. See also object 160.

The initial Economy cooling setpoint is adjusted via bus using this object. See also object 160.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

27 / 46

Page 28

Obj. Object name Function Type / Length Fla gs

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Room humidity sens or

25 Room relative humidity [%] relative room hum idity in %

9.007 2 bytes

CRWU

X X X

Room humidity control

26 Switching point r.h. - stage 1 relative humidity in %

9.007 2 bytes

CRWU

X X X X X X X

27 Switching point r.h. - stage 2 relative humidity in %

9.007 2 bytes

CRWU

X X X X X X X

28 Switching point r.h. - stage 3 relative humidity in %

9.007 2 bytes

CRWU

X X X X X X X

29 Control value r.h. cont. - manual setp. Setpoint in 0 to 100%

5.001 1 byte

CRWU

X X X X X X X

30 Control value r.h. cont. - manual mode Manual/Auto mode

1.003 1 bit

CRWU

X X X X X X X

31 Enable room r.h. controller On /Off

1.003 1 bit

CRWU

X X X X X X X

32 Override room r.h. controller Ventilation (Boost) on/off

1.003 1 bit

CRWU

X X X X X X X

33 Control value r.h. stage 1 - on/off 1 = On / 0 = Off

1.001 1 bit

CRT

X X X X X X X

34 Control value r.h. stage 2 - on/off 2 = On /0 = Off

1.001 1 bit

CRT

X X X X X X X

35 Control value r.h. stage 3 - on/off 3 = On /0 = Off

1.001 1 bit

CRT

X X X X X X X

36 Control value r.h. - cont 0 - 100%

5.001 1 byte

CRT

X X X X X X X

Provides the room humidity value from the integrated sensor. Units with display: Must be placed in a group address to display operation/s ymbol on the display. External room humidity sensor values, see object 70 External outside humidity sensor values, see object 69

The configured default switching points apply as long as no value is received from the bus.

In manual mode (obj. 30, 1=Manual), a setpoint is received via this object and outputted directly as modulating positioning signal (object 36).

Changing over to the m anual mode permits receipt of a manual setpoint (Obj. 29) for the m odulating pos itioning signal (Obj. 36). Otherwis e, the configured positioning signals for the applicable stage are outputted.

All controller outputs are s witched off upon receipt of "Controller off". The controller remains disabled until "Controller on" is received. The default value is controller on = 1.

For controller override, the s tage defined in the parameter "Stage is overridden" is enabled. Objects 33, 34, 35 assume only the value "1=On" for the corresponding object; the other two objects the value "0 = Off". The modulating positioning signal (obj. 36) outputs the value configured for the applicable stage. Override has the highest priority. The default state is "Normal".

The stage belonging to positioning signal r.h. is switched on if room humidity overrides a switching point r.h. The positioning signal r.h. is switched off again for room humidity < switching r.h. - hysteresis .

The positioning signal configured for the stage is outputted if room humidity overrides a switching point r.h. The positioning signal once again outputs the value of the next smaller stage, for room humidity < s witching r.h. - Hysteresis.

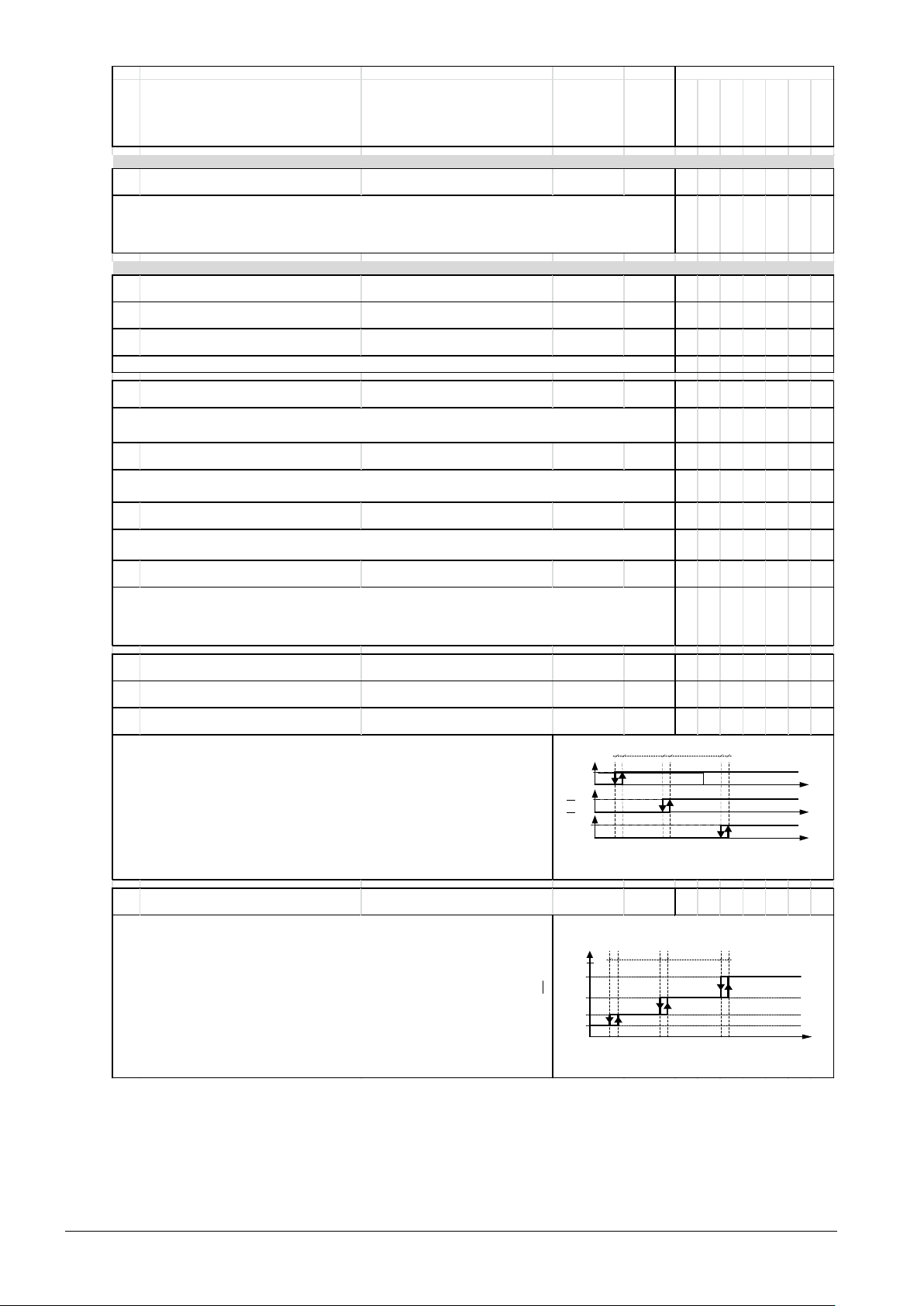

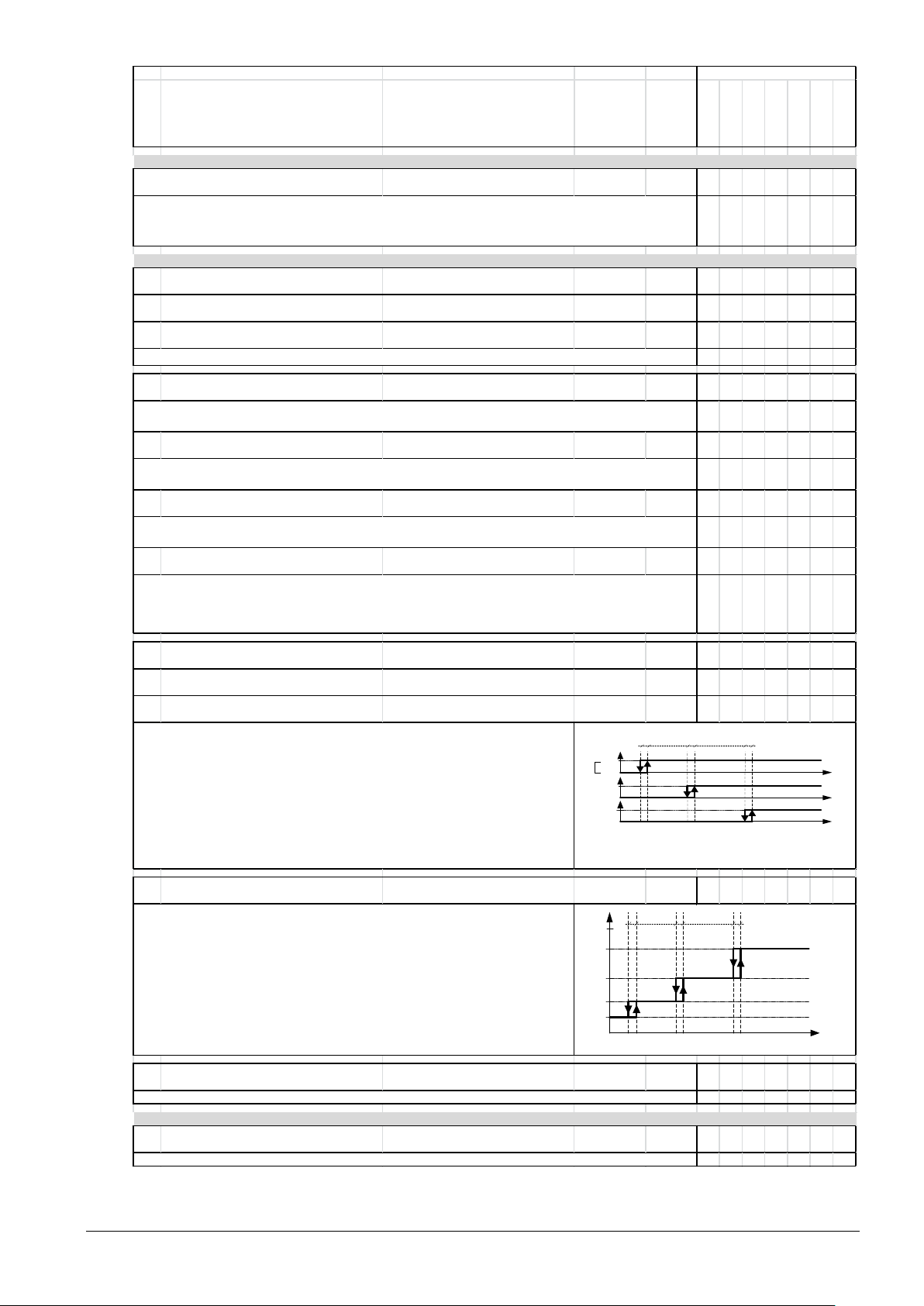

Devices

Off

Pos. Signal stage 3

Pos. signal stage 2

Pos.signal stage1

[ppm CO2] [% r.H.]

1411D01

Swithing

point stufe

Switching

point 2

Switching

point 3

Hysteresis

Off

[ppm CO2] [% r.H.]

[%]

Pos. Sig. Stage 0

Pos. signal stage 1

Pos. signal stage 2

Pos., signal

modulating

Pos. signal stage 3

Hysteresis

1411D02

Switching

point

stage 1

Switching

point

stage 2

Switching

point

stage 3

28 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 29

Obj. Object name Function Type / Le ngth Fl a gs

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Room air quality sens or

concentration [ppm ] CO

-Concentration in the room in ppm

9.008 2 bytes

CRWU

X X

Room air quality control

Switching point CO

- stage 1 CO

concentration in ppm

9.008 2 bytes

CRWU

X X X X X X X

Switching point CO

- stage 2 CO

concentration in ppm

9.008 2 bytes

CRWU

X X X X X X X

Switching point CO

- stage 3 CO

concentration in ppm

9.008 2 bytes

CRWU

X X X X X X X

Control value CO

cont. - m anual setp. Setpoint in ppm

5.001 1 byte

CRW

X X X X X X X

Control value CO

cont. - m anual mode Manual/Auto mode

1.003 1 bit

CRW

X X X X X X X

44 Enable room air quality controller On/Off

1.003 1 bit

CRWU

X X X X X X X

45 Override room air quality controller Ventilation (Boost) on/off

1.003 1 bit

CRWU

X X X X X X X

Control value CO

stage 1 - on/off 1 = On / 0 = Off

1.001 1 bit

CRT

X X X X X X X

Control value CO

stage 2 - on/off 1 = On / 0 = Off

1.001 1 bit

CRT

X X X X X X X

Control value CO

stage 3 - on/off 1 = On / 0 = Off

1.001 1 bit

CRT

X X X X X X X

Control value CO2 - cont 0-100%

5.001 1 byte

CRT

X X X X X X X

Control value CO2 / r.h. m ax.- cont. 0 to 100%

5.001 1 byte

CRT

X X X X X X X

QMX3.P70 Air qua lity LED indicator

51 Air quality: Enable LED indication 1 = On / 0 = Off

1.003 1 bit

CRWU

This object outputs the greater value for obj. 36 and obj. 49.

This object switches on and off the LED display on the QMX3.P70.

The positioning signal CO

belonging to the stage is switched on if the CO

concentration

exceeds the switching point CO

. The positioning signal CO

is switched off again for CO

concentration < switching point CO

- hys teresis.

The positioning signal configured to the state is outputted if CO

concentration exceeds a

switching point CO2. The positioning signal once again outputs the value of the next smaller

stage, CO2 concentration < switching point CO

- hys teresis.

Provides the CO

value from the integrated sens or. Units with display: Must be placed in a group address to display operation/s ymbol display. External CO

room sens or, see object 73

Changing over to the m anual mode perm its receipt of a m anual setpoint (Obj. 42) for the modulating positioning signal (Obj. 49). Otherwis e, the configured positioning signals for the applicable stage are outputted.

All controller outputs are s witched off upon receipt of "Controller off". The controller remains disabled until "Controller on" is received. The default value is controller on = 1.

For controller override, the s tage defined in the parameter "Stage is overridden" is enabled. Objects 46, 47, 48 assume only the value "1=On" for the corresponding object; the other two objects the value "0 = Off". The modulating positioning signal (obj. 49) outputs the value configured for the applicable stage. Override has the highest priority. The default state is "Normal".

The configured default switching points apply as long as no value is received from the bus.

In manual mode (obj. 43, 1=Manual), a setpoint is received via this object and outputted directly as modulating positioning signal (object 49).

Devices

Off

Pos. signal stage 3

Pos. Signal stage 2

Pos. signal stage 1

[ppm CO2] [% r.H.]

1411D01

Switching

point

stage 1

Switching

point

stage 2

Switching

point

stage 3

Hysteresis

Off

[ppm CO2] [% r.H.]

[%]

Pos. Signal stage 0

Pos. Signal stage 1

Pos. Signal stage 2

Pos. signal mod.

Pos. Signal stage 3

Hysteresis

1411D02

Switching

point 1

Switching

point 2

Switching

point 3

Building Technologies ETS engineering 2018-09-14

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05

29 / 46

Page 30

Obj. Object name Function Type / Length Fl a g s

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

HMI displays and ope ration of value s a nd functions

53 Outs ide tem perature [°C] Display outs ide tem perature (°C)

9.001 2 bytes

CWU

X X X

55 Room temperature: Setpoint abs olute [°C]

9.001 2 bytes

CRWTU

X X X

56 Room temperature: Setpoint relative [K]

9.002 2 bytes

CWTA

X X X

58 Room operating mode: Preselection

20.102 1 byte

CRWTU

X X X

62 Window State

1.019 1 bit

CWU

X X X

63 Presencen button

1.001 1 bit

CRWTU

X X X

65 Fan speed: Pres election [%]

5.001 1 byte

CRWTU

X X X

66 Fan operation (0 = Auto / 1 = Manual) (0=Auto / 1=Manual)

1.003 1 bit

CRWTU

X X X

67 Fan speed [%]

5.001 1 byte

CWU

X X X

68 Controller mode (heating/cooling/off)

20.105 1 byte

CWU

X X X

69 Outs ide relative hum idity [%]

9.007 2 bytes

CWU

X X X

70 Room relative hum idity [%] % r.h.

9.007 2 bytes

CWU

X X

71 Room relative hum idity: Setpoint [%] % r.h .

9.007 2 bytes

CRWTU

X X X

Room CO2 concentration [ppm] 0 - 2000 ppm / symbol / text

9.008 2 bytes

CWU

X X

Room CO2 concentration: Setpoint [ppm] ppm

9.008 2 bytes

CRWTU

X X X

75 HVAC operation: Lock

1.011 1 bit

CRWU

X X X

Lock or enable all 8 operating buttons for the display via the bus. The following symbol is dis played: A locked lock. The buttons for lighting, blinds, and scenes are always enabled (QMX3.P37 and QMX3.P02).

Object 65 dis plays the fan speed that can be changed on the display or bus . Obj. 66 displays the fan operating mode that can be changed on the display or bus. Obj. 67 displays the actual fan speed as reported to the bus by the actuator/controller. Units with display: Objects must be placed in a group addres s to display s ymbols .

Displays present controller state (heating or cooling) with symbols . No symbol is dis played in the off state. Units with display: Must be placed in a group address to display sym bols.

External outside temperature sensor value Units with display: Must be placed in a group address to display the value.

Comfort setting that can be edited on the dis play Units with display: Must be placed in a group address to display the value.

Displays the room operating mode that can be changed on the display (Auto-Comfort-Precomfort-Eco-Protection). The present operating m ode is dis played in AUTO mode. Units with display: Must be placed in a group address to display the value.

This object displays the state of a window contact for disenabled PID control. For enabled PID control, see objects 18, 19, 20, 21.

Display and manual entry on display for occupancy and non-occupancy. Units with display: Must be placed in a group address to display sym bols.

Displays the value of an external room CO

sensor on the display. Units with display: Must be placed in a group address to display the values. Note: The value of the internal room CO2 sensor is communicated via object 38; QMX3.P74

Display and operate the room CO2 concentration setpoint on the display. Units with display: Must be placed in a group address to display the values. Overrides s witching point CO

- stage 1 (object 26).

These objects display values from external sens ors (room/outside) on the display. Units with display: Must be placed in a group address to display the values. Note: The internal humidity sens or value is comm unicated via object 25; QMX3.P74.

Display and operate the room hum idity s etpoint on the display. Units with display: Must be placed in a group address to display the values. This overrides switching point r.h. - stage 1 (object 26).

Devices

30 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 31

Obj. Object name Function Type / Le ngth Fl a g s

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Function button pair , button 1

80 Button A1: switching on / off

1.001 1 bit

CWT

X X

81 Button A1: send value

5.001

1 byte

X X

82 Button A1, 2nd obj.: s witching on / off

1.001 1 bit

CWT

X X

83 Button A1: send value 2

5.001

1 byte

X X

84 Button A1: switching on / off

1.001 1 bit

CWT

X X

85 Button A1: dimming brighter / darker

3.007 4 bit

X X

86 Button A1: blind up / down

1.008 1 bit

X X

87 Button A1: slats stop / open / close

1.007 1 bit

X X

88 Button A1: 8-bit scene recall / save

18.001 1 byte

X X

89 Status LED A1 on / off

1.001

1 bit

CRWU

X X

Function button pair , button 2

90 Button A2: switching on / off

1.001

1 bit

CWT

X X

91 Button A2: send value

5.001 1 byte

X X

92 Button A2, 2nd obj.: s witching on / off

1.001

1 bit

CWT

X X

93 Button A2: send value 2

5.001 1 byte

X X

94 Button A2: switching on / off

1.001

1 bit

CWT

X X

95 Button A2: dimming brighter / darker

3.007

4 bit

X X

96 Button A2: blind up / down

1.008

1 bit

X X

97 Button A2: slats stop / open / close

1.007

1 bit

X X

98 Button A2: 8-bit scene recall / save

18.001 1 byte

X X

99 Status LED A2 on / off

1.001

1 bit

CRWU

X X

Function button pair 2, button 1

100 Button B1: switching on / off

1.001

1 bit

CWT

X X

101 Button B1: send value

5.001 1 byte

X X

102 Button B1, 2nd obj.: switching on / off

1.001

1 bit

CWT

X X

103 Button B1: send value 2

5.001 1 byte

X X

104 Button B1: switching on / off

1.001

1 bit

CWT

X X

105 Button B1: dimm ing brighter / darker

3.007

4 bit

X X

106 Button B1: blind up / down

1.008

1 bit

X X

107 Button B1: slats s top / open / close

1.007

1 bit

X X

108 Button B1: 8-bit scene recall / s ave

18.001 1 byte

X X

109 Status LED B1 on / off

1.001

1 bit

CRWU

X X

Devices

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

31 / 46

Page 32

Obj. Object name Function Type / Le ngth Fl a gs

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Function button pair 2, button 2

110 Button B2: switching on / off

1.001

1 bit

CWT

X X

111 Button B2: send value

5.001 1 byte

X X

112 Button B2, 2nd obj.: switching on / off

1.001

1 bit

CWT

X X

113 Button B2: send value 2

5.001 1 byte

X X

114 Button B2: switching on / off

1.001

1 bit

CWT

X X

115 Button B2: dimm ing brighter / darker

3.007

4 bit

X X

116 Button B2: blind up / down

1.008

1 bit

X X

117 Button B2: slats s top / open / close

1.007

1 bit

X X

118 Button B2: 8-bit scene recall / s ave

18.001 1 byte

X X

119 Status LED B2 on / off

1.001

1 bit

CRWU

X X

Function button pair 3, button 1

120 Button C1: switching on / off

1.001

1 bit

CWT

X X

121 Button C1: send value

5.001 1 byte

X X

122 Button C1, 2nd obj.: switching on / off

1.001

1 bit

CWT

X X

123 Button C1: send value 2

5.001 1 byte

X X

124 Button C1: switching on / off

1.001

1 bit

CWT

X X

125 Button C1: dimm ing brighter / darker

3.007

4 bit

X X

126 Button C1: blind up / down

1.008

1 bit

X X

127 Button C1: slats s top / open / close

1.007

1 bit

X X

128 Button C1: 8-bit scene recall / save

18.001 1 byte

X X

129 Status LED C1 on / off

1.001

1 bit

CRWU

X X

Function button pair 3, button 2

130 Button C2: switching on / off

1.001

1 bit

CWT

X X

131 Button C2: send value

5.001 1 byte

X X

132 Button C2, 2nd obj.: switching on / off

1.001

1 bit

CWT

X X

133 Button C2: send value 2

5.001 1 byte

X X

134 Button C2: switching on / off

1.001

1 bit

CWT

X X

135 Button C2: dimm ing brighter / darker

3.007

4 bit

X X

136 Button C2: blind up / down

1.008

1 bit

X X

137 Button C2: slats s top / open / close

1.007

1 bit

X X

138 Button C2: 8-bit scene recall / save

18.001 1 byte

X X

139 Status LED C2 on / off

1.001

1 bit

CRWU

X X

Devices

32 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 33

Obj. Object name Function Type / Le ngth Fl a gs

QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P02

QMX3.P37

Function button pair 4, button 1

140 Button D1: switching on / off

1.001

1 bit

CWT

X X

141 Button D1: send value

5.001

1 byte

X X

142 Button D1, 2nd obj.: switching on / off

1.001

1 bit

CWT

X X

143 Button D1: send value 2

5.001

1 byte

X X

144 Button D1: switching on / off

1.001

1 bit

CWT

X X

145 Button D1: dimm ing brighter / darker

3.007

4 bit

X X

146 Button D1: blind up / down

1.008

1 bit

X X

147 Button D1: slats s top / open / close

1.007

1 bit

X X

148 Button D1: 8-bit scene recall / save

18.001 1 byte

X X

149 Status LED D1 on / off

1.001

1 bit

CRWU

X X

Function button pair 4, button 2

150 Button D2: switching on / off

1.001

1 bit

CWT

X X

151 Button D2: send value

5.001

1 byte

X X

152 Button D2, 2nd obj.: switching on / off

1.001

1 bit

CWT

X X

153 Button D2: send value 2

5.001

1 byte

X X

154 Button D2: switching on / off

1.001

1 bit

CWT

X X

155 Button D2: dimm ing brighter / darker

3.007

4 bit

X X

156 Button D2: blind up / down

1.008

1 bit

X X

157 Button D2: slats s top / open / close

1.007

1 bit

X X

158 Button D2: 8-bit scene recall / save

18.001 1 byte

X X

159 Status LED D2 on / off

1.001

1 bit

CRWU

X X

Devices

Note

ommunication object no. 3 "Enable room temperature controller" is currently not

C operable.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

33 / 46

Page 34

5.4 Room operator unit visualization and

Object no.

QMX3.P34 QMX3.P74

QMX3.P37 1

Room temperature

Displays the value of the internal room temperature sensor

X X X

setpoint absolute

Protection).

Occupancy: Button

X X X

(heating/cooling/off)

Off: No symbol is displayed.

18...21

Window state

Displays the symbol "Open window" (only during active PID control).

X X X

The value can also be received via bus when adjusted on another device.

Fan (%)

Displays the actual fan speed as reported to the bus by the actuator/controller.

X X X

Room humidity

Provides the value of the internal CO2 sensor to the bus.

CO2 concentration

Provides the value of the internal room humidity sensor to the bus.

Setpoint

communication objects:

Outside air temperature

Displays the value of an external outside temperature sensor.

X X X

Outside humidity

Displays the value of an external outside humidity sensor.

X X X

Room humidity

Displays the value of an external room humidity sensor.

concentration

Note

The appropriate communication objects must be placed in the group address after parameterization to display internal functions on the room operator unit.

Name Description

operation

Room temperature,

setpoint relative

Room operating mode,

preselection

Comfort mode, timer

button

Control mode

65 Fan, default value (%)

Fan mode:

(Auto-Manual)

Room humidity:

Setpoint

CO2 concentration:

Displays the Comfort setpoint that can be changed on the display.

Displays the room operating mode that can be changed on the display (Auto-ComfortPreComfort-Eco-Protection).

The present state is displayed in AUTO mode (Auto-Comfort-PreComfort-Eco-

Object 17 activates comfort extension. The extension period can be configured. OR ... ... Object 63 activates the display and manual entry for occupancy or non-occupancy.

Displays the symbols for the present control mode.

Displays the fan speed that can be changed on the display.

Displays the fan operating mode that can be changed on the display. The value can also be received via bus when adjusted on another device.

Displays the Comfort setpoint that can be changed on the display.

Displays the CO2 setpoint that can be changed on the display.

Other important group addresses for operation and display on room operator units via

X X X

Room CO2

Displays the value of an external room CO2 sensor.

hen the absolute setpoint is displayed, only the heating setpoint is shown on the

display.

34 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

X X

Page 35

5.5 ETS parameter description

Designation

Values

Type

Unit QMX3.P30 QMX3.P40 QMX3.P70

QMX3.P34 QMX3.P74

QMX3.P37 QMX3.P02

(0 °C)

Room temperature: Send following change by

0.1…2.5 °C (0.1 °C)

X X X X X X X

(2 min)

X X X X X X X

Activate room temperature control

yes; no

X X X X X X X

Floor heating fast

Floor cooling

(21.0)

X X X X X X X

Default cooling setpoint

5…40 (24.0)

°C

X X X X X X X

1;2;3...30;45;60

Protection heating setpoint

5…40 (12.0)

°C

X X X X X X X

Economy heating setpoint

5…40 (15.0)

°C

X X X X X X X

Comfort heating setpoint

5…40 (21.0)

°C

X X X X X X X

Precomfort cooling setpoint

5…40 (28.0)

°C

X X X X X X X

Protection cooling setpoint

5…40 (40.0)

°C

X X X X X X X

Comfort extension time

5…120 (30)

min

X X X X X X X

Number of window status inputs

0…4

X X X X X X X

Factory settings are in brackets

Communication objects available in ETS when function is enabled

Range (Default)

5.5.1 Room temperature sensor

Room temperature: Sensor correction –5…+5 °C

Room temperature: Send cyclically after

n 0.1 steps

1…60

min

5.5.2 Room temperature control

To display this section, enable the option “Activate room temperature control” in Device

Heating type* Radiator heating slow

Cooling type

Parameters heating / cooling type allow for adapting the controller to the type of heating / cooling. In addition, the controller features two control algorithms: one for continuous mode (0..100%) and one for PWM mode (On/Off). The mode is selected via parameter "Control value type". The control value type is identical for all operating modes. In continuous mode, the associated PWM output is "On" at continuous control value ≠ 0.

(Radiator heating fast) Floor heating slow

(Chilled ceiling)

X X X X X X X

In PWM mode, cycle time and pulse width are adapted to the type of heating / cooling, the setpoint, and the measured room temperature. The min. cycle time is 12 minutes, the min. pulse width is 4 minutes. The continuous control value issues 0% or 100% in this operating mode.

Default heating setpoint

Control value type

Send cyclically after Do not send cyclically

Precomfort heating setpoint 5…40 (19.0) °C

Comfort cooling setpoint 5…40 (24.0) °C

Economy cooling setpoint 5…40 (35.0) °C

5…40

(PWM) Continuous 0…100%

°C

min

X X X X X X X

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

35 / 46

Page 36

Heating type

TiN

TiV

Radiator heating slow

2 K

5400s

450s

0,1K

0.8K

Radiator heating fast

2 K

3600s

540s

0,1K

0.8K

Floor heating slow

2 K

7200s

540s

0,1K

0.8K

Floor heating fast

2 K

5400s

540s

0,1K

0.8K

PID parameter set for the cooling sequence

Cooling type

TiN

TiV

Chilled ceiling

2 K

5400s

450s

0,1K

0.8K

Note

PID parameter set for the heating sequence

Floor cooling 2 K 5400s 540s 0,1K 0.8K

egardless of the setting of the control signal type "PWM" or "continuous", all 4

R objects are switched on. The option "Do not send cyclically" is not operable for the moment.

36 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 37

Designation

Values

Type

Visible parameter name in ETS Range

Unit QMX3.P30 QMX3.P40

QMX3.P70

QMX3.P34 QMX3.P74

QMX3.P37 QMX3.P02

Humidity: Send following change by

2; 3; 4; 5; 7; 10 (2%)

%r.h.

X X X

Default switching point stage 1 (%r.h.)

0…100 (40)

%r.h.

X X X X X X X

Default switching point stage 2 (%r.h.)

0…100 (70)

%r.h.

X X X X X X X

Default switching point stage 3 (%r.h.)

0…100 (90)

%r.h.

X X X X X X X

Control value stage 0 (%)

0…100 (0)

X X X X X X X

Control value stage 1 (%) (>stage 0)

0…100 (35)

X X X X X X X

Control value stage 2 (%) (>stage 1)

0…100 (70)

X X X X X X X

Control value stage 3 (%) (>stage 2)

0…100 (100)

X X X X X X X

Stage when overridden

0;1;2;3 (3)

X X X X X X X

1;2;3...30;45;60 (15 min)

(Default)

5.5.3 Room relative humidity sensor

Humidity: Send cyclically after 1; 2…45; 60 (15 min) min

5.5.4 Room relative humidity control

To display this section, enable the option “Activate room humidity control” in Device

Hysteresis 2;3;4;5;7;10 (5%) %r.h.

If room humidity exceeds a switching point r.h., the control value r.h. for the respective stage is switched on. Control value r.h. is switched off again when room humidity < switching point r.h. – hysteresis.

If room humidity exceeds switching point r.h., the control value parameterized for this stage is issued. The control value again issues the next lower stage value when room humidity < switching point r.h. – hysteresis.

Send cyclically after

Do not send cyclically

min.

X X X X X X X

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

37 / 46

Page 38

Designation

Values

Type

Visible parameter name in ETS Range

Unit QMX3.P30

QMX3.P40

QMX3.P70

QMX3.P34

QMX3.P74

QMX3.P37 QMX3.P02

(10ppm)

CO2 concentr.: Sensor correction (ppm)

-500…+500 (0 ppm)

ppm

CO2 concentr.: Send cyclically after

1;2;3…30;45;60 (15 min)

min

CO2 concentr.: Altitude above sea level (m)

0…5000 (0 m)

min.

Default switching point stage 1 (ppm)

400…2000 (800)

ppm

X X X X X X X

Default switching point stage 2 (ppm)

400…2000 (1000)

ppm

X X X X X X X

Hysteresis

50…500 (100)

ppm

X X X X X X X

Control value stage 0 (%)

0…100 (0)

X X X X X X X

Control value stage 1 (%) (>stage 0)

0…100 (35)

X X X X X X X

Control value stage 2 (%) (>stage 1)

0…100 (70)

X X X X X X X

Control value stage 3 (%) (>stage 2)

0…100 (100)

X X X X X X X

Stage when overridden

0;1;2;3 (3)

X X X X X X X

X X X

Backlight idle time

3…20 (15 s)

X X X

Active audio feedback (buttons)

yes; no (yes)

X X X

LED Brightness

0…100 (100)

Air quality

X X X

(Default)

5.5.5 Room air quality sensor

CO2 concentr.: Send following change by

5;10;20…500;750;1000

ppm

5.5.6 Room air quality control

To display this section, enable the option “Activate room air quality control” in Device

Default switching point stage 3 (ppm) 400…2000 (1500) ppm

If the CO2 concentration exceeds a switching point CO2, the control value CO is again switched off, if the CO point CO

for the related stage is switched on. The control value CO2

– hysteresis.

concentration returns to < switching

X X

If the CO2 concentration exceeds a switching point CO2, the control value CO issues again the value of the next lower stage when CO concentration < switching point CO

Send cyclically after

for the related stage is switched on. The control value

– hysteresis.

Do not send cyclically 1;2;3...30;45;60 (15 min)

5.5.7 Device display parameters

Backlight Level 0; 10;…100 (60%) %

Active unit set °C; °F (°C)

Display: Idle page (HVAC operation and display)

Time to return to idle page (s) 3…120 (15 s) s

Temperature Relative humidity

X X X X X X X

min.

X X X

38 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 39

Designation

Values

Type

Visible parameter name in ETS Range

Unit QMX3.P30 QMX3.P40

QMX3.P70

QMX3.P34 QMX3.P74

QMX3.P37 QMX3.P02

Room and Outside

Operation Room temperature setpoint

yes; (no)

X X X

Relative

X X X

Lower limit temp.setp.abs.

5…21 (18)

°C

X X X

Temp.setp.op.in steps of

0.1; 0.2; 0.5; 1.0; 2.0 (0.1)

°C

X X X

Max. positive temp.shift

0…+10 (+3)

X X X

Temperature shift in steps of

0.1; 0.2; 0.5; 1.0; 2.0 (0.5)

X X X

Operation Room Occupancy Mode

(yes); no

X X X

Display Heating/Cooling indication

yes; (no)

X X X

Operation fan Speed

yes; (no)

X X X

Variable speed

X X X

Maximum fan speed (variable speed)

100…0 (100%)

X X X

utside

Room and Outside

X X X

Max. rel. humidity setp. (%r.h.)

1…100 (95%

%r.h.

X X X

Rel. Hum. operation in steps of

1;2;5;10;20 (1%)

X X X

Change color green <--> yellow at (ppm)

400.2000 (1000)

ppm

Change color yellow <--> red at (ppm)

400…2000 (1500)

ppm

Can be de-/activated via bus

Note

(Default)

5.5.8 HVAC operation and display

Display Temperature visualization -----

(Room) Outside

X X X

Room temperature setpoint type

Upper limit temp. Setp. Abs. 21…40 (26) °C

Max. negative temp.shift -10…0 (-3) K

Operation Room Operating Mode yes; (no)

Display Window state visualization yes; (no)

Fan type 1-speed

Minimum fan speed (variable speed) 0…100 (0%) %

egardless of whether the "Display Window state” is set to "Yes" or "No", all 4

Absolute; (

(3-speed)

)

communication objects for window contacts are always displayed

5.5.9 Operation and display: Relative humidity visualization

Display: Relative humidity visualization

----(Room) O

X X X

Min. rel. humidity setp. (%r.h.) 0…99 (10%) %r.h.

5.5.10 Display on QMX3.P70 Air quality indication LED

Bus influence

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

(No)

39 / 46

Page 40

5.5.11 Operation and display: air quality

Room

Text

Change symbol '+++' <-> '++-' at ppm

400…2000 (1000)

ppm

X X X

Change symbol '++-' <-> '+- -' at ppm

400…2000 (1500)

ppm

X X X

Change text 'Okay' <-> 'Poor' at ppm

400…2000 (1500)

ppm

X X X

Min. air quality setpoint (ppm)

0…2000 (400)

ppm

X X X

Max. air quality setpoint (ppm)

0…2000 (2000)

ppm

X X X

Air qual. operation in steps of

1;2;5….50;100;200 (100)

ppm

X X X

Individual buttons

LED response and parameterization

Send 8-Bit value]

object]

Send 8-Bit value])

[off, on (orientation light)]

Long button pressure via send 2nd object [No, Yes]

status object]

[Off, On (orientation light)]

1-button solar protection / blinds control

No LED display

Long button pressure [0.5 - 6.0s] move to end positions

release button.

Display: Air quality visualization

Display: Air quality visualization Numeric value (ppm)

Change text 'Good' <-> 'Okay' at ppm 400…2000 (1000) ppm

(-----)

(Symbol)

5.5.12 Operation of light, shading and scenes

Possible function assignment for buttons / button pairs (8 individual buttons or 4 pairs of buttons). Only QMX3.P02 and QMX3.P37

1-button switching/sending value

Edge Action rising edge [---, Off, On, At, Send percentage value,

LED display [object-independent, status

X X X

(Action falling edge [---, Off, On, At, Send percentage value,

Short button pressure

Long button pressure

1-button dimming

ction short/long button pressure [at/dim, On/brighter, Off/darker]

Long button pressure [0.5 - 6.0s] dimming value 0% or 100% ( status object) LED activation [Off/On,

ction short/long button pressure [stop/up/up, stop/close/down]

Scene Scene number [1…64] Selection of predefined scene (short

elease scene memory [Yes/Non]

R (long button pressure [1 - 6s])

Action short button pressure [---, Off, On, At, Send percentage value, Send 8-Bit value]

Action long button pressure[---, Off, On, At, Send percentage value, Send 8-Bit value]

(Object independent) LED constant value

( Status object) LED activation [Off/On, On/Off]

LED display [object-independent,

(Object independent) LED constant value

On/Off]

button pressure <0.5 s). LED On for 3 s

Memorize changed scene (long button pressure >5 s).

LED flashes for 3 s. When off, user can

40 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 41

Combined / Button pairs

LED response and parameterization

2-button switching

status object]

On/Off]

status object]

[Off, On (orientation light)]

On/Off]

No LED display

Action button pair [left: step up/drive up, right: close/down]

—

Long button pressure [0.5 - 6.0s] move to end positions

—

Each of the desired buttons must be individually configured (individual).

Note

LED display [object-independent,

Action button pair [left Off, right On, right Off/left On] (Object independent) LED constant value

2-button dimming

ction button pair [left On/brighter, right Off/darker]

Long button pressure [0.5 - 6.0s] dimming value 0% or 100% (status object) LED activation [Off/On,

2-button solar protection / blinds control

Solar protection/blinds control can be individually modified for operation. The factory setting is:

2 buttons next to one another, e.g. 9 Stop, step up, move up, and

If desired, this assignment can be modified in ETS, e.g. by assigning the function to two buttons vertically. So that, for example

2 buttons on top of one another, e.g. 9 Stop, step up, move up, and

For button 9 (up) this means … :

[Off, On (orientation light)]

(status object) LED activation [Off/On,

LED A2 display [object-independent,

(Object independent) LED constant value

13 Stop, step down, move down

10 Stop, step down, move down

…

and for button 10 (down) … :

n all settings for buttons in which the time for a long key press can be set, if the

I time of pressing the key is between 0.6 s and < "Long key press", no "Short key press" telegram is sent.

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

41 / 46

Page 42

5.6 Examples for the operation of touch keys

Temperature and room operating modes

Temperature, fan control and navigation

and display elements

In RTS, these functions are created as follows: In the device view,

• activate or deactivate functions

• modify the default values if required

The objects that are now visible, must be connected to group addresses.

ey 1 Toggle the display between outdoor and indoor temperature

K Keys 2 and 6 Room temperature setpoint adjustment (absolute) Keys 3, 4 and 5 No function (no arrow symbols are displayed) Key 7 Toggle the room operating mode (in Auto mode, the present operating mode is

displayed)

Key 8 Presence key, or Comfort extension

Key 1 No function, as only room temperature is displayed Keys 2 and 6 Room temperature setpoint adjustment (relative) Keys 3 and 7 Manual adjustment of fan speed Key 4 Toggle the display pages between temperature, humidity, and CO Keys 5 and 8 No function

42 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

Page 43

ey 1 No function, display of room air quality in text form

Air quality, CO2

Humidity and presence

GOOD, OKAY, or POOR Keys 2, 3, 5, 6, 7 and 8 No function Key 4 Toggle the display pages between temperature, humidity, and CO

ey 1 Toggle the display between outdoor and indoor humidity Keys 2 and 6 Room humidity setpoint adjustment (absolute) Keys 3, 5 and 7 No function Key 4 Toggle the display pages between temperature and humidity Key 8 Presence key, or Comfort extension

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ETS engineering 2018-09-14

43 / 46

Page 44

6 ACS engineering

Pushbutton actuation

Meaning

Short (< 0.5 s)

Switch over to programming mode or acknowledge display of a connection test.

No functions are executed when the programming button is pressed longer (> 0.5 s to 2 s).

Long (> 20 s)

Reset to factory settings.

LED indication

Meaning

Orange

Feedback on special mode.

Red

Device is in programming mode.

Room sensor QMX3, KNX LTE connected



Variant 1 (recommended)

ACS790 version

Recommendation: Keep the adhesive address labels

Commissioning prerequisites

Pushbuttons

LED status indication

Commissioning with ACS

6.1 Engineering

Tool ACS790 is used for engineering with devices from the Synco 700 range. This tool is documented in Service- and Operating software ACS790 [6].

For ACS790, version 8.23 or higher must be installed.

During room operator unit mounting, the address labels can be peeled off the devices and stuck to a floor plan or similar to show the KNX IDs and the physical location in one place.

After mounting/installation, the devices are detected after updating the ACS790 device list. The devices can be easily identified in the device list based on the collected KNX IDs, and the physical addresses can be assigned as planned. As a result, commissioning requires only very little effort.

6.2 Commissioning

Depending on the environment, both type and number of adjustable parameters will vary. Prior to commissioning, all devices must be mounted as per the mounting instructions [2] and connected to bus cabling. If available, pushbuttons and external temperature sensors must also be connected to the device. Bus cabling must be tested.

All other indication types are irrelevant for KNX LTE-Mode.

1. Select a room operator unit from the device list via the KNX ID (KNX-IDs must be collected during mounting).

2. Double-click this line to open the "Address assignment" dialog.

44 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ACS engineering 2018-09-14

–Mode controllers, and operator units are

to power. Update first the ACS790 device list, then open.

Page 45



Variant 2

1. Set addressing mode for the room operator unit (briefly press button on



Enter a physical address and short description for the selected room unit.

Close the "



Repeat these steps for all room

Then: Co

Commissioning with ACS and ETS

ice  LED is red).

dev

2. In the ACS790 device list, use "Addressing mode…" to select the

urrently active device  Enter a physical address in the "Address

c assignment" dialog  Click "Write".

Address assignment“ dialog by clicking "Write…“.

operator units to be commissioned.

ntinue parameterization in ACS790.

he sensor can be operated in both communication modes at the same time.

T To do this, commissioning with both ACS and ETS is required.

nly the sensor values (T, R.F., CO

) of the QMX3... devices can be used with

Synco ACS. To activate them set the zones accordingly in ACS. ACS settings and ETS settings do not influence each other.

operator

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ACS engineering 2018-09-14

45 / 46

Page 46

6.3 ACS Parameter description

Designation

Values

Description

Geographical zone (apartment)

---, 1...126

Geographical zone, apartment or room group

Geographical zone (room)

---, 1…63

Geographical zone, room

Geographical zone (subzone)

---, 1…15

Geographical zone, subzone

Designation

Values

Description

LTE transmission zone

---, 1…4095

Sending zone for KNX/ACS

Sensor correction

-5...+5K

Correction of universal temperature sensor value

Designation

Values

Description

LTE transmission zone

---, 1…4095

Sending zone for KNX/ACS

Designation

Values

Description

LTE transmission zone

---, 1…4095

Sending zone for KNX/ACS

Altitude above sea level [m]

0…3000 m

0 m

Entry of altitude above sea level at measuring location to correct CO2 measured value

Distributed by: Siemens Switzerland Ltd. Building Technologies Division International Headquarters Gubelstrasse 22 6301 Zug Switzerland Tel. +41 41

www.siemens.com/buildingtechnologies

Delivery and technical specifications subject to change

Factory settings are boldfaced.

6.3.1 Communication

6.3.2 Universal temperature sensor

in 0.1K steps

6.3.3 Room humidity sensor

6.3.4 Room air quality sensor

46 / 46

Siemens Wall-mounted sensors and room operator units for KNX/ETS and KNX/ACS CM2N1602en_05 Building Technologies ACS engineering 2018-09-14

-724 24 24
