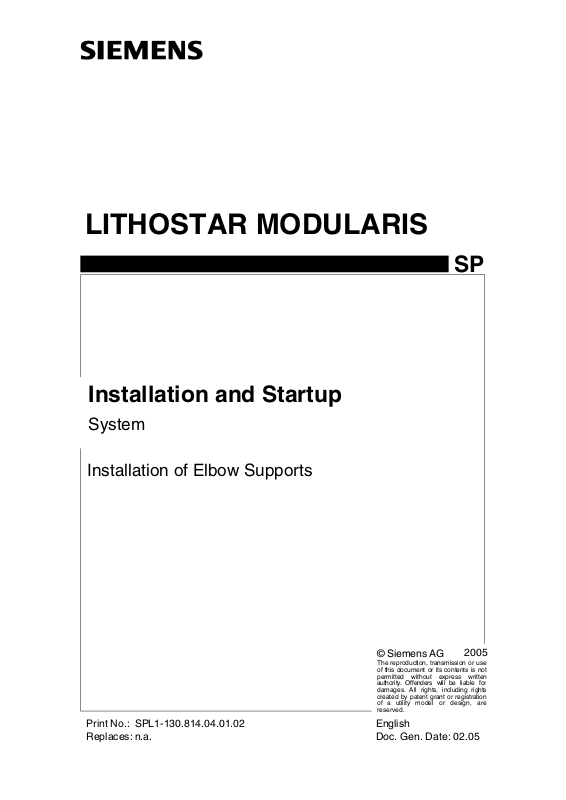

Erlwein
LITHOSTAR MODULARIS
Installation and Startup
System
SP
Installation of Elbow Supports
Print No.:
Replaces: n.a.
SPL1-130.814.04.01.02
© Siemens AG
The reproduction, transmission or use
of this document or its contents is not
permitted without express written
authority. Offenders will be liable for
damages. All rights, including rights
created by patent grant or registration
of a utility model or design, are
reserved.
English
Doc. Gen. Date: 02.05
2005
2 Revision / Disclaimer
1Revision / Disclaimer
Document revision level
The document corresponds to the version/revision level effective at the time of system
delivery. Revisions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer
The installation and service of equipment described herein is to be performed by qualified
personnel who are employed by Siemens or one of its affiliates or who are otherwise
authorized by Siemens or one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated
with or authorized by Siemens or one of its affiliates are directed to contact one of the
local offices of Siemens or one of its affiliates before attempting installation or service procedures.
LITHOSTAR MODULARIS SPL1-130.814.04.01.02 Siemens AG
02.05 CS PS 24
Page 2 of 6
Medical Solutions
Table of Contents 3
1- 0Table of Contents
1 _______ Installation of Elbow Supports _____________________________________ 4
Work steps to be performed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Scope of the instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Required tools, measurement and auxiliary devices . . . . . . . . . . . . . . . . . . . . . . . . . 4
Replacing the bushings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing the elbow supports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Final work steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Siemens AG SPL1-130.814.04.01.02 LITHOSTAR MODULARIS
Medical Solutions
02.05 CS PS 24
Page 3 of 6
4 Installation of Elbow Supports
1Installation of Elbow Supports
2-
Work steps to be performed 0
Scope of the instructions 0
These instructions apply to the installation of elbow supports on the LITHOSTAR Modularis Uro.
Safety information 0
NOTE
When performing work steps, observe the product-specific safety
information in the documents as well as the general safety information contained in ARTD part 2.
Required tools, measurement and auxiliary devices 0
Tool kit
Loctite 221
Replacing the bushings 0
Fig. 1:
• Remove the two screws (1/Fig.1/p.4).
• Remove the two caps (2/Fig.1/p.4).
• Remove the bushing from the bar. Remove any silicone remains.
LITHOSTAR MODULARIS SPL1-130.814.04.01.02 Siemens AG
02.05 CS PS 24
Page 4 of 6
Medical Solutions
Installation of Elbow Supports 5
Fig. 2:
• Insert the new holder.
• Secure the holder from below and tighten the screws with Loctite 221.
• Also replace the bushing on the other side of the table.
Installing the elbow supports 0
Fig. 3:
• Use two M6x25 screws and A6.4 washers to secure the arm supports (1/Fig.3/p.5) to
both sides. Use Loctite 221 to tighten the screws.
Final work steps 0
• Distribute the operating instructions to the personnel.
• After all work has been completed, perform the ground wire test according to
ARTD-002.731.17... The ground wire resistance must not exceed 0.2 ohm.
• File these instructions in the system folder of the product.
Siemens AG SPL1-130.814.04.01.02 LITHOSTAR MODULARIS
Medical Solutions
02.05 CS PS 24
Page 5 of 6
6 Installation of Elbow Supports
LITHOSTAR MODULARIS SPL1-130.814.04.01.02 Siemens AG
02.05 CS PS 24
Page 6 of 6
Medical Solutions
