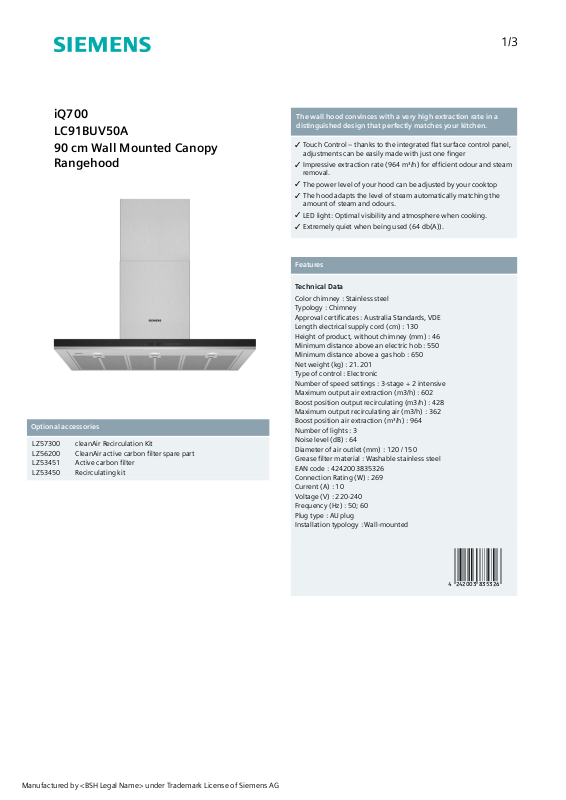

Siemens LC91BUV50A Specifications Sheet
1/3
The wall hood convinces with a very high extraction rate in a
distinguished design that perfectly matches your kitchen.
✓
Touch Control – thanks to the integrated flat surface control panel,
adjustments can be easily made with just one finger
✓
Impressive extraction rate (964 m³/h) for efficient odour and steam
removal.
✓
The power level of your hood can be adjusted by your cooktop
✓
The hood adapts the level of steam automatically matching the
amount of steam and odours.
✓
LED light: Optimal visibility and atmosphere when cooking.
✓
Extremely quiet when being used (64 db(A)).
Features
Technical Data
Color chimney : Stainless steel
Typology : Chimney
Approval certificates : Australia Standards, VDE
Length electrical supply cord (cm) : 130
Height of product, without chimney (mm) : 46
Minimum distance above an electric hob : 550
Minimum distance above a gas hob : 650
Net weight (kg) : 21.201
Type of control : Electronic
Number of speed settings : 3-stage + 2 intensive
Maximum output air extraction (m3/h) : 602
Boost position output recirculating (m3/h) : 428
Maximum output recirculating air (m3/h) : 362
Boost position air extraction (m³/h) : 964
Number of lights : 3
Noise level (dB) : 64
Diameter of air outlet (mm) : 120 / 150
Grease filter material : Washable stainless steel
EAN code : 4242003835326
Connection Rating (W) : 269
Current (A) : 10
Voltage (V) : 220-240
Frequency (Hz) : 50; 60
Plug type : AU plug
Installation typology : Wall-mounted
'!2E20AD-idfdcg!
iQ700
LC91BUV50A
90 cm Wall Mounted Canopy
Rangehood
Optional accessories
LZ57300 cleanAir Recirculation Kit
LZ56200 CleanAir active carbon filter spare part
LZ53451 Active carbon filter
LZ53450 Recirculating kit
Manufactured by <BSH Legal Name> under Trademark License of Siemens AG
iQ700
LC91BUV50A
90 cm Wall Mounted Canopy
Rangehood
Features
Design & Innovation
●
Box brand design
●
Suitable for ducted and re-circulating operation
●
Accessories required for recirculation mode: CleanAir Module
●
3 x 3W LED lights
Convenience
●
Wall mounted rangehood
●
softLight with dimming function
●
lightControl white LED control panel
●
Boost function
●
climateControl sensor automatically adjusts the rangehood power
level to the steam and odours
●
Saturation display for filters
●
Dishwasher safe metal grease filters
●
Stainless steel filter covers, dishwasher safe
Power and Mode of Operation
●
Extraction rate according to EN 61591 ø 15 cm:
●
max. Normal use 601 m³/h
●
Intensive 964 m³/h
●
Extraction rate in recirculation mode:
●
Max. normal use: 362 m³/h
●
Intensive: 428 m³/h
●
3 power levels + 2 intensive levels
●
Intensive operation automatic revert - 6min
●
Automatic run on for Automatic run on - 10 min
●
Noise min./max. Normal Level: 45/64 dB
●
Noise max. Intensive setting: 73 dB
●
Efficient BLDC technology
●
cooktop-based hood control
●
(with matching cooktop)
●
Sound insulation mats for optimised sound absorption
●
with one-way flap
Technical Information
●
wall fixing system
●
Dimensions exhaust air (HxWxD): 628-954 x 898 x 500 mm
●
Dimensions recirculating (HxWxD): 628-1064 x 898 x 500 mm
●
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
●
Power rating: 269 W
●
Electrical cable length 1.3 m
●
Voltage: 220 - 240 V
●
Energy Efficiency Class: A+ (at a range of energy efficiency classes
from A++ to E)
2/3
