Siemens LC91BD552A User Manual
Extractor hood
siemens-home.com/welcome
en ,QVWUXFWLRQVIRULQVWDOODWLRQDQGXVH
Register
your
product
online
en
Table of contents
enInstructions for installation and use
INSTRUCTION MANUAL.......................................................... 2
8 Intended use................................................................... 2
( Important safety information ........................................2
7 Environmental protection ............................................. 4
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
Ç Operating modes ........................................................... 4
1 Operating the appliance................................................ 5
2 Cleaning and maintenance ........................................... 8
3 Trouble shooting............................................................ 9
4 Customer service ........................................................ 10

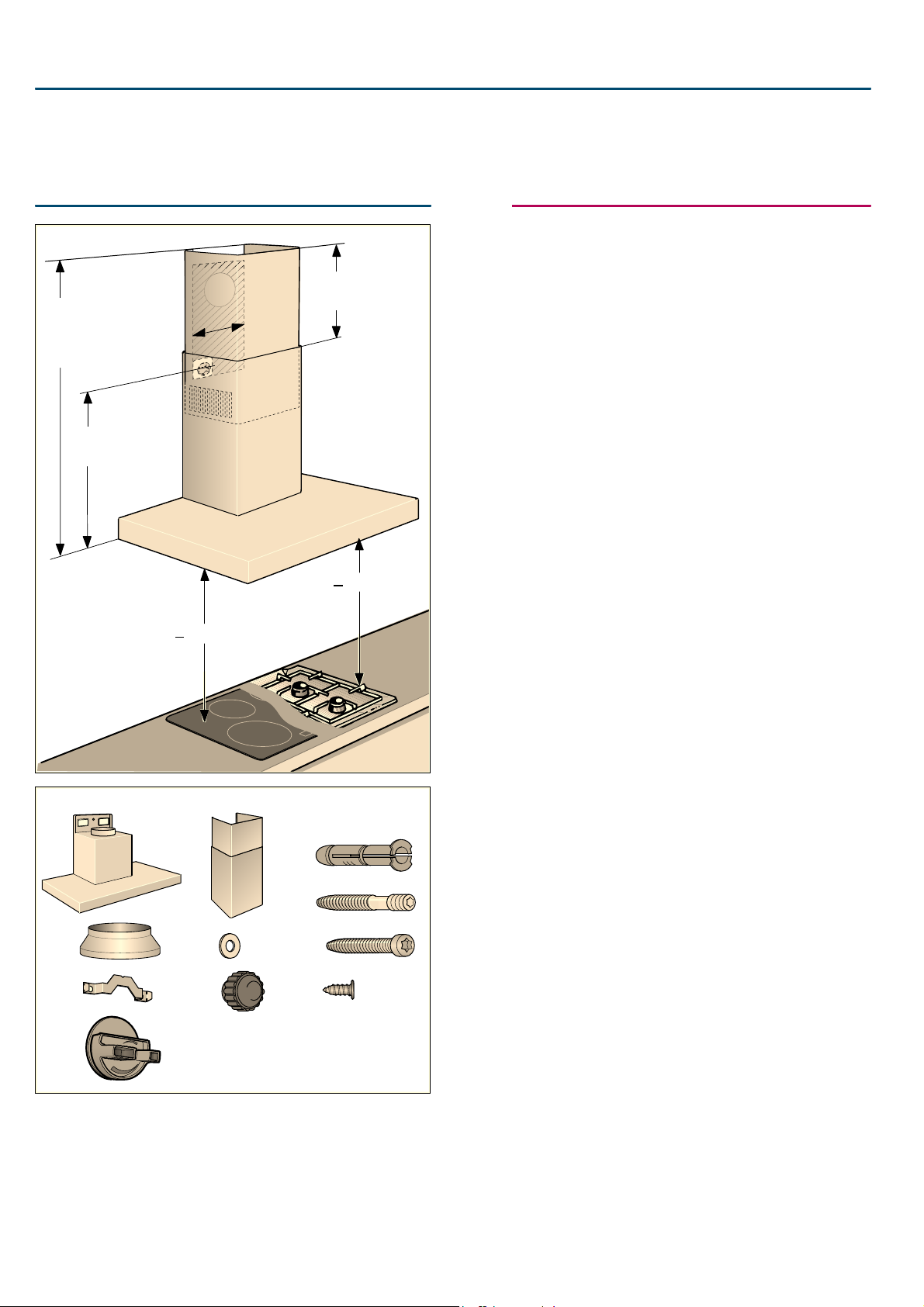

INSTALLATION INSTRUCTIONS........................................... 11
( Important safety information ......................................11
K General information..................................................... 13

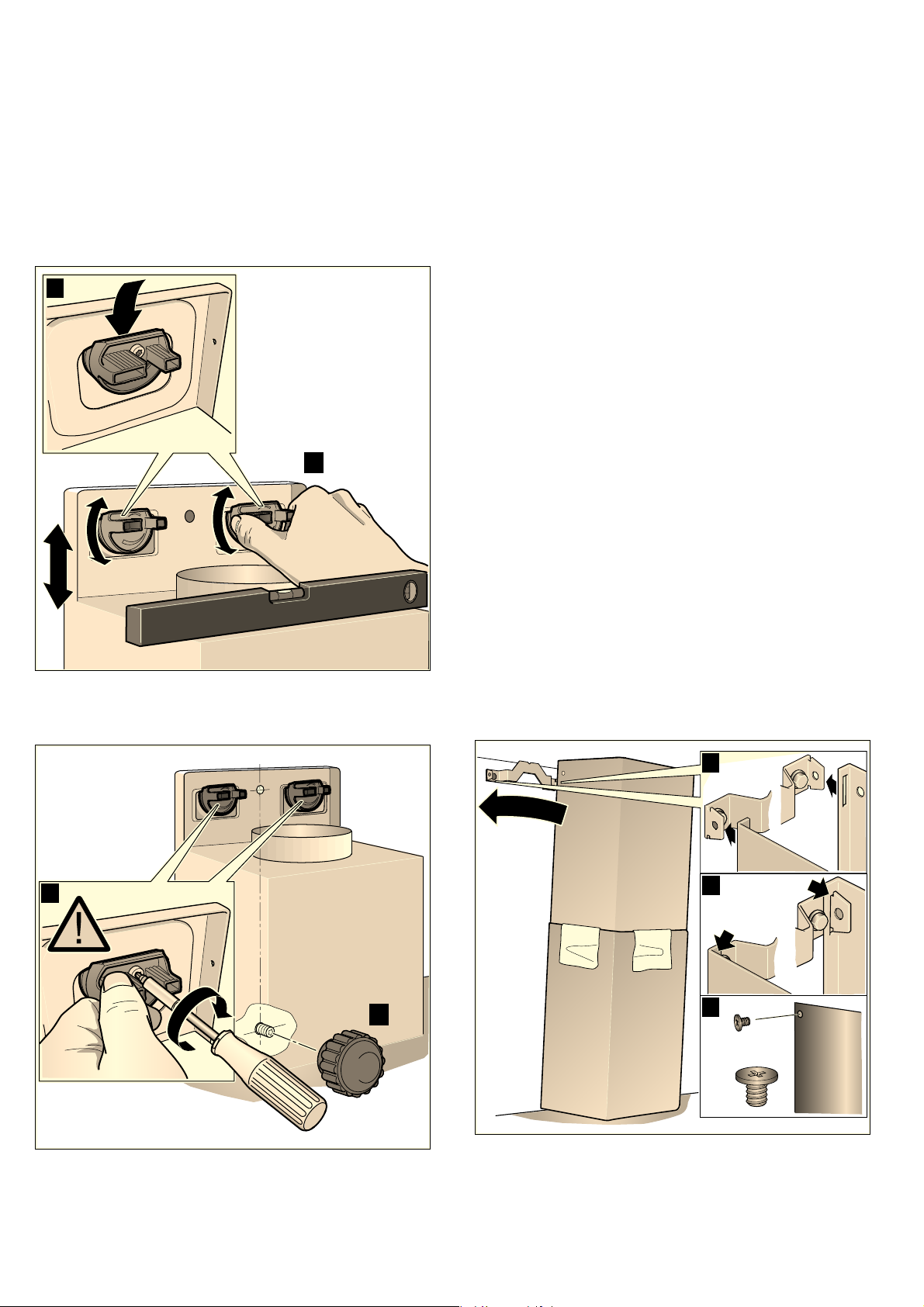

5 Installation.................................................................... 14
INSTRUCTION MANUAL
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
www.siemens-home.com and in the online shop
www.siemens-eshop.com
8Intended use
Intended use
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is not intended for operation
with an external clock timer or a remote
control.
(Important safety
information
Important safety information
:Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
2
Important safety information en
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room airdependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coaloperated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■ Adequate incoming air must therefore
always be ensured.
■ An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heatproducing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
:Warning
Risk of fire!
■ Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■ Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heatproducing appliance for solid fuel (e.g.
wood or coal) unless a closed, nonremovable cover is available. There must
be no flying sparks.
Risk of fire!
■ Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■ When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■ Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5 kW (wok) is equivalent to the
power of two gas burners.
:Warning
Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Risk of injury!
■ Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■ Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■ The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than 100
seconds.
3
en Environmental protection
:Warning
Risk of electric shock!
■ A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the aftersales service.
Risk of electric shock!
■ Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
7Environmental protection
Environmental protection
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
ÇOperating modes
Operating modes
Exhaust air mode
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
■ Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■ If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter and conveyed back into the
kitchen.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly (1°
slope).
4
Notes
■ To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options
for operating the appliance in circulating-air mode
can be found in the brochure. Alternatively, ask your
dealer. The required accessories are available from
specialist retailers, from customer service or from
the Online Shop.
■ For appliances with an additional internal filter, only
the CleanAir recirculation module (see Accessories
for circulating-air mode) can be used.
Operating the appliance en
1Operating the appliance
Operating the appliance
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Control panel model 1
Control panel
Explanation
Fan on/off
#
- Reduce the fan settings/fan run-on time
+ Increase the fan settings/intensive setting 1, 2
Light on/off/dimming
A
Setting the fan
Switching on the appliance
■ Press the # button.
The fan starts at setting ƒ.
■ Press the + or - button to change the fan strength.
Switching off
Press the # button.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Press the + button when the fan is at setting „.
The intensive setting2‚ is activated. Pressing the +
button again activates the intensive setting 2 ƒ.
After approx. six minutes, the electronics automatically
reduce the fan to a lower setting . If you want to end the
intensive setting before the preset time expires, press
the - button until the required fan setting is reached.
Fan run-on time
Press the - button until x‚ appears.
After approx. ten minutes, the fan switches off
automatically.
Lighting
The lighting can be switched on and off independently
of the fan.
Press the A button.
Setting the brightness
Press and hold the A button until the desired
brightness is reached.
Saturation display
When the metal mesh grease filters or the activated
carbon filter are saturated, a signal sounds for approx.
4 seconds after the fan is switched off.
In addition, the corresponding symbol appears in the
display:
■ Metal mesh grease filter:!
■ Activated carbon filter: "
If you have not yet done so, the metal mesh grease
filters should be cleaned or the activated carbon filter
changed now.
For instructions on how to clean the metal mesh grease
filters, please refer to the section Cleaning and
maintenance
.
While the saturation displays are flashing, they can be
reset. To do this, press the – button.
Switching over the display for circulating-air mode
For circulating-air mode, the electronic control display
must be switched over accordingly:
■ The extractor hood must be connected and switched
off.
■ Press the # and - buttons at the same time until the
™" display for starter sets for circulating-air mode
or
the ’" display for CleanAir circulating air modules
lights up.
■ Repeatedly press the button combination to switch
the electronic control display back to exhaust air
mode (! display).
Audible signal
Switching on the acoustic signal
When the fan is switched off, press the # and + at the
same time for approx. three seconds. An
acknowledgement signal sounds.
Switching off the acoustic signal
Repeat the "Switching on the acoustic signal" process.
5
Loading...
