[en] Instruction manual
HB43AB.22F
Built-in oven
Ú Table of contents
[en]Instruction manual
Important safety information..................................................... 4
Causes of damage .............................................................................5
Your new oven ............................................................................ 5
Control panel .......................................................................................5
Buttons and display............................................................................ 6
Function selector.................................................................................6
Temperature selector .........................................................................6
Cooking compartment .......................................................................6
Your accessories........................................................................7
Inserting accessories ......................................................................... 7
Optional accessories .........................................................................7
After-sales service products .............................................................9
Before using the oven for the first time ...................................9
Setting the clock .................................................................................9
Heating up the oven ...........................................................................9
Cleaning the accessories ..................................................................9
Setting the oven.......................................................................... 9
Type of heating and temperature ....................................................9
Rapid heating ......................................................................................9
Setting the time-setting options.............................................. 10
Timer .................................................................................................. 10
Cooking time .................................................................................... 10
End time ............................................................................................ 11
Clock .................................................................................................. 11
Childproof lock ......................................................................... 11
Changing the basic settings ................................................... 12
Grilling with the rotary spit...................................................... 12
Preparing roasts............................................................................... 12
Inserting the rotary spit ................................................................... 12
Cleaning system ....................................................................... 12
Before cleaning ................................................................................ 12
Making settings ................................................................................ 13
After cleaning.................................................................................... 13
Care and cleaning ....................................................................13
Cleaning agents ............................................................................... 13
Detaching and refitting the rails .................................................... 14
Detaching and attaching the oven door...................................... 14
Removing and installing the door panels ................................... 15
Troubleshooting .......................................................................15
Malfunction table.............................................................................. 15

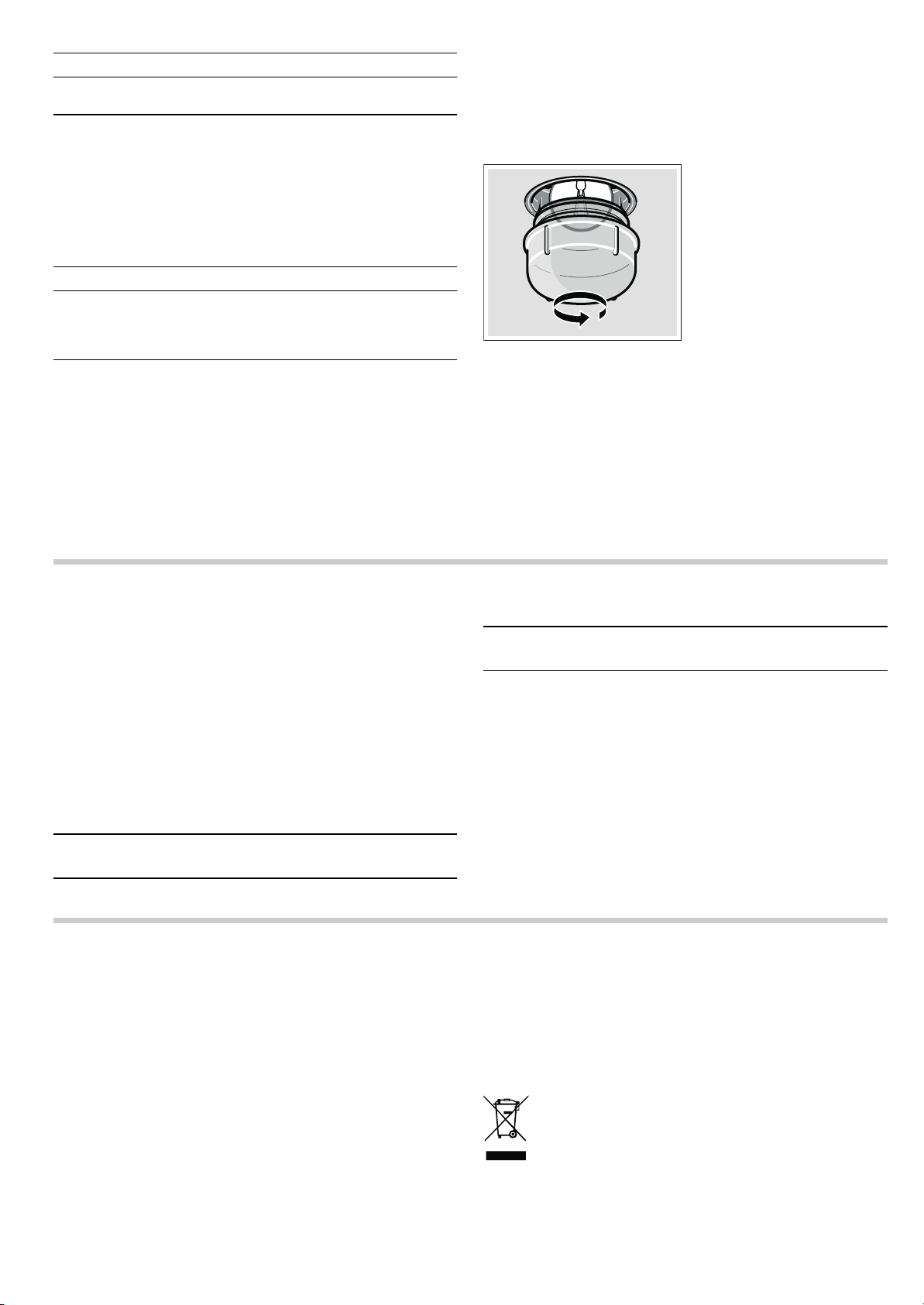

Replacing the bulb in the oven ceiling light ............................... 16
Glass cover ....................................................................................... 16
After-sales service ...................................................................16
E number and FD number ............................................................. 16
Energy and environment tips.................................................. 16
Saving energy................................................................................... 16
Environmentally-friendly disposal.................................................. 16
Tested for you in our cooking studio ..................................... 17
Cakes and pastries ......................................................................... 17
Baking tips ........................................................................................ 18
Meat, poultry, fish, gratin and toast .............................................. 18
Tips for roasting and grilling .......................................................... 19
Menu cooking ................................................................................... 20
Convenience products.................................................................... 20
Special dishes .................................................................................. 21
Defrost................................................................................................ 21
Drying ................................................................................................. 21
Preserving ......................................................................................... 21
Acrylamide in foodstuffs ......................................................... 22
Test dishes................................................................................ 22
Baking ................................................................................................ 22
Grilling................................................................................................ 23
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.siemens-home.com
and in the online shop www.siemens-eshop.com
3
: Important safety information
Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.
This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.
Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.
Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.
This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.
This appliance may be used by children
over the age of 8 years old and by persons
with reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.
Keep children below the age of 8 years old at a safe distance from the appliance and power cable.
Always slide accessories into the cooking compartment correctly. See "Description of accessories in the instruction manual.
Risk of fire!
■
Combustible items stored in the cooking
compartment may catch fire. Never store
combustible items in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off
the appliance and unplug it from the
mains or switch off the circuit breaker in
the fuse box.
Risk of fire!
■
A draught is created when the appliance
door is opened. Greaseproof paper may
come into contact with the heating
element and catch fire. Do not place
greaseproof paper loosely over
accessories during preheating. Always
weight down the greaseproof paper with a
dish or a baking tin. Only cover the
surface required with greaseproof paper.
Greaseproof paper must not protrude over
the accessories.
Risk of burns!
■
The appliance becomes very hot. Never
touch the interior surfaces of the cooking
compartment or the heating elements.
Always allow the appliance to cool down.
Keep children at a safe distance.
Risk of burns!
■
Accessories and ovenware become very
hot. Always use oven gloves to remove
accessories or ovenware from the cooking
compartment.
Risk of burns!
■
Alcoholic vapours may catch fire in the hot
cooking compartment. Never prepare food
containing large quantities of drinks with a
high alcohol content. Only use small
quantities of drinks with a high alcohol
content. Open the appliance door with
care.
Risk of scalding!
■
The accessible parts become hot during
operation. Never touch the hot parts. Keep
children at a safe distance.
Risk of scalding!
■
When you open the appliance door, hot
steam may escape. Open the appliance
door with care. Keep children at a safe
distance.
Risk of scalding!
■
Water in a hot cooking compartment may
create hot steam. Never pour water into
the hot cooking compartment.
Risk of injury!
Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
Risk of electric shock!
■
Incorrect repairs are dangerous. Repairs
may only be carried out by one of our
trained after-sales engineers. If the
appliance is faulty, unplug the mains plug
or switch off the fuse in the fuse box.
Contact the after-sales service.
Risk of electric shock!
■
The cable insulation on electrical
appliances may melt when touching hot
parts of the appliance. Never bring
4
electrical appliance cables into contact
&
FOHDQ
FOHDQ
%XWWRQVDQGGLVSOD\
)XQFWLRQVHOHFWRU 7HPSHUDWXUHVHOHFWRU
with hot parts of the appliance.
Risk of electric sh ock!
■
Penetrating moisture may cause an
electric shock. Do not use any highpressure cleaners or steam cleaners.
Risk of electric sh ock!
■
When replacing the cooking compartment
bulb, the bulb socket contacts are live.
Before replacing the bulb, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box.
Risk of electric sh ock!
■
A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Risk of burns!
The appliance will become very hot on the outside during the cleaning function. Never touch the appliance door. Allow the appliance to cool down. Keep children at a safe distance.
Causes of damage
Caution!
■ Accessories, foil, greaseproof paper or ovenware on the
cooking compartment floor: do not place accessories on the
cooking compartment floor. Do not cover the cooking
compartment floor with any sort of foil or greaseproof paper.
Do not place ovenware on the cooking compartment floor if a
temperature of over 50 ºC has been set. This will cause heat
to accumulate. The baking and roasting times will no longer
be correct and the enamel will be damaged.
■ Water in a hot cooking compartment: do not pour water into
the cooking compartment when it is hot. This will cause
steam. The temperature change can cause damage to the
enamel.
■ Moist food: do not store moist food in the cooking
compartment when it is closed for prolonged periods This will
damage the enamel.
■ Fruit juice: when baking particularly juicy fruit pies, do not
pack the baking tray too generously. Fruit juice dripping from
the baking tray leaves stains that cannot be removed. If
possible, use the deeper universal pan.
■ Cooling with the appliance door open: only allow the cooking
compartment to cool when it is closed. Even if the appliance
door is only open a little, front panels of adjacent units could
be damaged over time.
■ Very dirty door seal: If the door seal is very dirty, the
appliance door will no longer close properly when the
appliance is in use. The fronts of adjacent units could be
damaged.Always keep the door seal clean.
■ Appliance door as a seat, shelf or worktop: Do not sit on the
appliance door, or place or hang anything on it. Do not place
any cookware or accessories on the appliance door.
■ Inserting accessories: depending on the appliance model,
accessories can scratch the door panel when closing the
appliance door. Always insert the accessories into the
cooking compartment as far as they will go.
■ Carrying the appliance: do not carry or hold the appliance by
the door handle. The door handle cannot support the weight
of the appliance and could break.
Your new oven
Here you will learn about your new oven. The control panel and
the individual operating controls are explained. You will find
information on the cooking compartment and the accessories.

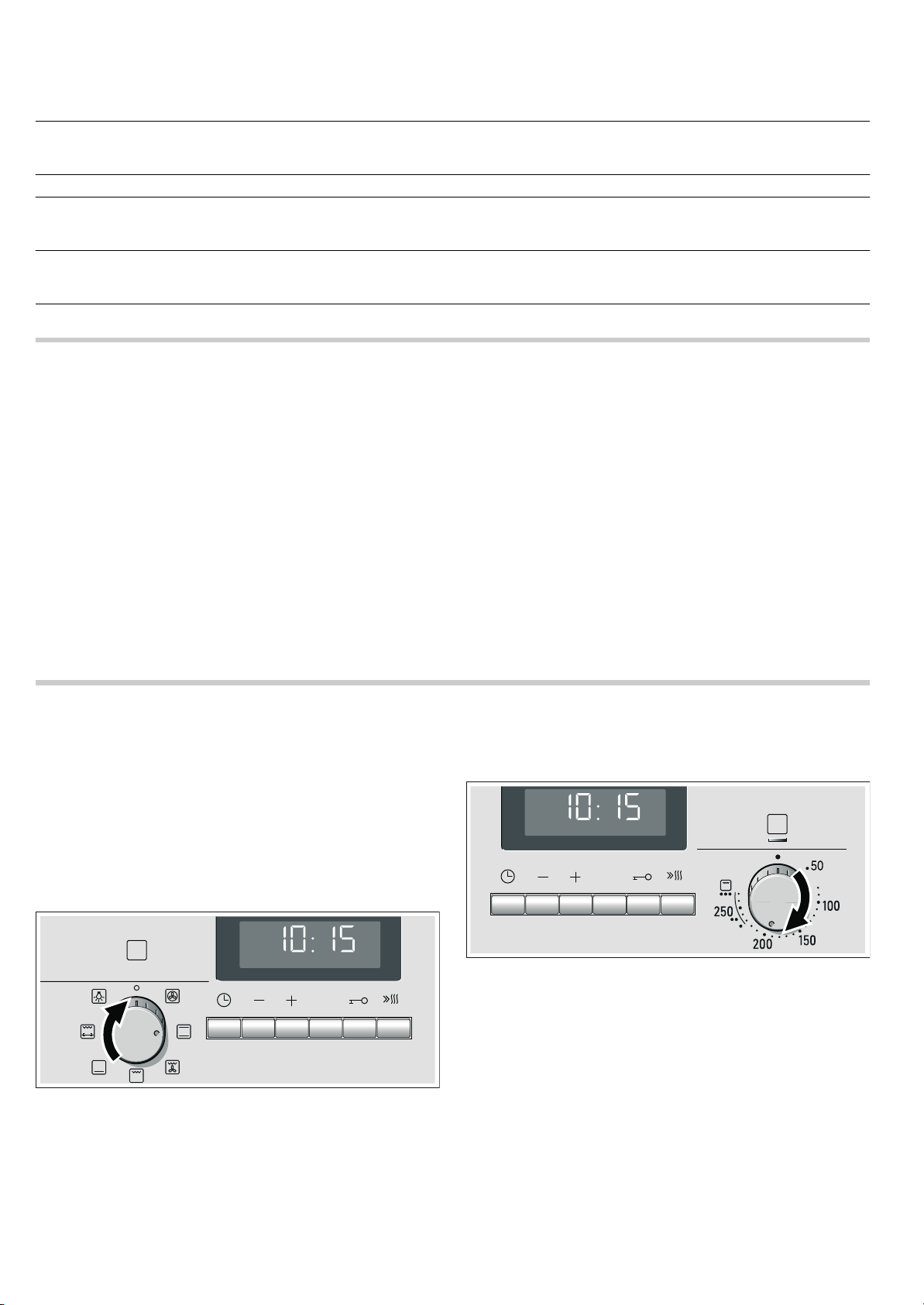

Control panel
Here, you will see an overview of the control panel. All of the
symbols never appear in the display at the same time.
Depending on the appliance model, individual details may
differ.
5
Buttons and display
You can use the buttons to set various additional functions. You
can read the values that you have set in the display.
Button Use
Time-setting options
0
Minus
A
Plus
@
Cleaning system Cleaning system for the self-clean-
s
Childproof lock Locks and unlocks the control
@
Rapid heating Heats up the oven particularly
c
The time-setting option that is currently selected in the display
is indicated by the
Exception: for the clock, the
are making changes.
N arrow next to the corresponding symbol.
Selects the timer
time
x, end time y and
0.
clock
Decreases the set values.
Increases the set values.
ing surfaces in the cooking compartment.
panel.
quickly.
0 symbol only lights up when you
V, cooking
When you make settings, the oven light in the cooking
compartment switches on.
Temperature selector
Use the temperature selector to set the temperature, grill
setting or cleaning setting.
Setting Meaning
Ú
50-270 Temperature
û, ûû, ûûû
s
When the oven is heating, the indicator lamp above the
temperature selector lights up. It goes out during heating
pauses.
Off position The oven does not heat up.
The temperature in the cooking
range
Grill settings The grill settings for "Grill, large
compartment in °C.
(.
area"
û = setting 1, low
ûû = setting 2, medium
ûûû = setting 3, high
Cleaning setting The setting for the cleaning sys-
tem.
Function selector
Use the function selector to set the type of heating.
Setting Use
Off position The oven switches off.
Û
3D hot air* For cakes and pastries on one to
:
Top/bottom heating For cakes, bakes and lean joints of
%
Hot air grilling For roasting meat, poultry and
4
Grill, large area For grilling steaks, sausages,
(
Bottom heating For preserving, browning and final
$
Grilling with rotary
E
spit
Oven light Switches on the oven light.
^
* Type of heating used to determine the energy efficiency class
in accordance with EN50304.
three levels. The fan distributes the
heat from the heating ring in the
back panel evenly around the
cooking compartment.
meat (e.g. beef or game) on one
level. Heat is emitted evenly from
the top and bottom.
whole fish. The grill element and
the fan switch on and off alternately. The fan causes the hot air
to circulate around the dish.
bread and pieces of fish. The
whole area below the grill heating
element becomes hot.
baking stage. The heat is emitted
from below.
For all-round grilling of chicken,
duck and large joints. The whole
area below the grill heating element becomes hot. The spit is
inserted and is turned by a motor
in the back panel.
Cooking compartment
The oven light is located in the cooking compartment. A cooling
fan protects the oven from overheating.
Oven light
During operation, the oven light in the cooking compartment is
on. The
switch on the light without heating the oven.
Cooling fan
The cooling fan switches on and off as required. The hot air
escapes above the door. Caution: do not cover the ventilation
slots. Otherwise the oven will overheat.
So that the cooking compartment cools down more quickly
after operation, the cooling fan continues to run for a certain
period afterwards.
\ setting on the function selector can be used to
6
Your accessories
The accessories supplied with your appliance are suitable for
making many meals. Ensure that you always insert the
accessories into the cooking compartment the right way round.
There is also a selection of optional accessories, with which
you can improve on some of your favourite dishes, or simply to
make working with your oven more convenient.
Inserting accessories
You can insert the accessories into the cooking compartment
at 5 different levels. Always insert them as far as they will go so
that the accessories do not touch the door panel.
The accessories can be pulled out approximately halfway until
they lock in place. This allows dishes to be removed easily.
When sliding the accessories into the cooking compartment,
ensure that the indentation is at the back. They can only lock in
place from this position.
Note: The accessories may deform when they become hot.
Once they cool down again, they regain their original shape.
This does not affect their operation.
You can buy accessories from the after-sales service, from
specialist retailers or online. Please specify the HZ number.
Wire rack
For ovenware, cake tins, joints,
grilled items and frozen meals.
Insert the wire rack with the open
side facing the oven door and the
curvature pointing downwards
Universal pan
For moist cakes, pastries, frozen
meals and large roasts. It can also
be used to catch dripping fat when
you are grilling directly on the wire
rack.
Slide in the universal pan with the
sloping edge facing the oven door.
Rotary spit
For roasting joints and large poultry.
Only use the rotary spit in the universal pan.
¾.
Optional accessories
You can purchase optional accessories from the after-sales
service or specialist retailers. You will find a comprehensive
range of products for your oven in our brochures and on the
Internet. The availability of optional accessories and the option
for ordering these online varies from country to country. Please
see the sales brochures for more details.
Not all optional accessories are suitable for every appliance.
When purchasing, please always quote the exact designation
(E-no.) of your appliance.
Optional accessories HZ number Use
Wire rack HZ334000 For ovenware, cake dishes, joints, grilled items and frozen
meals.
Enamel baking tray HZ331003 For cakes and biscuits.
Push the baking tray into the oven with the sloping edge facing
towards the oven door.
universal pan HZ332003 For moist cakes, baked items, frozen meals and large joints. It
can also be used to catch dripping fat when grilling directly on
the wire rack.
Slide the universal pan into the oven with the sloping edge facing the oven door.
Wire insert HZ324000 For roasting. Always place the wire rack in the universal pan.
Grill tray HZ325000 Use for grilling in place of the wire rack or as a splatter guard,
Pizza tray HZ317000 Ideal for pizza, frozen products or large round cakes. You can
This ensures that dripping fat and meat juices are collected.
so that the oven does not become as dirty as it otherwise
might. Only use the grill tray in the universal pan.
Grilling on the grill tray: only use at shelf position 1, 2 and 3.
Using the grill tray as a splatter guard: insert the universal pan
with the grill tray under the wire rack.
use the pizza tray instead of the universal pan. Place the baking tray on the wire rack and proceed according to the details
in the tables.
7
Optional accessories HZ number Use
Bakestone HZ327000 The bakestone is perfect for preparing home-made bread,
bread rolls and pizzas which require a crispy base. The bakestone must always be preheated to the recommended temperature.
Enamel baking tray with non-stick coating HZ331011 Cakes and biscuits can be removed more easily from the bak-
ing tray. Push the baking tray into the oven with the sloping
edge facing towards the oven door.
Universal pan with non-stick coating HZ332011 Moist cakes, baked items, frozen meals and large joints can be
removed more easily from the universal pan. Slide the universal pan into the oven with the sloping edge facing the oven
door.
Profi extra-deep pan with wire insert HZ333003 Ideally suited for preparing large amounts.
Lid for the Profi extra-deep pan HZ333001 The lid converts the Profi extra-deep pan into the Profi roasting
dish.
Glass roasting dish HZ915001 The glass roasting dish is suitable for stews and bakes that are
cooked in the oven. It is ideally suited to automatic pro-
grammes or automatic roasting.
Telescopic shelves
2-level HZ338250 The pull-out rails fitted at positions 2 and 3 allow you to pull
accessories out further without them tipping.
3-level HZ338352 The pull-out rails fitted at positions 1, 2 and 3 allow you to pull
accessories out further without them tipping.
The 3-level pull-out is not suitable for appliances that have a
rotary spit.
3-level complete pull-out HZ338356 The pull-out rails fitted at positions 1, 2 and 3 allow you to pull
accessories out fully without them tipping.
The 3-level complete pull-out is not suitable for appliances that
have a rotary spit.
3-level complete pull-out with stop function HZ338357 The pull-out rails fitted at positions 1, 2 and 3 allow you to pull
Self-cleaning side walls
Appliance with an oven light HZ339020 You can retrofit side walls so that the cooking compartment
Self-cleaning oven ceiling and side walls
Appliances with one oven light and a folding
grill element
Appliances with two oven lights and a folding
grill element
Appliances with one oven light, a folding grill
element and a meat thermometer
Appliances with two oven lights, a folding grill
element and a meat thermometer
Steam filter HZ329000 You can retrofit this to your oven. The steam filter filters out
System steamer HZ24D300 For a gentler preparation of vegetables and fish.
HZ329020 You can retrofit the ceiling and side walls so that the cooking
HZ329022 You can retrofit the ceiling and side walls so that the cooking
HZ329027 You can retrofit the ceiling and side walls so that the cooking
HZ329028 You can retrofit the ceiling and side walls so that the cooking
accessories out fully without them tipping. The pull-out rails
lock in position allowing accessories to be easily placed on
top.
The 3-level complete pull-out with stop function is not suitable
for appliances that have a rotary spit.
automatically cleans itself during operation.
compartment automatically cleans itself during operation.
compartment automatically cleans itself during operation.
compartment automatically cleans itself during operation.
compartment automatically cleans itself during operation.
grease particles from the exhaust air, thereby reducing odours.
Only for appliances with a 6, 7 or 8 as the second digit in the
E-no. (e.g. HB38
AB570)
8
Loading...
