1 About this document
Goal and purpose
The information provided in this technical manual is a summary of the key
procedures and functions required to assemble, install, commission, and service
the FC721 fire control panel system.
The aim of this technical manual is to provide experienced and qualified personnel
with a quick guide to the necessary processes.
Scope
This technical manual is a supplement to the documents provided for the Cerberus
PRO fire detection system FS720 and applies for the following products:
● Fire control panels FC721
The information contained in this document is valid for introduction package IP6.
Target groups
The information in this document is intended for the following target groups:
Target group Activity Qualification
1
Installation personnel
Commissioning personnel
Operating personnel
Maintenance personnel
● Assembles and installs the
product components at the place
of installation.
● Carries out a function check
following installation.
● Configure the product at the
place of installation according to
customer-specific requirements.
● Check the product operability
and release the product for use
by the operator.
● Searches for and corrects
malfunctions.
● Carries out procedures to
correctly operate the product.
● Carries out all maintenance
work.
● Checks that the products are in
perfect working order.
● Searches for and corrects
malfunctions.
● Has received specialist training in the
area of building installation technology
or electrical installations.
● Has obtained suitable specialist training
for the function and for the products.
● Has attended the training courses for
commissioning personnel.
● No particular basic training is needed.
● Has been instructed by the
commissioning personnel.
● Has obtained suitable specialist training
for the function and for the products.
Building Technologies
Source language and reference document
● The source/original language of this document is German (de).
● The reference version of this document is the international version in English.
The international version is not localized.
7 |
Page 8
About this
document
Applicable documents
1
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
The 'i' symbol identifies supplementary information and tips for an easier way of
Document identification
The document ID is structured as follows:
ID code Examples
ID_ModificationIndex_Language_COUNTRY
-- = multilingual or international
A6V10215123_a_de_DE
A6V10215123_a_en_-A6V10315123_a_--_--
Date format
The date format in the document corresponds to the recommendation of
international standard ISO 8601 (format YYYY-MM-DD).
Conventions for text marking
Markups
Special markups are shown in this document as follows:
⊳ Requirement for a behavior instruction
1.
2.
– Version, option, or detailed information for a behavior instruction
⇨ Intermediate result of a behavior instruction
⇨ End result of a behavior instruction
●
Behavior instruction with at least two operation sequences
Numbered lists and behavior instructions with an operation
sequence
[➙ X] Reference to a page number
'Text' Quotation, reproduced identically
<Key> Identification of keys
>
Relation sign and for identification between steps in a sequence,
e.g., 'Menu bar' > 'Help' > 'Help topics'
↑ Text Identification of a glossary entry
Supplementary information and tips
working.
8 | 118
Page 9
About this document
Applicable documents
118
A6V10211100_f_en_
--
Fire Saf
ety
2015-12-15
1.1 Applicable documents
You will also find information about search variants and links to mobile
Document ID Title
A6V10210355 System description
A6V10210362 Planning
A6V10210390 Mounting / Installation
A6V10210416 Commissioning / Maintenance / Troubleshooting
A6V10210424 Configuration
A6V10229261 List of compatibility
A6V10210368 Product data
1.2 Download center
You can download various types of documents, such as data sheets, installation
instructions, and license texts via the following Internet address:
http://siemens.com/bt/download
κ Enter the document ID in the 'Find by keyword' input box.
1
applications (apps) for various systems on the home page.
1.3 Technical terms and abbreviations
You will find details of technical terms and abbreviations in the 'Glossary' chapter.
Building Technologies
9 |
Page 10
About this document
Revision history
1
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
The first edition of a language versio
n or a country variant may, for
example, have
1.4 Revision history
The reference document's modification index applies to all languages into which
the reference document is translated.
the modification index 'd' instead of 'a' if the reference document already has this
modification index.
The table below shows this document's revision history:
Version Edition date Brief description
f 2015-12-15 Edition: Introduction Package IP6
New:
Freezing outputs
Enabling frozen outputs
Switching off, Safety during switch-off, Switching on
Glossary entries in the text marked with '↑'
Cyber security disclaimer
Revised:
Referenced documents updated
Connectable C-NET devices updated
LED indicator (internal) FTO2002 replaced by LED module FTO2008, and red
and yellow LED replaced by red/green and yellow LED
Loading data to the 'Station'
Loading configuration from the PC to the 'Station'
Loading configuration from the 'Station' to the PC
Creating a backup of the 'Site' configuration
Information regarding freezing outputs added to chapters 'Loading configuration
from the PC to the 'Station'' and 'Restarting the detector line'
Initializing 'Station'
Switching off the detector line, Switching off a zone
Information on PIN configuration in Engineering Tool added to the 'PIN
administration' chapter
C-NET detector line updated
e 2014-02-10 Information on voltage ranges revised in the chapter 'Configurable inputs/outputs'
d 2013-11-14 Edition: Introduction Package IP5
c 2012-06 Edition: Introduction Package IP4
10 | 118
● Change to date format according to ISO 8601
● C-NET devices added: FDCI723, FDM223-Ex, OOH740-A9-Ex, FDCL221-Ex,
FDA221, FDA241, FDM273
● License key (S1) replaces license key (L1)
CPR replaces CPD: The Construction Products Regulation (CPR 305/2011)
replaces the previous Construction Products Directive (CPD 89/106).
● C-NET devices updated
Revised:
● General commissioning steps
New chapter:
● Chap. 'Connectivity and communication with 'Station'
Page 11
About this document
How displays are represented in the document
118
A6V10211100_f_en_
--
Fire Saf
ety
2015-12-15
Version Edition date Brief description
b 2010-07 Edition for MP3.0 XS
● Amendments to MP3.0
● Amendments to PMI & mainboard FCM2027
● Various minor changes
● Naming amended
a 2009-05 Technical manual FC721
1.5 How displays are represented in the document
With very few exceptions, the fire control panels and fire terminals are displayed in
this document in tables.
Deviations between the original and the table are indicated by means of examples
in the figures below:
1
Figure 1: Display with window and bar
Main menu
Exit with <C>
Message summary
Functions
Favorites
Topology
Function
On/Off
(1)
(2)
(3)
(4)
Element search
Event memory
Login/logout
Settings/administration
Function
All
Table representation: Display without window
Selecting element category
Zone
Section
Area
Sounder
Physical channel
(1)
(2)
(3)
(4)
(5)
Table representation: 'Select element category' window without bar
Access level 3
(5)
(6)
(7)
(8)
LED
test
Building Technologies
The table representation has the following key deviations from the
original:
● Font and representation (not inverted)
● Windows are indicated separately without display background
● No bars to indicate the position and list length
● No frame around selection
11 |
Page 12
Safety
Safety instructions
2
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
2 Safety
2.1 Safety instructions
The safety notices must be observed in order to protect people and property.
The safety notices in this document contain the following elements:
● Symbol for danger
● Signal word
● Nature and origin of the danger
● Consequences if the danger occurs
● Measures or prohibitions for danger avoidance
Symbol for danger
This is the symbol for danger. It warns of risks of injury.
Follow all measures identified by this symbol to avoid injury or death.
Additional danger symbols
These symbols indicate general dangers, the type of danger or possible
consequences, measures and prohibitions, examples of which are shown in the
following table:
General danger Explosive atmosphere
Voltage/electric shock Laser light
Battery Heat
Signal word
The signal word classifies the danger as defined in the following table:
Signal word Danger level
DANGER
WARNING
CAUTION
NOTICE
DANGER identifies a dangerous situation, which will result directly in death or
serious injury if you do not avoid this situation.
WARNING identifies a dangerous situation, which may result in death or serious
injury if you do not avoid this situation.
CAUTION identifies a dangerous situation, which could result in slight to
moderately serious injury if you do not avoid this situation.
NOTICE
observance.
identifies possible damage to property that may result from non-
12 | 118
Page 13
Safety
Safety instructions
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
How risk of injury is presented
Nature and origin of the danger
●
Measures / prohibitions for danger avoidance
Nature and origin of the danger
Information about the risk of injury is shown as follows:
WARNING
Consequences if the danger occurs
How possible damage to property is presented
Information about possible damage to property is shown as follows:
NOTICE
Consequences if the danger occurs
● Measures / prohibitions for danger avoidance
2
Building Technologies
13 |
Page 14
Safety
Safety regulations for the method of operation
2
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Electrical voltage
regulations.
Noncompliance with the following safety regulations
●
Compliance with the following regulations is required.
2.2 Safety regulations for the method of operation
National standards, regulations and legislation
Siemens products are developed and produced in compliance with the relevant
European and international safety standards. Should additional national or local
safety standards or legislation concerning the planning, mounting, installation,
operation or disposal of the product apply at the place of operation, then these
must also be taken into account together with the safety regulations in the product
documentation.
Electrical installations
WARNING
Electric shock
● Work on electrical installations may only be carried out by qualified
electricians or by instructed persons working under the guidance and
supervision of a qualified electrician, in accordance with the electrotechnical
● Wherever possible disconnect products from the power supply when carrying
out commissioning, maintenance or repair work on them.
● Lock volt-free areas to prevent them being switched back on again by mistake.
● Label the connection terminals with external external voltage using a
'DANGER External voltage' sign.
● Route mains connections to products separately and fuse them with their own,
clearly marked fuse.
● Fit an easily accessible disconnecting device in accordance with IEC 60950-1
outside the installation.
● Produce earthing as stated in local safety regulations.
CAUTION
Risk of injury to persons and damage to property
● Specialist electrical engineering knowledge is required for installation.
● Only an expert is permitted to carry out installation work.
Incorrect installation can take safety devices out of operation unbeknown to a
layperson.
14 | 118
Page 15
Safety
Safety regulations for the method of operation
2
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Mounting, installation, commissioning and maintenance
● If you require tools such as a ladder, these must be safe and must be intended
for the work in hand.
● When starting the fire control panel ensure that unstable conditions cannot
arise.
● Ensure that all points listed in the 'Testing the product operability' section below
are observed.
● You may only set controls to normal function when the product operability has
been completely tested and the system has been handed over to the customer.
Testing the product operability
● Prevent the remote transmission from triggering erroneously.
● If testing building installations or activating devices from third-party companies,
you must collaborate with the people appointed.
● The activation of fire control installations for test purposes must not cause
injury to anyone or damage to the building installations. The following
instructions must be observed:
– Use the correct potential for activation; this is generally the potential of the
building installation.
– Only check controls up to the interface (relay with blocking option).
– Make sure that only the controls to be tested are activated.
● Inform people before testing the alarm devices and allow for possible panic
responses.
● Inform people about any noise or mist which may be produced.
● Before testing the remote transmission, inform the corresponding alarm and
fault signal receiving stations.
Modifications to the system design and the products
Modifications to the system and to individual products may lead to faults,
malfunctioning and safety risks. Written confirmation must be obtained from
Siemens and the corresponding safety bodies for modifications or additions.
Modules and spare parts
● Components and spare parts must comply with the technical specifications
defined by Siemens. Only use products specified or recommended by
Siemens.
● Only use fuses with the specified fuse characteristics.
● Wrong battery types and improper battery changing lead to a risk of explosion.
Only use the same battery type or an equivalent battery type recommended by
Siemens.
● Batteries must be disposed of in an environmentally friendly manner. Observe
national guidelines and regulations.
Disregard of the safety regulations
Before they are delivered, Siemens products are tested to ensure they function
correctly when used properly. Siemens disclaims all liability for damage or injuries
caused by the incorrect application of the instructions or the disregard of danger
warnings contained in the documentation. This applies in particular to the following
damage:
● Personal injuries or damage to property caused by improper use and incorrect
application
● Personal injuries or damage to property caused by disregarding safety
instructions in the documentation or on the product
● Personal injury or damage to property caused by poor maintenance or lack of
maintenance
Building Technologies
15 |
Page 16
Safety
Standards and directives complied with
2
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Limited or non
-
existent fire detection
detection installation.
In
correct planning and/or configuration
detection installation.
2.3 Standards and directives complied with
A list of the standards and directives complied with is available from your Siemens
contact.
2.4 Release Notes
Limitations to the configuration or use of devices in a fire detection installation with
a particular firmware version are possible.
WARNING
Personal injury and damage to property in the event of a fire.
● Read the 'Release Notes' before you plan and/or configure a fire detection
installation.
● Read the 'Release Notes' before you carry out a firmware update to a fire
NOTICE
Important standards and specifications are not satisfied.
Fire detection installation is not accepted for commissioning.
Additional expense resulting from necessary new planning and/or configuration.
● Read the 'Release Notes' before you plan and/or configure a fire detection
installation.
● Read the 'Release Notes' before you carry out a firmware update to a fire
2.5 Cyber security disclaimer
Products, solutions and services from Siemens include security functions to ensure
the secure operation of building automation and control, fire safety, security
management, and physical security systems. The security functions on these
products, solutions and services are important components of a comprehensive
security concept. Drafting, implementing and managing a comprehensive and upto-date security concept, customized to individual needs, is nevertheless
necessary, and may result in additional plant- or site-specific preventive measures
to ensure secure operation of your site regarding building automation and control,
fire safety, security management, and physical security. These measures may
include, for example, separating networks, physically protecting system
components, user training, multi-level defensive measures, etc. For additional
information on security as part of building technology and our product, solution and
service offerings, please contact your Siemens sales representative or project
department. We strongly recommend to always comply with our security advisories
on the latest security threats, patches and other related measures.
16 | 118
http://www.siemens.com/cert/en/cert-security-advisories.htm
Page 17
System overview
Cyber security disclaimer
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
3 System overview
Synoptic
2
Cerberus PRO fire control panels FC721 are operated as standalone control
panels. FC721 fire control panels cannot be networked with one another or with
other FS720 fire control panels.

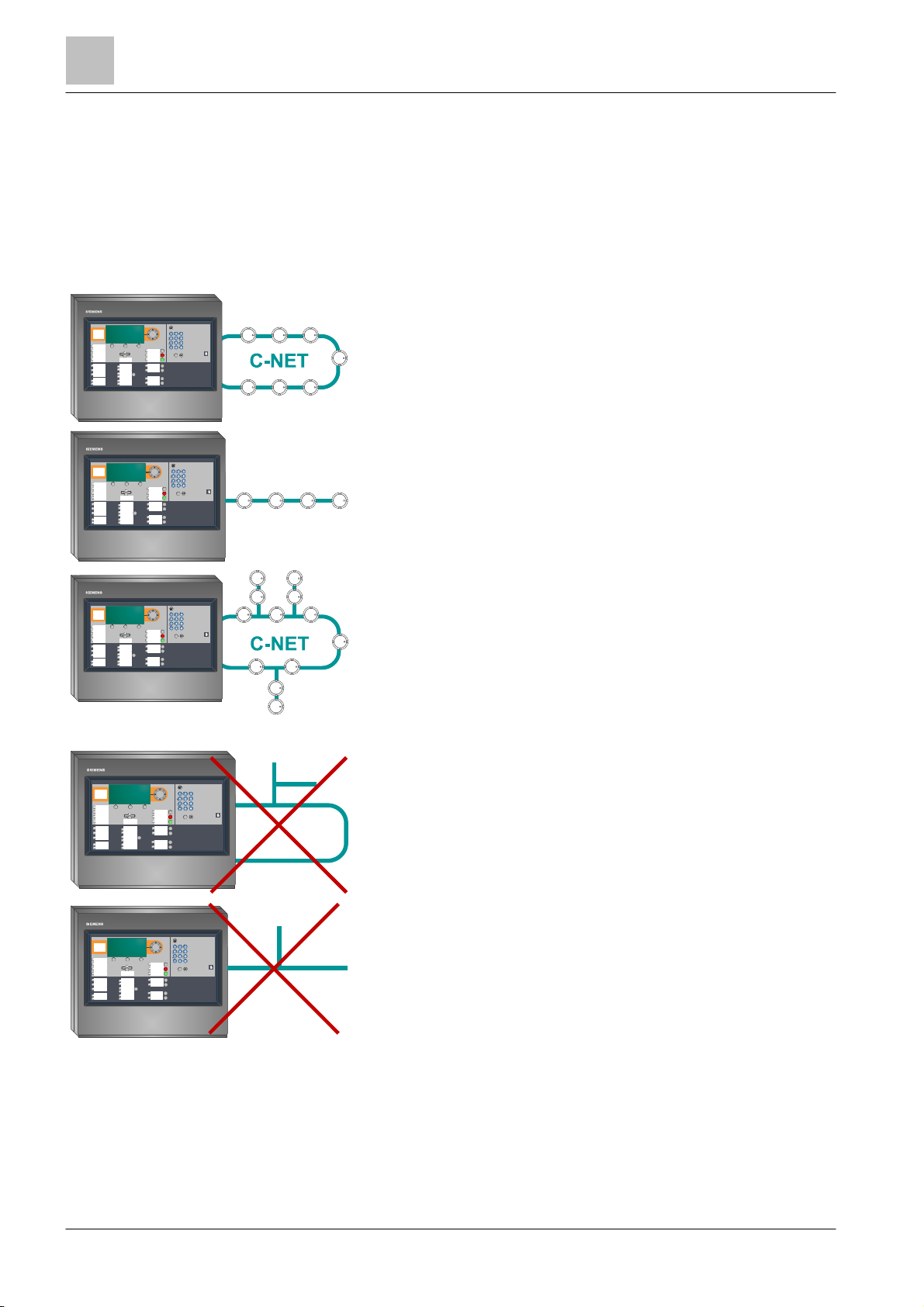

Cerberus PRO fire control panels FC721 support operation of the CNET detector
line as a loop or stub. Automatic fire detectors, manual call points, I/O components,
transponders and other C-NET users are connected to a C-NET detector line.
3
1
TM
Cerberus
3
C
C-Net
4

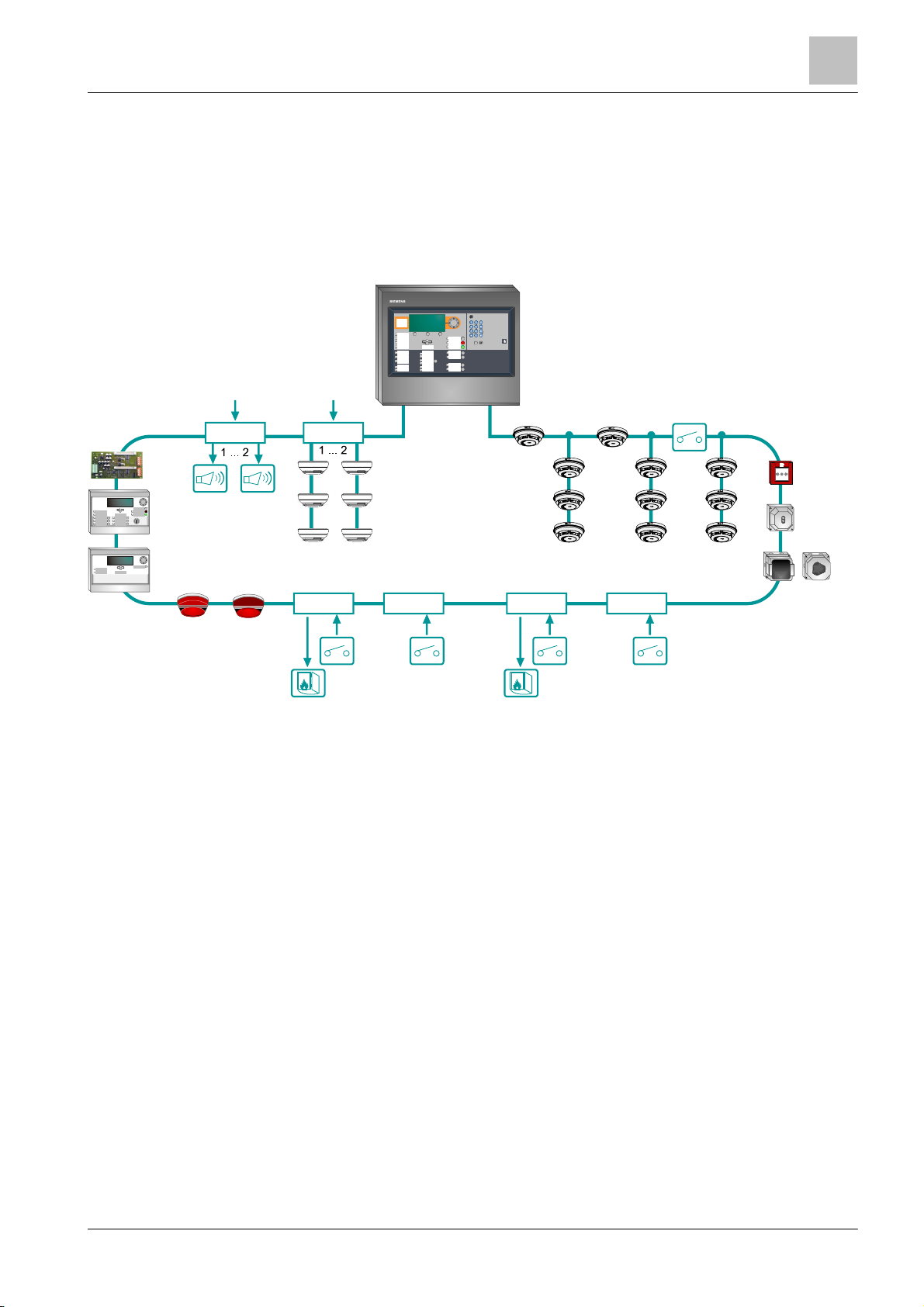

Figure 2: System overview of the fire control panel FC721
1 Fire control panels FC721
2 C-NET detector line
3
Periphery (e.g. RT alarm transmission installation or acoustic signal
transmitter etc.)
4
PC with the 'Cerberus-Engineering-Tool' FXS7212 software for
commissioning and configuration
Building Technologies
Properties
● Integrated operating unit
● Integrated line card for C-NET detector line
● Integrated power supply 70 W
● Optional power supply 70 W or 150 W in separate empty housing
17 |
Page 18
System overview
Station types
3
Building Technolo
gies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
C
C
C
3.1 Station types
Overview of the fire control panel FC721 and options
FC721 in housing (Eco)
FC721-ZZ FC721-YZ FC721-HZ
Standard operating unit
Operating unit with integrated LED
indicator (24 indicator groups, each
with a red/green and yellow LED)
Operating unit with integrated
EVAC-NL operating unit according
to the requirements for the
Netherlands
Cerberus
TM
Cerberus
TM
Cerberus
TM
1 loop or 2 stubs
Power supply (70 W)
Installable batteries max. 2x 7 Ah
Housing (Eco), 430 x 398 x 103 mm (W x H x D)
Additional empty housing External printer More options
FH2002-A1 DL3750+
Housing (Standard)
430 x 398 x 160 mm (W x H x D)
Dot matrix printer (external) to
RS232 interface
● Serial RS232 module for
external printer
● Serial RS485 module
● License key (S1) for display and
operation on PC
● Key switch (Kaba or Nordic)
● 19" mounting kit
● For additional power supply
(70 W or 150 W)
● Batteries up to 2x 26 Ah
18 | 118
● RS232 module not within the
scope of delivery (option)
Page 19
Planning
FC721 sy
stem limits and options
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
4 Planning
4.1 FC721 system limits and options
FC721 System limits
Detector line
Max. C-NET addresses 126 *(1 loop or 2 stubs)
Number of loops or stubs 1 loop or 2 stubs
Number of devices per loop Max. 126
Number of devices per stub line Max. 32
Supply
Power supply 70 W
Batteries (with 70 W power unit) Max. 2x 7 Ah
Battery extension (optional) Max. 2x 26 Ah
with optional power supply (150 W) and additional
empty housing (standard)
4
External DC 24 V supply ―
Operating unit Integrated
Inputs and outputs
RT alarm, relay 1
RT fault, relay 1
RT alarm monitored 1
RT fault monitored 1
Outputs for monitored, acoustic signal transmitter 1
Freely configurable inputs/outputs 4
Options
RS232/RS485 module Max. 1
Ext. Printer DL3750+ Max. 1
LED module; 24 red/green and yellow LEDs each Max. 1
EVAC-NL operating unit [NL] Max. 1
License key S1 Max. 1
Kaba or Nordic key switch Max. 1
Building Technologies
* Note system limits!
The description of system components and options does not form part of this
technical manual.
19 |
Page 20
Planning
Functions
4
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
An attendance check delay (t1) can be configured for each fire control panel. The
4.2 Functions
This chapter describes the most important functions that can be supported by the
fire detection system.
Decision on alarm
The danger signals of the detectors are evaluated by the zone. The decision on
alarm is made at zone level. Decision on alarm can be configured as follows for
each zone:
● Single-detector dependency
– The first detector in the zone which detects the corresponding danger level,
triggers a fire alarm.
● Multi-detector dependency
– The danger levels of several detectors are included in the alarm decision
(e.g. two detectors reporting danger level 3).
Alarm verification concept for delayed alarm transmission
The alarm verification concept (AVC) serves for delayed alarm transmission. The
operating personnel are integrated into the alarming process. During the time (t1)
for monitoring attendance, a check is run to establish whether operating personnel
are present. The operating personnel can examine the fire location during the
investigation time (t2) and can prevent the alerting of the fire brigade in case of
false alarm.
This behavior is only applicable in operation mode 'Manned'.
In operation mode 'Unmanned', the alarm transmission is activated immediately.
investigation time (t2) can be defined by zone.
Controls
Universal controls can be configured to automatically actuate the appropriate
controls in the event of an alarm. Any events (e.g. alarm or isolation) are linked
logically (OR, AND, NOT) to activate the controls (e.g. the closing of fire doors).
Evacuation
To ensure a controlled evacuation of people from the building in the event of fire, it
is possible to configure chronological alarming in different building sections.
Remote access
The Cerberus Remote Operating Tool provides a PC-based PMI for remote access
to the fire detection system. Remote access to the fire detection system is possible
with the Cerberus Remote Tool. Cerberus Remote is connected to the Ethernet
port of a station.
20 | 118
Page 21
Planning
Functions
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
4.2.1 Defining controls
Connections for controls are available on the following components / control
panels:
● Fire control panels FC721
● Input module FDCI221
● Input module FDCI222
● Input/output module FDCIO222
● Input/output module FDCIO222
● Input/output module FDCIO223
● Input/output module FDCIO224
● Addressable alarm indicator FDCAI224
The table below shows the control outputs available for the different hardware
modules.
4
FC721 FDCI221 FDCI222 FDCIO221 FDCIO223
FDCIO222/
FDCIO224
RT alarm (relay) 1 – – – – –
Alarm output (monitored) 1 – – – – –
RT fault (relay) 1 – – – – –
Alarm output (monitored) 1 – – – – –
Monitored horn lines 1 – – 1 2 –
Monitored contact inputs – 1 4 1 – 4
Non-monitored control
outputs/contact inputs
4 freely
configurable
– – – – 4 outputs
I/Os
Table 1: Control outputs in the fire detection system
Notes
● The outputs can be used for any controls. Any events, commands and signal
inputs can be linked as an OR, AND and NOT relation.
● Controls can be configured system-wide. This means that the causes can
come from any point in the system.
● The controls can be configured as activated or deactivated with a delay in a
range of 0…30 minutes.
● The onboard inputs/outputs in the fire control panel may be configured as
inputs or outputs.
● If an onboard input/output is configured as an input in the fire control panel, it is
activated by applying 0 V.
● If an onboard input/output is configured as an output in the fire control panel, it
switches 0 V when active (open drain).
21 |
Building Technologies
Page 22
Mounting
Mounting and assembling a station
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
C
Cerberus
5 Mounting
5.1 Mounting and assembling a station
Before mounting and installation, check all the fire detection installation
components visually for damage caused by improper transport.
TM
22 | 118
Figure 3: Unpacking and c hecking
● Components with clear signs of damage must not be used in the station or
operated as fire detection installation components.
● National and local standards and requirements must be observed when
assembling the station and its components.
● The following mounting instructions refer to the specifications of the EN 54
standard and the manufacturer's recommendations.
● The site chosen to assemble the station and associated components must
match the planning documents for the fire detection installation.
Page 23
Mounting
Mounting instructions
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5.2 Mounting instructions
Voltage
when the system is de
-
energized.
Thermal bridge between station and mounting surface
mounting holes must be sealed using the supplied aluminium path taps.
Electrostatics
modules.
The station's product insert contains an mounting model to assist with mounting.
The dimensions needed and details of the mounting points are shown on the
mounting model. Details on mounting and installation can be found in the reference
documents.
● The station must be assembled in a dry, clean and well vented room.
● The station must be assembled at a distance of at least 1m from the room's
entrance and/or any moving parts.
● The height of mounting must be such that the display and optical indications
are approx. 1.6 -1.7m above where the observer stands.
● The station and its components must be protected from dampness and
interfering external influences such as dust, great temperature fluctuations and
mechanical stress.
● The station must be assembled in a place freely accessible to authorized staff
and the emergency services.
● The station must be fitted to a level, non-vibrating wall surface with load
bearing capacity using suitable mounting materials (e.g. screws and plugs).
● The mounting surface and selected mounting must be suitable for the weight of
the equipped station incl. the batteries used.
● The station may only be fitted using the 19" method if using the associated
components.
● Mounting is not permitted in rooms with high levels of electromagnetic
interference, e.g. in control rooms or right next to power cables and inductive
loads.
5
WARNING
Electric shock
● Mounting and installation work may only be undertaken by qualified staff and
WARNING
Risk of fire, for example due to the batteries overheating
● If the station is mounted on a flammable wall, all cut-out sections for the
NOTICE
Damage to electronics
● Suitable protective measures must be taken when working with electronics
Building Technologies
23 |
Page 24
Mounting
Mounting instructions
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5.2.1 Surface-mounted assembly
● Any surface irregularities can be compensated with washers or wooden
wedges.
● The rear panel is attached to the wall using screws with a diameter of 6 mm.
● The supplied edge protection strip must be placed around rectangular breakout
openings.
● Depending on the cable type, up to 8 cables can be fed through each round
opening (20 mm with rubber grommet).
● Only one cable may be fed through each screwed cable gland (not within the
scope of delivery).
Mounting steps
1. Break out the required cable openings on the rear panel.
Signal and control cables must be fed into the housing from above or from the
rear (EMC protection).
2. Screw in the cable gland for the power cable (Ø 20 mm), or insert a rubber
grommet.
3. Mark the bore holes for the dowels using the supplied drilling template. The
cardboard cover in the packaging is also the drilling template. The holes in the
cardboard cover correspond to the mounting holes in the rear panel.
The holes can also be marked using the information in the product insert.
4. Drill the holes and insert the supplied dowels.
5. Attach the housing using the supplied screws.
6. Stick the supplied aluminium stickers over all holes for wall mounting.
7. Feed the mains cable into the housing and fix the cable with cable ties.
8. Protect the electronics if necessary using the cover of the packaging or other
suitable means.
9. Regarding the mounting location of the FC721, please adhere to the
instructions in this chapter.
24 | 118
Page 25
Mounting
Mounting instructions
5
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
2
TM
Cerberus
C
3
4
1
Figure 4: Mounting of the FC721
1 Recommended display height approx. 1.6 to 1.7 m
2 Width of the FC721: 430 mm
3 Distance from door of at least one door leaf width
4 Height of the FC721:
● 398 mm
● Plus additional housing (Standard) = 796 mm
Building Technologies
25 |
Page 26
Mounting
Mounting instructions
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5
5
2
6
7
Assembling the FC721 and additional housing (option)
The FC721 is supplied inside the Eco housing.
An additional empty housing (Standard) can be assembled and connected for a
larger battery capacity. This has space for an additional 150 W power supply and
larger batteries. The additional housing is mounted directly below the FC721 and is
screwed onto it.
The empty housing (Standard) consists of the following components:
● Rear panel
● Operator unit (empty)
● Cover cap
X8 X7 X6 X11
1
X1
X3
X8
X3X400
3
4

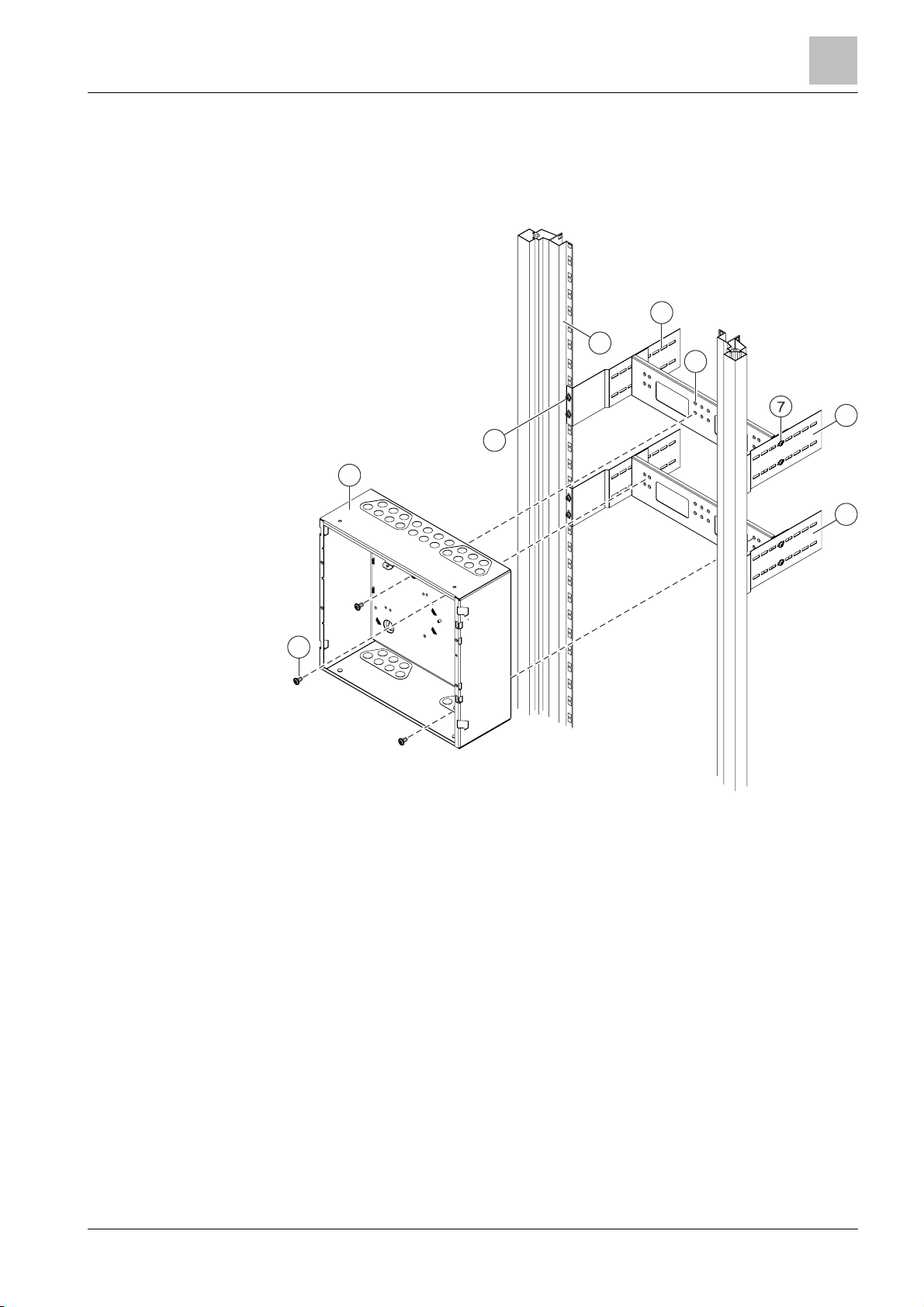

Figure 5: Assembling the FC721 and additional housing (option)
1 FC721 with the 3 mounting points
2 Cable entries
3
Additional empty housing (Standard)(empty) for optional power supply
(150 W)
4 Mounting points for wall mounting
5 Holes for housing assembly
6 Break-outs for cable entry
7 Break-out holes for cable entry
26 | 118
Page 27
Mounting
Mounting instructions
5
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Mounting steps
1. Break out the required openings for feeding the cables at the bottom of the
FC721 and the mounting holes for assembling the housing.
2. Break out the required openings for feeding cables and the mounting holes for
housing assembly at the top on the rear panel of the extra housing.
3. Attach edge protection strips or rubber grommets at the openings for the
cables.
4. Fasten the rear panel of the additional housing in the same way as for the
FC721. Make sure that the alignment is exact.
5. Stick the supplied aluminium stickers over all holes for wall mounting.
6. Attach the two housings to one another by putting screws through the mounting
holes in the bottom and the cover.
Building Technologies
27 |
Page 28
Mounting
Mounting instructions
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
From IP5, the PMI & mainboard FCM2027 is used. You will find detailed
6379845
5.2.2 Mounting and wiring the operating unit
information in document A6V10210368.
2
1
Figure 6: View of an FC721 with open operating unit
1 Connection (X3) for the ribbon cable on the periphery board
2 Hinge
3 Cable routing to the optional components
4 Cable ties for fixing the cables
5 Operating unit
6 Holes for securing the operating unit
7 Connection (X3) for the ribbon cable on the PMI & mainboard
8 Ribbon cable from the periphery board to the PMI & mainboard
9 Plastic clip for securing the ribbon cable
28 | 118
Page 29
Mounting
Mounting instructions
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
2
3
1
Figure 7: Detail view of the hinge of the operating unit
1 Cut-out section on the rear panel for the hinge of the operating unit
2 Hinge of the operating unit
3 Screw for securing the hinge
Mounting steps
5
1. From the rear side, hang the operating unit by inserting the hinges (2) into the
openings in the rear panel of the housing (1).
2. Hold the operating unit in place and secure the hinges (2) with the screws (3).
3. Insert the connection cable to the periphery board into the respective plug-in
positions (1 and 5) as shown in the figure.
4. Stick the supplied cable support to the inner right side of the station at the
same height as the cable and fix the flat cable.
5. Route the cables (3) of the operating unit options to the FC721 as indicated
and fix these cables with cable ties (4).
6. Insert the supplied inscription strips underneath the operating unit foil as shown
in the illustration.
7. Swivel the operating unit towards the FC721 and secure it using the four
screws.
Building Technologies
29 |
Page 30
Mounting
Mounting instructions
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
3
4
2
1
Figure 8: Inserting the inscription strips into the operating unit
1 Inscription LEDs 3 Inscription standard keys 2
2 Inscription standard keys 1 4 Inscription station type
30 | 118
Page 31
Mounting
LED module
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5.3 LED module
C
3

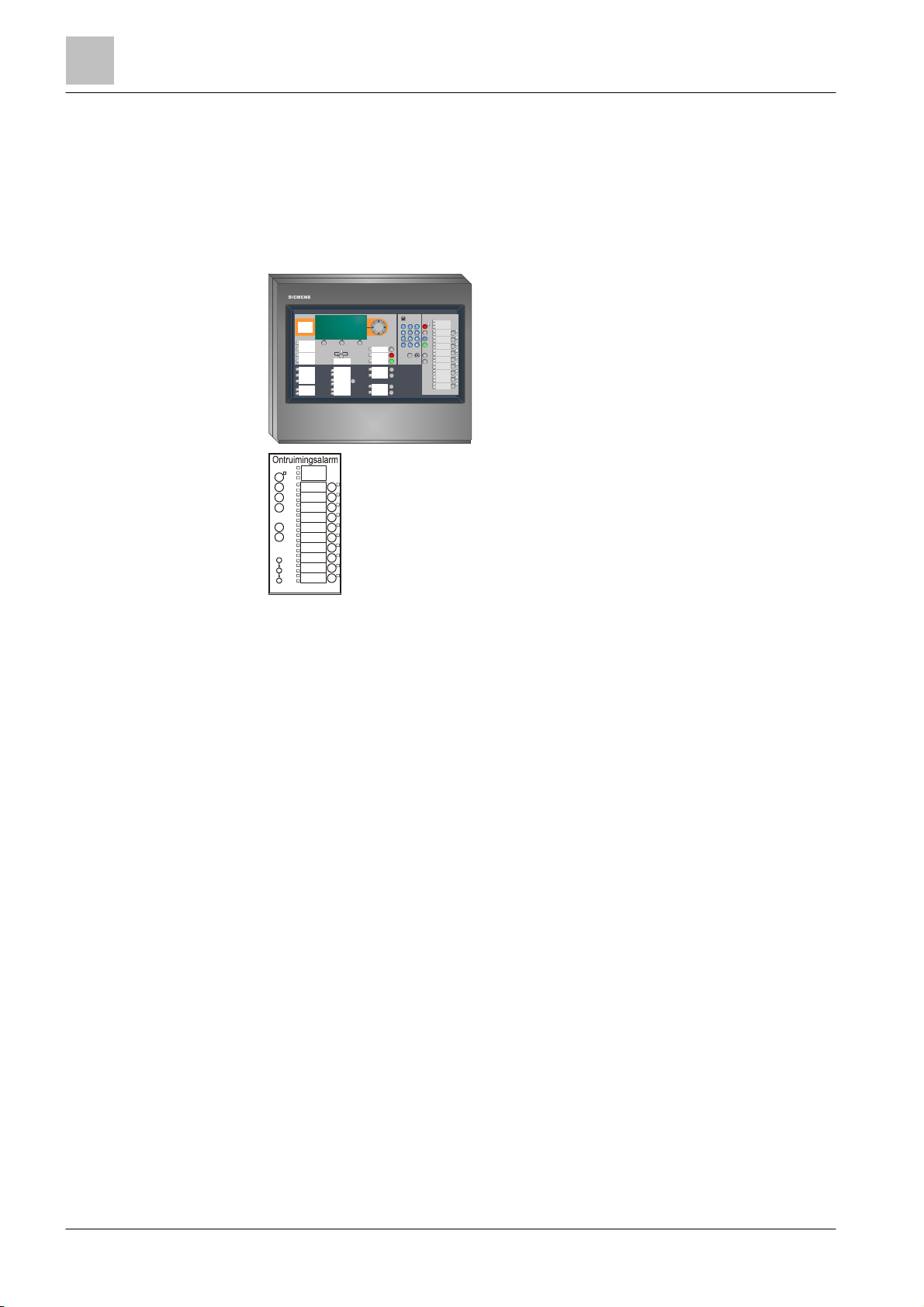

The LED module installed in the FC721-YZ contains 24 groups, each with one
red/green and one yellow LED. Any events can be assigned to the LEDs. Each
LED may be configured as a static or flashing indicator. Normally the LED indicator
is used as a zone indicator.
5
TM
Cerberu s
2
1

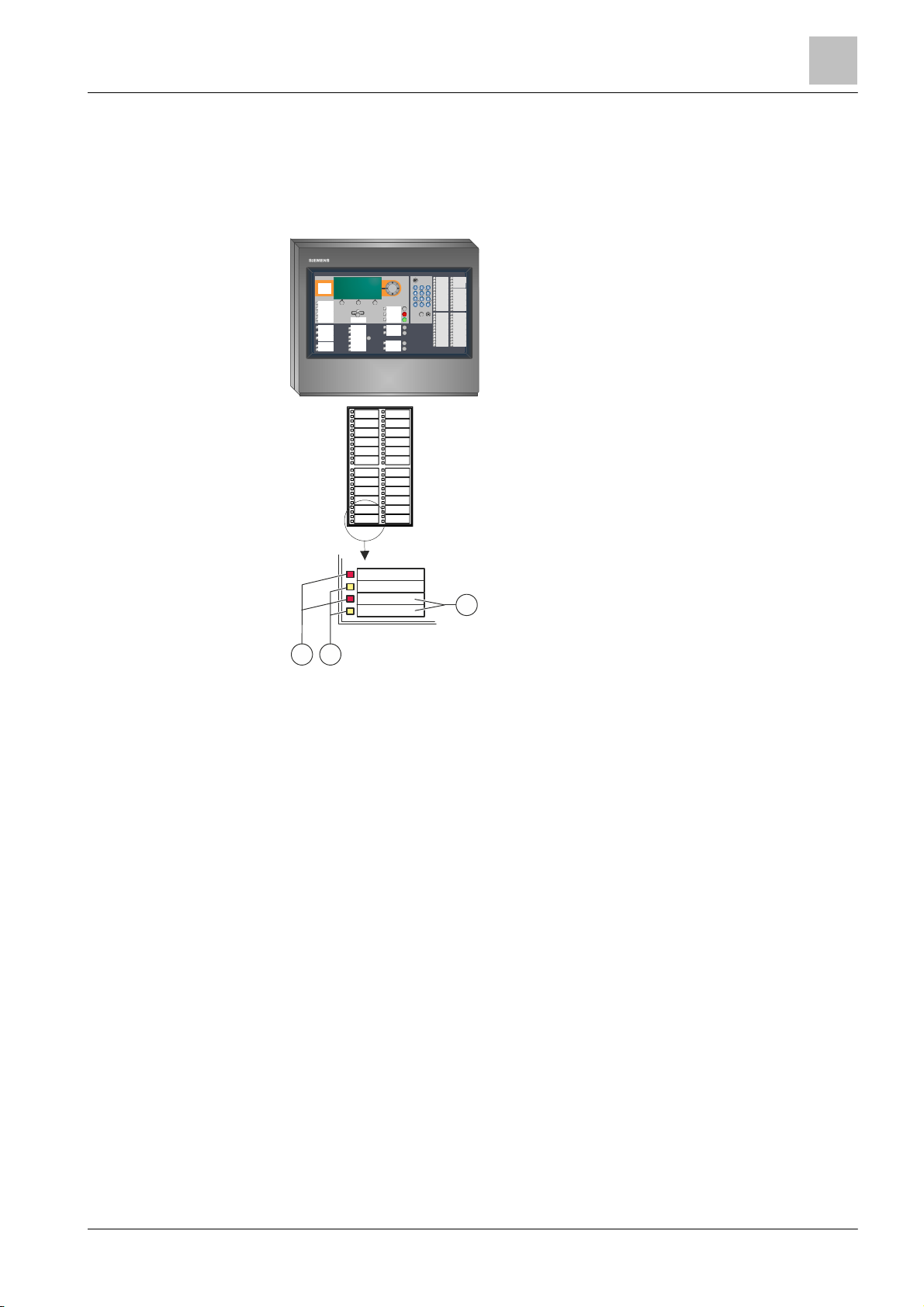

LED indicator (internal)
FC721-YZ with LED module
1 LED, red/green
2 LED yellow
3 Inscribable fields
The LED module is only built into the FC721-YZ and is not individually available as
an option.
Building Technologies
31 |
Page 32
Mounting
EVAC
-
NL operating unit FTO2007
-
N1 [NL] (FC721
-
HZ only)
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
C
Select
5.4 EVAC-NL operating unit FTO2007-N1 [NL] (FC721HZ only)
The EVAC-NL operating unit [NL] is an evacuation control unit for the functions
required in the Netherlands. It enables the operation of a maximum number of 10
evacuation zones.
The EVAC-NL operating unit is connected to the station-internal bus.
TM
Cerberus
Totaal
Alarm
Zoeme
uit
Start
Stop
IN/UIT
LED
TEST
Start
Stop 2x
FC 721-HZ with EVAC-NL operating unit
FTO2007-N1 [NL]
Operating and display panel for EVAC-NL
operating unit FTO2007-N1 [NL]
EVAC-NL operating unit
FTO2007-N1
The EVAC-NL operating unit is not individually available as an option.
32 | 118
Page 33
Mounting
Options
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5.5 Options
3
4
5.5.1 Fitting extra relay
2
1
5

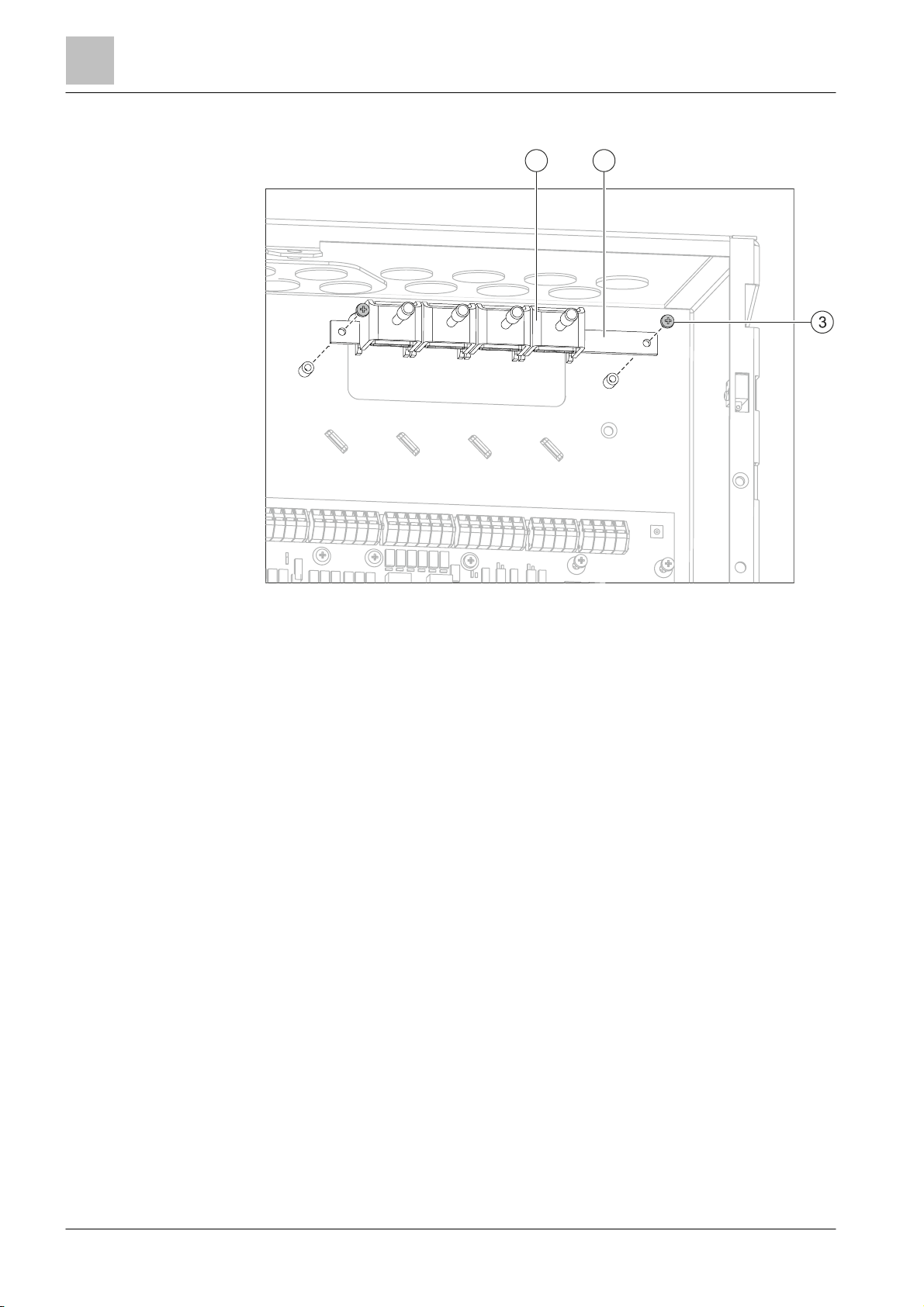

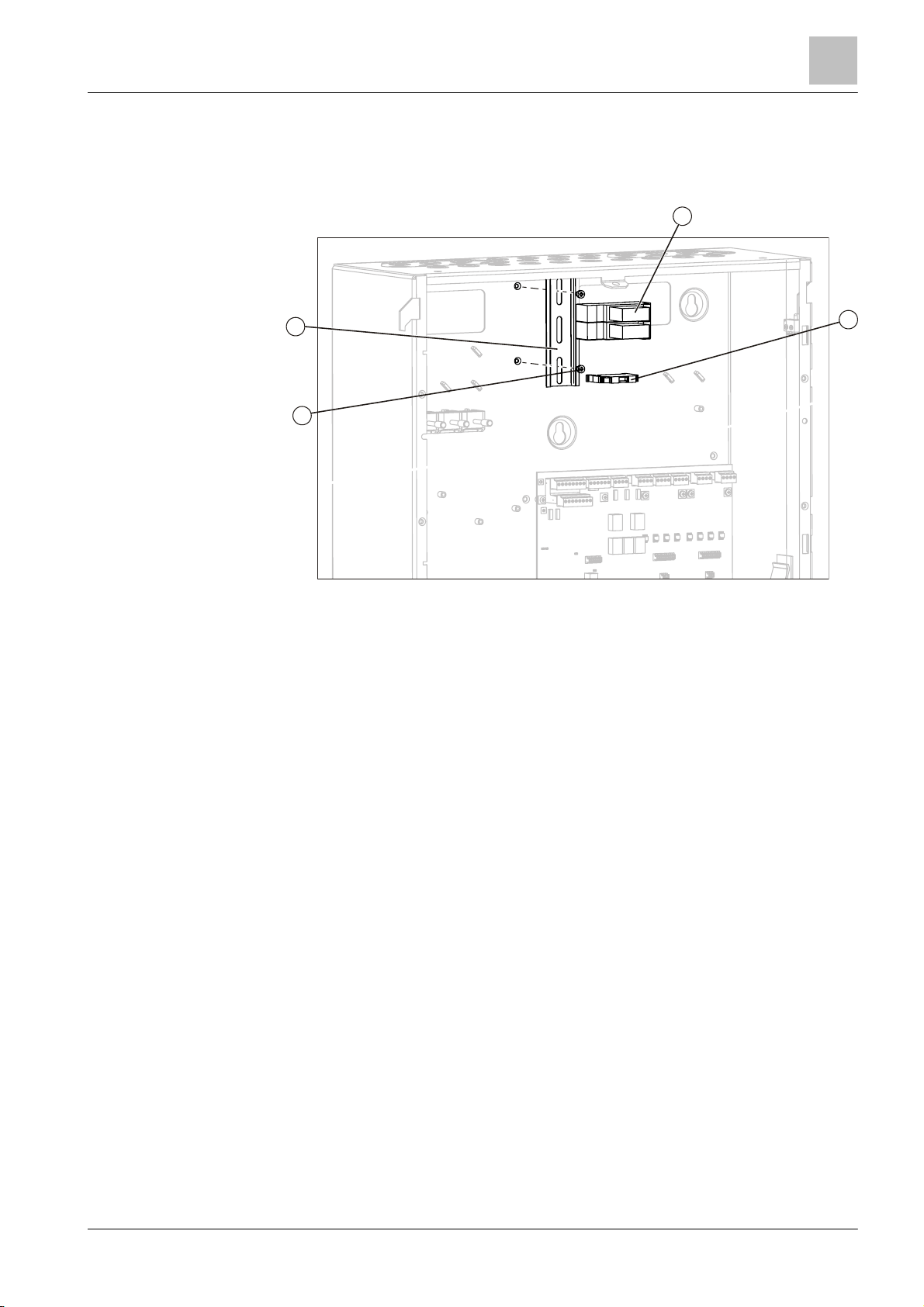

Figure 9: Mounting of two relays
1 Fixing screws for the DIN rail 3 Relays 1 + 2
2 DIN rail 4 End clamp for the relays
Mounting steps
1. Insert the relays (3) on the DIN rail (2) and press them down until they latch.
2. Mount the end clamp (4) to secure the relays.
3. Depending on their intended use, connect the relays to the configurable control
outputs of the periphery board. For the pin assignment, refer to the product
characteristics of the respective periphery board.
Building Technologies
33 |
Page 34
Mounting
Options
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
This component is installed in exactly the same way as for the operating units
1
2
5.5.2 Installing an RS232/RS485 module
with the PMI & mainboard FCM2004 and the PMI & mainboard FCM2027.
No more than one single interface module (RS232 or RS485) can be installed in an
FC721.
The serial modules include:
● RS232 module (isolated), FCA2001
● RS485 module (isolated), FCA2002
These modules are mounted in the slots designed for them on the operating unit.
The mounting procedure of the two serial modules is the same for all modules.
Space and location
Figure 10: Installation location of the serial modules
1 RS232 module in slot X14 or 2 RS485 module in slot X19
34 | 118
Page 35
Mounting
Options
5
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
4
X14X3X19
X2
3
1
Figure 11: Installation of the serial modules
1 RS232 module in slot X14 6 RS485 module in slot X19
2 2x fixing screw X14 Slot for RS232 module on the operating unit
3 Mounting links on support plate X19 Slot for RS485 module on the operating unit
4 Nut for screwed cable gland X3 Connection terminal on RS232 module
5 Screwed cable gland X2 Connection terminal on RS485 module
Building Technologies
35 |
Page 36
Mounting
Options
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Cable glands do not have to be fitted for wiri
ng inside the housing only.
657
8
T
123
4
Mounting steps
1. Mount the cable gland (5) with the nut (4) on the flange between the fastening
tabs (3).
2. Plug the serial module (1 or 6) into the corresponding connector (X14 or X19).
3. Secure the serial module to the fastening tabs (4) using the two screws (2).
4. Wire up the serial module with the intended components according to the pin
assignment.
Pin assignments
The serial modules are connected as follows:
● RS232 module: X3 DTE-HOST
● RS485 module: X2 connector

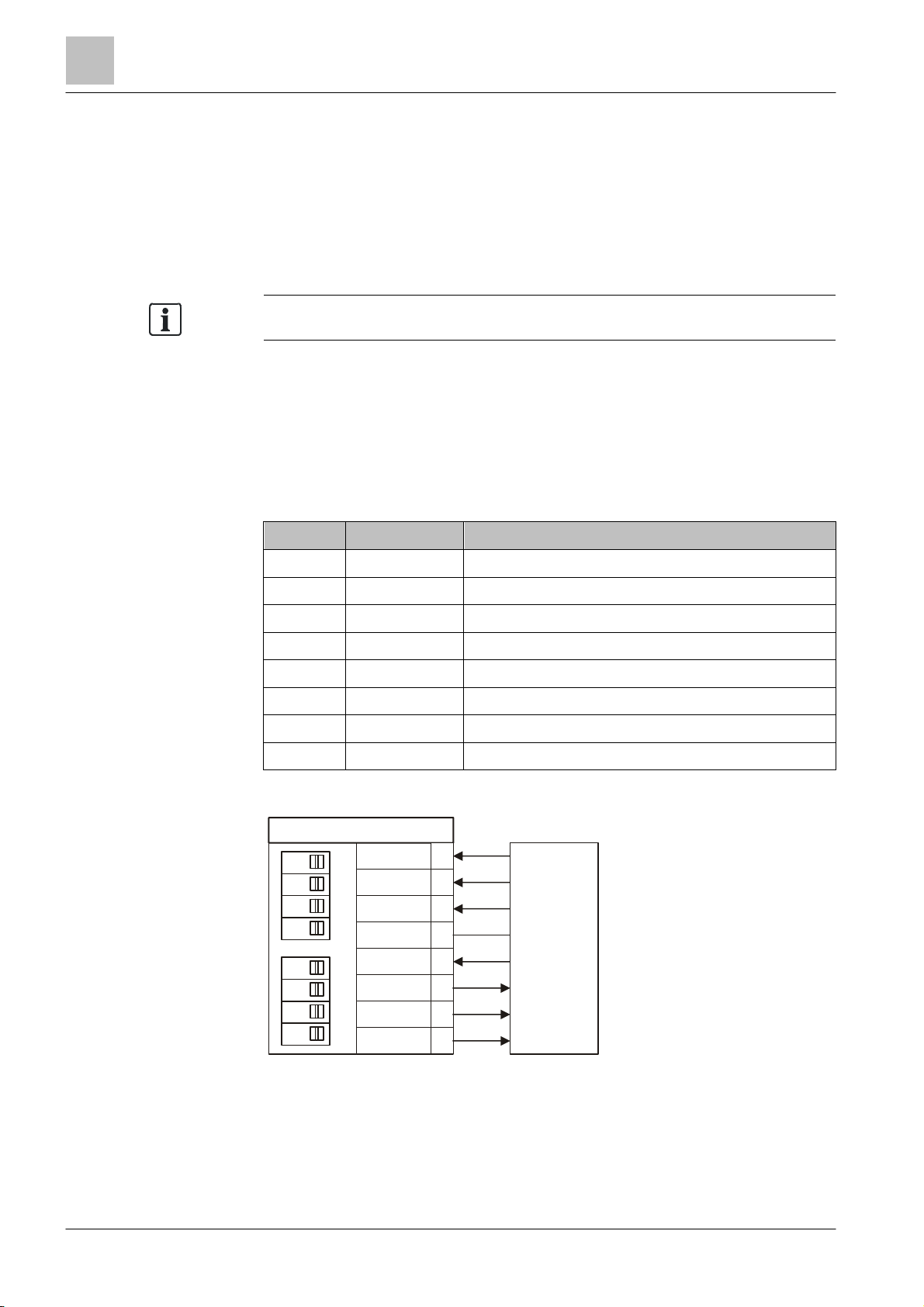

5.5.2.1 X3 DTE HOST on RS282 module
Pin Designation Description
8 ← DCD Data Carrier Detected
7 ← DSR Data Set Ready
6 ← CTS Clear To Send
5 0 V Ground
4 ← RXD Received Data
3 DTR → Data Terminal Ready
2 TXD → Transmitted Data
1 RTS → Ready To Send
Admissible cable cross-section: 0.2…1.5 mm²
DTE-HOST
DCD
DSR
CTS
0 V
RXD
X3
T Participant with RS232 interface
36 | 118
DTR
TXD
RTS
Page 37
Mounting
Options
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15

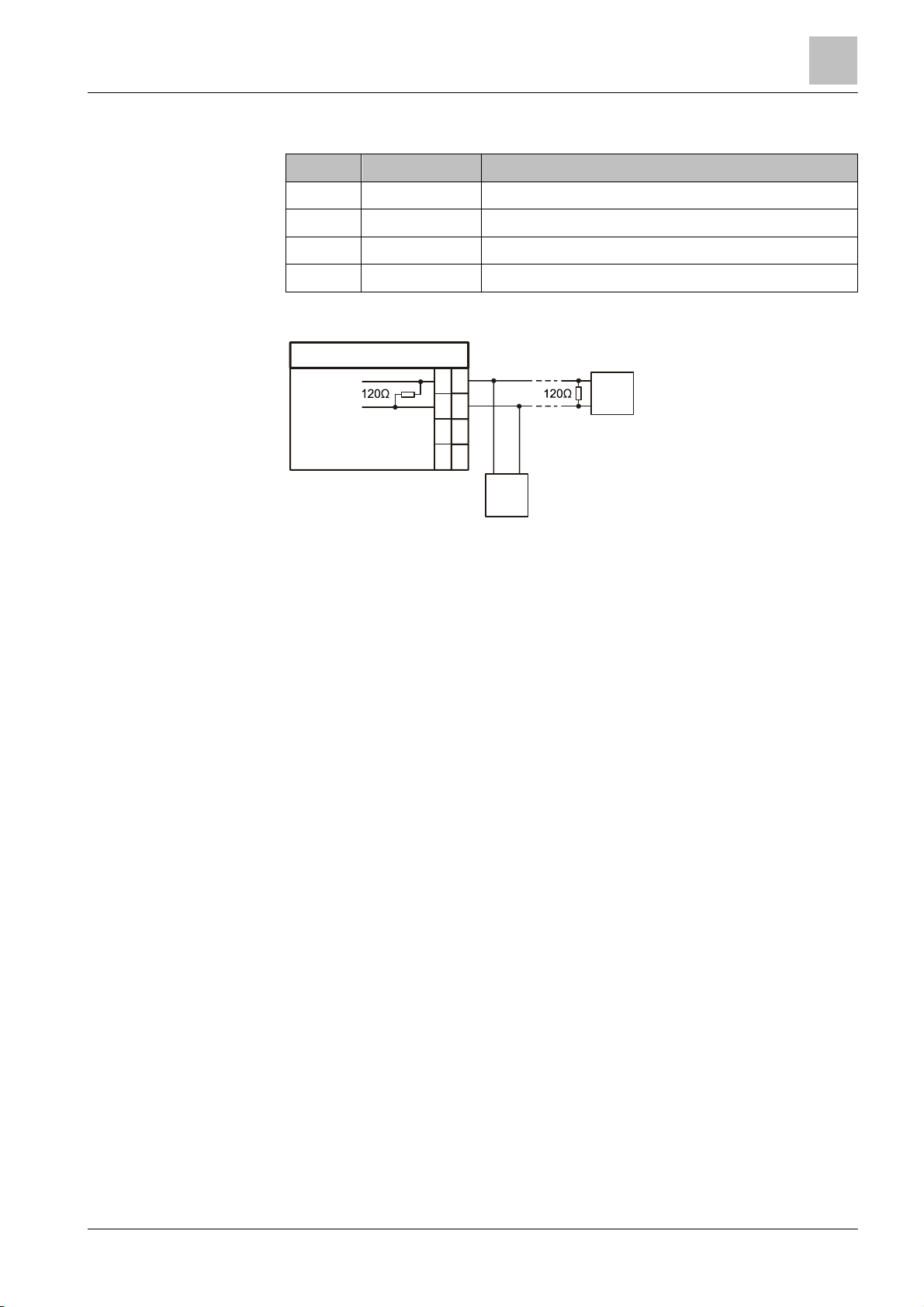

5.5.2.2 X2 on RS485 module
3
4
T1
Tn
2
1
Pin Designation Description
4 RS485_A Line A
3 RS485_B Line B
2 Not connected
1 Not connected
Admissible cable cross-section: 0.2…1.5 mm²
X2
RS485_A
RS485_B
A
B
5
*)
T1 First participant
Tn Last participant
*) Stub lines must not exceed 20 m!
● Consider the polarity A, B!
● Terminate the line after the last participant (Tn) with 120 Ω!
Building Technologies
37 |
Page 38
Mounting
Options
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
2
5.5.3 Install shield connection terminal blocks
1
Figure 12: Mounting of the shield connection terminal blocks
1 Shield connection terminal block 3 Philips screws M 3/6
2 Camp bar
Mounting steps
1. Secure the clamp bar (2) above the rectangular cable breakout opening on the
right with two screws (3)
2. Hang the shield connection terminal blocks (1) onto the clamp bar (2) and
fasten by tightening the knurled screws.
38 | 118
Page 39
Mounting
Options
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5.5.4 Cable kit (communication)
123
4
The cable kit (communication) FCA2014-A1 is used as an intermediate piece for
wiring the external lines to the modules on the operating unit. The connecting
cables supplied are fully assembled and have a length of 1110 mm. The cable kit is
mounted in the top right of the housing instead of the shield connection terminal
blocks.
5
Figure 13: Installation of the cable kit (communication) on the rear panel (example, Standard housing)
1 Screw bushings in rear panel for terminal strip
2
Terminal strip with 2 shield connection terminal blocks and connection
terminals
3 2x fixing screws
4 Periphery board
Mounting steps
1. First remove the shield connection terminal blocks if present.
2. Screw the mounting rail (2) to the screw bushings in the rear panel (1) using
the two fixing screws (3).
3. Now wire the existing module to the operating unit using the cables provided
according to the allocation plan of the respective module.
4. Guide the cable to the operating unit along the rear panel and fasten using
cable ties.
Building Technologies
39 |
Page 40
Mounting
Options
5
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
1
2
1
2
5.5.5 Insert license key
The license key (S1) FCA2033-A1 is inserted in the corresponding holder on the
rear of the operating unit.

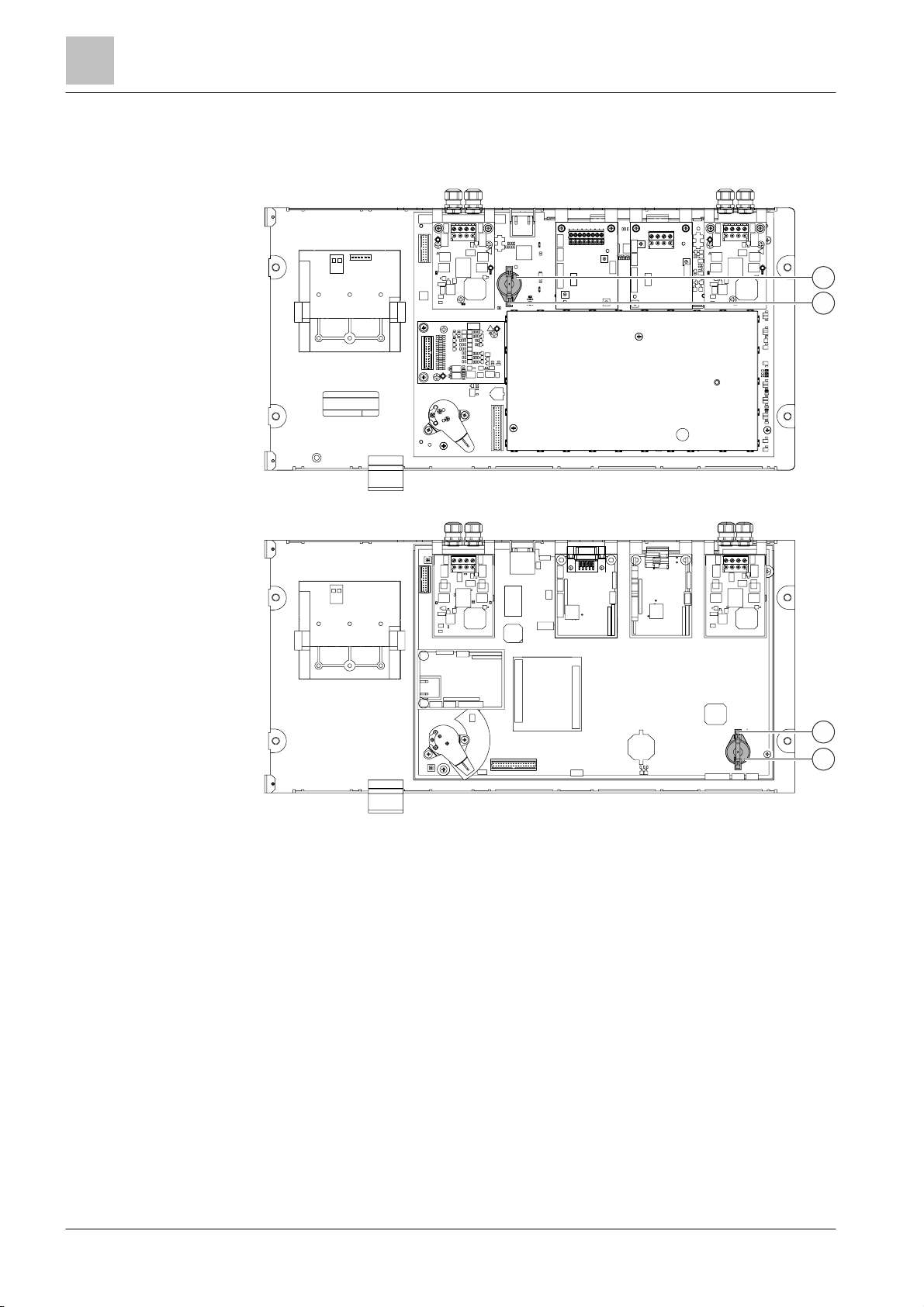

Figure 14: Using the license key on the operating unit with PMI & mainboard FCM2027
40 | 118
Figure 15: Using the license key on the operating unit with PMI & mainboard FCM2004
1 Holder for the license key 2 License keys
Inserting
κ Raise clamp of retainer (1) slightly and push the license key (2) underneath the
clamp with the inscription pointing downward (broader, flat side to the top).
Page 41
Mounting
Options
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
5.5.6 19" mounting kit
5
6
984
The 19" mounting kit FHA2016-A1 serves as a retainer for installing a station into a
19" rack or into a 19" cabinet. To fix a station, the two retainers enclosed with the
kit must be mounted.
The mounting instructions described below apply to all housing types.
2
5
3
1
Figure 16: Installing the 19" mounting kit, taking the example of the Standard housing
1 Fixing screws for the station (3x or 5x), M5 x 10 pan head screws
2 Rear panel of the station
3
Fixing of the crossbars on the 19" housing or rack (2 screws each) with M5 x
10 pan head screws
4 19" housing or rack
5 19" cross bars (4x per kit)
6 19" housing brackets (2x per kit)
7
Hexagonal fixing screws M6 x 12 for housing brackets (2x per side) and
washers M6
8 Top 19" retainer
9 Bottom 19" retainer
Building Technologies
1. Screw the 19" crossbars to the housing bracket. Consider the installation depth
of the station.
2. Secure 19" retainers to 19" rack or in 19" cabinet. Consider the mounting
height of the station.
3. Fix the station on the housing brackets.
41 |
Page 42
Installation
Options
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
High voltage! Danger to life!
cables.
Overvoltage
modules.
6 Installation
The following installation instructions refer to the specifications of the EN 54
standard and the manufacturer's recommendations. The installation may only be
undertaken by an electrician. Detailed instructions can be found in the system
documentation.
● Use a suitable cable, e.g., NYM 3 x 1.5 mm2 (max. 2.5 mm²) or a cable type
with similar performance features to connect the AC voltage from the line
supply.
● The line voltage fuse must be designed for a current level of 10 A.
● The mains connection cable must be routed into the control panel housing from
above or from the rear.
● Provide a suitable mains separator or an appropriately labeled automatic cutout
for the mains voltage connection.
● The nominal voltage required (AC 230 V or AC 115 V) is stated on the control
panel type plate.
● Use a separate residual current unit for residual current circuit breakers.
Depending on the installation conditions, voltage surge protection (primary
protection) is required for the mains connection.
Planning and system limits
Before the installation, check whether the system's planning is suitable for the
system limits. This applies e.g. to all technical data and details of cable lengths,
number of line devices, number of networked stations, battery capacity and
compliance with requirements from standards and national guidelines and local
requirements.
Details of planning can be found in the system documentation.
Information about lightning protection
Further information and detailed specifications relating to producing a lightning
protection concept can be found in the relevant literature and associated
standards.
WARNING
Risk of electric shock
● Mounting and installation work may only be undertaken by qualified staff and
when the system is de-energized.
● Only use cable openings or the edge protection strips provided to protect
NOTICE
Damage possible
● Observe the nominal voltage required (AC 230 V) as per the control panel
type plate!
● The fuses used and stated in the factory must not be bypassed or replaced
with any type other than that stated.
● Take appropriate EMC protective measures when handling electronics
42 | 118
Page 43
Installation
Protection elements
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
6.1 Protection elements
Electro-magnetic influence and over-voltages may lead to faults in the fire
detection installation. Protection elements minimize these faults.
All stations are equipped with fine protection and EMC filters in the factory. This
applies to the components listed below:
● All inputs and outputs
● All lines leading away from the stations
If need be, protection elements for primary and intermediate protection must be
added by the costumer. These elements must be mounted at the zone limits (EMC
zone), not inside the stations.
Other possible measures by the customer
In installations that are especially endangered by lightning, surge protectors must
be installed. In case of excessive HF mains overlapping, mains filters must be
installed in the feed line.
Installation
Twisted cables are recommended for external supply lines and lines leading to
alarm devices.
6
6.2 Supply concept
The following table shows which types of energy supply are possible with the
FC721.
Use FC721
AC 230 V + batteries Standard
AC 230 V Possible
2x DC 24 V No
1x DC 24 V No
The following chapters describe the individual energy supplies in more detail.
Building Technologies
43 |
Page 44
Installation
Supply conc
ept
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
The battery monitoring function can be deactivated by means of the hardware or
battery
2
3
4
6.2.1 Operation with battery backup
The ↑ stations are normally operated with a power supply unit and batteries. The
power supply unit feeds the hardware with galvanically isolated system voltage,
simultaneously charging the batteries.
Together with the batteries, the power supply unit assumes the function of an
uninterruptible power supply unit. The batteries are permanently fed via a
monitored output. In case of a mains voltage failure, the batteries take over the
power supply of the control panel without interruption.
The hardware is optimally protected and operational interruptions can be largely
avoided.
This operation mode protects the hardware against the following:
● Voltage loss and undervoltage
● Mains overvoltage (in accordance with EN 54)
● High-energy interfering impulses (in accordance with EN 54)
Station
Power supply
#MAINS
U
mains
~/=
#CONV
U
Sys
1
#BATT U
5

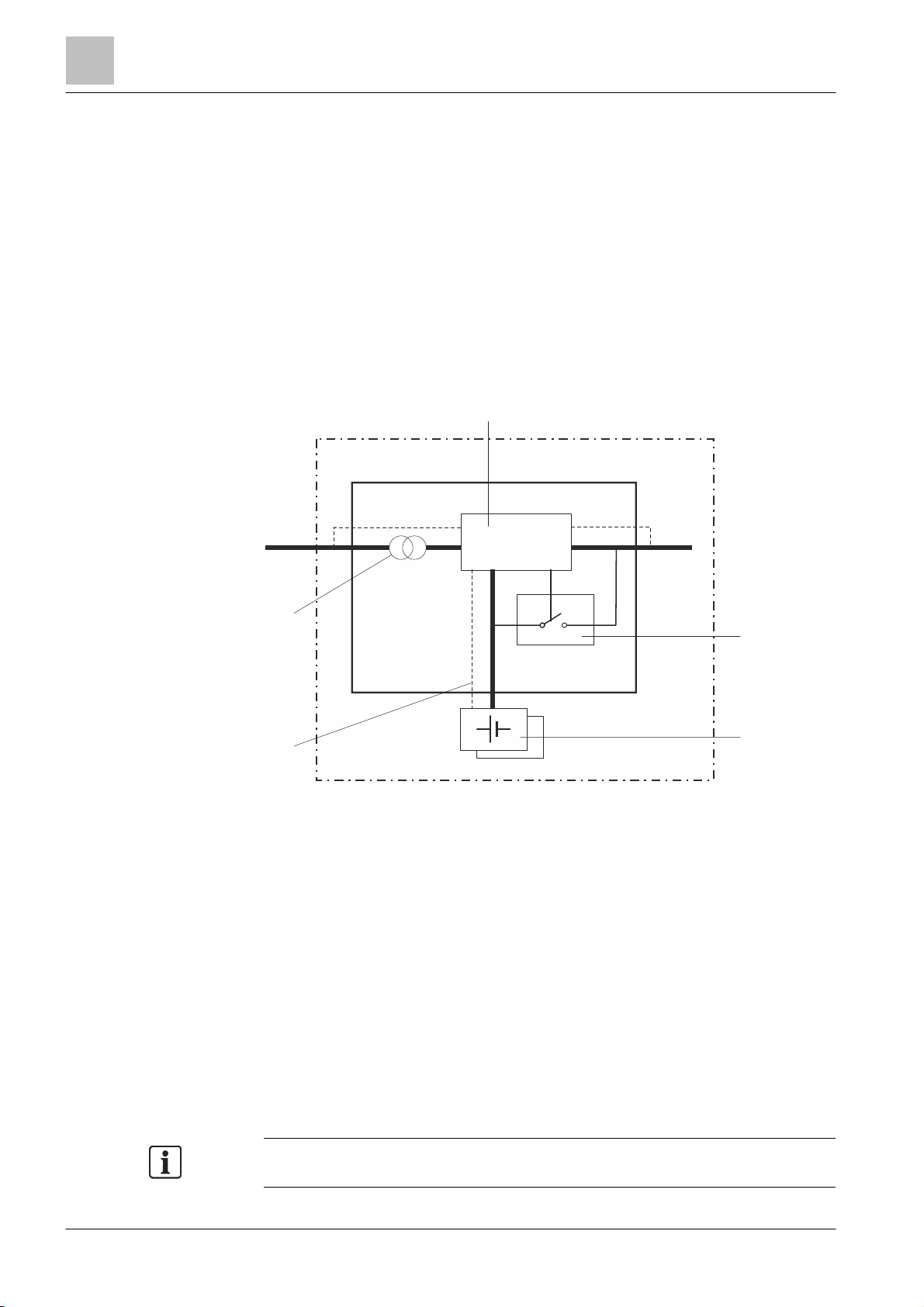

Figure 17: Block diagram, power supply with battery backup
1 Electrical isolation
2 Umains / USys converter
3 Uninterrupted changeover switch
4 Batteries
5 Monitoring functions:
#MAINS: Mains voltage monitoring
#BATT: Battery monitoring
#CONV: Monitoring the output voltage
6.2.2 Operation without battery backup
The stations can be operated without batteries. This operation mode is used when
the stations are operated via a network with external buffering, or when battery
backup is omitted.
Cerberus-Engineering-Tool.
44 | 118
Page 45
Installation
Position of printed circuit boards / components
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
6.3 Position of printed circuit boards / components

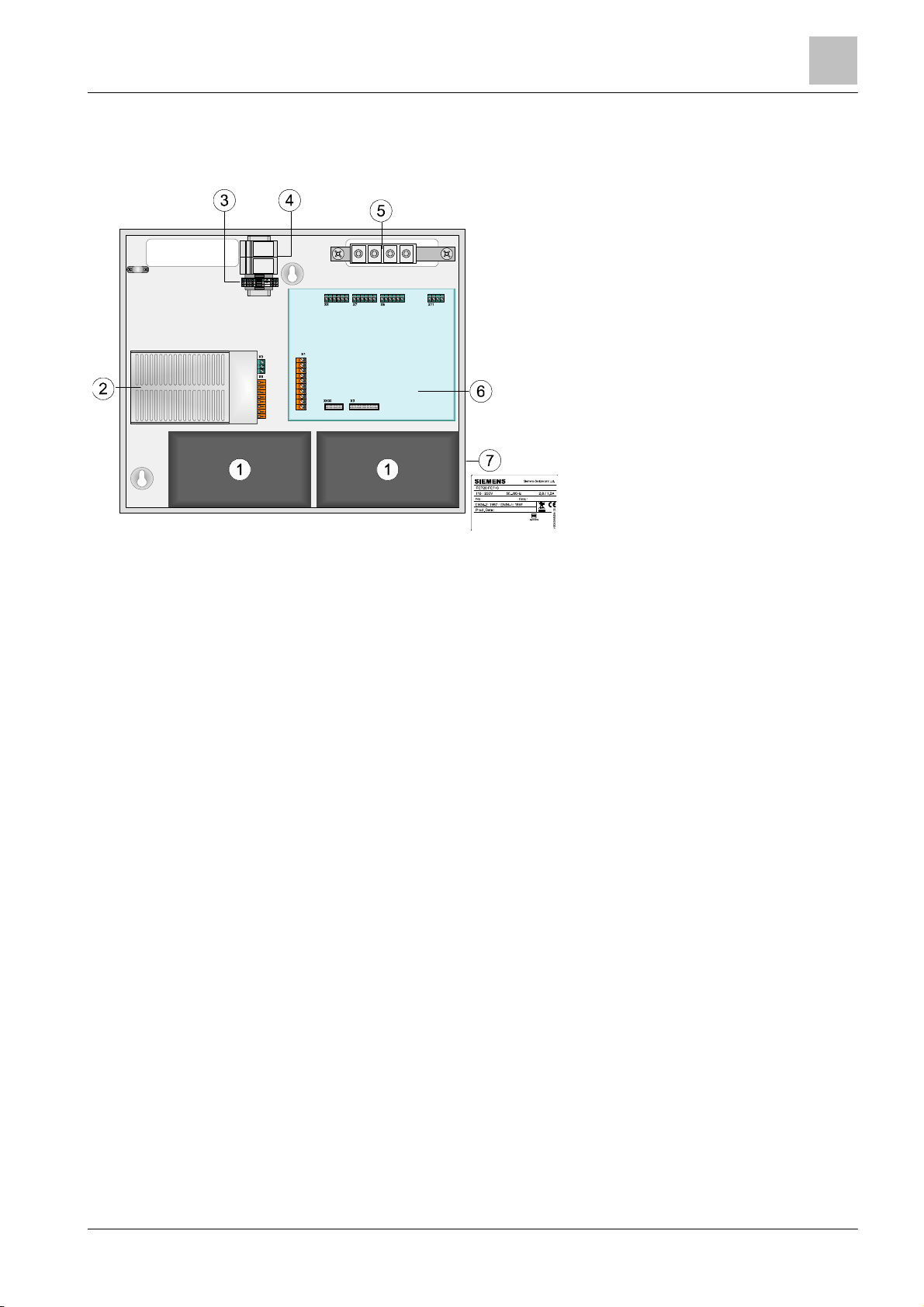

Position of components in the FC721
1 Batteries
2 Power supply 70 W
3
Mains connection terminals
(L1,N,PE)
6 Periphery board (1-loop)
7
Type plate (enclosed, must be
attached to the outside of the
control panel housing at a clearly
visible point)
Options (extract)
4 2 extra relays
5
Shield connection terminal blocks or
cable kit (communication)
6
Building Technologies
45 |
Page 46
Installation
Power supply
-
mains voltage connection
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
X8X7X6
X11
X400X1X3
X8
1
6.4 Power supply - mains voltage connection
When supplied from the factory, the power supply's internal cabling is already
connected.
Power supplies available
● Standard: DC 24 V / 2.5 A, power 70 W, max. battery capacity which can be
connected 17 Ah (in the FC721, no more than 7 Ah due to a lack of space)
● Option: DC 24 V / 5 A, power 150 W, max. battery capacity which can be
connected 45 Ah (only in additional empty housing)
5
6
4
3
X3
2

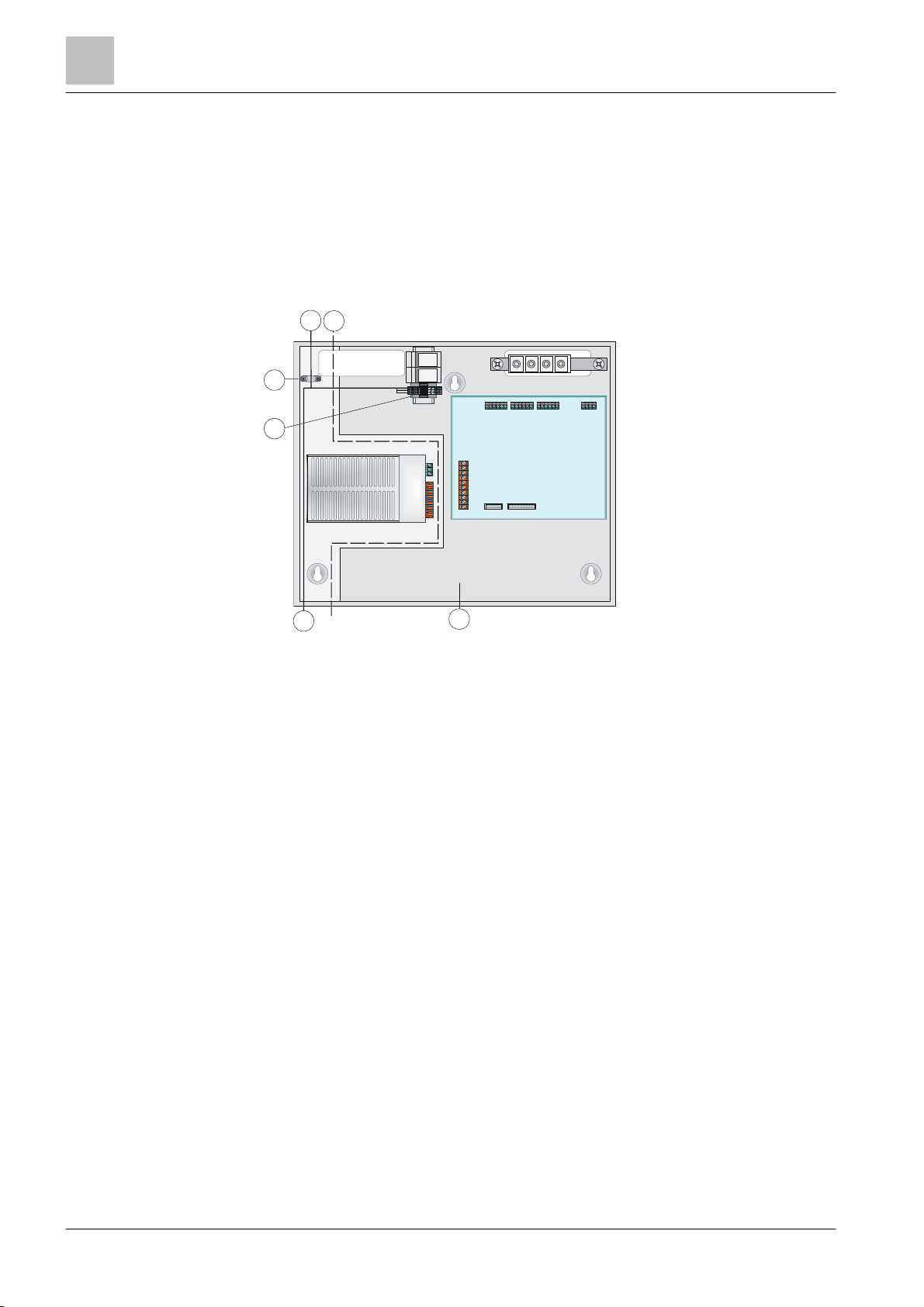

Figure 18: Mains connection
1
EMC-critical zone (no high-voltage power
4 Cable strain relief for mains supply line
permitted)
2
Mains connection from below (not permitted when
5 Mains connection from above (recommended)
batteries are fitted)
3 Disconnect terminal blocks 6 EMC boundary
● The network cables must be inserted from above.
● The mains lead must be placed along the left side of the housing (observe
EMC zone boundary).
● Signal and control lines must only be fed into the housing on the right from
above or from the rear.
● Batteries must be installed in the correct positions.
● No cable openings should be made in the base of the housing, unless an
additional empty housing is mounted below the FC721 to accommodate the
batteries.
● The line voltage required (AC 230 V / AC 115 V) is stated on the type plate of
the FC721.
46 | 118
Page 47
Installation
Power supply
-
mains voltage connection
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Connecting mains voltage
High voltage! Danger to life!
locke
d to prevent it being activated.
5
4
3
WARNING
Risk of electric shock
● Before connecting the mains voltage ensure that it is not energized and is
1. Lay the mains cable (5) along the left side of the housing.
2. Insulate the power cable as appropriate and connect it to the disconnect
terminal blocks (3). Use cable end sleeves for wires.
3. Fix the cable in place with the strain relief clamp (4).
4. Secure the cable with cable ties.
Detailed diagram
1
6
2
L1
N
PE

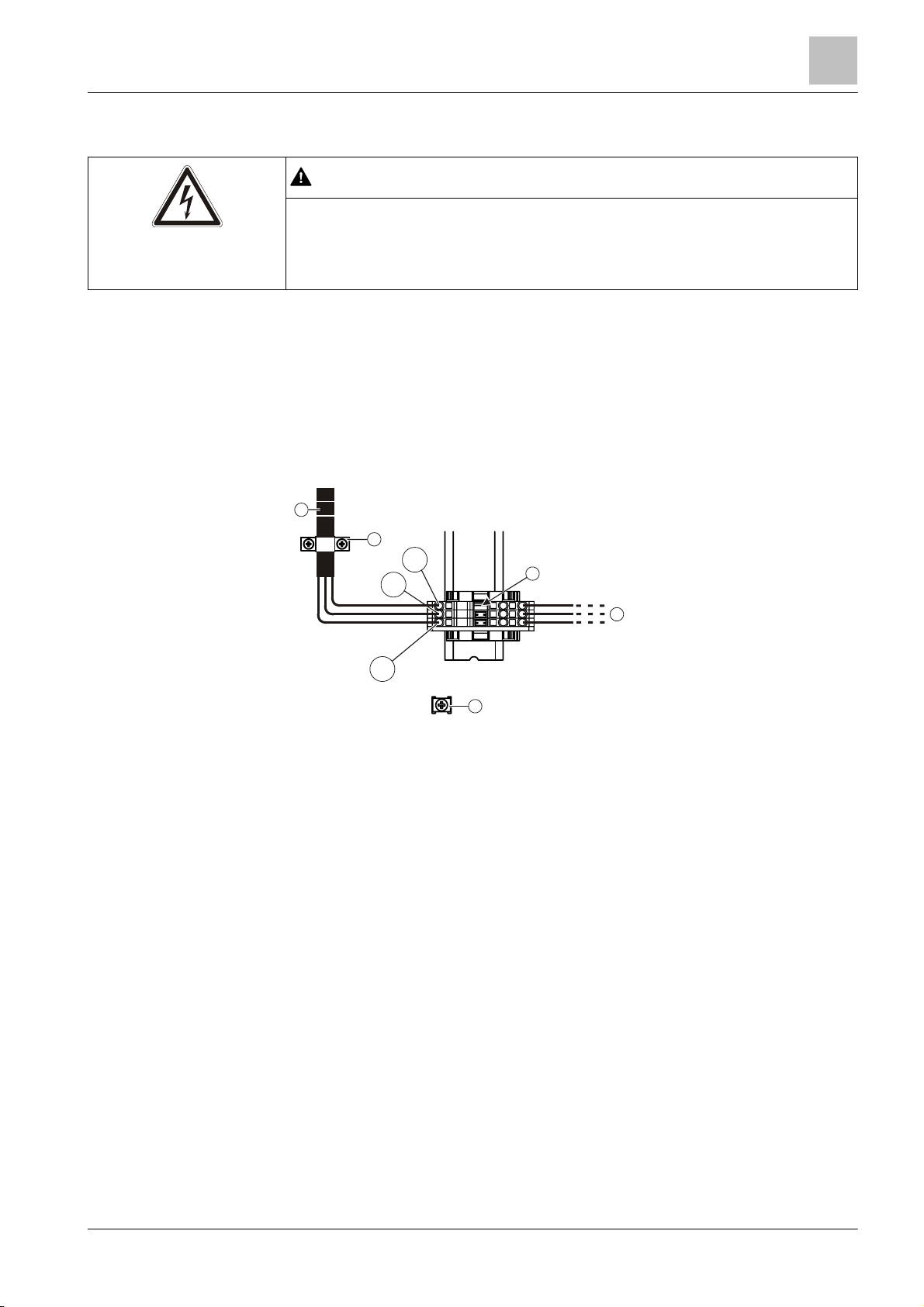

Figure 19: FC721 mains connection (Eco housing)
1
Power cable (supplied from above),
5 Primary cabling for power supply
3 x 1.5 mm2, e.g., NYM cable type
2 Strain relief clamp PE Protective conductor (terminal at the bottom)
3 Ground on the rear panel N Neutral conductor (terminal in the middle)
4 Disconnect terminal L1
External conductor (terminal at the top, with mains
disconnector)
Building Technologies
47 |
Page 48
Installation
Power supply
-
mains voltage connection
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
Additional empty housing
If a power supply (150 W) is needed, this must be accommodated in an additional
empty housing (Standard) together with the batteries.

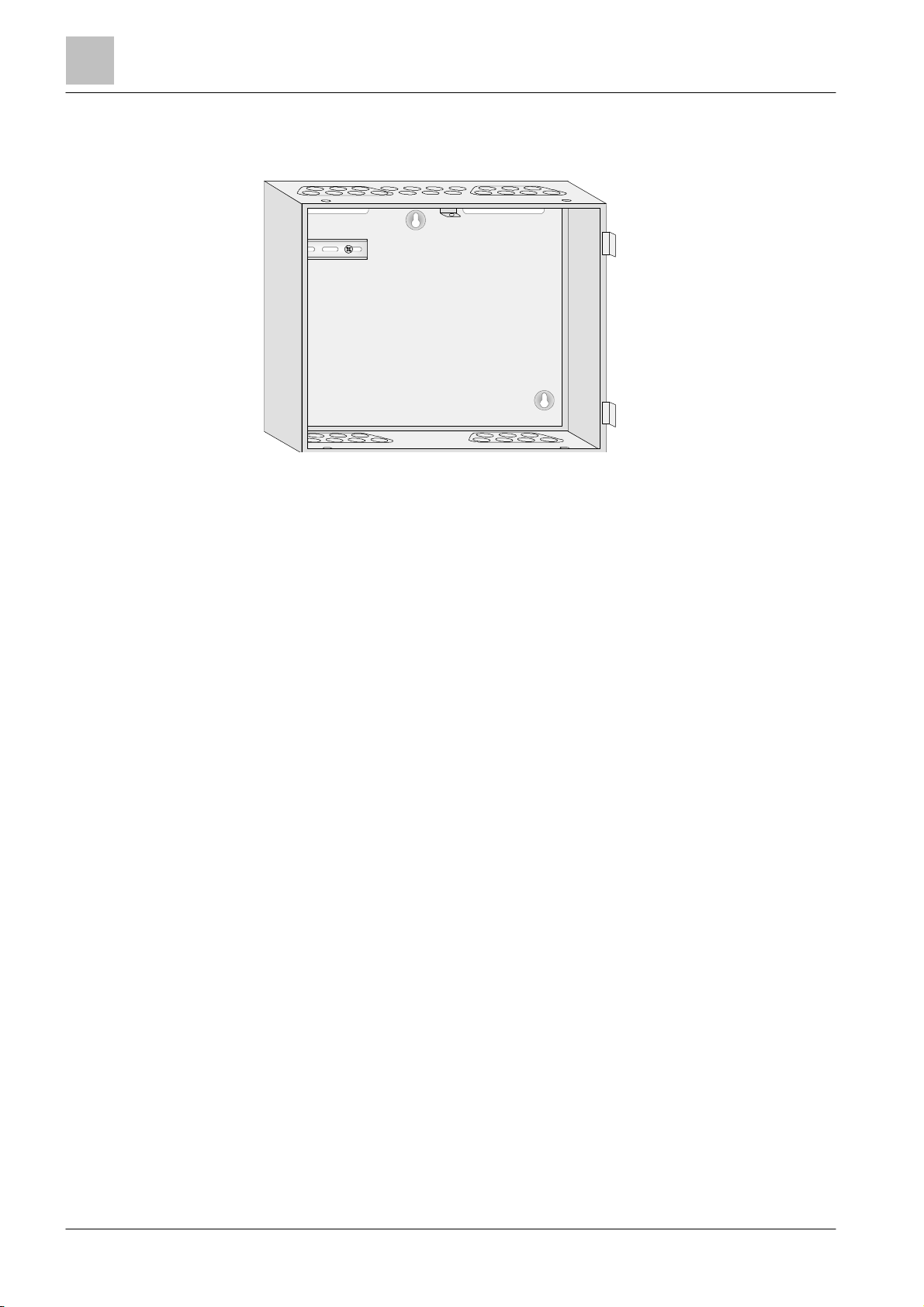

Figure 20:
Housing (Standard) for additional batteries
48 | 118
Page 49
Installatio
n
Power supply
-
mains voltage connection
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
6.4.1 Emergency power supply
Error during configurati
on detection
connected.
Akku 1
Akku 1
N
Should the AC mains voltage fail, the emergency power supply will be provided by
the connected batteries with no interruptions. The emergency power bridging time
depends on the control panel's quiescent and alarm current and the battery
capacity used. Once the emergency power bridging time has lapsed, it must be
possible for the external signal transmitters to be activated in the event of an alarm.
This activation must also be ensured at a battery final voltage of DC 21.2 V.
NOTICE
Additional effort for troubleshooting
● Only connect the battery connection cables (*) once all installation work is
complete because the station will start as soon as the batteries are
6
Akku -

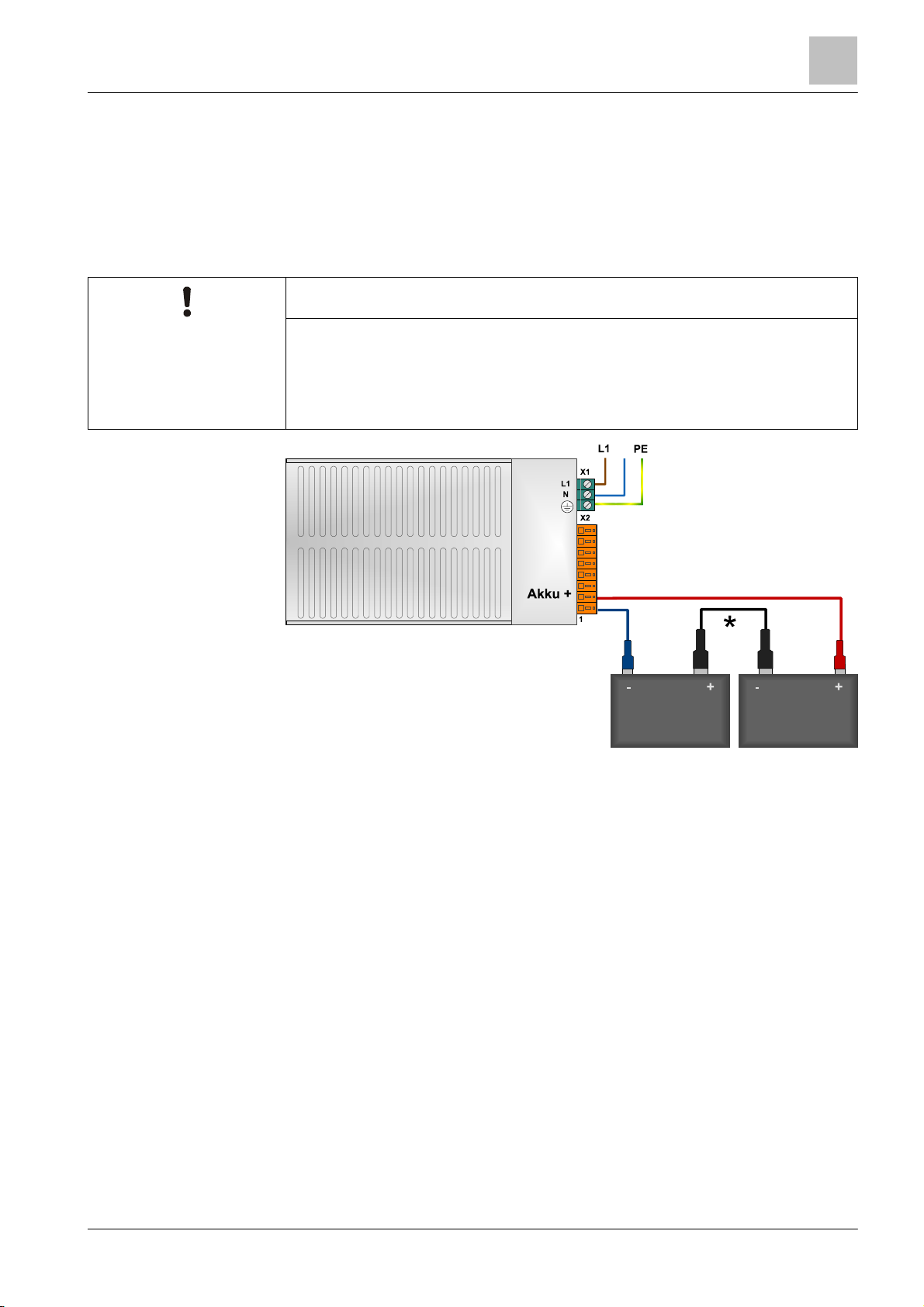

Figure 21: Diagram with battery wiring on 70 W power unit
Emergency power bridging time
Depending on national and local requirements, a bridging time of 72 hours or more
may be needed for the emergency power supply. The battery capacity needed
must be calculated and the calculation checked by measuring the power consumed
during an alarm (with mains voltage deactivated). The Quantities Tool software is
available for calculating the battery capacity.
New batteries / initial commissioning
When using new batteries, they must be charged for at least 24 hours before
commissioning. If the date of manufacture (printed on batteries) is more than nine
months ago, they will need charging for at least 48 hours.
Total discharge
There is no guarantee that totally discharged batteries can be correctly charged
again. Replace batteries that have been totally discharged with new ones. You
may only use the approved battery types for the emergency power supply in fire
detection systems. Also note the details provided by the battery manufacturer.
Building Technologies
49 |
Page 50
Installation
Power supply
-
mains voltage connection
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
6.4.2 Batteries
Calculating the battery capacity
Determine the battery capacity with the following formula:
K
= (I
Batt
R total
* tR + I
A total
* tA) * k
* k
dis
age
K
Batt
I
R total
I
A total
t
R
t
A
k
dis
k
age
Example
K
= ((I
Batt
For 12 h emergency power supply duration:
= ((0.9 A * 12 h) * 1.1 * 1.25) + ((3.5 A * 0.5 h) * 1.1 * 1.25) = 17.2 Ah
Battery capacity in [Ah]
Sum of operating current of all consumers in quiescent condition [A]
Sum of operating current of all consumers in alarm condition [A]
Desired emergency power supply duration in quiescent condition [h]
Desired emergency power supply duration in alarm condition [h]
(standard 0.5 h)
Correction factor for discharge
● k
= 1.1 with ≤12-hour emergency power supply duration. In the
dis
event of a longer emergency power supply duration, the factor can
be omitted.
Correction factor for aging
● k
= 1.25 if the desired emergency power supply duration is ≤24
age
h (according to DIN VDE 0833, part 2). In all other cases, the
factor can be omitted.
R total
* tR ) * k
* k
age
) + ((I
dis
A total
* tA ) * k
dis
* k
age
)
50 | 118
For 24 h emergency power supply duration:
= ((0,9 A * 24 h) * 1.25) + ((3.5 A * 0.5 h) * 1.25) = 29.2 Ah
For 72 h emergency power supply duration:
= (0.9 A * 72 h) + (3.5 A * 0.5 h) = 66.5 Ah
Page 51
Installation
Power supply
-
mains voltage connection
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Determining the battery type
Hardware damage
●
Due to CE conformity only UL94
-
V2 batteries may be used.
Determine the battery type on the basis of the calculated battery capacity (see
table).
Designation Type Capacitance Order number
Battery (12 V, 7 Ah, VDS) FA2003-A1 7 Ah A5Q00019353
Battery (12 V, 12 Ah, VDS) FA2004-A1 12 Ah A5Q00019354
Battery (12 V, 17 Ah, VDS) FA2005-A1 17 Ah A5Q00019677
Battery (12 V, 26 Ah, VDS) FA2006-A1 26 Ah A5Q00019356
Table 2: Permitted batteries
NOTICE
Notes
● To achieve the system voltage of 24 V, two batteries must always be
connected in series.
● Batteries are not included in the scope of supply of the stations and must be
ordered separately.
● The battery capacity determines the charging current. The charging current
must be taken into account when calculating the power supply.
● The dimensions of the batteries are needed to determine the housing type.
6
Restriction of the battery dimensions
● With greater battery capacities, the additional empty housing (Standard) should
be used with a 150 W power supply.
Building Technologies
51 |
Page 52
Installation
Power supply
-
mains voltage connection
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
X7X6X11
6.4.3 Periphery board
Position of connection terminals on periphery board (1-loop) of FC721 fire control
panel.
X8
F401
X1
X3X400

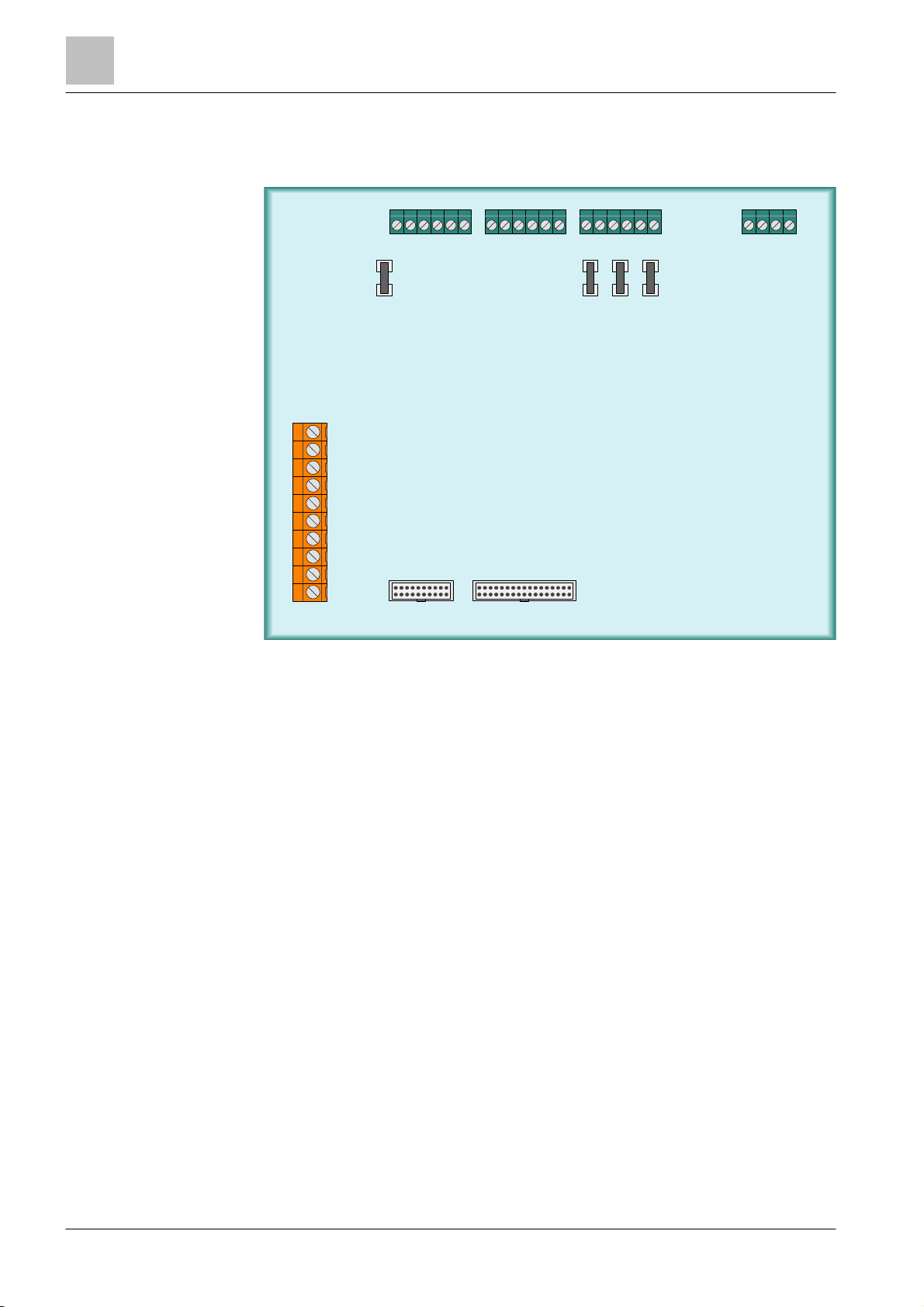

Figure 22: View of periphery board (1- loop)
X1 Connection of power unit
X3
Ribbon cable plug connection to PMI & mainboard (operating unit on
pivot frame)
F400F501F601
X6
Monitored outputs for acoustic signal transmitter, alarm and fault
messages
X7 Changeover contacts for RT Alarm and RT Fault (remote transmission)
X8 Configurable inputs/outputs (1-4), supply voltage Usys 1
X11 C-NET loop 1 or stub 1+2
X400 Ribbon cable plug connection, peripheral data bus
Fxxx SMD fuses 1 A/T
More details of the periphery board (1-loop) can be found in the FS720 system
documentation in the A6V10210368 product data.
52 | 118
Page 53
Installation
Power supply
-
mains voltag
e connection
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15

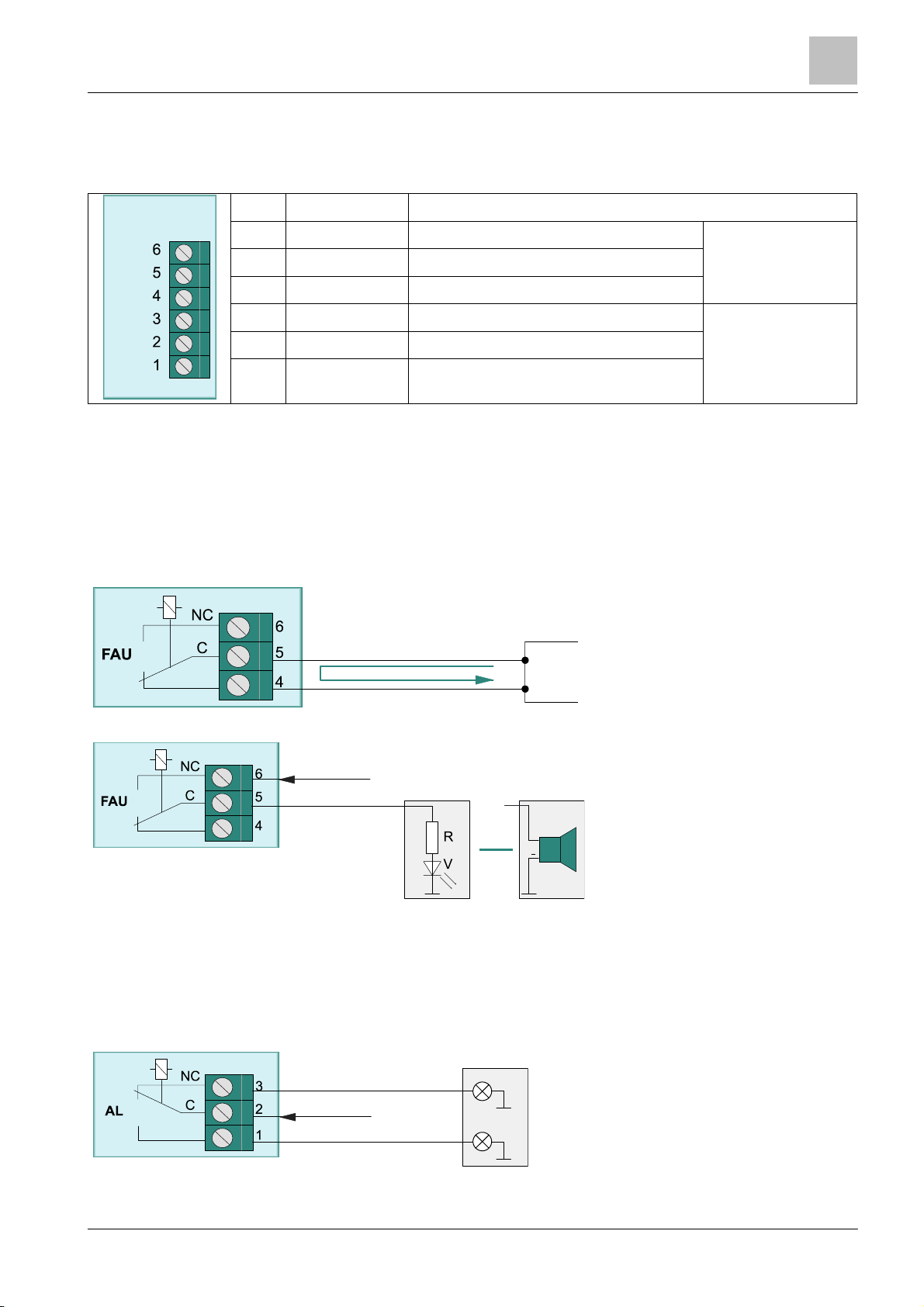

6.4.3.1 Relay for fault and alarm (RT activation)
X7
+
+ Ub (DC)
+ Ub (DC)
Allocation of connection terminals on periphery board (1-loop) of FC721. A cable
cross-section of 0.2 to 1.5 mm2 can be connected to the terminals.
X7 Designation Description
6
NO
6 FAU_NC Break contact fault (normally closed)
5 FAU_COM Center tap fault (common)
Potential-free
directional contact
Max. DC 24 V / 1 A
4 FAU_NO Make contact fault (normally open)
3 AL_NC Break contact alarm (normally closed)
2 AL_COM Center tap alarm (common)
Potential-free
directional contact
Max. DC 24 V / 1 A
1 AL_NO Make contact alarm (normally open)
The relays can be used e.g. for unmonitored activation of external devices.
Fault relay (inverse operation)
The fault relay is activated when at least one station fault has been detected. This
relay is activated when the control panel is in idle mode (NC/C, inverse operation).
In the event of a fault message, the relay changes the switching condition (to NO,
C). Thanks to inverse operation, a fault message will still be sent in the event of the
station losing all power.
Connection to an external monitoring
input (example)
NO
NO
Connection of external control
voltage e.g. for an acoustic or optical
fault message (example)
Alarm relay
The alarm relay is activated when at least one station alarm message has been
detected.
Example of connection with external signal transmitter, e.g. an optical normal
operation/alarm message display.
Normal operation
Alarm
Building Technologies
53 |
Page 54
Installation
Power supply
-
mains voltage connection
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
X6
+
+

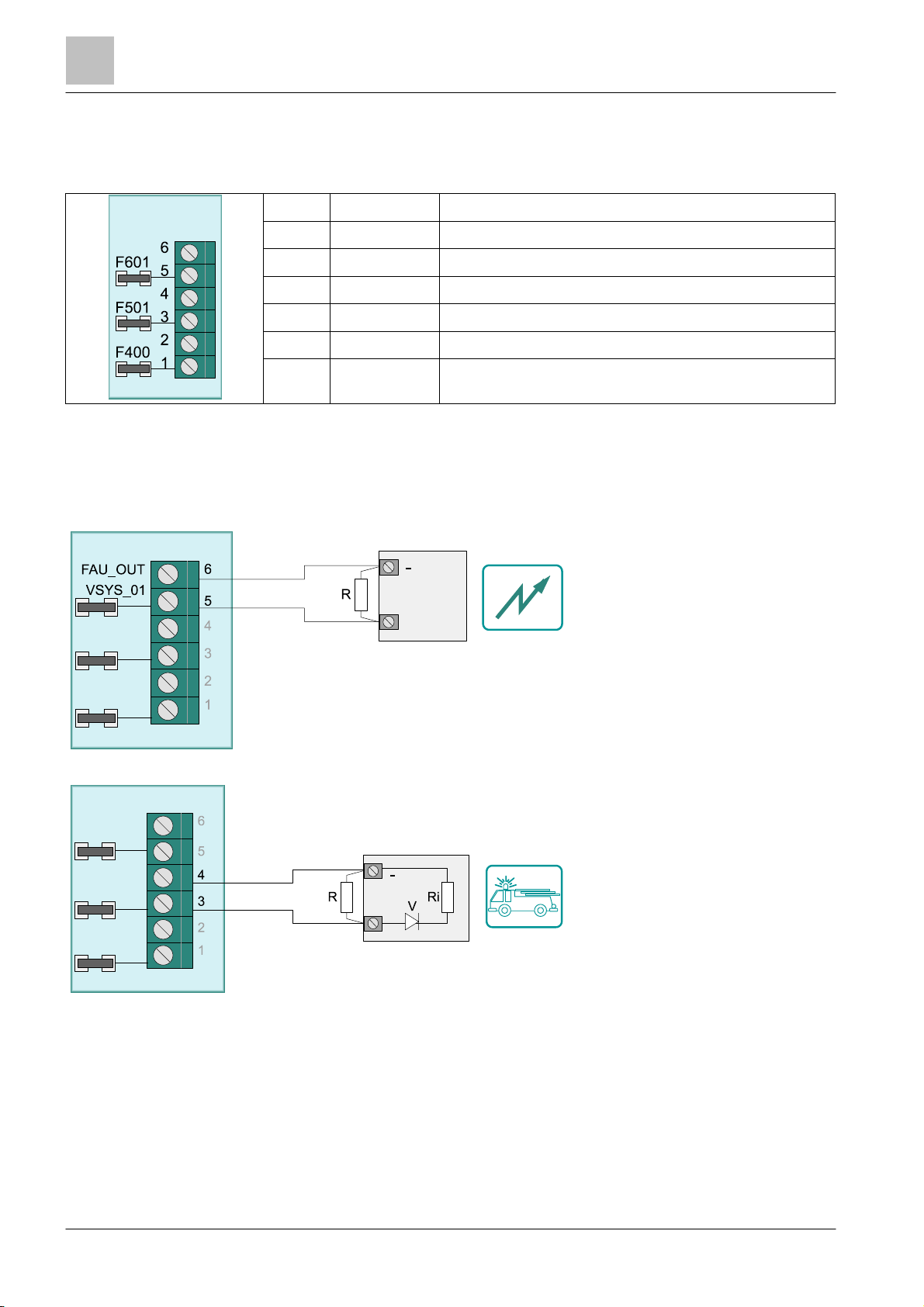

6.4.3.2 Monitored outputs for alarm and fault (FT activation)
Connection terminals on the periphery board (1-loop) of FC721. A cable crosssection of 0.2 to 1.5 mm2 can be connected to the terminals.
X6 Designation Description
6 FAU_OUT Output fault
5 VSYS_O Supply output for consumer fault
4 AL_OUT- Alarm output (-)
3 AL_OUT+ Alarm output (+)
2 SOUND1- Output for acoustic signal transmitter (-)
1 SOUND1+ Output for acoustic signal transmitter (+)
The outputs can be used e.g. for monitored activation of remote transmission
equipment 'RT' (e.g. phone dialing equipment).
The connection lines are switched with a monitoring resistor (termination resistor).
The resistance value stated corresponds to monitored normal operation. All
resistance values outside this range result in a fault message.
AL_OUTAL_OUT+
X6
X6
Enabling example for transmitting a
fault message
Terminating resistor
R = 1.6 kohms – 2.3 kohms
Enabling example for transmitting an
alarm message
Monitoring resistor (R + Ri)
Rges = 2.3 kohms – 5.5 kohms
54 | 118
Page 55
Installation
Power supply
-
mains voltage connection
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
6.4.3.3 Connection of monitored acoustic signal transmitters
X6
+
+
Connection terminals on the periphery board (1-loop) of FC721. A cable crosssection of 0.2 to 1.5 mm2 can be connected to the terminals.
X6 Designation Description
6 FAU_OUT Output fault
5 VSYS_O Supply output for consumer fault
4 AL_OUT- Alarm output (-)
3 AL_OUT+ Alarm output (+)
6
2 SOUND1- Output for acoustic signal transmitter (-)
1 SOUND1+ Output for acoustic signal transmitter (+)
Potential-free
directional contact
Max. DC 24 V / 1 A

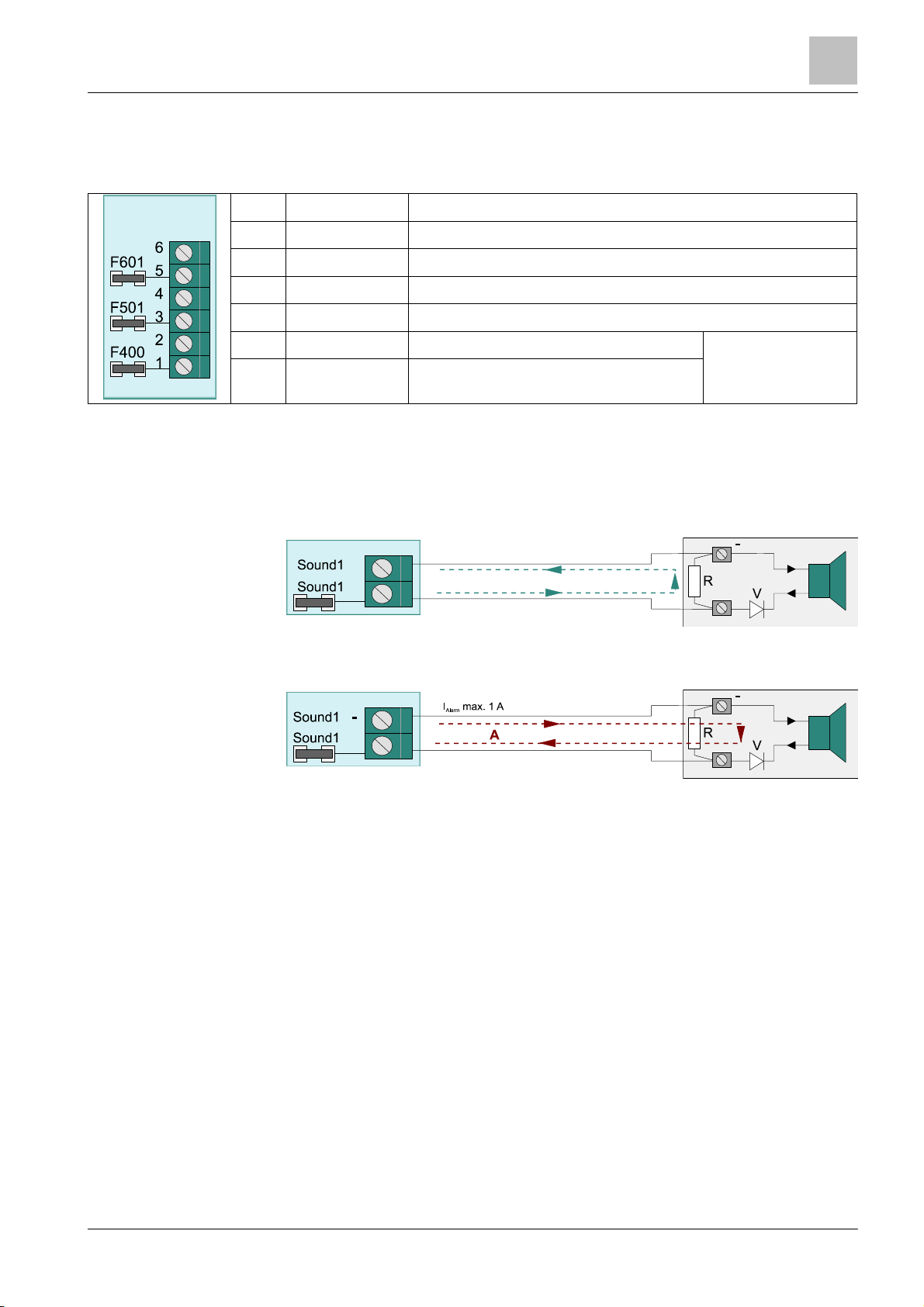

Diagram showing principle
In normal operation, the connection is monitored for wire breaks and short-circuits
on the connection line. A monitoring current flows through the termination resistor
R (2.3 kOhm to 5.5 kOhm). All resistance values outside this range are recognized
as faults. The termination resistor should be connected directly to the connection
terminals of the monitored signal transmitter.
M
In the event of an alarm (with output activated), the polarity on the connection
terminal is reversed and the blocking diode is switched in the conducting direction.
The external signal transmitter is activated with the output voltage (+DC 24 V).
+
Fx ⇒ SMD fuse 1 A/T (on the periphery board)
R ⇒ terminating resistor (coverage area 2.3 kohms – 5.5 kohms)
V ⇒ blocking diode type 1N 4xxxx
M ⇒ flow of current in normal operation (monitoring)
A ⇒ flow of current during an alarm
Note total current of the station (e.g. max. 2.5 A for the 70 W power unit).
Building Technologies
55 |
Page 56
Installation
Power supply
-
mains voltage connection
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
X8

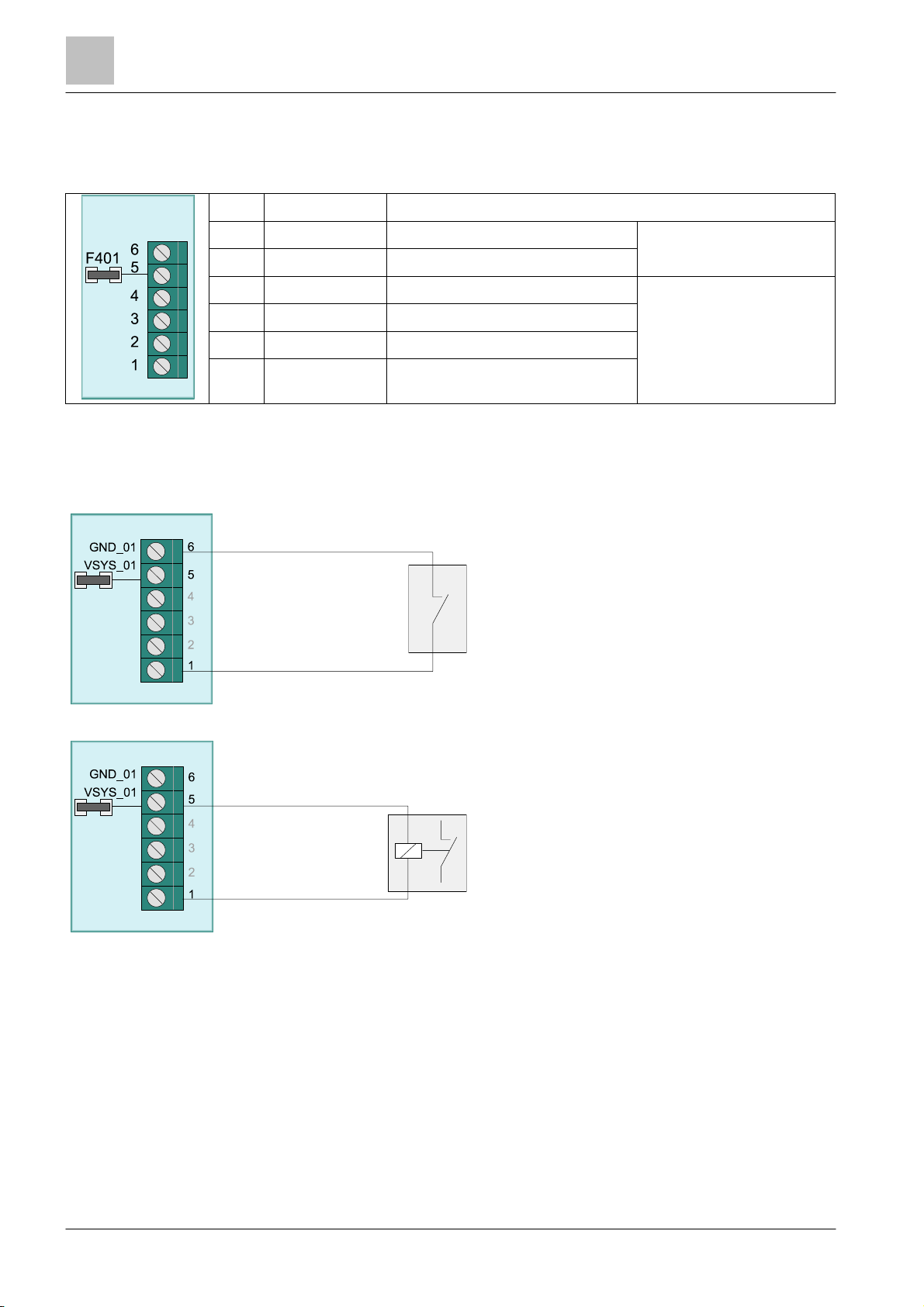

6.4.3.4 Configurable inputs/outputs
Connection terminals on periphery board of FC721 station. A cable cross-section
of 0.2 to 1.5 mm2 can be connected to the terminals.
X8 Designation Description
6 GND_01 (–) supply output 1
5 VSYS_01 (+) supply output 1
4 I/O4 Configurable input/output 4
3 I/O3 Configurable input/output 3
2 I/O2 Configurable input/output 2
1 I/O1 Configurable input/output 1
Each of these freely configurable inputs/outputs can either be configured as an
input or output. The function and external circuit needed depend on the mode of
operation selected.
Example: Principle circuit on I/O 1 (connection 1)
DC 20 V – DC 30 V/1 A
Individual current max.
300 mA
total current max. 1 A
I/O1
I/O1
X8
X8
I/O 1 as 'input'
The input can be triggered with a potential-free,
external switching contact. In such cases, the
corresponding input is switched to GND.
Depending on the programming, a permanent or
sensing contact can be connected. The activated
input can be used to program one of the station's
control functions.
I/O 1 as 'output'
Configuration as 'output' allows for the activation of
external devices (e.g. relays) with 'Vsys' voltage
should certain events arise. In such cases, the
corresponding output is switched to GND.
The output's activation condition (e.g. alarm, fault,
isolation etc.) is defined in the customer data
programming.
56 | 118
Page 57
Installation
C-NET detector line
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
6.5 C-NET detector line
C-NET
FDCIO221
1
1
FDCIO221
1
FDCL221
FDF221-9
FDF241-9
FDL241-9
FC721
C
Up to 126 devices, such as automatic fire detectors, manual call points,
transponders, and other C-NET components, can be connected to the C-NET
detector line.
The connection of the C-NET detector line is on the periphery board. Most line
devices, such as fire detectors, are supplied with the operating voltage required
directly by the C-NET. An external power supply is required for the FDCIO223
transponder.
TM
Cerberus
6
Synoptics
PCB
FT2001
FT2010
FT2011
FDS229 FDS221
24 V DC
FDCIO223
24 V DC
FDCIO223
FDMxxx
SynoLine 300
FDCIO222
Figure 23: C-NET with various line devices
44
FDCIO222
4
Line separator
All C-NET devices have an integrated line separator.
In the event of a fault, e.g. a short-circuit or wire break in the C-NET wiring, the line
separator is opened and the C-NET segment is shut down as soon as the fault was
found. The C-NET devices remain functional and ready to detect. The fault is
displayed on the station.
Connection factor (AK, RK, MK)
The number of connectable C-NET devices and the max. line length depend on the
device connection factor. The maximum number of 126 C-NET devices and the
max. length of line of 3300 m may be reduced significantly depending on the type
and volume of devices.
Building Technologies
57 |
Page 58
Installation
C-NET detector line
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
6.5.1 Connectable C-NET devices
The table below contains a list of all devices which can be connected to the C-NET
detector line. It also highlights which devices feature an alarm indicator (AI) and to
which an external alarm indicator (Ext. AI) or a sounder base (DBS720) can be
connected.
Device type Type Description ↑ AI Ext. AI DBS 720
Heat detector HI720
HI722 Heat detector for standard applications X X X
Flame detector FDF241-9
Smoke detector FDL241-9
OP720
Multi-sensor
detector
OH720 Simple optical-thermal point detector X X X
OOH740
OOHC740
OOH740-A9-Ex
Heat detector for demanding
applications
Flame detector with three sensors for
demanding applications with many
deceptive phenomena
Linear smoke detector for demanding
applications with many deceptive
phenomena
Optical smoke detector for standard
applications with few deceptive
phenomena
Optical-thermal multi-sensor fire
detector for demanding application
Optical-thermal multi-sensor fire
detector with CO measurement
2
Optical-thermal multi-sensor fire
detector with ambient supervision with
collective DualProtocol and FDnet/CNET. For areas at risk of explosion
X X X
X X –
X X –
X X X
X X X
X X X
X X X
Aspirating smoke
detector
FDA221
FDA241
Aspirating smoke detector up to a
monitoring area of 500 m
2
Aspirating smoke detector up to a
monitoring area of 800 m
2
X X X
X X X
58 | 118
Page 59
Installation
C-NET detector line
6
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Device type Type Description ↑ AI Ext. AI DBS 720
Manual call point FDM221 Direct activation for indoor applications X – –
FDM223
Indirect activation (large housing) X X –
FDM223H
FDM223-Ex
Indirect activation (large housing) for
X X –
areas at risk of explosion
FDM224
Indirect activation (large housing) X X –
FDM224H
FDM225 Direct activation for indoor applications X – –
FDM226 Direct activation for outdoor applications X – –
FDM233
Indirect activation, suitable for migration
X – –
from existing SIGMASYS systems to
Cerberus systems
FDM234
Direct activation, suitable for migration
X – –
from existing SIGMASYS systems to
Cerberus systems
FDM243H
Indirect activation, robust housing for
X – –
use outdoors and in humid rooms,
suitable for migration from existing
SIGMASYS systems to Cerberus
systems
Input module FDCI221 1 potential-free contact input X – –
FDCI222 4 potential-free contact inputs X – –
Zone module FDCI723
Input/output
FDCIO221
module
FDCIO222
FDCIO223
FDCIO224
1-zone module for connecting to
collective or conventional fire detectors,
with external supply. With safety barrier
SB3 for areas at risk of explosion as
well
1 potential-free contact input and
1 control output for any control
4 potential-free contact inputs and
4 control outputs for any controls
2 inputs/outputs can be alternatively
used either for controlling sounders or
connecting collective detector lines.
Mixed operation, i.e. 1 input channel
and 1 output channel, is also possible.
4 potential-free contact inputs and 4
control outputs for the connection of the
VdS extinguishing interface in
compliance with the VdS or realization
of fire controls in compliance with
EN 54.
X – –
X – –
X – –
X – –
X – –
Building Technologies
59 |
Page 60
Installation
C-NET detector line
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
Device type Type Description ↑ AI Ext. AI DBS 720
Line separator FDCL221
FDCL221-M
Ex loop separators FDCL221-Ex
Alarm sounder FDS221
FDS229
Sounder base DBS720
Interbase DBS721
DBS728
DBS729
Line separator for the correct
connection of several stub lines at one
point on a loop
Multi line separator module for the
correct connection of several stub lines
on a loop via a line separator
Line separator for the correct
connection of a stub line at one point on
a loop in an area at risk of explosion
Acoustic alarm device with various
tones and sound levels
Acoustic alarm sounder with
supplementary optical indication with
various tones and sound levels and
beacon
Detector base with integrated alarm
device
Sounder interbase with integrated
acoustic alarm device
Interbase with integrated alarm device,
acoustic and optical
Interbase with integrated alarm device,
acoustic and optical
X – –
X – –
X – –
X X –
X X –
– – –
– – –
– – –
– – –
Detector base DB721 Detector base with loop contact X X –
Floor repeater
terminal
FT2010
For the system-wide indication and
operation of the most important
X – –
information and functions
Floor repeater
display
Mimic display
FT2011
For the system-wide indication of the
most important information
FT2001 For the system-wide indication of events X – –
X – –
indication
External alarm
DJ119x
indicator
External alarm
FDCAI221
indicator
Radio gateway FDCW221
For optical indication in the event of
alarm
Addressable alarm indicator that can be
assigned to any cause using a control
For the wireless transmission of
– – –
– – –
X X –
detector signals to the C-NET
Radio smoke
detector
DOW1171
Smoke detector for the wireless
transmission to the radio gateway
X -- –
FDCW221
Manual call point
with radio base
SMF6120
SMF121
Manual call point for the wireless
transmission to the radio gateway
-- -- –
FDCW221
SWING radio
gateway
FDCW241
Gateway for the wireless transmission
of detector signals to the C-NET
1
X X –
60 | 118
Page 61
Installation
C-NET detector line
6
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Most devices are supplied vi
a the detector line.
Influencing the earth fault monitoring
electrically isolated. FDCIO223 is an exception to this rule.
Device type Type Description ↑ AI Ext. AI DBS 720
Neural radio fire
detector (SWING)
Radio manual call
point (SWING)
Aspirating smoke
detector
FDOOT271
Optical-thermal fire detector with radio
X X –
transmission to the radio gateway
1
X – –
FDM273
FDCW241
Indirect activation via radio gateway
FDCW241
FDM275
SWING manual call point, activation via
X – –
radio gateway FDCW241
VLF VESDA LaserFocus (laser monitoring) – – –
Table 3: Devices whic h can be connected to the C-NET detector line
X Possible / available
– Not possible / not available
1
2
Availability is communicated with the delivery release
Check with your country representative that this detector is approved for
C-NET in your country.
The input/output module FDCIO223 must have an external power supply.
All ↑ C-NET devices have an integrated line separator.
NOTICE
Faults
● For devices on the C-NET with a separate supply, the supply must be
The number of connectable devices depends on the specific AK, RK, MK
connection factor of the type and is calculated using the 'Quantities Tool' software.
Note the specifications of the individual C-NET devices in the 'List of Compatibility'
document, see 'Applicable documents' chapter.
Building Technologies
61 |
Page 62
Installation
C-NET detector line
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
6.5.2 C-NET topology and connection
Permissible topology for the C-NET
The C-NET can be wired in the topology shown below. Regardless of the topology
(loop, stub or loop with sub-stub), the C-NET system limits, such as length, cable
resistor, number of users etc., must be observed.
Either one loop or two stubs can be connected to the C-NET detector line of the
FC721 (2-wire line to block of 4 terminals).
TM
Cerberus
C
TM
Cerberus
C
TM
Cerberus
C
Wiring NOT admissible
Loop
(max. 1 loop)
Stub
(max. two stubs)
Sub-stubs on loop
A sub-stub must only be connected between two line devices or line
separators as well as directly to the terminal connection.
TM
Cerberus
C
TM
Cerberus
C
NOT admissible!
Sub-stub on sub-stub
NOT admissible!
Sub-stub on a stub
62 | 118
Page 63
Installation
C-NET detector line
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15

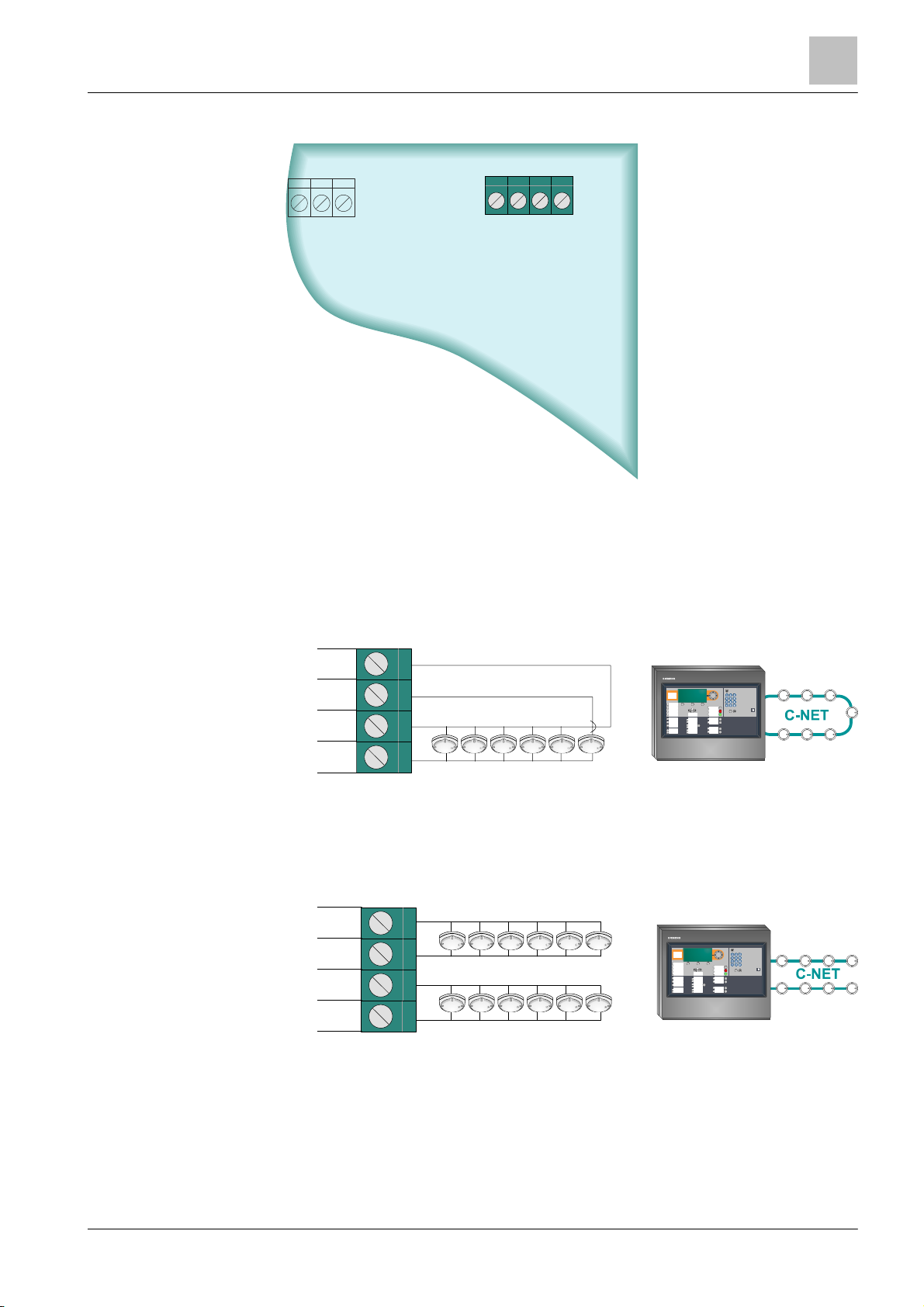

The connection terminals for the C-NET are on the periphery board.
X11
1
234
-
C
1
2
3
4
-
C
Figure 24: Position of C-NET connection terminal on the periphery board
● Max. 126 C-NET devices are permitted on the C-NET connection (block of 4
terminals).
● The C-NET devices can be distributed on the loop (max. 126 devices) or on
two stubs (max. 32 devices per stub).
6
Loop connection example
● Max. 126 line devices
TM
Cerberus
+
-
Figure 25: C-NET loop circuit
Alternatively, the connection of two stubs instead of one loop is possible
Stub connection example
● Max. 32 line devices per stub
● Total of max. 64 line devices per line connection (4 terminals)
TM
Cerberus
+
-
Figure 26: C-NET stub circuit
Building Technologies
63 |
Page 64
Installation
C-NET detector line
6
Building Technologies
A6V10211100_f_en_
--
F
ire Safety
2015-12-15
Cable types
As a result of national standards and requirements, installation may require a
particular cable type. Note the respective requirements and planning documents.
The following cable types can always be used for cabling the detector line:
● Twisted, with and without shielding (recommended)
● Untwisted, with and without shielding
Cable shielding
When using shielded lines (e.g. fire detection cable J-Y(St)Y n x 2 x 0.8 mm),
ensure that the cable shielding is only connected on one side.
The fire control panel's function may be impaired by a missing or incorrect cable
shielding connection. The 'Shield connection terminal blocks' option is available for
the connection. Depending on the installation environment and requirements of
relevant standards, cable shielding may have to be connected and merged at one
central connection point.
6.5.3 Wiring principle behind C-NET devices
The screw terminals for directly connecting the C-NET cable are integrated in every
C-NET line device. The connection terminals with input (+/-) and output (+/-) are
the same for all users, with the exception of the detector base.
Connection terminal
Detector base and sounder
base
● 1b (corresponds to +,
input/output)
● 5 (corresponds to input)
● 6 (corresponds to output)
Manual call point
Input/output modules
Transponder
Alarm sounder with beacon

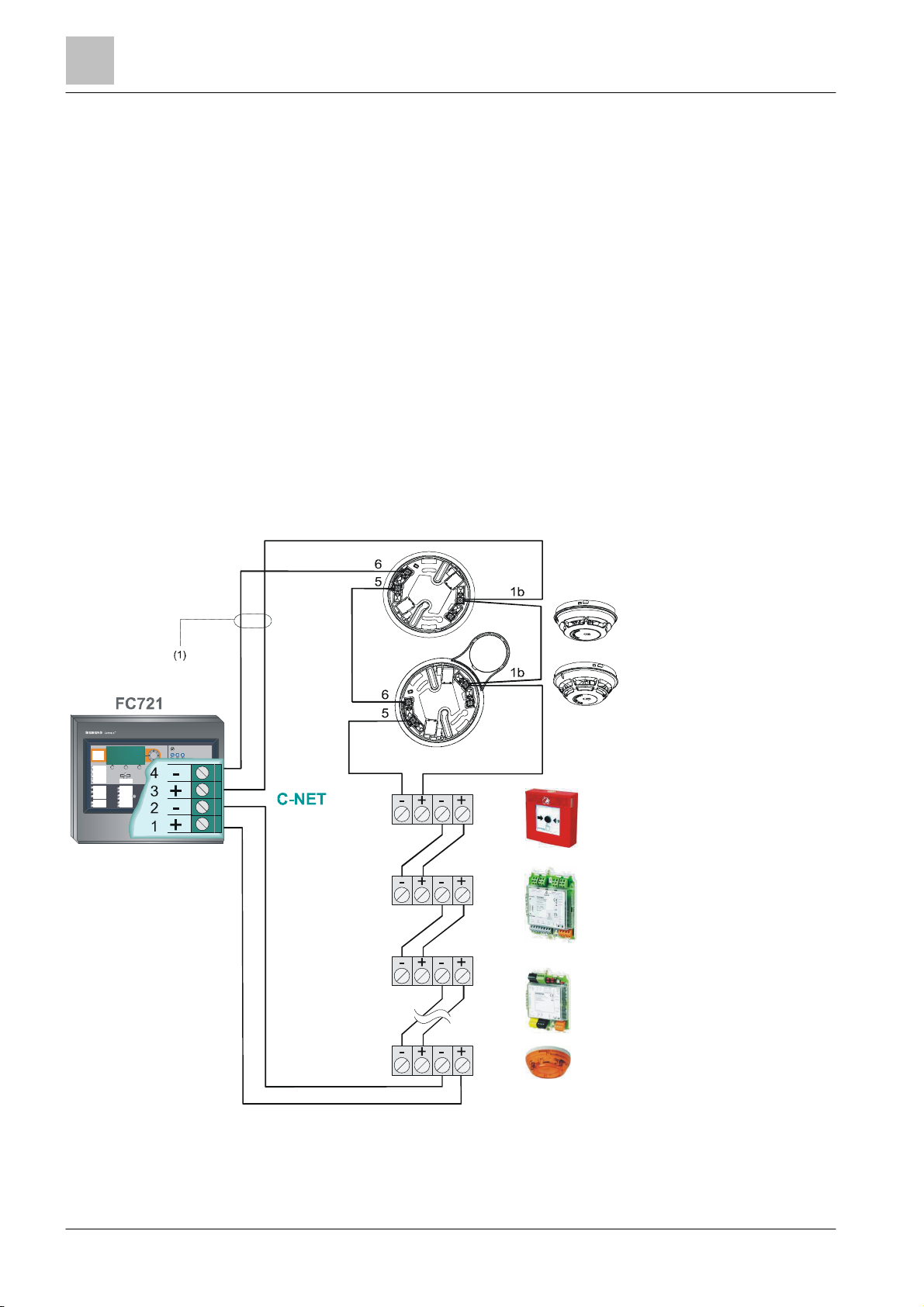

Wiring example of C-NET detector devices on loop
64 | 118
Page 65
Installat
ion
C-NET detector line
6
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
TM
Cerberus
C

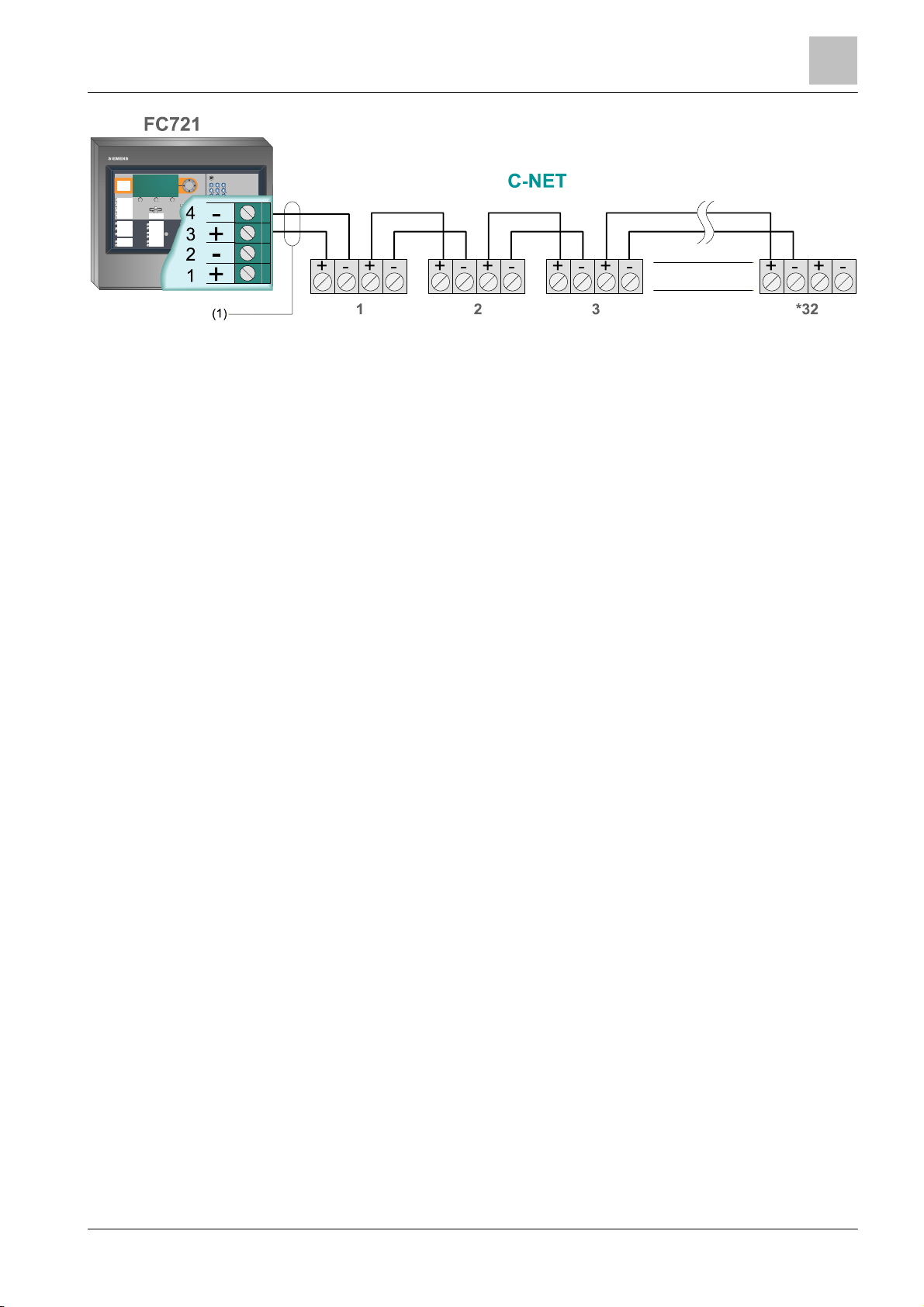

Figure 27: Wiring example of C-NET detector devices on stub
(1) If shielded connection cables are used, the cable shielding must be connected
on one side.
* The number of connectable C-NET devices and the max. line length depend on
the device connection factor. The maximum number of 126 C-NET devices per
loop and the max. length of line of 3300 m may be reduced significantly depending
on the type and volume of line devices. (Calculation must be performed using
'Quantity Tool' software).
Building Technologies
65 |
Page 66
Structure and function
Indication and operating elements
7
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
7 Structure and function
7.1 Indication and operating elements
Fire control
panel FC721
Indication
Alarm X X X X X
Pre-alarm X X X X X
Fault X X X X X
Isolation X X X X X
Test mode X X -- -- X
Technology X X -- -- X
Activation X X -- -- X
Information (Note) X X -- -- X
Activated remote transmission (RT) X X X -- X
Operation
Acknowledge X -- X -- X
Reset X -- X -- X
Scroll in event lists X -- X X X
Deactivate internal buzzer X -- X X X
LED module
FTO2008
Floor repeater
terminal
FT2010
Floor repeater
display
FT2011
Cerberus
Remote
Deactivate sounder X -- -- -- X
Table 4: Functions of the individual operation and indication devices
X Possible / available
– Not possible / not available
66 | 118
Page 67
Structure and function
Indication and operating elements
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
The FC721 has an integrated operation and indicator field which can be used to
a
b
d
e
123
j
l
n
o
456
g
h
i
u
789
p
q
r
0
#
C
2
345
operate, maintain and (with limitations) configure the station.
1
TM
Cerberus
6
7

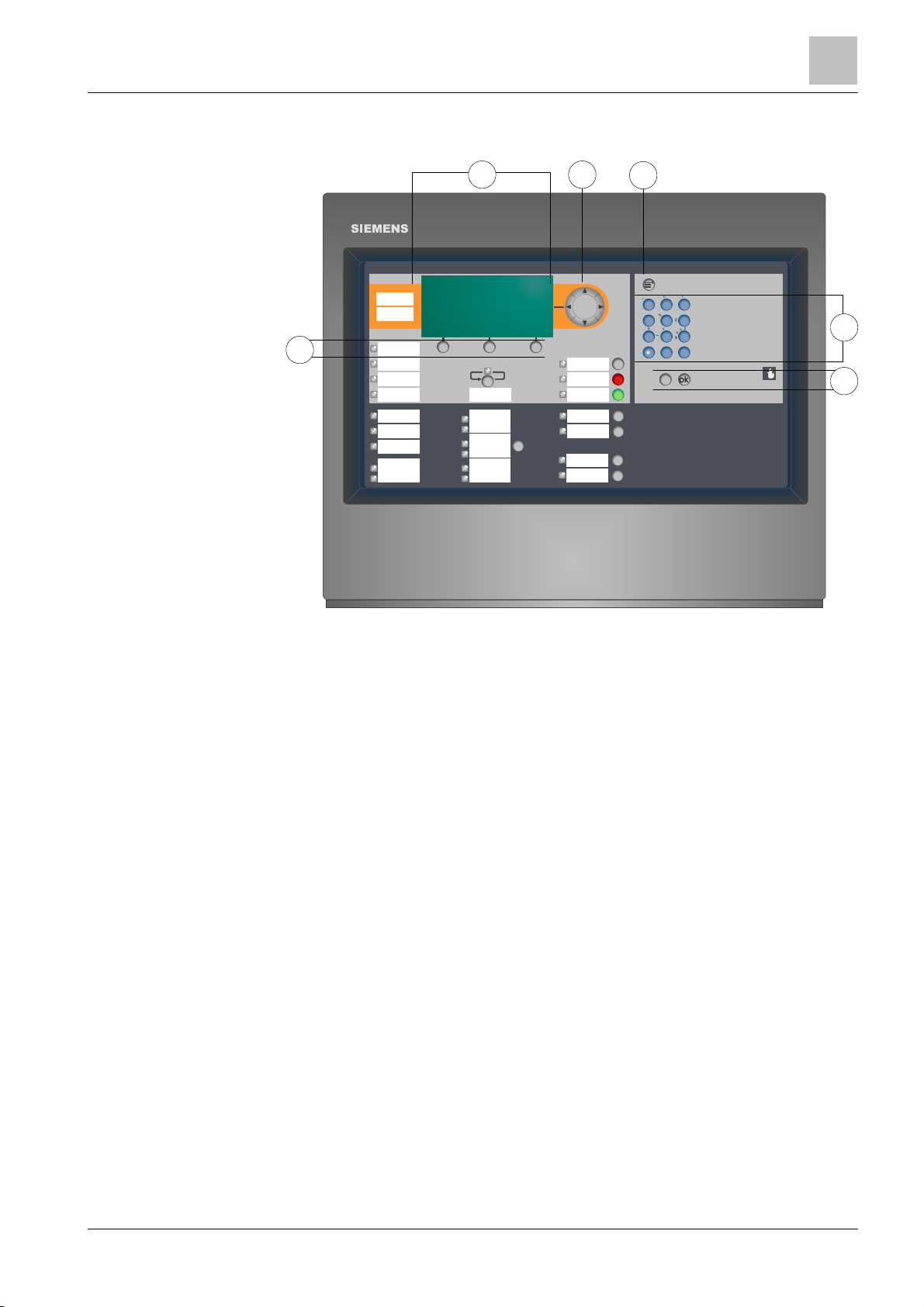

Figure 28: Operation and indicator field front of Cerberus fire c ontrol panel
1 Display, illuminated with plain text display
2 Cursor keypad for navigation/selection of menu items
3 Menu button
4
Keypad (for direct selections by entering numbers and/or entering and
changing objects-specific display texts)
5 C button (Cancel) and OK button (confirmation of selection)
6 Menu-dependent function keys (softkeys)
Building Technologies
67 |
Page 68
Structure and function
Extra indication and operating devices
7
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Influencing the earth fault monitoring
monitoring on the C
-
NET is affected which may result in faults.
7.2 Extra indication and operating devices
The FT2010 floor repeater terminal and FT2011 floor repeater display allow for the
decentralized indication of the most important events in the fire detection system
and limited operation. Both devices can be connected to the C-NET directly as bus
users. They can be powered via the C-NET or by an external power unit. If
supplied externally, the source of voltage requires electrical isolation.

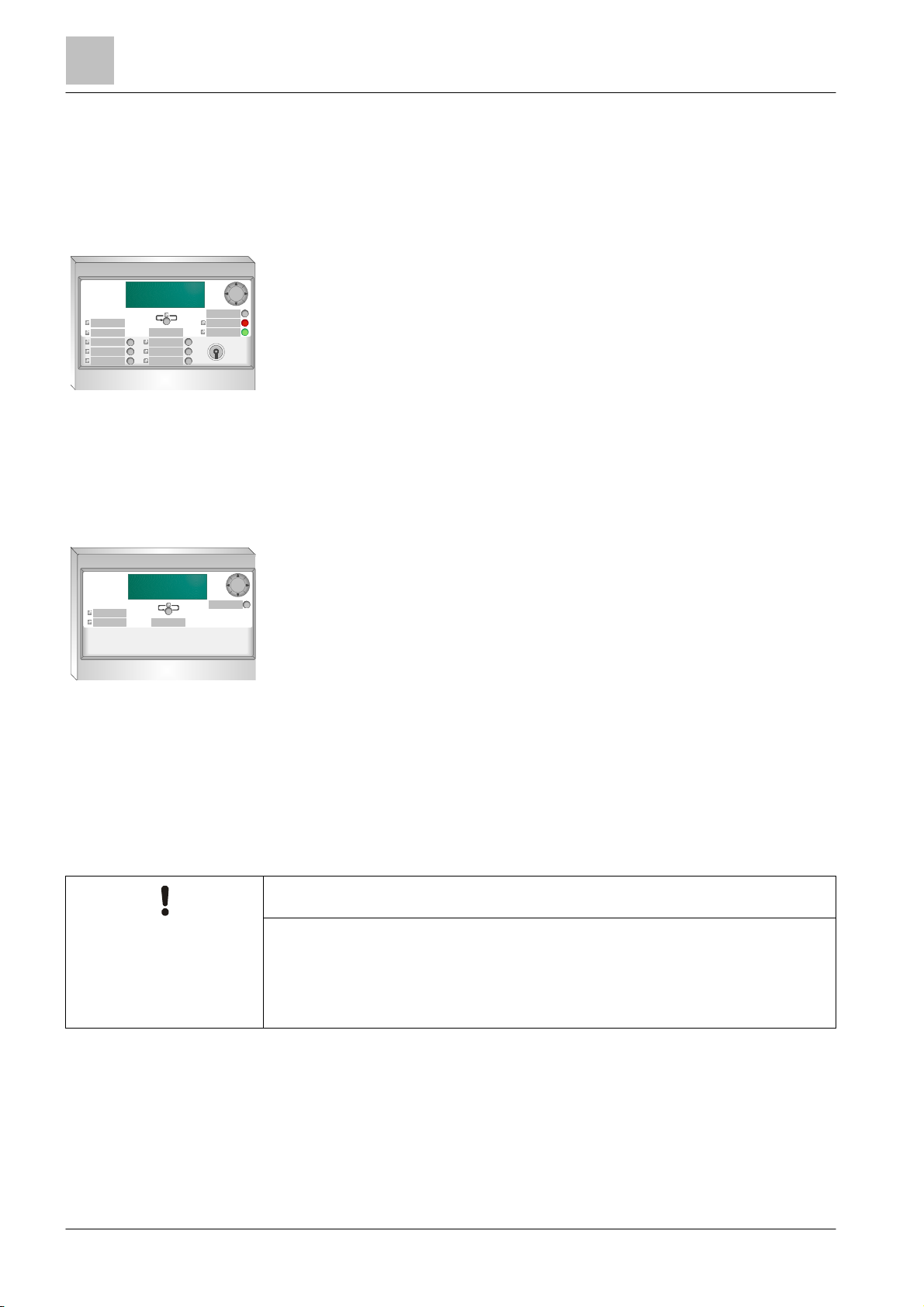

Floor repeater terminal FT2010
The following indications and operations are possible on the floor repeater
terminal:
Indication
● Alarm and fault messages of connected station(s)
● Activated remote transmission (RT)
Operation
● Acknowledge (start investigation time)
● Reset
● Scroll in event lists
● Deactivate buzzer
● Four freely programmable keys
Floor repeater display FT2011
The following indications and operations are possible on the floor repeater
display:
Indication
● Alarm and fault messages of connected station(s)
Operation
● Scroll in event lists
● Deactivate buzzer
Guideline
● External power supply is possible with DC 24 V or AC 24 V.
● Floor repeater terminals and floor repeater displays that are not fed by the
detector line (separate power supply) must be electrically isolated from the
system voltage.
NOTICE
Faults
● Electrical isolation of the supply unit must be available for devices on the CNET that are fed separately. If there is no electrical isolation, the earth fault
● When an external supply unit is used, it must be taken into account that should
● When power supply is ensured via the detector line, the high maximum current
● At total of up to 8 floor repeater terminals and floor repeater displays can be
68 | 118
the external supply unit fail, the maximum current connection factor increases
significantly (line failure is possible).
connection factor must be taken into account.
connected to fire control panel FC721.
Page 69
Structure and function
Connecting externa
l alarm indicators
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
7.2.1 Mimic display driver FT2001
3
1
The mimic display driver is a parallel LED indication for the system-wide signaling
of events and is connected to the C-NET detector line.
The LED are built in a ground plan panel.
7.3 Connecting external alarm indicators
Some C-NET devices have an output where normally an ↑ external alarm indicator
is connected. The output can, however, also be used for any other controls. The
output for the external alarm indicator is controlled by the fire control panel and is
freely configurable.
Depending on the configuration, the output is activated for the external alarm
indicator if the following is true:
● The connected detector is in ↑ danger level 2 or 3 (together with the internal
alarm indicator).
● The assigned ↑ zone has triggered an alarm or ↑ pre-alarm.
● The assigned control is active.
The following ↑ external alarm indicators are available:
● DJ119x/FDAI9x – external alarm indicators that must be connected to the
detector to be displayed.
● FDCAI221 – addressable alarm indicator that can be assigned to any cause
using a control.
7
Building Technologies
2

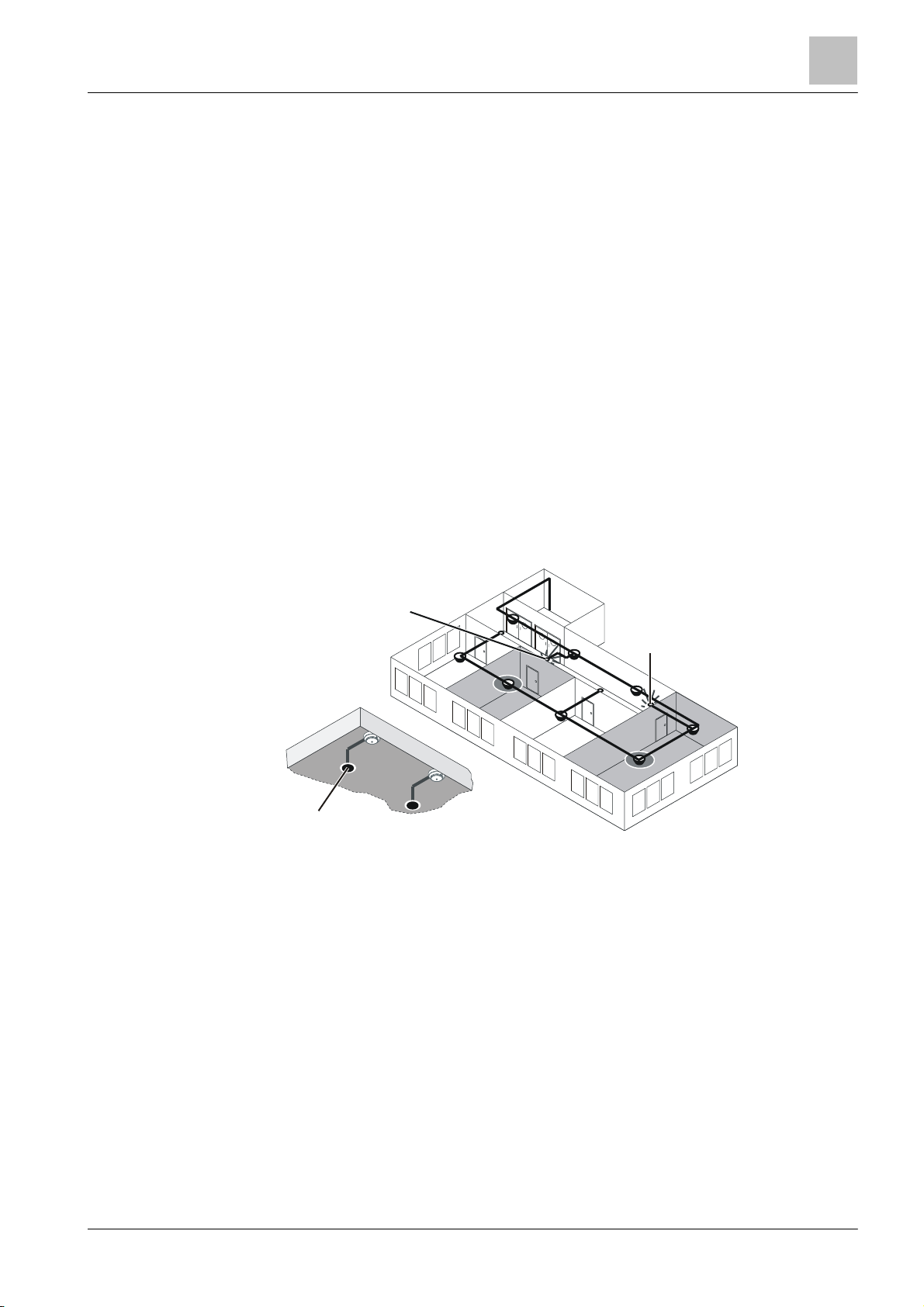

Figure 29: Examples of an external alarm indicator
1 External ↑ AI configured in parallel to the ↑ zone
2
External AI configured in parallel to the internal AI of the connected detector
(e.g. false ceiling)
3 External AI configured in parallel to any other zone (via control)
69 |
Page 70
Structure and function
Software
7
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
7.4 Software
The following software is available for planning, configuration and commissioning:
FXS7212 Cerberus
Engineering Tool
FX7220 Cerberus Remote
Quantities Tool
For programming the object- and customer-specific control panel functions.
Indicates a graphic representation of a station's PMI, provided that the PC is
connected to the station.
Cerberus-Remote is software for the PC which can be used to display the Person
Machine Interface of a 'Station' on the PC, if the corresponding approval is
granted. Depending on the operation mode, Cerberus-Remote can either be used
for display purposes or for display and operation purposes.
The outline quantities tool can be used to calculate C-NET utilization (AK, RK, MK
connection factors) and determine the C-NET line card load.
This results in e.g.:
● Number and type of devices per detector line
● Number of required line cards
● Number of C-NET loops and stubs
● Battery capacity required (emergency power supply)
Detailed information on configuration of the fire detection installation and working
with the software tools can be found in the reference documents stated.
70 | 118
Page 71
Operation functions
Selection and opening / execution
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
8 Operation functions
The following chapters contain descriptions of important functions for directly
operating the ↑ site.
You will find information on the system functions in the corresponding chapter.
8.1 Selection and opening / execution
After calling up the main menu and any other list, the first entry in the list is
selected. The selection is indicated by a rectangular frame around the entry.
The opening of a list item or the execution of a list command is performed by
moving the cursor to the selected entry and pressing <ok>.
Other methods to open or execute a highlighted list entry are given by pressing the
following buttons:
● <►>
● <Number> on the numerical block (given number in brackets – only in selection
lists)
Changing the selection
The selection indicated is changed as follows:
8
Button Consequence
<▼> Next entry
<▲> Previous entry
<More alarms>
<Number> + <ok>
More Options' + 'Jump to begin' softkeys Jump to the top of the list
More Options' + 'Jump to end' softkeys Jump to the end of the list
8.2 Scrolling
You can use the navigation keys to scroll through a displayed list in the display.
You can scroll to the start/end of the lists (limited function) and back in the
following lists:
● Option lists
● Command lists
● Element category lists
In all other lists, you can scroll beyond the end of the list to the start of the list and
back.
Opens alarm list / jumps to the next
entry in the alarm list shown
Goes to the entry with the number
entered – not in selection lists
Building Technologies
71 |
Page 72
Operation functions
Indication of the position and length of the list
8
Building Technologies
A6V1021
1100_f_en_
--
Fire Safety
2015-12-15
8.3 Indication of the position and length of the list
There is a vertical bar along the side of a list when the list is longer than can be
indicated on the display.
The black part of the bar shows the position and size of the part of the list you can
see in relation to the entire list.
Examples for the representation in different lists:
1 Bar in normal view with list 2 Bar in window with list
8.4 Shortcut
A shortcut serves for the direct execution of an entry in a selection list by pressing
a numeric key.
In a command list, for example, you can execute a command directly by entering
the corresponding number.
The numbers for the shortcut are shown in the list entry line, on the right and in
brackets.
8.5 Favorites
You can use favorites to execute several operation sequences or one operating
sequence in an operation sequence.
A maximum of 8 favorites are configured and you can select them from the favorite
list in the 'Favorites' main menu item.
72 | 118
Page 73
Operation functions
Entry of numbers and letters
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
8.6 Entry of numbers and letters
In input fields with more than one line, you cannot change back to a line above
You can use the keyboard to enter numbers and letters in input dialogs.
Numeric entry
● The number of underscores corresponds to the number of possible positions
for the entry.
● The overwrite mode is set by default; there is no insert mode.
● Horizontal navigation within the input field is possible with the keys <◄> and
<►>.
● Use <▲> to delete the character to the left of the cursor position.
● Use <ok> to save the entered value and exit the input field.
– When there are several input fields in the window, the cursor jumps to the
next field by pressing <ok>.
– If the cursor position is in the last or only input field, close the input dialog
by pressing <ok>.
● Use <C> to cancel the input and close the dialog without saving.
Alphanumeric entry
● Alphanumeric entries are only possible in particular input fields, e.g. for
customer text.
● Letters are entered in the same way as letters on telephones. You can select
the corresponding letter by pressing a key several times.
● Switching between lower and upper case letters is possible with the key <*>
and only applies for the next character.
8
the cursor position.
Building Technologies
73 |
Page 74
Connectivit
y and communication with 'Station'
Setting Windows firewall
9
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
You must have administrator rights to make the following settings.
Security vulnerability in operating system due to deactivated firewall
●
Activate the firewall after the firmware update.
9 Connectivity and communication with 'Station'
A PC does not have to be directly connected to a ↑ 'Station' to be able to
communicate with a 'Station' in the ↑ 'Site'. The PC can be connected to any place
in the Ethernet.
Detailed information about the connection variants can be found in the
'Establishing connection from PC to FS720 network' chapter in document
A6V10210424. See chapter 'Applicable documents'.
9.1 Setting Windows firewall
● The Windows firewall may prevent the PC connecting to the ↑ 'Station'.
● A functioning Ethernet connection between the Cerberus-Engineering-Tool on
the PC and the FS720 control panels is required to update the firmware, for
example.
Setting Windows firewall
● Create a firewall rule for Windows. To do this, proceed as follows:
9.1.1 Windows XP
ϖ You have administrator rights on your PC
1. Open the Windows start menu.
2. Select 'Settings' > 'Control panel' > 'Administrative Tools' > 'Services'.
3. Right-click on 'Windows Firewall/Internet Connection Sharing (ICS)' in the new
window.
4. Select 'All Tasks' > 'Exit' in the context menu.
5. Once the work is complete, reactivate the firewall. To do this, proceed as
described above but select 'All Tasks' > 'Start' in the context menu.
NOTICE
Unauthorized access to your PC
74 | 118
Page 75
Connectivity and communication with 'Station'
Setting Windows firewall
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
9.1.2 Windows 7 / Windows 8 / Windows 10
There are different ways of setting up firewall rules in Windows
7/8/10. The
The following settings must be made under Local Security Policy.
Security.
following settings apply for Siemens PCs which use group guidelines controlled
by the domain.
NOTICE
● Open Local Security Policy to configure Windows Firewall with Advanced
ϖ You have administrator rights on your PC.
ϖ The PC is connected to the Siemens intranet.
1. Open the Control Panel.
– E.g., via the Windows Start menu in Windows 7.
– E.g., in Windows 10: Right-click on the Windows symbol at the bottom left
and select Control Panel in the context menu.
9
2. NOTICE! The following settings must be made under Local Security Policy.
Select 'Control Panel' > 'All Control Panel Items' > 'Administrative Tools' >
'Local Security Policy' > 'Windows Firewall with Advanced Security'.
3. Expand the subtree of the menu.
4. Right-click 'Inbound Rules' > 'New Rules'
This opens the 'New Inbound Rule Wizard'.
5. Select 'Rule Type' and activate 'Program'.
6. Click 'Next >' to confirm and enter the program path to 'F-FXS7212.exe'.
– Example: C:\Program Files (x86)\Siemens\F-FX7230\XS_en_1-V5.0
– NOTICE! Remember to enter/add the new path if the version changes.
7. Click 'Next >' to confirm and then confirm the default setting 'Allow the
connection' in the next step ('Action').
8. In the next step 'Profile', remove the check mark from the 'Domain' checkbox.
The 'Private' and 'Public' checkboxes are checked.
9. Click 'Next >' to confirm and enter an appropriate name in the next step
('Name'), such as 'FS720 application'.
10. Click 'Finish' to complete the process.
A 'New Rule' has now been set and appears in the 'Inbound Rules' list.
It is necessary to make additional settings for the new rule:
1. Right-click the new rule and select 'Properties'.
2. Select the 'General' tab in the 'Rule Name Properties' window.
3. Set the following values:
– 'General': 'Activated'
– 'Action': 'Allow connection'
4. Select the 'Protocol and Ports' tab.
Building Technologies
75 |
Page 76
Connectivity and communication with 'Station'
Connecting the PC to the station
9
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Security vulnerability in operating system due
to open ports
●
Deactivate the firewall rule configured above after the firmware update.
1
5. Set the following values:
– 'Protocol type': 'UDP'
– 'Local port': 'Specific Ports', and enter the value range '50067-50070' in the
box.
– 'Remote port': 'All Ports'
6. Confirm with 'OK'.
The new firewall rule is now configured.
NOTICE
Unauthorized access to your PC
9.2 Connecting the PC to the station
For most commissioning, maintenance and repair work a PC with installed
Cerberus-Engineering-Tool is required. The figure below shows the connection
between the PC and ↑ 'Station'.
LAN

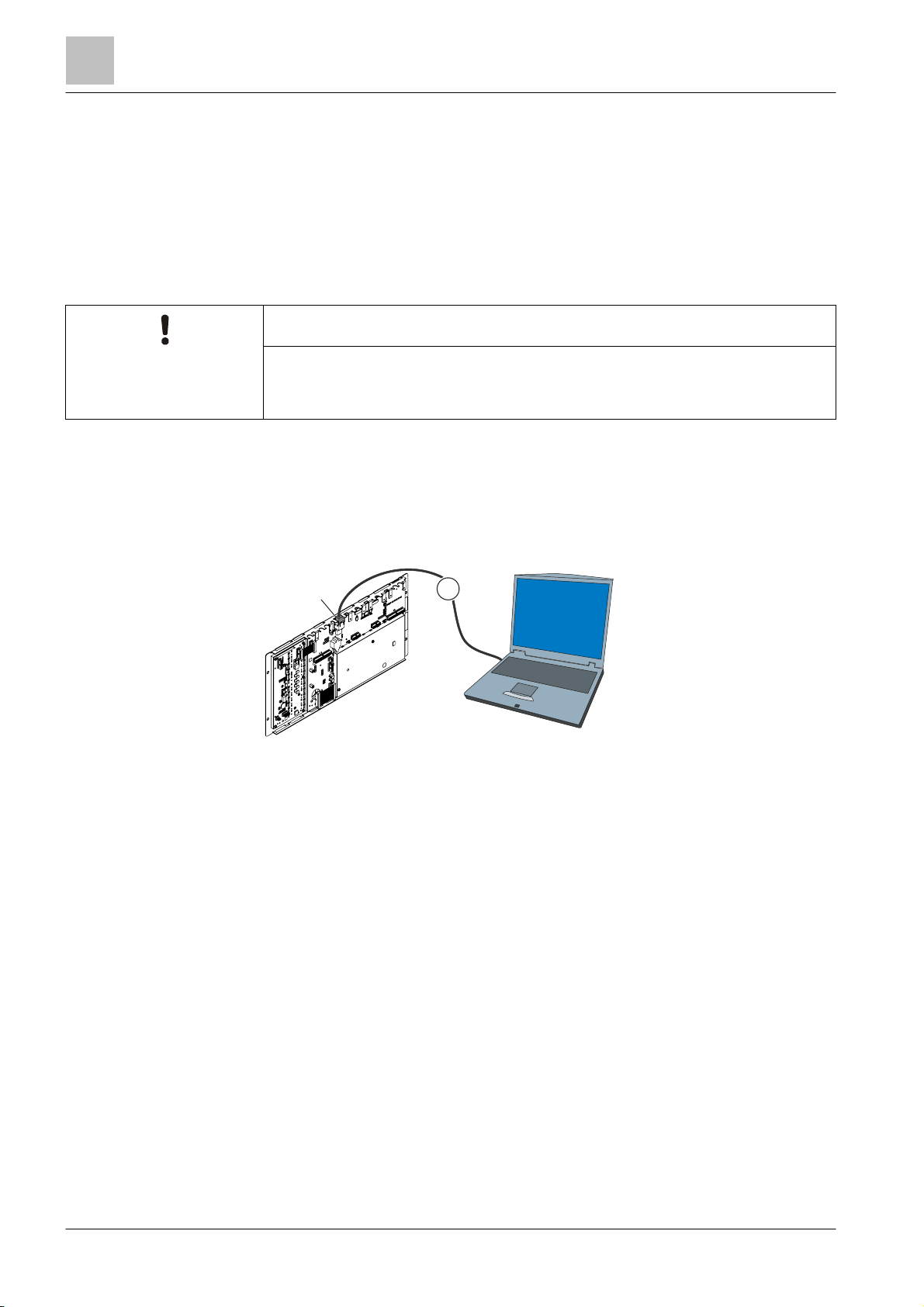

Figure 30: Rear panel of operating unit and PC
1
LAN Ethernet connection
1 Cable, type CAT 5 or CAT 7, crossover, max. 100 m
76 | 118
Page 77
Connectivity and communication wit
h 'Station'
Disconnecting the PC from the station
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
9.3 Disconnecting the PC from the station
Incorrect disconnection of '
Station
'
●
Disconnect the PC from the '
Station
' as described in the following instructions.
If you use a number of network cards on the PC, observe the information in the
As the IP address is bound to the MAC address while there is a connection
between the PC and the ↑ 'Station' and as it remains in the cache even in the case
of a short break in the connection of ≤2 min., you must observe the following
instructions.
NOTICE
Establishing a connection to other 'Station' is not possible
The connection between the PC and the 'Station' must be disconnected as follows:
1. Select 'Cerberus-Engineering-Tool' > 'Commissioning' in Disconnect.
2. Disconnect the cable connection between PC and 'Station'.
3. Wait ≥2 min. before you establish a connection to another 'Station'.
9
9.4 Loading data to the 'Station'
Data is loaded from Cerberus-Engineering-Tool to the 'Station' when the following
commands are performed.
● 'Initialize station'
● 'Download site'
chapter 'IP settings for several network cards' in document A6V10210424. See
chapter 'Applicable documents'.
The table below shows which data is overwritten in the 'Station'.
Command
'Initialize station'
1
'Download site' Yes No Yes
1
Command is only performed for the 'Station' that is connected to the PC via LAN.
2
The configuration of selected 'Stations' or all 'Stations' in the ↑ 'Site' can be
overwritten as an option.
See also
1 Loading configuration from the PC to the station [➙ 80]
1 Initializing 'Station' [➙ 78]
Overwrites the
↑ BDV
Yes Yes Yes
Sets the address
of the 'Station'
Overwrites the
configuration
2
Building Technologies
77 |
Page 78
Connectivity and communication with 'Station'
Initializing 'Station'
9
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
A↑standalone '
Station
' does not have to be initialized.
If you use a number of network cards on the PC, observe the information in the
9.5 Initializing 'Station'
● Each ↑ 'Station' in a system with several networked 'Stations' must have a
unique address.
● Once a 'Station' has been started for the first time or once the firmware on the
main CPU has been updated, a 'Station' has the address '1'. Networked
'Stations' must therefore all be initialized.
● If two 'Sites' are merged to form one ↑ 'Site', the 'Stations' with the same
addresses in the added 'Site' must each be given a new address.
● The 'Initialize station' procedure issues the 'Station' an address within the 'Site'
according to the configuration in Cerberus-Engineering-Tool.
chapter 'IP settings for several network cards' in document A6V10210424. See
chapter 'Applicable documents'.
78 | 118
Page 79
Connectivity and communication with 'Station'
Initializing 'Station'
9
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Connection module (card cage) FCA2006
-
A1 defective or installed incorrectly
correct
ly.
Faulty initialization for networked station
Initialize 'Station'
NOTICE
Control panels identified incorrectly, e.g. FC726 identified as FC724.
● Check that the connection module (card cage) FCA2006-A1 is installed
NOTICE
During initialization, the station must not be connected to the network or any other
station.
ϖ The PC is connected locally to the ↑ 'Station'.
1. Highlight the 'Station' you want to initialize.
2. Select the 'Commissioning' > 'Initialize station' menu item.

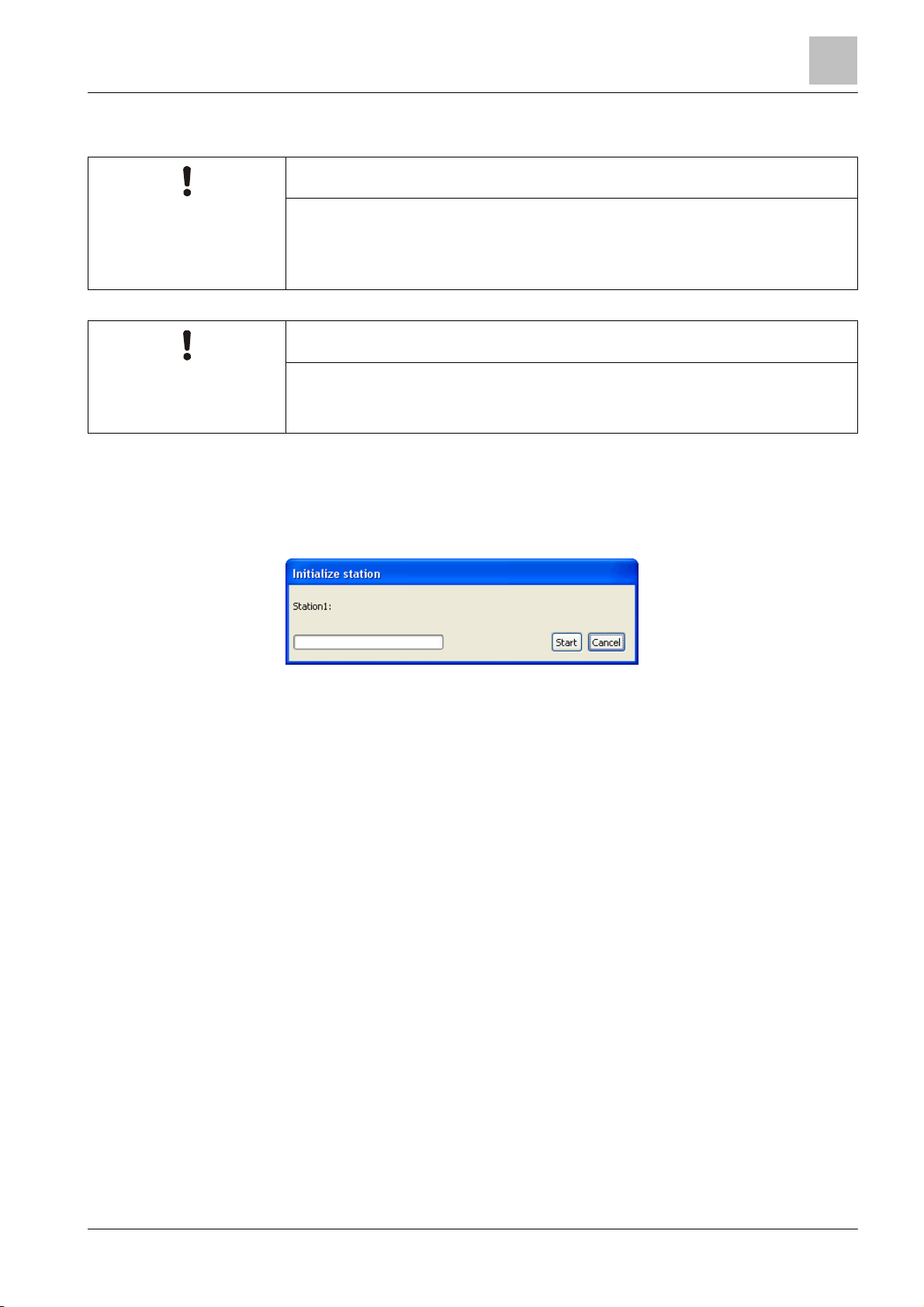

The following window is opened:
3. Click on 'Start'.
The 'Set the station to access level 3' window opens.
4. Press <MENU> on the 'Station' and enter a valid PIN.
5. Click on 'OK' in the 'Set access level' window.
The 'Station' is initialized.
The 'Station' is restarted.
After a few minutes, the 'Buzzer' sounds twice.
6. Press <Acknowledge> on the ↑ Person Machine Interface to switch off the
'Buzzer'. Do not perform any more actions on the 'Station' until the 'Buzzer' has
sounded for the second time.
Building Technologies
79 |
Page 80
Connectivity and communication with 'Station'
Loading con
figuration from the PC to the station
9
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Different network configuration in
Cerberus
-
Engineering
-
Tool
and networked
network configuration prior to integration in the network.
If you use a number of network cards on the PC, observe the information in the
Activation of fire or smoke dampers
station or restarting the station/detector line.
9.6 Loading configuration from the PC to the station
You can use the 'Download site' function to load the configuration of one ↑ 'Site'
from the Cerberus-Engineering-Tool on the PC into the 'Station'.
NOTICE
↑ 'Site'
When the selection displayed for 'Download site' is manually modified, in special
cases1 it may be necessary to reset a 'Station' to the factory setting as well as a
'Initialize station'.
● Do not modify the selection displayed for 'Download site' in normal cases.
● Check the sequence when loading different configuration states in special
cases1.
● After any change of the network configuration, make sure that all 'Stations' in
the 'Site' for the 'Download site' procedure are selected and can be accessed.
● Temporarily update non-accessible 'Stations' to the latest status of the global
1
Examples of special cases:
● A 'Station' will be added to a networked ↑ 'Site' and a new network
configuration will be loaded upon initialization of this 'Station', different from the
global network configuration of the connected 'Site'.
● During the 'Download site' procedure a 'Station' is temporarily not accessible.
Both examples can result in the 'Station' no longer starting after the 'Download site'
procedure and the above actions having to be carried out.
chapter 'IP settings for several network cards' in document A6V10210424. See
chapter 'Applicable documents'.
WARNING
If fire or smoke dampers are connected to the FS720 via an input/output module,
they may be activated when the station is switched off or when the station or
detector line is restarted.
● If necessary, block the outputs temporarily [➙ 101] before switching off the
80 | 118
Page 81
Connectivity and communication with 'Station'
Loading configuration from the PC to the station
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
ϖ The ↑ 'Site' is opened in Cerberus-Engineering-Tool.
ϖ The PC is connected to the 'Station'.
ϖ Networked 'Stations' are initialized.
ϖ 'Station' and Cerberus-Engineering-Tool have the same 'Site' ID.
ϖ 'Station' and Cerberus-Engineering-Tool are part of the same sales channel.
1. Select 'Commissioning' > 'Download site' in Cerberus-Engineering-Tool.

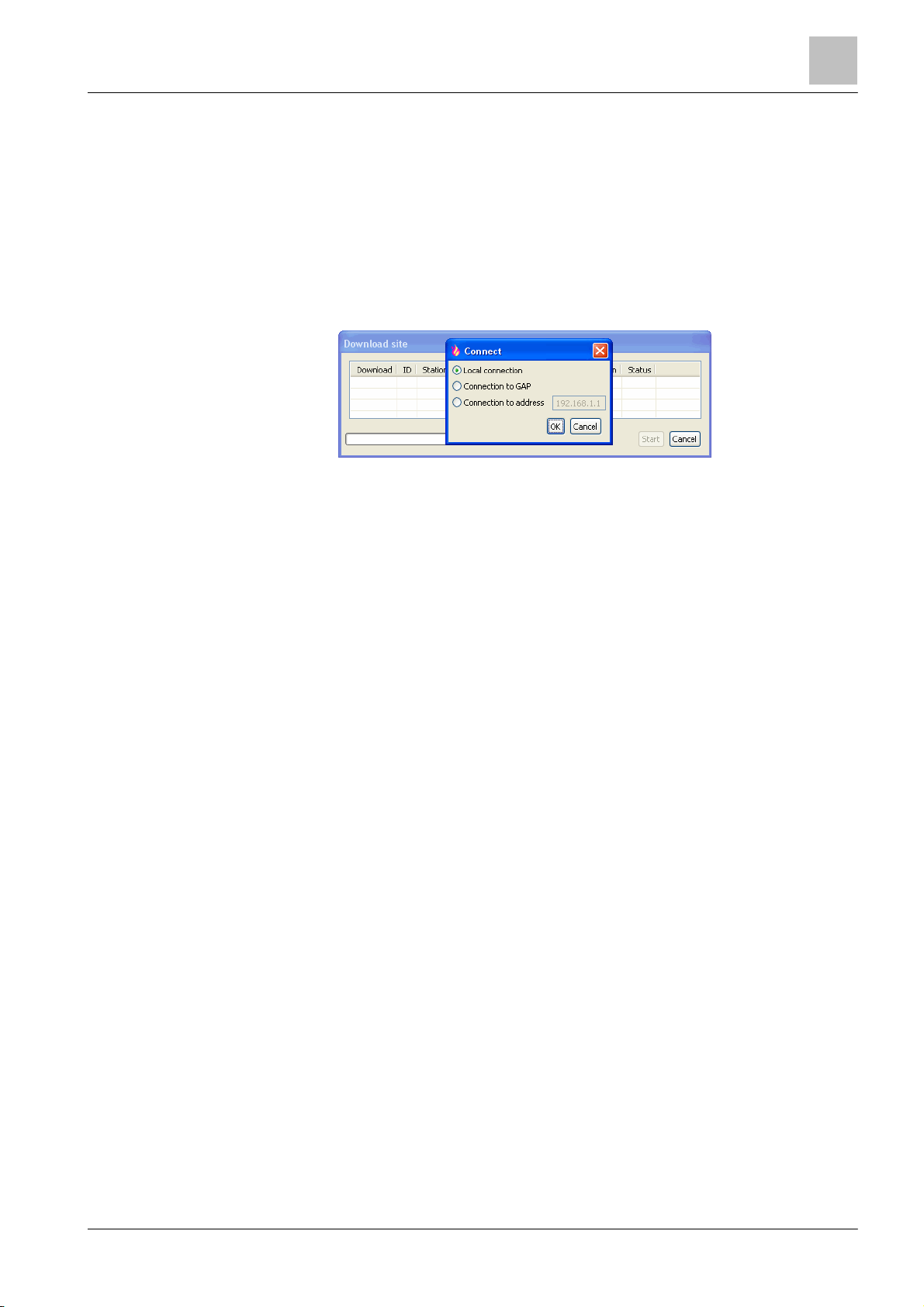

The 'Download site' and 'Connect' windows open in Cerberus-Engineering-
Tool.
2. Select the connection in the 'Connect' window and click on 'OK'.
The 'Stations' are listed in the 'Download site' window.
9
3. Select the 'Stations' whose configuration you would like to load from CerberusEngineering-Tool to the 'Stations' and click on 'Start'.
The 'Set access level' window may open in Cerberus-Engineering-Tool with
the 'Set the station to access level 3' prompt. Press <MENU> on the
'Station', enter the PIN and press <ok>.
4. Click on 'OK' in the 'Set access level' window in Cerberus-Engineering-Tool.
The 'Action confirmation' window opens in Cerberus-Engineering-Tool.
5. Click on 'Yes'.
The configuration is loaded to the 'Station'.
The progress is displayed in the 'Download site' window in Cerberus-
Engineering-Tool.
The 'Station' restarts.
After a few minutes, the 'Buzzer' sounds twice at the 'Station'.
6. Press <Acknowledge> on the ↑ Person Machine Interface at the 'Station' to
switch off the 'Buzzer'. Do not perform any more actions on the 'Station' until
the 'Buzzer' has sounded for the second time.
Building Technologies
81 |
Page 82
Connectivity and communication with 'Station'
Loading configuration from the station to the PC
9
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
You will find information about
↑
BDV names and versions in document
9.7 Loading configuration from the station to the PC
The 'Upload site' function can be used to load the configuration of a ↑ 'Site' to
Cerberus-Engineering-Tool on the PC.
ϖ The 'Site' is opened in Cerberus-Engineering-Tool.
ϖ The PC is connected to the 'Station'.
ϖ 'Station' and Cerberus-Engineering-Tool have the same 'Site' ID.
ϖ 'Station' and Cerberus-Engineering-Tool are part of the same sales channel.
1. Select 'Commissioning' > 'Upload site'.

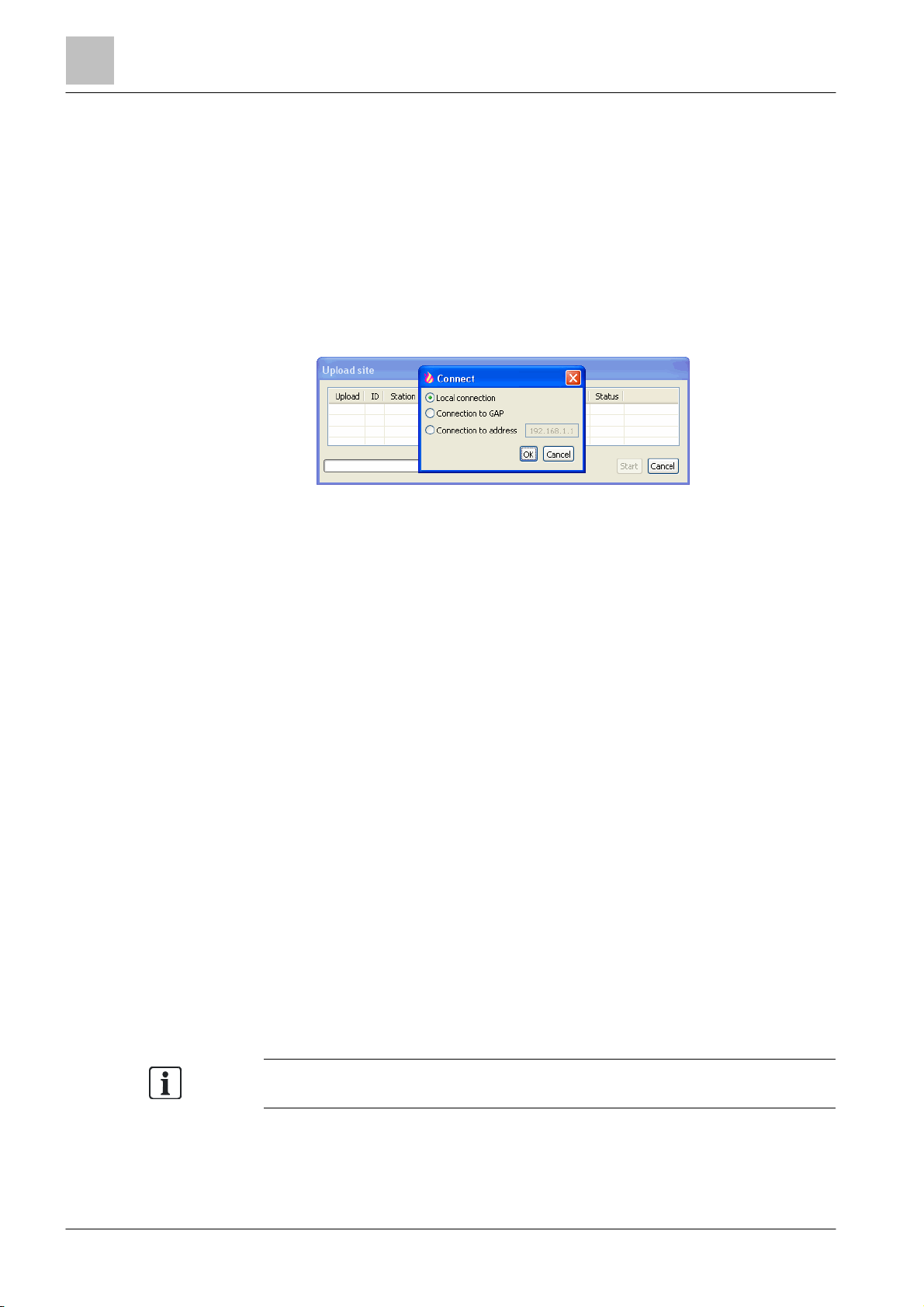

The 'Upload site' and 'Connect' windows are opened.
2. Select the connection in the 'Connect' window and click on 'OK'.
The 'Stations' are listed in the 'Upload site' window.
3. Select the 'Stations' whose configuration you would like to load to CerberusEngineering-Tool and click on 'Start'.
The 'Action confirmation' window opens.
4. Click on 'Yes'.
The configuration is loaded to the PC.
The progress is displayed in the 'Upload site' window.
9.8 Creating a backup of the 'Site' configuration
With the 'Create backup embedded configuration' function, you can create a
backup file of the ↑ 'Site' configuration.
The following conditions must be satisfied for a complete backup:
● All of the ↑ 'Stations' in the 'Site' must be networked and commissioned.
● The 'Site' IDs for all 'Stations' must match the 'Site' ID for the 'Site' loaded in
Cerberus-Engineering-Tool.
● The ↑ BDVs for all 'Stations' must be compatible with the BDV for the 'Site'
loaded in Cerberus-Engineering-Tool.
– The BDVs are compatible when the major version and the minor version
are identical. The bugfix version is not relevant for the compatibility. The
versions are saved in the BDV file name. You will find more information on
the format of the BDV file name in document A6V10210424.
● The country codes of the BDVs for all 'Stations' must match the BDV for the
'Site' loaded in Cerberus-Engineering-Tool.
A6V10210424. See chapter 'Applicable documents'.
If the above-mentioned conditions are not satisfied, a corresponding message is
displayed and an incomplete backup file created. In this instance, 'incomplete' is
added to the file name of the backup file.
82 | 118
Page 83
Connectivity an
d communication with 'Station'
Creating a backup of the 'Site' configuration
118
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Creating a backup
In
the pre
-
settings, you can define that a backup file is created automatically each
ϖ The ↑ 'Site' is opened in Cerberus-Engineering-Tool.
ϖ The PC is connected to a ↑ 'Station'.
1. Select 'Commissioning' > 'Create backup embedded configuration'.
The 'Create backup embedded configuration' And 'Connect' windows are
opened.
2. Select the connection in the 'Connect' window and click on 'OK'.
The 'Site' configuration is loaded to the PC and saved as a backup file.
The progress is displayed in the 'Create backup embedded configuration'
window.
9
Backup file
● The backup file is saved in the following directory as standard:
C:\ProgramData\Siemens\FX7230\[Softwareversion]\Sites\embeddedBackups
● The backup file has the following name:
<'Site' name>_<backup counter>(_incomplete).fsc
Example: Test_Site_007_incomplete.fsc
– 'Site' name: Name of the 'Site'.
– Backup counter: Three-digit number that is automatically assigned to each
backup.
– 'incomplete': If it was not possible to create a complete backup, 'incomplete'
is added to the file name.
● A maximum of ten 'Site' backup files are saved. If more than ten backup files
are created, the oldest file is automatically overwritten with the new one.
time a configuration is loaded from the PC to the ↑ 'Station' using the 'Download
site' command. To do this, select 'Options' > 'Preferences' > 'Commissioning'.
Building Technologies
83 |
Page 84
Commissioning
Creating a backup of the 'Site' configuration
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Connecting C
-
NET and line tester to the station at the same time
●
Do not connect C
-
NET and line tester to the station at the same time.
You will find information about line tester FDUL221 in document 008250.
10 Commissioning
This chapter describes initial commissioning of the Cerberus PRO fire control panel
(individual control panel, not networked).
● Activating access level
● Start auto-configuration
● Display C-NET line devices
● Enter customer texts for the control panel, C-NET and individual line devices
via the control panel keypad

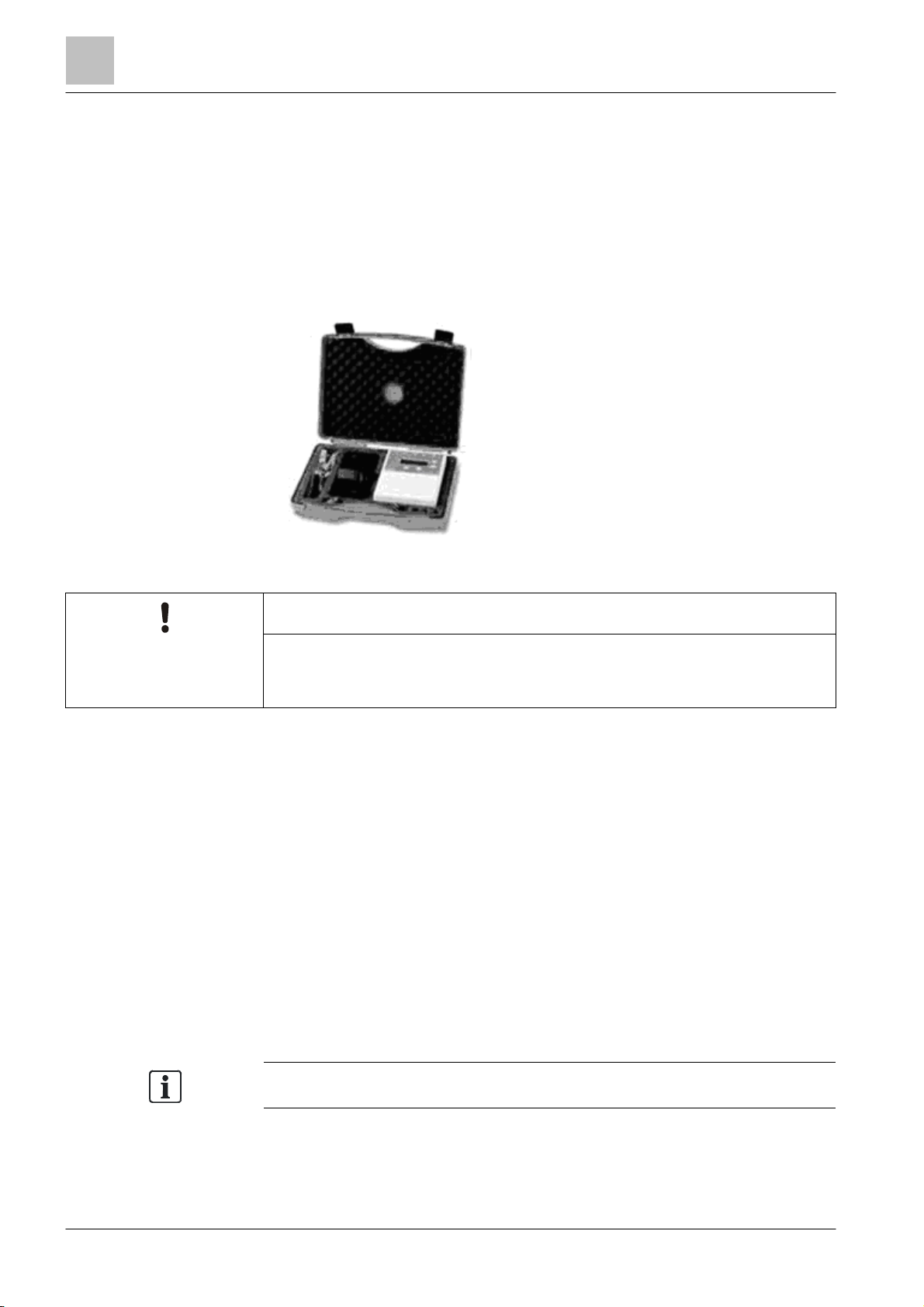

Figure 31: Line tester FDUL221
NOTICE
The line tester or station may be damaged.
ϖ C-NET is not yet connected to the station.
ϖ Before commissioning and auto-configuration of the stations, the connected C-
NET loops or stubs must be checked for correct function using the FDUL221
line tester.
1. Connect the line tester FDUL221 to the C-NET detector line.
2. Test the C-NET detector line for short-circuits, open lines, and ground faults.
3. Check the number of devices on the C-NET detector line based on the display
on the line tester.
4. Check the branch-off position of the stubs and the number of devices at the
stubs.
5. Check the type of the respective C-NET device.
6. Remedy any errors/faults which may be active before commissioning or autoconfiguration
84 | 118
Page 85
Commissioning
Activating access level
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
10.1 Activating access level
If the authorization code is not entered, operation is only possible in access level
The present '
Access level
' is indicated in the main menu in the header of the
The 'Station' is protected against unauthorized operation by access levels.
Authorization for access level 3 is needed for the functions described below.
1 (guest), e.g., for acknowledging the control panel buzzer or scrolling through the
display messages.
The authorization code set in the factory is '0000'. This authorization code must be
changed once the station has been configured.
Logout timeout
The 'Station' is provided with a time control function for the operation.
The operation enable for an access level expires after a configurable period of time
has passed since the last entry.
10.1.1 Log in / Change access level
You can enable an 'Access level' by entering your PIN in the PIN entry dialog, or by
pressing <ok>. Alternatively you can use the key switch (optional) to release an
Access level.
If you press a key on the ↑ Person Machine Interface whose function requires a
higher 'Access level', the PIN input dialog is displayed automatically.
10
Login/logout
Enter PIN: ****
Logout or guest-login: no PIN + <ok>
Confirm with <ok>/Exit with <C>
Delete with <Cursor up>
Table 5: PIN entry dialog box
Enabling an 'Access level' without a PIN
1. Press <Menu> on the keypad.
The PIN input dialog is indicated.
2. Do not enter a PIN and confirm with <ok>.
The lowest 'Access level' is enabled.
The main menu is open.
Enabling an 'Access level' with a PIN
1. Press <Menu> on the keypad or select the 'Main menu' > 'Login/logout'' main
menu item.
The PIN input dialog is indicated.
2. Enter your PIN and confirm with <ok>.
The corresponding 'Access level' is enabled.
The main menu is open.
display.
Building Technologies
85 |
Page 86
Commissioning
Auto-configuration of control panels
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Overwriting an existing configuration
Control panel is ready for detection
-
with limitations.
Customer text (e.g. detector number, installation location etc.) can be entered for
10.2 Auto-configuration of control panels
This function requires the control panel, components, and C-NET to have been
correctly installed. Once auto-configuration is complete, the control panel is ready
for detection with limitations. A fire is recognized by the connected fire detectors
and displayed on the control panel. Configuration with the FXS7212 Cerberus
Engineering Tool is required in order to assign controls, define individual alarm
responses, and make adjustments in line with object-specific requirements.
NOTICE
Parts of an existing customer-specific configuration are lost.
● First save an existing customer-specific configuration.
ϖ Every loop or stub line is tested with the line tester FDUL221 to ensure it is
functioning and installed correctly.
κ Run auto-configuration as described in the 'Auto-configuring a line' chapter.
The station is ready to detect - with limitations. The C-NET devices have been
addressed. Should an event occur, e.g. a triggered fire detector and its C-NET
address are displayed.
WARNING
Alarm transmission to the fire brigade is not configured.
Activation of acoustic signal transmitters is not configured.
● Configure the controls needed.
each C-NET device for improved clarity.
86 | 118
Page 87
Commissioni
ng
Auto-configuration of control panels
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
10.2.1 Auto-configure line
Overwriting an
existing configuration
●
First save an existing customer
-
specific configuration.
The 'Line' element category in the 'Maintenance' menu facilitates the reading-in of
the current topology, for example. This creates part of the elements in the
'Detection tree'.
NOTICE
Parts of an existing customer-specific configuration are lost.
Auto-configuring a line:
1. In the main menu, select the 'Topology' menu item.
The 'Topology' window is open.
2. Select 'Hardware tree'.
The 'Element' window is open.
10
3. Select 'Station' and press the 'Lower level' <softkey>.
The elements of 'Station' are displayed.
4. Select the corresponding 'C-NET line card (onboard/FCL2001)' module and
press the 'Lower level <softkey>.
All lines of 'C-NET line card (onboard/FCL2001)' are indicated.
5. Select a line and press 'More Options' <softkey>.
The 'Select option' window is open.
6. Select 'Execute commands' and confirm with <ok>.
The window including the possible commands is displayed.
7. Select the 'Auto-configure line' command and confirm with <ok>.
The line is auto-configured.
Building Technologies
87 |
Page 88
Commissioning
Auto-configuration of control panels
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Display for auto-configuration
Main menu
Exit with <C>
Message summary
Functions
Favorites
Topology
Function
On/Off
κ Select 'Topology', continue with <ok>
(1)
(2)
(3)
(4)
Element search
Event memory
Login/logout
Settings/administration
Function
All
Topology
Exit with <C>
Detection tree
Hardware tree
Control tree
Function
On/Off
κ Select 'Hardware tree', continue with <ok>
(1)
(2)
(3)
Function
All
Access level 3
(5)
(6)
(7)
(8)
LED
test
Access level 3
LED
test
001 Element Hardware tree
Station 1
Lower
level
κ Select 'Station 1', continue with 'Lower level' <softkey 2>
005
FC721
Module
Module
Module
Module
κ Select 'Module 2', continue with 'Lower level' <softkey 2>
Elements
Main building
Upper
level
1
2
3
4
Onboard I/Os
Onboard I/Os
'C-NET line card (onboard/FCL2001)'
Communication interfaces
Lower
level
More
Options
Station 1
More
Options
88 | 118
Page 89
Commissioning
Displaying C
-
NET devices
10
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
Depending on the control panel type (2 or 4 loops) and the control panel design,
007 Elements
'C-NET line card (onboard/FCL2001)'
Line
Line
Line
Line
Upper
level
κ Select 'Line 1', continue with 'More Options' <softkey 3>
11
12
21
22
Lower
level
Selecting option
Execute commands
Show details
κ Select 'Execute commands', continue with <ok>
(3)
(5)
Select command
Read in installed devices
Detector line OFF
Auto-configure line
Set customer text
Accept replaced devices
(1)
(2)
(3)
(4)
(6)
Module 2
Line
Line
Line
Line
More
Options
κ Select 'Auto-configure line', continue with <ok>
The line is auto-configured.
10.3 Displaying C-NET devices
After auto-configuration, the individual C-NET detector lines and the associated CNET devices of each line can be displayed and configured.
the depiction may vary and several lines may be displayed.
You can display the lines and devices as follows. The displays are depicted in the
same way as those in the 'Auto-configuring a line' chapter with the exception of the
'Show details' command.
ϖ At least one line is configured.
1. In the main menu, select the 'Topology' menu item.
The 'Topology' window is open.
2. Select 'Hardware tree'.
The 'Element' window is open.
3. Select 'Station' and press the 'Lower level' <softkey>.
The elements of 'Station' are displayed.
Building Technologies
89 |
Page 90
Commissioning
Displaying C
-
NET devices
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
You will find a list of type designations in the 'C
-
NET devices' chapter
4. Select the corresponding 'C-NET line card (onboard/FCL2001)' Module and
press the 'Lower level' <softkey>.
All lines of 'C-NET line card (onboard/FCL2001)' are indicated.
5. Select a line and press 'More Options'' <softkey>.
The 'Select option' window is open.
6. Select 'Execute commands' and confirm with <ok>.
The window including the possible commands is displayed.
7. Select the 'Show details' command and confirm with <ok>.
The details are displayed.
Example of selecting a line
004 Elements
Module 2
C-NET line card
(onboard/FCL2001)
Line
Line
Line
Line
Upper
level
11
12
21
22
Lower
level
Line
Line
Line
Line
More
Options
004 Elements Line 12
Device
Device
Device
Device
Upper
level
κ Check whether all devices of this C-NET detector line are displayed correctly.
11
12
21
22
Lower
level
OH720
HI720
OP720
OP720
More
Options
You can use the type designation to detect the type of device displayed (smoke
detector, heat detector, manual call point etc.)
90 | 118
Page 91
Commissioning
Entering/Changing customer text
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
10.4 Entering/Changing customer text
Once customer text has been entered or changed, the updated displ
ay is only
You can enter customer text for any element on the control panel, independently of
Cerberus-Engineering-Tool.
shown the next time the element is accessed.
Entering or changing customer text does not lead to a reboot.
'Set customer text'
1. Select an element
2. Press the 'Execute Commands' softkey
3. Select the 'Set customer text' command.
4. Enter the desired customer text and confirm the entry with <ok>.
The customer text has been entered.
Changing customer text
Proceed in the same way as when entering customer text but change the existing
customer text.
10
10.5 Setting the system time
The set system time is used to log all the control panel's messages, save them in
the event memory and output them on a connected printer.
10.5.1 Setting time and date
You will have to reset the clock if the fire control panel has been de-energized. In
countries with central European summer time (CEST), the system clock
automatically switches between daylight savings time and regular time.
'Enter date / time'
1. Select 'Main menu' > 'Settings/administration' > 'System commands'.
The 'System commands' window is open.
2. Select 'Set system time'.
The 'Enter date / time' window is open.
3. Enter the date and time and/or confirm with <ok>.
The cursor jumps to the next field and terminates the input after the last
field.
Adjusted or confirmed date and time are set.
Enter date / time
25-04-09 12:42:58
(dd-mm-yy) (hh:mm:ss)
Confirm with <ok>/Exit with <C>
Delete with <Cursor up>
Table 6: Input window for time and date
Building Technologies
91 |
Page 92
Commissioning
Cha
nging access authorization PIN
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
PIN administration not available
10.6 Changing access authorization PIN
After successful commissioning, the 4-digit access authorization (PIN) for the
corresponding access level must be changed. Keep the new PIN in a safe place.
If the PIN is lost, a system reset must be undertaken to the station's factory setting.
The control panel configuration, including all customer data, is cleared in the
process.
The '0000' PIN set in the factory then applies again after a system reset.
10.6.1 PIN administration
You can change an existing PIN and create a new PIN or delete a PIN with the
corresponding authorization.
If PIN administration is not available at the station, you must configure the PINs in
Engineering Tool. You will find more information in document A6V10210424.
'Change PIN'
1. Select 'Main menu' > 'Settings/administration' > 'Manage PINs'.
2. Select the 'Change PIN' menu item.
3. Enter the PINs in accordance with the input fields and confirm with <ok>.
The PIN has been changed.
Change PIN
Old PIN: ****
New PIN: ****
Verify new PIN: ****
Confirm with <ok>/Exit with <C>
Delete with <Cursor up>
92 | 118
Page 93
Commissioning
Changing access authorization PIN
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
'Create PIN'
ϖ You have the required authorization level.
1. Select 'Main menu' > 'Settings/administration' > 'Manage PINs'.
2. Select the 'Create PIN' menu item.
3. Enter an admissible access level.
4. Enter the PIN in accordance with the input fields and confirm with <ok>.
A new PIN has been created.
Create PIN
Access level: __
Enter PIN: ****
Verify PIN: ****
Confirm with <ok>/Exit with <C>
Delete with <Cursor up>
10
'Delete PIN'
ϖ PIN is present.
ϖ You have the required authorization level.
1. Select 'Main menu' > 'Settings/administration' > 'Manage PINs'.
2. Select 'Delete PIN'.
3. Enter the PIN in accordance with the input fields and confirm with <ok>.
PIN has been deleted.
Delete PIN
Enter PIN: ****
Verify PIN: ****
Confirm with <ok>/Exit with <C>
Delete with <Cursor up>
Building Technologies
93 |
Page 94
Commissioning
Restart the station
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
The co
nfiguration of the
↑'Station
' remains the same.
10.7 Restart the station
There are the following ways in which to restart the ↑ 'Station':
● Via the menu on the display
● PMI & mainboard FCM2004 and FCM2027: With the 'S32' button
● ↑ CPU card: With the 'S8' button
Via the menu on the display
If you are using two ↑ CPU cards, you must perform the following procedure once
for each CPU card.
1. Press <MENU>.
The PIN input dialog is displayed.
2. Enter a valid PIN and confirm with <ok>.
The 'User successfully logged in' message is displayed.
The main menu is displayed.
3. Select the 'Topology' > 'Hardware tree' > 'Station' menu items.
The elements of the 'Station' are listed.
4. Select module 101 or module 102 'CPU (FCC2001/06)'.
5. Press the 'MoreOptions' softkey and select 'Execute commands'.
6. Select the 'Reset module' command.
The 'Station' shuts down.
The 'Station' is switched off for several seconds.
The 'Station' restarts.

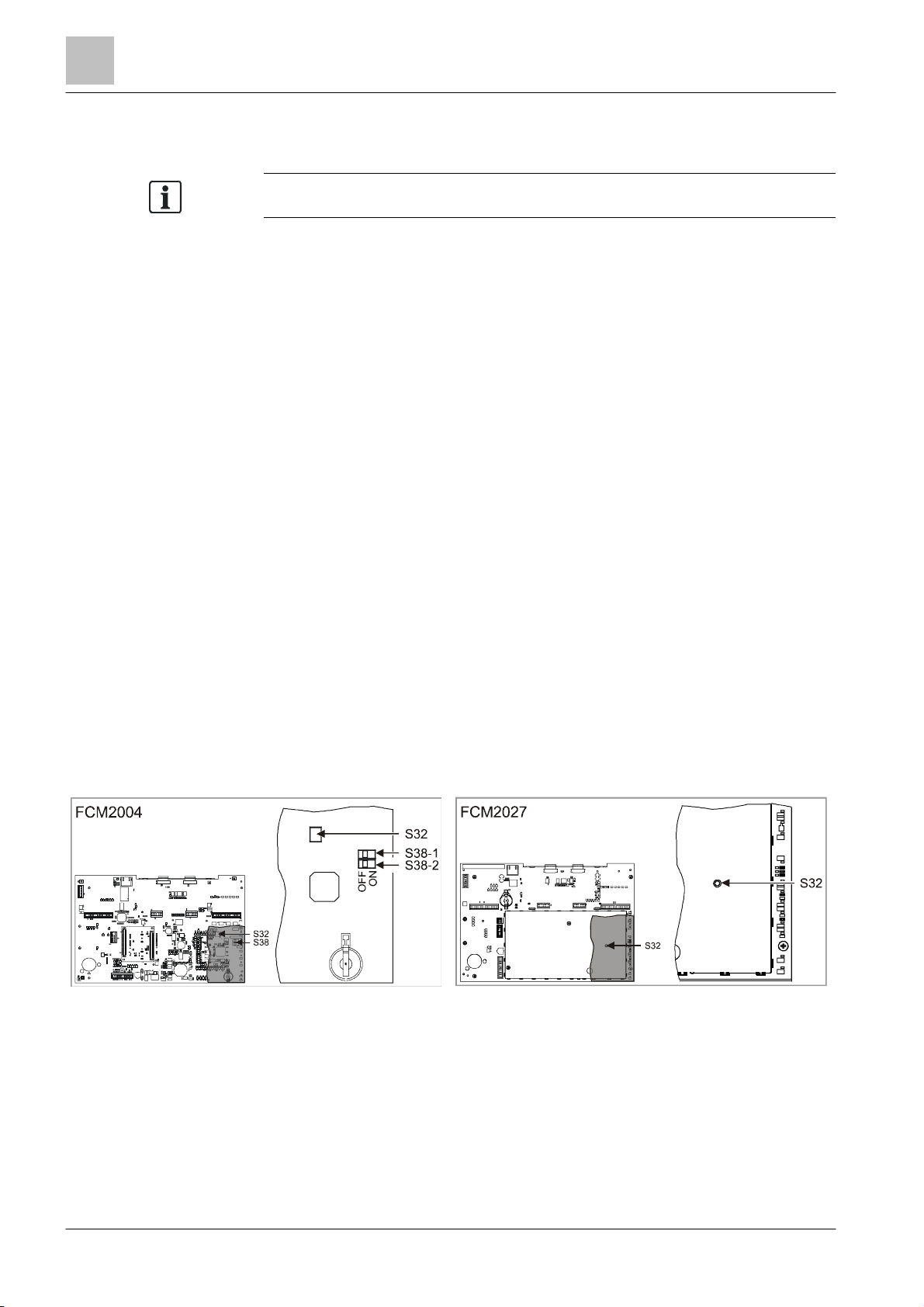

PMI & mainboard FCM2004 and FCM2027
94 | 118
ϖ Switches S38-1 and S38-2 are set to the 'OFF' position on the PMI &
mainboard FCM2004.
κ On the PCB of the operating unit, press and hold down the 'S32' button for
<2 s.
The 'Station' shuts down.
The 'Station' is switched off for several seconds.
The 'Station' restarts.
Page 95
Commissioning
Detailed commissioning steps
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
↑ CPU card
You will find information on the
↑
CPU card FCC2004, the LED matrix display,
Additional messages may be displayed depending on the configuration of the
1. Briefly press the 'S8' button on the CPU card until a 'R' is displayed on the LED
matrix display.
2. As soon as the 'R' is displayed, press and hold the 'S8' button for approx. 2 s to
confirm the selection.
A checkmark on the LED matrix display confirms the selection.
The CPU card is restarted.
and operating the 'S8' button in document A6V10210368. See chapter 'Applicable
documents'.
10.8 Detailed commissioning steps
In the following chapters, you will find detailed commissioning steps that are
referred to in several chapters.
10
10.8.1 Preparing 'Station' for commissioning
1. Connect the cables for the ↑ detector lines and the peripheral devices.
2. Connect the power supply (mains and batteries).
The ↑ 'Station' starts and reads in the internal hardware.
During start-up, the 'FAULT' LED flashes and the display shows the
progress.
During start-up, the firmware version F-FXS7211 is displayed.
3. Wait until the display indicates the selection of the ↑ BDV.
4. Press the 'Install' softkey and confirm with the 'Yes' softkey.
The 'Station' restarts.
During this process, the 'FAULT' LED flashes and the display shows the
progress.
5. Wait until only the green 'System On' LED lights up, the display shows the
normal condition, and the 'Station' can be operated.
6. Press <MENU> and select the 'Login/logout' menu item.
You are prompted to enter a PIN.
7. Enter the PIN and confirm with <ok>.
The 'User successfully logged in' message is displayed.
The main menu is shown on the display.
8. Check the firmware of the 'Station' to ensure that it is up to date. To do this,
select the 'Topology' > 'Hardware tree' > 'Station' > 'More Options' > 'Show
details' menu items.
The 'Station' version and configuration data are displayed.
9. Update the firmware if necessary.
10. Enter the date and time. To do this, select the 'Settings/administration' >
'System commands' > 'Set system time' menu items.
↑ 'Station'.
Building Technologies
95 |
Page 96
Commissioning
Detailed commissioning steps
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
It is n
ot necessary to install the BDV for the further procedure. This saves having
10.8.2 Preparing 'Station' for commissioning –without BDV installation
1. Connect the cables for the ↑ detector lines and the peripheral devices.
2. Connect the power supply (mains and batteries).
The ↑ 'Station' starts and reads in the internal hardware.
During start-up, the 'FAULT' LED flashes and the display shows the
progress.
During start-up, the firmware version F-FXS7211 is displayed.
3. Wait until the display indicates the selection of the ↑ BDV.
The 'Station' is prepared for commissioning.
to restart the ↑ 'Station'.
Following preparation, you can for instance perform the following steps, depending
on the selected commissioning variant:
● Initialize the ↑ 'Station'
● Auto-configure the 'Station'
● Load the configuration from the PC to the 'Station'
10.8.3 Auto-configuring 'Station'
1. Select 'Topology' > 'Hardware tree' > ↑ 'Station' in the main menu.
2. Press the 'More Options' softkey and select 'Execute commands'.
3. Select the 'Auto-configure station' command.
The 'Station' is auto-configured.
The following message is shown following successful ↑ auto-configuration:
'Command executed'
96 | 118
Page 97
Commissioning
Detailed commissio
ning steps
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
10.8.4 Auto-configuring the detector line
Incorrect ord
er for reading in a
↑
loop, no isolation of second '
Line
'
●
Proceed in the same way from '
Line
' 21/22 (loop 2) to '
Line
' 41/42 (loop 4).
Overwriting an existing
configuration
●
First save an existing customer
-
specific configuration.
NOTICE
Error when reading in a loop
The C-NET detector lines are detected as ↑ stubs during the first system startup,
e.g., 'Line' 11, 'Line' 12 (2-digit line number), even if they are connected as a loop.
● Before you proceed to reading in the first 'Line', you must isolate the second
'Line'.
● To read in a loop, always select the first 'Line', in this case 'Line' 11. 'Line' 12
is then read in automatically and a loop is displayed with a 1-digit line number,
in this case as 'Line' 1.
NOTICE
10
Parts of an existing customer-specific configuration are lost.
1. Select 'Main menu' > 'Topology' > 'Hardware tree' > ↑ 'Station' > 'Module' (line
card) > 'Line'.
2. Press the 'MoreOptions' softkey and select 'Execute commands'.
3. Select the 'Auto-configure line' command.
The C-NET detector line is auto-configured.
The following message is shown following successful ↑ auto-configuration:
'Command executed'
Building Technologies
97 |
Page 98
Commissioning
Detailed commissioning steps
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
The description in this chapter only applies if a configuration has not yet been
You will find information on configuring an
↑'Site
' in document
A6V10210424
.
10.8.5 Loading automatically created configuration to the PC
loaded to the 'Station' and if the ↑ BDV was installed at the 'Station' after the
'Station' was started for the first time.
1. Select the 'File' > 'New site' menu item.
The 'Create new site' window opens.
2. Select the 'Upload from station(s)' option field.
3. Click on 'Next'.
The 'Create site by uploading from station(s)' and 'Connect' windows are
opened.
4. In the 'Connect' window, select 'Local connection' and then click on 'OK'.
The configuration is loaded to 'Cerberus-Engineering-Tool'.
The progress is displayed in the 'Create site by uploading from station(s)'
window.
The 'Site properties' window is opened after loading.
5. Change the entries if required and click on 'OK'.
The 'New site confirmation' window opens.
6. Click on 'Yes'.
The 'Site' is opened in Cerberus-Engineering-Tool.
10.8.6 Adapting configuration
Adapt the configuration of the ↑ 'Site' in Cerberus-Engineering-Tool, e.g.:
● Changing customer texts
● Setting the properties and the parameter sets
● Changing allocation of 'Zones' and 'Sections'
● Configuring controls
● Configuring the operating and display units
● Configuring the network
See chapter 'Applicable documents'.
98 | 118
Page 99
Commissioning
Detailed commissioning steps
118
A6V10211100_
f_en_
--
Fire Safety
2015-12-15
10.8.7 Switch off
System parts that have been switched off make it impossible to acquire and
●
You must switch deactivated parts of the '
Site
' back on as soon as possible.
10.8.7.1 Safety during switch-off
WARNING
process alarms or faults!
Fire may spread unhindered.
● Deploy staff to monitor the deactivated area.
10.8.7.2 Switching off the detector line
1. Select 'Main menu' > 'Topology' > 'Hardware tree' > ↑ 'Station' > ↑ Line card >
↑ Detector line.
2. Press the 'MoreOptions' softkey and select 'Execute commands'.
10
3. WARNING! System parts that have been switched off make it impossible to
acquire and process alarms or faults! Select the 'Detector line OFF' command.
The yellow 'ISOLATION' LED lights up.
The detector line is switched off.
10.8.7.3 Switch off zone
1. Select 'Topology' > ↑ 'Detection tree' > 'Area' > ↑ 'Section' > 'Zone' in the main
menu.
2. Press the 'More Options' softkey and select 'Execute commands'.
3. WARNING! System parts that have been switched off make it impossible to
acquire and process alarms or faults! Select the 'Off' command.
The yellow 'ISOLATION' LED lights up.
The 'Zone' is switched off.
10.8.8 Switching on
10.8.8.1 Switch on detector line
1. Select 'Main menu' > 'Topology' > 'Hardware tree' > 'Station' > ↑ Line card >
↑ Detector line.
2. Press the 'MoreOptions' softkey and select 'Execute commands'.
3. Select the 'Detector line ON' command.
The yellow 'ISOLATION' LED goes out.
The detector line is switched on.
Building Technologies
99 |
Page 100
Commissioning
Detailed commissioning steps
10
Building Technologies
A6V10211100_f_en_
--
Fire Safety
2015-12-15
Activation of fire or smoke dampers
station or restarting the station/detector line.
Start line test
10.8.8.2 Switch on zone
1. Select 'Topology' > ↑ 'Detection tree' > 'Area' > ↑ 'Section' > 'Zone' in the main
menu.
2. Press the 'More Options' softkey and select 'Execute commands'.
3. Select the 'On' command.
The yellow 'ISOLATION' LED goes out.
The 'Zone' is switched on.
10.8.9 Restarting the detector line
WARNING
If fire or smoke dampers are connected to the FS720 via an input/output module,
they may be activated when the station is switched off or when the station or
detector line is restarted.
● If necessary, block the outputs temporarily [➙ 101] before switching off the
1. Select 'Main menu' > 'Topology' > 'Hardware tree' > ↑ 'Station' > 'Module' (line
card) > 'Line'.
2. Press the 'More Options' softkey and select 'Execute commands'.
3. Select the 'Restart line' command.
The ↑ detector line is restarted. The following messages are displayed:
'Line starting up'
'Device config.runs'
Only test the line and line devices once the following messages have disappeared
from the PMI:
- 'Device config.runs'
- 'System startup completed'
100 | 118
Loading...
