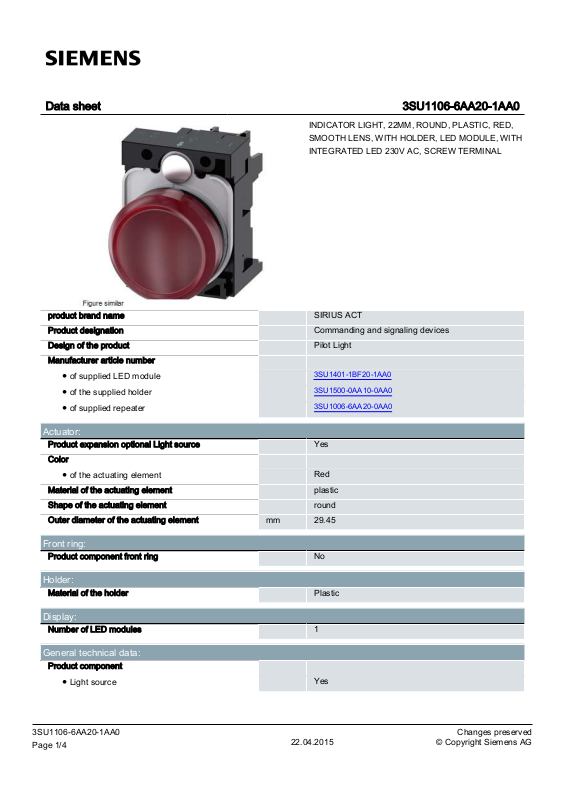

Data sheet 3SU1106-6AA20-1AA0
4
INDICATOR LIGHT, 22MM, ROUND, PLASTIC, RED,
SMOOTH LENS, WITH HOLDER, LED MODULE, WITH
INTEGRATED LED 230V AC, SCREW TERMINAL
product brand name SIRIUS ACT
Product designation Commanding and signaling devices
Design of the product Pilot Light
Manufacturer article number
● of supplied LED module
● of the supplied holder
● of supplied repeater
3SU1401-1BF20-1AA0
3SU1500-0AA10-0AA0
3SU1006-6AA20-0AA0
Actuator:
Product expansion optional Light source Yes
Color
● of the actuating element
Material of the actuating element plastic
Shape of the actuating element round
Outer diameter of the actuating element mm 29.45
Red
Front ring:
Product component front ring No
Holder:
Material of the holder Plastic
Display:
Number of LED modules 1
General technical data:
Product component
● Light source
Yes
3SU1106-6AA20-1AA0 Changes preserved
Page 1/
22.04.2015 © Copyright Siemens AG
Page 2
Insulation voltage
4
● Rated value
Type of voltage
● of the operating voltage
Degree of pollution 3
Shock resistance
● acc. to IEC 60068-2-27
Vibration resistance
● acc. to IEC 60068-2-6
Surge voltage resistance Rated value kV 4
Protection class IP IP66, IP67, IP69(IP69K)
● of the terminal
Equipment marking
● acc. to DIN EN 61346-2
● acc. to DIN EN 81346-2
Operating voltage
● Rated value
Relative positive tolerance of the operating voltage % 20
Relative negative tolerance of the operating voltage % 20
V 320
AC
Sinusoidal half-wave 50 g / 11 ms
10 ... 500 Hz: 5g
IP20
P
P
V 230
Auxiliary circuit:
Number of NC contacts
● for auxiliary contacts
Number of NO contacts
● for auxiliary contacts
Number of CO contacts
● for auxiliary contacts
Connections/ Terminals:
Type of electrical connection
● of modules and accessories
Type of connectable conductor cross-section
● solid with core end processing
● solid without core end processing
● finely stranded with core end processing
● finely stranded without core end processing
● for AWG conductors
Tightening torque
● with screw-type terminals
0
0
0
Screw-type terminal
2x (0.5 ... 0.75 mm²)
2x (1.0 ... 1.5 mm²)
2x (0.5 ... 1.5 mm²)
2x (1,0 ... 1,5 mm²)
2x (18 ... 14)
N·m 0.8...0.9
Lamp:
Type of light source LED
Color of the light source red
Ambient conditions:
3SU1106-6AA20-1AA0 Changes preserved
Page 2/
22.04.2015 © Copyright Siemens AG
Page 3
Ambient temperature
4
● during operation
● during storage
°C -25...+70
°C -40...+80
Installation/ mounting/ dimensions:
Mounting type front panel mounting
● of modules and accessories
Front plate mounting
Height mm 40
Width mm 30
Shape of the installation opening round
Mounting diameter mm 22
Certificates/ approvals:
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/industrial-controls/catalogs
Industry Mall (Online ordering system)
http://www.siemens.com/industrymall
Cax online generator
http://support.automation.siemens.com/WW/CAXorder/default.aspx?lang=en&mlfb=3SU11066AA201AA0
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
http://support.automation.siemens.com/WW/view/en/3SU11066AA201AA0/all
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
http://www.automation.siemens.com/bilddb/cax_de.aspx?mlfb=3SU11066AA201AA0&lang=en
61.5
30
40
11.8
3SU1106-6AA20-1AA0 Changes preserved
Page 3/
22.04.2015 © Copyright Siemens AG
Page 4
-P
4
X1
230 V AC
X2
last modified: 20.04.2015
