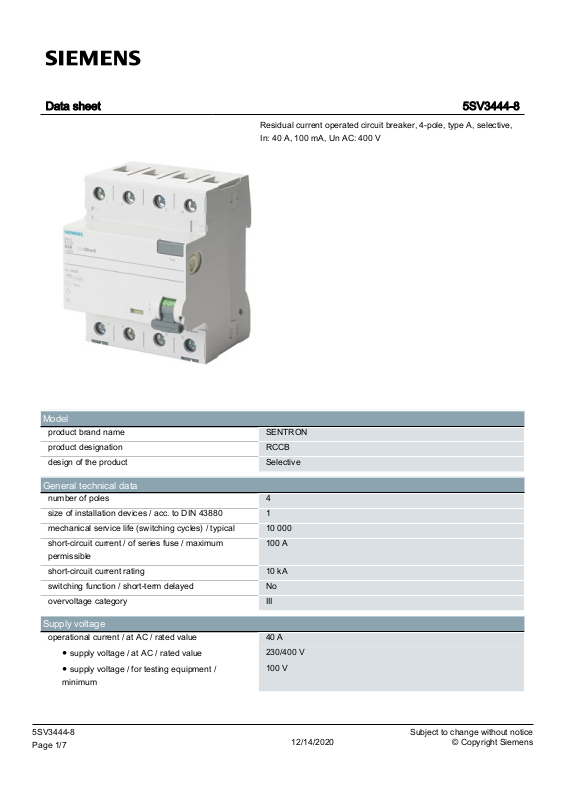

Data sheet |
5SV3444-8 |
Residual current operated circuit breaker, 4-pole, type A, selective,
In: 40 A, 100 mA, Un AC: 400 V
Model
product brand name |
SENTRON |
|
RCCB |
product designation |
|
|
Selective |
design of the product |
|
|
|
General technical data
number of poles
size of installation devices / acc. to DIN 43880
mechanical service life (switching cycles) / typical
short-circuit current / of series fuse / maximum permissible
short-circuit current rating
switching function / short-term delayed
overvoltage category
4
1
10 000
100 A
10 kA
No
III
Supply voltage
operational current / at AC / rated value |
40 A |
|
230/400 V |
● supply voltage / at AC / rated value |
|
● supply voltage / for testing equipment / |
100 V |
minimum |
|
|
|
5SV3444-8 |
12/14/2020 |
Subject to change without notice |
Page 1/7 |
© Copyright Siemens |
|
|
|
supply voltage frequency |
|
● rated value |
50 Hz |
Protection class
protection class IP |
IP20, if the distribution board is installed, with connected |
|
conductors |
|
|
|
|
Switching capacity |
|
switching capacity current
●acc. to EN 60898 / rated value
●according to IEC 61008-1 / rated value
0.8 kA
0.8 kA
Dissipation
power loss [W]
●for rated value of the current / at AC / in hot operating state / per pole
●maximum
1.8 W
5.4 W
Current
tripping fault current / rated value
residual current type
let-through current / permissible
I2t value / permissible
surge current resistance / rated value
operational current
●at 40 °C / rated value
●at 45 °C / rated value
●at 50 °C / rated value
●at 55 °C / rated value
●at 60 °C / rated value
●at 65 °C / rated value
●at 70 °C / rated value
100 mA
A
5 200 kA
58 000 A²·s
5 kA
40 A
40 A
40 A
40 A
40 A
40 A
40 A
Product details
product feature / silicon-free |
Yes |
|
Yes |
product extension / installable / supplementary |
|
devices |
|
|
|
|
|
Connections |
|
connectable conductor cross-section / solid
●minimum
●maximum
connectable conductor cross-section / stranded
●minimum
●maximum
tightening torque / with screw-type terminals
0.75 mm²
35 mm²
0.75 mm²
35 mm²
5SV3444-8 |
12/14/2020 |
Subject to change without notice |
Page 2/7 |
© Copyright Siemens |
|
|
|
● minimum |
2.5 N·m |
● maximum |
3 N·m |
|
|
position / of power supply cord |
top or bottom |
|
|
Mechanical Design
height
width
depth
installation depth
number of modular width units
fastening method
mounting position
90 mm
72 mm
70 mm
70 mm
4
DIN rail (REG)
any
Environmental conditions
ambient temperature / during operation
●minimum
●maximum
ambient temperature / during storage
●minimum permissible
●maximum permissible
number of test cycles / for environmental testing / acc. to IEC 60068-2-30
-25 °C
45 °C
-40 °C
75 °C
28
Certificates
|
reference code |
|
|
|
|
|
|
|
● acc. to DIN EN 61346-2 |
F |
|
|
● acc. to IEC 81346-2 |
F |
|
|
|
|
|
|
|
|
|
General Product Approval |
|
Declaration of |
|
|
Conformity |
|
|
|
|
Miscellaneous |
|
other Railway
Miscellaneous |
|
Vibration and Shock |
|
Confirmation |
Further information
Informationand Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system) https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5SV3444-8
