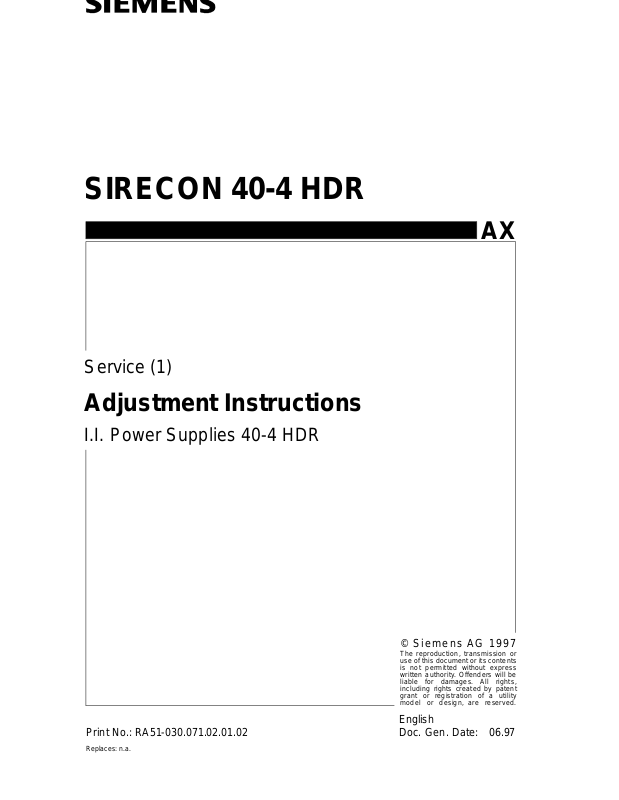

Siemens 40-4 HDR User manual

SIRECON 40-4 HDR
Service (1)
Adjustment Instructions
AX
I.I. Power Supplies 40-4 HDR
© Siemens AG 1997
The reproduction, transmission or use of this document or its contents is not permitted without express written authority. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model _or_ design,_are_ reserved.
English Print No.: RA51-030.071.02.01.02 Doc. Gen. Date: 06.97
Replaces: n.a.
0 - 2Revision
Chapter Page Revision
all all 01
SIRECON 40-4 HDR RA51-030.071.02 Page 2 of 4 Siemens AG Service (1) Rev. 01 06.97 TD AX 1 Medical Engineering
Contents 0 - 1
Page
Siemens AG Register_V Drucknr_kurz_V Page 1 of 2 Produkt_V Medical Eng ineering Rev. _V E_Dat Abt._V Manual_V
0 - 2 Contents
Page
Produkt_V Register_V Drucknr_kurz_V Page 2 of 2 Siemens AG Manual_V Rev. _V E_Dat Abt._V Medical Engineering
Contents 0 - 3
Page
1 _______Requirements__________________________________________________1 - 1
Remarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Required Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Required Test Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
2 _______Adjustments___________________________________________________2 - 1
Adjusting the 40-4 HDR I.I. Power Supply . . . . . . . . . . . . . . . . . . . . . . . 2 - 1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2
Setting the I.I. voltage leve ls (refer to circuit diagram X2 181). . . . . . . . . . . . . . 2 - 2
Gettering the Image Intensifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2
3 _______Instructions for Correcting Malfuctions ____________________________3 - 1 4 _______Changes to previous version_____________________________________4 - 1
Siemens AG RA51-030.071.02 Page 3 of 4 SIRECON 40-4 HDR Medical Engineering Rev. 01 06.97 TD AX 1
0 - 4 Contents
Page
SIRECON 40-4 HDR RA51-030.071.02 Page 4 of 4 Siemens AG Rev. 01 06.97 TD AX 1 Medical Engineering

Requirements 1

Remarks 1

These instructions apply to the foll owing I.I. power supplies 40-4 HDR:
- 38 29 103 X2181
No adjustment is needed when there is replacement of the complete image intensifier
unit with the I.I. power supply at the c ustomer’s location.
An adjustment is necessary only aft er a replacement of the power supply.

Required Documents 1

Wiring Diagram, X2181
Image intensifier test certificate

Required Test Equipment 1

Digital multimeter (DVM), e.g. Fluke 8060A
1 - 1
Siemens AG RA51-030.071.02 Page 1 of 2 SIRECON 40-4 HDR Medical Engineering Rev. 01 06.97 TD AX 1
1 - 2Requirements
This page intentionally left blank.
SIRECON 40-4 HDR RA51-030.071.02 Page 2 of 2 Siemens AG Rev. 01 06.97 TD AX 1 Medical Engineering

Adjustments 2

Adjusting the 40-4 HDR I.I. Power Supply 2

The control and adjustment component of t he I.I. power supply is adjusted at the factory
along with the high voltage components . These work steps cannot be carried out i n the field.
This means that if there is a defect of the control and adjustment component or of a high
voltage component, the complete I.I. power supply must be replaced.
The 40-4 HDR power supply is mounted on a bracket and can only be r eplaced
completely.
2 - 1
Siemens AG RA51-030.071.02 Page 1 of 2 SIRECON 40-4 HDR Medical Engineering Rev. 01 06.97 TD AX 1
2 - 2Adjustments
NOTICE

General 2

Use the voltage values given in the test certi ficate to check or reset the adjustment
parameters of the I.I..
The voltages are set in the factory f or the replacement I.I..
Setting the I.I. voltage levels (refer to circuit diagram X2181). 2
For optimal adjustment of the I.I., the reference voltage values given in the I.I. te st certificate f or the i ndividual electr odes have to be set at the power supply. After you switched on the power supply, wait 10 minutes before you begin setting the voltage values. (Perform only when the power supply is being replaced).
Volt. 27V DMM at M
Verify or set 27V .
MA Anode: DMM at M
Use pot U
ME
ME
ME
ME
3
2A
2B
1A
DMM at MP UE3 Use pot UE3 icate).
DMM at MP UE2A Use pot UE2A tificate).
DMM at MP UE2B Use pot UK2B tificate).
DMM at MP UE1A Use pot UE2A tificate).
27V to Mp. Gnd (for Zoom 3)
P
UAD
P
(set nominal MA value according to test cert ificate).
Ad
for all formats (set nominal values a ccor ding to test cert if-
N-Z3
for all formats (set nominal values according to test cer-
N-Z3
for all formats (set nominal val ues according to test cer-
N-Z3
for all formats (set nominal values according to test cer-
N-Z3
ME
1B
DMM at MP UE1B Use pot UE1B
N-Z3
for all formats (set nominal values according to test cer-
tificate).
Y ou do not have to perform the image quality (IQ) test after you replac ed the power
supply and set the voltage values.

Gettering the Image Intensifi e r 2

The I.I. is switched to continuous gettering.
SIRECON 40-4 HDR RA51-030.071.02 Page 2 of 2 Siemens AG Rev. 01 06.97 TD AX 1 Medical Engineering

Instructions for Correcting Malfuctions 3

If there is a resolution problem with the image intensifier, the volt age values must be
checked per the test certificat e, and if needed, must be readjusted.
It is particularly import ant to check the lead connections from the I.I . power supply to the
the image intensifier; make sure the re is good contact.
When plugging in the high voltage connector , the creep paths must be clean. If
necessary, clean them with ether; do not use alcohol.
If there really is a malfunction i n the I.I. power supply, the complet e power supply must
be replaced (high voltage componen ts with control and adjustment component)!
3 - 1
Siemens AG RA51-030.071.02 Page 1 of 2 SIRECON 40-4 HDR Medical Engineering Rev. 01 06.97 TD AX 1
3 - 2Instructions for Correcting Malfuctions
This page intentionally left blank.
SIRECON 40-4 HDR RA51-030.071.02 Page 2 of 2 Siemens AG Rev. 01 06.97 TD AX 1 Medical Engineering

Changes to previous version 4

No changes; initial publicat ion
4 - 1
Siemens AG RA51-030.071.02 Page 1 of 2 SIRECON 40-4 HDR Medical Engineering Rev. 01 06.97 TD AX 1
4 - 2 Changes to previous version
TD AX 7/Weinrebe
SIRECON 40-4 HDR RA51-030.071.02 Page 2 of 2 Siemens AG Rev. 01 06.97 TD AX 1 Medical Engineering
