SICO® Folding Leg Stage & Riser System
A portable indoor/outdoor variable terrain stage system for large venues or tiered riser system for chairs.
Features, Advantages & Benefits
Deck
Constructed from 5/8” Group 1 plywood, C-C plugged and
sanded.
Surface Options – Three optional deck surfaces are
bonded with an exterior grade adhesive.
Tuff-Deck Surface Option – An extremely tough and
durable skid-resistant surface.
Carpet Surface Option – A long-wearing carpeted
surface. Choice of striking colors.
Fiberglass Surface Option – An outdoor deck
solution.
Unitized Steel Frame – Welded solid steel construction
for rigid strength and a quiet frame during performances.
Black powder-coated for indoor use. Zinc plated for
outdoor use. Deck attaches to frame with expansion rivets
adding strength, stability and a long service life to the unit.
Leg Sockets – Corners of understructure frame
contain sockets to accept fixed height insertable legs.
Deck Edge – Top and side edges of deck are protected
with black vinyl coated 18-gauge steel. Edges securely
fasten to steel frame with tamper proof expansion rivets.
No screws to work loose.
Deck Tray –Edge of frame contains a channel tray
designed to support adjacent bridge decks.
Velcro – Continuous Velcro along all sides of deck
edge allows for quick drapery attachment around
stage.
Unit-to-unit Roto-Locks – Built-in Roto-Locks quickly
engage a secure lock between adjacent deck units in the
proper alignment for a complete and solid stage system.
Operates quickly with a simple turn of the wrist with the
provided T-Allen wrench. 2,000 lbs. pull-load.
Bridge Units – 2-Way bridging
of adjacent units is designed to
speed up set-up time, reduces
cost and save storage space.
Slide in channels built into the
frame for unit-to-unit
connection. Bridge deck is
supported by trays on master frame.
Master Units – Decks equipped with leg frame system.
Load Capacity - Design live load is a uniformly distributed
load of 125 lbs. per square foot (610 kg. per square
meter), which meets or exceeds most building
requirements.
Serial Numbers – Attached to frame for easy
identification.
Leg Supports
Three leg support options that maximize your indoor/outdoor
variable terrain stage needs.
Folding Leg Supports – VT-Leg & H-Leg supports
quickly fold compactly within the dimensions of the stage
frame for easy handling and compact storage of unit. Leg
supports are firmly anchored into the steel frame and not
into the deck for a solid performing platform that provides
maximum strength and longevity.
Lock Pins – Lock pins, used on H-Leg & VT-Legs, are
self-contained spring loaded lever-pin-locks that adjust leg
heights without having to deal with pins or cables. Simply
pull yellow handles, marked for easy identification, to
adjust the height.
Adjustable Glides – All legs have adjustable leveling
glides for fine height adjustments up to 5” for uneven
ground. Non-marring glide surface protects your floors.
1) H-Legs – Set up fast. Work with 3’x8’ (92cm x 244cm) and
4’x8’ (122cm x 244cm) decks.
o Fixed Height H-Legs H-Legs less than, or equal to
24” are fixed height. Available in, but not limited to 6”,
8”, 16”, or 24” heights.
o Common Adjustable Height H-Legs are available in
24”-32”, 32”-48” and 48-80” adjustable heights. Other
heights available. The 1-7/8” dia. upper tube leg
receives the lower 1-5/8” dia. tube leg for raising and
lowering of heights.
o Gravity Slide Lock – Legs lock into their use position
when unfolded, and lock inside the dimensions of the
frame when stored.
2) VT-Legs – Each variable terrain leg is independent of the
other, offering adjustable variable heights for uneven indooroutdoor terrain. Zinc-plated for exterior use. Leg heights are
same as for H-Legs.
3) Insertable Legs – Used primarily with stage heights lower
than 24”. Legs insert into built-in understructure deck frame
leg sockets. 8”, 16” and 24” (20cm, 41cm, and 61cm) option
for either tall leg units or bridge and master deck units.
Stage Accessories – SICO
accessories to complete your professional stage setup. Refer
to our literature containing our complete line of stage
accessories.
Storage Rack. Available in 3’x8’ and 4’x8’ standard sizes.
Unloading rack provides easy set-up of decks right from
the storage rack. Storage rack is stackable for even more
space saving opportunity.
Warranty – Protected by a 3-Year Warranty against
manufacturer’s defects. Lifetime Warranty on welds.
®
provides all necessary
Versatility of Folding Leg Stage Configurations
Multi-Height Tiered Riser Configuration Using “H-Legs” and “Insertable Legs” on lowest level.
Single Height Stage Configuration Using “H-Legs”
Variable Terrain Stage Configuration Using “VT-Legs” and “Insert-able Legs” on lowest level.
Specifications
H-Leg Stage System
Single & adjustable height “H-Leg” folding leg stages with 5” adjusting glides, connector channels, roto-locks and Velcro. Black finish.
Model No. Description Weight
Single Height
SVT11B3N8??B 3’x8’ (91cm x 244cm) Deck – 8” Height 110 lbs. (49.94 kg.)
SVT11B3L8??B 3’x8’ (91cm x 244cm) Deck – 16” Height 120 lbs. (54.48 kg.)
SVT11B3I8??B 3’x8’ (91cm x 244cm) Deck – 24” Height 130 lbs. (59.02 kg.)
SVT11B4N8??B 4’x8’ (122cm x 244cm) Deck – 8” Height 150 lbs. (68.1 kg.)
SVT11B4L8??B 4’x8’ (122cm x 244cm) Deck – 16” Height 160 lbs. (72.64 kg.)
SVT11B4I8??B 4’x8’ (122cm x 244cm) Deck – 24” Height 175 lbs. (79.45 kg.)
Adjustable Height
SVT11B3C???B 3’x8’ (91cm x 244cm) Deck – 24” to 32” (61cm to 81cm) - 4” or 8” height
increments
SVT11B3B???B 3’x8’ (91cm x 244cm) Deck – 32” to 48” (81cm to 122cm) - 4” or 8” height
increments
SVT11B3A???B 3’x8’ (91cm x 244cm) Deck – 48” to 80” (122cm - 203cm) - 4” or 8” height
increments
SVT11B4C???B 4’x8’ (122cm x 244cm) Deck – 24” to 32” (61cm to 81cm) - 4” or 8” height
increments
SVT11B4B???B 4’x8’ (122cm x 244cm) Deck – 32” to 48” (81cm to 122cm) - 4” or 8” height
increments
SVT11B4A???B 4’x8’ (122cm x 244cm) Deck – 48” to 80” (122cm - 203cm) - 4” or 8” height
increments
Bridge Units with connector channels, Roto-Locks and Velcro
SVT11D3 3’x8’ (91cm x 244cm) Bridge Unit 100 lbs. (45.4 kg.)
SVT11D4 4’x8’ (122cm x 244cm) Bridge Unit 135 lbs. (61.29 kg.)
150 lbs. (68.1 kg.)
170 lbs. (72.64 kg.)
180 lbs. (79.45 kg.)
200 lbs. (90.8 kg.)
230 lbs. (104.42 kg.)
260 lbs. (118.04 kg.)
Insertable Leg Stage System
Set of 4 single height “Insertable” folding leg stages with 5” adjusting glides, connector channels, roto-locks and Velcro.
Black finish.
Model No. Description
112502-06S1 6" high Insertable legs (set of 4)
112502-08S1 8" high Insertable legs (set of 4)
112502-12S1 12" high Insertable legs (set of 4)
112502-16S1 16" high Insertable legs (set of 4)
112502-18S1 18" high Insertable legs (set of 4)
112502-24S1 24" high Insertable legs (set of 4)
112502-32S3 32" high Insertable legs (set of 4)
2768-001S3 Insertable casters (set of 4)
VT-Leg Stage System
(Single & adjustable height “VT-Leg” folding leg stages with 5” adjusting glides, roto-locks an d Velcro. Zinc plated finish. An
optional outdoor fiberglass sealed deck is available.
Model No. Description Weight
Adjustable Height
SVT11S3C8??Z 3’x8’ (91cm x 244cm) Deck – 24” to 32” (61cm to 81cm) - 4” or 8” height increments 150 lbs. (68.1 kg.)
SVT11S3B8??Z 3’x8’ (91cm x 244cm) Deck – 32” to 48” (81cm to 122cm) - 4” or 8” height increments 170 lb s. (72.64 kg.)
SVT11S3A8??Z 3’x8’ (91cm x 244cm) Deck – 48” to 80” (122cm - 203cm) - 4” or 8” height increments 180 lbs. (79.45 kg.)
SVT11S4C8??Z 4’x8’ (122cm x 244cm) Deck – 24” to 32” (61cm to 81cm) - 4” or 8” height increments 200 lbs. (90.8 kg.)
SVT11S4B8??Z 4’x8’ (122cm x 244cm) Deck – 32” to 48” (81cm to 122cm) - 4” or 8” height
increments
SVT11S4A8??Z 4’x8’ (122cm x 244cm) Deck – 48” to 80” (122cm - 203cm) - 4” or 8” height
increments
Single Height
SVT11S3N8??Z 3’x8’ (91cm x 244cm) Deck – 8” Height 110 lbs. (49.94 kg.)
SVT11S3L8??Z 3’x8’ (91cm x 244cm) Deck – 16” Height 120 lbs. (54.48 kg.)
SVT11S3I8??Z 3’x8’ (91cm x 244cm) Deck – 24” Height 130 lbs. (59.02 kg.)
SVT11S4N8??Z 4’x8’ (122cm x 244cm) Deck – 8” Height 150 lbs. (68.1 kg.)
SVT11S4L8??Z 4’x8’ (122cm x 244cm) Deck – 16” Height 160 lbs. (72.64 kg.)
SVT11S4I8??Z 4’x8’ (122cm x 244cm) Deck – 24” Height 175 lbs. (79.45 kg.)
230 lbs. (104.42 kg.)
260 lbs. (118.04 kg.)

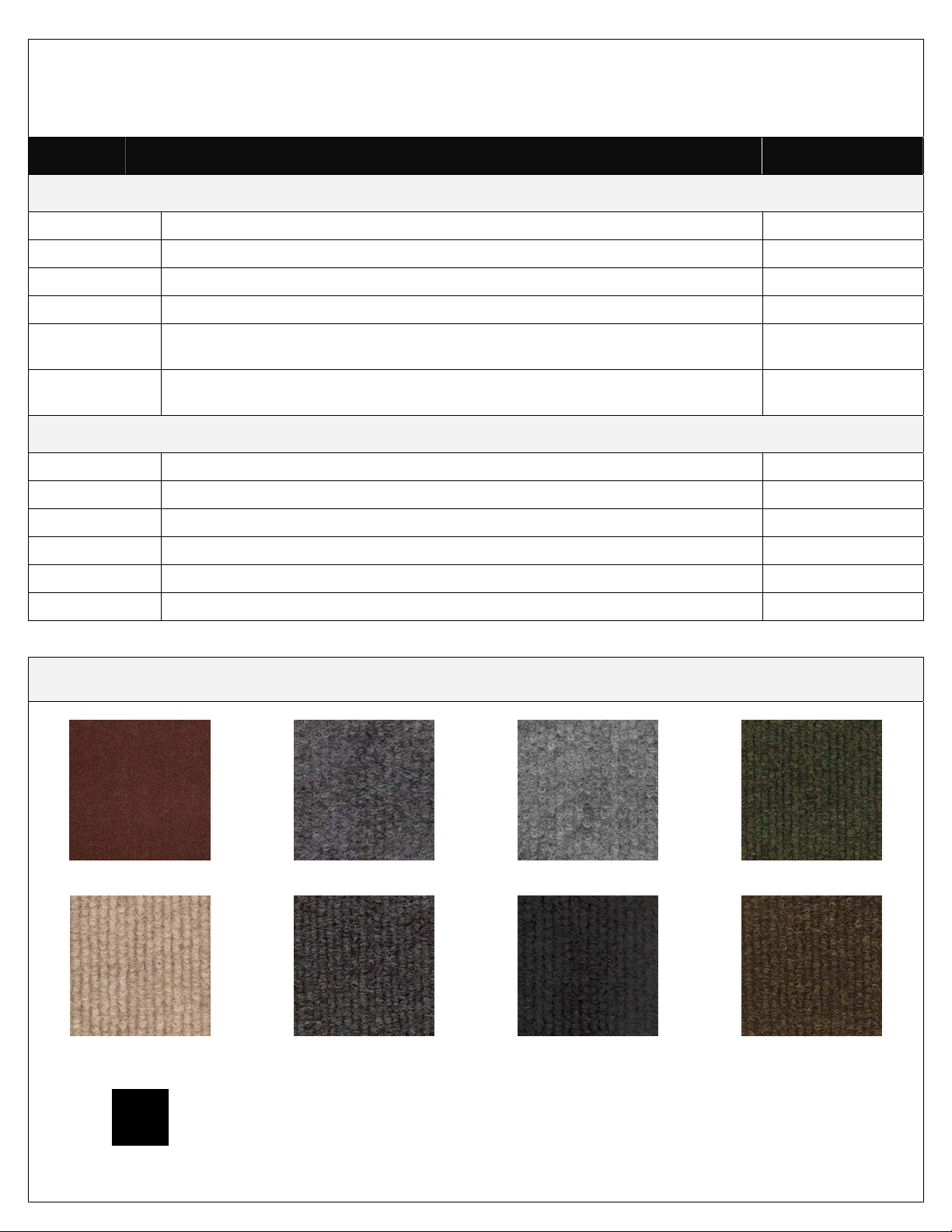

Stage Deck Surface Options
Cayenne (48)
Light Buff (26)
Black Tuff-Deck (41)
Charcoal (25)
Metallic Blue (43)
Durable Tuff-Cord Needlebond Carpet Fabrics and non-carpeted durable scratch re sistant
black Tuff-Deck surface options available.
Cloud-Gray (22)
Onyx (23)
Fern Bank (42)
Roasted Almond
Dimensions
Bridged Folding Leg Stages
Bridging Concept
A bridged deck is supported between (2) 3’x8’ or (2) 4’x8’ VT stages.
3’ x 8 Folding Leg Stage & Transport Caddy – (Multi-Height)
See specifications above for stage heights. Stage when folded is 4-5/8” thick.

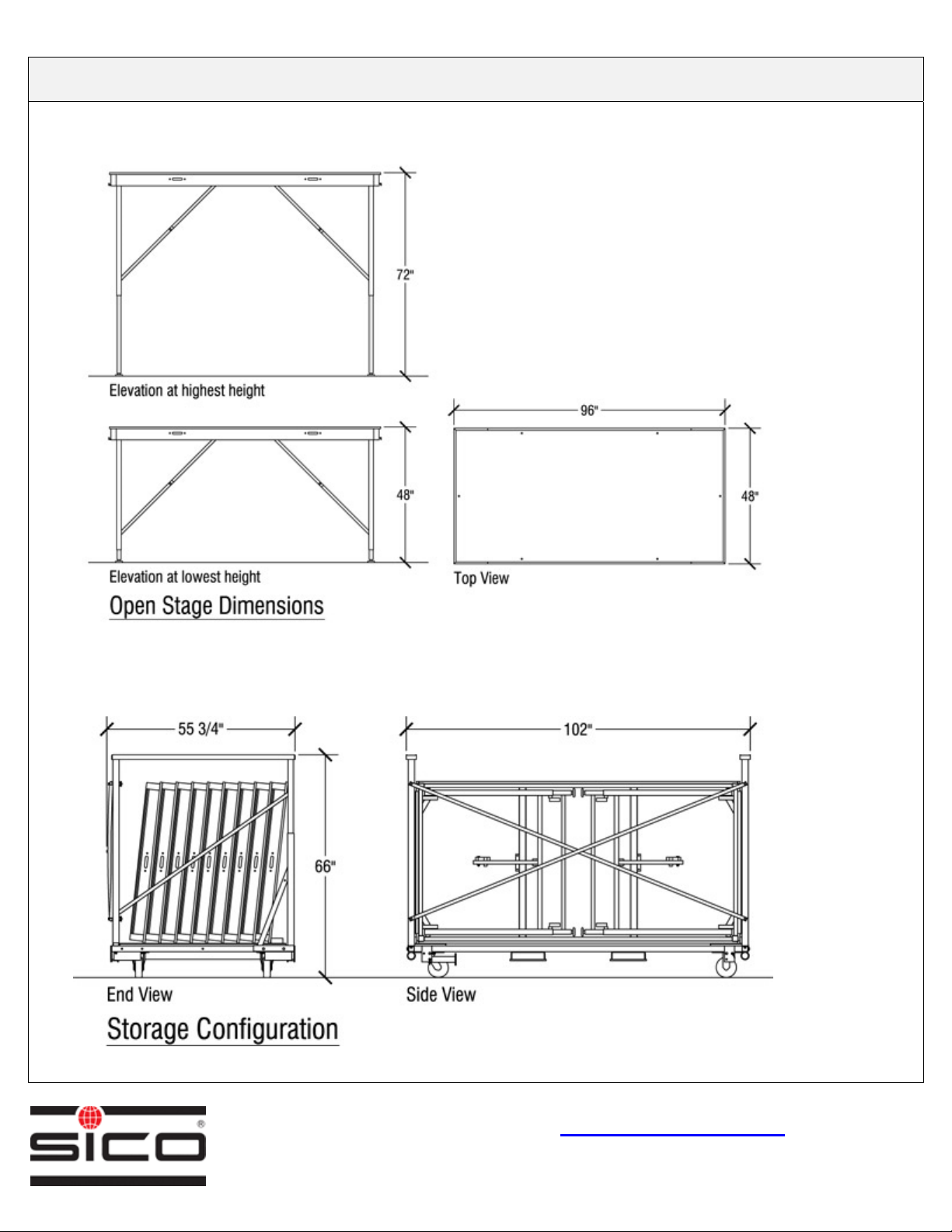

Mobile Stage Transport Caddy Dimensions.
4’ x 8’ Folding Leg Stage & Transport Caddy – (Multi-Height)
See specifications above for stage heights. Stage when folded is 4-5/8” Thick
Mobile Stage Transport Caddy Dimensions.
