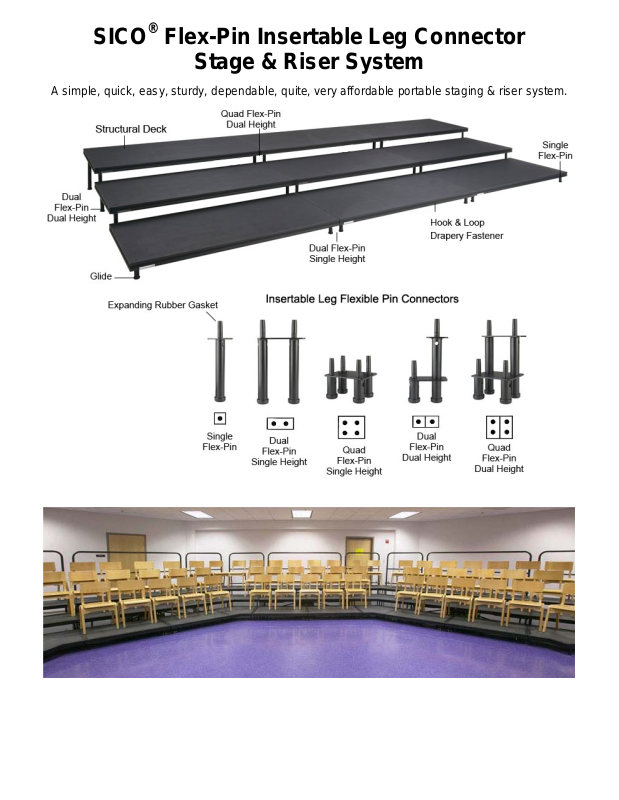

Page 1
SICO® Flex-Pin Insertable Leg Connector
Stage & Riser System
A simple, quick, easy, sturdy, dependable, quite, very affordable portable staging & riser system.
Page 2
Features, Advantages & Benefits
Structural Deck (SICO
®
Venue Maker Deck) – Constructed
with a honey-comb core sandwiched between 3/8” thick plyboards. Deck is light-weight, very strong and quiet, with
strength to support 125lbs. per square foot (610 kg. per
square meter), which meets or exceeds most building
requirements.
Deck Surfaces - Available in 3’x8’ and 4’x8’ sections with
your choice of a carpet, Tuff-Deck or reversible
carpet/Tuff-deck surface.
Hook & Loop Drapery Fasteners – Continuous hook
fastener banding placed around the perimeter edges of
decking allows for quick and easy attachment of skirting
without any clips or pins.
Pie-Shaped Decks – Used with curved stage
configurations. Available upon special request.
Economical – A practical value priced system for low height
stages (6”-24”) that is easy to use, quick to install and has a
very long service-life.
An economical and complementary support option for
arena/gymnasium end court & side court seating risers,
using new or existing decks from other SICO
®
(Roll N Set,
or Fold N Set) performance stages.
Storage – Simplicity of design allows for storage of very few
components. Decks store compactly on mobile stage caddies
for easy transportation. Minimal storage requirements for the
supports.
Serial Numbers – Attached to frame for easy identification.
Stage Accessories – SICO
®
provides all necessary
accessories to complete your professional stage setup. Refer
to our literature containing our complete line of stage
accessories.
Warranty – Protected by a 3-Year Warranty against
manufacturer’s defects. Lifetime Warranty on welds.
Flexible Leg Pin Connectors – Connect deck securely to
frame legs.
®
Expanding Rubber Gasket (A SICO
Exclusive) - Designed to expand as the
decks are installed for ease of set-up. A
rubber bushing located at the base of
each flex pin expands to secure the
deck tightly to the frame support. This
feature reduces noise and bounce
while increasing the overall stability of the system.
Interchangeable Heights - Stage height is easily
changed by replacing a connector leg with one of a
different height. Leg height choices available in 6” or 8”
increments. Max height 24”.
Page 3
Specifications
Model No. Description Weight
Insert Leg Assemblies For Venue Maker Decks
3620-1??B?S1 Single Flex-pin Insert Leg Connectors (6” - 24”) (cm) 3.5 lbs. (1.6 kg.)
3620-2??B?S1 Dual Flex-pin, Single/Dual Height Insert Leg Connectors (6” - 24 ”) (cm) 7.5 lbs. (3.4 kg.)
3620-4??B?S1 Quad Flex-pin, Single/Dual Heights Insert Leg Connectors (6” - 24”) (cm) 15.5 lbs. (7 kg.)
Structural Bridge Deck Units
SPD24???401S 3’x8’ (91cm x 244cm) Deck Unit 100 lbs. (45.4 kg.)
SPD24???401 4’x8’ (122cm x 244cm) Deck Unit 135 lbs. (61.29 kg.)
Personalization Options
Stage Deck Surface Options
Cayenne (48)
Light Buff (25)
Black Tuff-Deck (01)
Charcoal (24)
Metallic Blue (43)
Durable Tuff-Cord Needlebond Carpet Fabrics and non-carpeted durable scratch re sistant
black Tuff-Deck surface options available. Choose from carpet on one side, hard tuff-deck
surface on reverse side or Tuff-Deck surface on both sides.
Cloud-Gray (22)
Onyx (23)
Fern Bank (47)
Roasted Almond (46)
Page 4

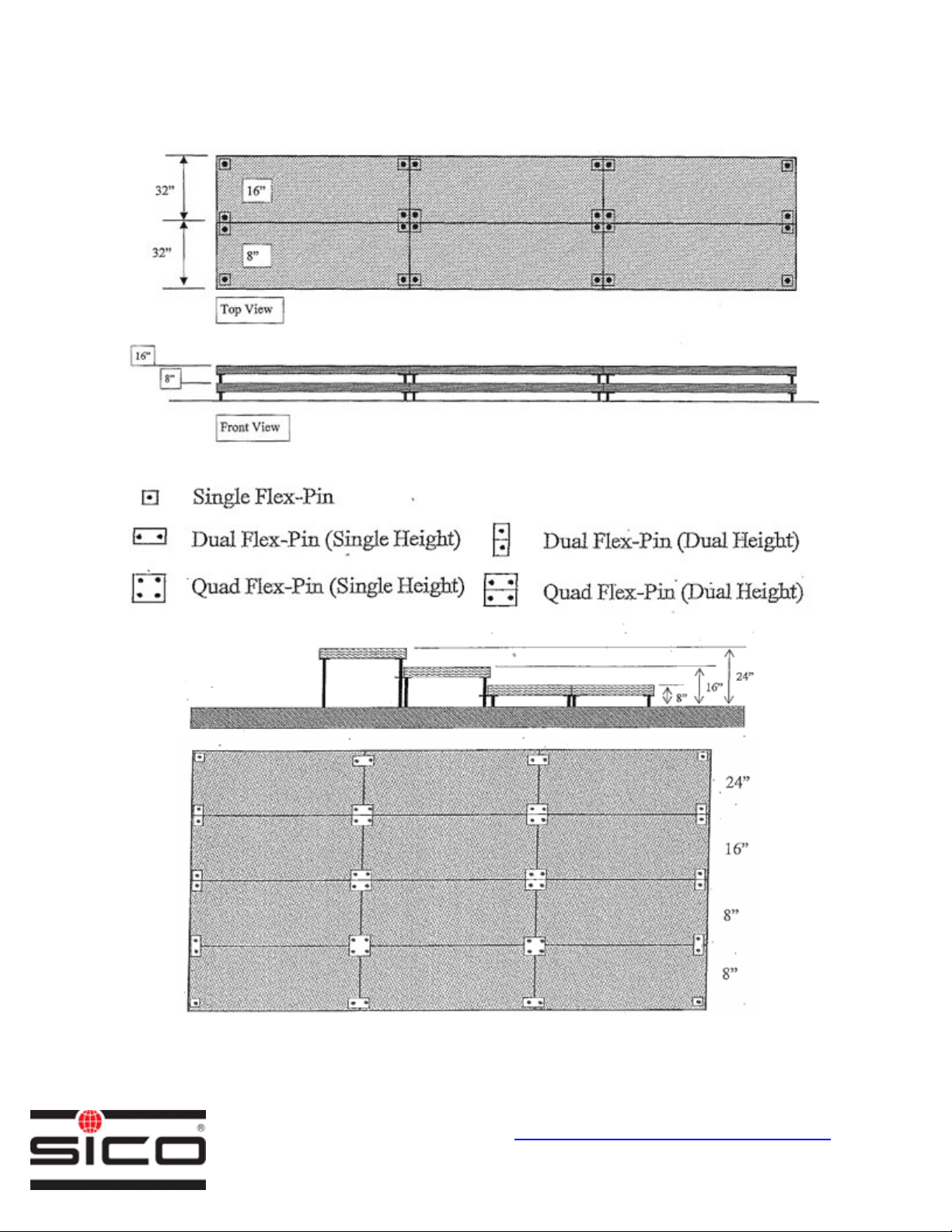

SICO Seating Riser System
Reversible Decks with Insert-able Leg Assemblies:
(Single, Dual & Quad)
Generic Set-Up, not to Scale
For More Information Visit: http://www.sicoinc.com/insertlegstage.php
7525 Cahill Road, Minneapolis MN 55439
1.800.533.7426
