Sick RFH620 Users Manual

Download

RFH620

RFH620 Interrogator

Radio Frequency Interrogator (13.56 MHz)

Operating Instructions

OPERATING INSTRUCTIONS

Software Versions

Radio Frequency RFH620 Interrogator

Operating Instructions

Software Versions

Software/Tool Function Version

Interrogator RFH620 SICK firmware From v 1.00

Device Description RFH620

SOPAS-ET Configuration software From v 2.20

Device-specific software module for SOPAS-ET configuration software

From v 1.00

Trademark

Windows 2000

, XPTM, VistaTM and Internet ExplorerTM are registered trademarks or trade-

marks of the Microsoft Corporation in the USA and other countries.

Acrobat

ReaderTM is a trademark of Adobe Systems Incorporated.

Latest manual version

For the latest version of this manual (PDF), see www.sick.com.

Operating Instructions

RFH620 Interrogator

Contents

Table of contents

Figures and Tables............................................................................................................ 5

Abbreviations used ........................................................................................... 5

Tables................................................................................................................. 7

Figures ............................................................................................................... 8

1 Notes on this document................................................................................................... 9

1.1 Purpose of this document ................................................................................ 9

1.2 Target group ......................................................................................................9

1.3 Depth of information......................................................................................... 9

1.4 Used symbols ..................................................................................................10

2 For your safety.................................................................................................................11

2.1 Authorised users .............................................................................................11

2.2 Intended use ...................................................................................................12

2.3 General safety precautions and protection measures.................................13

2.4 Quick stop and quick restart ..........................................................................14

2.5 Environmental information.............................................................................14

3 Quick-Start .......................................................................................................................15

3.1 Preparing the interrogator for the quick start ...............................................15

3.2 Establishing connection with the interrogator ..............................................15

3.3 Performing the reading...................................................................................16

4 Product description.........................................................................................................19

4.1 Device versions ...............................................................................................19

4.2 Mounting and mode of operation of the interrogator...................................19

4.3 Scope of delivery.............................................................................................22

4.4 System requirements......................................................................................22

4.5 Product features and functions (overview) ...................................................22

4.6 Functions of the interrogator..........................................................................24

4.7 Control elements and indicators....................................................................27

5 Installation .......................................................................................................................31

5.1 Overview of installation sequence.................................................................31

5.2 Installation preparations ................................................................................31

5.3 Installation location ........................................................................................33

5.4 Installation of the interrogator .......................................................................33

5.5 Installing external components......................................................................33

5.6 Dismantling the interrogator ..........................................................................34

6 Electrical installation ......................................................................................................35

6.1 Overview of installation sequence.................................................................35

6.2 Electrical installation preparations ................................................................35

6.3 Electric connections and cables ....................................................................36

6.4 Performing electrical installation ...................................................................39

6.5 Pin assignment and wire colours of the assembled cables.........................45

7 Commissioning and configuration ...............................................................................49

7.1 Overview of the start-up procedure ...............................................................49

7.2 SOPAS-ET configuration software ..................................................................49

7.3 Establishing communication with the interrogator .......................................50

7.4 Initial commissioning ......................................................................................52

7.5 Default setting.................................................................................................55

8 Maintenance ....................................................................................................................57

8.1 Maintenance during operation.......................................................................57

8.2 Cleaning the housing ......................................................................................57

8.3 Checking the incremental encoder................................................................57

8.4 Replacing an interrogator...............................................................................57

9 Troubleshooting...............................................................................................................59

9.1 Overview of errors and malfunctions which could occur..............................59

9.2 Detailed malfunction analysis........................................................................59

9.3 Status protocol ................................................................................................60

9.4 SICK support....................................................................................................60

Contents

Radio Frequency RFH620 Interrogator

10 Technical data................................................................................................................. 61

10.1 Interrogator´s data sheet RFH620. .............................................................. 61

10.2 Interrogator´s dimensional drawings RFH620............................................. 63

11 Appendix .......................................................................................................................... 65

11.1 Overview of the Appendixes........................................................................... 65

11.2 Configuring the interrogator with command strings .................................... 65

11.3 Dimensional drawing accessories................................................................. 66

11.4 Supplementary documentation ..................................................................... 67

11.5 EC Declaration of Conformity......................................................................... 68

11.6 FCC authorisation ........................................................................................... 69

Operating Instructions

Operating Instructions Chapter

RFH620 Interrogator

Figures and Tables

Abbreviations used

AM Amplitude Modulation

CAN Controlled Area Network. Field bus protocol on the basis of the CAN bus

CDB Connection Device Basic

CDM Connection Device Modular

CMC Connection Module Cloning

CMD Connection Module Display

CMF Connection Module Field bus

CMP Connection Module Power

DSFID Data Storage Format IDentifier

DSP Digital Signal Processor

EOF End Of Frame

ETX End Of Text

FCC Federal Communications Commission

HTML Hyper Text Markup Language (page description language in the internet)

IInput

IC Integrated Circuit

ID IDentification

IP Internet Protocol

ISO/IEC International

ITF Interrogator Talks First

LED Light Emitting Diode. Light emitting diode

LSB Least Significant Bit

MAC Medium Access Control

MSB Most Significant Bit

MTTF Mean Time To Failure

MTTR Mean Time To Repair

OOutput

PC Personal Computer

PID Process ID

PROM Programmable Read Only Memory. Programmable read only memory

RAM Random Access Memory. Random access memory

RF Radio Frequency

RFID Radio Frequency IDentification

ROM Read Only Memory. Read only memory (non-volatile)

RSSI Received Signal Strength

RTF Rich Text Format (standardised document format with format description)

SD Secure Digital

SOF Start Of Frame

SOPAS-ET SICK Open Portal for Application and Systems Engineering Tool (PC software for Windows for confi-

guring the interrogator)

PLC Progammable Logic Controller

STX Start Of Text

Organisation for Standardisation / International Electrotechnical Commission

Indication

Chapter Operating Instructions

TCP/IP Transmission Control Protocol/Internet Protocol

Figures and Tables

Radio Frequency RFH620 Interrogator

TID Tag IDentifier

UID Unique IDentification code

Operating Instructions Chapter

RFH620 Interrogator

Figures and Tables

Tables

Tab. 1-1: Target group of this document ...........................................................................9

Tab. 2-1: Required qualification for commissioning the interrogator .......................... 11

Tab. 4-1: Variants of the interrogator RFH620 .............................................................. 19

Tab. 4-2: RFH620 interrogator´s scope of delivery ...................................................... 22

Tab. 4-3: Overview of the product features and functions of the interrogator............. 23

Tab. 4-4: Configurable functions of the interrogator......................................................26

Tab. 4-5: LED indications ................................................................................................. 27

Tab. 4-6: Meaning of the LEDs during activation of buttons .........................................28

Tab. 6-1: Electric connections to the interrogator with a fixed cable and connector

(standard version) ............................................................................................36

Tab. 6-2: Electric connections to the interrogator with connector unit

(Ethernet version) ............................................................................................ 36

Tab. 6-3: Standard version: Pin assignment on the 15-pole D-Sub-HD

cable connector ...............................................................................................37

Tab. 6-4: Ethernet version: Pin assignment to the 4-pole M12 socket .......................38

Tab. 6-5: Ethernet version: Pin assignment on the 12-pole M12 plug ........................ 38

Tab. 6-6: Recommended maximum cable lengths, depending

on the selected data transfer rate .................................................................. 40

Tab. 6-7: Ratings for the switching inputs .....................................................................43

Tab. 6-8: Ratings for the switching outputs ................................................................... 44

Tab. 6-9: Pin assignment on the 4-pole M12 plug and the 6-pole RJ45 plug ............. 45

Tab. 6-10: Pin assignment on the 12-pole M12 socket and the 15-pole

D-Sub-HD plug .................................................................................................. 45

Tab. 6-11: Pin assignment on the 12-pole M12 socket and wire colours

at the open end ................................................................................................46

Tab. 6-12: Pin assignment on the 15-pole D-Sub-HD socket and wire colours

at the open end ................................................................................................47

Tab. 7-1: Default setting for the SOPAS-ET configuration software (excerpt) .............50

Tab. 7-2: Connection between PC with SOPAS-ET configuration software

and the interrogator .........................................................................................50

Tab. 10-1: Technical specifications of the interrogator RFH620..................................... 62

Tab. 11-1: Supplementary documentation ....................................................................... 67

Chapter Operating Instructions

Figures and Tables

Radio Frequency RFH620 Interrogator

Figures

Fig. 3-1: Register tab Quickstart .................................................................................... 16

Fig. 3-2: Advanced settings on the Transponder Communication register tab .......... 16

Fig. 3-3: Register tab tag access ................................................................................... 17

Fig. 4-1: Device view of the interrogator RFH620 (standard version) .........................20

Fig. 4-2: Device view RFH620 (Ethernet version) ......................................................... 21

Fig. 4-3: Standard version: Electric connections to the interrogator

with connection cable....................................................................................... 24

Fig. 4-4: Standard version: Electric connections to the interrogator

with connection cable by using a CDF600 bus connection module ............. 24

Fig. 4-5: Ethernet version: Electrical connections to the interrogator

with plug connector unit................................................................................... 25

Fig. 4-6: Micro SD memory card for storing the parameter set ................................... 29

Fig. 5-1: Example: Fixing the interrogator with bracket no. 2048551 ........................ 32

Fig. 6-1: Direction of rotation of the connector unit...................................................... 39

Fig. 6-2: Wiring the serial host data interfaces (RS-232 and RS-422 respectively)

on the 15-pole D-Sub-HD plug ........................................................................ 40

Fig. 6-3: Function of the Ethernet interface .................................................................. 42

Fig. 6-4: Wiring "sensor 1" switching input on the 15-pole D-Sub-HD plug ................ 42

Fig. 6-5: Wiring "sensor 2" switching input on the 15-pole D-Sub-HD plug ................ 43

Fig. 6-6: Possible wiring of "result 1" switching output on the 15-pole

D-Sub-HD plug .................................................................................................. 44

Fig. 7-1: Configuration with SOPAS-ET and storage of the parameter set .................. 52

Fig. 10-1: Standard version: Dimensions of the interrogator (RFH620-1000001) ...... 63

Fig. 10-2: Ethernet version: Dimensions of the interrogator (RFH620-1001201) ....... 64

Fig. 11-1: Dimensions of the fixing bracket no. 2048551 ............................................ 66

Fig. 11-2: EC Declaration of Conformity for the interrogator

(page 1, scaled down version) ........................................................................ 68

Operating Instructions Chapter 1

RFH620 Interrogator

Notes on this document

1 Notes on this document

1.1 Purpose of this document

This document provides instructions for technical staff on the installation and operation of the radio frequency interrogator of series RFH620 in the following versions:

• With the cable and connector (standard version)

• With connector unit (Ethernet version)

A summary of all device versions is shown in chapter 4.1 Device versions, page 19.

This document contains information for:

•Installation

• Electrical installation

• Commissioning and configuration

• Maintenance and replacement of the interrogator

•Troubleshooting

A step-by-step approach is taken for all tasks.

Important To simplify, the radio frequency interrogator RFH620 is described in these operating instruc-

tions as an interrogator or RFH620.

The description "interrogator" and "writing/reading device" are interchangeable. The description "interrogator" is used in these instructions. The description "transponder" and "tag" are interchangeable. The description "transponder" is used in these instructions.

1.2 Target group

The target group of this document is persons assigned the following tasks:

Tasks Target group

Installation, electrical installation, maintenance, device replacement

Commissioning and configuration Trained staff, e.g., technicians or engineers

Tab. 1-1: Target group of this document

Qualified staff, e.g., service technicians and factory electricians

1.3 Depth of information

This document contains all the information required for the installation, electrical installation and commissioning of the interrogator at the installation location.

Configuration of the interrogator for application-specific reading conditions and the com- missioning is carried out using the SOPAS-ET configuration software on a Windows SOPAS-ET configuration software contains an online help system to facilitate configuration.

PC. The

Important Further information about the design of the interrogator as well as the RFID technology is

available at SICK AG, Auto Ident division. On the Internet at www.sick.com.

Chapter 1 Operating Instructions

Notes on this document

Radio Frequency RFH620 Interrogator

1.4 Used symbols

To gain easier access, some information in this documentation is emphasised as follows:

Notice!

Notice indicates a potential risk of damage or impair on the functionality of the interrogator or other devices.

> Carefully read and follow the notice details!

Warning notice!

A warning notice indicates real or potential danger. This should protect you against accidents.

The safety symbol next to the warning notice indicates why there is a risk of accident, e. g., due to electricity. The warning levels (DANGER, WARNING, CAUTION) indicate the seriousness of the risk.

> Carefully read and follow the warning notices!

Reference Italic script denotes a reference to further information.

Important This important note informs you about specific features.

Explanation An explanation provides background knowledge of technical nature.

Recommendation A recommendation helps you to carry out tasks correctly.

TIP A tip explains setting options in the SOPAS-ET configuration software.

ROJECT This type of script denotes a term in the user interface in the SOPAS-ET configuration soft-

ware. A symbol indicates a button in the user interface of the SOPAS-ET configuration software.

There is a procedure which needs to be carried out. This symbol indicates standard operating procedures, which contain only one operational step or operational steps in warning notices that do not have to be followed in any particular order. Operational instructions comprising several steps are denoted using consecutive numbers.

Note

This symbol denotes a section, in which the operation steps with the SOPAS-ET configuration software are described.

Important

This symbol indicates supplementary technical documentation.

Operating Instructions Chapter 2

RFH620 Interrogator

For your safety

2 For your safety

This chapter deals with your safety and that of the system operator.

> Read this chapter carefully before using the interrogator.

2.1 Authorised users

For correct and safe functioning, the interrogator must be installed, operated and maintained by sufficiently qualified staff.

Important Repairs to the interrogator should only be carried out by qualified and authorised SICK AG

service staff.

> The operating instructions should be made available to the end user.

> The end user should be briefed and urged to read the operating instructions by the

technicians.

The following qualifications are required for different activities:

Tasks Qualification

Installation, maintenance • Practical technical training

• Knowledge of current health and safety regulations at the workplace

• Basic knowledge of HF technology

Electrical installation, device replacement

Start-up and configuration • Basic knowledge of the Windows

Operation of the device in each operational area

• Practical electrical training

• Knowledge of current electrical safety regulations

• Knowledge of start-up and operation of the device in each operational area (e. g. conveyor system)

• Basic knowledge of HF technology

operating system in use

• Basic knowledge of designing and setting up (addressing) Ethernet connections for connecting the interrogator to the Ethernet

• Basic knowledge of working with an HTML browser (e. g. Internet Explorer

• Basic knowledge of data transfer

• Basic knowledge of RFID technology

• Basic knowledge of HF technology

• Knowledge of start-up and operation of the device in each operational area (e. g. conveyor system)

• Knowledge of the software and hardware environment in each operational area (e. g. conveyor system)

) for using the online help

Tab. 2-1: Required qualification for commissioning the interrogator

Chapter 2 Operating Instructions

For your safety

Radio Frequency RFH620 Interrogator

2.2 Intended use

The interrogator RFH620 is an ISO/IEC-15693 compatible transponder printer/reader unit for the close-up range (operating range of up to 16 cm), e. g., in a conveyor system.

The intended use of the interrogator results from the following description of the function:

• The interrogator is installed in a holder in a reading station.

• The interrogator transfers the reading data via the host interface to a superordinate host computer for further processing.

• The interrogator is configured/operated using the SOPAS-ET configuration software that runs on a standard client PC provided by the customer. In this connection, communication takes place via RS-232 or Ethernet.

• The Interrogator controls (locally), e. g., switches in the conveyor system via the digital switching outputs.

Important Any warranty claims against SICK AG shall be deemed invalid in case changes are made to

the interrogator, e. g., opening the housing, this includes modifications during installation and electrical installation or changes to the SICK software.

> The interrogator is only to be operated in ambient air temperature limit.

2.2.1 CE authorisation

The interrogator RFH620 fulfils the requirements of CE authorisation.

2.2.2 FCC authorisation

The interrogator RFH620 is in accordance with part 15 of FCC guidelines.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference, and

• this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Operating Instructions Chapter 2

RFH620 Interrogator

For your safety

2.3 General safety precautions and protection measures

> Read the general safety precautions thoroughly and observe them during all operations

on the interrogator. Also observe the warning notices in each chapter of this document before the standard operating procedures.

Electrical installation work

Risk of injuries due to electrical current!

The optional power supply module CMP400/CMP490 is connected to the power supply (100 ... 250 V AC/50 ... 60 Hz) in the connection module CDM420.

> Observe current safety regulations when working with electrical equipment.

Important > Electrical installation must be performed by qualified staff only.

> Connect or release current linkages only under de-energised conditions.

> Wire cross sections and their correct shields have to be selected and implemented ac-

cording to valid engineering standards.

Chapter 2 Operating Instructions

For your safety

Radio Frequency RFH620 Interrogator

2.4 Quick stop and quick restart

The interrogator can be switched on or off using the main switch for connection modules CDB620 or CDM420 respectively.

2.4.1 Switching off the interrogator

> Switch off the power supply to the interrogator (via the connection module)

- or -

Unplug the 15-pole D-Sub-HD connector of the interrogator´s connection cable from the connection module.

When the interrogator is switched off, the following data are lost:

• Application-specific parameter sets in the interrogator that were only saved temporarily in the device

• The last reading result of the interrogator

• Daily operating hours counter of the interrogator

2.4.2 Switching the interrogator back on

> Switch the power supply to the interrogator (via the connection module) back on

- or -

Re-connect the 15-pole D-Sub-HD connector of the interrogator´s connection cable to the connection module.

The interrogator starts up using the most recent permanently saved configuration. The daily operating hours counter is reset.

2.5 Environmental information

The interrogator has been constructed with minimum environmental pollution in mind. Excluding the housing, the interrogator does not contain any materials made of silicone.

2.5.1 Energy requirement

The interrogator serial RFH620 consumes the following energy:

• Typical 5 W in 10 ... 30 V DC (in unwired switching outputs)

2.5.2 Dispose of the device after decommissioning

Currently, SICK AG will not accept the return of any devices which can no longer be operated or repaired.

> Inoperable or irreparable devices must be disposed of in an environmentally friendly

manner and in accordance with valid country-specific waste disposal guidelines.

The design of the interrogator allows for its separation as recyclable secondary raw materials and hazardous waste (electronic scrap).

Operating Instructions Chapter 3

RFH620 Interrogator

Quick-Start

3 Quick-Start

3.1 Preparing the interrogator for the quick start

The interrogator can be operated quickly and easily using the supplied SOPAS-ET configuration software.

Among others, the software offers the following options:

• Fast connection with the interrogator

• Easy access to the transponder data and display of the reading results on two clear re-

gister tabs of the configuration software

System requirements for using the SOPAS-ET configuration software

See chapter 7.2.2 System requirements for the SOPAS-ET configuration software, page 49

Additional accessories required (not in the scope of delivery)

• Connection module CDB620 or CDM420

• For the Ethernet version of the interrogator: Connection cable for data and function interfaces (see ordering designations of the product information "Interrogator RFH620")

• 3-wire RS-232 data cable (null modem cable), no. 2014054 for the connection of the PC with the connection module

- or -

To connect an Ethernet version of the interrogator to the PC's Ethernet interface

(For corresponding cable, see ordering designations of the product information "Interrogator RFH620" Nr. 8013102)

Establish an electric connection to the interrogator

1. Connect the interrogator to connection module CDB620/CDM420.

2. Switch on the power supply for CDB620/CDM420.

3. Switch on the PC for the configuration and install and start the supplied SOPAS-ET configuration software.

4. Connect the PC to the interrogator.

To achieve this, connect the PC using a 3-wire RS-232 data cable (null modem cable) to the "Aux“ connection in CDB620/CDM420.

- or -

In Ethernet version, connect the PC to the interrogator's Ethernet interface.

For detailed instructions, see chapter 5 Installation, page 31 and chapter 6 Electrical in-

stallation, page 35.

3.2 Establishing connection with the interrogator

> Communicate with the interrogator according to the selected data interface (RS-232 or

Ethernet) (see chapter 7.3 Establishing communication with the interrogator,

page 50).

TIP To establish a connection quickly and easily via the Ethernet, the SOPAS-ET configuration

software has a

CONNECTION WIZARD in the menu TOOLS.

Chapter 3 Operating Instructions

Quick-Start

Radio Frequency RFH620 Interrogator

3.3 Performing the reading

Note

An inventory of all transponders within the reading range of the interrogator is determined via the register tab

ROJECT TREE, RFH620, register tab QUICKSTART

QUICKSTART of the SOPAS-ET configuration software:

Fig. 3-1: Register tab Quickstart

Determining the transponder inventory

1. Ensure that the relevant transponder types on the register tab T

AG PROZESSING are ac-

tivated.

Fig. 3-2: Advanced settings on the Tag Prozessing register tab

2. Carry out test reading with transponder.

To this end, hold the transponder in the reading area of the interrogator and trigger the reading by clicking on

START.

The unique ID, manufacturer and IC type of the detected transponder are registered.

The signal-to-noise ratio (RSSI: Received Signal Strength Indication) is displayed in the display field RSSI respectively.

3. In order to end the reading process, click on

STOP.

Operating Instructions Chapter 3

RFH620 Interrogator

Quick-Start

Optimising the reading conditions

If no transponder is displayed or if you wish to increase the RSSI value, the reading can be repeated by taking the following measures:

1. Correct or optimise the parameter values, where necessary, via the SOPAS-ET configuration software.

2. In order to optimise the RSSI value, reduce the distance between the interrogator and the transponder.

Reading/writing the user data of the transponder

The user data of a transponder can be read/written via the register tab

TAG ACCESS of the

SOPAS-ET configuration software:

Important When accessing, the transponder must be located in the reading area of the interrogator.

> Select a transponder from the list on the register tab

The register tab

TAG ACCESS opens.

QUICKSTART and click on ACCESS.

The user data of the transponder are read and displayed.

Fig. 3-3: Register tab Tag access

> In order to change the user data of the transponder, overwrite corresponding values

block by block and transmit them to the transponder by clicking on

BLOC WRITING.

Chapter 3 Operating Instructions

Quick-Start

Radio Frequency RFH620 Interrogator

Operating Instructions Chapter 4

RFH620 Interrogator

Product description

4 Product description

This chapter describes the design, the features and the functions of the interrogator RFH620.

> For installation, electrical installation and start-up assistance as well as for the applica-

tion-specific configuration of the interrogator using the SOPAS-ET configuration software, please read this chapter prior to carrying out any of the tasks.

4.1 Device versions

Among others, the interrogator RFH620 is available in the following versions:

Order no. Type Version Connection (design)

1044838 RFH620-1000001 Standard version Cable with plug

1044839 RFH620-1001201 Ethernet version Connector unit on the

device

Tab. 4-1: Variants of the interrogator RFH620

Important The following are available depending on the connection (design):

• Standard version (cable with plug)

– RS-232, RS-422/485, CAN, two digital switching inputs, two digital switching out-

puts, power supply

• Ethernet version (revolving connector unit)

– Connector 1: Ethernet

– Connector 2: RS-232, RS-422/485, CAN, one digital switching input, power supply

4.2 Mounting and mode of operation of the interrogator

The interrogator RFH620 is an ISO/IEC-15693 compatible transponder writing/reading device with integrated antenna for the close-up range. All the components are located in a housing suitable for the industry. Depending on the version, the electric connection of the interrogator takes place via a cable with a connector or a revolving connector unit with two connections.

The interrogator RFH620 is an intelligent sensor for automatic and non-contact detection of RFID transponders. In principle, the transponder can be detected on any location of still or moving objects in a conveyor system. The reading range expands through the combination of many devices.

Chapter 4 Operating Instructions

Product description

Radio Frequency RFH620 Interrogator

4.2.1 Device view RFH620 (standard version)

1 Blind hole thread M6 for fastening

2 Cover for Micro-SD card slot

3 Type plate

6 Cable with plug

7 Button for function selection/activation

8 Micro SD memory card (optional)

4 LEDs for status indicator

5 Antenna

Fig. 4-1: Device view of the interrogator RFH620 (standard version)

Operating Instructions Chapter 4

RFH620 Interrogator

Product description

4.2.2 Device view RFH620 Ethernet version

1 Blind hole thread M6 for fastening

2 Cover for Micro-SD card slot

3 Type plate

4 LEDs for status indicator

5 Antenna

Fig. 4-2: Device view RFH620 (Ethernet version)

6 Revolving connector unit

7 Button for function selection/activation

8 Micro SD memory card (optional)

9 4-pole M12 jack (Ethernet connection)

bl 12-pole M12 plug

Chapter 4 Operating Instructions

Product description

Radio Frequency RFH620 Interrogator

4.3 Scope of delivery

Delivery of the interrogator RFH620 includes the following components:

Piece Components Comment

1 Interrogator RFH620 depending on version

1 Notes on device with electrical connec-

tion diagrams as primary information

1 CD-ROM "Manuals & Software Auto

Ident"

Operating Instructions RFH620 in German and/or English, in printed form

Tab. 4-2: RFH620 interrogator´s scope of delivery

Important The Micro-SD memory card is not included in the scope of delivery.

Important

An overview of in-stock installation accessories, connection modules, cables and connectors, transponder as well as memory media (see chapter 11.4 Supplementary documenta-

tion, page 67) is available in the product information "Interrogator RFH620".

Included in the device packaging of the interrogator RFH620

Optional, depending on the number of issues explicitly ordered upon purchase

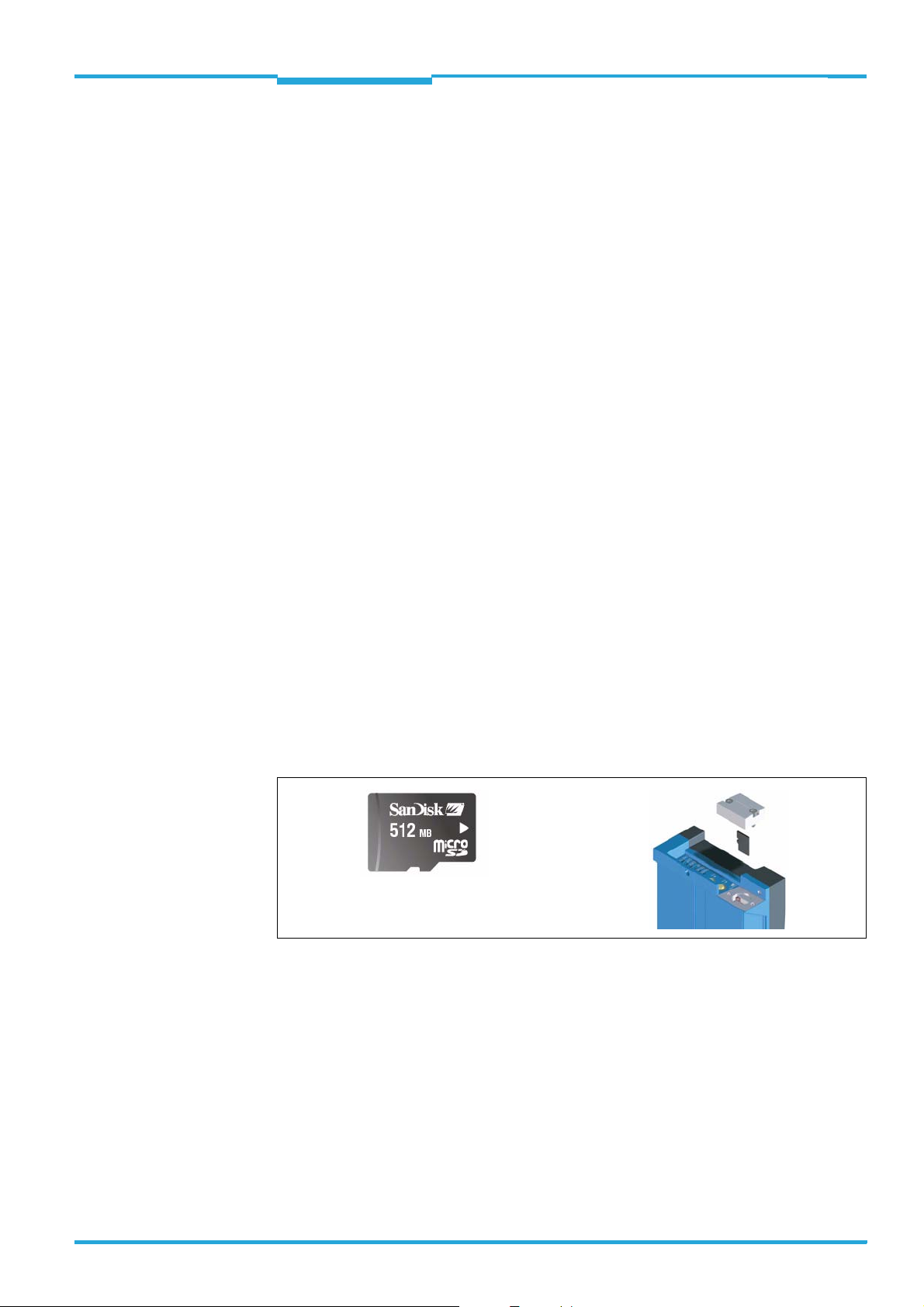

Important For save operation of the Micro-SD memory card, use only SICK approved memory card.

Contents of the CD-ROM

• "SOPAS-ET": Configuration software for Windows

PCs with integrated online help sys-

tem (HTML files)

• Operating instructions RFH620: PDF version in German and English as well as further

publications of other SICK devices

• Product information RFH620: PDF version in German and English including ordering in-

formation for the interrogator and accessories

• "Acrobat Reader": Freely available PC software for reading PDF files

Important The current versions of publications and programs on the CD-ROM can also be downloaded

at www.sick.com.

4.4 System requirements

General system requirements are derived from the interrogator's technical data (see

chapter 10 Technical data, page 61).

The requirements and conditions for Installation, Electrical installation as well as

Commissioning and configuration are summarised in the respective chapters.

4.5 Product features and functions (overview)

Interrogator RFH620 • 13.56 MHz ISO/IEC-15693 compatible RFID writing/reading device

• Compact, industry-type design with integrated antenna

• Connection technology for all current field bus and network concepts

• Application-specific operation mode: Command, trigger and freewheel mode

• EDP operating system with SOPAS operating software and additional script functionality

• Far-ranging internal and external diagnosis functions (RDT400, not available for market launch in May 09. More information on request.)

Operating Instructions Chapter 4

RFH620 Interrogator

Customer value • Reliable identification

User safety and convenience • Robust, compact metal housing, CE mark, FCC authorisation

Convenient operation/configuration

Reading pulse • Pulse sources for start: switching inputs; data interface (command); automatic cycle; CAN

RFID evaluation • All current ISO/IEC-15693 compatible transponder

Data processing • Manipulation of the output of the reading data via event-dependent evaluation conditions

Data communication • Host interface: two configurable data output formats, switchable to different physical interfaces,

Electrical interfaces • Host interface: RS-232, RS-422/485 (data format and protocol can be configured) and Ethernet

Connection technology (design) • Standard version: Cable with 15-pole D-Sub-HD connector

Tab. 4-3: Overview of the product features and functions of the interrogator

Product description

• Effective safe investment

• Easy integration

•High functionality

• Maintenance-free

• Compatible SICK connection technology

• Automatic self-test on system start-up

• Diagnosis tools for system setup and system (remote) monitoring

• Configurable reading data display in two reading result formats

• Operational data retrieval, error code display on request in case of errors

• Test string function (heartbeat), capable of being activated, for signalling readiness for operation

• Password-protected configuration mode

• In addition, secured configured parameter values (cloning) on a Micro SD memory card (can be removed in the case of interrogator replacement)

• Future proof due to firmware update (flash PROM) via data interface

• Future-proof SOPAS-ET configuration software

• Low current consumption

• Extended power supply range

• Configuration (online/offline) using the SOPAS-ET configuration software (incl. help system)

• 2 buttons on the device for calling up preset functions without connecting a PC

• Status indicators via LEDs

• Beeper, which can be switched off, to confirm device functioning

• Pulse sources for stop: reading pulse source, switching inputs, command, timer, condition

• Freewheel mode

parallel operation possible

• Aux interface: fixed data output format, switchable to different physical interfaces, parallel operation possible

or CAN

• Aux interface: RS-232 (fixed data format, data transfer rate and protocol) and Ethernet

• CAN interface for integration into the SICK-specific CAN-SENSOR network

• Digital switching inputs – Standard version: two digital switching inputs for external reading pulse sensor(s), using opto-

coupler

– Ethernet version: one digital switching input on the device

• Digital switching outputs – Standard version: two digital switching outputs for signalling definable results in the reading

process (reading result status)

– Ethernet version: no digital switching output on the device

• Ethernet version: revolving connector unit on the device with two M12 circular connectors

• Optional connection module CDB620/CDM420 for connection to the host computer (stand-alone) and for integrating into the SICK-specific CAN-SENSOR network

• Optional bus connection module CDF600 for PROFIBUS-DP

Chapter 4 Operating Instructions

Product description

Radio Frequency RFH620 Interrogator

4.6 Functions of the interrogator

In order to control the read operation, external sensors deliver information via the reading pulse. The reading results are output to the interrogator´s data interfaces and are forwarded to a host/PC.

Fig. 4-3: Standard version: Electric connections to the interrogator with connection cable

Fig. 4-4: Standard version: Electric connections to the interrogator with connection cable by using a CDF600 bus connection

module

Operating Instructions Chapter 4

Product description

RFH620 Interrogator

Fig. 4-5: Ethernet version: Electrical connections to the interrogator with plug connector unit

The detailed wiring of the interrogator and the connections to the host/PC and to the external sensors is described in chapter 6 Electrical installation, page 35.

Note

Among other things, the following functions can be configured using the SOPAS-ET configuration software:

Function Description Configuration with SOPAS-ET

Object trigger control In order to start an object-related reading pro-

cess, the interrogator requires an appropriate external signal (trigger source) for reporting an object in the reading area. As standard, the start signal is emitted via an external reading pulse sensor (e. g. photoelectric reflex switch). As soon as an object has passed the reading pulse sensor, a time window opens in the interrogator ("reading gate") for the reading process. Alternatively, a command activates the reading process via a data interface or the CAN-SENSOR network. In Automatic Cycle mode, the actual interrogator generates the reading gate internally with an adjustable mark-space ratio. The reading pulse can be ended in a number of ways: With external triggering by the reading pulse source or a command, internally by a timer or an evaluation condition to be met.

PROJECT TREE, RFH620, PARAMETER, OBJECT

TRIGGER CONTROL

Chapter 4 Operating Instructions

Function Description Configuration with SOPAS-ET

Data processing The output time in the reading process, with

Output format The reading result is displayed via selectable

Network / interfaces / IOs All important interfaces for displaying the rea-

Data interfaces Depending on the version, the following data

Digital inputs For example, the external sensor for the object

Digital outputs With certain events in the reading process (e. g.

Tab. 4-4: Configurable functions of the interrogator

Product description

regard to the reading pulse start, can be configured using the SOPAS-ET configuration software.

physical interfaces. Two different output formats (telegrams) can be defined for this task, one format for "No Read" and one for the heartbeat (signalisation of readiness).

ding results are available on the interrogator. Several devices can be connected to each other via the CAN bus in the SICK-specific CAN-SENSOR network.

interfaces are available on the interrogator:

• Host interface (RS-232 or RS-422/485 and Ethernet host port): Preparation of the reading result for further processing by the host processor

• Auxiliary interface (RS-232 and Ethernet aux port): Reading diagnosis or host interface monitoring

• CAN: Networking of several devices

triggering (photoelectric reflex switch) can be connected to the digital switching inputs.

Important

The connection "sensor 2" is only available on the standard version of the interrogator. For the Ethernet version of the interrogator, this input is only available with the connection module CDB620/CDM420 in combination with the parameter memory module CMC600.

for unsuccessful reading "No Read"), two independent switch signals, which can be used to display the event status, can be generated at both digital outputs.

Important

The switching outputs "result 1" and "result 2" are only available on the standard version of the interrogator. For the Ethernet version of the interrogator, the two outputs are only available with the connection module CDB620/CDM420 in combination with the parameter memory module CMC600.

Radio Frequency RFH620 Interrogator

PROJECT TREE, RFH620, PARAMETER, DATA

•

PROCESSING, OUTPUT CONTROL

• PROJECT TREE, RFH620, PARAMETER, DATA

PROCESSING, EVALUATION CONDITIONS

PROJECT TREE, RFH620, PARAMETER, DATA PRO-

CESSING, OUTPUT FORMAT

PROJECT TREE, RFH620, PARAMETER, NETWORK /

INTERFACES / IOS register tab NETWORK OPTIONS

• PROJECT TREE, RFH620, PARAMETER,

NETWORK / INTERFACES / IOS, SERIAL

• PROJECT TREE, RFH620, PARAMETER,

NETWORK / INTERFACES / IOS, ETHERNET

• PROJECT TREE, RFH620, PARAMETER,

NETWORK / INTERFACES / IOS, CAN

PROJECT TREE, RFH620, PARAMETER, NETWORK /

INTERFACES / IOS, DIGITAL INPUTS

PROJECT TREE, RFH620, PARAMETER, NETWORK /

INTERFACES / IOS, DIGITAL OUTPUTS

Operating Instructions Chapter 4

RFH620 Interrogator

Product description

4.7 Control elements and indicators

4.7.1 User interface

The interrogator is configured application-specifically using the SOPAS-ET configuration software (see chapter 7.1 Overview of the start-up procedure, page 49). For this purpose, the software runs on a PC, which must be connected to one of the two data interfaces (aux interface: Ethernet or RS-232, host interface: RS-232/RS-422/485 or Ethernet) of the interrogator.

As an alternative to the SOPAS-ET configuration software, command strings are available, upon which the user interface of the SOPAS-ET configuration software is based (see

chapter 11.2 Configuring the interrogator with command strings, page 65).

In case of an erro r, s tart -up a nd d iagn osis can be carried out via the SOPAS-ET configuration software. The interrogator operates fully automated in normal operation.

4.7.2 LEDs on the interrogator's housing

The interrogator's housing has six LEDs that display the operating status, the RF activity, the status of the reading result as well as transfer to the RS-232/RS-422/485, CAN and Ethernet interfaces.

In reading operation the LEDs indicate the following:

Tab. 4-5: LED indications

Important The "result" LED is coupled with none of the two digital switching outputs "result 1" or

LED Colour Denotation

Ready green • Lights up constantly when system is ready

• Goes out when parameter values are being uploaded from or downloaded to the interrogator respectively

Result green • Lights up after a successful read (Good Read, 100 ms)

RF green • Lights up when the antenna field is switched on (depends on the

reading pulse)

Data green • Flickers during data transfer via the serial host interface (RxD)

yellow • Flickers during data transfer via the serial host interface (TxD)

CAN green • Lights up when the CAN interface is switched on

• Flickers during the data transfer via the CAN interface

LNK TX green • Flickers during data transfer via the Ethernet interface

yellow • Lights up when the physical Ethernet connection is established

"result 2".

Chapter 4 Operating Instructions

Product description

Radio Frequency RFH620 Interrogator

4.7.3 Buttons on the interrogator's housing

There are two yellow buttons on the interrogator´s housing in the LED area (see

chapter 4.2.1 Device view RFH620 (standard version), page 20). You can call up predefi-

ned functions via these buttons.

After changing to the button operating mode, you can select any one function by repeatedly pressing the step button (b) respectively. The selected function is then activated and deactivated with the enter button (p) respectively.

The selected function is shown via the corresponding LED below the buttons.

The functions "TeachIn", "Antenna", "Sync" und "Userdef." cannot be called up at the moment.

When using both of buttons, the display of the LEDs have different meanings other than in normal reading operation:

LED Colour Function

Read Diagn green Flashes slowly: the function "reading diagnosis" is

selected Flashes swiftly: the function "reading diagnosis" is started

TeachIn green (momentarily not available)

Antenna green (momentarily not available)

Sync green (momentarily not available)

Userdef. yellow (momentarily not available)

Tab. 4-6: Meaning of the LEDs during activation of buttons

Use of the buttons

In order to use one of the possible function with the buttons, do as follows:

1. Press the enter button (p) for approx. 3 seconds.

The interrogator stops the current reading operation, switches off the LEDs and changes to the button operating mode. The bar code scanner ignores all the other external reading pulses with immediate effect. No reading results are displayed via the host interface.

The beeper confirms this process with an ascending melody.

The "Read Diagn" function is pre-selected as first function (LED flashes slowly).

2. Press the enter button (p) once to start the selected function.

The LED flashes faster and the beeper confirms the start with two sounds.

3. Press the enter button (p) again to stop the selected function.

The LED flashes more slowly again and the beeper confirms the end with two sounds.

4. In order to return from the button operating mode to the reading operation, press the

enter button (p) again for approx. 3 seconds.

The beeper confirms the change with a descending melody.

The LED "Ready" lights up again.

The interrogator is ready for reading again and waits for a reading pulse.

Operating Instructions Chapter 4

RFH620 Interrogator

Product description

Further behaviour of the interrogator when operated by buttons

• Changing into button operating mode is only possible if no other user is logged onto the interrogator for changing the parameters via the SOPAS-ET configuration software. If this is the case, however, the beeper gives a descending melody when trying to change into the button operating mode. Furthermore, the interrogator remains in reading operation.

• In case a user logs onto the interrogator in button operating mode, the interrogator leaves the button operating mode and restarts the reading operation. The beeper confirms the change with a descending melody.

• If no function is started in button operating mode or if no button operation can be performed after using a function, the interrogator automatically returns to the reading operation after 30 seconds. The beeper confirms the change with a descending melody.

• The interrogator terminates an activated continuous function 5 minutes after start. It returns to reading operation automatically. The beeper confirms the change with a descending melody.

• You cannot switch off or turn down the beeper in button operating mode.

4.7.4 Parameter set on the Micro SD memory card (optional)

The interrogator stores configured parameter values in its internal PROM as well as on the Micro SD memory card (cloning), provided that this card has been inserted into the interrogator. If the interrogator needs to be replaced, the memory card enables easy and quick transfer of the parameter set to the new device (see chapter 8.4 Replacing an interrogator,

page 57).

Important In order to avoid data loss, the Micro SD memory card may only be removed and inserted

into the new device after the respective interrogator has been switched off and de-energized. When inserting the memory card, make sure that the card's notches point to the direction of the two yellow keys.

The memory card is located behind a silver cover attached to the interrogator.

Fig. 4-6: Micro SD memory card for storing the parameter set

Important To maintain the enclosure rating IP 67, the cover has to be installed and screwed together

tightly. Width across flats WAF 2.5.

As an alternative to the Micro SD memory card in the interrogator, the external, optional parameter memory module CMC600 in connection module CDB620/CDM420 may also be used for storing the parameter set. If both the Micro SD memory card and the parameter memory module CMC600 are available, the interrogator loads the parameter set from CMC600.

Chapter 4 Operating Instructions

Product description

Radio Frequency RFH620 Interrogator

Operating Instructions Chapter 5

RFH620 Interrogator

Installation

5 Installation

5.1 Overview of installation sequence

This chapter describes the installation sequences for the interrogator and its external components.

The typical installation sequences are listed below:

• Select the installation location for the interrogator

• Install the interrogator

• Install connection module CDB620 or CDM420

• Connect the interrogator to connection module CDB620 or CDM420

• Install the reading pulse sensor for reading pulse triggering

Important Do not open the interrogator's ho usi ng. If the device is opened, the SICK AG warranty shall

not apply.

5.2 Installation preparations

In general, the following requirements should be observe for the installation:

• Typical space requirement: application-specific

• More stable installation bracket with sufficient load capacity and measurements suited for the interrogator (see chapter 10.2 Interrogator´s dimensional drawings RFH620.,

page 63)

•Shock absorbent and vibration free attachment

The following tools and resources are required for the installation:

•Two M6 bolts:

The bolts serve for the installation of fastening bracket no. 2048551 to the base.

The bolt length depends on the wall thickness of the base.

•Tool

• Tape measure (up to 1 m (3.28 ft))

5.2.1 Components to be installed

For the installation, the following must be handy:

• Interrogator RFH620

5.2.2 Accessories

The following accessories are not included in the delivery of the interrogator. If required, they have to be ordered separately and placed ready for installation:

• Mounting device, see next chapter

• Connection module CDB620 or CDM420

• Reading pulse sensor for external reading pulse triggering, e. g., photoelectric reflex switch/photoelectric proximity switch

Chapter 5 Operating Instructions

Installation

Radio Frequency RFH620 Interrogator

5.2.3 Mounting device

The interrogator is fixed using two blind hole taps (M6), which are located on each narrow side of the device (see chapter 10.2 Interrogator´s dimensional drawings RFH620.,

page 63) respectively .

The interrogator is mounted using the SICK fastening bracket no. 2048551. The construction of the angle supports e. g. varied mounting options and the alignment of the interrogator in two axes.

Fig. 5-1: Example: Fixing the interrogator with bracket no. 2048551

Important Always mount the bolts with washers.

When fixing the interrogator with bracket no. 2048551, pay attention to the following dimensions:

• Max. thread reach of the blind hole taps: 6.5 mm (0.26 in)

• Plate thickness of the fastening bracket: 4.0 mm (0.16 in)

• Thickness of the washers: 1.6 mm (0.06 in)

• Length of bolt M6x12: 12.0 mm (0.47 in)

The dimensioning of the SICK-holders shows chapter 11.3 Dimensional drawing accesso-

ries, page 66.

Alternatively, the user can provide a holder.

The holder should meet the following requirements:

• Stable mounting device

– Adjustable alignment of the interrogator in the x and y axis

– The mounting device must be able to bear the weight of the interrogator including

its connection cable (depending on the device version) without vibrating.

• Two M6 bolts to fix the interrogator

– The screw length depends on the thickness of the mounting device

– Maximum thread reach in the interrogator 6.5 mm (0.26 in) from the housing sur-

face

Operating Instructions Chapter 5

RFH620 Interrogator

Installation

5.3 Installation location

The following aspects are relevant for the selection of the installation location:

• Reading distance to the transponder

• Angle alignment of the interrogator

Furthermore, the distance between the interrogator and the host computer and the distance to the connection module has to be taken into account (see chapter 6.2 Electrical instal-

lation preparations, page 35 and chapter 5.5.1 Installing connection module CDB620 or CDM420, page 33).

5.4 Installation of the interrogator

Damage to the device!

The maximum thread reach of the two blind hole taps M6 is 6.5 mm. Longer bolts damage the device.

> Use bolts of a suitable length.

1. Prepare base for the installation of the interrogator holder, see chapter 5.2.3 Mounting

device, page 32.

2. Install the interrogator holder on the base.

3. Screw M6 bolts through the holder and into the interrogator's blind hole taps and gently tighten them.

5.5 Installing external components

5.5.1 Installing connection module CDB620 or CDM420

Depending on the application, you can install either connection module CDB620 or CDM420. The installation process is the same for both modules.

Important If the PC with the SOPAS-ET configuration software accesses the Interrogator´s auxiliary in-

terface (RS-232; 57.6 kBd) via the connection module, the connection module should not be installed more than 3 m cable lengths away from the interrogator.

1. Install the connection module close to the interrogator.

2. Install the connection module in such a way that the opened device can be accessed at any time.

Important

For detailed information about installation and electrical installation, see the operating instructions "Connection Module CDB620" (no. 8012119, German/English edition) and "Connection Module CDM420-0001" (no.8010004, German/English edition) respectively.

Chapter 5 Operating Instructions

Installation

Radio Frequency RFH620 Interrogator

5.5.2 Installing the external reading pulse sensor

If the interrogator is triggered by an external reading pulse sensor (photoelectric reflex switch), the sensor has to be installed close to the interrogator.

Important

The SICK catalogue "SENSICK Sensors for Automation" (order no. 8006529, German edition) contains a large selection of photoelectric reflex switches and photoelectric proximity switches as well as accessories (holders, connection cables).

The installation location of the sensor depends on the distance of the transponder to the front edge of the object. Depending on the application, the sensor should be attached in such a way that transponders on different sized objects can be fully read during the evaluation (reading gate).

5.6 Dismantling the interrogator

Removal of the components is described in chapter 8.4.1 Dismantling the interrogator,

page 57.

Operating Instructions Chapter 6

RFH620 Interrogator

Electrical installation

6 Electrical installation

6.1 Overview of installation sequence

Important Electrical installation must be performed by qualified staff only.

The following list provides an overview of a typical installation sequence:

• Connecting the interrogator to connection module CDB620 or CDM420

• Wiring the interrogator's data and function interfaces

• Connecting the connection module to the supply voltage

• Connecting a PC for commissioning and configuration (RS-232 or Ethernet)

The actual installation work, which has to be carried out, depends on the respective system configuration and the version of the interrogator (see chapter 6.2 Electrical installation

preparations, page 35). Once electrical installation has been completed, the interrogator is

started up and configured (see chapter 7 Commissioning and configuration, page 49).

6.2 Electrical installation preparations

The following general requirements should be observed for the electrical installation:

• Supply voltage 10 ... 30 V (functional extra-low voltage in accordance with IEC 603644-41 (VDE 0100 Part 410)), the power supply must provide, at least, 5 W output power

– using connection module CDB620/CDM420: Connection of the supply voltage via

the terminals of the connection module

- or -

using free wiring by customer (without connection module CDB620/CDM420): Connection of supply voltage, e. g., via the cable no. 6034418 (15-pole D-Sub-HD socket on open end)

• With external reading pulsing

– Appropriate reading pulse sensor (start), e. g. photoelectric reflex switch:

for registering an object in the reading area

– Additional appropriate reading pulse sensor (stop), e.g., photoelectric reflex switch:

for registering the end of pulse with extended external reading pulse

• Host computer with data interface RS-232, RS-422/485 or Ethernet: for further processing the reading data

• Connection cables: refer to the ordering designations of the product information "radio frequency interrogator RFH620"

Important The possible distance between the interrogator and the host computer depends on the phy-

sical design of the selected host interface and the set data transfer rate.

The following tools are required for the electrical installation:

•Tool

• Digital measuring device (current/voltage measurement)

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

6.3 Electric connections and cables

6.3.1 Electric connections to the interrogator

Important Prerequisites for enclosure rating IP 67:

• The cover of the memory card (optional) has to be installed and screwed together tightly. Width across flats WAF 2.5.

• The connectors are to be firmly screwed to the electric connections of the Ethernet version in use.

The same applies to the EMC requirement (ESD) according to CE.

Depending on the device version, the following electric connections are available on the interrogator:

Device version Connection (design) Interfaces for connection to

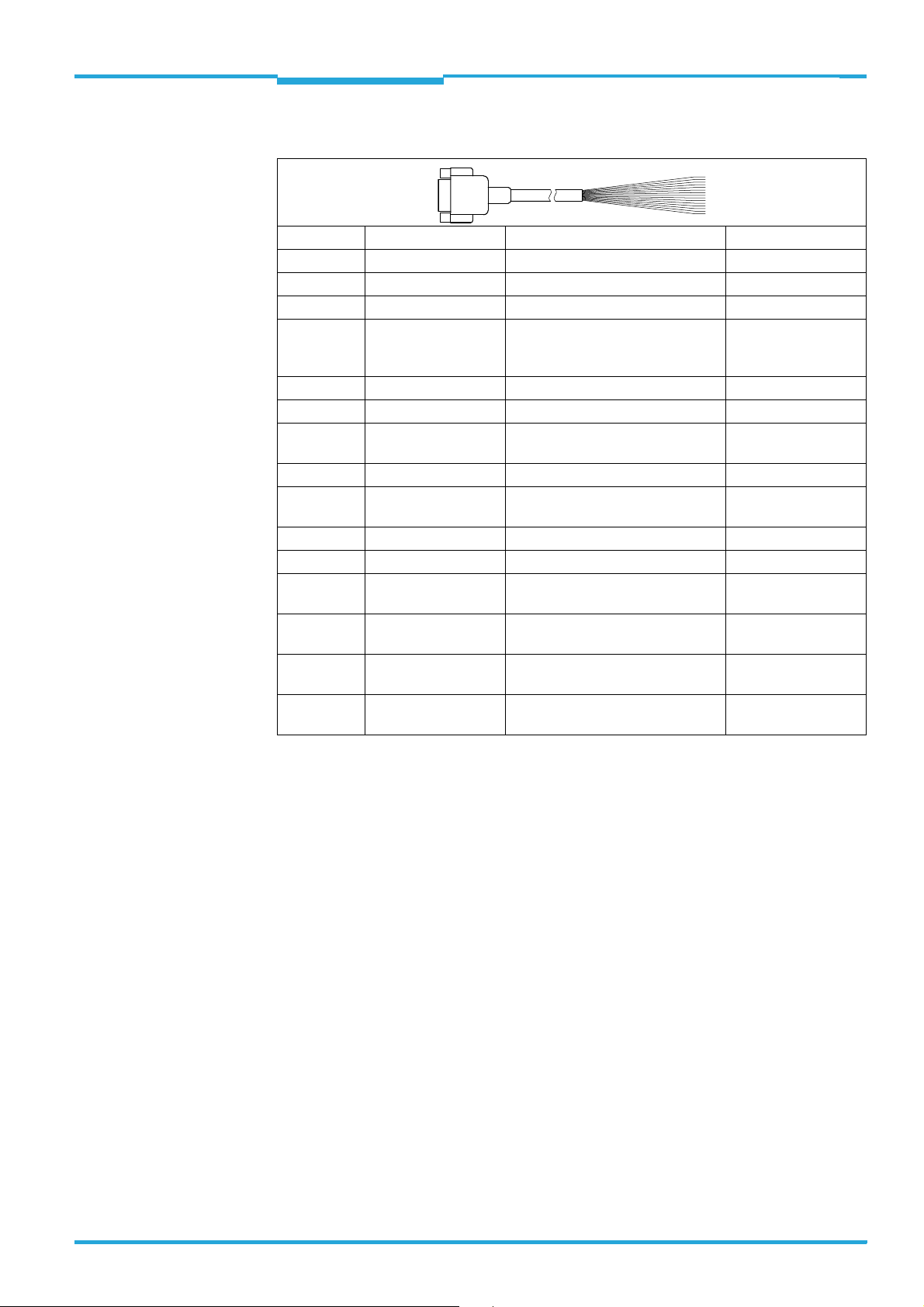

RFH620-1000001 Cable with connector

(D-Sub-HD, 15-pole, plug)

Tab. 6-1: Electric connections to the interrogator with a fixed cable and connector (standard

version)

• RS 232

• RS-422/485

•CAN

• two digital inputs

• two digital outputs

• Power supply

e. g. connection module CDB620 or CDM420

Device version Connection (design) Interfaces for connection to

RFH620-1001201 Connector 1 at the connec-

tor unit (M-12, 4-pole, socket)

Connector 2 at the connector unit M-12, 12-pole, plug

Tab. 6-2: Electric connections to the interrogator with connector unit (Ethernet version)

• Ethernet Network provided by the client

• RS 232

• RS-422/485

•CAN

• one digital input

• Power supply

e. g. connection module CDB620 or CDM420 or power supply unit with M-12 socket (no.

2049552), (power supply only)

Important Additional digital inputs and outputs are available at connection module CDB620/CDM420

(available from week 07/2008) in combination with the parameter memory module CMC600.

Operating Instructions Chapter 6

RFH620 Interrogator

Electrical installation

6.3.2 Interrogator´s connections to the cable and connector (standard version)

111015

Pin Signal Function

1 10 ... 30 V DC Supply voltage

2 RxD (Aux) Aux interface (receiver)

3 TxD (Aux) Aux interface (sender)

4 Sensor 2 Digital switching input (adjustable func-

tion, e. g. external reading pulse)

5GND Ground

6 RD+ (RS-422/485) Host interface (receiver)

7 RD– (RS-422/485);

RxD (RS-232)

8 TD+ (RS-422/485) Host interface (sender)

9 TD– (RS-422/485);

TxD (RS-232)

10 CAN H CAN bus (IN/OUT)

11 CAN L CAN bus (IN/OUT)

12 Result 1 Digital switching output, adjustable func-

13 Result 2 Digital switching output, adjustable func-

14 Sensor 1 Digital switching input for external rea-

15 SensGND Common ground for the switching inputs

–– Shield

Tab. 6-3: Standard version: Pin assignment on the 15-pole D-Sub-HD cable connector

Host interface (receiver)

Host interface (sender)

tion

ding pulse

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

6.3.3 Interrogator´s connections to the connector unit (Ethernet version)

Pin Signal Function

1TD+ Transmitter+

2RD+ Receiver+

3TD– Transmitter–

4RD– Receiver–

–– Shield

Tab. 6-4: Ethernet version: Pin assignment to the 4-pole M12 socket

Pin Signal Function

1GND Ground

2 10 ... 30 V DC Supply voltage

3 CAN L CAN bus (IN/OUT)

4 CAN H CAN bus (IN/OUT)

5 TD+ (RS-422/485) Host interface (sender)

6 TD– (RS-422/485);

TxD (RS-232)

7 TxD (Aux) Aux interface (sender)

8 RxD (Aux) Aux interface (receiver)

9 SensGND Switching input sensor 1 ground

10 Sensor 1 Digital switching input (external reading

11 RD+ (RS-422/485) Host interface (receiver)

12 RD– (RS-422/485);

RxD (RS-232)

–– Shield

Tab. 6-5: Ethernet version: Pin assignment on the 12-pole M12 plug

Host interface (sender)

pulse)

Host interface (receiver)

Important The "sensor 2", "result 1" and "result 2" connections are only available on the interrogator

with a cable and connector (standard version) and for the Ethernet version via the CDB620/ CDM420 connection module in combination with the parameter memory module CMC600.

Operating Instructions Chapter 6

RFH620 Interrogator

Electrical installation

6.4 Performing electrical installation

Important To ensure secure fastening of the connected connectors and adherence to the enclosure

rating, the knurled nuts/coupling rings of the M12 connectors have to be tightened or the cable connectors have to be secured.

1. Connect or release current linkages only under de-energised conditions.

2. All wire cross sections and their shields on customer side have to be selected and implemented according to valid engineering standards.

Damage to the connector unit on the interrogator due to overwinding.

The connector unit on the interrogator has two end positions.

> Never turn the connector unit, of one of the two end positions, more than 180° in one

direction.

> Always rotate the connector unit in the direction of the type plate.

Fig. 6-1: Direction of rotation of the connector unit

6.4.1 Connecting the power supply for the interrogator

For the operation, the interrogator requires a supply voltage of 10 ... 30 V DC (functional extra-low voltage in accordance with IEC 60364-4-41 (VDE 0100 (part 410)). The functional extra-low voltage can be created using a safety transformer in accordance with IEC 742 (VDE 0551). The maximum current consumption is 5 W.

Via the connection module CDB620 or CDM420, the interrogator is supplied with 10 ... 30 V DC. If the power supply module CMP400/CMP490 is used, the input voltage is 100 ... 250 V AC/50 ... 60 Hz on the module.

Important The output circuit of the power supply unit must be electrically separated from the input

circuit. This is usually created by means of a safety transformer in accordance with IEC 742 (VDE 0551).

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

Connecting the supply voltage

When wiring the interrogator using connection module CDB620 or CDM420, the interrogator's data and function interfaces are contacted to the connection module together with the power supply.

1. Ensure that the connection module's supply voltage has been switched off.

2. Standard version: connect the bar code scanner's 15-pole cable plug to the connection module's 15-pole socket and screw it tight.

- or -

Ethernet version: connect the interrogator's 12-pole plug via a corresponding cable (e.g., no. 2042916) to the connection module's 15-pole socket and screw it tight.

6.4.2 Wiring serial data interfaces

The maximum data transfer rate of the serial data interface depends on the cable length and the interface type.

Interface type Transfer rate Distance to the host

RS 232 up to 19,200 Bd Max. 10 m (32.8 ft)

38,400 ... 57,600 Bd Max. 3 m (9.84 ft)

115,200 Bd Max. 2 m (6.56 ft)

RS-422/485

in corresponding line termination according to the specification

Tab. 6-6: Recommended maximum cable lengths, depending on the selected data transfer rate

max. 38,400 Bd max. 1,200 m (3,937 ft)

max. 115,200 Bd max. 500 m (1,640 ft)

RS-232

CLV

RS-422

CLV

Fig. 6-2: Wiring the serial host data interfaces (RS-232 and RS-422 respectively) on the 15-pole

D-Sub-HD plug

Host

Operating Instructions Chapter 6

RFH620 Interrogator

Electrical installation

Pin assignment for the serial auxiliary data interface on the 15-pole D-Sub-HD plug:

•RxD = Pin 2

• TxD = Pin 3

•GND = Pin 5

Damage to the interface module!

Incorrect wiring of the serial data interfaces can damage electronic components in the interrogator.

> Observe information about wiring the serial data interface.

> Check the wiring carefully before switching on the interrogator.

1. Connect the interrogator's serial interface to the host using shielded cables in accordance with the EMC regulations.

Adhere to the maximum cable lengths.

2. To prevent interference, do not lay cables parallel to power supply cables and motor lines over a longer distance, e. g., in cable channels.

Important

Terminating the RS-422 data interface

Termination can be performed either in connection module CDB620 or CDM420. See operating instructions "Connection module CDB620" and "Connection module CDM420" respectively.

6.4.3 Wiring CAN interface

Important

To wire and configure the interrogator's CAN interface for use in the CAN-SENSOR network, see the operating instructions "Using the CAN Interface" (no. 8009180, English edition).

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

6.4.4 Wiring the Ethernet interface

Aux and host interface communication can also be executed in parallel via the Ethernet interface.

Fig. 6-3: Function of the Ethernet interface

Important The Ethernet interface of the interrogator has an auto MDIX function. This automatically

sets the speed and any cross connection that is required.

6.4.5 Wiring switching inputs

If the interrogator's reading process should be triggered by an external sensor, the reading pulse sensor is connected to the "sensor 1" switching input.

Fig. 6-4: Wiring "sensor 1" switching input on the 15-pole D-Sub-HD plug

Operating Instructions Chapter 6

Electrical installation

RFH620 Interrogator

The "sensor 2" switching input has the following functions, among others:

Trigger source for

• Reading pulse generator for reading pulse end

Fig. 6-5: Wiring "sensor 2" switching input on the 15-pole D-Sub-HD plug

Important The ratings for "sensor 1" and "sensor 2" are identical.

Switching behaviour Power fed to the input opens the internal reading gate of the interrogator.

(Default setting: active high, debouncing: max. 30 ms (standard))

Features – Optodecoupled, reverse polarity protected

– Can be wired with the PNP output of a sensor – Switching input has no hysteresis

Electrical values Low: |U

High: 6 V ≤ |V

| ≤ 2 V; |Ie| ≤ 0.3 mA

| ≤ 32 V; 0.7 mA ≤ |Ie| ≤ 5mA

Signal threshold > 3.9 V

Tab. 6-7: Ratings for the switching inputs

> Connect switching inputs depending on application.

Important

To wire the switching inputs using connection module CDB620 or CDM420, see operating instructions "Connection Module CDB620" (no. 8012119, German/English edition) and "Connection Module CDM420" (no. 8010004, German/English edition) respectively.

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

6.4.6 Wiring switching outputs

The two switching outputs "result 1" and "result 2" can be allocated various functions for outputting the result status independent of each other. If the assigned result occurs in the reading process, the corresponding switching output at the end of the reading pulse is live for the selected impulse duration.

Important The "result" LED is coupled with none of the two digital switching outputs "result 1" or

"result 2".

Fig. 6-6: Possible wiring of "result 1" switching output on the 15-pole D-Sub-HD plug

Important The ratings of the two switching outputs are identical.

Switching behaviour PNP switching against the distribution voltage U

Features Short-circuit proof and temperature-protected,

not galvanically separated from U

Electrical values 0 V ≤ Ua ≤ U

Guaranteed: (UV −1.5 V) ≤ Ua ≤ UV in Ia ≤ 100 mA

Tab. 6-8: Ratings for the switching outputs

Important Capacitance loads on the switching output affect the switching behaviour. Threshold is a

maximum capacitance of 100 nF. Exceeding this value can lead to unwanted pulsing behaviour of the output.

1. Connect switching outputs depending on application.

2. Wire the switching outputs with a load resistance to test the switching functions using a high-resistance digital voltmeter.

Indication of incorrect voltages/switching statuses is avoided this way.

Important

To wire the switching outputs using connection module CDB620 or CDM420, see the operating instructions "Connection Module CDB620" (no. 8012119, German/English edition) and "Connection Module CDM420" (no. 8010004, German/English edition) respectively.

Operating Instructions Chapter 6

RFH620 Interrogator

Electrical installation

6.5 Pin assignment and wire colours of the assembled cables

6.5.1 Pin assignment of the assembled cables

Cable no. 6034414, 6029630, 6034415, 6030928 (Ethernet version)

Pin (4-pole) Signal Function Pin (6-pole)

1 TD+ Transmitter+ 1

3 TD– Transmitter– 2

2RD+ Receiver+ 3

––4

––5

4RD– Receiver– 6

–– Shield –

Tab. 6-9: Pin assignment on the 4-pole M12 plug and the 6-pole RJ45 plug

Cable no. 2042916, 2041834, 2042914, 2042915 (Ethernet version)

Pin (12-pole) Signal Function Pin (15-pole)

2 10 ... 30 V DC Supply voltage 1

8 RxD (Aux) Aux interface (receiver) 2

7 TxD (Aux) Aux interface (sender) 3

–– – 4

1GND Ground 5

11 RD+ (RS-422/485) Host interface (receiver) 6

12 RD– (RS-422/485);

RxD (RS-232)

5 TD+ (RS-422/485) Host interface (sender) 8

6 TD– (RS-422/485);

TxD (RS-232)

4CAN H CAN bus (IN/OUT) 10

3CAN L CAN bus (IN/OUT) 11

–– – 12

–– – 13

10 Sensor 1 Digital switching input for exter-

9 SensGND Common ground for the switching

–– Shield -

Host interface (receiver) 7

Host interface (sender) 9

nal reading pulse

inputs

Tab. 6-10: Pin assignment on the 12-pole M12 socket and the 15-pole D-Sub-HD plug

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

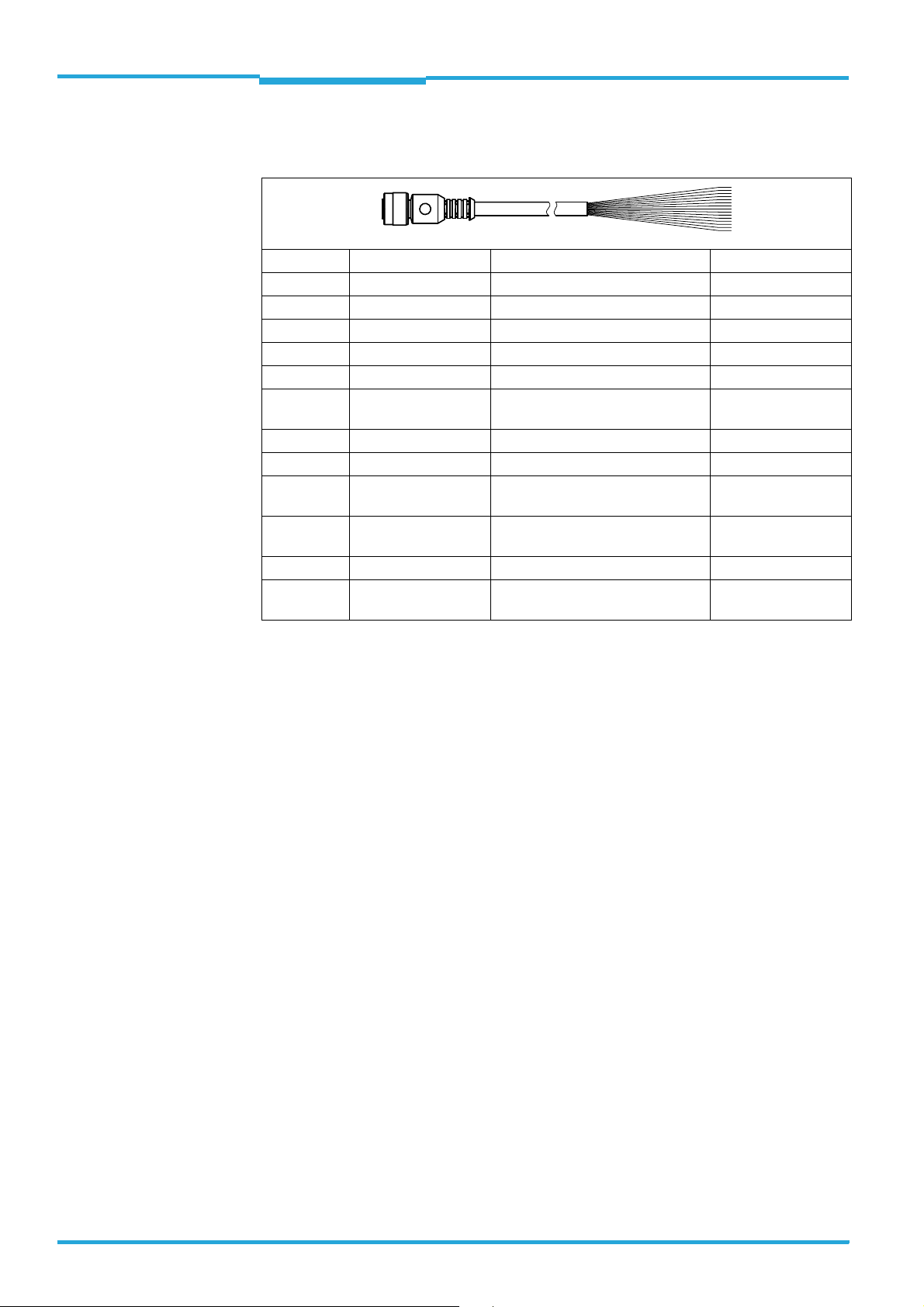

6.5.2 Pin assignment and wire colours of the assembled cables with an open end

Cable no. 6034605 (Ethernet version)

Pin (12-pole) Signal Function Wire colour

1 GND Ground brown

2 10 ... 30 V DC Supply voltage blue

3 CAN L CAN bus (IN/OUT) white

4 CAN H CAN bus (IN/OUT) green

5 TD+ (RS-422/485) Host interface (sender) pink

6 TD– (RS-422/485);

TxD (RS-232)

7 TxD (Aux) Aux interface (sender) black

8 RxD (Aux) Aux interface (receiver) grey

9 SensGND Common ground for the switching

10 Sensor 1 Digital switching input for external

11 RD+ (RS-422/485) Host interface (receiver) grey-pink

12 RD– (RS-422/485);

RxD (RS-232)

Host interface (sender) yellow

red

inputs

violet

reading pulse

Host interface (receiver) red-blue

Tab. 6-11: Pin assignment on the 12-pole M12 socket and wire colours at the open end

Operating Instructions Chapter 6

RFH620 Interrogator

Electrical installation

Cable no. 6034418 (Standard version)

Pin (15-pole) Signal Function Wire colour

1 10 ... 30 V DC Supply voltage red

2 RxD (Aux) Aux interface (receiver) violet

3 TxD (Aux) Aux interface (sender) yellow

4 Sensor 2 Digital switching input (adjustable

function, e. g. external reading pulse)

5GND Ground black

6 RD+ (RS-422/485) Host interface (receiver) light blue

7 RD– (RS-422/485);

RxD (RS-232)

8 TD+ (RS-422/485) Host interface (sender) light grey-turquoise

9 TD– (RS-422/485);

TxD (RS-232)

10 CAN H CAN bus (IN/OUT) grey

11 CAN L CAN bus (IN/OUT) pink

12 Result 1 Digital switching output, adjustable

13 Result 2 Digital switching output, adjustable

14 Sensor 1 Digital switching input for external

15 SensGND Common ground for the switching

Host interface (receiver) blue

Host interface (sender) green

function

reading pulse

inputs

red-black

brown

orange

white

white-black

Tab. 6-12: Pin assignment on the 15-pole D-Sub-HD socket and wire colours at the open end

Chapter 6 Operating Instructions

Electrical installation

Radio Frequency RFH620 Interrogator

Operating Instructions Chapter 7

RFH620 Interrogator

Commissioning and configuration

7 Commissioning and configuration

Commissioning, adjustments as well as configuration and diagnosis are carried out with the SOPAS-ET configuration software. Among other things, two buttons on the device offer the possibility to call up a simple reading rate diagnosis (see chapter 4.7.3 Buttons on the in-

terrogator's housing, page 28).

7.1 Overview of the start-up procedure

• Start up the interrogator with the factory default settings

• Install SOPAS-ET configuration software

• Connect the PC with the SOPAS-ET configuration software to the interrogator

• In order to optimise the functionality of the interrogator, adjust and configure the interrogator if necessary

• Check the correct functioning of the interrogator in reading operation

7.2 SOPAS-ET configuration software

The SOPAS-ET configuration software adjusts the interrogator to the reading conditions on site. The configuration data can be saved and archived as a parameter set (project file) on the PC.

7.2.1 Functions of the SOPAS-ET configuration software for the interrogator (overview)

The online help in the SOPAS-ET configuration software describes the general functions of the software and its operation: M

ENU, HELP, HELP F1

• Selection of the menu language

• Communication set-up with the interrogator

• Password-protected configuration for various operating levels

• Recording of data during the current mode (recording and analysing the data of certain memory areas of the interrogator with the data recorder)

• Diagnosing the system

7.2.2 System requirements for the SOPAS-ET configuration software

PC system requirements:

• Recommendation: Pentium III, 500 MHz, 512 MB RAM, CD drive, RS-232 serial data interface or Ethernet interface card, mouse (recommended) and a colour monitor (recommended resolution 1,024 x 768 pixels)

• Operating system Windows 2000

, Windows XPTM or Windows Vista

• Free storage space on the hard drive: approx. 300 MB for SOPAS-ET (V. 2.20) configuration software with help files and approx. 70 MB for "Acrobat Reader"

• HTML browser on the PC, e.g., Internet Explorer

: For online help system for the SOPAS-

ET configuration software

Connection cables: refer to the ordering designations of the Product information "Interrogator RFH620".

Chapter 7 Operating Instructions

Commissioning and configuration

Radio Frequency RFH620 Interrogator

7.2.3 Installing the SOPAS-ET configuration software

1. Start the PC and insert the installation CD.

2. If installation does not start automatically, call setup.exe on the CD.

3. Follow the operating instructions to conclude installation.

7.2.4 Default setting for SOPAS-ET configuration software

Parameter Value

User interface language English (the software has to be restarted after

changes)

Units of length Metric

User group (operating level) Maintenance

Download parameter for changes Immediate, temporary (interrogator's RAM)

Upload parameter after online switching Automatic

Window layout 3 (project tree, help, work area)

Serial communication COM 1: 9,600 Bd/19,200 Bd, 8 data bits, 1 stop

bit, no parity 1

Tab. 7-1: Default setting for the SOPAS-ET configuration software (excerpt)

7.3 Establishing communication with the interrogator

Prerequisite The TCP-IP protocol on the PC has to be active to enable communication via TCP-IP.

7.3.1 Connecting data interfaces

> Connect the PC and the interrogator via one of the two data interfaces according to the

chart.

via the data interface Comment

ETHERNET (10/100 MBit/s)

RS 232 Connect the PC (serial interface) to the AUX or HOST connection of the

Tab. 7-2: Connection between PC with SOPAS-ET configuration software and the interrogator

7.3.2 Starting the SOPAS-ET configuration software and calling the scan assistants

1. Switch on the power supply to the interrogator.

The interrogator performs a self-test and is initialised.

2. Switch on the PC and start the SOPAS-ET configuration software.

As standard, the SOPAS-ET configuration software opens the program window with an English program interface.

3. In order to change the language setting, click on program interface to G

4. Once the language setting has been changed, shut down the SOPAS-ET configuration software and restart it.

5. In the dialog window, select the option

6. In the main window under S

The dialog window S

Directly connect the PC (Ethernet interface) to the ETHERNET connection of the interrogator.

interrogator using a suitable cable.

CANCEL and change the language of the

ERMAN/DEUTSCH via the menu TOOLS/OPTIONS.

CREATE A NEW PROJECT and click on OK to confirm it.

CAN ASSISTANT, click on CONFIGURATION.

CAN ASSISTANT appears.

Operating Instructions Chapter 7

RFH620 Interrogator

Commissioning and configuration

7.3.3 Configuring the Ethernet connection

TIP To establish a connection quickly and easily via Ethernet, the SOPAS-ET configuration soft-

ware has a

CONNECTION WIZARD in the menu TOOLS.

Manual configuration:

1. In the dialog window N select the check box for

2. Click on the button

ETWORK SCAN ASSISTANT under INTERNET PROTOCOL/IP COMMUNICATION,

ENABLE IP COMMUNICATION.

ADD.

3. Enter the IP address of the interrogator in the dialog window and confirm it by pressing OK.

The dialog window closes. A new entry appears in the list IP A

DDRESS CONFIGURATION.

4. Click on OK to confirm settings.

The dialog window

ADVANCED SCAN SETTINGS closes.

7.3.4 Configuring the serial connection

1. In the dialog window N lect the check box for

2. Click on

3. Under

ADVANCED....

SELECT BAUD RATE(S), deactivate all the baud rates except 57.6 KBD.

4. Select the following

ETWORK SCAN ASSISTANT under SERIAL PORT/STANDARD PROTOCOL, se-

ENABLE SERIAL COMMUNICATION.

PORT SETTINGS: 8 data bits, no parity, 1 stop bit.

5. Click on OK to confirm settings.

The dialog window

ADVANCED SCAN SETTINGS closes.

7.3.5 Carrying out a scan

1. In the dialog window

2. Select the listed devices (RFH620) and confirm with

SCAN ASSISTANT, click on START SCAN.

ADD DEVICE.

Connected devices are searched for via the connection. The SOPAS-ET configuration software inserts the devices found in the project tree and uploads the current parameter set (

SYNC CHECK).

3. For the configuration of the devices, see chapter 7.4.2 Configuring the interrogator,

page 53.

Chapter 7 Operating Instructions

Commissioning and configuration

Radio Frequency RFH620 Interrogator

7.4 Initial commissioning

The SOPAS-ET configuration software adjusts the interrogator to the reading conditions on site. Starting point for this is the factory default setting which can be adjusted to optimise the interrogator. The SOPAS-ET configuration software is used to create an application-specific parameter set, which can be loaded permanently into the interrogator and saved/archived on the PC as a project file (spr file with configuration data).

Fig. 7-1: Configuration with SOPAS-ET and storage of the parameter set

If the interrogator is optionally connected to a Micro SD memory card (see chapter 4.7.4 Pa-

rameter set on the Micro SD memory card (optional), page 29) or connected to a module

with parameter memory mode CMC600, the parameter set is saved permanently to the memory card, or to the CMC600 respectively, with every permanent storage of the parameter set in the interrogator.

After the interrogator is restarted, it automatically transfers the parameter set from the memory card and the CMC600 to its permanent memory respectively. Thus, an interrogator can, e. g., be exchanged without losing configuration data (see chapter 8.4.2 Replacing the

interrogator, page 58). If a memory card and a CMC600 are available, the interrogator will

load the parameter set from the CMC600.

7.4.1 Overview of the start-up procedure

• Connect data interfaces of the PC and the interrogator

• Start the SOPAS-ET configuration software and create a new project file

• Configure the scan assistant (activate PC communication)

• Establishing communication with the interrogator

• Accept current configuration of the interrogator in the project tree

• Log on to the interrogator as an "authorised client"

• Configure the interrogator for use

• Load the optimised configuration into the interrogator and save permanently

• Save the project file with the configuration data of the interrogator on the PC

Operating Instructions Chapter 7

RFH620 Interrogator

Commissioning and configuration

7.4.2 Configuring the interrogator

All configurable parameters for the interrogator are grouped into a device description (jar file) for the SOPAS-ET configuration software. The device description's project tree acts as a guideline for the configuration.

The function of each respective parameter is explained in a context-sensitive manner in an online help (F1 key). The valid value range and the default setting list the display window

PARAMETER INFO (right mouse button, when the cursor is positioned over the parameter).

Note

In order to configure a device via the SOPAS-ET configuration software, the respective operating level has to be selected in advance. After the start, the SOPAS-ET configuration software functions at the operating level "

MAINTENANCE".

1. In the menu bar under

2. In the dialog window under

If the parameter set is password-protected, enter the password "client" in

The password protection is activated/deactivated on the register tab

TOOLS, select the command LOGIN TO DEVICE.

USERLEVEL in the list box, select the entry AUTHORIZED CLIENT.

PASSWORD.

PARAMETER.

3. Click on OK to confirm the dialog window.

The previously greyed out parameters on the register tabs are now accessible.

7.4.3 Permanently load changed parameter sets into the device

Changed parameter values are immediately transferred to the interrogator's main memory (RAM) depending on the option ("Immediate download"). To ensure that the changes remain even after the interrogator is restarted, the configuration has to be permanently saved in the interrogator's PROM.

> In order to load the current settings permanently in the interrogator, in the menu bar

under RFH620, select the command

PARAMETER/SAVE PERMANENT or click on in the

tool bar.

Chapter 7 Operating Instructions

Commissioning and configuration

Radio Frequency RFH620 Interrogator

7.4.4 Save, display and print the current parameter set

When archiving a parameter set, it is recommended to not only save the project file on the PC but also to print out the contents of the file.

1. In order to save the current parameter set, select the menu item bar under

PROJECT.

2. Enter a file name in the dialog window and confirm it by clicking on

SAVE AS in the menu

SAVE.

The SOPAS-ET configuration software saves the current settings in a configuration file "*.spr".

3. In order to print out the current parameter set, select the command in the menu bar under

PROJECT.

PRINT/PRINT PREVIEW

The SOPAS-ET configuration software displays a preview of a table with a list of all the parameter values.

4. Click on in the tool bar at the top of the dialog window.

The dialog window

PRINT for the printer configuration appears.

5. Edit setting accordingly and confirm with OK.

The current project settings are printed as a table on several pages.

TIP To save the current parameter set as a PDF, in the menu bar under

mand

PRINT/SAVE AS PDF FILE.

PROJECT select the com-

Operating Instructions Chapter 7

RFH620 Interrogator

Commissioning and configuration

7.5 Default setting

The values of the default setting are permanently saved in the interrogator (ROM) and in the database of the SOPAS-ET configuration software in the device-specific jar file (see

chapter 7.4 Initial commissioning, page 52). A PC is not required to start up the interrogator

with the default setting.

7.5.1 Resetting the default setting in the interrogator

Prerequisite The SOPAS-ET configuration software is connected online to the interrogator.

Two default setting types can be called up via the SOPAS-ET configuration software:

• Complete default setting (

SOPAS-ET resets all parameter values of the interrogator to default. Settings, which have been previously made for the communication parameters of the Ethernet interfaces or serial data interfaces (e.g. Ethernet address), are overwritten. In the process, the connection(s) to the interrogator disappear(s) as the case may be and must to be reconfigured.

• Application-specific default setting (

SOPAS-ET resets the parameter values of the interrogator, but does not change the communication parameters. Settings, which have been previously made for the communication parameters of the Ethernet interfaces or serial data interfaces, are kept and the current connection(s) to the interrogator remain(s) established.

LOAD DEFAULT SETTING)

LOAD APPLICATION DEFAULT SETTING)

1. In order to discard changes to the parameter set as described above, select the corresponding command in the menu bar under RFH620.

The SOPAS-ET configuration software loads the default setting from the interrogator and displays the parameter values in the register tabs. In the interrogator, the default setting will first be active in the temporary main memory only.

The default setting can also be saved in the PC or printed (see chapter 7.4.4 Save, dis-

play and print the current parameter set, page 54).

2. In the menu bar under

3. In the dialog window under

TOOLS, select the command LOGIN TO DEVICE.

USERLEVEL in the list box, select the entry AUTHORISED CLIENT.

If the parameter set is password-protected, enter the password "client" in P

4. Click on OK to confirm the dialog window.

5. In the menu bar under RFH620, select the command

PARAMETER/SAVE PERMANENT.

The SOPAS-ET configuration software transfers the default setting to the permanent parameter memory (PROM) of the interrogator.

If the interrogator is equipped with the Micro SD memory card or connected to a connection module CDB620/CDM420 with parameter memory module CMC600, the default setting will be permanently transferred to the parameter memory CMC600 and memory card respectively.

Important Once the default setting has been restored, password-protection is deactivated.

ASSWORD.

Chapter 7 Operating Instructions

Commissioning and configuration

Radio Frequency RFH620 Interrogator

Operating Instructions Chapter 8

RFH620 Interrogator

Maintenance

8 Maintenance

8.1 Maintenance during operation

It RFH620 operates maintenance-free in all variants.

Important Do not open the interrogator's ho usi ng. If the device is opened, the SICK AG warranty shall

not apply.

8.2 Cleaning the housing

> Use a soft cloth to free the housing of dust.

> If necessary, also clean the LEDs on the housing.

8.3 Checking the incremental encoder

If an optional incremental encoder is used, the position of the friction wheel at the drive system should be checked at regular intervals.

> Ensure that the incremental encoder has direct and fixed contact with the drive system

and that the friction wheel rotates without slipping.

8.4 Replacing an interrogator

Incorrect or damaged devices have to be removed and replaced with either new or repaired devices.

Important Repairs to the interrogator should only be carried out by qualified and authorised SICK AG

service staff.

8.4.1 Dismantling the interrogator

1. Switch off the power supply to the interrogator.

2. Disconnect all the connection cables of the interrogator.

3. Remove the interrogator from the holder. In the process, mark the interrogator´s situation and alignment on the holder or environment.

4. If available, remove the Micro SD memory card (optional) with the stored parameter set from the faulty interrogator (see chapter 4.7.4 Parameter set on the Micro SD memory

card (optional), page 29). To do this, open the cover and slightly press on the memory

card in order to unlock it.

5. Insert the memory card accordingly into the empty space of the new, turned-off interrogator the right way round (the card's notches point to the two yellow keys) until it is locked.

6. Close the cover again.

Chapter 8 Operating Instructions

Maintenance

Radio Frequency RFH620 Interrogator

8.4.2 Replacing the interrogator

1. Align and install the new or repaired interrogator (see chapter 5 Installation, page 31). In the process, observe any marks made previously on the holder or the environment (chapter 8.4.1 Dismantling the interrogator, page 57).

2. Re-connect connection cables to the interrogator (see chapter 6 Electrical installation,

page 35).

3. Switch the power supply to the interrogator back on.

The interrogator starts with the default setting.

4. If, as an option, a Micro SD memory card has been inserted into the interrogator or a parameter memory module CMC600 into connection module CDB620/CDM420, the new interrogator will automatically load the stored parameter set from the memory card or CMC600 into its permanent memory. If both a memory card and a CMC600 are available, the interrogator will load the parameter set from the CMC600.

- or -

Without Micro SD memory card /parameter memory module CMC600: Connect to the interrogator via the SOPAS-ET configuration software, transfer the configuration stored on the PC via download to the interrogator and permanently store the configuration there.

Operating Instructions Chapter 9

RFH620 Interrogator

roubleshooting

9 Troubleshooting

This chapter describes how errors in the interrogator can be recognised and eliminated.

9.1 Overview of errors and malfunctions which could occur

9.1.1 Error during the installation

• The interrogator has been unsuitably aligned to objects with transponders (e. g. a shield)

• Reading pulse sensor has been positioned incorrectly (e.g. internal reading gate is opened too late or shut too early)

9.1.2 Error during the electrical installation

• Interfaces of the interrogator were wired incorrectly

9.1.3 Error during configuration

• Functions have not been adjusted to the local conditions, e.g. parameters for the data interface are set incorrectly

• Device-related limits have not been considered, e.g. reading distance

• Trigger source for reading pulse selected incorrectly

9.1.4 Malfunctions during operation

• Start/Stop operation: External reading pulse is missing, more than one object is in the reading area

• Device error (hardware/software)

9.2 Detailed malfunction analysis

9.2.1 LEDs on the interrogator

Among other things, the following statuses can be read from the LEDs on the interrogator's housing (see chapter 4.7.2 LEDs on the interrogator's housing, page 27):

• Ready

• Status of the reading result (result)

• Data traffic on the host, aux and CAN interface

The LEDs can display possible malfunctions or errors. Please refer to the system information for further details.

9.2.2 System information

The interrogator displays errors in various ways. The error output is hierarchised and always allows a detailed analysis:

• Communication errors can occur while transferring telegrams to the interrogator. In this case, the interrogator returns an error code.

• Error codes are written into a status protocol for errors which occur during a reading (see subsequent chapter).

Chapter 9 Operating Instructions

Troubleshooting

Radio Frequency RFH620 Interrogator

9.3 Status protocol

Important The status protocol remains even after switching the interrogator off and on again.

The interrogator differentiates between four types of error:

• Information

•Warning

•Error

• Fatal error

The interrogator only saves the last five entries for each of the error types.

9.3.1 Displaying the status protocol using the SOPAS-ET configuration software

In order to display the status protocol, the SOPAS-ET configuration software has to be online and connected to the interrogator.

1. Connect the SOPAS-ET configuration software with the device.

2. Open the project tree RFH620,

SERVICE, SYSTEM STATUS, register tab SYSTEM INFORMATION.

9.4 SICK support

If an error cannot be eliminated, it is possible that the interrogator is defective. The interrogator cannot be repaired by the user, meaning that it is not possible to re-establish functions after a failure. However, the interrogator can be rapidly replaced by the user (see

chapter 8.4 Replacing an interrogator, page 57 for this).

> If an error occurs which cannot be eliminated, please contact SICK service:

• In Germany: Technical hotline of SICK Vertriebs-GmbH

– Tel. +49 211 5301-270

– Fax. +49 211 5301-100

– E-mail: info@sick.de

• International: your appropriate SICK branch office and SICK subsidiary respectively.

– For telephone numbers and e-mail addresses, please see the back page of these

operating instructions

– For the postal address please visit www.sick.com.

> Only return devices after consultation with the SICK service.

Important Repairs to the interrogator should only be carried out by qualified and authorised SICK AG

service staff.

Operating Instructions Chapter 10

RFH620 Interrogator

Technical data

10 Technical data

10.1 Interrogator´s data sheet RFH620.

Type RFH620-1000001 RFH620-1001201

Wave band (Carrier frequency)

HF transmitter power 200 mW

Transponder type ISO/IEC 15693 (18000-3M1)

MTTF 20,000 h

Cruising range Up to 16 cm (depending on the size of the transponder)

Useable antenna surface area

Optical indicators 6 LEDs: Ready, result, HF, data, CAN, LNK TX

Acoustic display Beeper, which can be switched off, with function for result status display is available

Reading pulsing • Pulse sources for start: Switching inputs

"Host" data interface Serial: RS-232 or RS-422/485; Ethernet (port 2112),

Data transfer rate 0.3 ... 500 kBd

Protocols SICK standard (SOPAS-Cola-A)

Physical configurations Stand-alone

"Aux" data interface Serial: RS-232 (57.6 kBd; 8 data bits, no parity, 1 stop bit); Ethernet (port 2111); fixed data output

"Ethernet" data interface Only for Ethernet version: 10/100 MBit/s, TCP/IP, half/full duplex

Data interface "CAN"

Digital switching inputs 2 ("sensor 1", "sensor 2"), 2 additional inputs via

Digital switching outputs 2 ("result 1", "result 2"), 2 additional outputs via

Electric connection Cable (0.9 m (2.95 ft)) with 15-pole D-Sub-HD

Operating voltage/ Power consumption

Housing Die-cast aluminium

Antenna cover material PPS Plastic

Electrical safety According to EN 60950-1 (2006-04)

Enclosure rating III, according to EN 61140 (2002-03)

Enclosure rating IP 67, according to EN 60529 (1991-10); A1 (2002-02)

EMV tested According to EN 301489

13.56 MHz (13.553 ... 13.567 MHz)

125 x 75 mm

"sensor 1" and/or "sensor 2"; command; automatic cycle; CAN

• Pulse sources for stop: Reading pulse source, "sensor 1", "sensor 2", command, timer, good read, condition

• Freewheel

adjustable data format (serial) and data output format

format

20 kBit/s ... 1 MBit/s, SICK CAN-SENSOR network (master, slave, multiplexer)

CMC600 in CDB620

CMC600 in CDB620 PNP, I

gurable impulse duration (static, 10 ... 1,000 ms)

plug

10 ... 30 V DC (PELV according to EN 61140 (2002-03)) / max. 5 W

(4.92 x 2.95 in2)

• Pulse sources for start: Switching inputs "sensor 1"; command; automatic cycle; CAN

• Pulse sources for stop: Reading pulse source, "sensor 1", command, timer, good read, condition

• Freewheel

1 ("sensor 1"), 2 additional inputs via CMC600 in CDB620, optodecoupled, U polarity protected, which can be wired with PNP output, configurable debouncing 0 ... 10,000 ms

No output, 2 outputs via CMC600 in CDB620

= max. 100 mA, short circuit-proof, confi-

Revolving connector unit with 2 M12 circular connectors (12-pole plug, 4-pole socket)

= max. 32 V, reverse

Chapter 10 Operating Instructions

Type RFH620-1000001 RFH620-1001201

Wireless authorisation According to EN 300330 (2006-04) FCC version: according to FCC part 15

Vibration/shock test According to EN 60068-2-6 (1995) / according to EN 60068-2-27 (1993)

Weight 520 g (18.34 oz) with connecting cable 450 g (15.87 oz) without connecting cables

Ambient operating/ storage temperature

Max. rel. humidity 90 %, non condensing

Housing colour Light blue (according to RAL 5012)

in priming

Tab. 10-1: Technical specifications of the interrogator RFH620

Technical data

Radio Frequency RFH620 Interrogator

–25 ... +60 °C (-13 ... 140 °F)/–25 ... +70 °C (-13 ... 158 °F)

Operating Instructions Chapter 10

RFH620 Interrogator

Technical data

10.2 Interrogator´s dimensional drawings RFH620.

10.2.1 Dimensional drawing of interrogator RFH620-1000001

Fig. 10-1: Standard version: Dimensions of the interrogator (RFH620-1000001)

Chapter 10 Operating Instructions

Technical data

Radio Frequency RFH620 Interrogator

10.2.2 Dimensional drawing of interrogator RFH620-1001201

Fig. 10-2: Ethernet version: Dimensions of the interrogator (RFH620-1001201)

Operating Instructions Chapter 11

RFH620 Interrogator

Appendix

11 Appendix

11.1 Overview of the Appendixes

The appendix contains the following additional information:

• Configuration with command strings

• Dimensional drawings of the accessories

• Supplementary documentation (overview)

• Copy of EC Declaration of Conformity

11.2 Configuring the interrogator with command strings

As an alternative to the SOPAS-ET configuration software, the interrogator can also be configured and operated with command strings via all the data interfaces. The command strings can be displayed separately via the SOPAS-ET configuration software.

Note

For this purpose, select the setting COMMAND on the register tab OBJECT TRIGGER CONTROL as Trigger source.

Important Both the command strings and the SOPAS-ET configuration software are based on com-

mand language which directly accesses the command interpreter of the interrogator. This command language must be used with care as the interrogator executes sent commands immediately. Parameter values altered via commands are, at first, only active in the current parameter set in the working memory (RAM) of the interrogator. To save in the permanent memory, the altered parameter set must be copied into the PROM using a special command; this ensures that the alterations are not lost when the power supply is switched off.

Command strings for triggering the reading pulse:

• START: <STX>sMN mTCgateon<ETX>

• STOP: <STX>sMN mTCgateoff<ETX>

If the commands are entered via the terminal emulator of the SOPAS-ET configuration software, the two control characters <STX> and <ETX> are omitted.

Connection to the interrogator using the terminal emulator via the Ethernet:

1. Call up the terminal emulator via the menu

TOOLS/TERMINAL of the SOPAS-ET configura-

tion software and, in the terminal emulator, call up the connection assistant via the menu

SET UP CONNECTIONS/CONNECTION.

2. Select the option pressing

NEXT.

3. Select the option TCP/IP and confirm by pressing

4. Select the option

5. Enter the interrogator's IP address in the relevant field and confirm by pressing

6. In the selection list

CONNECT.

USER-DEFINED CONNECTION in the connection assistant and confirm by

NEXT.

SHOW ONLY COLA TELEGRAMS.

NEXT.

ADDRESSING MODE, select the setting NAME and confirm by pressing

The connection with the interrogator is established. The command strings can be transferred.

Chapter 11 Operating Instructions

Appendix

Radio Frequency RFH620 Interrogator

11.3 Dimensional drawing accessories

11.3.1 Dimensional drawing fixing bracket no. 2048551

Included to fix the interrogator to the bracket:

2 x cylinder head screws M6 x 8 mm (0.31 in), with hexagon socket, self-locking

Fig. 11-1: Dimensions of the fixing bracket no. 2048551

Operating Instructions Chapter 11

RFH620 Interrogator

Appendix

11.4 Supplementary documentation

Order no. Title Language Contents

8013102 Product information "Radio frequency interrogator

RFH620"

8013107 Online help "Radio frequency interrogator RFH620" English Description of parameter to facilitate configu-

8012119 Operating instructions "Connection Module CDB620" German/

8010004 Operating instructions "Connection Module CDM420-

0001"

8011155 Operating instructions "Connection Module CDM420-

0004"

8012120 Operating instructions "Parameter Memory Module

CMC600"

8010365 Operating instructions "Power Supply Module CMP400" German/

8010601 Operating instructions "Power Supply Module CMP490" German/

8012214 Operating instruction "Field Bus Module CDF600-0100

for PROFIBUS-DP"

8009180 Operating instructions "Use of the CAN Interface" English Description of setting up a CAN scanner net-

Tab. 11-1: Supplementary documentation

English Information on the interrogator and overview

of in-stock installation accessories, connection modules, cables and connectors, transponder as well as memory media.

ration using SOPAS-ET configuration software

Description of the wiring of the interrogator

English

German/ English

English

English Description of the installation, operation and

with the host/PLC/sensor using connection module CDB620

Description of the wiring for the interrogator with the host/PLC/sensor using connection module CDM420

Description of the wiring of two devices with the host/PLC/sensor using connection module CDM420

Description of the commissioning of the module in connection module CDB620 or CDM420

Description of the installation of the module in connection module CDM420

configuration

work (electric connection, configuring the interrogator, functions) and integrating it in a CAN open network

Chapter 11 Operating Instructions

Appendix

Radio Frequency RFH620 Interrogator

11.5 EC Declaration of Conformity

The figure shows a scaled down version of the EC Declaration of Conformity (page 1) for the interrogator RFH620.

> The complete EC Declaration of Conformity and the list of device versions and the stan-

dards met can be requested from SICK AG.

Fig. 11-2: EC Declaration of Conformity for the interrogator (page 1, scaled down version)

Operating Instructions Chapter 11

RFH620 Interrogator

Appendix

11.6 FCC authorisation

The documentation for FCC authorisation is not available for the market launch of RFH620 in May 2009. More information on request.

8013105/0000/2009-05-12 · DWF <PM6.5/FM8.0/PDF>/VD · Printed in Germany · Subject to change without notice · The specified product features and technical data do not represent any guarantee · 05 Pre int63

Sick RFH620 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Notes on this document

1.1 Purpose of this document

1.2 Target group

1.3 Depth of information

1.4 Used symbols

2 For your safety

2.1 Authorised users

2.2 Intended use

2.2.1 CE authorisation

2.2.2 FCC authorisation

2.3 General safety precautions and protection measures

2.4 Quick stop and quick restart

2.4.1 Switching off the interrogator

2.4.2 Switching the interrogator back on

2.5 Environmental information

2.5.1 Energy requirement

2.5.2 Dispose of the device after decommissioning

3 Quick-Start

3.1 Preparing the interrogator for the quick start

3.2 Establishing connection with the interrogator

3.3 Performing the reading
