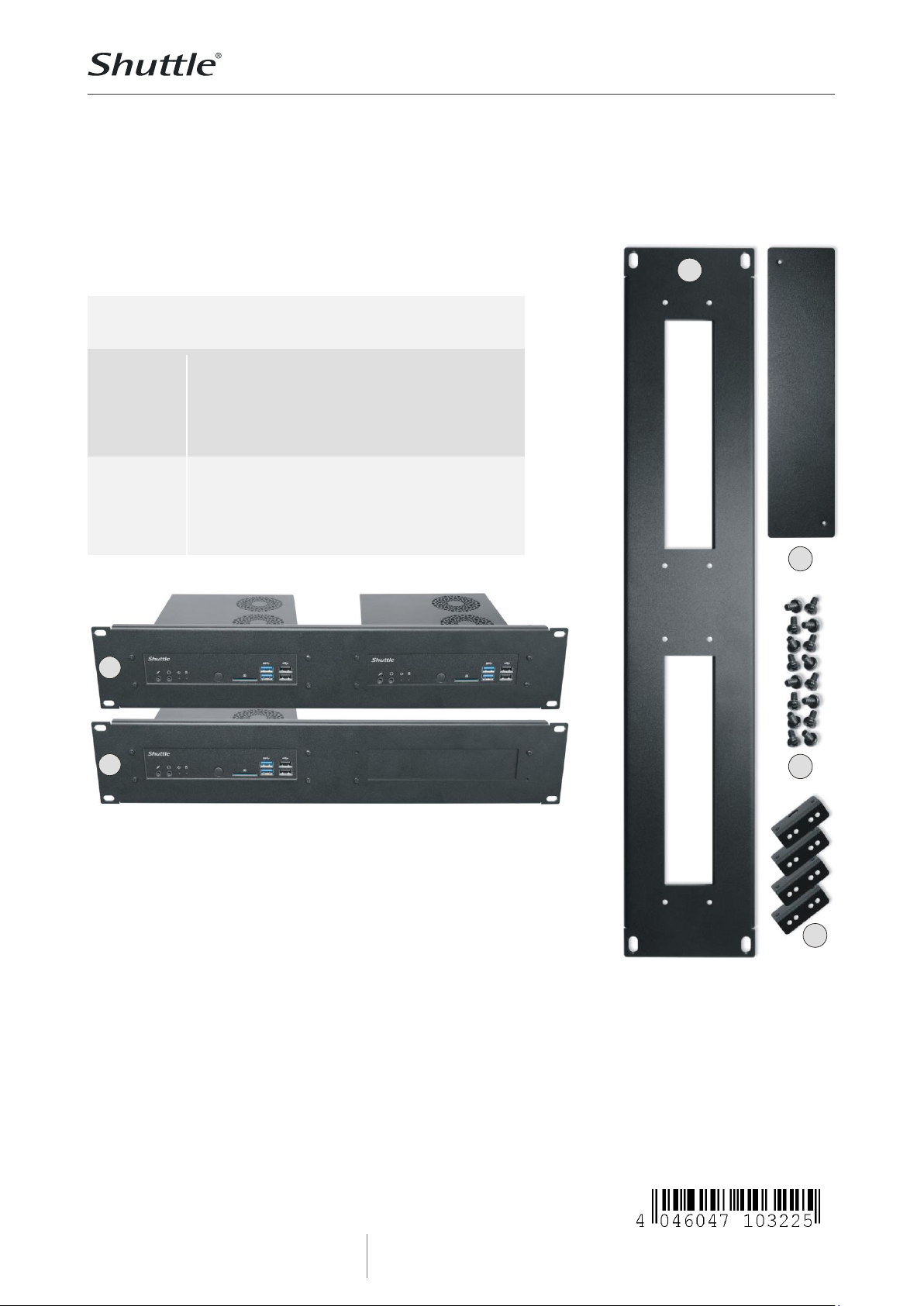

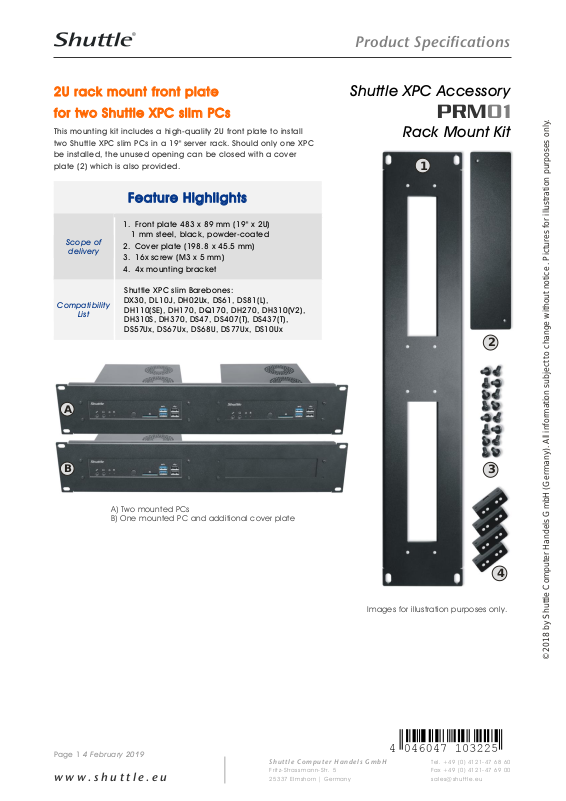

2U rack mount front plate
for two Shuttle XPC slim PCs
This mounting kit includes a high-quality 2U front plate to install
two Shuttle XPC sl im PCs in a 19" server rack. Should only one XP C
be installed, the unused opening can be closed with a cover
plate (2) which is also provided.
Feature Highlights
Scope of
delivery
1. Front plate 483 x 89 mm (19" x 2U)
1 mm steel, black, powder -coated
2. Cover plate (198.8 x 45.5 mm)
3. 16x screw (M3 x 5 mm)
4. 4x mounting bracket
Compat ibility
List
Shuttle XPC slim Barebones:
DX30, DL10J, DH02Ux, DS61, D S81(L),
DH110(SE), DH170, DQ170, DH270, DH310(V2),
DH310S, DH370, DS47, DS407(T), DS437(T),
DS57Ux, DS67Ux, DS68U, DS77Ux, DS10Ux
Shuttle XPC Accessory
PRM01
Rack Mount Kit
Images for illustration purposes only.
1
4
3
2
A) Two mounted PCs
B) One mounted PC and additional cover plate
A
B
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 00
sa les @sh ut tle .eu
Page 2 4 February 2019
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC Accessory PRM01 – Installation Guide
1. Please fix one mounting bracket
on each side of the PC with two
screws.
2. Please place the PC behind th e
opening of the front plate and affix
the PC with four screws from the
front.
3. Two mounted PCs
