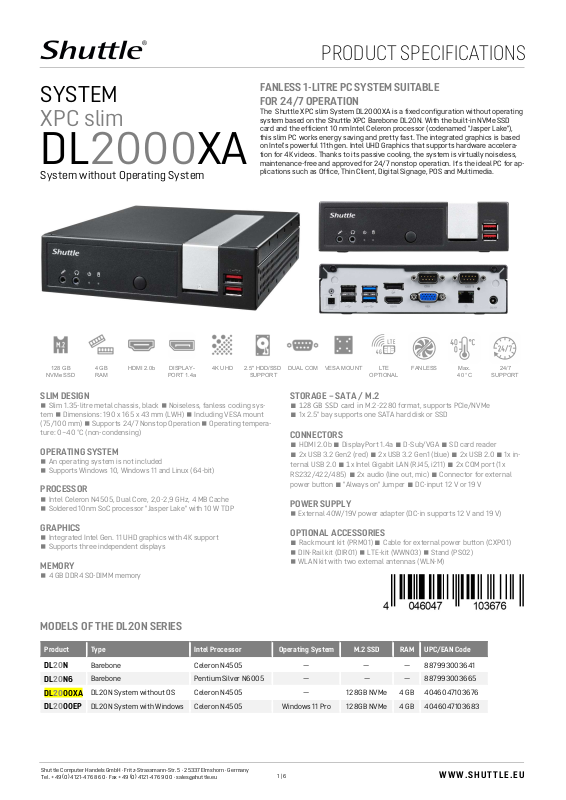

SPECIFICATIONS
WWW.SHUTTLE.E U
DL20
00EP
FANLESS
1-LITRE
SYSTEM
SUITABLE
◼
◼
PRODUCT
SYSTEM

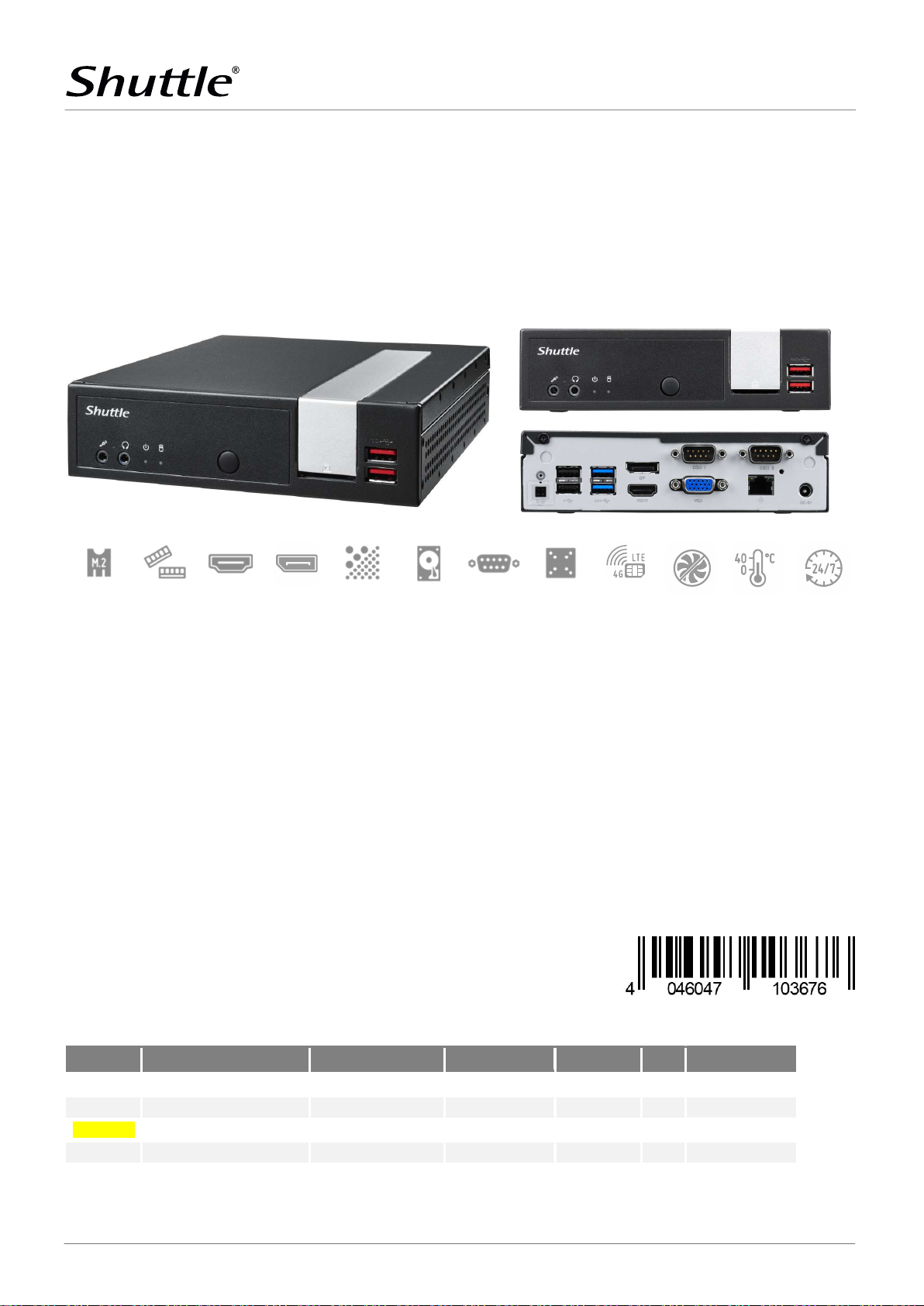

XPC slim
DL2000XA
System without Operating System
FOR 24/7 OPERATION
The Shuttle XPC slim System DL2000XA is a fixed configuration without operating
system based on the Shuttle XPC Barebone DL20N. With the built-in NVMe SSD
card and the efficient 10 nm Intel Celeron processor (codenamed "Jasper Lake"),
this slim PC works energy saving and pretty fast. The integrated graphics is based
on Intel's powerful 11th gen. Intel UHD Graphics that supports hardware acceleration for 4K videos. Thanks to its passive cooling, the system is virtually noiseless,
maintenance-free and approved for 24/7 nonstop operation. It's the ideal PC for applications such as Office, Thin Client, Digital Signage, POS and Multimedia.
128 GB
NVMe SSD
4 GB
RAM
HDMI 2.0b DISPLAY-
PORT 1.4a
4K UHD 2.5" HDD/SSD
SUPPORT
SLIM DESIGN
Slim 1.35-litre metal chassis, black ◼ Noiseless, fanless cooling system ◼ Dimensions: 190 x 165 x 43 mm (LWH) ◼ Including VESA mount
(75/100 mm) ◼ Supports 24/7 Nonstop Operation ◼ Operating temperature: 0~40 °C (non-condensing)
OPERATING SYSTEM
◼ An operating system is not included
◼ Supports Windows 10, Windows 11 and Linux (64-bit)
PROCESSOR
◼ Intel Celeron N4505, Dual Core, 2,0-2,9 GHz, 4 MB Cache
◼ Soldered 10nm SoC processor "Jasper Lake" with 10 W TDP
GRAPHICS
◼ Integrated Intel Gen. 11 UHD graphics with 4K support
◼ Supports three independent displays
MEMORY
4 GB DDR4 SO-DIMM memory
PC
OPTIONAL
FANLESS Max.
40 °C
24/7
SUPPORT
DUAL COM VESA MOUNT LTE
STORAGE – SATA / M.2
◼ 128 GB SSD card in M.2-2280 format, supports PCIe/NVMe
◼ 1x 2.5" bay supports one SATA hard disk or SSD
CONNECTORS
◼ HDMI 2.0b ◼ DisplayPort 1.4a ◼ D-Sub/VGA ◼ SD card reader
◼ 2x USB 3.2 Gen2 (red) ◼ 2x USB 3.2 Gen1 (blue) ◼ 2x USB 2.0 ◼ 1x in-
ternal USB 2.0 ◼ 1x Intel Gigabit LAN (RJ45, i211) ◼ 2x COM port (1x
RS232/422/485) ◼ 2x audio (line out, mic) ◼ Connector for external
power button ◼ "Always on" Jumper ◼ DC-input 12 V or 19 V
POWER SUPPLY
◼ External 40W/19V power adapter (DC-in supports 12 V and 19 V)
OPTIONAL ACCESSORIES
◼ Rackmount kit (PRM01) ◼ Cable for external power button (CXP01)
◼ DIN-Rail kit (DIR01) ◼ LTE-kit (WWN03) ◼ Stand (PS02)
◼ WLAN kit with two external antennas (WLN-M)
MODELS OF THE DL20N SERIES
Product Type Intel Processor Operating System M.2 SSD RAM UPC/EAN Code
DL20N
DL20N6
DL2000XA
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 (0) 4121-47 68 60 · Fax +49 (0) 4121-47 69 00 · sales@shuttle.eu
Barebone Celeron N4505 — — — 887993003641
Barebone Pentium Silver N6005 — — — 887993003665
DL20N System without OS Celeron N4505 — 128GB NVMe 4 GB 4046047103676
DL20N System with Windows Celeron N4505 Windows 11 Pro 128GB NVMe 4 GB 4046047103683
1 | 6
SPECIFICATIONS
WWW.SHUTTLE.E U
1.3 L
.
5
c
m
ta
l
l
1
9

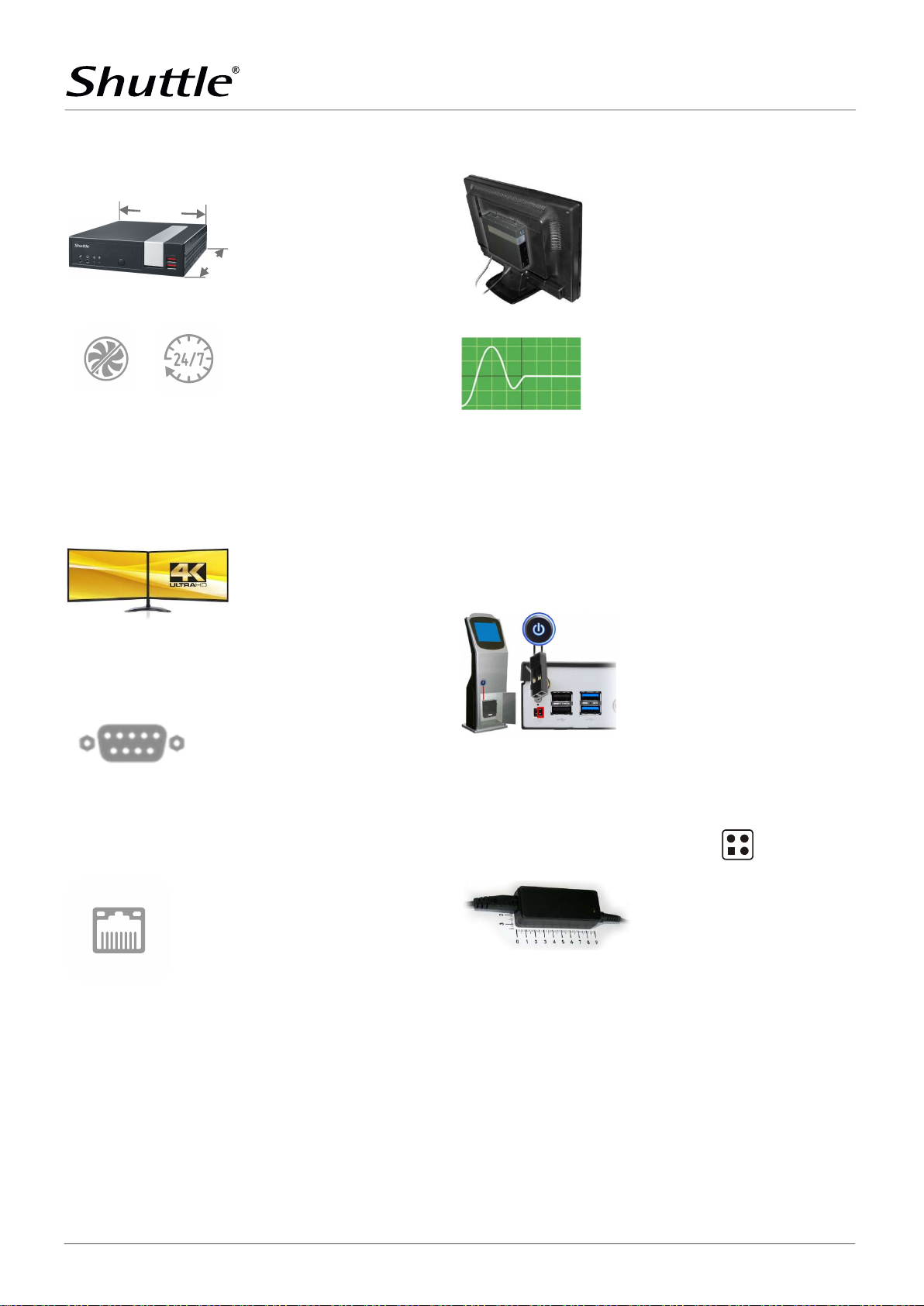

PRODUCT FEATURES
PRODUCT
1
6
Only 4.3 cm
Slim, stylish & robust chassis
The Shuttle XPC slim System
DL2000XA features a slim 1.3-litre
steel chassis, giving it the appropriate stability required for professional
applications. The decorative silver
stripe lets it also easily find a place
in both home and office environments.
Fanless, quiet
and 24/7 approved
The Shuttle XPC slim System
DL2000XA is officially approved for
24/7 permanent operation. It uses a
passive thermal module which
makes the system not only quiet, but
also dust-free and virtually maintenance-free. Thanks to its low power
consumption and completely fanless
cooling, this PC runs highly reliably
making it perfectly suitable for digital signage and POI/POS applications.
Dual 4K Display support
The Shuttle XPC slim System
DL2000XA features two digital video
outputs: HDMI 2.0b and DisplayPort
1.4a which both can run at 4K (3840
x 2160 / 2160p) high resolution at
60 Hz frames per second. Further-
more, the DL2000XA supports an additional D-Sub/VGA port.
Two serial COM ports
The Shuttle XPC slim System
DL2000XA features two serial
RS232 COM ports on the back panel.
Both ports support 5 V / 12 V auxiliary voltage and the left port is
switchable to RS422 or RS485
mode. COM ports are a common interface for applications in industrial
automation, scientific analysis and
POS.
Intel Gigabit LAN Network
The Shuttle XPC slim System
DL2000XA supports Gigabit LAN
with Intel network adapters, which
are popular for their excellent performance and driver compatibility and
are the preferred choice for professional environments.
VESA mount
The supplied 75/100mm VESA mount
allows for installation on to walls or
monitors which is particularly interesting for the industry segment,
company buildings and public institutions. Other than this, the chassis
bears numerous threaded holes (M3)
enabling it to be fitted almost anywhere.
Power-on after Power-fail
The BIOS setup provides a "Power-On
after Power Fail" function that can
be found under "Power Management
Configuration". As the name indicates, this function determines the
PC's behaviour after power failure: (1)
unconditional power-on, (2) restore
former status (3) keep system
turned off (4) Power-On by LAN or (5)
Power-On by Real-Time-Clock. As a
matter of the nature of this function,
it may fail after short power failures.
This is why DL2000XA also comes
with a hardware-based solution. By
removing Jumper JP1 the system will
start unconditionally once power is
applied.
External power button by separate remote line
If, because of space constraints (e.g.
in case of fixed installation), the machine cannot be switched on by
pressing the front power button, it
can be powered on by a separate remote line. You will find an appropriate four-pin connector at the back
panel of the DL2000XA (pitch 2.54
mm). Furthermore, this connector
provides a Clear CMOS function and
+5V DC voltage supply for external
devices.
+5V voltage (2)
Clear CMOS (1)
(4) Power Button
(3) Ground
Compact 19V power adapter
The external fanless 40 W power
adapter can easily be hidden behind
the desk thanks to its dimunitive
size. The power adapter has 19V
(max. 2.1A), but the DL2000XA can
also be operated with a 12V (max.
3.33A) power source.
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 (0) 4121-47 68 60 · Fax +49 (0) 4121-47 69 00 · sales@shuttle.eu
2 | 6
SPECIFICATIONS
WWW.SHUTTLE.E U

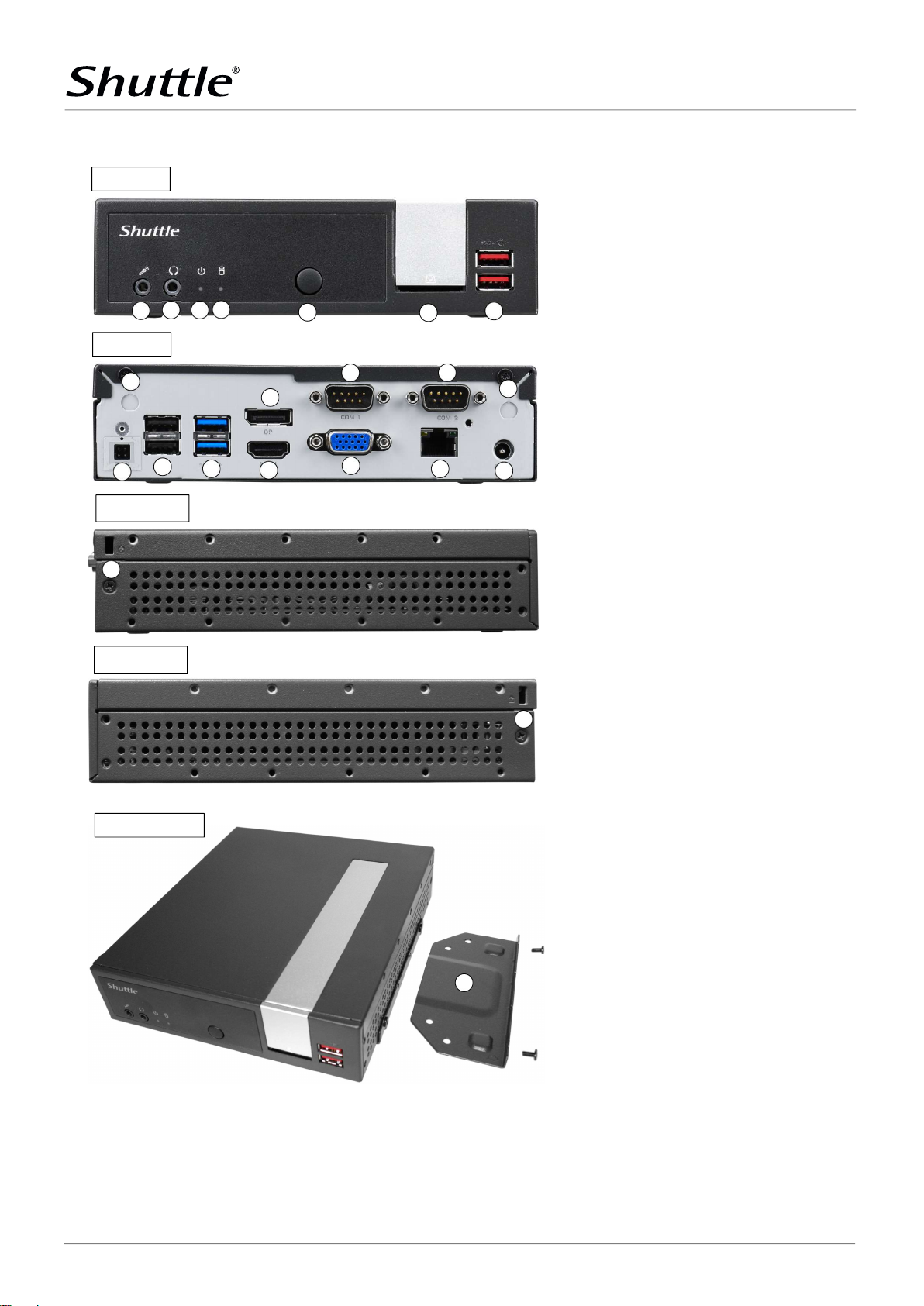

Front and Back Panel
PRODUCT
Front panel
Back panel
Left Side
. Microphone input
. Headphones output
. LED indicator for power state
. LED indicator for storage activity
. Power button
. SD card reader
. x USB . Gen port (red)
. x perforation for optional WLAN antennas
. COM port supports RS/RS/RS
. COM port supports RS
. -pin connector (. mm pitch)
for external power button, Clear CMOS button
and V DC voltage
. x USB . port (black)
. x USB . Gen port (blue)
. DisplayPort .a audio/video output
. HDMI .b port audio/video output
. D-Sub / VGA video output
. RJ Gigabit LAN port
. DC-in connector for power adapter
Right Side
VESA mounting
. Hole for the Kensington Lock
. VESA mount (two parts with screws)
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 (0) 4121-47 68 60 · Fax +49 (0) 4121-47 69 00 · sales@shuttle.eu
3 | 6
SPECIFICATIONS
WWW.SHUTTLE.E U
Completely fanless,
virtual
l
y noiseless
This device is approved for 24/7 permanent
operation.
Slim PC with black chassis made of steel
Operation Position
This system comes without operating system.
It is
compatible with
Intel® Celeron® Processor N4505, Dual Core
The
Graphics Processing Unit (GPU) is integrated in the processor
16 MB Flash ROM with AMI's Aptio UEFI BIOS Firmware
4 GB DDR4 RAM module in SO
-
DIMM format
Supports one drive in 6.35 cm / 2.5" format (hard disk or SSD)
SHUTTLE XPC SLIM SYSTEM DL2000XA — SPECIFICATIONS
PRODUCT
FANLESS & SILENT
24/7 NONSTOP
OPERATION
CHASSIS
OPERATION POSITION
OPERATION SYSTEM
PROCESSOR
Passive cooling through convective heat transfer
Perfect to be used in noise-sensitive environments
Fanless means less dust and thus virtually no maintenance required
Requirements:
- Free air circulation around the PC must be guaranteed.
- Ventilation holes must be kept clear.
Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre
Weight: 0.8 kg net and 1.95 kg gross
Two holes for Kensington Lock and numerous
threaded holes (M3) at both sides of the chassis
1) Horizontal
2) Vertical with mounted feet.
These feet can be purchased as optional accessory PS02.
3) Vertical (e.g. VESA-mounted behind an appropriate monitor)
In vertical position, the front USB ports should point upward.
Ventilation holes must not be blocked to ensure sufficient cooling.
- Windows 10 (64-bit)
- Windows 11 (64-bit)
- Linux (64-bit)
CPU clock frequency: 2.0 GHz, max. Turbo frequency: 2.9 GHz
Code name: "Jasper Lake"
10 nm structure, FCBGA1338 package (soldered)
CPU cores / Threads: 2 / 2
L2 Cache: 4 MB
Thermal Design Power (TDP): 10 W
Supports x86-64, AES-NI, VT-x (EPT), VT-d, SSE4.2, AES
System-on-Chip processor (SoC) with integrated graphics processor, no chipset required
INTEGRATED GRAPHICS
UEFI FIRMWARE
MEMORY
2.5” DRIVE BAY
Intel® UHD Graphics (11th Gen), GPU frequency: 450~750 MHz
Supports DirectX 12, OpenGL 4.5, OpenCL 1.2, Intel Quick Sync Video, Intel Clear Video (HD)
Execution Units (EU): 16
Triple Display Support via three video outputs:
- HDMI 2.0b: max. 4096 x 2160 @ 60 Hz
- DisplayPort 1.4a: max. 4096 x 2160 @ 60 Hz
- D-Sub/VGA: max. 1920 x 1200 resolution @ 60 Hz
Supports two digital displays and one analog display simultaneously.
The D-Sub/VGA connector does not support the Hot Plug feature.
Based on the Unified Extensible Firmware Interface (UEFI)
Supports Power-fail-resume / AC power-on state / always-on / always-off [3]
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports boot up from external flash memory cards
With embedded Firmware TPM v2.0 (fTPM)
CMOS battery (type CR2032)
Supports max. 16 GB per DIMM
Maximum total size: 16 GB (either 1x 16 GB or 2x 8 GB)
Serial ATA III Interface with up to 600 MB/s transfer speed
Max. height 12.5 mm
Pre-installed SATA cable (data/power)
Supports Unified Extensible Firmware Interface (UEFI)
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 (0) 4121-47 68 60 · Fax +49 (0) 4121-47 69 00 · sales@shuttle.eu
4 | 6
SPECIFICATIONS
WWW.SHUTTLE.E U
128 GB SSD card in M.2
-
2280 format
Realtek
ALC897 / ALC662 / ALC888S
Audio Codec
Integrated card reader
RJ45
connector supports Gigabit LAN at 10/100/1000 Mbit/s.
Power button
2x USB 3.2 Gen 2 Type A (red)
HDMI 2.0b
digital video and audio output
Connectors COM1/COM2 for serial ports (occupied)
External 40 W AC/DC power adapter (fanless)
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
PRODUCT
M.2 SSD CARD
AUDIO
CARD READER
WIRED NETWORK
LEDS & BUTTONS
FRONT PANEL
CONNECTORS
BACK PANEL
CONNECTORS
PCI-Express interface supports NVMe
Two analog audio connectors (3.5 mm):
1) Line out (head-phones)
2) Microphone input
Digital multi-channel audio output: via HDMI and DisplayPort
supports standard SD, SDHC and SDXC memory flash cards
Supports boot from SD card
Controller: Realtek RTS5227S Media Processor
Intel i211 Ethernet Controller with MAC, PHY and PCIe interface
Supports Wake-on-LAN
Power LED (blue)
HDD LED (yellow)
SD card reader
Audio line-out (headphones)
Microphone input
DisplayPort 1.4a digital video and audio output
D-Sub/ VGA analog video output (15-pin) - no hot plug
2x USB 3.2 Gen 1 Type A (blue)
2x USB 2.0 Type A
Gigabit network (LAN, RJ45)
2x RS232 serial port, 9-pin D-Sub (support of an auxiliary voltage of 5/12 V,
the left port is switchable to RS422 / RS485) [4]
DC input for the external power adapter
4-pin connector (2.54 mm pitch) supports
- external power-on button
- Clear CMOS function
- +5V DC voltage for external components
2x perforation for optional Wireless LAN antennas
OTHER ONBOARD
CONNECTORS
POWER SUPPLY
DC INPUT CONNECTOR
SUPPLIED
ACCESSORIES
Jumper JP2 for power-on-after-power-fail (hardware solution) [3]
USB 2.0 header (4-pin) required for WWN03 accessory
AC Input: 100 ~ 240 V AC, 50 ~ 60 Hz
DC Output: 19 V / 2.1 A
Automatic AC voltage adjust
Dimensions: ca. 95 x 42 x 29 mm (LWH)
DC cable length: ca. 170 cm
AC cable length: ca. 170 cm (with 2-pin Europlug)
The DC-input of the computer supports an external power source
with either 12 V ±5% (max. 2.1 A) or 19 V ±5% (max. 3.33 A).
VESA mount for 75 / 100 mm standard (two metal brackets)
Four screws M3 x 5 mm (screws together VESA mount and PC)
Four screws M4 x 10 mm (to affix VESA mount on the PC)
Four screws M3 x 4 mm (to mount a 2.5" storage into the bay)
Driver DVD (Windows 64-bit)
External 40 W power adapter with power cord (Europlug)
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 (0) 4121-47 68 60 · Fax +49 (0) 4121-47 69 00 · sales@shuttle.eu
5 | 6
SPECIFICATIONS
WWW.SHUTTLE.E U
EMI: FCC, CE, BSMI, RCM, VCCI
[1] Optional LTE support
PRODUCT
PS02: optional stand for vertical operation
CXP01: adapter cable for external power button
OPTIONAL
ACCESSORIES
ENVIRONMENTAL
SPECIFICATIONS
CERTIFICATIONS /
COMPLIANCE
Shuttle provides the optional "Shuttle Accessory WWN03" which consists of an adapter card, two antennas plus 20 cm antenna cables. The WWN03
adapter card occupies the 2.5" drive bay, so that no more 2.5" SATA device can be installed. The 3G/LTE card must have M.2-3042 Key B format with
MHF IV (I-PEX4) connectors for the antenna. In addition, it supports one Nano-SIM card (Mini and Micro format is not supported). The required 3G/LTE
card and SIM card are not included in WWN03.
[2] How to convert DisplayPort into HDMI/DVI
The DisplayPort output can be converted to HDMI or DVI by an additional, passive adapter cable. For example:
DELOCK 82590: 1 m, DisplayPort (male, 20p) to HDMI-A (male, 19p)
DELOCK 82435: 5 m, DisplayPort (male, 20p) to DVI-D (male, 24p)
The integrated graphics automatically detects the connected display and puts out the appropriate electric signal - either through DisplayPort (without
an adapter) or HDMI/DVI (with an adapter).
However, a monitor with a DisplayPort connector cannot be connected to the HDMI port with a simple, passive adapter.
[3] Power-on-after-power-fail
The BIOS setup provides a "Power-on-after-power-fail" function that can be found under "Power Management Configuration". As the name indicates, this
function determines the PC's behaviour after power failure: (1) unconditional power-on, (2) restore former status or (3) keep system turned off. As a
matter of the nature of this function, it may fail after short power failures. This is why the Shuttle XPC slim Barebone DL10J also comes with a hardwarebased solution. By removing Jumper JP1 (on the mainboard behind the D-Sub/VGA port) the system will start unconditionally once power is supplied.
[4] Serial Ports
This PC features two serial RS232 ports with 9-pin D-Sub connectors on the back panel. The left COM port (COM1) can also be configured as RS422 and
RS485 in the BIOS setup.
Pin 9 of the D-Sub COM-Port is a multi-functional signal. Based on the Jumper JP2 configuration on the mainboard, it can be configured as Ring Indicator
(RI) or external power supply with a voltage level of either 5 V or 12 V. Each COM port can be configured separately. The maximum current is 500 mA per
connector.
PRM01: 2U rack-mount front plate for two Shuttle XPC slim PCs
DIR01: DIN-Rail mounting kit
WLN-M. WLAN module in M.2-2230 format supports IEEE 802.11ac and Bluetooth 4.0 with two external antennas.
WWN03: LTE kit with adapter card, 2 antennas and antenna cables. Supports one M.2 LTE module and one nano SIM card [1]
Operating temperature range: 0 ~ 40 °C
Relative humidity range: 10 ~ 90 % (non-condensing)
Safety: CB, BSMI, ETL
Other: RoHS, Energy Star, ErP
This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office.
The CE-mark approves the conformity by the EU directives:
(1) 2004/108/EC relating to electromagnetic compatibility (EMC),
(2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP)
© 2021 Shuttle® Computer Handels-GmbH — All information subject to change without notice. Optional components and accessories are not included. Pictures for illustration purposes only.
Shuttle Computer Handels GmbH · Fritz-Strassmann-Str. 5 · 25337 Elmshorn · Germany
Tel. +49 (0) 4121-47 68 60 · Fax +49 (0) 4121-47 69 00 · sales@shuttle.eu
6 | 6
Loading...
