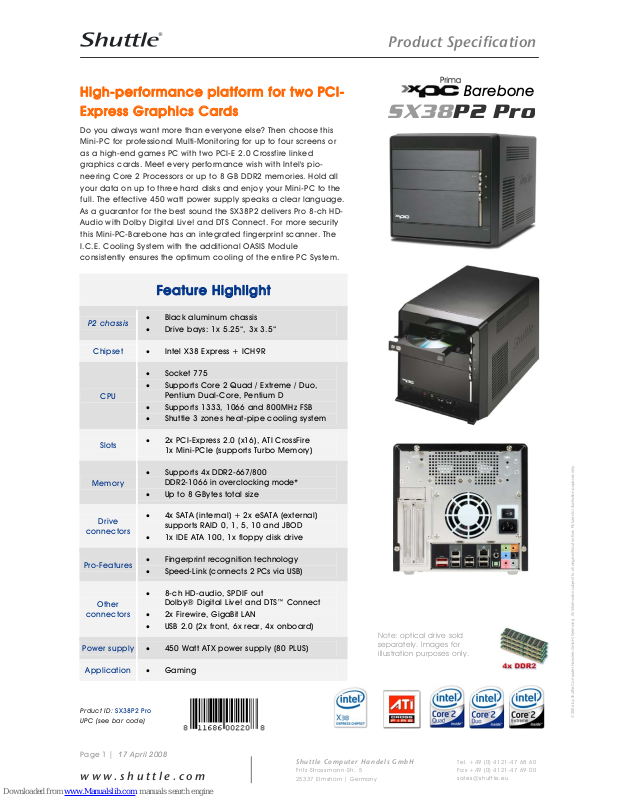

Shuttle Prima XPC Barebone SX38P2 Pro Product Specification
Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sales@shuttle.eu
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Page 1 | 17 April 2008
High-performance platform for two PCIExpress Graphics Cards
Do you always want more than everyone else? Then choose this
Mini-PC for professional Multi-Monitoring for up to four screens or
as a high-end games PC with two PCI-E 2.0 Crossfire linked
graphics cards. Meet every performance wish with Intel's pioneering Core 2 Processors or up to 8 GB DDR2 memories. Hold all
your data on up to three hard disks and enjoy your Mini-PC to the
full. The effective 450 watt power supply speaks a clear language.
As a guarantor for the best sound the SX38P2 delivers Pro 8-ch HDAudio with Dolby Digital Live! and DTS Connect. For more security
this Mini-PC-Barebone has an integrated fingerprint scanner. The
I.C.E. Cooling System with the additional OASIS Module
consistently ensures the optimum cooling of the entire PC System.
Feature Highlight
P2 chassis
• Black aluminum chassis
• Drive bays: 1x 5.25“, 3x 3.5“
Chipset
• Intel X38 Express + ICH9R
CPU
• Socket 775
• Supports Core 2 Quad / Extreme / Duo,
Pentium Dual-Core, Pentium D
• Supports 1333, 1066 and 800MHz FSB
• Shuttle 3 zones heat-pipe cooling system
Slots
• 2x PCI-Express 2.0 (x16), ATI CrossFire
1x Mini-PCIe (supports Turbo Memory)
Memory
• Supports 4x DDR2-667/800
DDR2-1066 in overclocking mode*
• Up to 8 GBytes total size
Drive
connectors
• 4x SATA (internal) + 2x eSATA (external)
supports RAID 0, 1, 5, 10 and JBOD
• 1x IDE ATA 100, 1x floppy disk drive
Pro-Features
• Fingerprint recognition technology
• Speed-Link (connects 2 PCs via USB)
Other
connectors
• 8-ch HD-audio, SPDIF out
Dolby® Digital Live! and DTS™ Connect
• 2x Firewire, GigaBit LAN
• USB 2.0 (2x front, 6x rear, 4x onboard)
Power supply
• 450 Watt ATX power supply (80 PLUS)
Application
• Gaming
Prduct ID: SX38P2 Pro
UPC (see bar code)
B
arebone
SX38P2 Pr
o
Note: optical drive sold
separately. Images for
illustration purposes only.
Product Specification
www.shuttle.com
Shuttle Computer Handels GmbH
Fritz-Strassmann-Str. 5
25337 Elmshorn | Germany
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
sales@shuttle.eu
©2006 by Shuttle Computer Handels GmbH (Germany). All Information subject to change without notice. Pictures for illustration puposes only.
Page 2 | 17 April 2008
Shuttle XPC Barebone SX38P2 Pro – Special Product Features
Shuttle XPC Prima Series offering extreme performance
Shuttle has introduced the XPC Prima series, with its revolutionary high
performance models, for professional and performance demanding
applications whether they be at work, everyday or for high-tech
gaming.
Supports 1333 MHz FSB and new 45nm processors
This Shuttle product supports the Intel® Core™2 Duo and Intel®
Core™2 Quad processors with up to 1333 MHz front side bus and even
the new 45nm Core™2 Multi-core processors. Multi core brings multi
power!
OASIS Cooling Technology
The newly designed OASIS cooling technology deliver a unique system
of heat-sinks covering the MOSFET modules, the north bridge as well as
the south bridge that effectively dissipates heat without the use of fans.
Featuring an all-new Heat pipe design, Shuttle OASIS allows users to
enjoy longer component lifetime through lower temperatures, added
system stability and silent operation.
Supports two PCI Express x16 graphics cards
The Intel X38 chipset takes a major step beyond the P35 with its 32 PCI
Express 2.0 lanes. The Shuttle XPC Barebone SX38P2 supports two slots
PCI Express x16 Version 2.0 delivers up to 16GB/s bandwidth per port,
double that of PCIe 1.0, ensuring plenty of bandwidth for future
graphics cards. Two graphics cards can be used to enable 4-monitoroperating or ATI CrossFire™ mode for leading-edge gaming
performance.
Finest cinematic surround sound experience
What would a home theater be without booming, immersive 7.1
channel surround sound? Experience state-of-the-art sound quality
provided by Dolby® Digital Live and DTS® Connect functionality.
80 PLUS® Certified Power Supplies
The 80 PLUS® performance specification requires power supplies in
computers and servers to be 80% or greater energy-efficient.
The SX38P2 Pro is in fact the first Shuttle XPC Barebone which has a
powerful 450W power supply built in as standard.
Fingerprint reader
With an added a layer of security protection thru the integrated
biometric fingerprint reader, you can keep your digital identity and
data more secure and no longer worry about having to memorize for
memorizing multiple passwords.
Innovative Speed-Link technology
File sharing among two PCs has never been easier with the innovative
Speed-Link technology, simply connects both systems thru a USB cable
without having the hassle of driver installation or worry about
insufficient space of a DVD disc.
