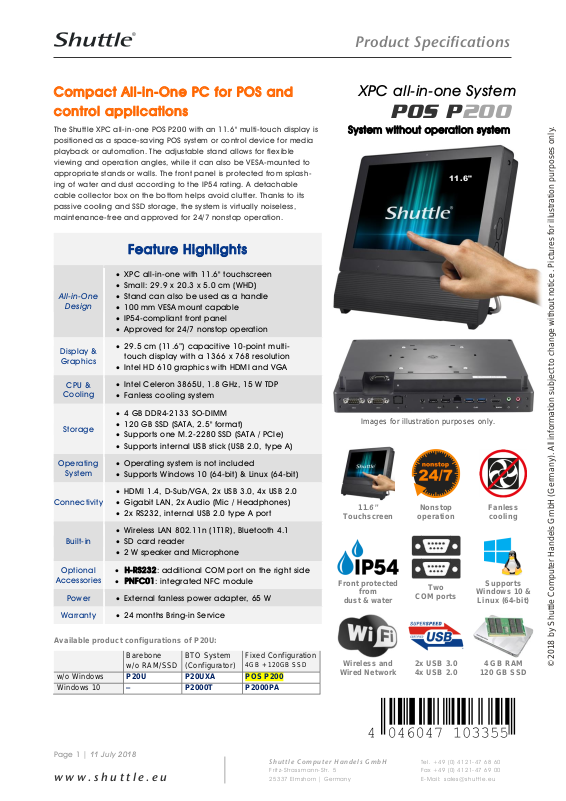

Page 1
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 1 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Compact All-in-One PC for POS and
control applications
The Shuttle X PC all-in-one POS P200 with an 11.6" multi -touch display is
positioned as a space -s aving POS system or control device for media
playback or auto mation. The adjustable stand allows for flex ible
viewing and operation angles, while it can also be V ESA-mo unted to
approp riate stands or walls. The front panel is protected from spla sh ing of wate r and dust according to the IP54 rating. A detachab le
cable collector box on the bo ttom helps avoid c lu t ter. Tha nks to its
passive coo ling and SSD storage, the system is virtually noiseless,
mainte nance -free and appro ved for 24/7 nonstop operation.
Feature Highlights
All-in-One
Design
XPC all-in-one with 11.6" touchscreen
Small: 29.9 x 20 .3 x 5.0 cm (WHD)
Stand can also be used as a handle
100 mm VESA mount capable
IP54-compliant front panel
Approved for 24/7 nonstop operation
Display &
Graphics
29.5 cm (11.6”) capacitive 10-point multi-
touch display with a 1366 x 768 resolution
Intel HD 610 graphics with HDMI and VGA
CPU &
Cooling
Intel Celeron 3865U, 1.8 GHz, 15 W TDP
Fanless cooling system
Storage
4 GB DDR4-2133 SO-DIMM
120 GB SSD (SATA, 2 .5" format)
Supports one M.2-2280 SSD (SATA / PCIe)
Supports internal USB stick (USB 2.0, type A)
Operating
System
Operating system is not included
Supports Windows 10 (64-bit) & Linux (64-bit)
Connectivity
HDMI 1.4, D-Sub/ VGA, 2x USB 3.0, 4x USB 2.0
Gigabit LAN, 2x Audio (Mic / Headphones)
2x RS232, internal USB 2.0 t ype A port
Built-in
Wire less LAN 802.11 n (1T1R), Bluetooth 4.1
SD card reader
2 W speaker and Microphone
Optional
Accessories
H-RS232: additional COM port on the right sid e
PNFC01: integrated NFC module
Power
External fanless power adapter, 65 W
Warranty
24 months Bring-in Service
Available product configurations of P20U:
Barebone
w/o RAM/SSD
BTO System
(Configurator)
Fixed Configuration
4GB + 120GB SSD
w/o Windows
P20U
P20UXA
POS P200
Windows 10
–
P2000T
P2000PA
11.6”
Touchscreen
Nonstop
operation
Fanless
cooling
Front protected
from
dust & water
Two
COM ports
Supports
Windows 10 &
Linux (64-bit)
Wireless and
Wired Network
2x USB 3.0
4x USB 2.0
4 GB RAM
120 GB SSD
Images for illustration purposes only.
XPC all-in-one System
POS P200
System without operation system
11. 6"
Page 2
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 2 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one POS P200 − Overview
21 21
22 23 232425 25
26 27
28
16
29
15
18
14
3
17 17
16
2
2
1
3
5 7 83
3
12
12
11
9
1
10
6
19
13
20
14
15
15
19
1
Perforation for optional LTE
antennas
2
Optional: 2x serial COM port
3
Line Collector Box
5
Microphone
6
Touchscreen LCD display
7
Hard disk / SSD LED
8
Power-on LED
9
Power-on button
10
Hole for the Kensington Lock
11
Card reader
12
2x USB 2.0 connector
13
Hole with Clear CMOS button
14
Detachable VESA cover
15
Detachable stand
16
D-Sub/VGA Video Output
17
2x rubber foot
18
Output of the Line Collector Box
19
Detachable chassis cover
20
Mono Speaker
21
2x serial COM port
22
DC input for power adapter
23
2x USB 2.0 connector
24
RJ45 Gigabit LAN
25
2x USB 3.0 connector
26
HDMI Video Output
27
Audio Line-out (headphones)
28
Microphone Input
29
Screw holes for an optional
100x100 mm VESA mount
Page 3
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 3 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Optional Accessories
NFC
COM
NFC Expansion PNFC01
13.56 MHz NFC writer/reader module
including antenna
(Windows 10 only, not for payment)
COM Port Adapter H-RS232
Provides two more COM port
connectors on the right side.
(two H-RS232 adapters are required).
Operating Positions
Included Stand
VESA Arm / VESA Stand *)
VESA Wall-Mounted *)
Variable installation angle
with or without cable collection box
*) VESA mount is not in cluded
Page 4
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 4 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one POS P200 – Special Features
All applications at your fingertips
The innovative touchscr een techno logy delivers t he simplest operation
possible and makes the screen the centre of action . Its high-quality
design gives you access to all capabilities of the PC - by ju st touching
the screen.
24/7 nonstop operation
The Shuttle XPC all-in-one POS P200 is officially approved for 24/7
permanent operation. Thanks to its low power consumpt ion and
completely passive cooling, this PC runs highly reliable making it
perfectly suitable for digital signage a nd POI/POS applications.
Conditio ns fo r permanent use:
Ambient tem perature while under load: 5 - 40 °C
Air humidity while under load: 10 - 80 % (not condensing)
Free circulation of air among st the PC must be guaranteed
Ventilation holes mu st be kept clear
Fanless and quiet
The Shuttle XPC all-in-one POS P200 uses a passive thermal module to
lead heat out of t he case quickly and evenly. The unique fanless
design makes it perfect to b e used in noise-sensitive environments. As
an additional benefit, fanless cases rarely gather dust on the inside
and stay cleaner than others. So it's not only quiet and low in energy
use, but also virtually maintenance -free.
Protection Class IP54
The front panel of the Shuttle XP C all -in-one POS P200 is dust-pr otect ed
and protected from splashing of water according to IP prot ection class
54. Consequently, this All-in-One PC can be used for those indoor
applications, where the touchscreen ma y be expos ed to humidity and
occasional splashing of water. This is particularly welcome in
restaurants, laboratories, production or other places.
Optimised Cable Management
Most of the connectors are located on the back panel w ith the cabl es
facing down and led to a cable collector box mounted on the bottom
of the PC. This helps avoid clutter and makes for a clean, tidy
appearance on the desk.
On the left side sit those connectors which n eed t o be accessed from
the front: a card reader and two USB ports.
Page 5
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 5 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Connects to two external Full HD displays
The Shuttle XPC all-in-one POS P200 features two video outputs: One
analog D-Sub/ VGA connector and one HDMI connector. Two separate
Full HD displays can be connected in extend ed mode. Now add the
built-in display of the POS P200 and there are three displays showing
differ ent content.
Supports high-performance M.2 SSDs
The M.2 slot (type 2280) is fully -equipped with 4X PCI -Express v3.0 lanes
and SATA 3.0 interfaces . Modern M.2 SSDs with PCI Express interface
(PCIe) and NVMe provide a significant higher bandw ith c ompar ed to
the usual SATA sta ndard. Type 2280 means it supports the usual M.2
cards with a width of 22 mm and a length of 80 mm, but also 2242 and
2260 standard cards are supp orted .
RS232 COM ports
Serial ports are still widely used for app lications of industrial
automation systems, scientific analysis, POS systems and other . The
Shuttle XPC all-in-one POS P200 features two serial RS-232 ports on the
bottom side and two more ports can opt ionally be installed on the
right side (A ccessory H-RS232).
Power on after Power fail
The BIOS setup provides a "Power-On-after-Power-Fail" function that can
be found under "Power Management Configuration" where the PC's
behaviour after power failur e can be determined.
The Shuttle XPC all-in-one POS P200 also comes with a hardware-based
solution. By removing Jumper 7 , the syst em will start unconditionally
once power is applied.
Internal USB Slot and perforations for external antennas
The Shuttle XPC all-in-one POS P200 features an internal USB 2.0
connector (type A) for a USB stick and two perforation s for optional
external antennas. The interna l USB connector is for expans ion sticks
(such as flash memory, DVB-T, SAT, LTE) or other USB devices lik e a radio
module for home automation or RFID.
VESA mount *)
The stand on the r ear can easily be removed to unveil four VESA
mounting screw holes that can be used for mounting arms and other
mounting devices from a variety of manufacturers.
*) VESA mount is not in cluded
Page 6
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 6 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Shuttle XPC all-in-one POS P200 – Specifications
Fanless and
silent
Passive cooling system, no fan n oise at all
Perfect to be used in noise-sensitive environments
Fanless, dust-free and thus virtually ma intenance-free
24/7 nonstop
operation
This device is ap proved for 24/7 permanent operatio n.
Requirements:
- Free c irculation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
IP54
protected
The front pan el is dust-protected and protected from
splashing of water according to protect ion class IP54.
Chassis
Colour: black
Dimensions: 29.9 x 20.3 x 5 .0 cm (W x H x D)
100 mm VESA mount capable
Mounting hole for Kensington lock
Weight: 2.47 kg net, 3.39 kg gross
11.6” Display
29.5 cm / 11.6" LCD TN display
Aspect ratio: 16:9 widescreen
Resolution: 1366 x 768 = 1.05 Megapixel
Backlight unit: LED, Luminance: 250 cd/sqm (typ.)
Glass thickness: 3.2 mm, Ant i-Glare
Touchscreen
Touchscreen function supports fingertip input
Capacitive Touch Panel with 10-point multitouch
Supports input with gloves (PVC, cotton, cotton/linen)
Stylus pen not supported
Operating
System
This system comes without operating s ystem.
It is compatible with:
- Windows 10 (64-bit)
- Linux (64-bit, does not support the NFC accessory)
Processor
Model: Intel Celeron 3865U (ULV)
System-on-a- chip architecture (SoC): no chipset required
BGA1356 package - directly soldered onto the main board
Code nam e: Kaby Lake-U (7th Generation Intel Core)
Cores / Threa ds: 2 / 2, Clo ck rate: 1.8 GHz
L1/L2/L3 Cache: 128 kB / 512 kB / 2048 kB
Memory controller: DDR4-2133 Dual Channel (1.2 V)
TDP wattage: 15 W maximum, Manufacturing process: 14 nm
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep , NX b it, AES-NI, SSE 4.1/4.2
Page 7
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 7 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Integrated
Graphics
Integrated graphics engine: Intel HD Graphics 610
GPU clock frequency: 300~900 MHz
Execution Units (EUs): 12
Supports DirectX 12
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technology
Up to three
displays
Up to three displays simultaneously
Two video ports support two additional independent scr eens:
1) HDMI 1.4 supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
2) VGA / D-Sub analog video s upports 1920 x 1080 @ 60 Hz
Special conditions for op eration in Multi-Monitoring mode:
1) Clone m ode: all dis plays show the same cont ent at 1366 x 768 resolution
2) Extended mode: all displ ays show different content
BIOS
AMI BIOS in 8 MByte EEPROM with SPI interface
Supports Power fail resume / always on
Supports Wake-on-LAN (WOL) fr om S3, S4, S5 ACPI states
Supports hardware monitoring and watch dog functionality
Supports Firmware TPM v2.0 functionality
Memory
4 GB DDR4-2133 RAM capacity
SO-DIMM module with 260 pins
Supports a maximum of 16 GB per DIMM, maximum total size: 32 GB
Supports two unbuffered DIMM modules (no ECC or registered)
SSD Storage
120 GB SATA SSD drive in 6.35 cm / 2.5" format
M.2-2280 Slot
The M.2 2280 BM slot provides the foll owing interfaces:
- PCI-Express Gen. 3 .0 X4 with up to 32 Gbps Data Transfer Speed
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm
and a lengt h of 42, 60 or 80 mm (type 2242, 2260, 2280).
Supports M.2 SATA SSDs (w ith B+M key) and M.2 PCIe SSDs (with M key)
Card Reader
Integrated card read er supports SD, S DHC and SDXC memory flash cards
Microphone
Speakers
Front panel with int egrated Electret Condenser Microphone (front position) and one 2
W speaker (upper side)
Audio
Integrated Audio: Realtek ALC269 Audio Codec
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (headphones)
2) Microphone input
Digita l Audio is supported via HDMI.
Wired
Network
Intel i211 Ethernet Contr oller with MAC, PHY and PCIe interface
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (W OL) from S3, S4 modes
Supports network boot by Preboot eX ecution Environment (PXE)
Page 8
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 8 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Wireless
Network
Chipset: Realtek® RTL8723BE-CG
M.2-2230AE Combo Module: AzureWave AW-NB165NF
Two internal antennas support WLA N Transmit/Receive (1T1R) and Bluetooth
Supports Wireless LAN IEEE 802.11b/g/n at 2,4 GHz
Max. PHY data rate: 150 Mbps in 802.11n mode
Supports Bluetooth 4.1
Front LEDs
Power LED (blue)
Hard disk LED (orange)
Connectors
left side
Power button
2x USB 2.0 (type A)
SD card reader
Hole wit h Clear CMOS button
Mounting hole for Kensington lock
Connectors
right side
Optional: 2x COM p orts (1x RS232, 1 x RS232/422/485)
Connectors
bottom side
HDMI 1.4 (supports digital video and digital audio)
VGA connector (D-Sub 15 p ol., analog video)
2x USB 3.0 (type A)
2x USB 2.0 (type A)
Gigabit Network (LAN, RJ45)
Audio Line-out / headphon es (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external power adapt er (5.5 / 2.5 mm)
2x COM-Port (RS232)
Connectors
onboard
Internal USB 2.0 type A connector for an USB cable
Always power- on jumper JP7
Serial ATA (data and power)
3x USB 2.0 header (all occupied)
eDP connector (Embedded DisplayPort) - occupied by t he display
LPC connector (occupied)
I2C connector for optional NFC accessory
Power
Adapter
External 65 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 3 .42 A, max. 65 W
DC Input
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V±5% und 19V±5%.
Included
Accessories
Quick Installation Guide
Windows 10 Dr iver DVD
External Power Adapter (65W / 19V) wit h DC cable (approx. 1.7 m)
Power cord with Euro plug (approx. 1.75 m)
Page 9
Product Specifications
w w w . s h u t t l e . e u
Shuttle C o m p u t e r H a n d e l s G m b H
Fr it z- St ras sma nn-S tr . 5
25 337 El msh or n | Ge r ma n y
Te l. +4 9 ( 0 ) 412 1 -47 68 60
Fa x + 4 9 ( 0) 41 21- 47 69 0 0
E- Mai l: s ales @shu tt le .eu
Page 9 | 11 July 2018
© 2018 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice
. Pictures for illustration purposes only.
Optional
Accessories
1) COM port adapter H- RS232 provides two more serial COM ports on the right side
(requires one H-RS232 accessor y for each COM port)
2) NFC module PNFC01 (no Linux and transaction support)
Environmental
Criteria
Operating temperature: 0~40 °C
Humidity: 10~90 %
Certification
and
Compliance
EMI: CE, FCC, FAC, BSMI, RCM, VCCI & TELEC, RED
Safety: CB, EAC & FSS, BSMI, ETL
Other compliances: RoHS, ErP Lot 3, Energy Star v6.0 (Level 6)
Conformity
This device is classed as a technical information equipment (ITE) in class B and is
intended for use in living room and office. Th e CE-mark approves the conformity by the
EU directives:
(1) 2004/108/EC relating to electromagnetic compatibility (EMC),
(2) 2006/95/EC relating to Electrical Equipment designed for use within certain voltage
limits ( LVD),
(3) 2009/125/EC relating to ecodesign requirements for energy-related products (ErP),
(4) 1999/5/EC relating to Radio and Telecommunications Terminal Eq uipment (R&TTE)
Power Consumption:
System configuration: P20U, BIOS v1.02, Celeron-3865 , 2 x 4GB DDR4, 2,5" SSD SATA-6G 120GB , Win10 -1803-64bit.
Product model:
POS P200U
Processor:
Celeron 3865U
Idle mode:
12.17 W
Full load (CPU only):
16.23 W
Full load (CPU+Graphics):
31.52 W
ACPI mode S3 (Standby):
2.49 W
ACPI mode S5 (EUP=ON):
0.16 W
ACPI mode S5 (EUP=OFF):
0.54 W
Loading...
