Fourth generation of Shuttle's XPC nano
Series brings Whiskey Lake support

The NC10 series is powered by Intel's power-saving ULV (ultra-low­voltage) processors of the Whiskey-Lake-U gener ation a nd
comprises four models with processors from Celer on to Cor e i7 . All
four models support two digita l vid eo outputs f or UHD/4K displays
with 60 Hz and one 2.5" drive that is up to 15 mm in h eight as well
as one M.2-2280 NVMe SSD card. Professional users will
appreciate Intel Gigabit-LAN and one seria l port which indicates
what purposes the NC10 series is mainly intended for: Digital
Signage, POS, control, office or even multimedia.

Feature Highlights

Slim Design

 Slim plastic chassis, black

 Dimensions: 142x142x42 mm (LWH), 847 ml

 Incl. Stand & VESA mount (75/100 mm)

 Hole for Kensington Lock

 Operating temperature: max. 4 0 °C

Operating

System

 An operat ing system is not included

 Supports Windows 10 , Linux (64-bit only)

Processor

 Intel Celeron 4205U, Dual Core, 15 W TDP

Intel ULV “Whiskey-Lake-U” Generation

 Integrated Intel UHD graphics 610, DX12

Memory

 Supports up to 2x 16 GB DDR4-2133

SO-DI MM memory modules

Drive

Bay

 One 6.35 cm / 2.5” bay, 15 mm height

supports one SATA hard disk or SSD

M.2 Slot

 M.2-2280 slot supports SSD card (SATA+PCIe)

Connectors

 HDMI 2.0a, DisplayPort 1.2

 2x USB 3.1 Gen 1 (Type A/C), 2x USB 2.0

 Intel Gigabit LAN, RS232 COM port

 SD card reader, Audio Combo

WLAN

 Wireless LAN 802.11n, internal antenna

 Optional upgradeable with Shuttle WLN -M

Power Supply

 Externa l 65 W fanless power adapter

Applications

 Home Media, Office, Digital Signage, etc

Products of the Shuttle XPC nano Barebone NC10 Series

Product

Processo

Cores

Threads

CPU Clock

Cache

Graphics

GPU-Clock

USB Speed

NC10U

Celeron 4205U

2 2 1.8 GHz

2 MB

HD 610

300 ~ 900 MHz

max. 5 Gbit/s

NC10U3

Core i3-8145U

2

4

2.1 ~ 3.9 GHz

4 MB

HD 620

300 ~ 1000 MHz

max. 10 Gbit/s

NC10U5

Core i5-8265U

4

8

1.6 ~ 3.9 GHz

6 MB

HD 620

300 ~ 1100 MHz

max. 10 Gbit/s

NC10U7

Core i7-8565U

4

8

1.8 ~ 4.6 GHz

8 MB

HD 620

300 ~ 1150 MHz

max. 10 Gbit/s

XPC nano Barebone

NC10U (Celeron)

Images for illustration purposes only.

This product does include the stand and

VESA mount, but does not include memory,

storage and operating system.

Dual

Video

COM Port

Product Specifications

w w w . s h u t t l e . e u

Shuttle C o m p u t e r H a n d e l s G m b H

Fr itz-S tr as sman n-St r. 5
25 337 El msh or n | Ge r ma n y

Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 00
sa les @sh ut tle .eu

Page 2 1 7 December 2019

© 2019 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice

. Pictures for illustration purposes only.

Shuttle XPC nano Barebone NC10U – Product Views

Fron t

Rear

A

C

D

E

F

K

L

M

N

O

P

G

G

H

I

H

R

Q

Q

J

J

S

S

T

T

B

Bottom side

Bottom side

Monitor

A

USB 3.1 Gen 1 Type A (Blue)

K

DC input for power adapter

B

USB 3.1 Gen 1 Type C **)

L

HDMI

C

SD Card reader

M

DisplayPort

D

Hard disk LED indicator

N

Gigabit LAN (RJ45)

E

On/Off Button

O

2x USB 2.0

F

Power-on LED indicator

P

Audio Combo (Headphones & Mic)

G

2x perforation for optional W LAN antenna

Q

4x Mounting hole for vertical stand

H

Vents

R

RS232 COM port *)

I

Hole for Kensington Lock

S

4x Rubber foot

J

2x Vertical stand

T

VESA mounting kit (2 pieces)

*) Note: The serial connector (COM port) cannot be used , if NC10U is op erated in vertical position.

**) Note: The NC10U3 , NC10U5, NC10U7 with Intel Core proces sor supports USB 3.1 G en 2

Product Specifications

w w w . s h u t t l e . e u

Shuttle C o m p u t e r H a n d e l s G m b H

Fr itz-S tr as sman n-St r. 5
25 337 El msh or n | Ge r ma n y

Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 00
sa les @sh ut tle .eu

Page 3 1 7 December 2019

© 2019 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice

. Pictures for illustration purposes only.

Required Components

1~2 memory modules

Up to 2x 16 GB DDR4­2133/2400 in SO-DIMM format

One M.2 SSD

M.2-2242/2260/2280
SATA or PCIe NVMe
interface

One 2.5“ drive

SSD or HDD with SATA connector
(up to 15 mm in height)

1

2

3

Operating Positions

1. Horizontal

2. Vertical with Stand

3. VESA-mounted behind a monitor

Stand and VESA mount with screws
are included.

Product Specifications

w w w . s h u t t l e . e u

Shuttle C o m p u t e r H a n d e l s G m b H

Fr itz-S tr as sman n-St r. 5
25 337 El msh or n | Ge r ma n y

Te l. +4 9 ( 0 ) 412 1 -4 7 6 8 6 0
Fa x + 4 9 ( 0) 41 21- 47 69 00
sa les @sh ut tle .eu

Page 4 1 7 December 2019

© 2019 by Shuttle Computer Handels GmbH (Germany). All information subject to change without notice

. Pictures for illustration purposes only.

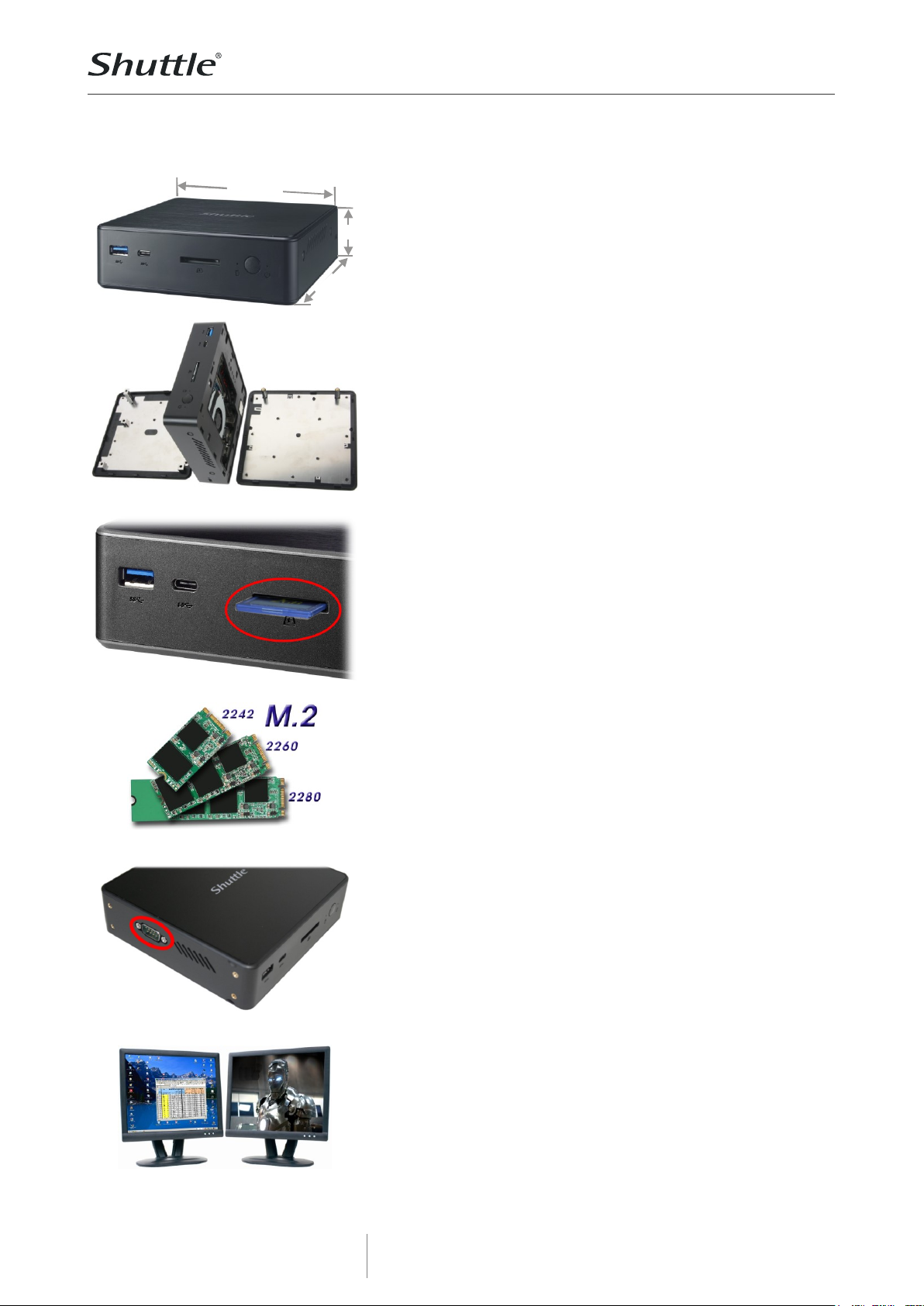

Product Features
