MS52PN

Intel Pentium 4 478-pin Processor with 533/400 MHz FSB Based DDR MAINBOARD

User's Manual

Shuttle® MS52PN

Intel Pentium 4 478-pin Processor with 533/400 MHz FSB Based DDR Mainboard Manual Version 1.0

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual. Information in this manual has been carefully checked for reliability; however, no guarantee is given as to the correctness of the contents. In the interest of continued product improvement, this company reserves the right to revise the manual or include changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or changes. The information contained in this manual is provided for general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc. nVIDIA is a registered trademark of nVIDIA Corporation. AMD, Athlon, and Duron are registered trademarks of AMD Corporation. PS/2 is a registered trademark of IBM Corporation. AWARD is a registered trademark of Award Software Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used in this manual are ascribed to their respective owners and acknowledged.

M967

Statement of Shuttle Mainboard via the EMI Test

Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/ CISPR22/AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illustrated as follows:

(A) Voltage: AC 110V/60HZ & AC 230V/50HZ (B) Tested Product Information:

Product Name: PC Mainboard Status: Sample Model Name: MS52PN S/N: N/A CPU:

200 MHz

Pentium 4 3.2, 2.8 GHz

133 MHz

Pentium 4 2.26, 2.40, 2.53, 2.66, 2.80, 3.06 GHz

100 MHz

Pentium 4 1.6, 1.8, 2.0, 2.2, 2.4 GHz

Serial Port: one port with 9 pins Parallel Port: one port with 25 pins Keyboard Port: one port with 6 pins Mouse Port: one port with 6 pins USB Port: two ports with 4 pins respectively LAN Port: one port with 8 pins Line-Out & Line-In & Microphone Ports: one port for each Game Port: one port with 15 pins DIMM Memory: DDR 400 256 MB *2 Power Cable: Detachable and Shielded (with a GND pin) Monitor: CRT+DVI Maximum Resolution: 1280 X 1024 V:60Hz

All CPUs have completely been tested, and values offered by the worst EMI combination of CPU external frequency are listed as follows:

Test Mode

1 2 3 4

External Frequency

200 MHz 200 MHz 133 MHz 133 MHz

CPU P4 3.2G P4 3.2G

P4 3.06G P4 3.06G

Case Open/Close

Open

Remedy: N/A EMI Interference:

Crystal: 32.768 KHz(Y3)/24.576 MHz(Y2)/25.000 MHz(Y4)/12.000 MHz(Y5)/

14.318 MHz(Y1)

Clock Generator: N/A

(D) Supported Host Peripherals:

Host Peripheral Product Name Model Name

#1 Case MS52PN #2 Seventeam Power Supply ST-250HK #3 IBM HDD (82.3GB) IC35L080AVVA07-0 #4 Panasonic FDD JU-257A606P #5 CODE CD-ROM DVD-116

(F) Notices for Assembling Computers:

1. Cases should be made of iron or other metal that has good electric conductivity.

2. Cylinders in a case should be made of metal, and as having a mainboard mounted in a case, make sure screws are all utilized and fastened on a mainboard.

3. An I/O shielding should be contacted with I/O metallic parts of a mainboard.

4. Cables should appropriately be arranged and fixed in a case. Follow instructions:

Ø Leave IDE cables not crossed upon CPU and SDRAM; Ø Leave power cables minimum in length, and not crossed upon a mainboard; Ø Leave CPU fan cables minimum in length, and not near CPU; Ø Leave cables on panels and other spare cables tied in a computer case.

5. Make sure an EMI shielding attached to a case has properly been installed.

6. Make sure a 5.25" or 3.5" FDD and screws are fastened to an EMI shielding.

7. Make sure a case is closely in contact with EMI connected points.

8. Make sure there is no cleft in a case which is not deformed.

9. Make sure a PCI or AGP door is bound to a case.

10. Make sure cables of other devices (fans or some others) are fixed in a case.

TABLE OF CONTENTS

WHAT'S IN THE MANUAL.................................................................... 4

Quick Reference............................................................................................... 4

About This Manual ........................................................................................... 4

1 INTRODUCTION ................................................................................ 5

1.1 TO DIFFERENT USERS ............................................................................. 5

FIRST-TIME DIY SYSTEM BUILDER............................................................ 5

EXPERIENCED DIY USER ......................................................................... 5

SYSTEM INTEGRATOR............................................................................... 5

1.2 ITEM CHECKLIST: ...................................................................................... 6

2 FEATURES ........................................................................................ 7

2.1 SPECIFICATIONS ....................................................................................... 7

3 HARDWARE INSTALLATION.......................................................... 10

3.1 STEP-BY-STEP INSTALLATION............................................................... 10

STEP 1 Install the CPU ...............................................................................11

STEP 2 Set Jumpers ................................................................................. 12

STEP 3 Install DDR SDRAM System Memory............................................ 12

STEP 4 Install Internal Peripherals in System Case .................................... 13

STEP 5 Mount the Mainboard on the Computer Chassis............................ 14

STEP 6 Connect Front Panel LEDs/Switches/USBs/Audio ........................ 15

STEP 7 Connect IDE and Floppy Disk Drives ............................................ 16

STEP 8 Connect Other Internal Peripherals................................................ 17

STEP 9 Connect the Power Supplies......................................................... 18

STEP 10 Install Add-on Cards in Expansion Slots ...................................... 18

STEP 11 Connect External Peripherals to Back Panel ............................... 19

STEP 12 System Boot Up For the First-Time ............................................. 20

STEP 13 Install Drivers & Software Components ....................................... 21

3.2 JUMPER SETTINGS ................................................................................. 22

JUMPERS & CONNECTORS GUIDE........................................................ 23

Jumpers

Clear CMOS Setting (JP1)........................................................................ 26

BIOS Protect Setting (JP3) ....................................................................... 26

- 1 -

Back Panel Connectors

PS/2 Mouse & PS/2 Keyboard Port Connectors ........................................ 27

Parallel Port Connector.............................................................................. 27

COM1 Port Connector ............................................................................... 27

Game Port Connector................................................................................ 27

VGA Port Connector .................................................................................. 27

Line_Out Port Connector........................................................................... 28

Line_In Port Connector .............................................................................. 28

Microphone Port Connector ....................................................................... 28

LAN Port Connector................................................................................... 28

USB Port Connectors ................................................................................ 28

Front Panel Connectors

HDD LED Connector (HDDLED) ............................................................... 29

Power/Sleep/Message waiting LED (ACPILED) ........................................ 29

Hardware Reset Connector (RST).............................................................. 30

ATX Power On/Off Switch Connector (PWR_SW) ...................................... 30

Front Panel Audio Header (AUDIO1).......................................................... 31

Front Panel USB Headers (USB2/USB3)................................................... 31

Internal Peripheral Connectors

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FDD1) ..................... 32

Other Connectors

ATX Power Supply Connectors (ATX1/ATX2)............................................. 33

Fan Connectors (CPUFAN1/PWRFAN1/CASFAN1) .................................. 34

IR Header (IR1) .......................................................................................... 34

CD_IN Connectors (CDIN1/CDIN2)............................................................ 35

Wake On Modem (WOM1)/ Wake On LAN (WOL1) Connectors ................. 35

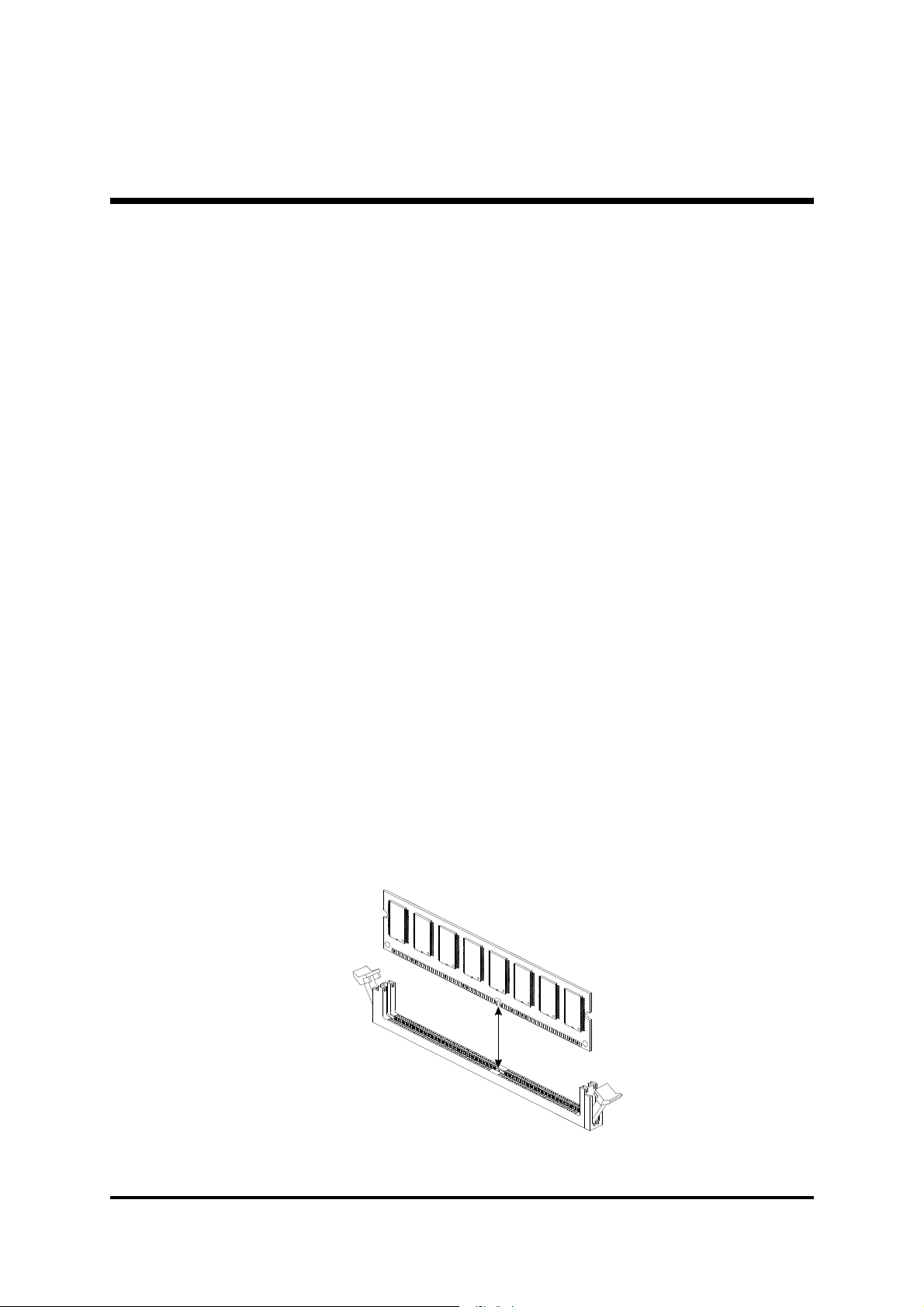

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 36

INSTALL MEMORY .................................................................................... 36

UPGRADE MEMORY................................................................................ 36

- 2 -

4 SOFTWARE UTILITY ......................................................................37

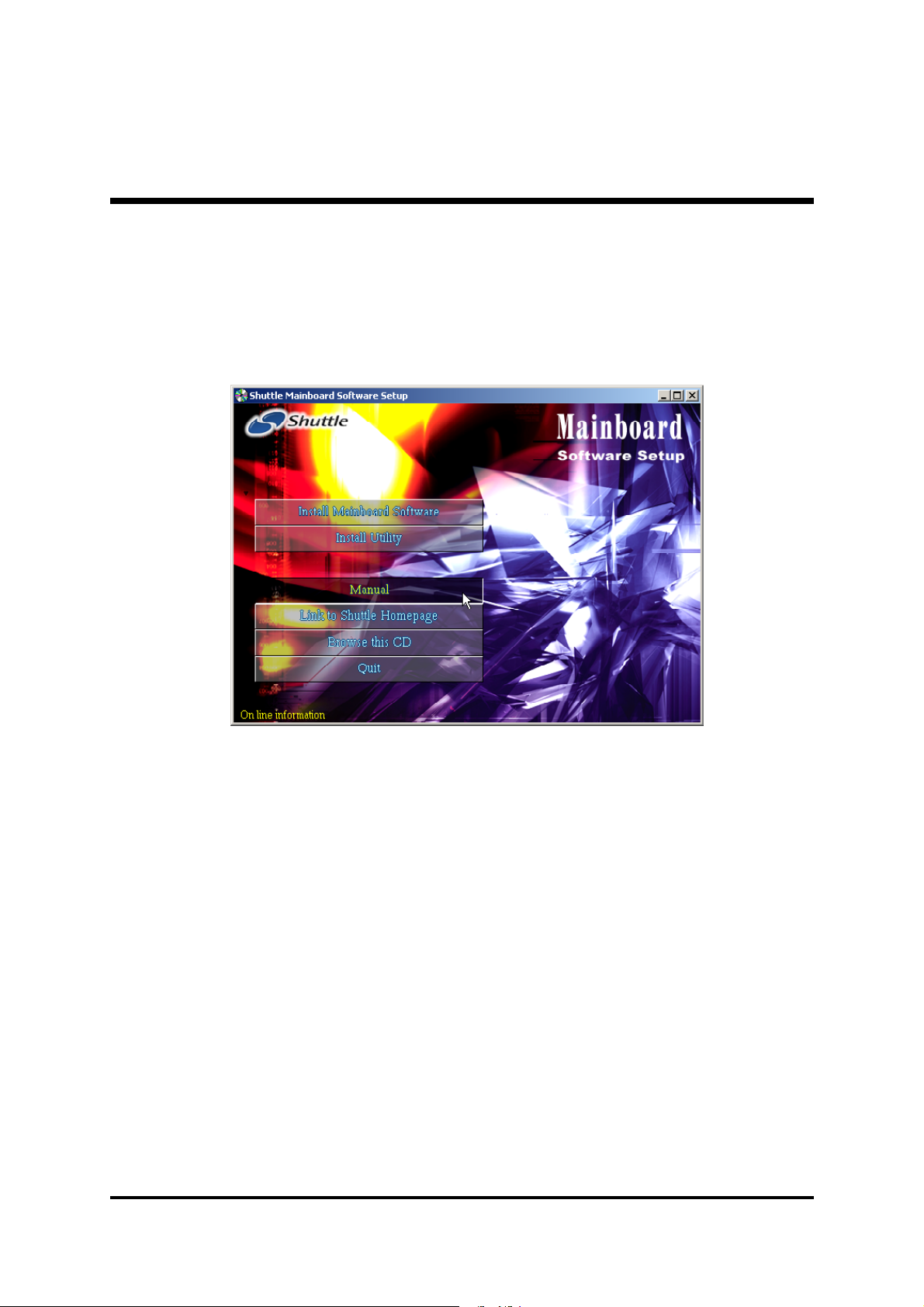

4.1 Mainboard CD Overview ......................................................................... 37

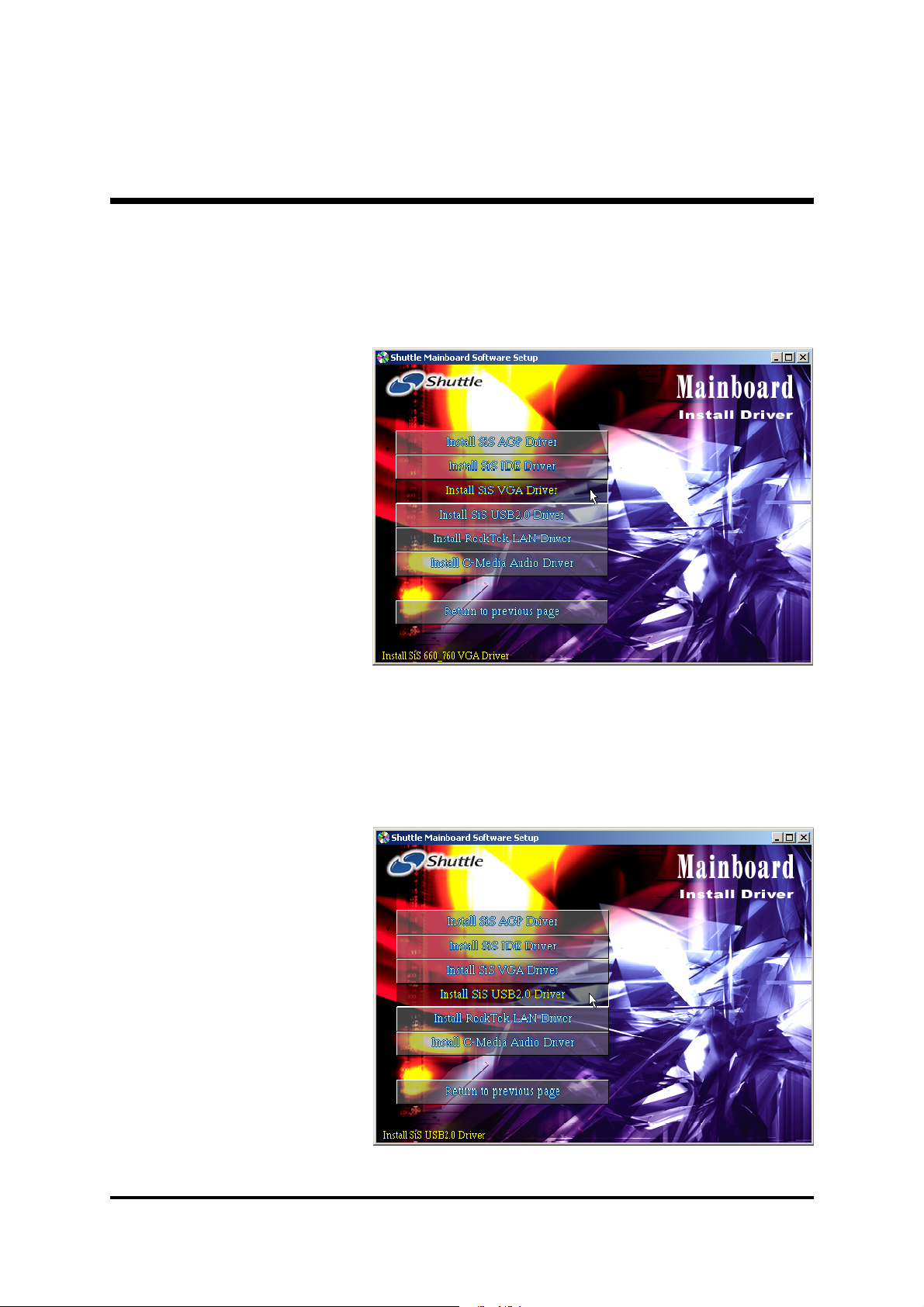

4.2 Install Mainboard Software ..................................................................... 38

4.2.A Install SIS AGP Driver ............................................................................ 39

4.2.B Install SIS IDE Driver............................................................................. 39

4.2.C Install SIS VGA Driver ........................................................................... 40

4.2.D Install SIS USB2.0 Driver ...................................................................... 40

4.2.E Install Realtek LAN Driver..................................................................... 41

4.2.F Install C-Media Audio Driver ................................................................. 41

4.3 View the User's Manual........................................................................... 42

5 BIOS SETUP ...................................................................................43

5.1 ENTER BIOS ............................................................................................. 43

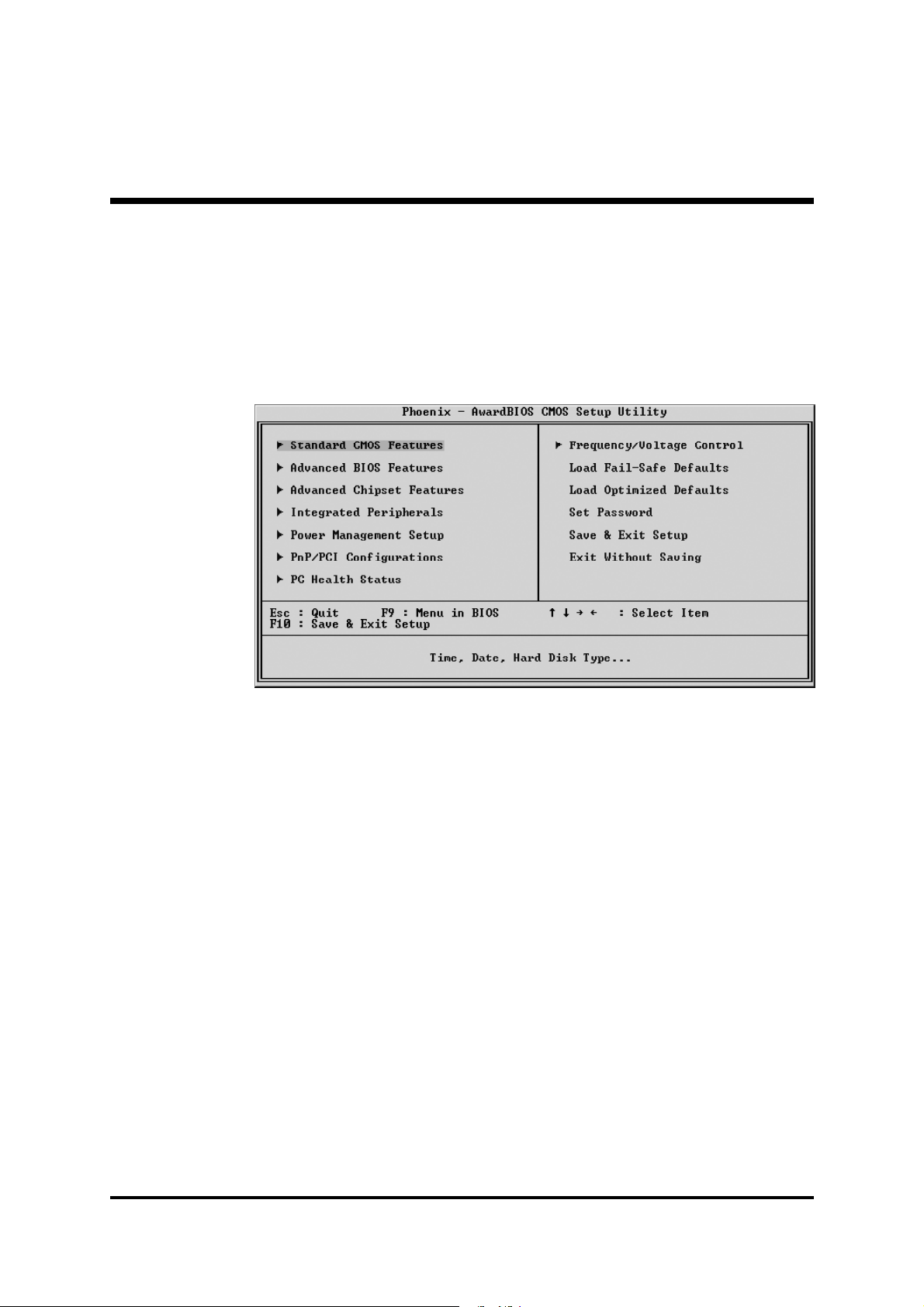

5.2 THE MAIN MENU ...................................................................................... 44

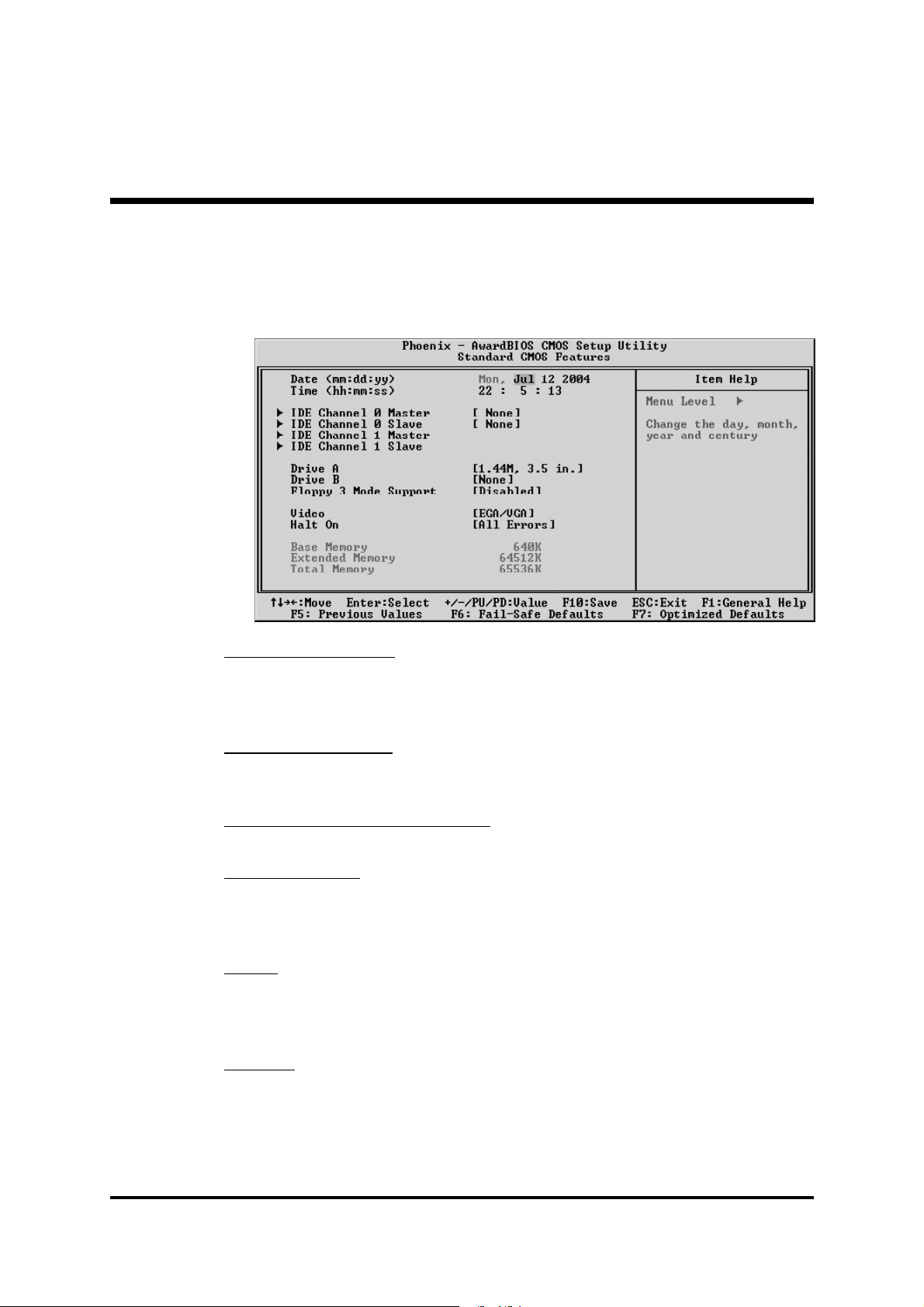

STANDARD CMOS FEATURES ............................................................... 46

ADVANCED BIOS FEATURES................................................................. 48

ADVANCED CHIPSET FEATURES .......................................................... 52

INTEGRATED PERIPHERALS .................................................................. 54

POWER MANAGEMENT SETUP.............................................................. 58

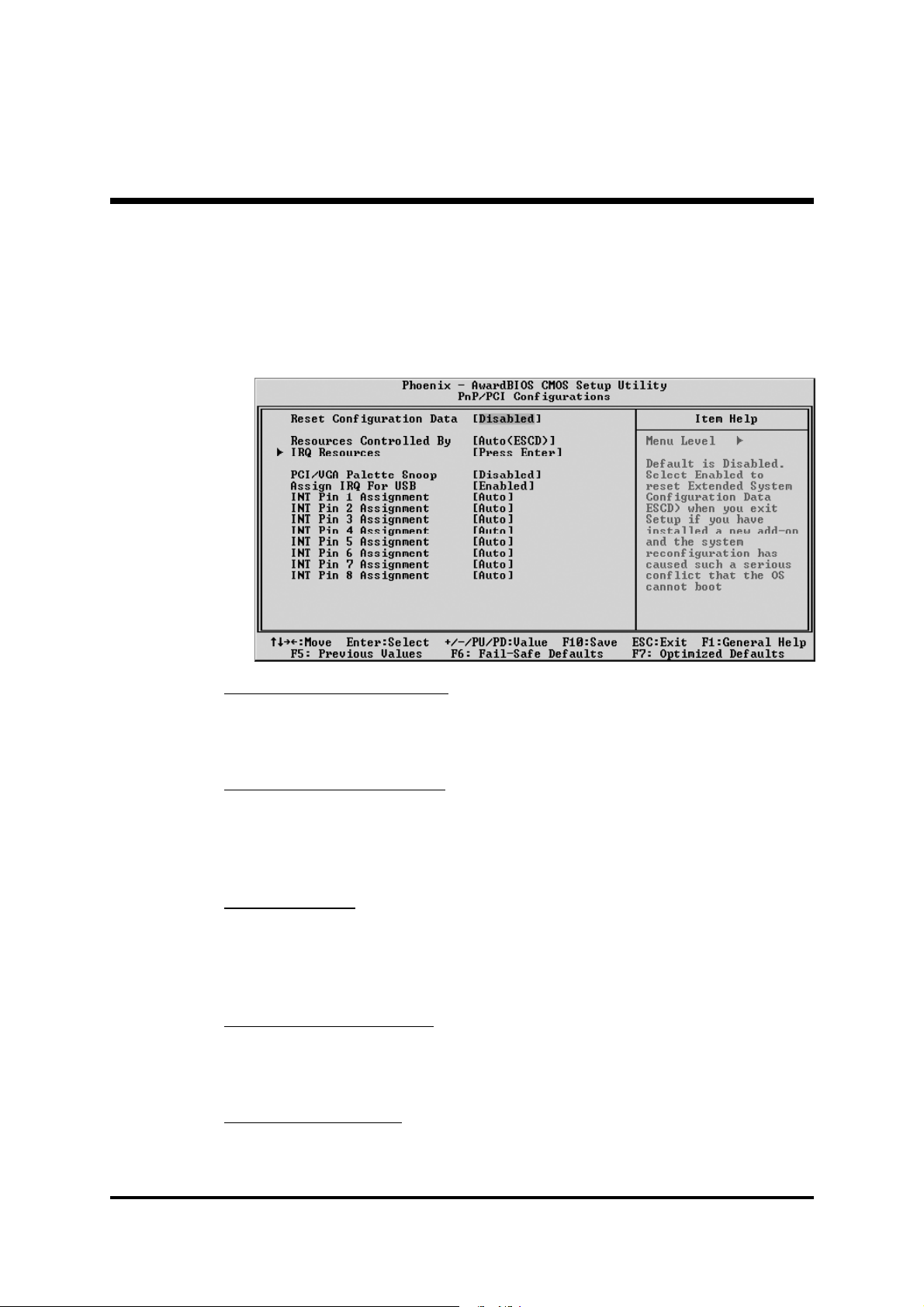

PNP/PCI CONFIGURATIONS .................................................................... 62

PC HEALTH STATUS................................................................................ 64

Frequency/Voltage Control......................................................................... 65

LOAD FAIL-SAFE DEFAULTS .................................................................. 66

LOAD OPTIMIZED DEFAULTS ................................................................. 66

SET SUPERVISOR/USER PASSWORD................................................... 67

SAVE & EXIT SETUP................................................................................ 68

EXIT WITHOUT SAVING............................................................................ 68

- 3 -

WHAT'S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................Page 10

Jumper Settings >> A Closer Look.......................................................Page 22

Software Utility >> How to Install..........................................................Page 40

BIOS Setup >> How to Configure.........................................................Page 43

About This Manual

For First-Time DIY System Builder .........................................................Page 5

For Experienced DIY User ......................................................................Page 5

For System Integrator .............................................................................Page 5

- 4 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as difficult as you may think. To make your first computer DIY experience successful, right from the start, we have designed Chapter 3 Hardware Installation in a step-by-step fashion for all the first-time DIY system builders. Prior to installation, we suggest you read the whole manual to gain a complete understanding of your new MS52PN mainboard.

Experienced DIY User

Congratulate on your purchase of the MS52PN mainboard. You will find installing your new MS52PN mainboard is quite easy. Bundled with an array of onboard functions, the highly-integrated MS52PN mainboard provides you with a total solution to build the stablest and most reliable system. Referring to section 3.2 Jumper Settings and Chapter 4 Software Utility, you will find how to work out your new mainboard. Chapter 5 BIOS Setup also contains the relevant information on how to tune up your system to achieve higher performance.

System Integrator

You have wisely chosen MS52PN to construct your system. MS52PN incorporates all the state-of-the-art technology of the 651C+962L from SiS. Each integrates the most advanced functions you've ever found in a compact microATX form board.

- 5 -

1.2 Item Checklist:

USB21PANEL11

JP3

PCI1

PCI2

CPU_FAN1

CASFAN11USB3

962L

SIS'02

651

SIS'04

IR1

FDD1

ATX1

ATX2

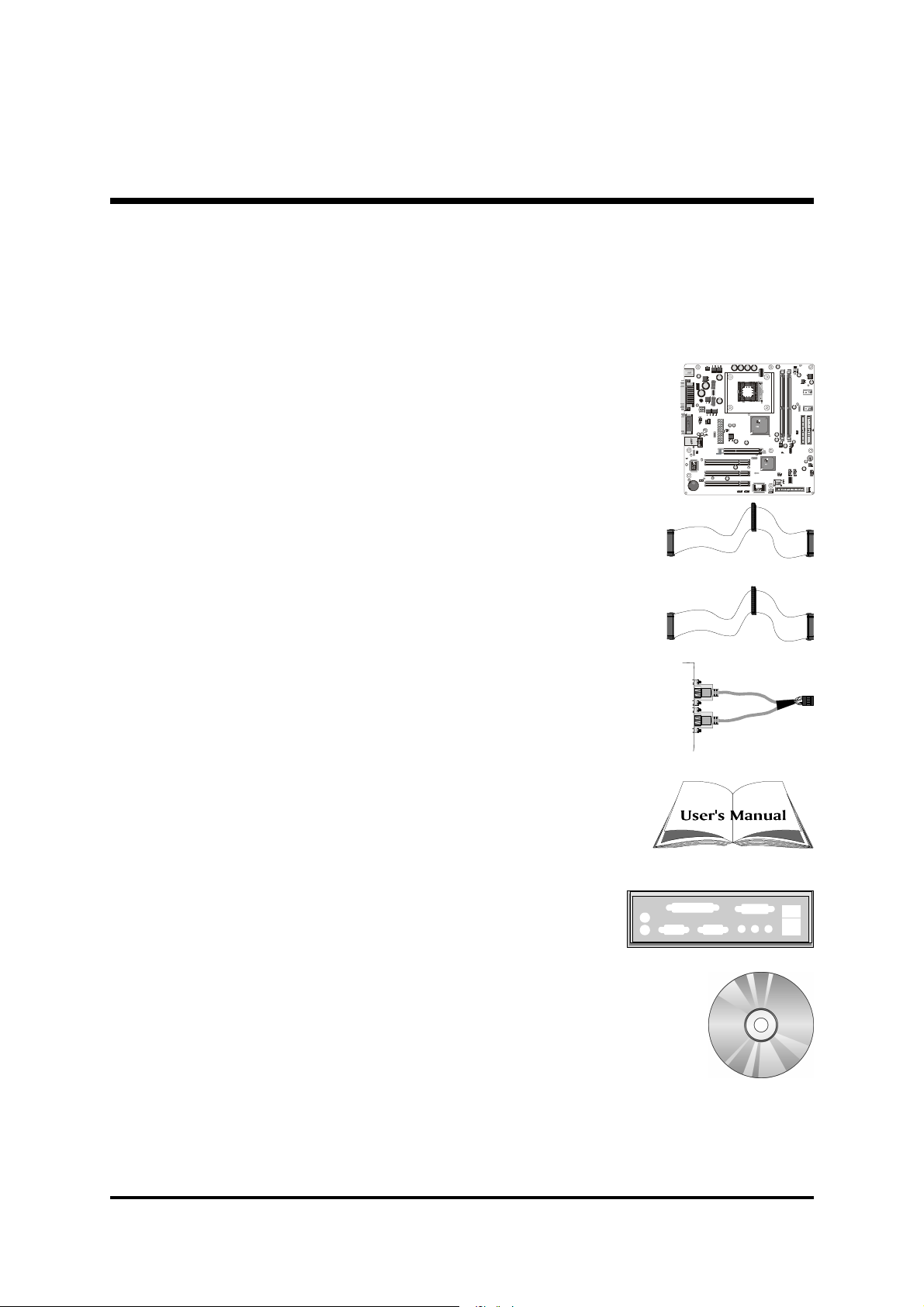

Check all items with your MS52PN mainboard to make sure nothing is missing. A complete package should include:

- One Shuttle MS52PN Mainboard

- One ATA 133/100/66/33 Ribbon Cable

- One Floppy Ribbon Cable

- One Twin-Port USB Cable (optional)

- MS52PN User's Manual

PSKBM1

COM1 LPT1

VGA1

AUDIO1

CDIN1

CDIN2

JS1

USBLAN1

JP1

K T S

LITHIUM BATTERY

JAPAN STD

CR2032

BAT1

EPD0392 0413BA C1

PPD0704 0409FA

WOM1 WOL1

PWRFAN1

- I/O Shielding

- One Bundled CD-ROM, including: Ø MS52PN user's manual in PDF format

Ø SIS AGP Driver Ø SIS IDE Driver Ø SIS VGA Driver Ø SIS USB2.0 Driver Ø Realtek LAN Driver Ø C-Media Audio Driver Ø Award Flashing Utility

- 6 -

2 FEATURES

MS52PN mainboard is dedicatedly designed for demanding PC users who desire high performance and maximum intelligent features in a compact package.

2.1 Specifications

- CPU Support

Intel pentium4, 478-pin processors with 533/400 MHz FSB. Supports Hyper-Threading Technology and Prescott CPU.

- Chipset

Features SiS 651C N.B. and SiS 962L S.B. for MS52PN.

- Onboard 10/100Mbps LAN

The onboard LAN chip is incorporated in the chipset providing the RTL8100C with 10/100Mbps fast Ethernet controller and integrated Ethernet PCI LAN capabilities.

- AC'97 Audio

The audio is a 6 channel AC'97 CODEC that is compatible with Intel AC'97 revision 2.2 and Microsoft's PC2001 requirements.

- Versatile Memory Support

Supports DDR 333/266/200 SDRAM. It accommodates two unbuffered 2.5V 184-pin slots. Each slot supports up to 1 GB with a total maximum capacity of 2 GB.

- PCI Expansion Slots

Provide three 32-bit PCI slots.

- AGP Expansion Slot

Provides one AGP2.0 compliant slot that supports up to 4X AGP device.

- 6 USB 2.0 Interface Onboard

Ø 2 x USB ports on back panel and two extended USB headers (4 ports) on

front panel.

- I/O Interface

Provides a variety of I/O interfaces:

- 7 -

Ø 1 x PS/2 Mouse Ø 1 x PS/2 Keyboard Ø 1 x Serial port Ø 1 x Parallel port Ø 1 x VGA port Ø 1 x Game port Ø 2 x USB ports Ø 1 x LAN port Ø 1 x Microphone port Ø 1 x Line-In port Ø 1 x Line-Out port

- PCI Bus Master IDE Controller Onboard

Two ultra DMA 133 bus master dual-channel IDE ports support up to four IDE devices (one Master and one Slave per channel).

The IDE bus implements data transfer speeds to 133/100/66/33MB/sec and supports enhanced PIO modes.

80-pin cable backward compatible legacy ATAPI devices, ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 supports.

- ATX Power Supply Connector

ATX power supply unit can be connected to the onboard 20-pin ATX power connector, and 4-pin ATX power connector. The unit supports Suspend and Soft-On/Off modes by the dual-function power button.

- Advanced Configuration and Power Interface

Features four power-saving modes: S1 (Snoop), S3 (Suspend to RAM), S4 (Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient energysaving features controlled by your operating system that supports OS Direct Power Management (OSPM) functionality.

- System BIOS

Provides licensed Award BIOS V6.0 PG on the 2Mb Flash ROM, and supports Green PC, Desktop Management Interface (DMI).

- Form Factor

System board conforms to the micro-ATX form factor specification.

- 8 -

Board dimension: 244mm x 244mm.

- Advanced Features

Ø Low EMI - Built in spread spectrum. Unused PCI/SDRAM slots are shut off

by the automatic clock for reducing EMI.

Ø Dual Function Power Button - The system can be in any of the two

states: one is Suspend mode and the other is Soft-Off mode. Pushing the power button for less than 4 seconds places the system into Suspend mode. When the power button is pressed for longer than 4 seconds, the system will enter Soft-Off mode.

Ø Modem Ring Power-On - The system can be powered on automatically

by the activation of modem ringing.

Ø CPU Multiplier Setting - This item allows users to adjust CPU Multiplier

in BIOS.

Ø CPU/RAM/AGP Voltage Setting - These items allow users to adjust

CPU/RAM/AGP Voltage in BIOS.

- Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure a stable current passing through mainboard components.

Ø Fan Status Monitoring - To prevent the CPU from overheating, the CPU

fan is monitored by RPM, with which the cooling fan is required.

Ø Temperature Monitoring - This item allows users to make sure whether

the CPU or system runs under a suitable temperature.

- 9 -

3 HARDWARE INSTALLATION

USB2

PANEL

JP31JP1

PCI1

PCI2

CPU_FAN1

CASFAN11USB3

962L

SIS'02

651

IR1

FDD1

PWRFAN1

ATX1

ATX2

FAN Power Connector-

CASFAN1

FAN P

ower Connector- CASFAN1

Two IDE Connectors- IDE1/2Infrared Header- IR1Front Panel Switch/LEDHeader- PANEL

BHeaders- USB1/

Two DIMM Slots

Before removing/installing any of these devices: CPU, DIMMs, Add-On Cards, and Cables, please unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Referring to the following mainboard layout helps you identify various jumpers, connectors, slots, and ports.

3.1 Step-by-Step Installation Accessories Of MS52PN

SiS 962L Chipset SiS 651C Chipset

Socket 478B

PSKBM1

PS/2 Mouse & Keyboard Connectors

COM1

LPT1

LPT1 & COM1 & VGA Connectors

ATX 12V Power Connector

ATX1

Game Port & Microphone/ Line_In/Line_out Ports

Front Panel Audio Header

AUDIO1

CD_In Connectors-

CDIN1/2

VGA1

AUDIO1

CDIN1

CDIN2

JS1

SIS'04

EPD0392 0413BA C1

LAN & USB Ports

USBLAN1

ATX 20-pin Power Connector

ATX2

One AGP Slot

PPD0704 0409FA

Three PCI Slots

Clear CMOS Jumper-

Wake On Modem-

Wake On LAN-

WOM1

WOL1

JP1

BAT1

K T S

LITHIUM BATTERY

JAPAN STD

CR2032

FAN Power ConnectorFloppy Disk Connector-

WOM1 WOL1

PWRFAN1

FDD1

Front Panel US

JP3

BIOS Protect Jumper

- 10 -

Step 1

CPU Installation:

This mainboard supports Intel Pentium 4 Socket 478 series CPU. Please follow the steps as follows to finish CPU installation.

Note the CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever to 90-degree angle.

CPU socket lever up to 90-degree angle

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU upper interface. Match Pin 1 and cut edge, and insert the CPU into the

socket.

CPU Pin 1 and cut edge

3. Press down the CPU socket lever and finish CPU installation.

Note:The CPU might be damaged if you do not match the CPU socket Pin 1 and cut edge well.

4. Intel Pentium 4 processors require a set of heatsink and fan to cool down the processor. You need to purchase a heatsink and fan if they are not bundled with your CPU. Required is that install the set and plug its cable in the CPU fan power connector. Note that there are kinds of CPU fan connectors. Normally, if your mainboard supports a hardware monitoring function, a 3-pin fan power connector can have your system detect the CPU fan's speed. A CPU fan with a 2-pin or 4-pin fan power connector does not support the detection of the CPU fan's speed, and must directly be connected to the system's power supply unit.

- 11 -

Step 2

Set Jumpers

The default jumper settings have been set for the common usage standard of this mainboard. Therefore, you need not to reset the jumpers unless you require special adjustments as the following case:

Clear CMOS Setting BIOS Protection Setting

For first-time DIY system builders, we recommend that you not change the default jumper settings if you are not quite familiar with the mainboard configuration procedures. The factory-set default settings are tuned for optimum system performance. For advanced users who prefer to customize their system, section 3.2 Jumper Settings provides the detailed information on how to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in the DIMM banks. Note that DDR SDRAM modules are directional and will not go in the DIMM banks if they are not properly oriented. After the module is fully inserted into the DIMM bank, lift the clips of both sides of the DIMM bank to lock the module in place.

DDR SDRAM

- 12 -

Step 4

Install Internal Peripherals in System Case

Before you place the mainboard into your system case, we recommend that you first assemble all the internal peripheral devices into the computer housing, including, but not limited to, the hard disk drive (IDE/HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.

To install IDE & FDD drives, follow these procedures:

1. Set the required jumpers on each device according to the instructions provided by the manufacturer. (IDE, HDD, and CD-ROM have to set jumpers to Master or Slave mode depending on whether you install more than one device of each kind.)

2. Connect the IDE cable and FDD cable on the back panel of the internal peripheral devices to the corresponding headers on board. Note that the cable should be oriented with its colored stripe (usually red or magenta) connected to pin#1 of the IDE or FDD connector on the mainboard and on the device as well.

3. Connect an available power cable from your system power supply unit to the back panel of each peripheral device. Note that the power cable is directional and cannot fit in if not properly positioned.

- 13 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find there are a lot of mounting holes on your computer chassis and mainboard. To match the holes on both properly, the key point is to make the back panel of the mainboard in a close fit with your system case, as shown below.

2. Position the studs between the chassis and the mainboard. The studs are used to fix the mainboard and to keep a certain distance between them, for avoiding any electrical shorts in-between.

(If your computer case is already equipped with mounting studs, you need to tighten the screws to attach the mainboard.)

Note: In most computer housings, you can find 4 or more holes to place

studs for fixing the mainboard. If there aren't enough matching holes, screw at least 4 studs to ensure the proper attachment of the mainboard.

- 14 -

Step 6

97531

USB2/3

PANEL1

Front Panel

HDDLEDPWR_S

RSTACPILE

PANEL1

97531

AUDIO1

Connect Front Panel LEDs/Switches/USBs/Audio

You can find there are several cables existing in the system case and originating from the front panel devices (HDD LED, ACPILED, Reset switch, Power switch, Audio and USB devices etc.). These cables serve to connect the front panel LEDs, switches, Audio and USB2/3 connectors, as shown below.

AUDIO1

USB2

USB3

1. HDD LED (HDDLED)

2. Power/Sleep/Message waiting LED (ACPILED)

3. Hardware Reset Switch (RST)

4. ATX Soft Power On/Off (PWR_SW)

5. Front Panel USB Headers (USB 2/USB 3)

6. Front Panel Audio Header (AUDIO1)

PWR_SW

ACPILED

8 6 4 2

RST

HDDED

8 6 4

- 15 -

Step 7

FDD1

IDE1IDE

Connect IDE and Floppy Disk Drives

1. IDE cable connectors

2. Floppy cable connector

- 16 -

Step 8

Connect Other Internal Peripherals

1. IR header (IR1)

2. CD_IN connectors (CDIN1/CDIN2)

CDIN2

IR1

CDIN1

3. Wake On Modem (WOM1); Wake On LAN (WOL1)

WOM1

- 17 -

WOL1

Step 9

ATX1

Connect the Power Supplies

1. System power connectors (ATX1/ATX2)

ATX2

Step 10

Install Add-On Cards in Expansion Slots

1. Accelerated Grapics Port (AGP) Card

2. PCI Card

- 18 -

Step 11

8101127

956

Connect External Peripherals to Back Panel

You are now ready to connect the external peripherals to your system's back panel.

1. PS/2 Mouse Port

2. PS/2 Keyboard Port

3. Parallel Port

4. Serial Port

5. VGA Port

6. Game Port

7. Line-Out Port

8. Line-In Port

9. Microphone Port

10. LAN Port

11. USB Ports1/2

- 19 -

Step 12

System Boot Up For the First-Time

To ensure your system completedly and correctly installed, please refer to the above installation steps once again before first booting up your system.

1. Insert a system-bootable floppy disk (DOS 6.2X, Windows 9X/NT, or others), which contains the FDISK and FORMAT utilities.

2. Turn on the system power.

3. First, you need to use the FDISK utility to create a primary partition of the hard disk. You can also add an extended partition if your primary partition does not use all of the available hard disk space. If you choose to add an extended partition, you will have to create one or more logical partitions to occupy all the space available to the extended partition. The FDISK

utility will assign a drive letter (i.e. C:, D:, E:,......) to each partition shown in

the FDISK program. After the FDISK procedure, reboot your system by using the same disk.

Note: DOS 6.2X and Windows 95A can only support up to 2.1GB of HDD

partition. If you use the FDISK utility with one of the operating systems mentioned above, you can only install your HDD into any partitions no larger than 2.1GB.

4. Now, use the FORMAT utility to format all the partitions you've created. When formatting the primary partition (C:), key in the command, "FORMAT C:/S."

Note: FORMAT C:/S can transfer all the necessary system files into the pri-

mary partition of your hard disk. Afterwards, your HDD will become a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation guide.

- 20 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/ 2000/ME/NT/XP operating systems. Make sure your operating system is already installed before running the installation programs on CD-ROM.

1. Insert the MS52PN bundled CD-ROM into your CD-ROM drive. The

auto-run program will display the main installation window on screen.

2. Choose "Install SIS AGP Driver" and complete it.

3. Choose "Install SIS IDE Driver" and complete it.

4. Choose "Install SIS VGA Driver" and complete it.

5. Choose "Install SIS USB2.0 Driver" and complete it.

6. Choose "Install Realtek LAN Driver" and complete it.

7. Choose "Install C-Media Audio Driver" and complete it.

8. Quit (from the auto-run installation program).

- 21 -

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to connect jumper pins on the mainboard. Pin #1could be located at any corner of jumpers, and the corner with a white right angle stands for Pin #1. There are several types of Pin #1 as shown below:

3-pin and multi-pin (>3) jumpers shown as follows: Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins capped are shown as for Close [On] or for Open [Off]. To do this, please place a plastic mini cap on the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its components. When putting the mainboard down, place it on top of its original packaging film, with the component side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent electrostatic discharge (ESD) as handling this equipment.

- 22 -

E2D1E2E3C1~C4

D1E2C6

B2~B4

B5~B8

B9~B10

Jumpers & Connectors Guide

Refer to the mainboard layout on page 10 and this section to help you identify jumpers, slots, and connectors along with their assigned functions.

E1 A1 E5

CPU/Memory/Expansion Slots

Socket 478 : CPU socket for Intel Pentium 4, 478-pin processor DIMM1/2 : Three DIMM slots for 128, 256, 512 MB, and 1GB of 2.5V

DDR SDRAM

(The total installed memory does not exceed 2GB.) AGP : One AGP slot supports up to 4X AGP device PCI : Three 32-bit PCI expansion slots

- 23 -

Jumpers

JP1 : Clear CMOS setting JP3 : BIOS Protect setting

Back Panel Connectors

B1 B1

B2 B3

B4 B5 B6 B7

B8 B9

B10

PSKBM1 : PS/2 mouse port PSKBM1 : PS/2 keyboard port LPT1 : Parallel port COM1 : Serial port1 VGA1 : VGA port1 GAME : Game port Line-Out : Line-Out port Line-In : Line-In port Microphone : Microphone port USBLAN1 : LAN port USBLAN1 : USB ports1/2

Front Panel Connectors

C4 C5

HDD LED : HDD LED ACPILED : Power/Sleep/Message waiting LED RST : Hardware reset switch PWR_SW : ATX power on/off switch AUDIO1 : Front panel Audio header USB2/3 : Front panel USB headers

Internal-Peripheral Connectors

D1 D1

IDE1 : IDE primary interface (dual-channel) IDE2 : IDE secondary interface (dual-channel) FDD1 : Floppy disk drive interface

Other Connectors

E1 E2 E2 E2

ATX1/ATX2 : ATX power supply connectors CPUFAN1 : CPU Fan connector PWRFAN1 : Power Fan connector CASFAN1 : Case Fan connector

- 24 -

E3 E4 E5 E6

IR1 : IR header CDIN1/CDIN2 : Primary/Secondary CD_IN connectors WOM1 : Wake On Modem connector WOL1 : Wake On LAN connector

- 25 -

F Jumpers

Clear CMOS Setting (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in permanently erasing previous system configuration settings and the original factory-set system settings.

Pin 1-2 (Normal)(Default)

Pin 2-3 (Clear CMOS)

Step 1. Turn off the system power (PC-->Off). Step 2. Remove the ATX power cable from the ATX power connector. Step 3. Remove the jumper cap from pins 1-2. Step 4. Place the jumper cap on pins 2-3 for a few seconds. Step 5. Restore the jumper cap to pins 1-2. Step 6. Plug the ATX power cable into the ATX power connector. Step 7. Turn on the system power (PC-->On).

BIOS Protect Setting (JP3)

JP3 is used to BIOS protect.

JP1

Pin 1-2 Write Protect Disabled

JP3

Pin 2-3 Write Protect Enabled

- 26 -

F Back Panel Connectors

PS/2 Mouse & PS/2 Keyboard Port Connectors

Two 6-pin female PS/2 Mouse & Keyboard connectors are located on the rear panel of the mainboard. In a desktop computer, the PS/2 Mouse connector is situated on the top of the PS/2 Keyboard connector. In a tower computer, the PS/2 Mouse connector is located on the rightside of the PS/2 Keyboard connector.

Parallel Port Connector

One DB25 female parallel connector is located on the rear panel of the mainboard. Plug the cable from your parallel device (printer, scanner, etc.) into this connector.

PS/2 Mouse

PS/2 Keyboard

Parallel Port

COM1 Port Connector

Attach a serial device cable to the DB9 serial port COM1 at the back panel of your computer.

VGA Port Connector

One 15 pin VGA connector is located at the rear panel of the mainboard.

Game Port Connector

The Game port is a 15-pin female connector. This port can be connected to any IBM PC compatible game with a 15-pin D-sub connector.

COM1

VGA Port

Game Port

- 27 -

Line-Out Port Connector

Line-Out is a stereo output port through which the combined signal of all internal and external audio sources on the board is output. It can be connected to 1/8-inch TRS stereo headphones or to amplified speakers.

Line-In Port Connector

Line-In is a stereo line-level input port that accepts a 1/8-inch TRS stereo plug. It can be used as a source for digital sound recording, and a source to be mixed with the output, or both.

Microphone Port Connector

Microphone is a 1/8-inch jack that provides a mono input. It can use a dynamic mono or stereo microphone with a resistance of not more than 600 Ohms.

Line-Out Port

Line-In Port

Microphone Port

LAN Port Connector

This mainboard can accommodate one device on LAN. Attach a RJ-45 cable to

this LAN port connector on back panel.

B10

USB Port Connectors

This mainboard offers 2 USB ports on back panel. Plug each USB device jack into an available USB connectors.

LAN Port

USB Port2

USB Port1

- 28 -

F Front Panel Connectors

Front Panel

PANEL1

Front Panel

PANEL1

HDD LED Connector (HDDLED)

Attach a connector cable from the IDE device LED to the 2-pin (HLED) header. The HDD LED lights up whenever an IDE device is active.

Power/Sleep/Message waiting LED (ACPILED)

Connecting pins 2 and 4 to a single or dual color, front panel mounted LED provides power on/off, sleep, and message waiting indication.

PWR_SW

- +

ACPILED

RST

- +

HDDLED

- 29 -

PWR_SW

- +

ACPILED

RST

- +

HDDLED

Front Panel

PANEL1

Front Panel

PANEL1

Hardware Reset Switch Connector (RST)

Attach a cable to the 2-pin (RST) header. Pressing the reset switch causes the system to restart.

ATX Power On/Off Switch Connector (PWR_SW)

The Power On/Off Switch is a momentary type switch used for turning on or off the ATX power supply. Attach a connector cable to the 2-pin (PWR_SW) header on the mainboard.

PWR_SW

- +

ACPILED

PWR_SW

- +

ACPILED

RST

- +

HDDLED

RST

- +

HDDLED

Note : Please notice all the LED connectors are directional. If your

chassis's LED does not light up during running, please change it to the opposite direction.

- 30 -

97531

AUDIO1

97531

USB2/3

Front Panel Audio Header (AUDIO1)

This header allows users to install an auxiliary Front-Oriented Audio port for easier access. Either the Line-Out port connector on back panel or the front panel Audio header is available at the same time. If you would like to use this header on front panel, please remove all jumpers from it and install your special extra audio cable instead. Two mini jumpers must be setted on pins 5-6 and pins 9-10 when this header is not used.

AUDIO1

6 4

Pin Assignments: 1=AUD_MIC 2=AUD_GND 3=AUD_MIC_BIAS 4=AUD_VCC 5=AUD_FPOUT_R 6=AUD_RET_R 7=HP_ON 8=KEY 9=AUD_FPOUT_L 10=AUD_RET_L

Front Panel USB Headers (USB2/USB3)

Headers USB2/3 are used to connect cables to USB connectors mounted on front panel or back panel. The USB cable is optional at the time of purchase.

8 6 4 2

USB2

USB3

Pin Assignments: 1=VREG_FP_USBPWR0 2=VREG_FP_USBPWR0 3=USB_FP_P0- 4=USB_FP_P15=USB_FP_P0+ 6=USB_FP_P1+ 7=GND 8=GND 9=KEY 10=USB_FP_OC0

- 31 -

F Internal Peripheral Connectors

IDE1IDE

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FDD1)

MS52PN motherboard features two 40-pin dual-channel IDE device connectors (IDE1/IDE2), providing support for up to four IDE devices, such as CDROM and Hard Disk Drive (HDD). This mainboard also includes one 34-pin floppy disk controller (FDC) to accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard comes with one 80-pin ATA 133/100/66/33 ribbon cable to connect IDE HDD, and one 34-pin ribbon cable for FDD connection.

FDD1

Important: Ribbon cables are directional; therefore, connect the red

cable stripe to the same side.

- 32 -

F Other Connectors

ATX1

ATX Power Supply Connectors (ATX1/ATX2)

This motherboard uses 20-pin ATX power header (ATX2), and comes with the other one header (ATX1). Please make sure you plug each in the right direction. It is essential to have these two power supply connectors plugged or your system won't boot up.

ATX2 ATX1

ATX2

A traditional ATX system remains in the power-off stage when AC power resumes from power failure. However, it is inconvenient for a network server or workstation if there is not an UPS to execute power-on. Thus, this motherboard supports an AC Power Auto Recovery function to solve this problem. You may enable the function, "PWRON After PWR-Fail," in the sub-menu of "Power Management Setup" within the BIOS setup program.

Note 1: The ATX power connector is directional and will not go in

unless the guides match perfectly, making sure that pin#1 is properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into

place to ensure a solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI+5V stand-

by power and at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher

speed processor installed.

- 33 -

256

CASFAN1

CPUFAN1

PWRFAN1

Fan Connectors (CPUFAN1/PWRFAN1/CASFAN1)

The mainboard provides three onboard 12V cooling fan power connectors to support the CPUFAN1/PWRFAN1/CASFAN1.

Note: Both cable wiring and type of plug may vary, which depend on the fan maker. Keep in mind that the red wire should always be connected to the +12V header and the black wire to the ground (GND) header.

IR Header (IR1)

If you have an Infrared device, this mainboard can implement IR transfer function. This mainboard supports Normal, IrDA, ASKIR, or SCR transfer mode. To enable this function, attach a 6-pin infrared device cable to the IR (IR1) header. Please note that every pin is properly allocated. If not, your IR device may be damaged.

IR1

Pin Assignments: 1=NC 2=KEY

GND +12V

SENSE

IR1

3=+5V 4=GND 5=IRTX 6=IRRX

- 34 -

123

CD1/2

CD_IN Connectors (CDIN1/CDIN2)

Ports CDIN 1 (Black)/CDIN 2can be used to connect stereo audio inputs from CD-ROM, TV-tuner or MPEG card.

CDIN2

Pin Assignments (CDIN1): 1=CD In-L 2=GND 3=GND 4=CD In-R Pin Assignments (CDIN2): 1=GND 2=CD In-L 3=GND 4=CD In-R

CDIN1

Wake On Modem (WOM1)/ Wake On LAN (WOL1)

Connectors

If you have installed a LAN card/modem, use the cable provided with the card to plug into the motherboard WOL1/WOM1 connector.

Pin Assignments (WOM1): 1=5VSB 2=GND 3=Ring#

Pin Assignments (WOL1): 1=5VSB 2=GND 3=Ring#

WOM1

WOL1

- 35 -

3.3 System Memory Configuration

The MS52PN mainboard has two 184-pin DIMM slots that allow you to install from 32 MB up to 1GB of system memory. Each 184-pin DIMM (Dual In-line Memory Module) slot can accommdate 32 MB, 64 MB, 128MB, 256MB, 512MB, and 1GB compliant 2.5V single or double side 64-bit wide data path DDR SDRAM modules. You do not need to set any jumper to configure memory since the BIOS utility can detect the system memory automatically. You can check the total system memory value in the BIOS Standard CMOS Setup menu. Note: The total installed memory does not exceed 2GB.

1. Install Memory:

Install memory in any or all of the banks. The combination shown as follows.

DIMM

Socket

DIMM 1

DIMM 2

Memory Modules

32MB, 64MB, 128MB, 256MB, 512MB and 1GB184-pin 2.5V DDR SDRAM DIMM

32MB, 64MB,128MB, 256MB, 512MB and 1GB184-pin 2.5V DDR SDRAM DIMM

Module

Quantity

x 1

2. Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR SDRAM modules in available DIMM banks. The total system memory is calculated by simply adding up the memory in all DIMM banks. After upgrade, the new system memory value will automatically be computed and displayed in the field "Standard CMOS Setup" of BIOS setup program.

- 36 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in MS52PN mainboard are subject to

change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click or run D:\Autorun.exe (assuming that your CD-ROM drive is drive D:)

Navigation Bar Description:

F Install MS52PN Software - Installing SIS AGP, SIS IDE, SIS VGA, SIS

USB 2.0, Realtek LAN, C-Media Audio Drivers.

F Manual - MS52PN mainboard user's manual in PDF format. F Link to Homepage - Link to website homepage. F Browse this CD - Allows you to see contents of this CD. F Quit - Close this CD.

- 37 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. Select using your pointing device (e.g. mouse) on the “Install Mainboard Software“ bar to run into sub-menu.

The MS52PN Softwaree includes:

[4.2.A] Install SIS AGP Driver [4.2.B] Install SIS IDE Driver [4.2.C] Install SIS VGA Driver [4.2.D] Install SIS USB2.0 Driver [4.2.E] Install Realtek LAN Driver [4.2.F] Install C-Media Audio Driver

- 38 -

4.2.A Install SIS AGP Driver

Select using your pointing device (e.g. mouse) on the “Install SIS AGP Driver" bar to install the SIS AGP driver.
