Shuttle MS51N User Manual

MS51/MS51N

Pentium 4 Processor

Based DDR MAIN BOARD

User's Manual

Shuttle® SpacewalkerTM MS51/MS51N

Pentium 4 , 478-pin processor based DDR Mainboard
Manual Version 1.0

Copyright

Copyright© 2002 by Shuttle® Inc. All Rights Reserved.
No part of this publication may be reproduced, transcribed, stored in a retrieval system,

translated into any language, or transmitted in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, photocopying, manual, or otherwise, without

prior written permission from Shuttle

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the
performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual.
Information in this manual has been carefully checked for reliability; however, no guarantee is
given as to the correctness of the contents. In the interest of continued product improvement,
this company reserves the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to notify any
person of such revision or changes. The information contained in this manual is provided for
general use by the customers.

®

Inc.

Disclaimer

Trademarks

Spacewalker is a registered trademark of Shuttle Inc.
Intel, Pentium is a registered trademarks of Intel Corporation.
SiS is a registered trademarks of SiS Corporation.
PS/2 is a registered trademark of IBM Corporation.
AW ARD is a registered trademark of Award Software Inc.
Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other brand and product names used herein are for identification
purposes only and may be trademarks of their respective owners.

M521

T ABLE OF CONTENTS

WHAT’S IN THE MANUAL.....................................................................5

Quick Reference................................................................................................5

About This Manual ............................................................................................5

1 INTRODUCTION ................................................................................. 6

1.1 TO DIFFERENT USERS ..............................................................................6

FIRST-TIME DIY SYSTEM BUILDER ............................................................ 6

EXPERIENCED DIY USER .........................................................................6

SYSTEM INTEGRA TOR ...............................................................................6

1.2 ITEM CHECKLIST:.......................................................................................7

2 FEATURES .......................................................................................... 8

2.1 SPECIFICATIONS ........................................................................................8

3 HARDWARE INSTALLATION ...........................................................11

3.1 STEP BY STEP INSTALLATION................................................................11

Accessories of MS51/MS51N ............................................................... 11

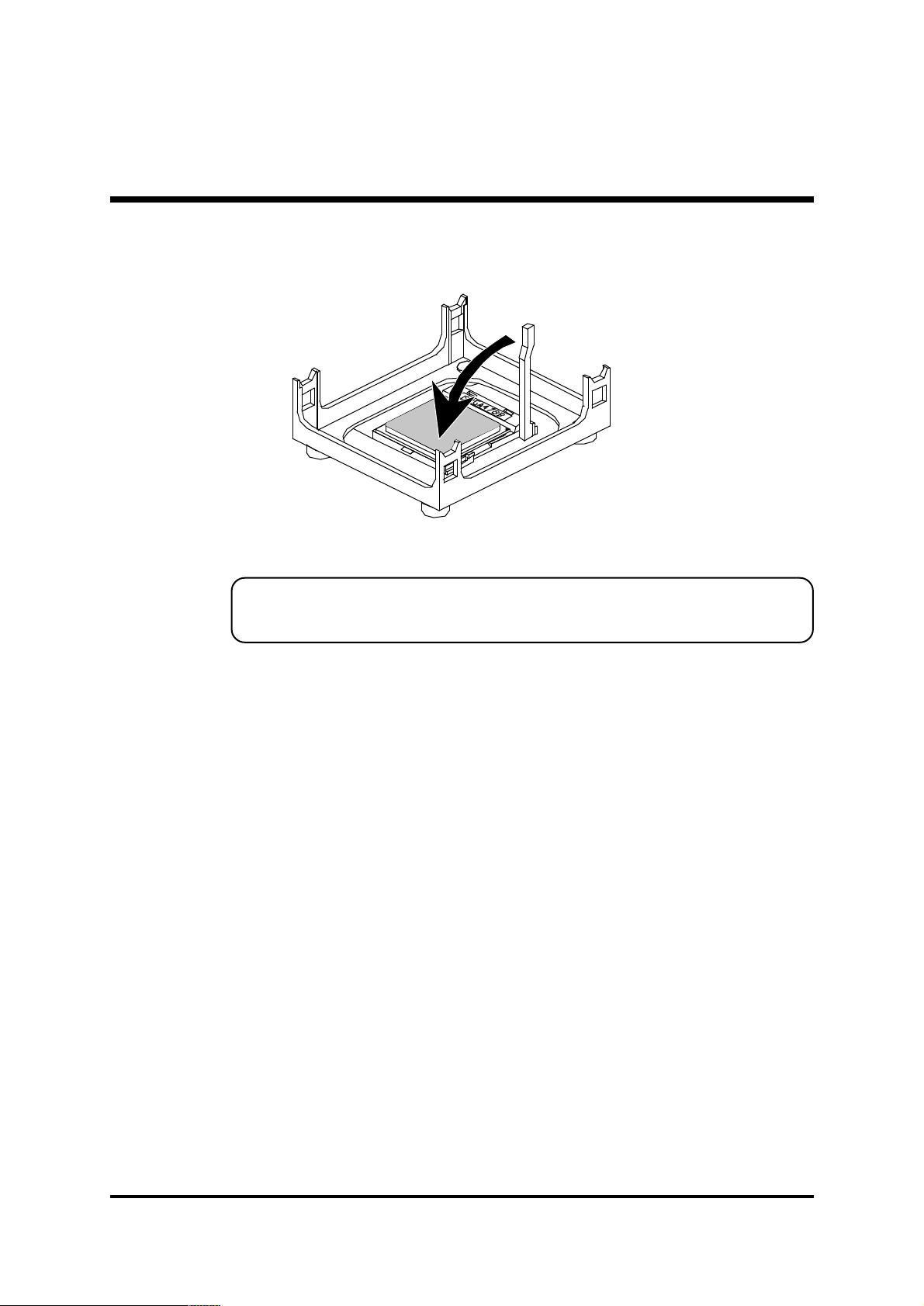

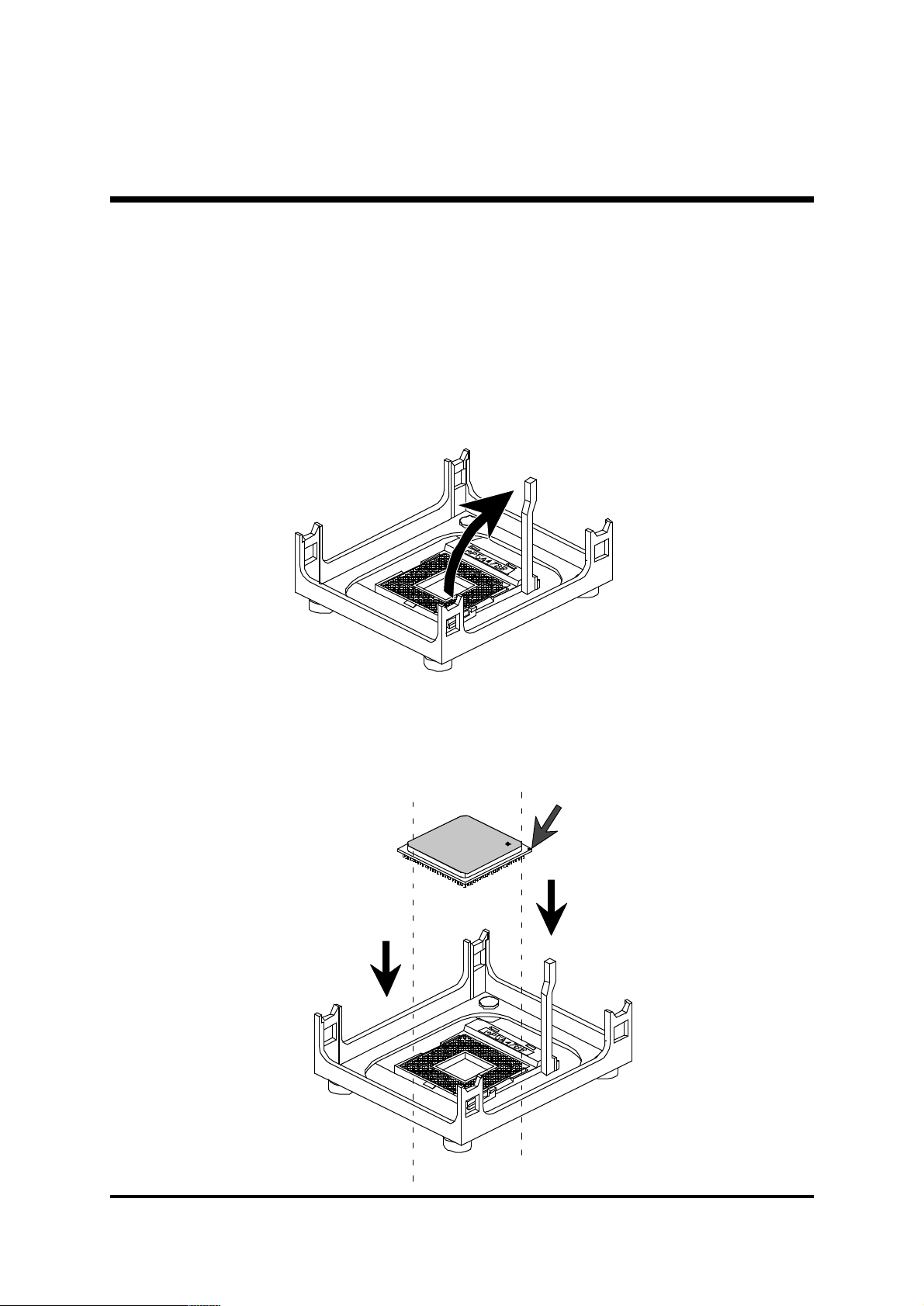

STEP 1 CPU Installation.........................................................................12

STEP 2 Set Jumpers..............................................................................14

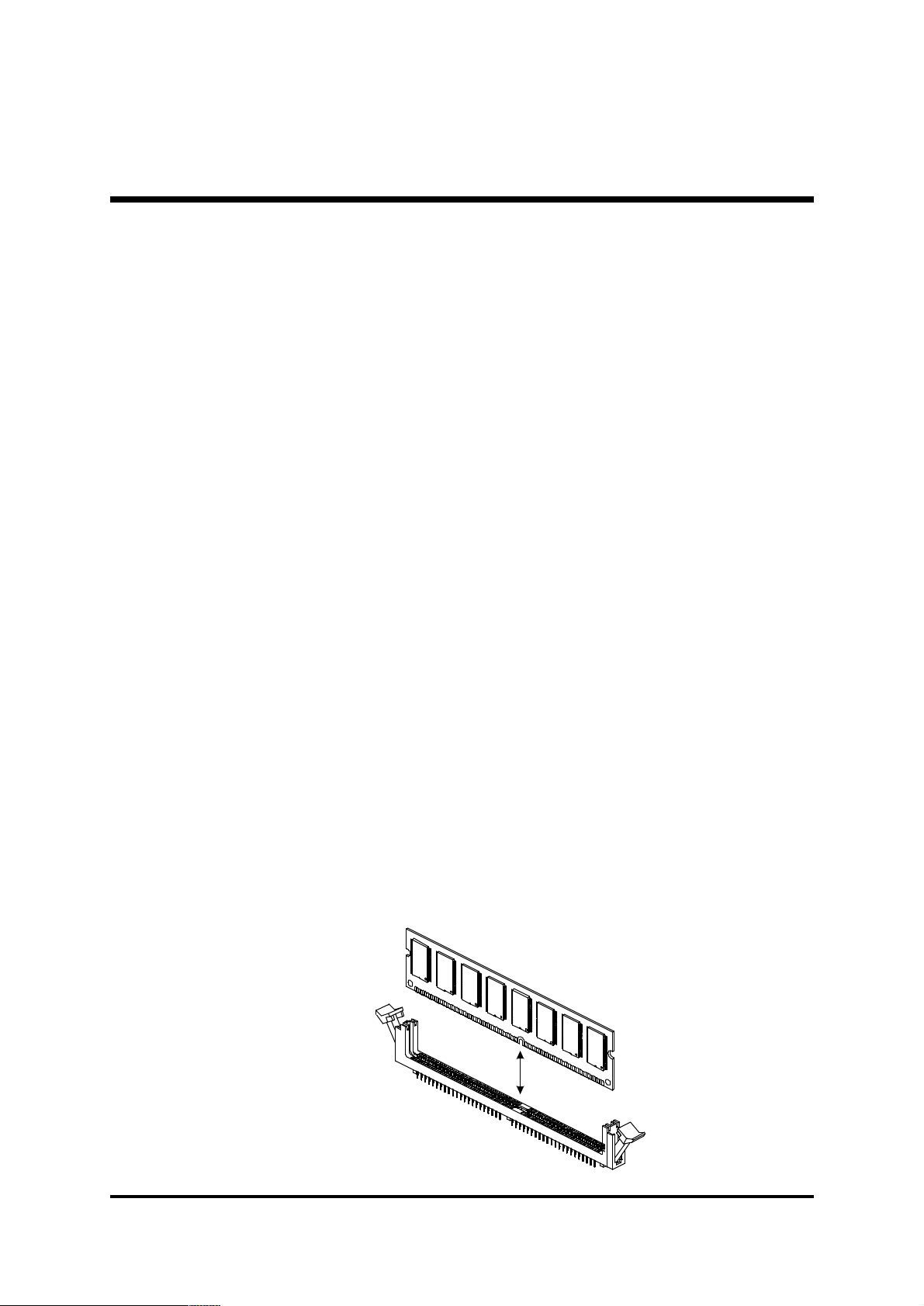

STEP 3 Install DDR SDRAM System Memory ........................................14

STEP 4 Install Peripherals in System Case.............................................15

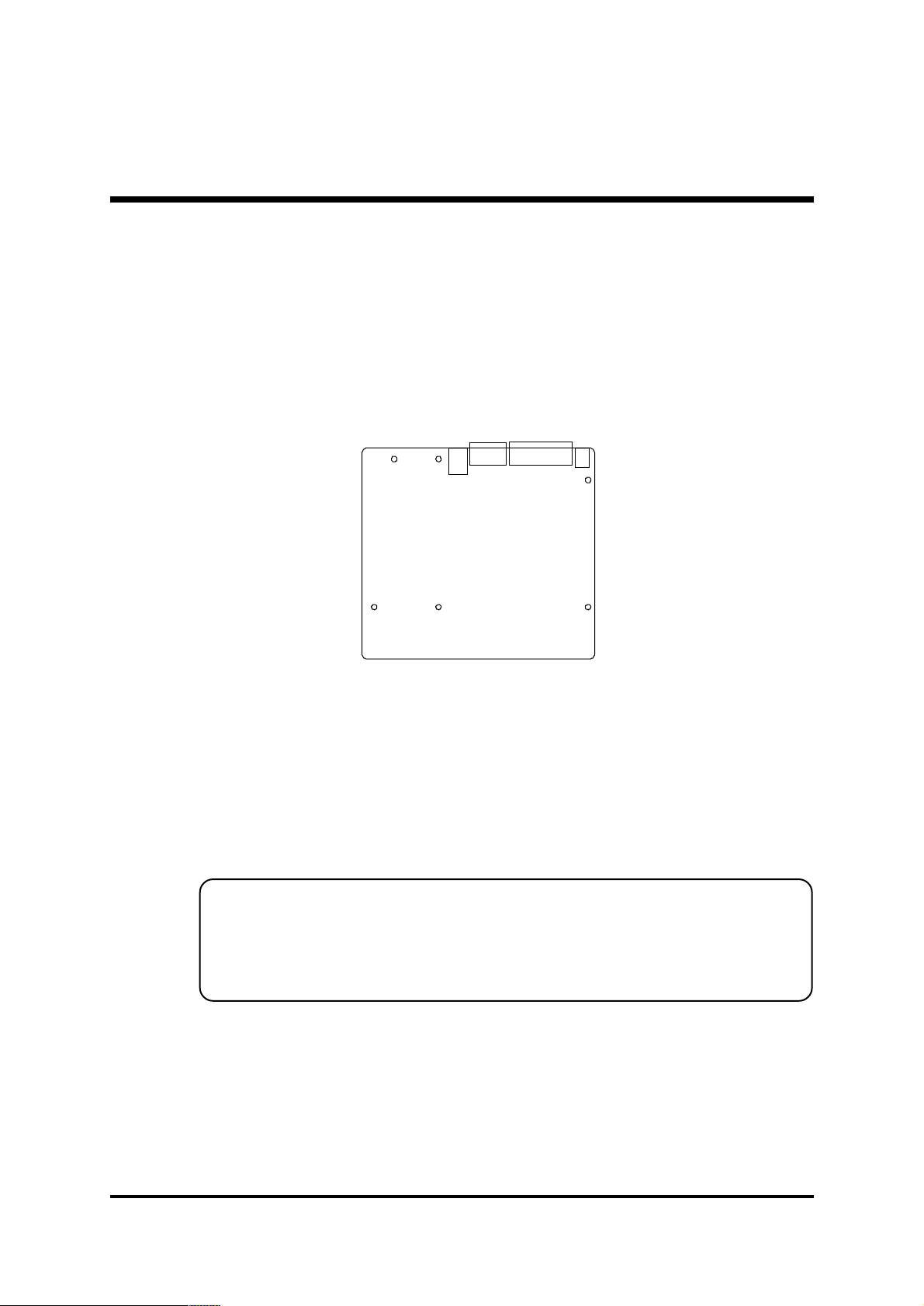

STEP 5 Mount the Mainboard on the Computer Chassis ........................16

STEP 6 Connect Front Panel Switches/LEDs/Speaker/USB ..................17

STEP 7 Connect IDE and Floppy Disk Drives.........................................18

STEP 8 Connect Other Internal Peripherals ............................................18

STEP 9 Connect the Power Supply ........................................................19

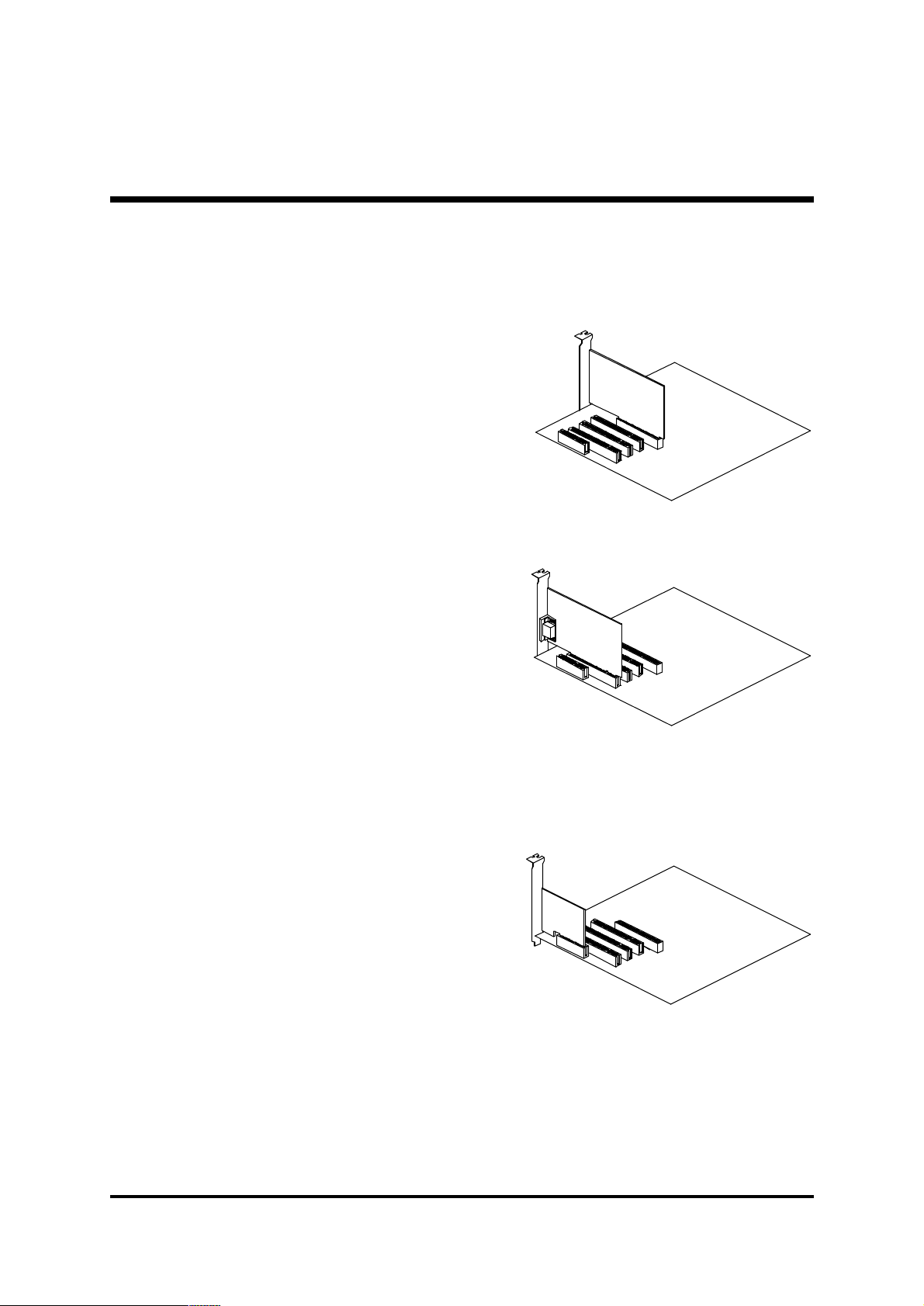

STEP 10 Install Add-on Cards in Expansion Slots ..................................20

STEP 11 Connect External Peripherals to Back Panel...........................21

STEP 12 First Time System Boot Up......................................................22

STEP 13 Install Drivers & Software Components....................................23

- 1 -

3.2 JUMPER SETTINGS ..................................................................................24

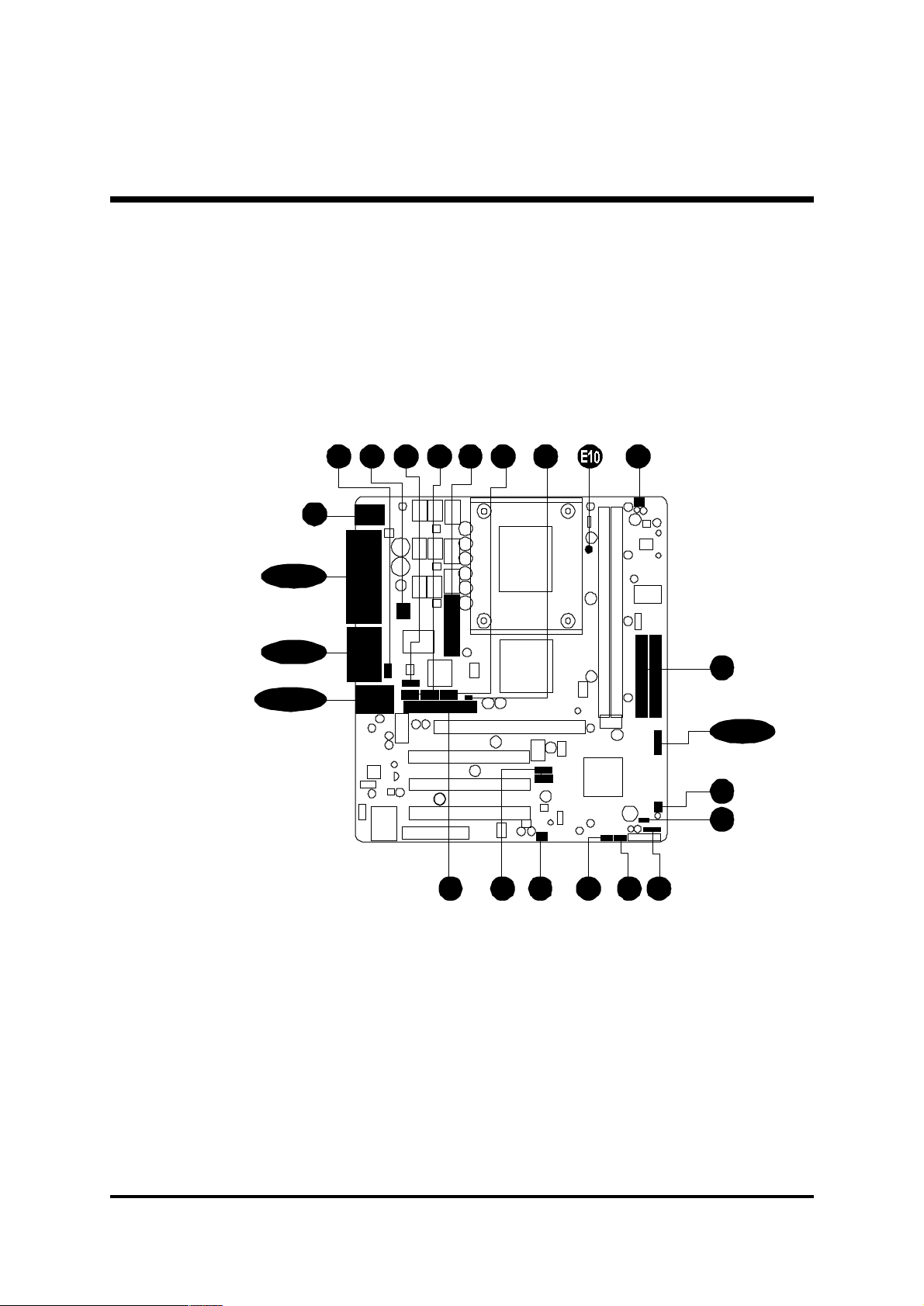

JUMPERS & CONNECTORS GUIDE ....................................................25

Jumpers

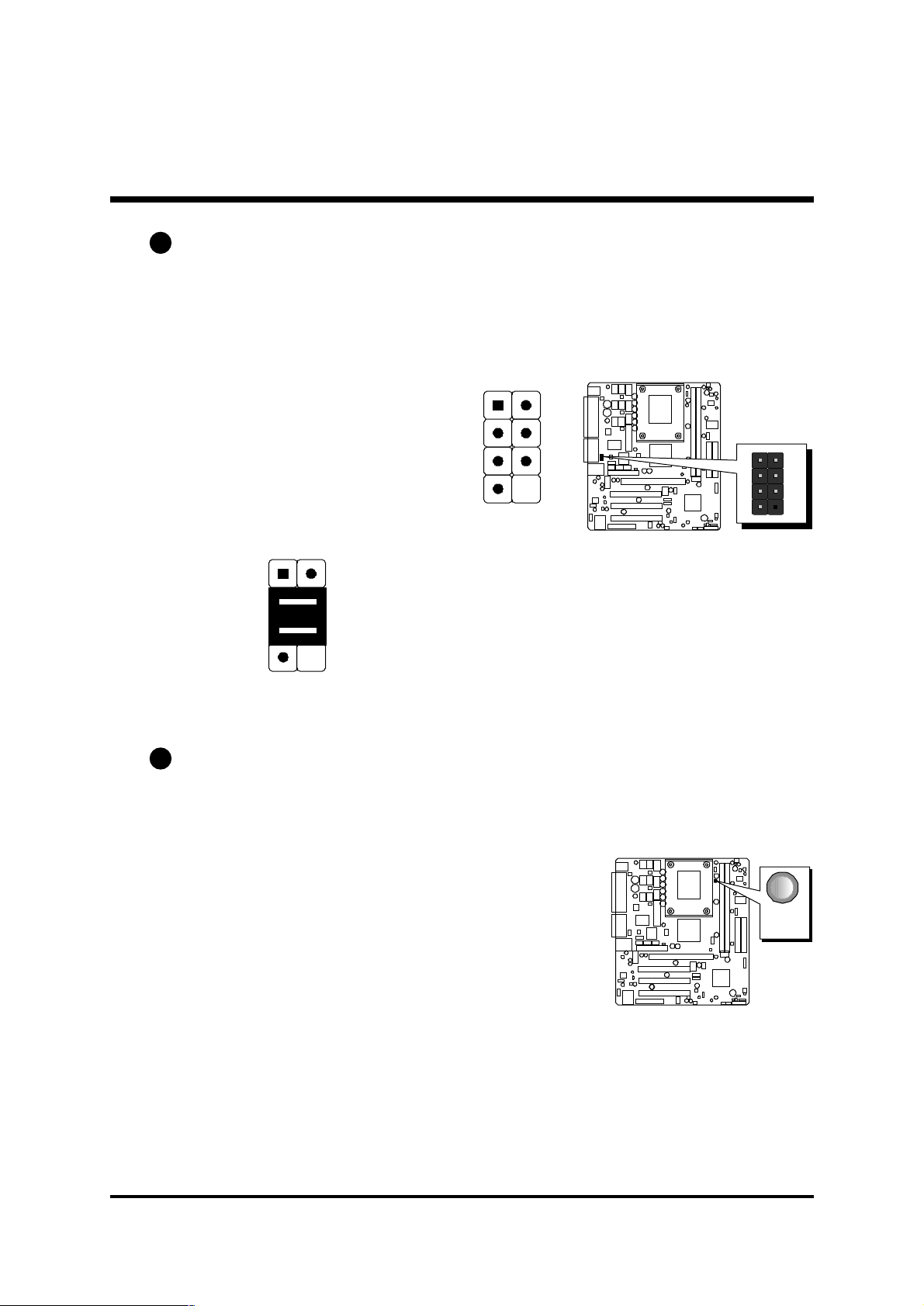

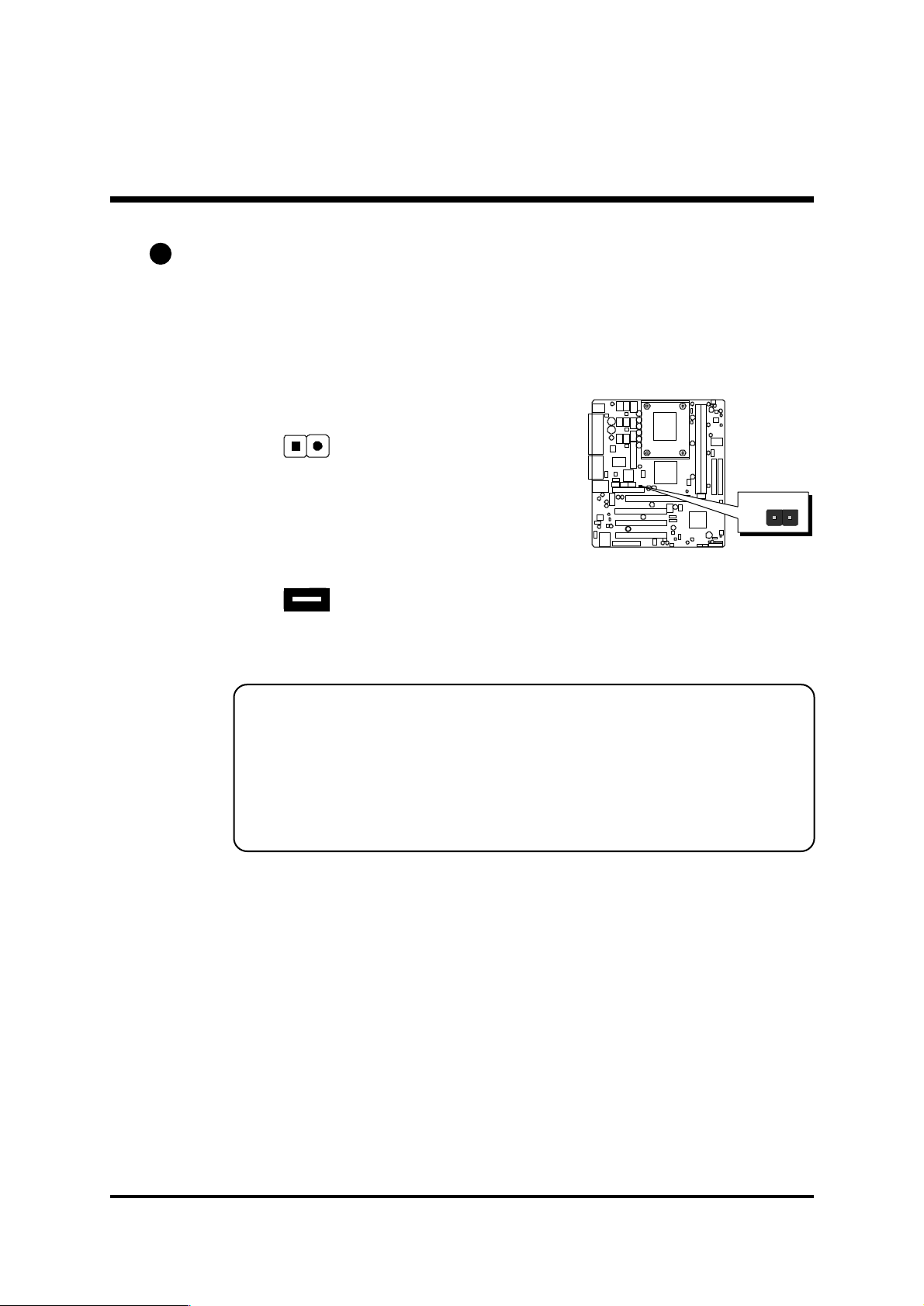

Clear CMOS Setting (JP1) ....................................................................28

BIOS Write Protection (JP2)...................................................................29

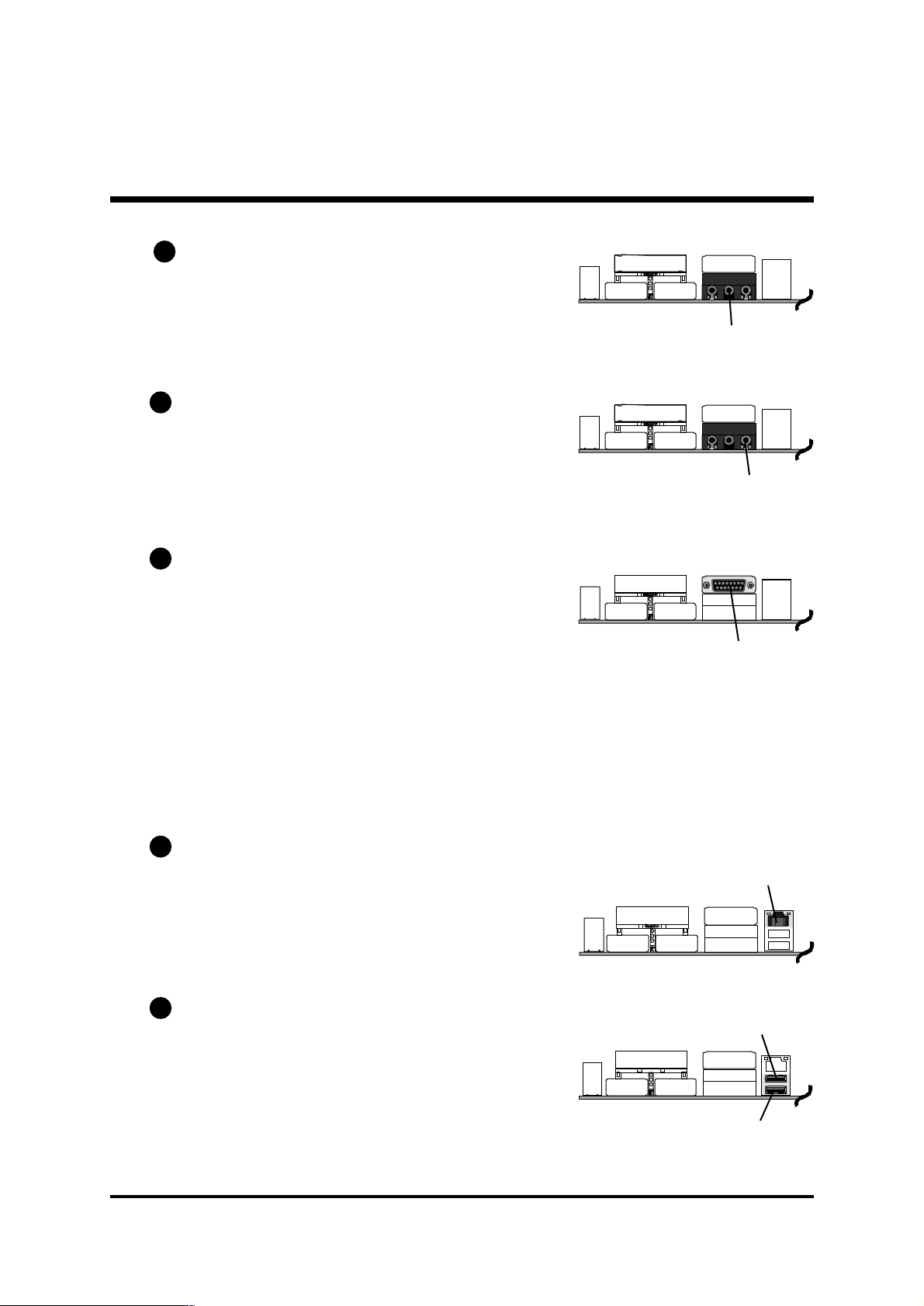

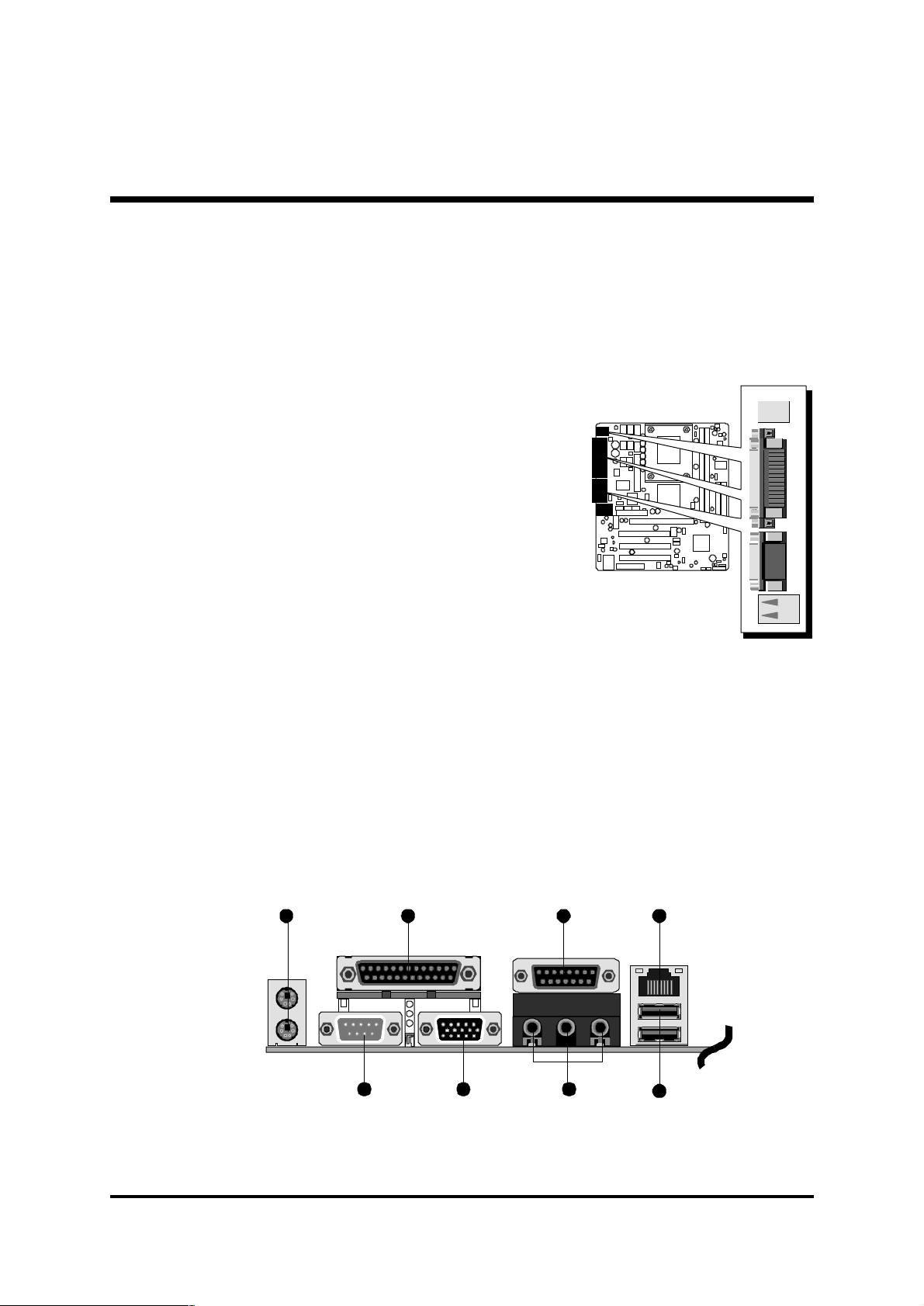

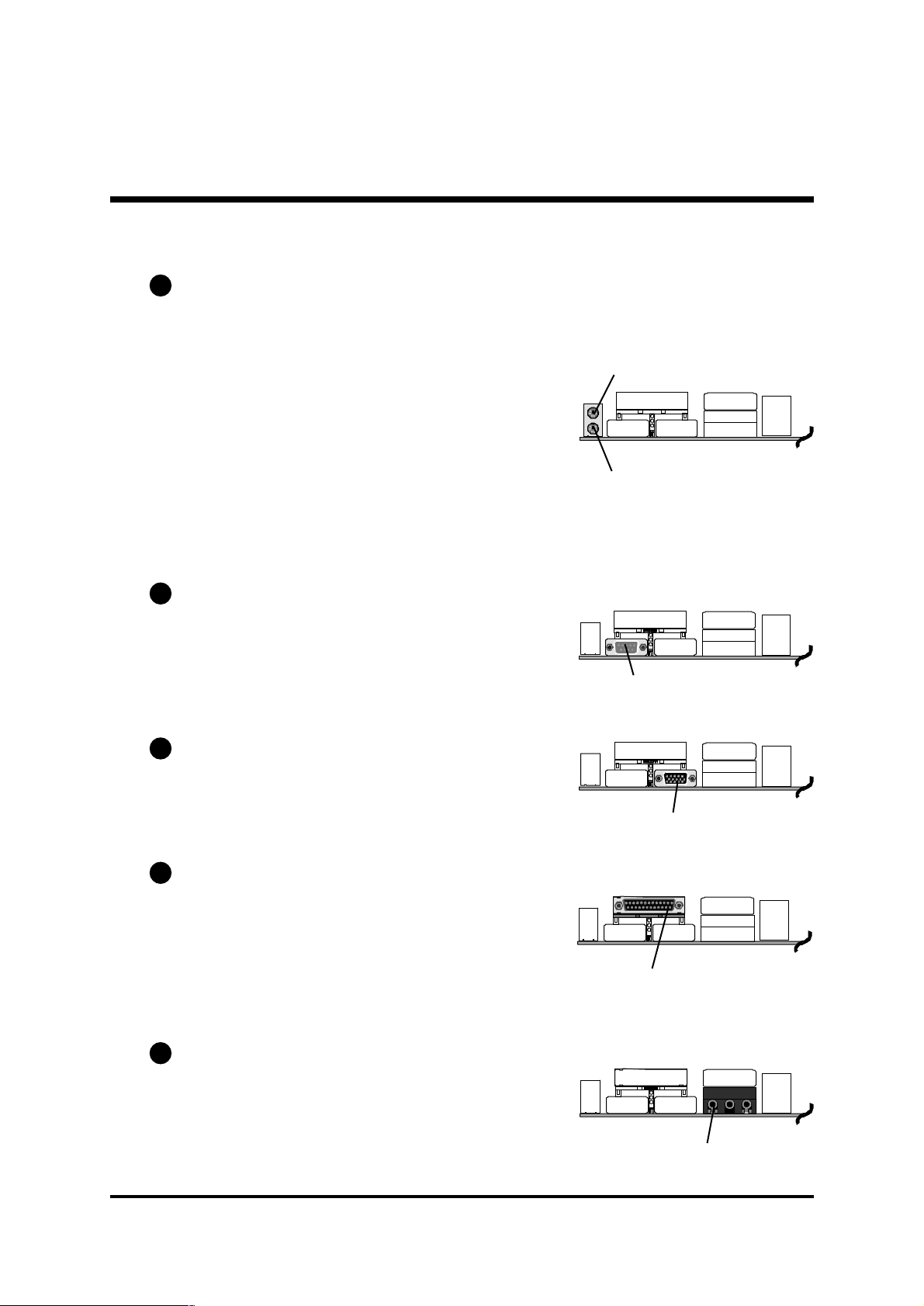

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors ............................................30

COM1 Port Connector............................................................................30

VGA Port Connector...............................................................................30

Parallel Port Connector...........................................................................30

Line-Out Port Connector .........................................................................30

Line-In Port Connector............................................................................31

Mic-In Port Connector .............................................................................31

MIDI/GAME Port Connector....................................................................31

LAN Port Connector (MS51N only) .........................................................31

USB Port 1/USB Port 2 Connectors........................................................31

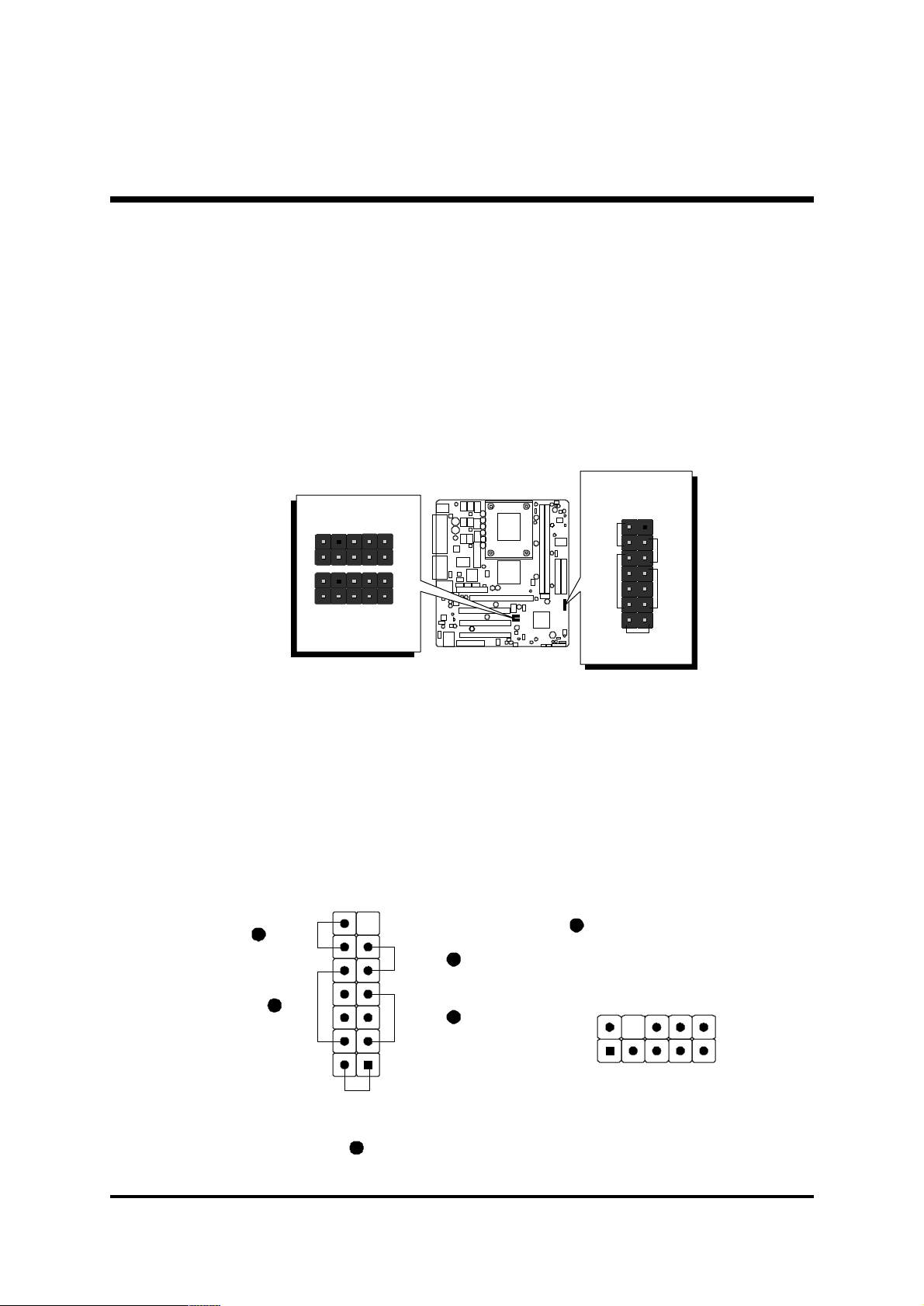

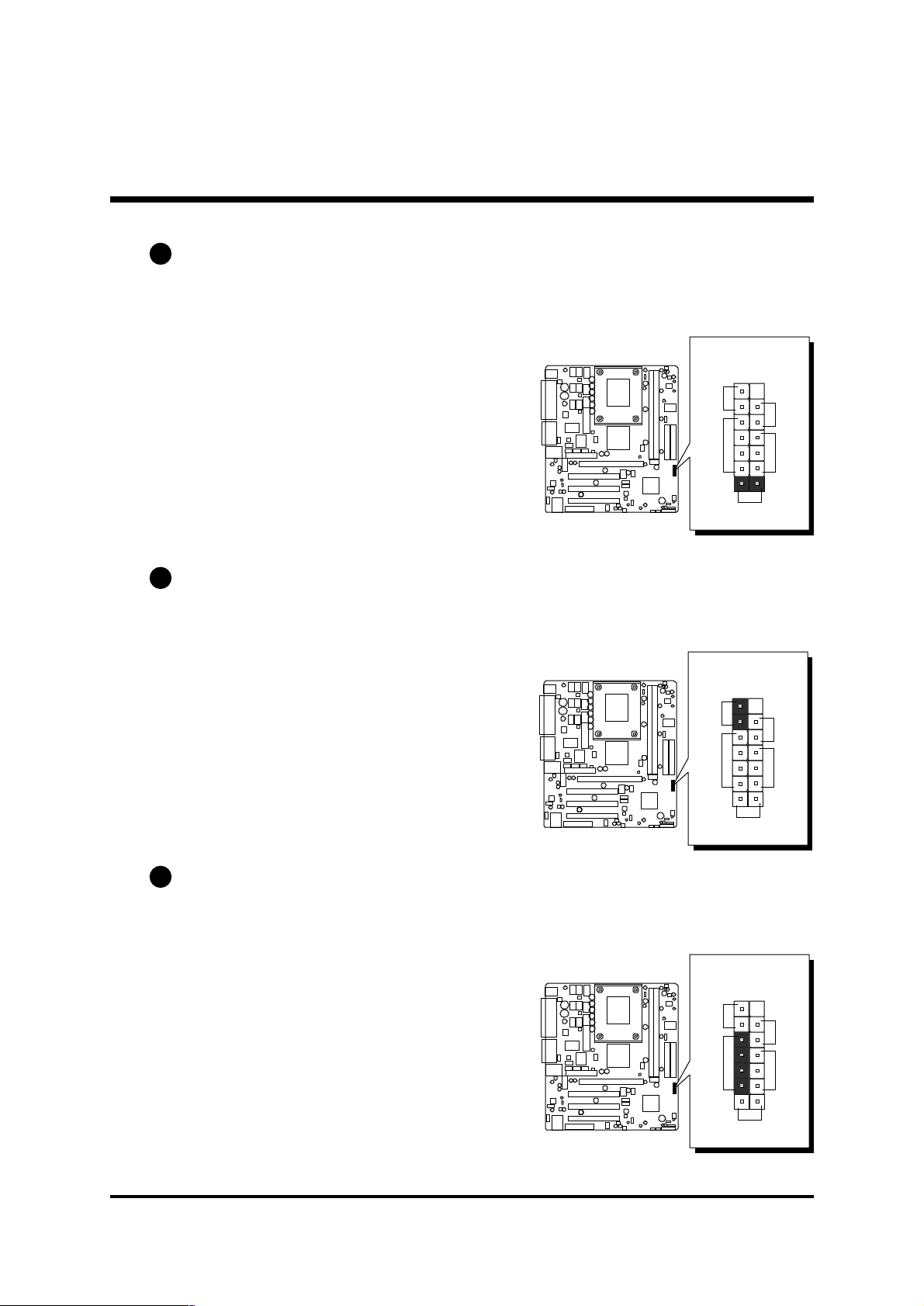

Front-Panel Connectors

A TX Power On/Off Switch Connector (PWR SW)....................................32

Green LED / Power LED Connector (ACPI LED)....................................32

HDD LED Connector (HDD LED)...........................................................33

Hardware Reset Connector (RST SW) ...................................................33

Speaker Connector (SPEAKER)............................................................33

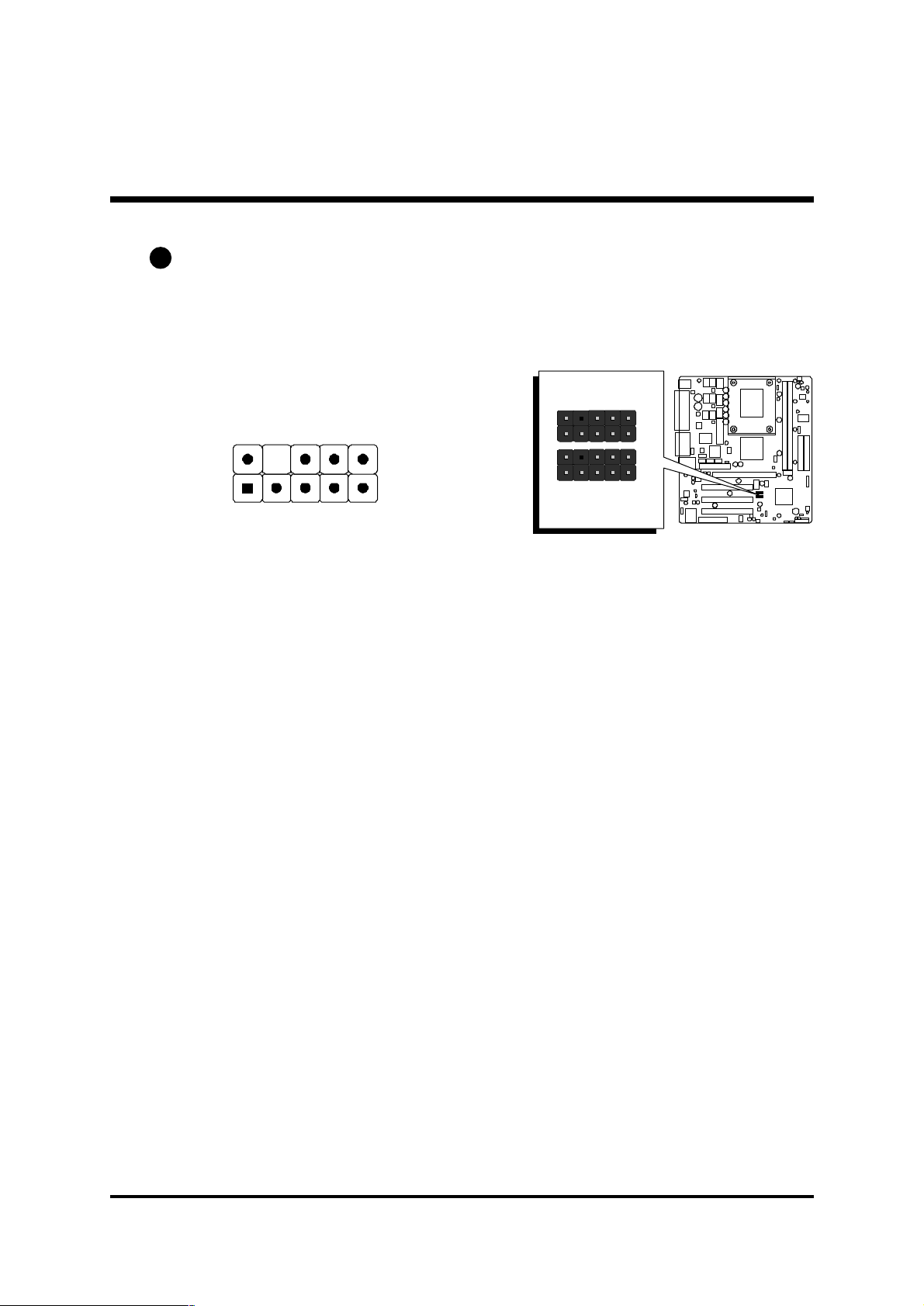

Extended USB Headers (LUSB1/LUSB2) ..............................................34

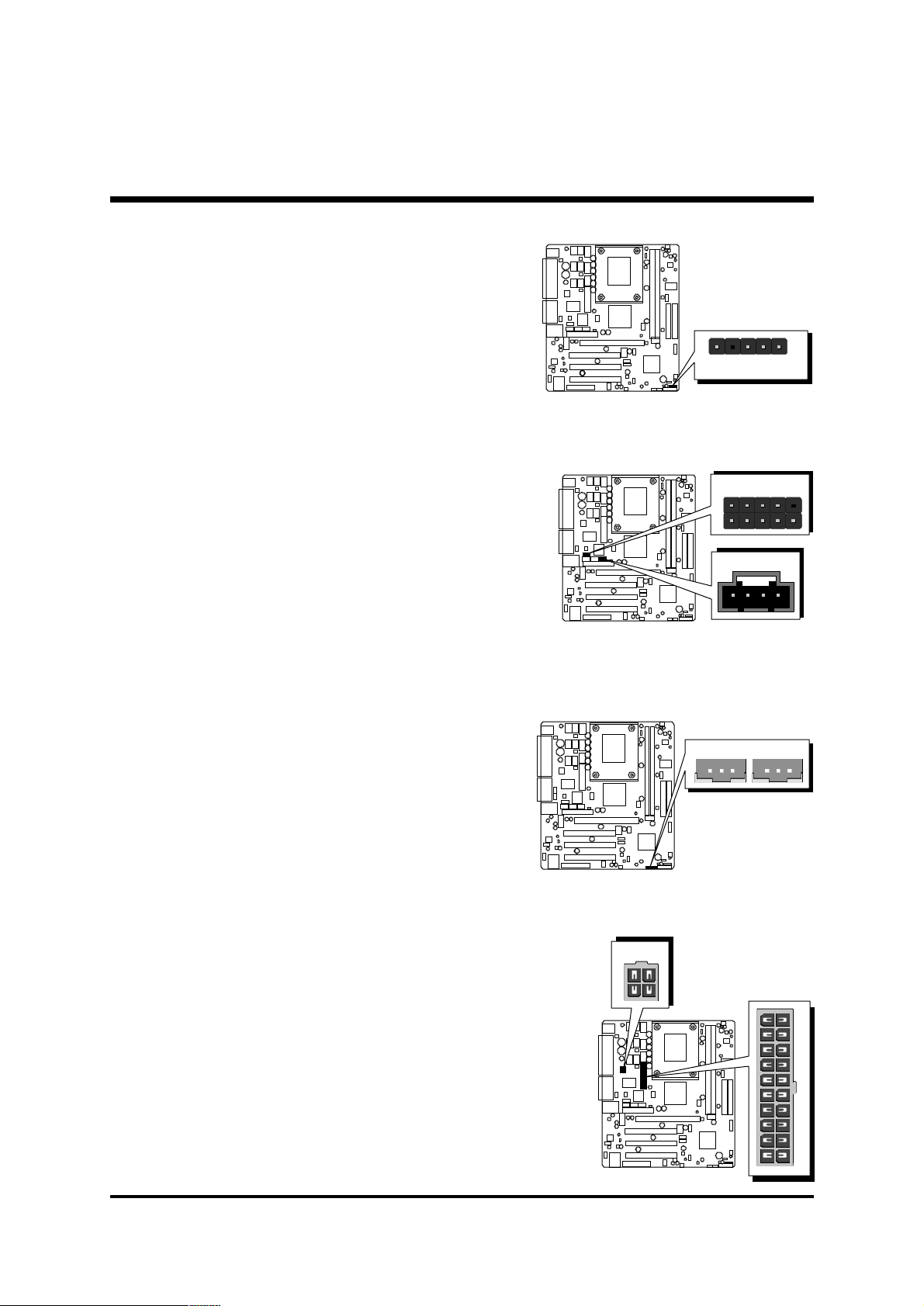

Internal Peripherals Connectors

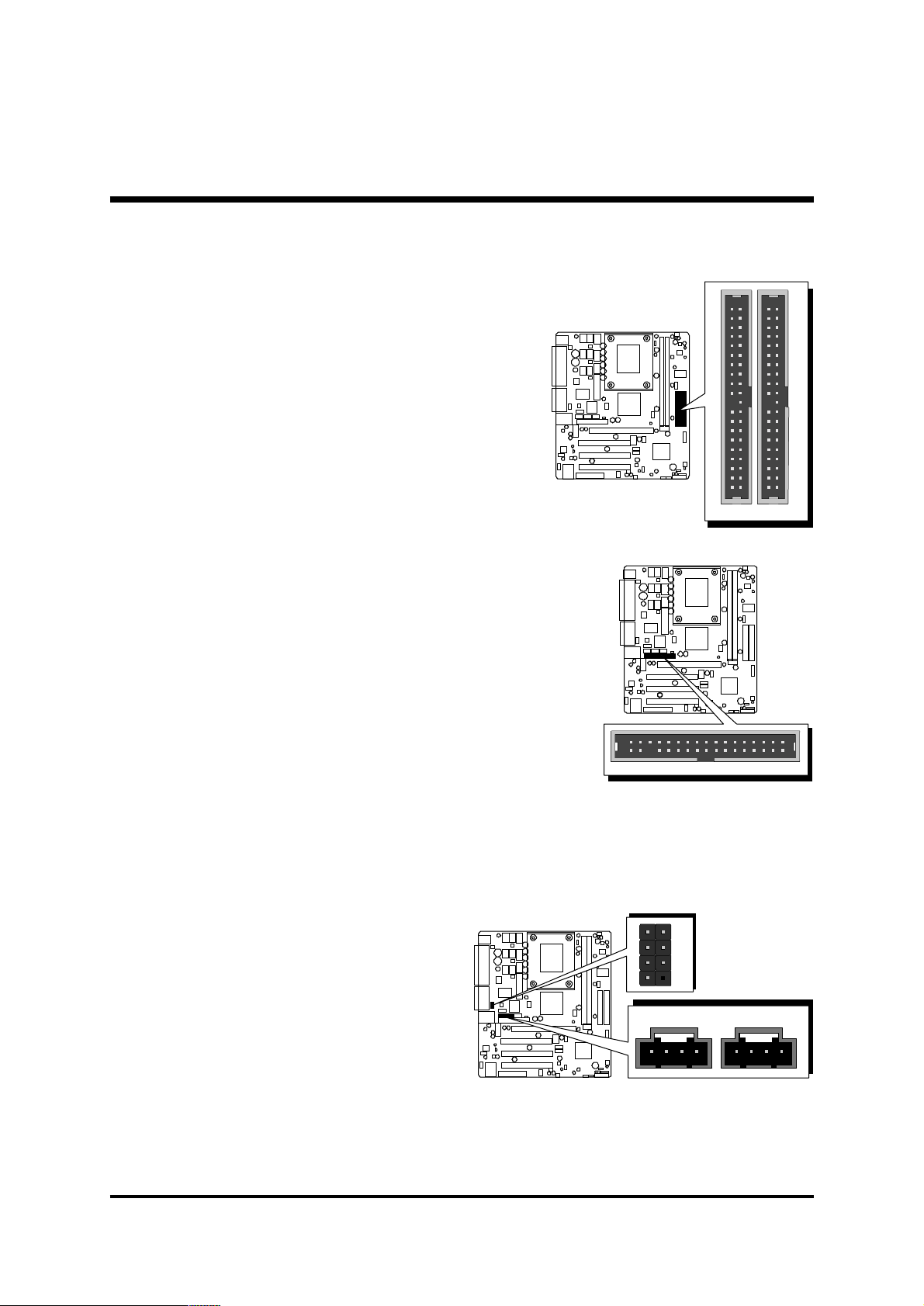

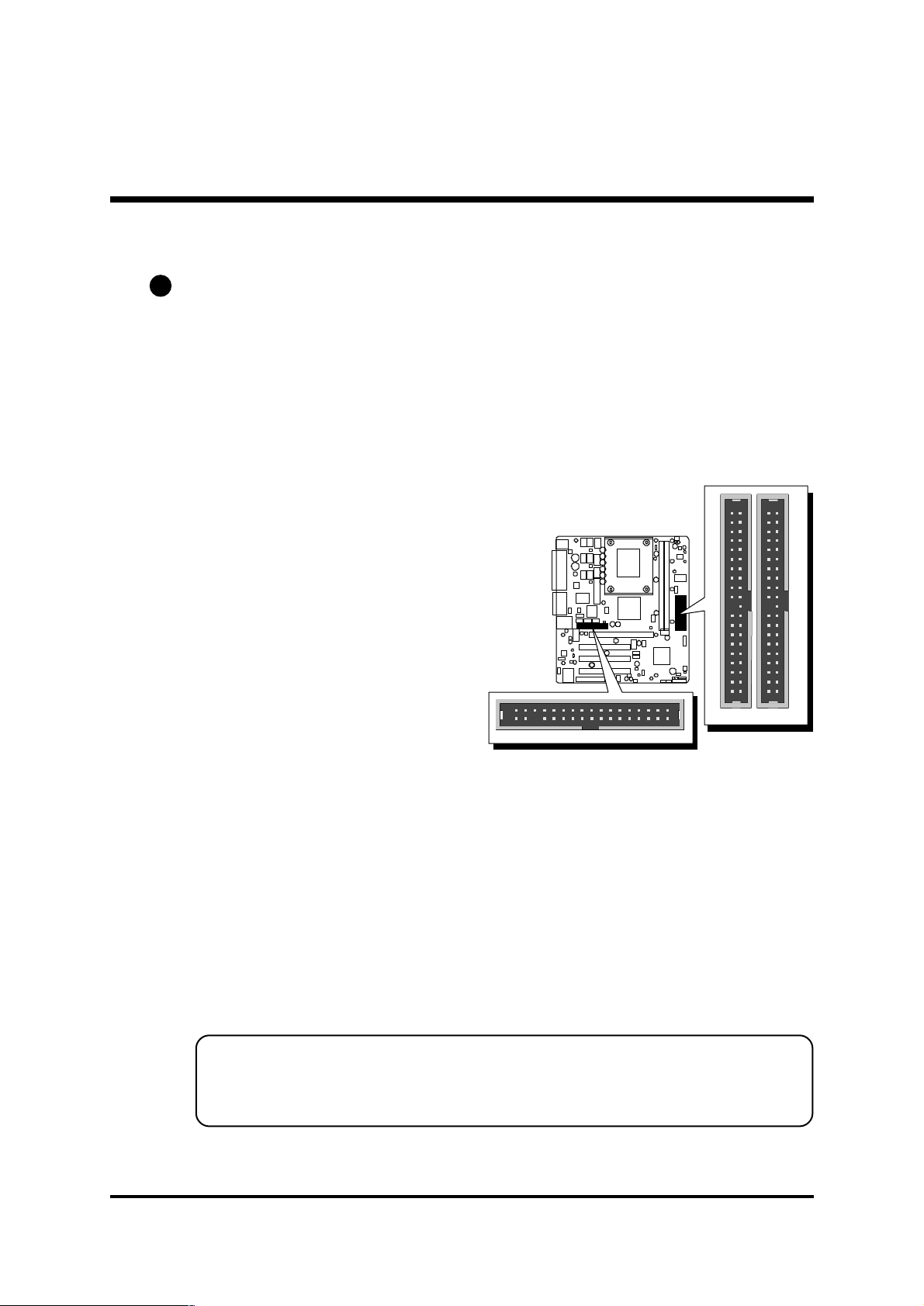

Enhanced IDE and Floppy Connector ....................................................35

Other Connectors

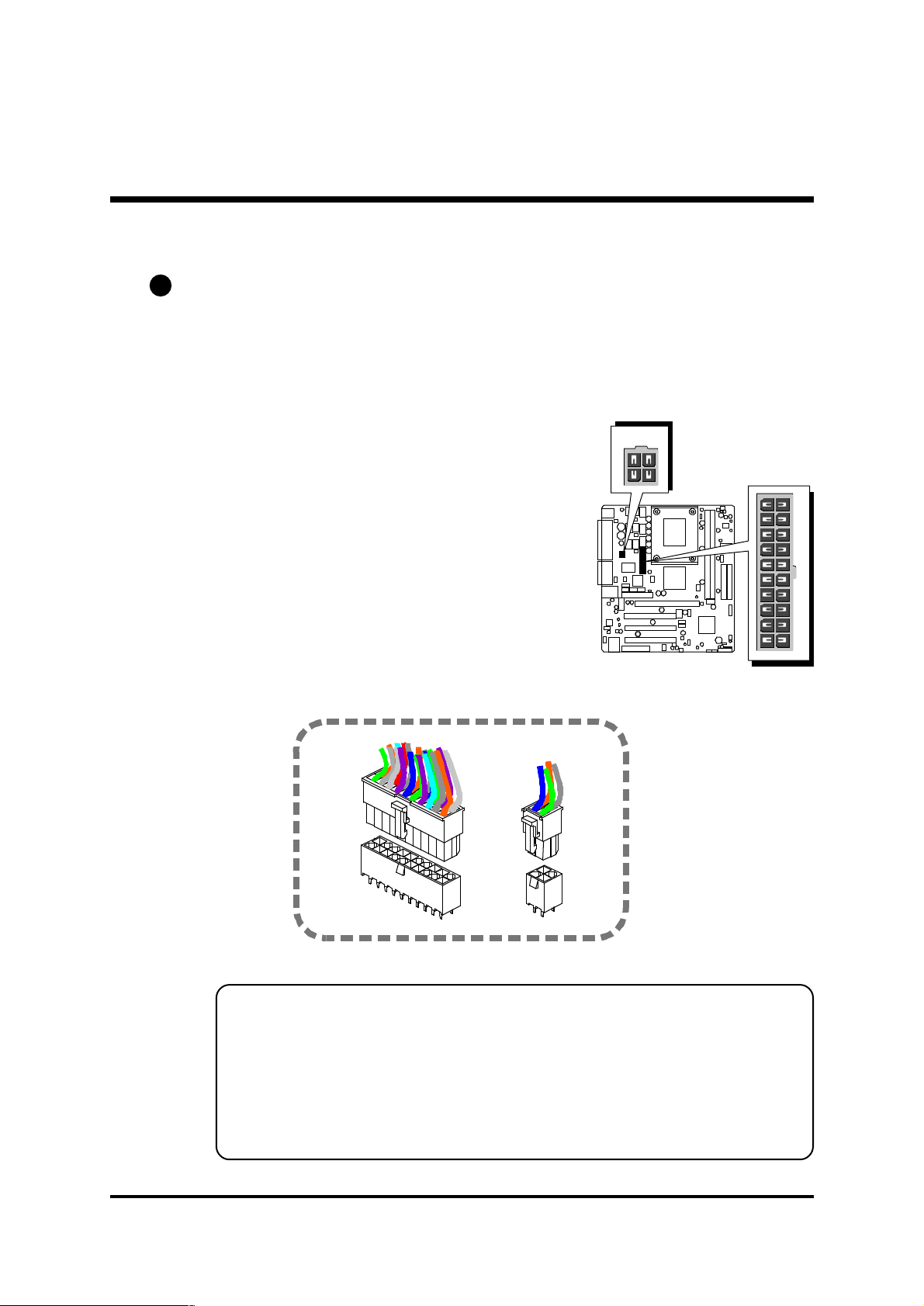

A TX Power Supply Connector (ATX1/ATX2)...........................................36

- 2 -

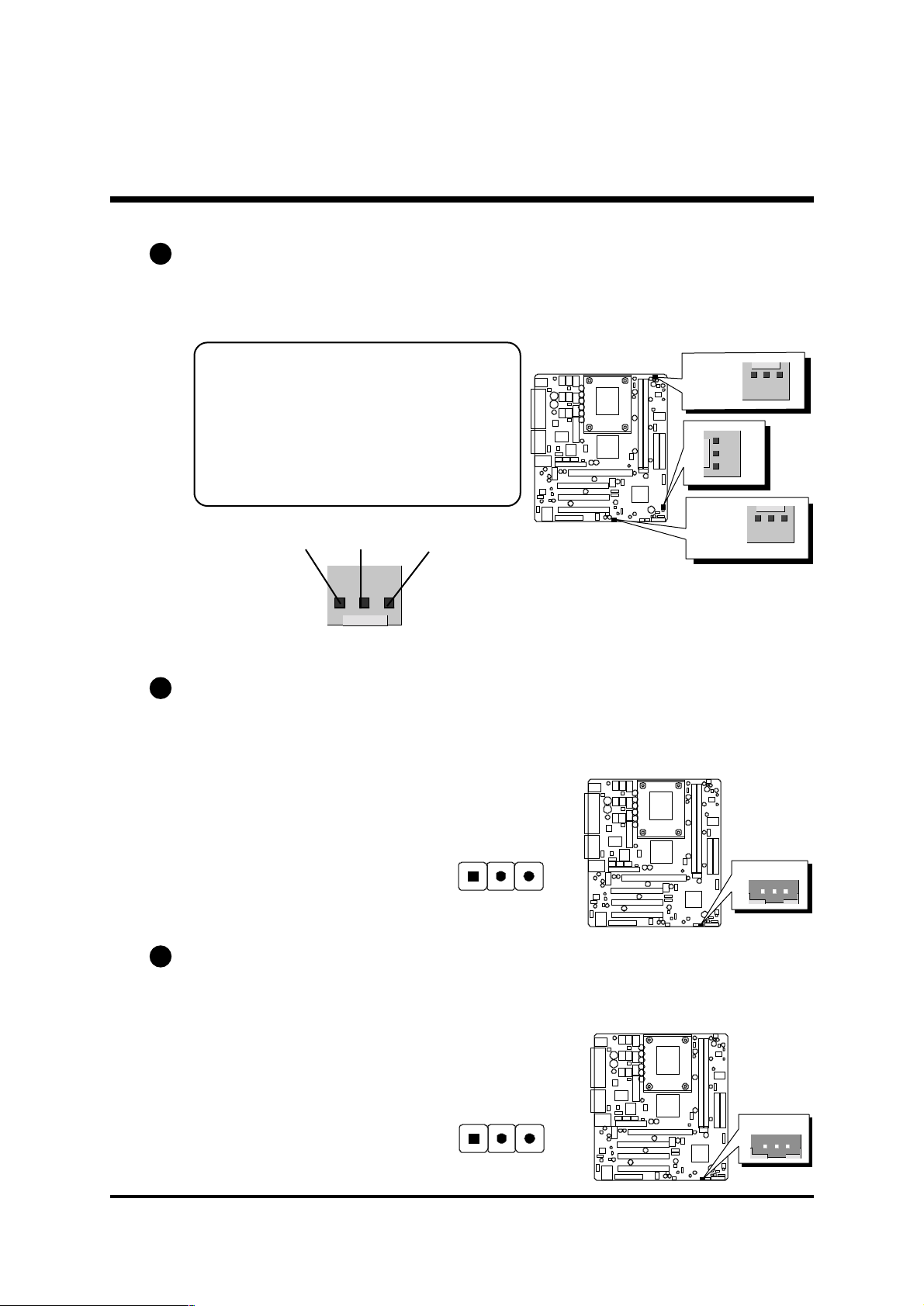

Cooling Fan Connectors for CPU (CPUFAN1), Case (CHSF AN1/

BAKFAN1) .............................................................................................37

Wake-on-LAN Connector (WOL1) ..........................................................37

Wake-on-Modem Connector (WOM1).....................................................37

IR Header (LSIR1) ..................................................................................38

Modem In Header (LMDN1)....................................................................38

COM2 Connector (COM2)......................................................................39

Audio CD-IN Connector (CDIN1/CDIN2)................................................. 39

Front-Panel AudioHeader (LAUDIO1).....................................................40

Memory module LED (LED1) .................................................................40

3.3 SYSTEM MEMORY CONFIGURATION ......................................................41

1. INST ALL MEMORY.............................................................................41

2. UPGRADE MEMORY.........................................................................41

4 SOFTWARE UTILITY .......................................................................42

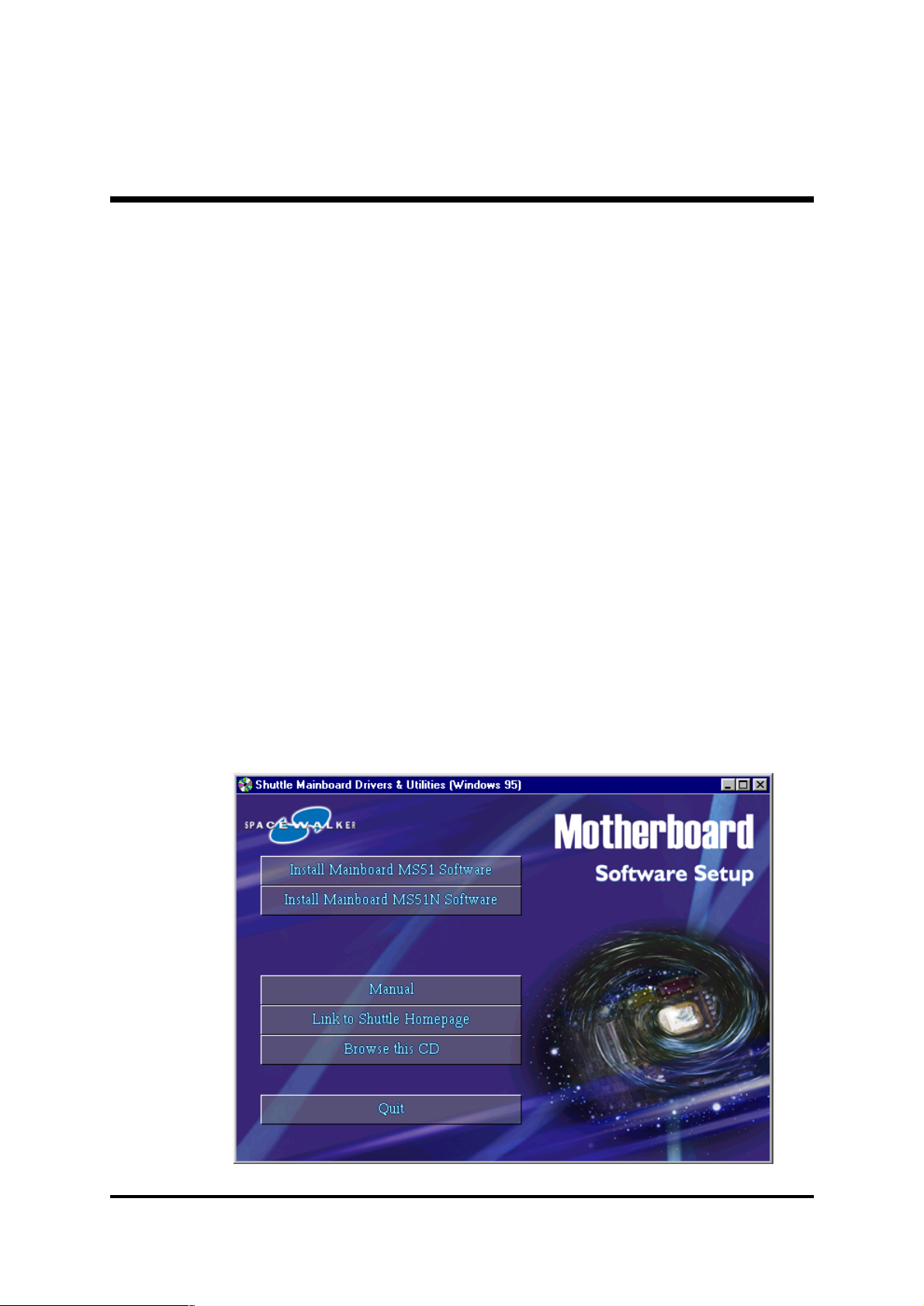

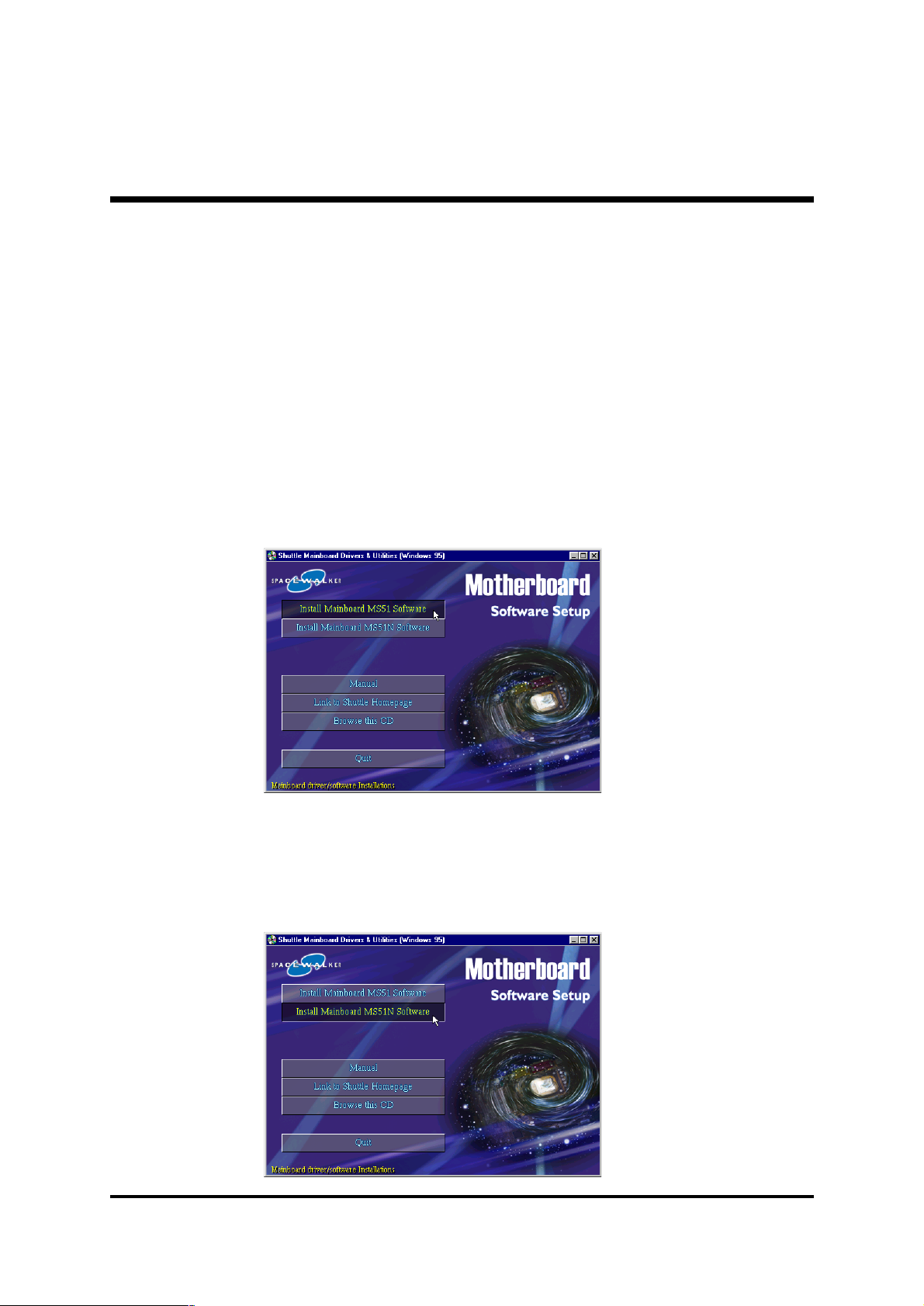

4.1 Mainboard CD Overview ..........................................................................42

4.2 Install Mainboard Software ......................................................................43

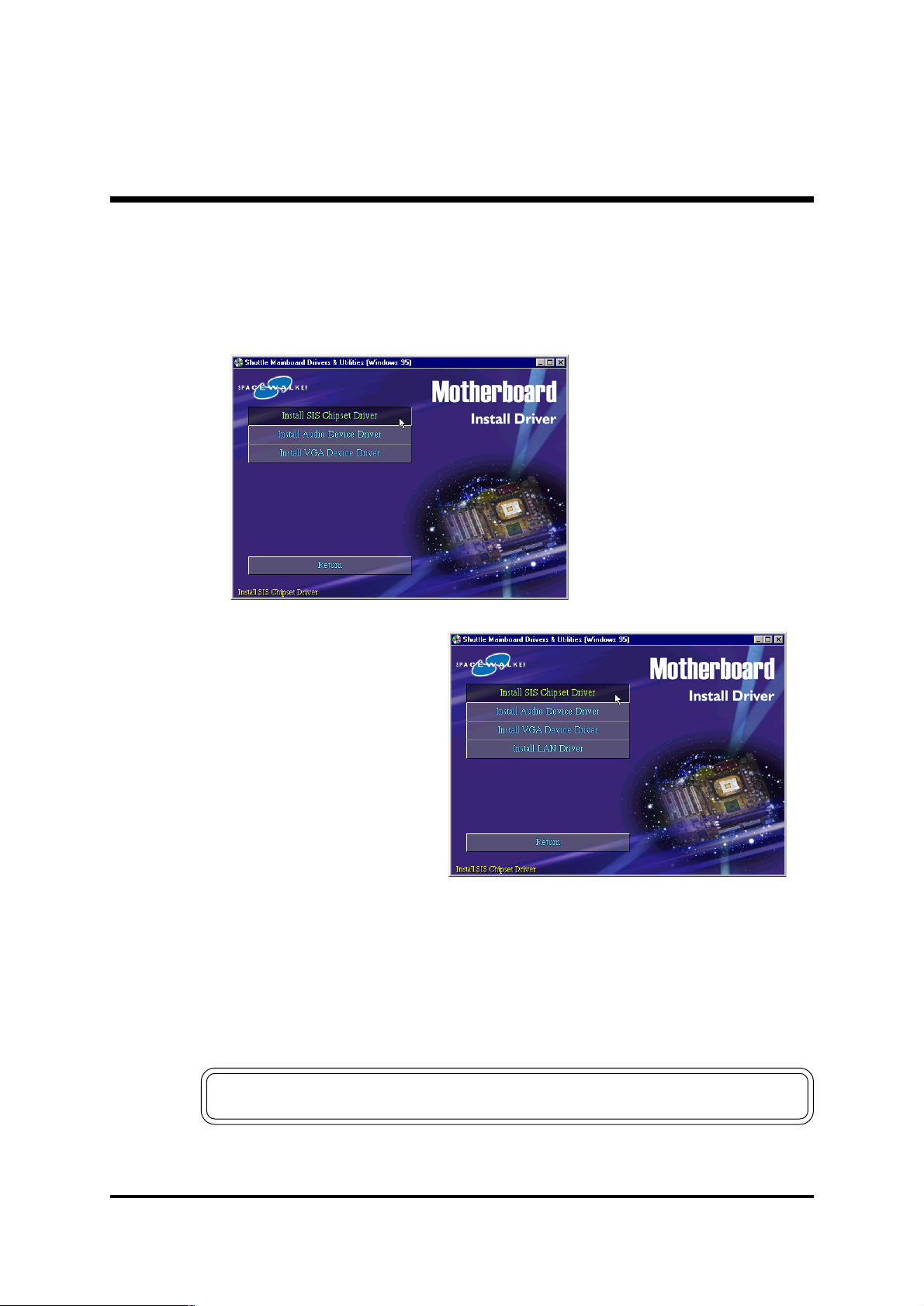

4.2.A Install SIS Chipset Driver ..............................................................44

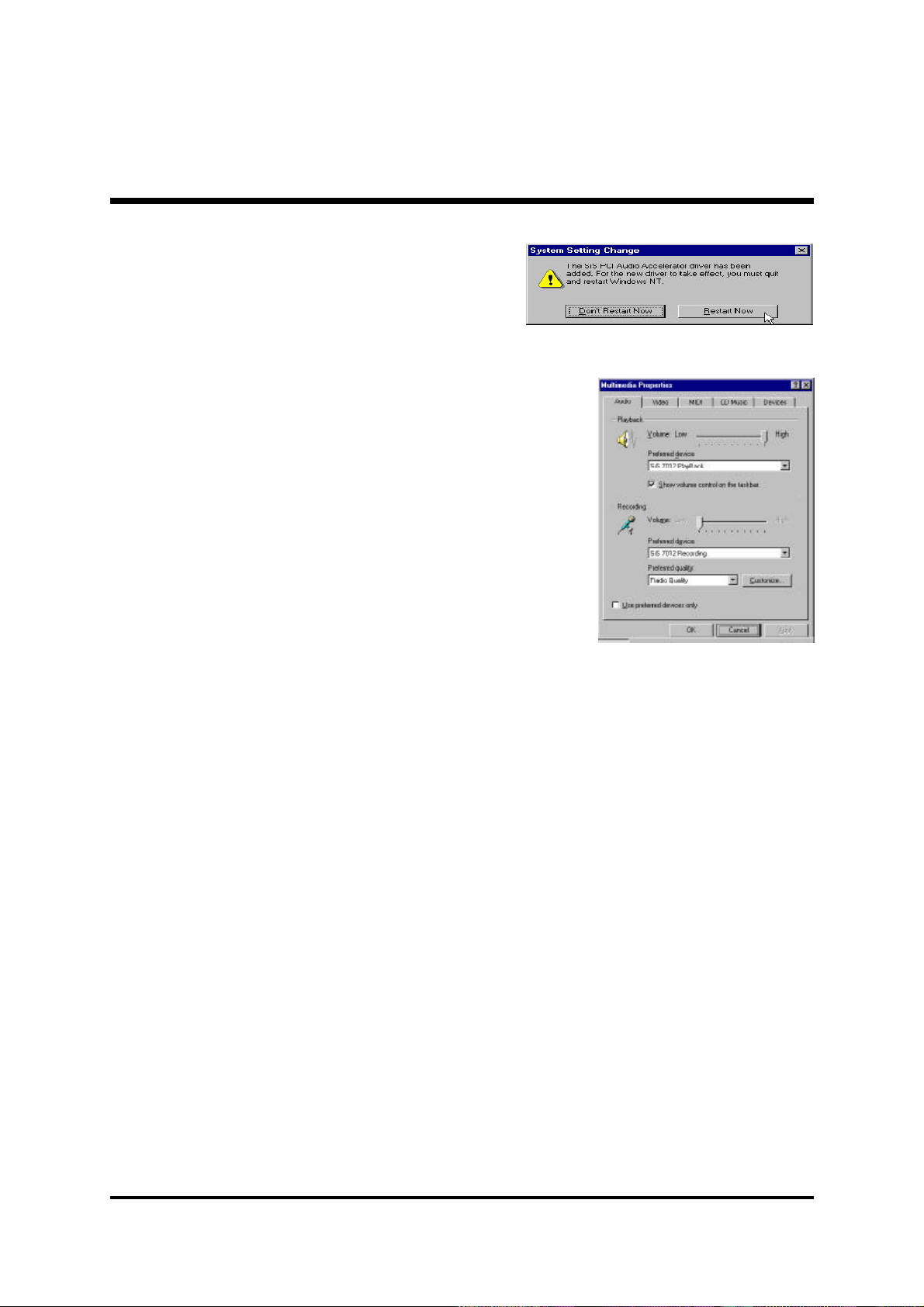

4.2.B Install Audio Driver........................................................................45

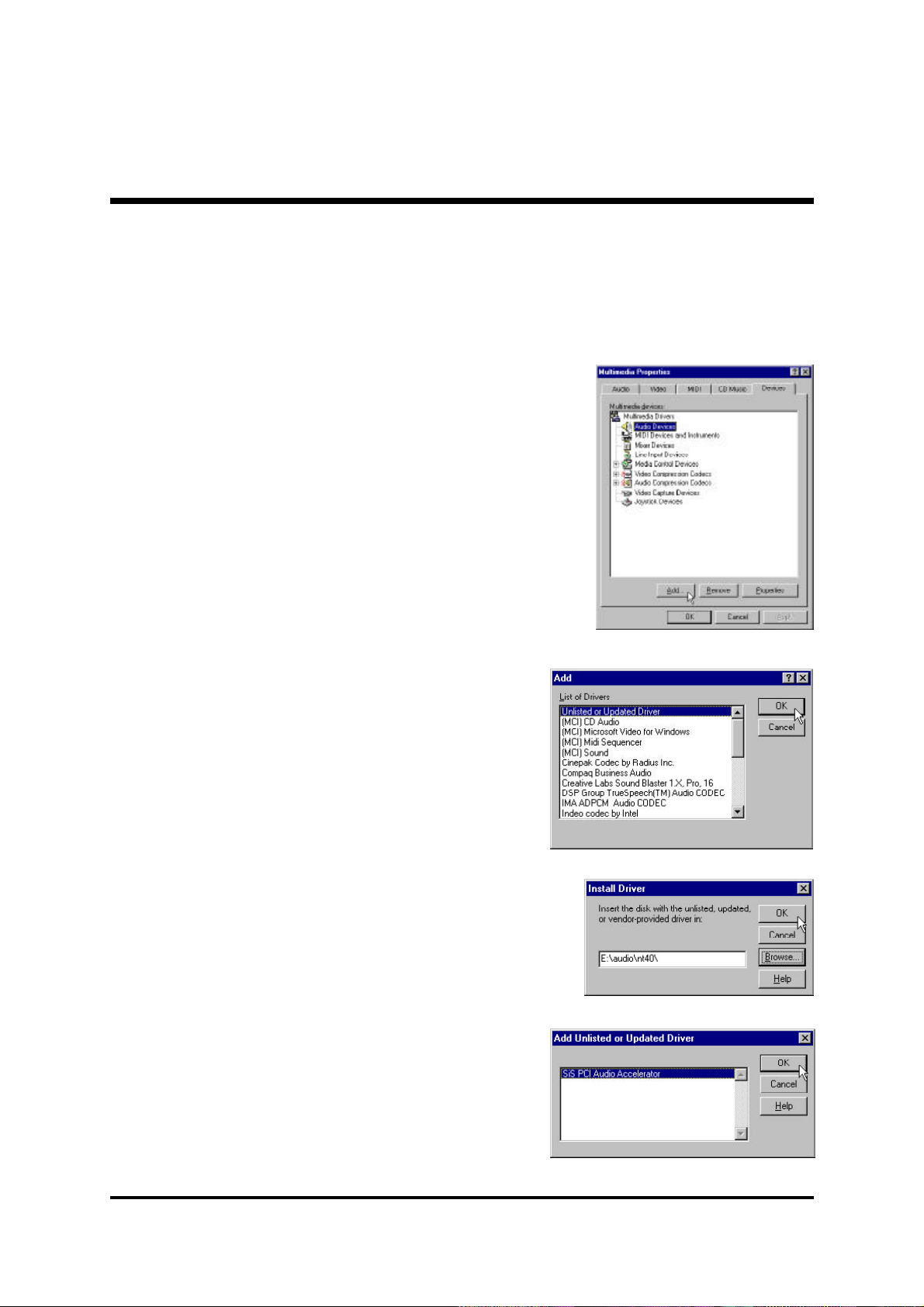

Install WINNT Audio driver ...........................................................46

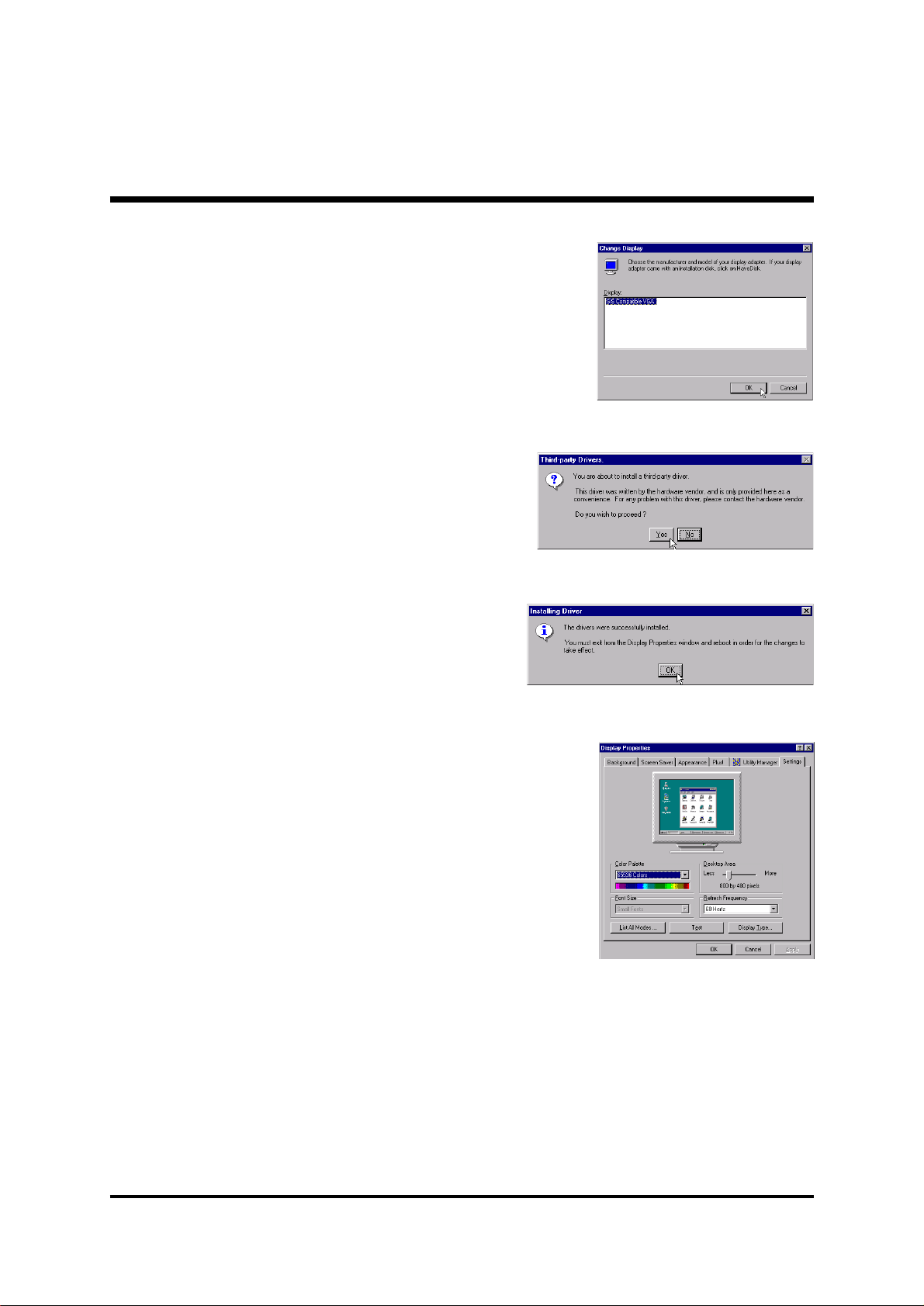

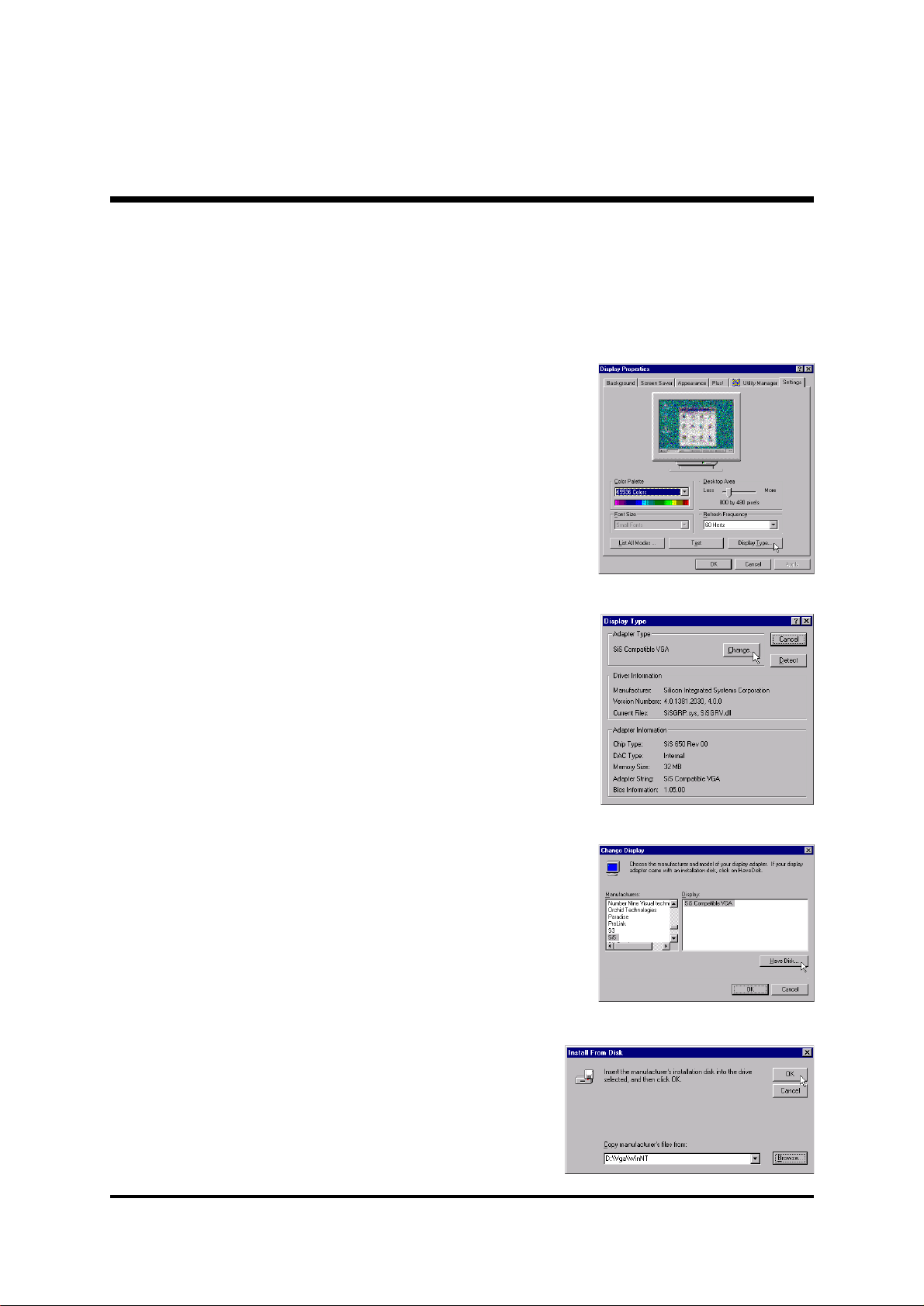

4.2.C Install SIS VGA Driver ..................................................................48

Install WINNT VGA driver..............................................................49

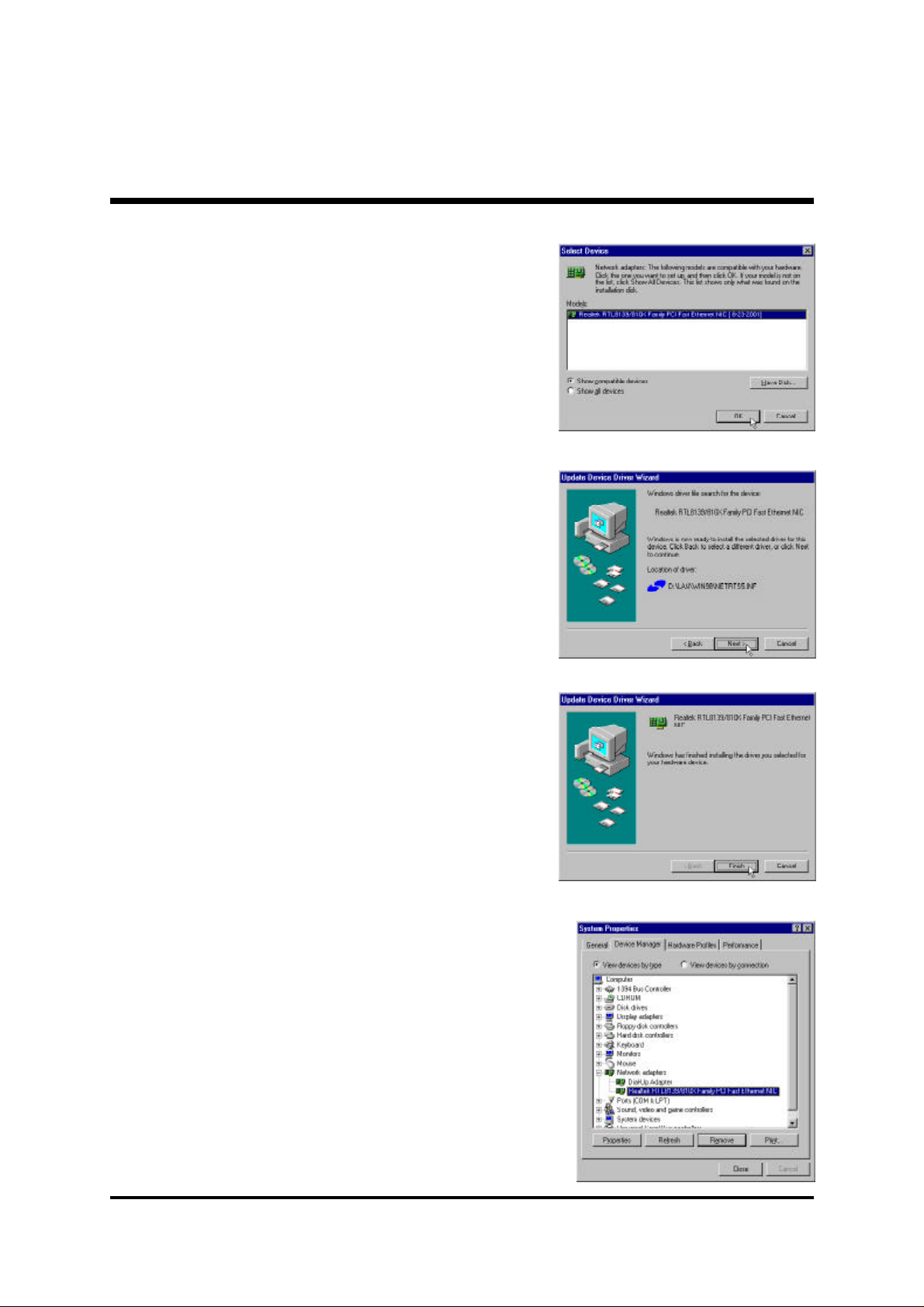

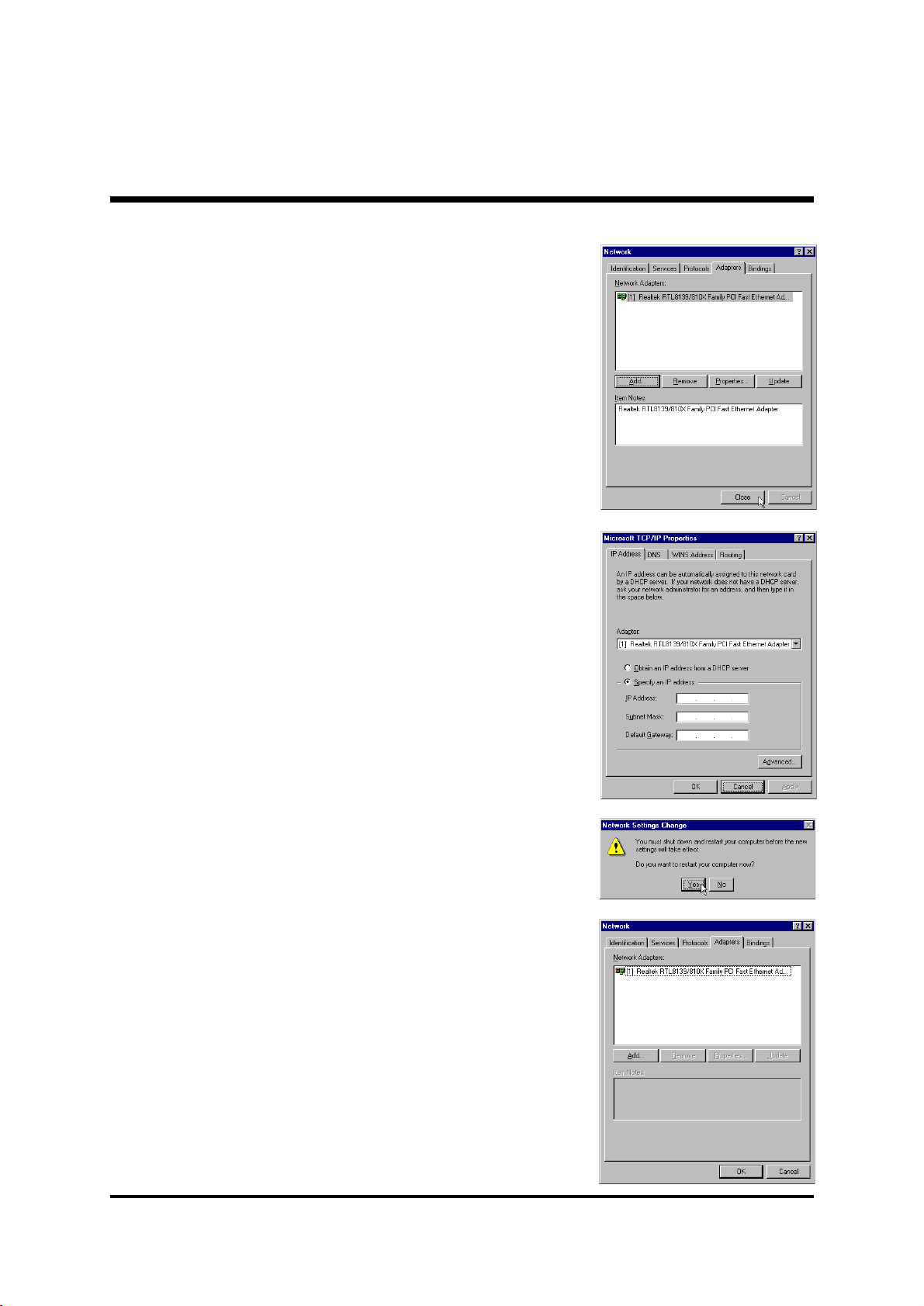

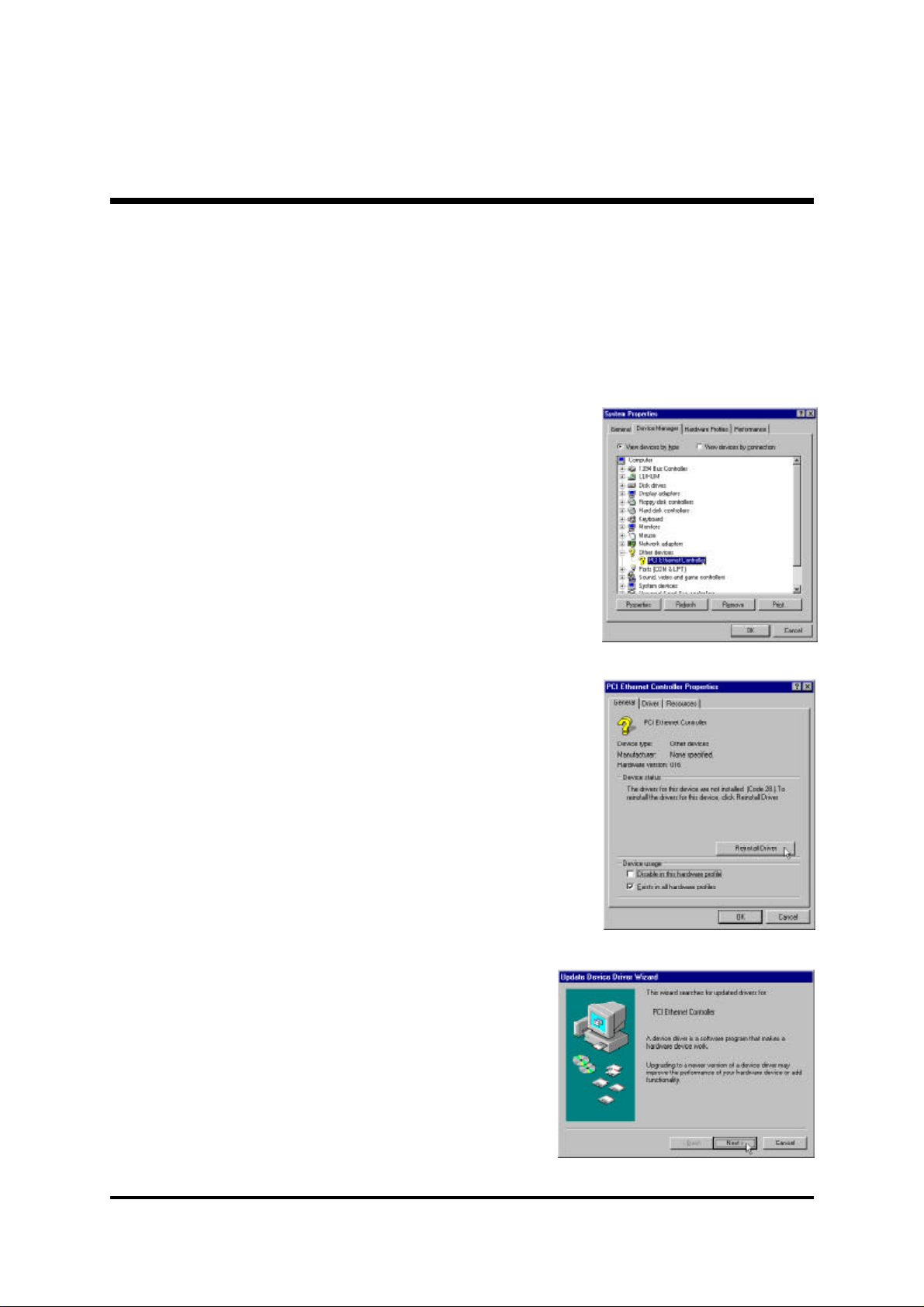

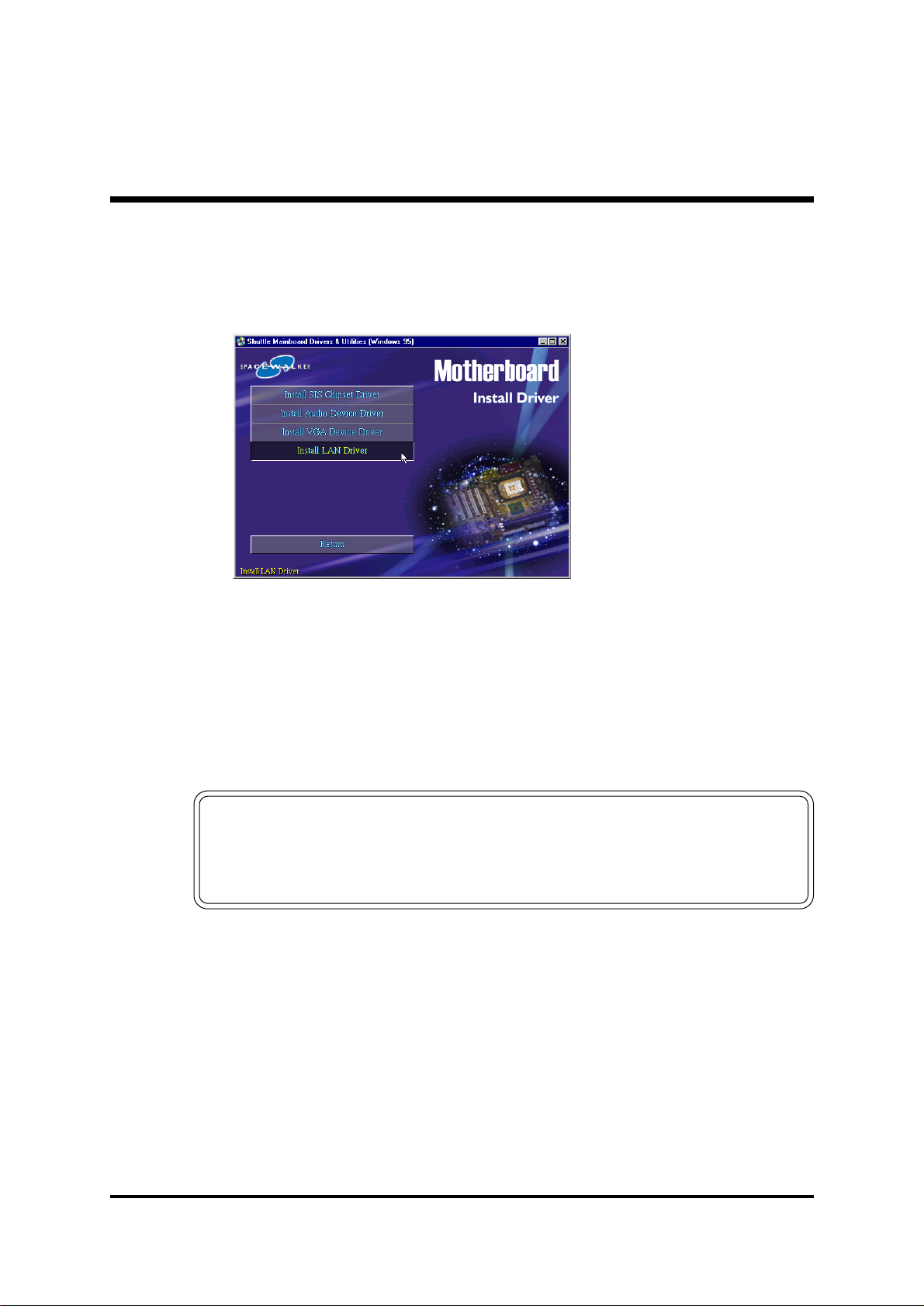

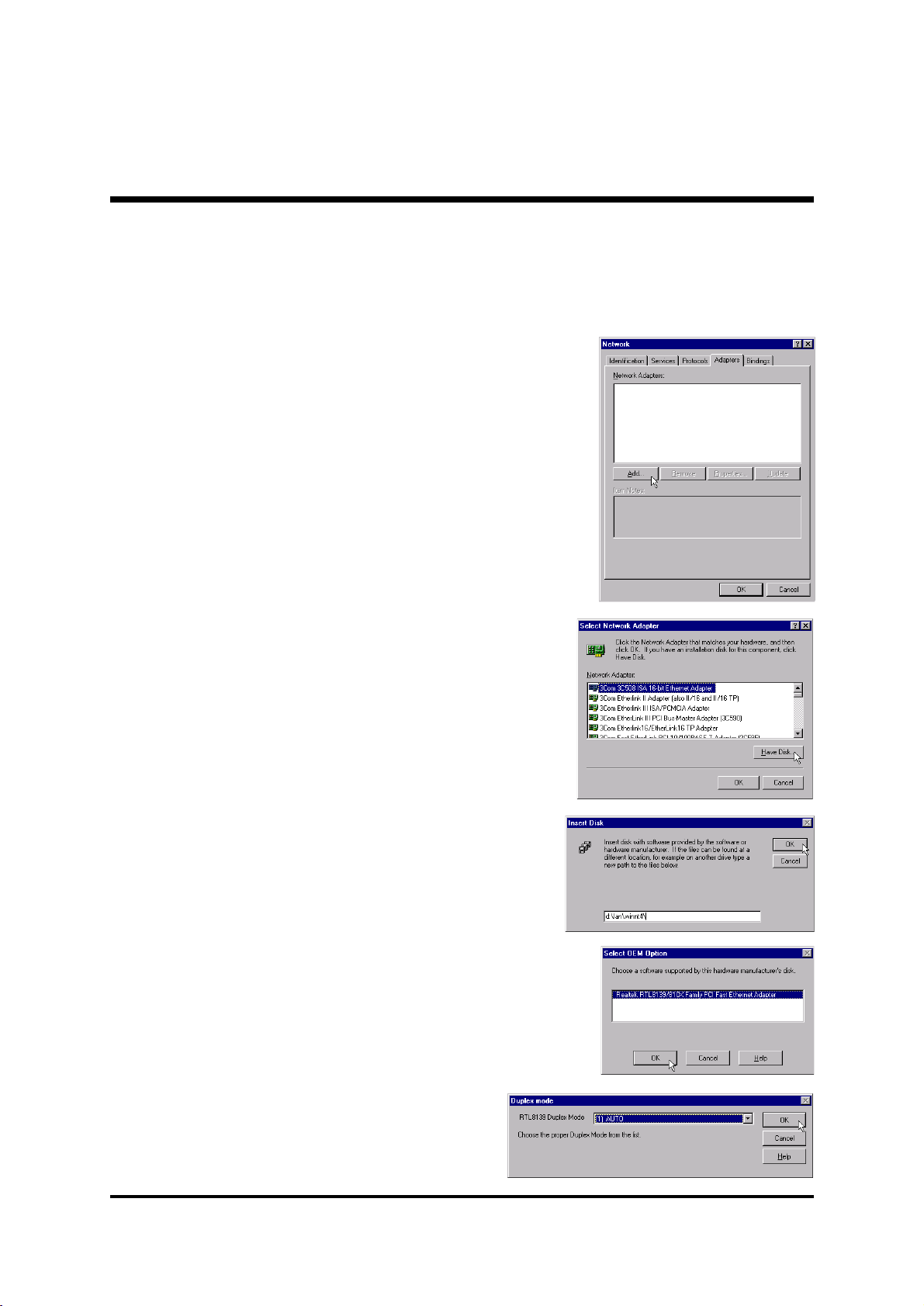

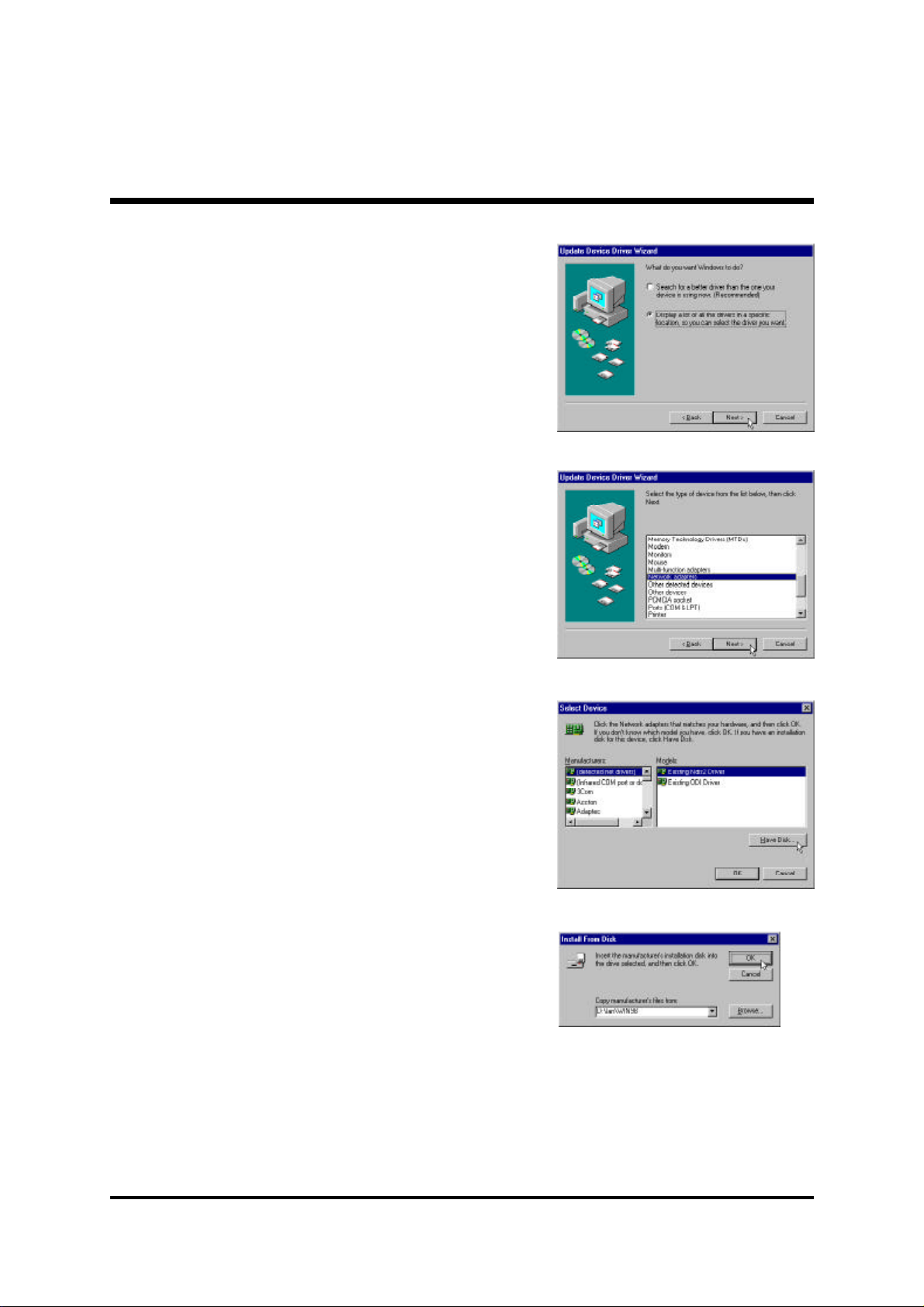

4.2.D Install LAN Driver (MS51N only)....................................................51

Install WIN98 LAN driver ...............................................................52

Install WINNT LAN driver...............................................................55

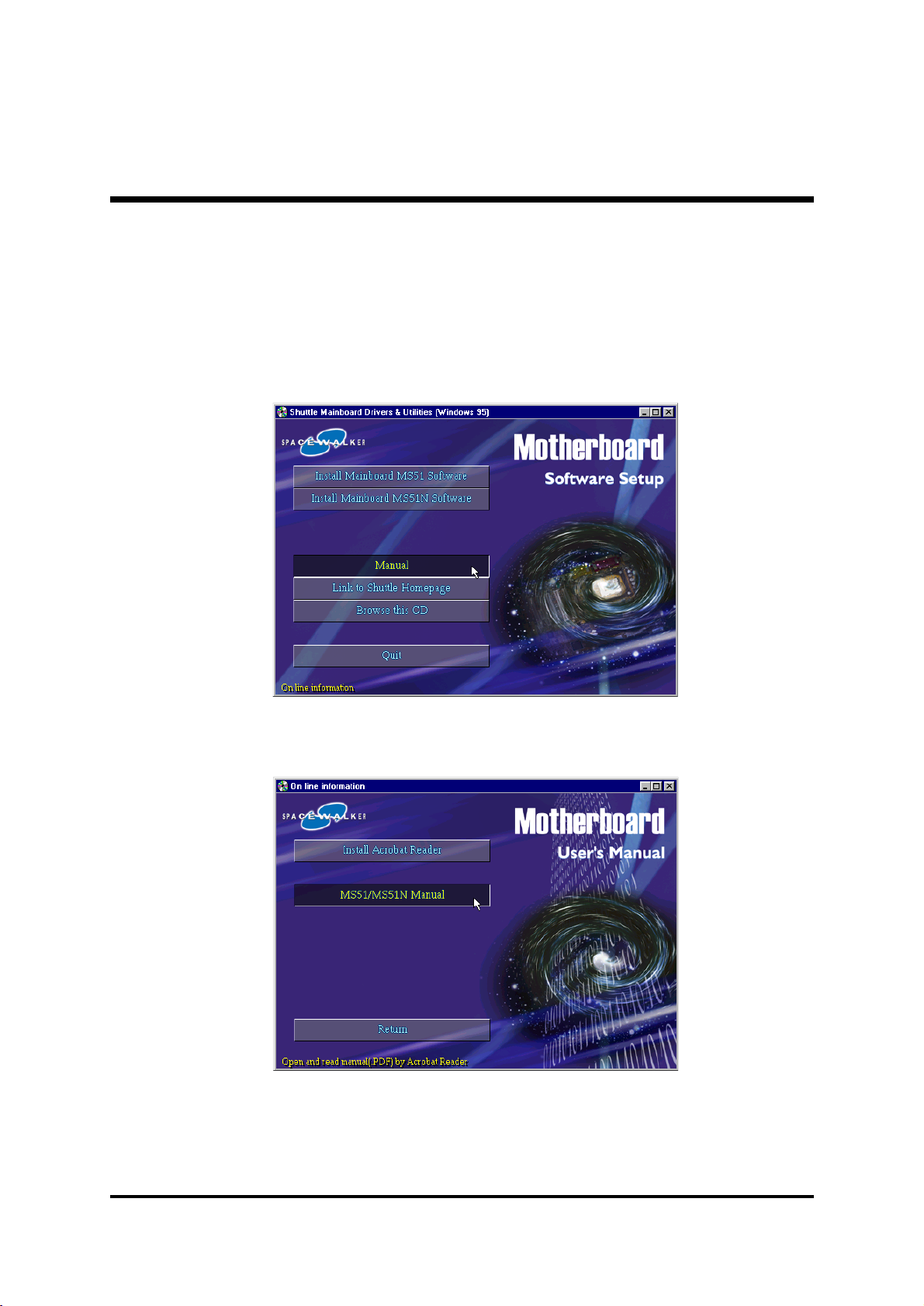

4.3 View the User's Manual............................................................................57

- 3 -

5 BIOS SETUP.....................................................................................5 8

5.1 ENTER BIOS ..............................................................................................58

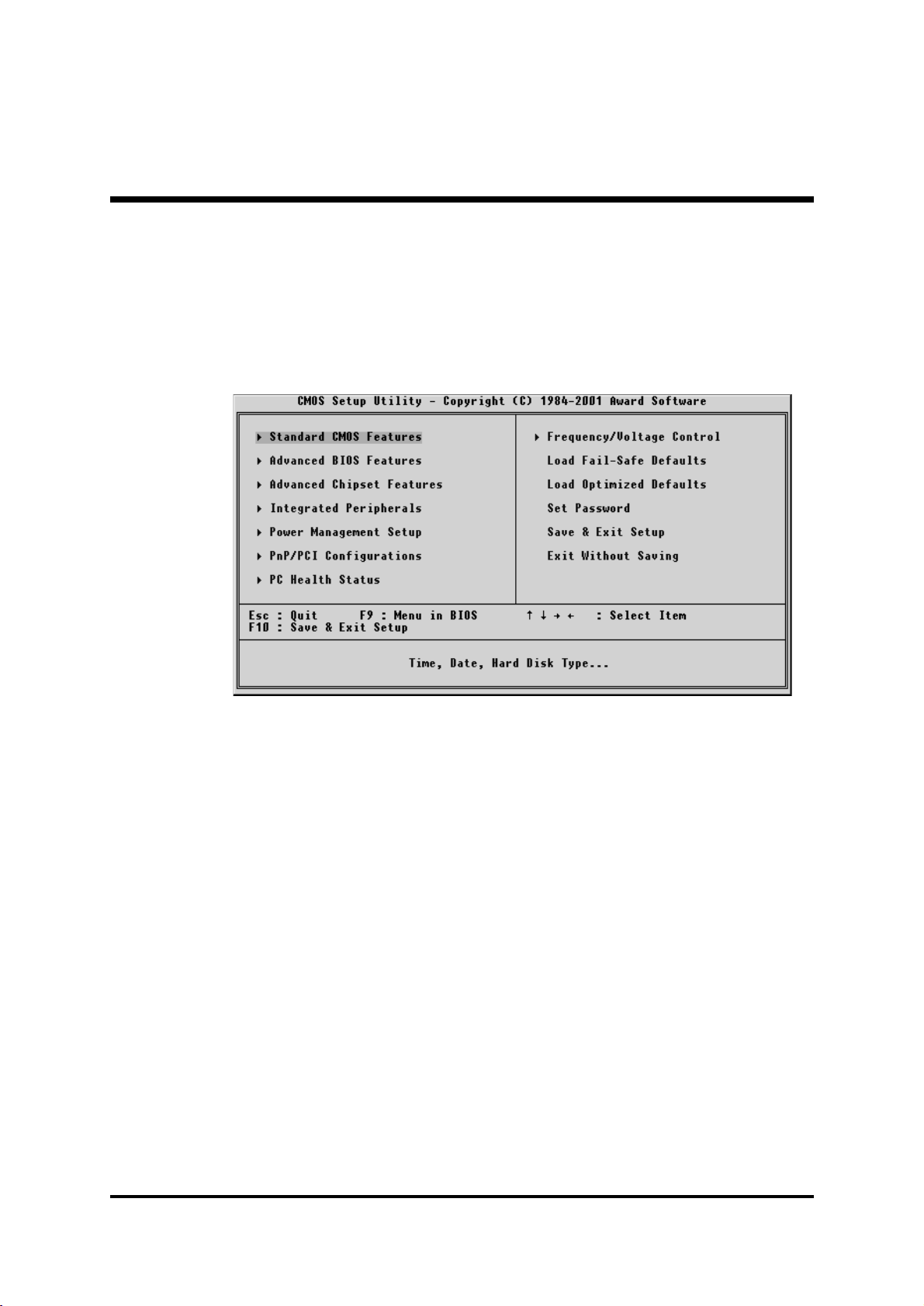

5.2 THE MAIN MENU .......................................................................................59

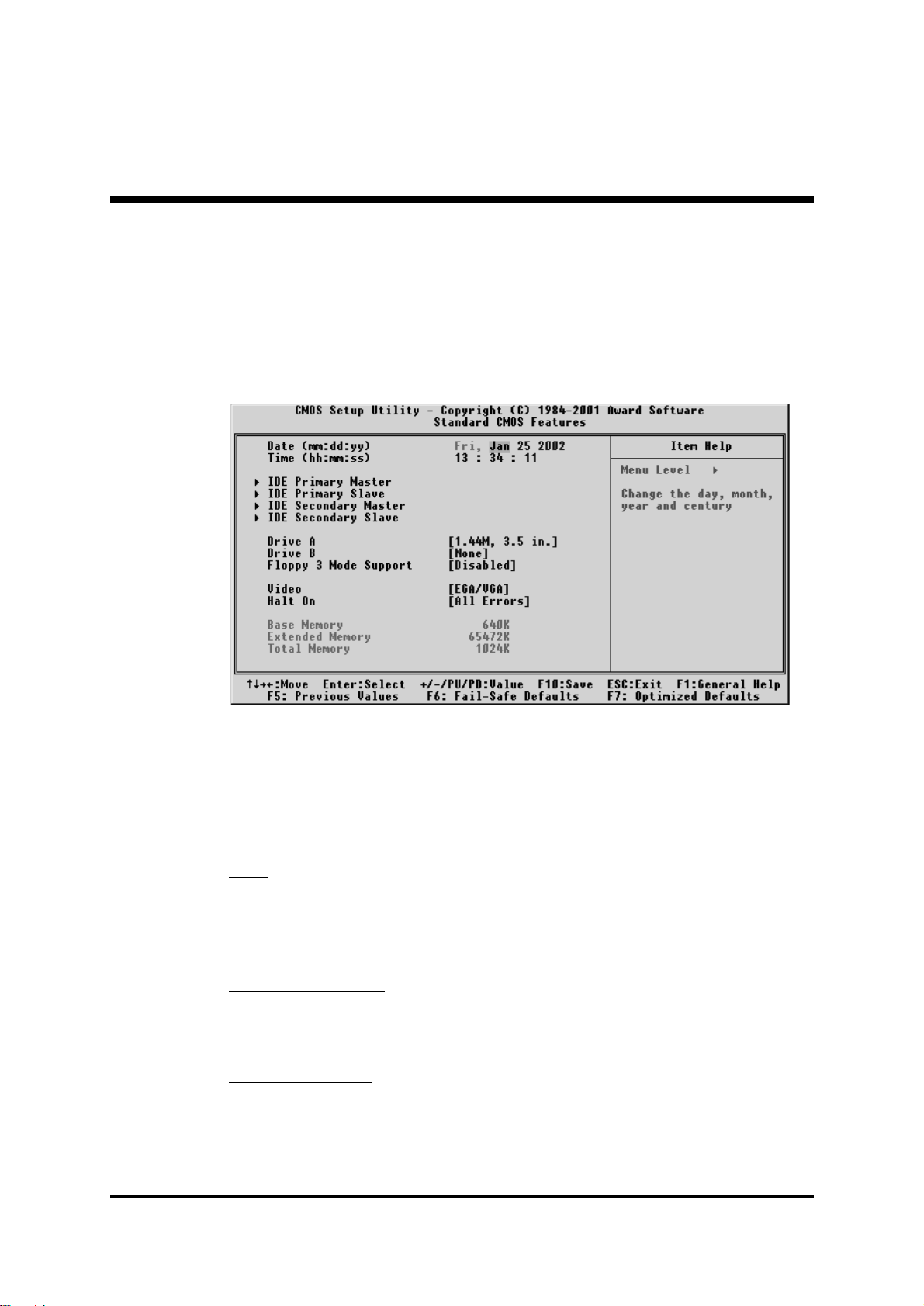

ST ANDARD CMOS FEATURES ................................................................61

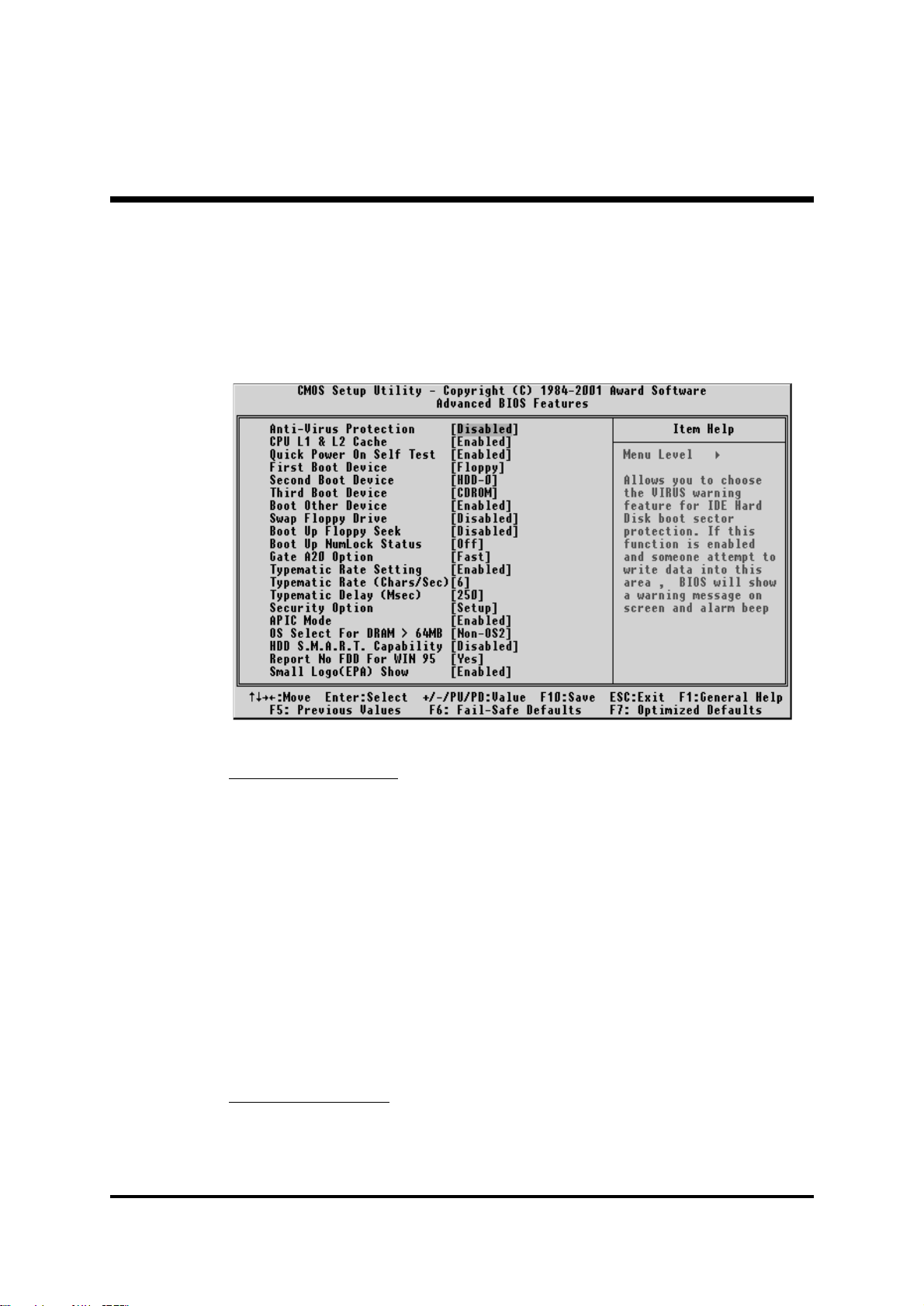

ADVANCED BIOS FEATURES..................................................................64

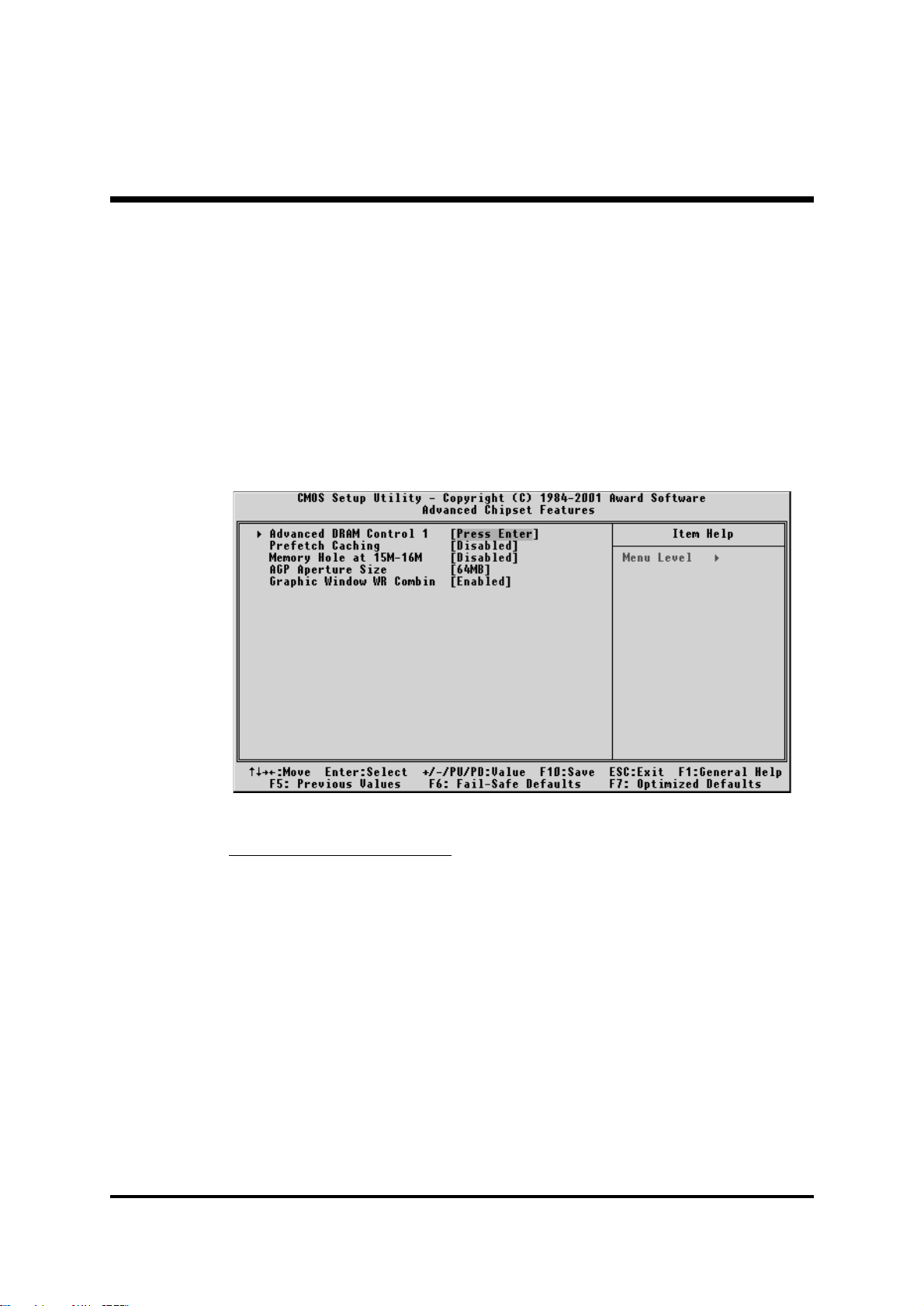

ADVANCED CHIPSET FEATURES ...........................................................67

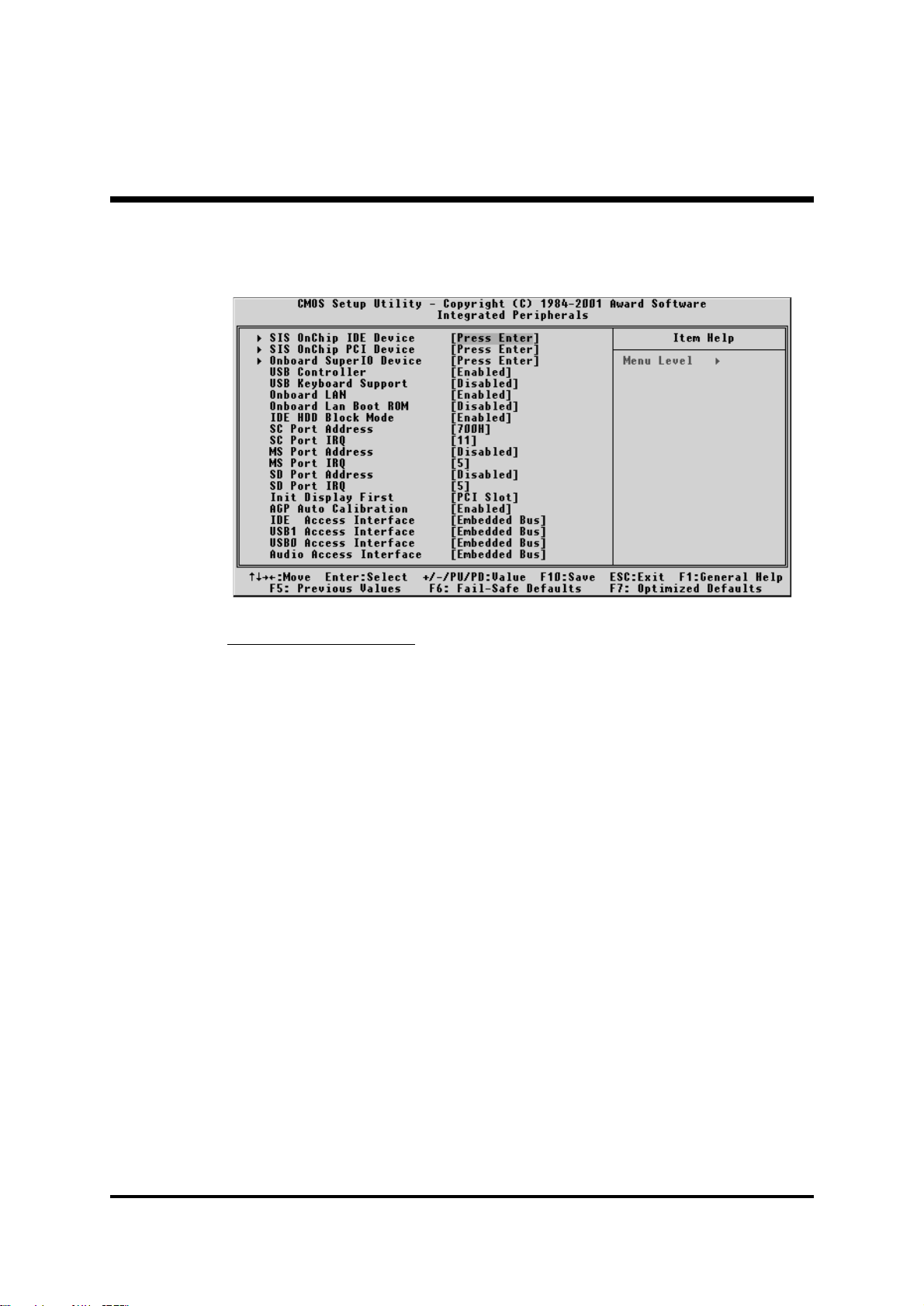

INTEGRATED PERIPHERALS...................................................................69

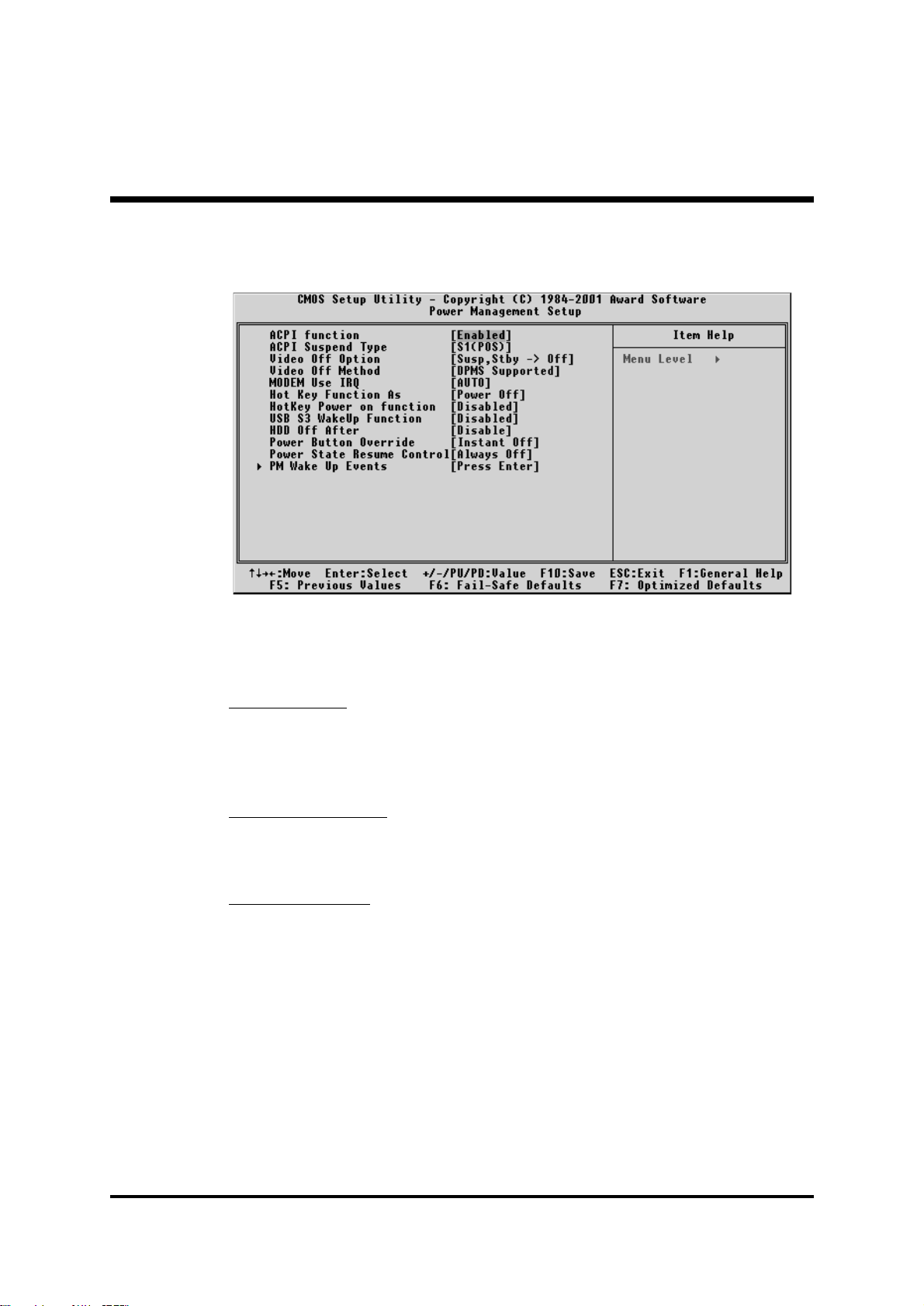

POWER MANAGEMENT SETUP ..............................................................74

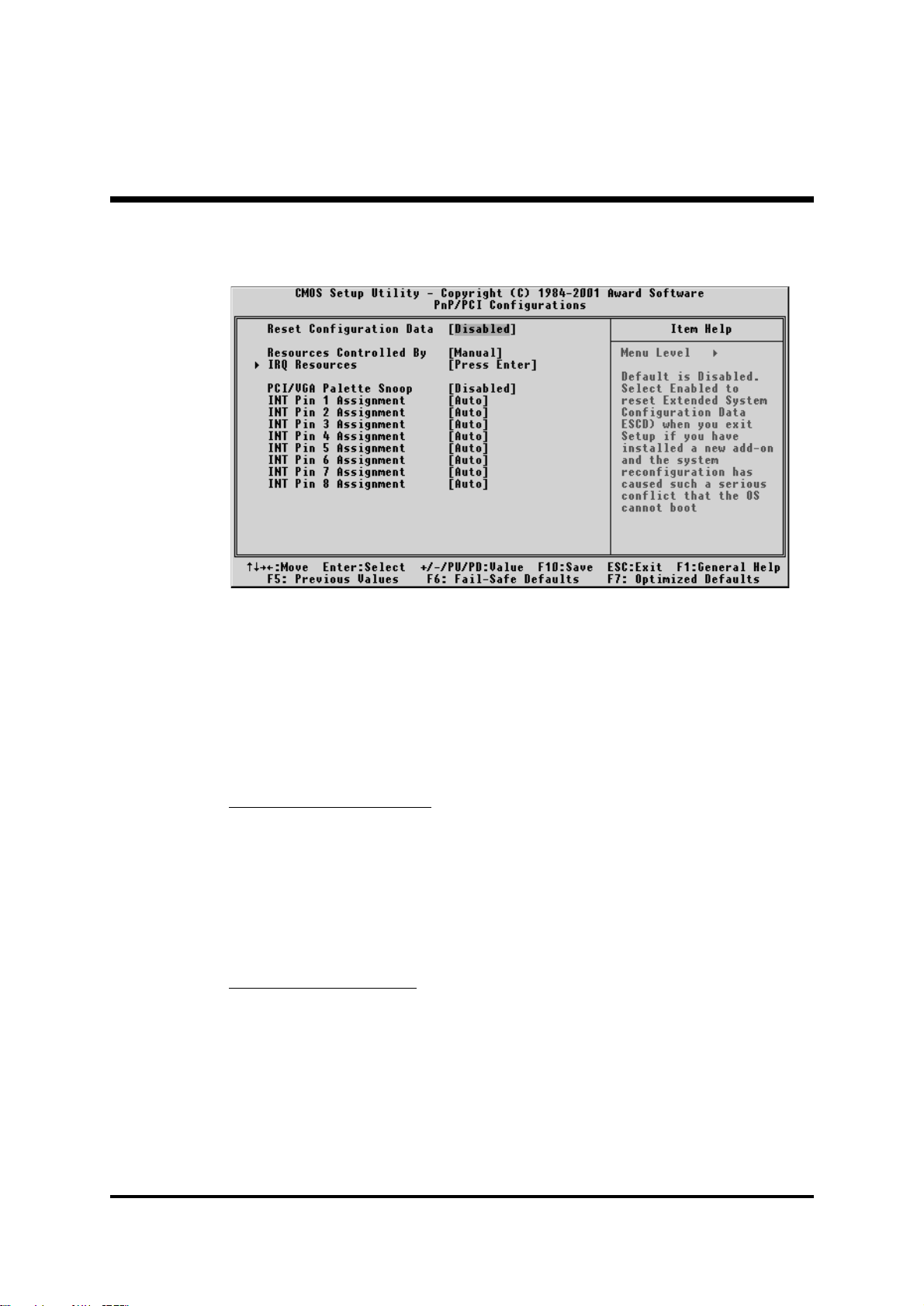

PNP/PCI CONFIGURA TION .......................................................................77

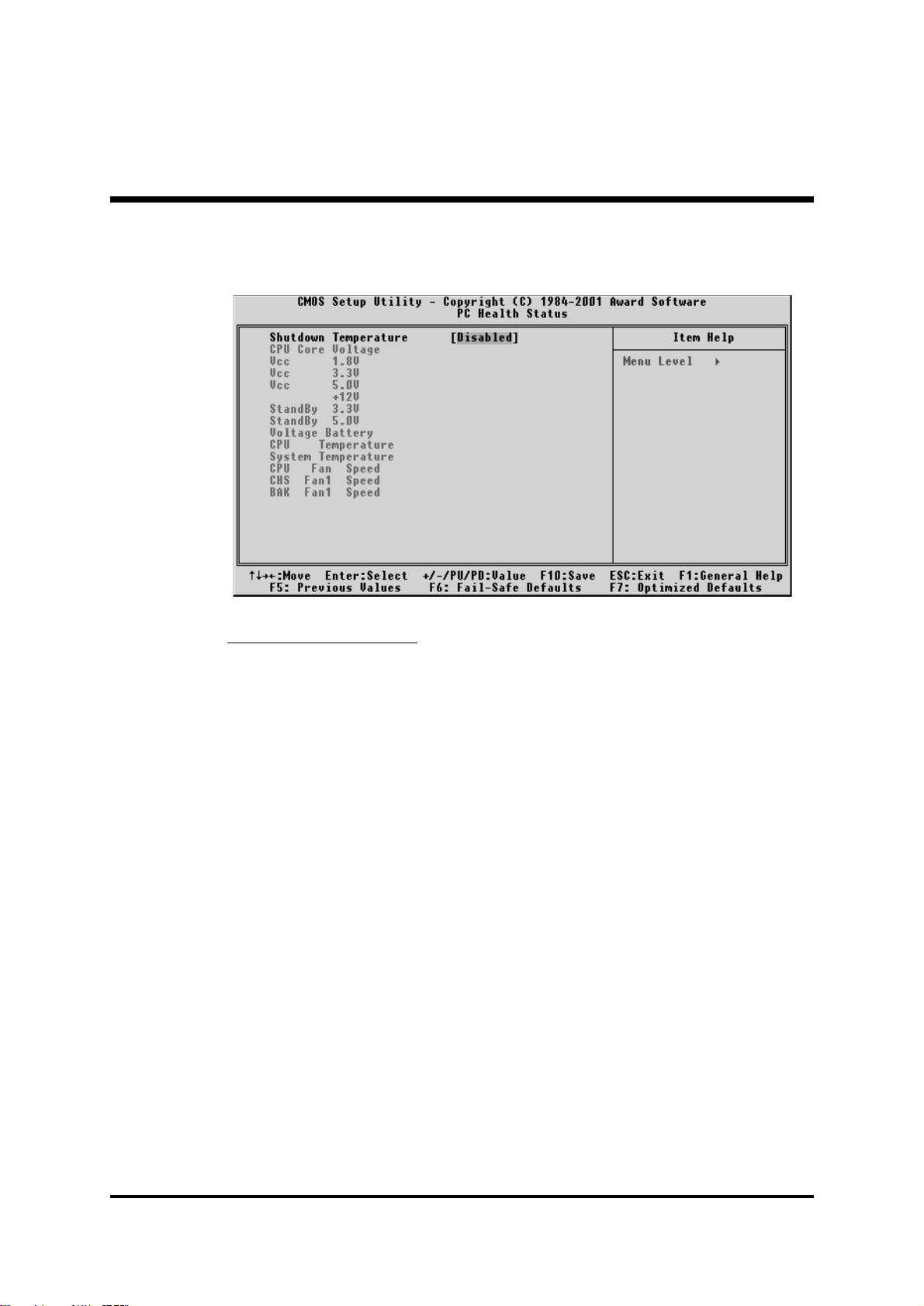

PC HEALTH STA TUS.................................................................................79

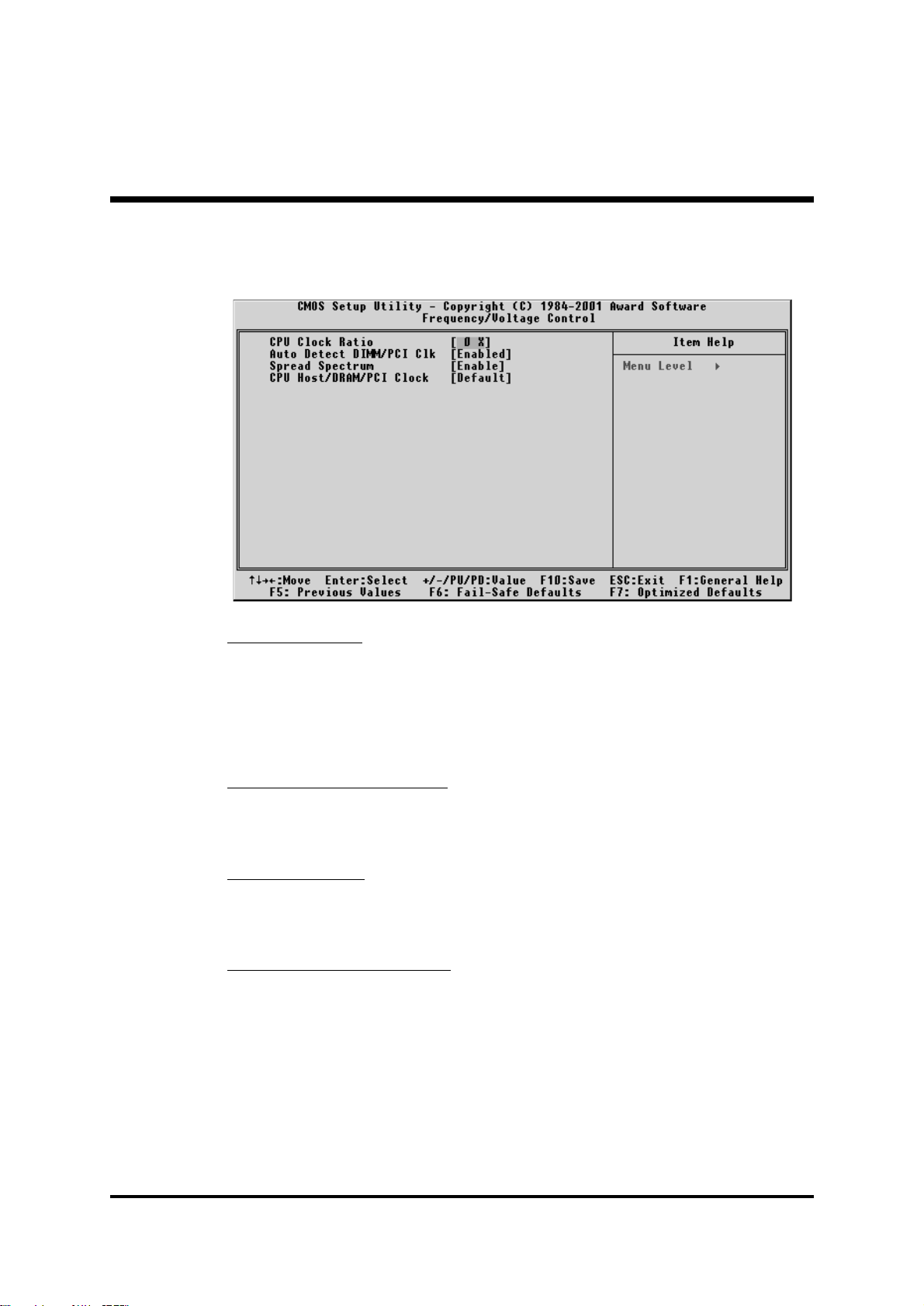

FREQUENCY/VOL TAGE CONTROL..........................................................80

LOAD FAIL-SAFE DEFAULTS...................................................................81

LOAD OPTIMIZED DEFAU L TS ..................................................................81

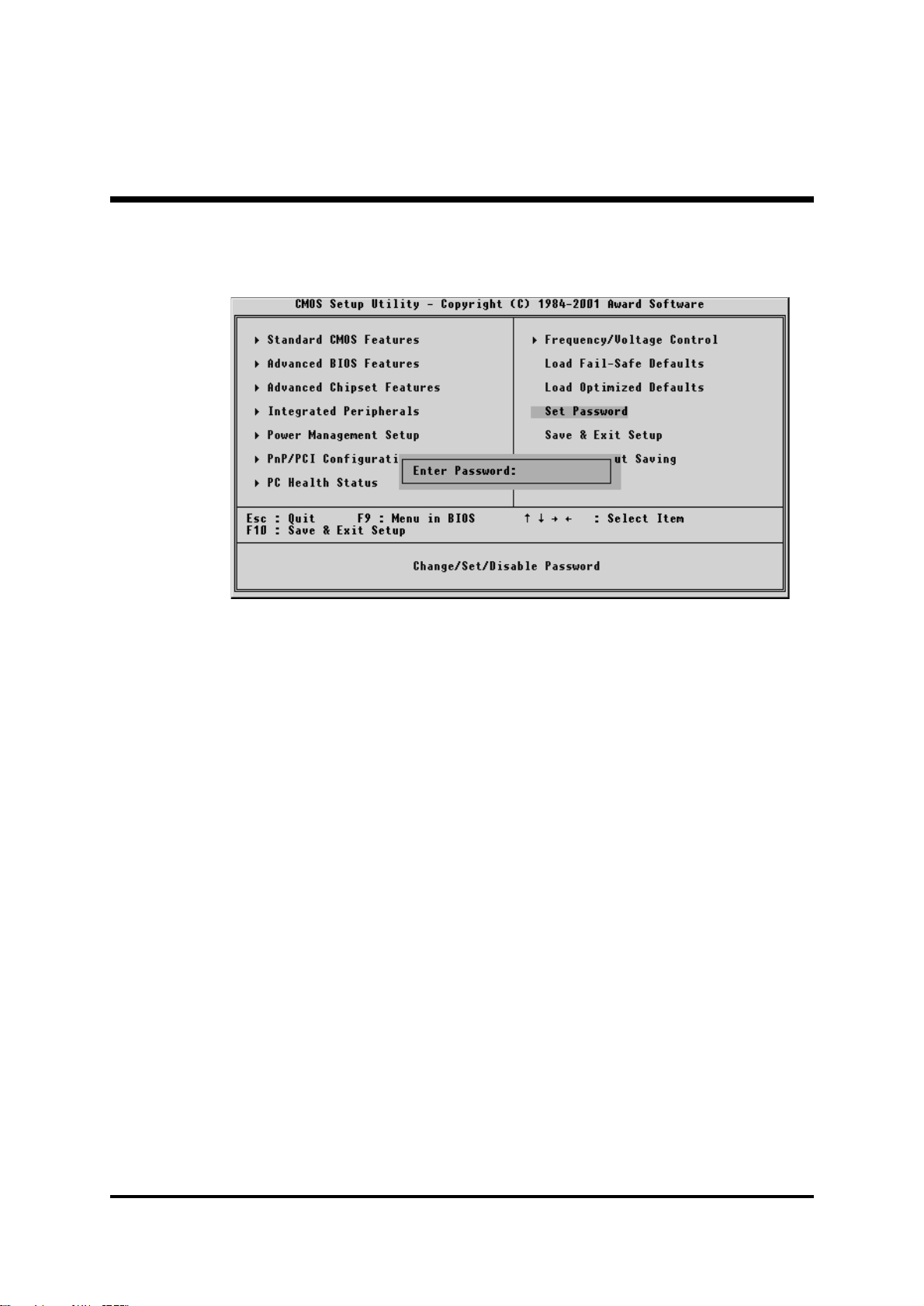

SET PASSWORD ......................................................................................82

SAVE & EXIT SETUP.................................................................................83

EXIT WITHOUT SA VING .............................................................................83

- 4 -

WHAT’S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................ Page 11

Jumper Settings >> A Closer Look ...................................................... Page 24

Drivers/Software Utilities >> How to Install ......................................... Page 42

BIOS Setup >> How to Configure ........................................................ Page 58

About This Manual

For First-Time DIY System Builder......................................................... Page 6

For Experienced DIY User ...................................................................... Page 6

For System Integrator ............................................................................. Page 6

- 5 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as
difficult as you may think. To make your first computer DIY experience
successful, right from the start, we have designed the 3.1 Hardware Installation
section in a step-by-step fashion for all the first-time DIY system builders. Prior
to installation, we also suggest you to read the whole manual carefully to gain a
complete understanding of your new Shuttle MS51/MS51N mainboard.

Experienced DIY User

Congratulate on your purchase of the Shuttle MS51/MS51N mainboard. You
will find that installing your new Shuttle MS51/MS51N mainboard is just easy.
Bundled with an array of onboard functions, the highly-integrated MS51/MS51N
mainboard provides you with a total solution to build the most stable and reli­able system. Refer to sections 3.2 Jumper Settings and Chapter 4 Drivers/

Software Utilities to find out how to get the best out of your new mainboard.
Chapter 5 BIOS Setup also contains the relevant information on how to tune

up your system to achieve higher performance.

System Integrator

You have wisely chosen Shuttle MS51/MS51N to construct your system.
Shuttle MS51/MS51N incorporates all the state-of-the-art technology of the
SiS 650 chipset from SiS. It integrates the most advanced functions you can
find to date in a compact Micro ATX board.

This manual adopted in MS51 and MS51N mainboards at the same time.
The difference between MS51 and MS51N is that MS51N equips with

onboard LAN Controller. In the manual, if there are some standards,
characters, equipment or software only appeared or adopted by MS51N; it
will be mentioned (MS51N only)

- 6 -

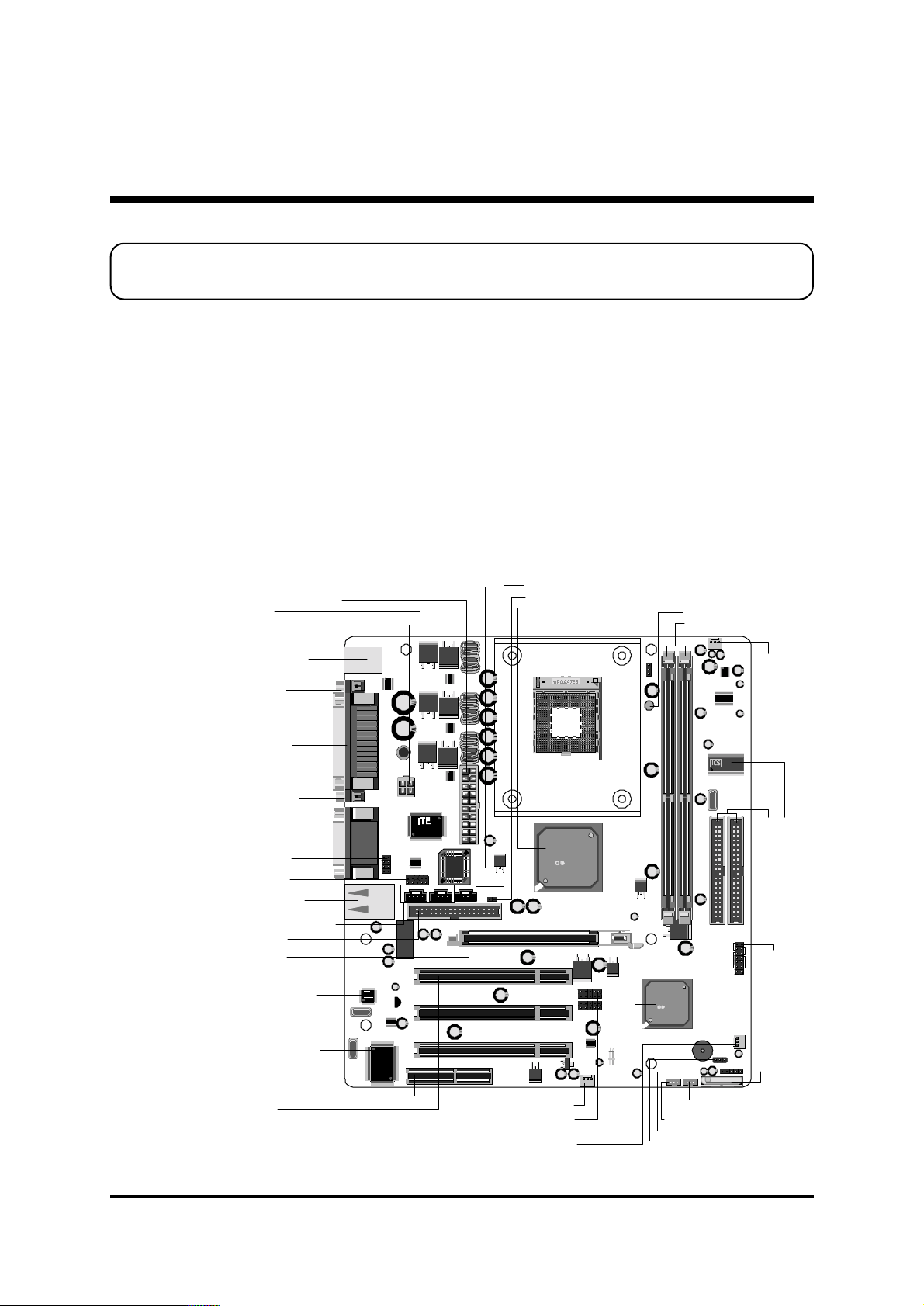

1.2 Item Checklist:

PSKBM1

COM1

VGA1

VGA PRT

ATX1

PCI1

AGP1

PCI2

PCI3

CNR1

+

+

650

SIS'01
PLD4 892

0145EA

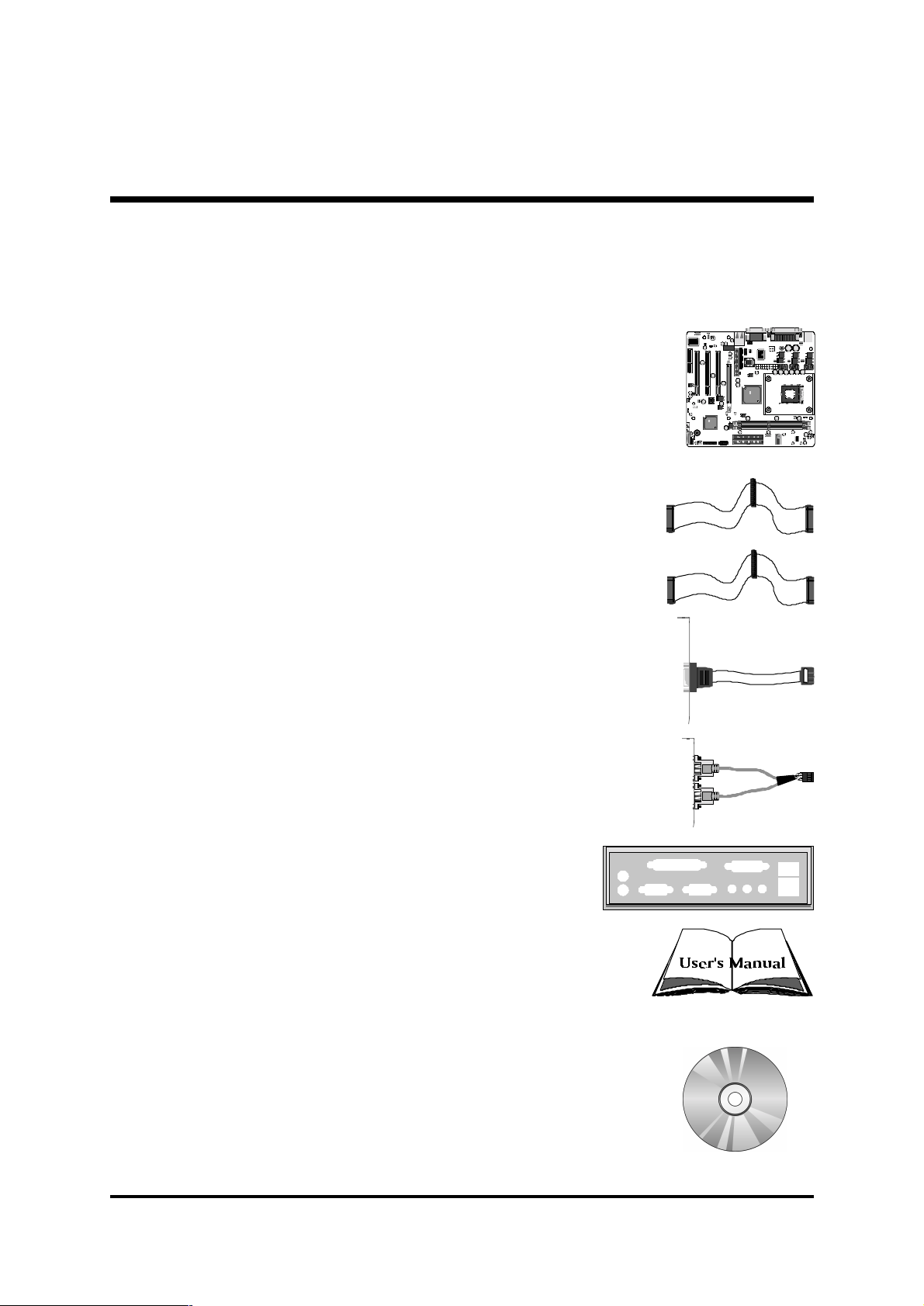

Check all items with you MS51/MS51N mainboard to make sure nothing is
missing. The complete package should include:

 One piece of Shuttle MS51/MS51N Mainboard

 One piece of ATA100/66/33 Ribbon Cable

 One piece of Floppy Ribbon Cable

 One piece of 9-pin Ribbon Cable

USBLAN1

RTL8100B
18034T3

009B TAIWAN

4MC

BAKFAN1

1

J3

1

1
WOM1 WOL 1

1

1

JP1

1

1

Smart I/O inte rface

1

J2

LSIR1SPEAKER1

1

CHSFAN1

1

1

IT8712F-A

9944-DXS

MA4500

CDIN1

COM2

1

CDIN2 LMDN1

11

JP2

ATX2

1

FLOPPY1

5E5

LUSB1LUSB2

1

1

USB 3 & 4USB 5 & 6

SIS'00
ELD2691

5E5

DIMM1

0138EA

961

DIMM2

IDE 2

RST
SWSPEAKER

HDD

LED

11

PWRSWLPANEL1

ACP

1

IDE 1

LED

1
J1

LED1

CPUFAN1

1

 One piece of twin ports USB Cable (optional)

 I/O Shielding

 MS51/MS51N Users Manual

 One piece of Bundled CD-ROM with containing:

Ø MS51/MS51N users manual saved in PDF format
Ø SiS Chipset driver
Ø SiS VGA driver
Ø AC'97 Audio driver
Ø LAN driver (for MS51N)
Ø Award Flashing Utility

- 7 -

2 FEA TURES

MS51/MS51N mainboard is carefully designed for the demanding PC user who wants
high performance and maximum intelligent features in a compact package.

2.1 Specifications

 CPU Support

Intel Pentium 4, 478-pin processors with 400 MHz FSB.

 Chipset

Features SiS 650 N.B. and SiS 961 S.B..

Onboard Lan (MS51N only)

Realtek 8100, support 10Mb/s and 100Mb/s operation.

 Jumperless CPU Configuration

Soft-configuration FSB (The FSB speed is software configurable from 100MHz
to 133MHz in the Frequency/Voltage Control of BIOS setup program.)

 AC'97 Link for Audio and Telephony CODEC

AC'97 2.2 compliant.
Spread independent PCI functions for Audio and Modem.

 Versatile Memory Support

Two 184-pin DIMM slots to support up to 2GB of PC1600, PC2100, and
PC2700 compliant DDR SDRAM module.

 PCI Expansion Slots

Provides three 32-bit PCI slots.

 AGP Expansion Slot

Provides one 32-bit AGP slot which supports 4X AGP devices.

 CNR Expansion Slot

Provides one Communication and Network Riser (CNR) slot.

 6 USB Interface Onboard

Ø 2 × USB connectors on back-panel and two sets of dual USB ports header

on mid-board.

- 8 -

 I/O Interface

Provides a variety of I/O interfaces:
Ø 1 × Floppy interface for 3.5-inch FDD with 720KB, 1.44MB, or 2.88MB

format or for 5.25-inch FDD with 360K or 1.2MB format.

Ø 1 × PS/2 mouse connector.
Ø 1 × PS/2 Keyboard connector.
Ø 1 × DB15 VGA connector.
Ø 1 × DB9 Serial connector 16550 UART compatible.
Ø 1 × Infrared communication port.

(Serial port COM2 can also be redirected to an external IrDA Adapter
for wireless connection.)

Ø 1 × DB25 Parallel port supports Standard Parallel Port and Bi-directional

(SPP), Enhanced Parallel Port (EPP), and Extended Capabilities Port (ECP)
data transmission schemes.

Ø 1 × Line-Out port.
Ø 1 × Line-In port.
Ø 1 × Mic-In port.
Ø 1 × MIDI/GAME port.
Ø 1 ×RJ45 LAN connector. (MS51N only)

 PCI Bus Master IDE Controller Onboard

Two Ultra DMA 100/66/33 Bus Master Dual-channel IDE ports provide sup­port to a maximum of four IDE devices (one Master and one Slave per channel).
The IDE Bus implements data transfer speeds of up to 100/66/33 MB/sec and
also supports Enhanced PIO Modes.

80-pin Cable Backward Compatible Legacy ATAPI Devices, ATAPI IDE CD­ROM, CD-R, CD-RW, and LS-120 Supports.

 ATX Power Supply Connector

ATX power supply unit can connected to the onboard 20-pin Pentium 4
standard ATX power connectors, supporting Suspend and Soft-On/Off by
dual-function power button.

The Pentium 4 ATX power include other 4-pin +12V ATX power connectors.

- 9 -

 Advanced Configuration and Power Interface

Features four power saving modes: S1 (Snoop), S3 (Suspend to RAM), S4
(Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient Energy
Saving Features controlled by your operating system that supports OS Direct
Power Management (OSPM) functionality.

 System BIOS

Provides licensed Award BIOS V6.0 PG on Intel Firmware Hub 2Mb Flash
core and supports Green PC, Desktop Management Interface (DMI).

 ATX Form Factor

System board conforms to Micro ATX specification.
Board dimension: 244mm × 220mm.

 Advanced Features

Ø Low EMI - Built in spread spectrum and automatic clock shut-off of

unused PCI/SDRAMS slots to reduce EMI.

Ø Dual Function Power Button - The system can be in one of two states,

one is Suspend mode and the other is Soft-Off mode. Pushing the power
button for less than 4 seconds places the system into Suspend mode.
When the power button is pressed for longer than 4 seconds, the system
enters Soft-Off mode.

Ø Modem Ring Power-On - The system can be powered on automatically by

the activation of modem ringing.

Ø CPU Host/DRAM/PCI Clock Setting - This item allows users to adjust

CPU Host Clock, DRAM, and PCI Clock in BIOS.

Ø CPU Multiplier Setting - This item allows users to adjust CPU Multiplier in

BIOS.

 Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure stable current
passing through mainboard components.

Ø Fan Status Monitoring - To prevent CPU from overheating, the CPU fan is

monitored for RPM (CPU Cooling FAN with RPM sensor is required.)

Ø Temperature Monitoring - This item allows users to make sure whether the

CPU or system runs in a suitable temperature.

- 10 -

3 HARDWARE INSTALLA TION

PSKBM1

COM1

VGA1

VGA PRT

1111111

IT8712F-A

9944-DXS

MA450 0

CHSFAN1

BAKFAN1

CPUFAN11111

PWR

SW

LPANEL1

RST

SWSPEAKER

ACPI

LED

HDD

LED1111111CDIN1

COM2

CDIN2

LMDN1

JP2

1

DIMM2

DIMM1

ID E 1

ID E 2

AT X2

AT X1

USB 3 & 4USB 5 & 6

JP1

J1

LED1

WOM1

WOL1

LSIR1

US BL AN1

LUSB1LUSB2

PCI 1

AG P 1

PCI 2

PCI 3

CNR1

RTL81 00B

18034T3

009B TAIWAN

4

MC

+

961

S IS '00

ELD2691

0138E A

5E5

+

650

S IS'01

PLD4892

0145E A

5E5

FLOPPY1

Three PCI S lots

One AGP 4x Slot

One CNR Slot

SOCK ET 478

BAKFAN1

CHSFAN1

USB & LAN

Connectors

(MS51N only)

Extended USB 1.1 Headers -

LUS B1/ LUSB2

Fron t-Pa nel - LP ANEL1Head er

Paral lel Co nnect or

Ser ial Port

Connector (COM1)

COM2 Conne ctor

Fron t Audio Conn ector

- LAUDI O1

VGA P ort Conne ctor

RTL81 00 LAN C ontrolle r

(M S51N o nly)

Onboar d Audio CODEC

Line-Out/Line-In/Mic-In/

Game/MIDI Connectors

Onboar d Audio

Connectors -

CDIN1/CDIN2

PS/ 2 Keyb oard an d

PS/ 2 Mouse Connec tors

I/O Controll er

Two 1 84-pi n DIMM Sl ots

Memory mod ule LED

- LED1

CPUFAN1

ATX Power Conn ector

- ATX2

P4 ATX

12V P ower Conne ctor

- ATX1

IR Con nector -

LSIR1

BIOS Write Protection

- JP2

Modem in Connecto r

- LMDN1

Clear CMOS -

JP1

Wake On LAN -

WOL1

Battery

Wake On Modem -

WOM1

Clock Generator

Prog rammable Fla sh EEPROM (FWH)

SiS 961 Chipset

Flo ppy Conne ctor

Two E-IDE Connectors

SiS 650 Chipset

Before removing or installing any of these devices including CPU, DIMMs, Add-On
Cards, Cables, please make sure to unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Refer to the following
mainboard layout to help you to identify various jumpers, connectors, slots, and ports.
Then follow these steps designed to guide you through a quick and correct installation of
your system.

3.1 Step-by-Step Installation

Accessories Of MS51/MS51N

- 11 -

Step 1

CPU Installation:

This mainboard supports Intel ® Pentium ® 4 , Socket 478 series CPU. Please
follow the step as below to finish CPU installation.

Be careful of CPU orientation when you plug it into CPU socket.

1. Pull up the CPU socket lever and up to 90-degree angle.

CPU socket lever up to
90 degree

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the CPU

upper interface. Match Pin 1 and cut edge, then insert the CPU into the
socket.

CPU pin 1 and cut edge

- 12 -

3. Press down the CPU socket lever and finish CPU installation.

Note: If you do not match the CPU socket Pin 1 and CPU cut

edge well, it may damage the CPU.

- 13 -

Step 2.

Set Jumpers

This mainboard is jumperless! The default jumper settings have been set for
the common usage standard of this mainboard. Therefore, you do not need
to reset the jumpers unless you require special adjustments as any of the
following cases:

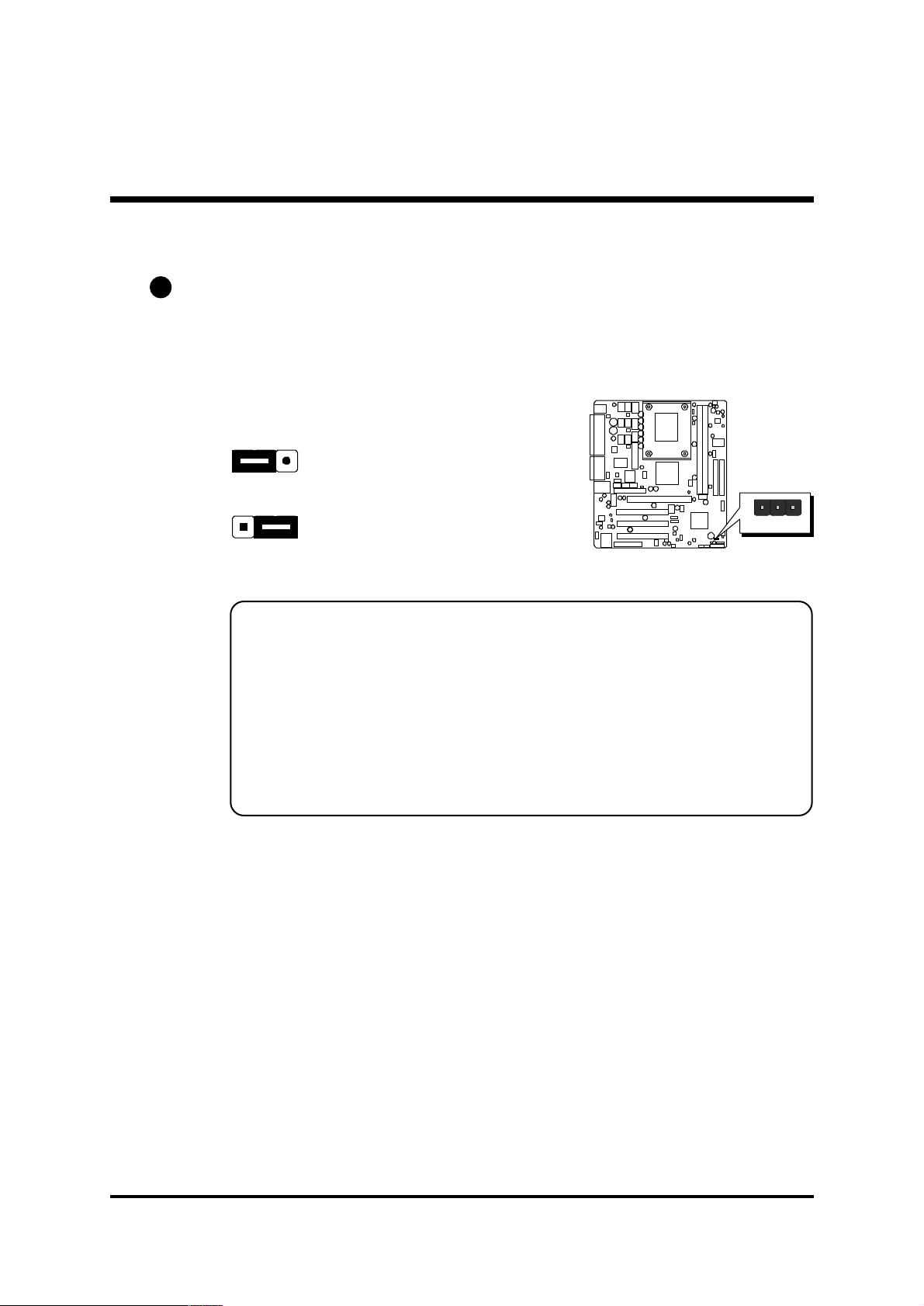

1. Clear CMOS

2. BIOS Write Protection

For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with the mainboard
configuration procedures. The factory-set default settings are tuned for opti­mum system performance. For the advanced users who wish to customize
their system, section 3.2 Jumper Settings will provide detailed information on
how to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in DIMM slot(s).
Note that DDR SDRAM modules are directional and will not go in the DIMM
slots unless properly oriented. After the module is fully inserted into the
DIMM slots, lift the clips of both sides of the DIMM slot to lock the module in
place.

DDR SDRAM

- 14 -

Step 4

Install Internal Peripherals in System Case

Before you install and connect the mainboard into your system case, we
recommend that you first assemble all the internal peripheral devices into the
computer housing, including but not limited to the hard disk drive (IDE/
HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.
This will greatly facilitate in making the connections to the mainboard de­scribed below.

To install IDE & FDD drives, follow this procedure:

1. Set the required jumpers on each device according to the instructions

provided by the manufacturer. (IDE devices, HDD, and CD-ROM, have to
set jumpers to Master or Slave mode depending on whether you install
more than one device of each kind.)

2. Connect IDE cable and FDD cable on the back-panel of the internal

peripheral devices to the corresponding headers on board. Note that the
cable should be oriented with its colored stripe (usually red or magenta)
connected to pin#1 both on the mainboard IDE or FDD connector and on
the device as well.

3. Connect an available power cable from your system power supply unit

to the back-panel of each peripheral device. Note that the power cable is
directional and cannot fit in if not properly positioned.

4. Connect serial port cable to on board COM2 header. And install the other

side of CMOS cable to back-panel with a screw.

- 15 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find that there are a lot of different mounting hole positions

both on your computer chassis and on the mainboard. To choose
correct mounting holes, the key point is to keep the back-panel of the
mainboard in a close fit with your system case, as shown below.

2. After deciding on the proper mounting holes, position the studs between

the frame of the chassis and the mainboard. The studs are used to fix the
mainboard and to keep a certain distance between the system chassis
and the mainboard, in order to avoid any electrical shorts between the
board and the metal frame of the chassis. (If your computer case is
already equipped with mounting studs, you will need to tighten screws to
attach the mainboard.)

Note: In most computer housings, you will be able to find 4 or more

attachment points to install mounting studs and then fix the
mainboard. If there arent enough matching holes, then make sure to
install at least 4 mounting studs to ensure proper attachment of the
mainboard.

- 16 -

Step 6

1

1

USB 3 & 4USB 5 & 6

LUSB1LUSB2

1

PWR

SW

LPANEL1

RST

SWSPEAKER

ACP I

LED

HDD

LED

1

SPEAKER

RST

SW

HDD

LED

ACPI

LED

PW R

SW

12543

+

+

+

Connect Front Panel Switches/LEDs/Speaker/USB

You can find there are several different cables already existing in the system
case and originating from the computers front-panel devices (HDD LED,
Power LED, Reset Switch, PC Speaker, or USB devices etc.) These cables
serve to connect the front-panel switches, LEDs, and USB connectors to the
mainboards front-panel connectors group ( LUSB1/LUSB2 and LPANEL1), as
shown below.

1. ATX Soft Power On/Off (PWR SW)

2. Green-LED and Power-LED (ACP LED)

3. HDD-LED (HDD LED)

4. Hardware Reset Switch Button (RST SW)

5. PC Speaker (SPEAKER)

6. Extended USB Headers

6

USB port 4/6

GROUND

KEY

+D ATA 1

-DATA1

USBPWR1

1

-DATA0

- 17 -

USB port 3/5

+D ATA 0

GROUND

USBPWR0

GROUND

Step 7

FLOPPY1

Connect IDE and Floppy Disk Drives

1. IDE cable connector

2. Floppy cable connector

IDE 2

IDE 1

11

Step 8

Connect Other Internal Peripherals

1. CD-IN and Front Audio connectors

- 18 -

1

LAUDIO1

CDIN1

CDIN2

11

2. IR header

3. COM2 and Modem-IN connectors

1

LSIR1

COM2

1

4. Wake On LAN and Wake On Modem headers

Step 9

Connect the Power Supply

1. System power connector

ATX1

LMDN1

WOM1 WOL1

11

1

- 19 -

ATX2

Step 10

Install Add-on Cards in Expansion Slots

1. Accelerated Graphics Port (AGP) Card

2. PCI Card

3. Communications and Network Riser (CNR) Card

- 20 -

Step 11

foxconn

7862315

4

Connect External Peripherals to Back-Panel

You are now ready to put the computer case back together and get on to the
external peripherals connections to your systems back-panel.

1. PS/2 Mouse and PS/2 Keyboard

2. COM1Port

PSKBM1

COM1

VGA1

VGA PRT

USBL AN1

3. VGA Port

4. Parallel Port

5. Audio Line-Out /Line-In / Mic-In Ports

6. MIDI/GAME Port

7. LAN Port (MS51N only)

8. USB port 1/USB port 2

- 21 -

Step 12

First Time System Boot Up

To assure the completeness and correctness of your system installation, you
may check the above installation steps once again before you boot up your
system for the first time.

1. Insert a bootable system floppy disk (DOS 6.2x, Windows 95/98/NT, or

others) which contains FDISK and FORMAT utilities into the FDD.

2. Turn on the system power.

3. First, you must use the FDISK utility to create a primary partition of the

hard disk. You can also add an extended partition if your primary parti­tion does not use all of the available hard disk space. If you choose to
add an extended partition, you will have to create one or more logical
partitions to occupy all the space available to the extended partition. The
FDISK utility will assign a drive letter (i.e., C:, D:, E:,...) to each partition
which will be shown in the FDISK program. After FDISK procedure,
reboot your system by using the same system floppy disk.

Note: DOS 6.2x and Windows 95A can only support up to 2.1GB of

HDD partition. If you use the FDISK utility with one of the opera­ting systems mentioned above, you can only install your HDD into

partitions no larger than 2.1GB each.

4. Now, use the FORMAT utility to format all the partitions youve created.

When formatting the primary partition (C:), make sure to use the FORM­AT C: /S command.

Note: FORMAT C: /S can transfer all the necessary system files into the

primary partition of your hard disk. Then, your HDD will become
a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation

guide.

- 22 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/
2000/ME/XP/NT operating systems only. Make sure your operating system is
already installed before running the drivers installation CD-ROM programs.

1. Insert the MS51/MS51N bundled CD-ROM into your CD-ROM drive. The

autorun program will display the drivers main installation window on
screen.

2. Choose "Install SIS Chipset Driver" and complete it.

3. Choose "Install Audio Device Driver" and complete it.

4. Choose "Install VGA Device Driver" and complete it.

5. Choose "Install LAN Driver" and complete it. (MS51N only)

6. Exit from the autorun drivers installation program.

] Please refer to section Chapter 4 Software Utility to install driver.

- 23 -

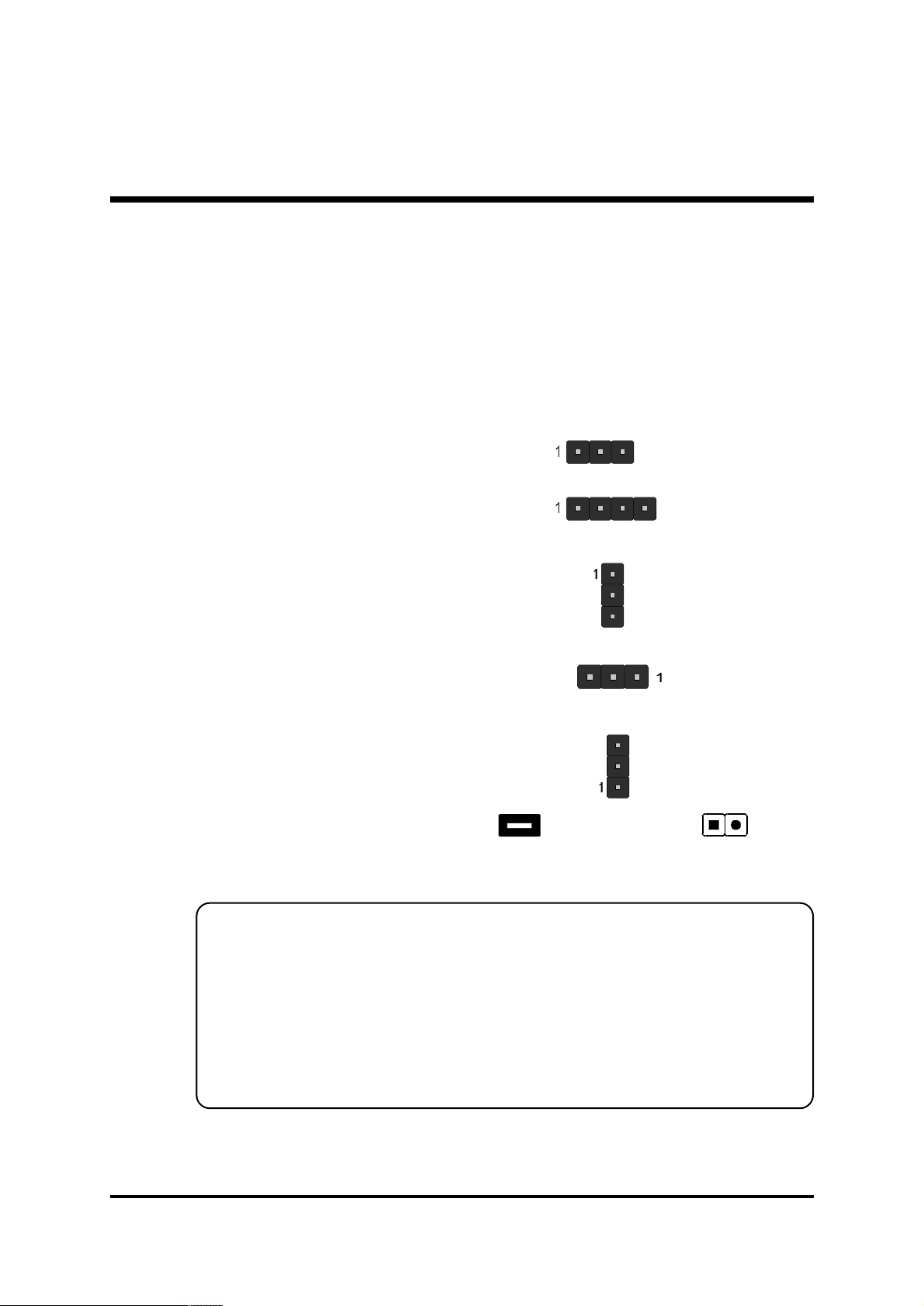

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to con­nect jumper pins on the mainboard. Pin #1 could be located at any corner
of each jumper, you just find the location with a white right angle which
stands for pin 1#. There are several types of pin 1# shown as below:

3-pin and multi (>3) pin jumpers shown as following:
Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins are shown as for Close [On] or for
Open [Off]. To Short jumper pins, simply place a plastic mini jumpers over
the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging

until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its

components. When putting the mainboard down, place it on top of its
original packaging film, on an even surface, and components side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent

electrostatic discharge (ESD) whenever handling this equipment.

- 24 -

Jumpers & Connectors Guide

B2~B4

B5~B8

B9~B10

C1~C5

B1E1E7E1D1D1E5E9A2A1C6E2E6E2E2E3E4

E8

Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the instal­lation. The following list will help you to identify jumpers, slots, and connec­tors along with their assigned functions:

CPU/Memory/Expansion Slots

Socket478 : CPU Socket for Pentium 4 processors
DIMM1/2 : Two184-pin DIMM Slots for 64, 128, 256, 512 MB,

and 1GB of 2.5V DDR SDRAM

(The total installed memory does not exceed 2GB)
AGP : One AGP (Accelerated Graphics Port) Slot
PCI : Three 32-bit PCI Expansion Slots

CNR : One CNR (Communications and Network Riser) Slot

- 25 -

Jumpers

A1
A2

JP1 : Clear CMOS setting
JP2 : BIOS Write Protection setting

Back Panel Connectors

B1

B1
B2
B3

B4
B5

B6
B7

KB : PS/2 keyboard port
MS : PS/2 mouse port
COM1 : Serial port 1 (DB9 male)

VGA : VGA port (DB15 female)
PRINTER : Parallel port (DB25 female)
LINE_OUT : Line-Out port
LINE_IN : Line-In port
MIC_IN : Mic-In port

B8
B9
B10

MIDI/GAME : MIDI/GAME port
LAN : RJ45 LAN port (MS51N only)
USB port 1/2 : 2 USB (Universal Serial Bus) ports

Front Panel Connectors

C1
C2

PWR SW : ATX power on/off momentary type switch
ACPI LED : Green LED (ON when system stays in power saving

mode)/System power LED

C3
C4
C5

C6

HDD LED : IDE drive active LED
RST SW : Hardware reset switch
SPEAKER : Internal speaker in housing
LUSB1/2 : Extended USB connector headers

(USB port 3~ USB port 6)

Internal Peripherals Connectors

D1
D1
D1

FLOPPY1 : Floppy disk drive interface
IDE1 : IDE primary interface (Dual-channel)
IDE2 : IDE secondary interface (Dual-channel)

- 26 -

Other Connectors

E1
E2
E2
E2

E3
E4
E5

ATX1/ATX2 : ATX power connector
CPUFAN1 : CPU fan connector
CHSFAN1 : Case fan connector 1
BAKFAN1 : Case fan connector 2
WOL1 : Wake On LAN wakeup connector
WOM1 : Wake On Modem wakeup connector
LSIR1 : IR header

E6
E7
E8
E9
E10

LMDN1 : Modem-In connector
COM2 : Onboard serial port header COM2
CDIN1/CDIN2 : Primary/Secondary CD_IN connector
LAUDIO1 : Front-Panel Audio connector
LED1 : Memory module LED

- 27 -

F Jumpers

A1

Clear CMOS Setting (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in the perma­nently erasing previous system configuration settings and the restoring origi­nal (factory-set) system settings.

1

Pin 1-2 (Clear CMOS)

1

Pin 2-3 (Default)

Step 1. Turn off the system power (PC-> Off).
Step 2. Remove ATX Power cable from ATX Power connector.
Step 3. Remove jumper cap from JP1 pins 2-3.
Step 4. Place the jumper cap on JP1 pin 1-2 for a few seconds.
Step 5. Return the jumper cap to pin 2-3.
Step 6. Plug ATX Power cable into ATX Power connector.
Step 7. Turn on the system power (PC-> On).

1

JP1

- 28 -

A2

BIOS Write Protection (JP2)

JP2 is used to protect BIOS from abnormal writing.
You may choose to place jumper cap on JP2 for BIOS write protection;

however, please remove jumper cap on JP2 if you need to reflash BIOS.



Open
To enable reflashing

BIOS

1

JP2



Close
BIOS write protection

Reflash the BIOS, follow these steps:
Step 1. Turn off the system power (PC-> Off).
Step 2. Make sure of remove jumper cap on JP2.
Step 3. Insert a bootable system floppy disk with MS51/MS51N BIOS

and flash utility and then turn on your system to execute flash
utility.

- 29 -

F Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors

B1

Two 6-pin female PS/2 keyboard & Mouse
connectors are located at the rear panel of the
mainboard. Depending on the computer
housing you use (desktop or tower), the PS/2
Mouse connector is situated at the top of the
PS/2 Keyboard connector when the
mainboard is laid into a desktop, as opposed
to a tower where the PS/2 Mouse connector
is located at the right of the PS/2 Keyboard's.
Plug the PS/2 keyboard and mouse jacks into
their corresponding connectors.

B2

COM1 Port Connector

This mainboard can accommodate one
serial device on COM1. Attach a serial
device cable to the DB9 serial port COM1
at the back panel of your computer.

PS/2 Mouse

PS/2 keyboard

COM1 Port

B3

VGA Connector

One 15-pin VGA connector is located at the
rear panel of the mainboard.

B4

Parallel Port Connector

One DB25 female parallel connector is lo­cated at the rear panel of the mainboard.

Plug the connection cable from your parallel
device (printer, scanner, etc.) into this connec­tor.

B5

Line-Out Port Connector

Line-Out is a stereo output port through which
the combined signal of all internal and exter­nal audio sources on the board is output. It
can be connected to 1/8-inch TRS stereo
headphones or to amplified speakers

VGA Port

foxc onn

Parallel Port

Line-Out Port

- 30 -

B6

Line-In Port Connector

Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can be
used as a source for digital sound recording,
a source to be mixed with the output, or both.

B7

Mic-In Port Connector

Mic-In is a 1/8-inch jack that provides a mono
input. It can use a dynamic mono or stereo
microphone with a resistance of not more than
600 Ohms.

B8

MIDI/GAME Port Connector

The MIDI/GAME port is a 15-pin female con­nector. This port can be connected to any
IBM PC compatible game with a 15-pin D­sub connector.

MIDI Instrument Connection

You will need a MIDI adapter to connect a MIDI compatible instrument
to the sound card. The MIDI adapter can in turn be connected to the
Joystick/MIDI port. You will also need the MIDI sequencing software to
run MIDI instruments with your computer etc. into this connector.

Line-In Port

Mic-In Port

MIDI/GAME Port

B9

LAN Port Connectors (MS51N only)

This mainboard can accommodate one de­vice on LAN.

Attach a 10/100 baseT cable to the RJ45 at
the back-panel of your computer.

B10

USB port 1/USB port 2 Connectors

This mainboard offers 2 USB ports on back
panel. Plug each USB device jack into an
available USB port 1/USB port 2 connector.

- 31 -

LAN Port

USB Port 2

USB Port 1

F Front-Panel Connectors

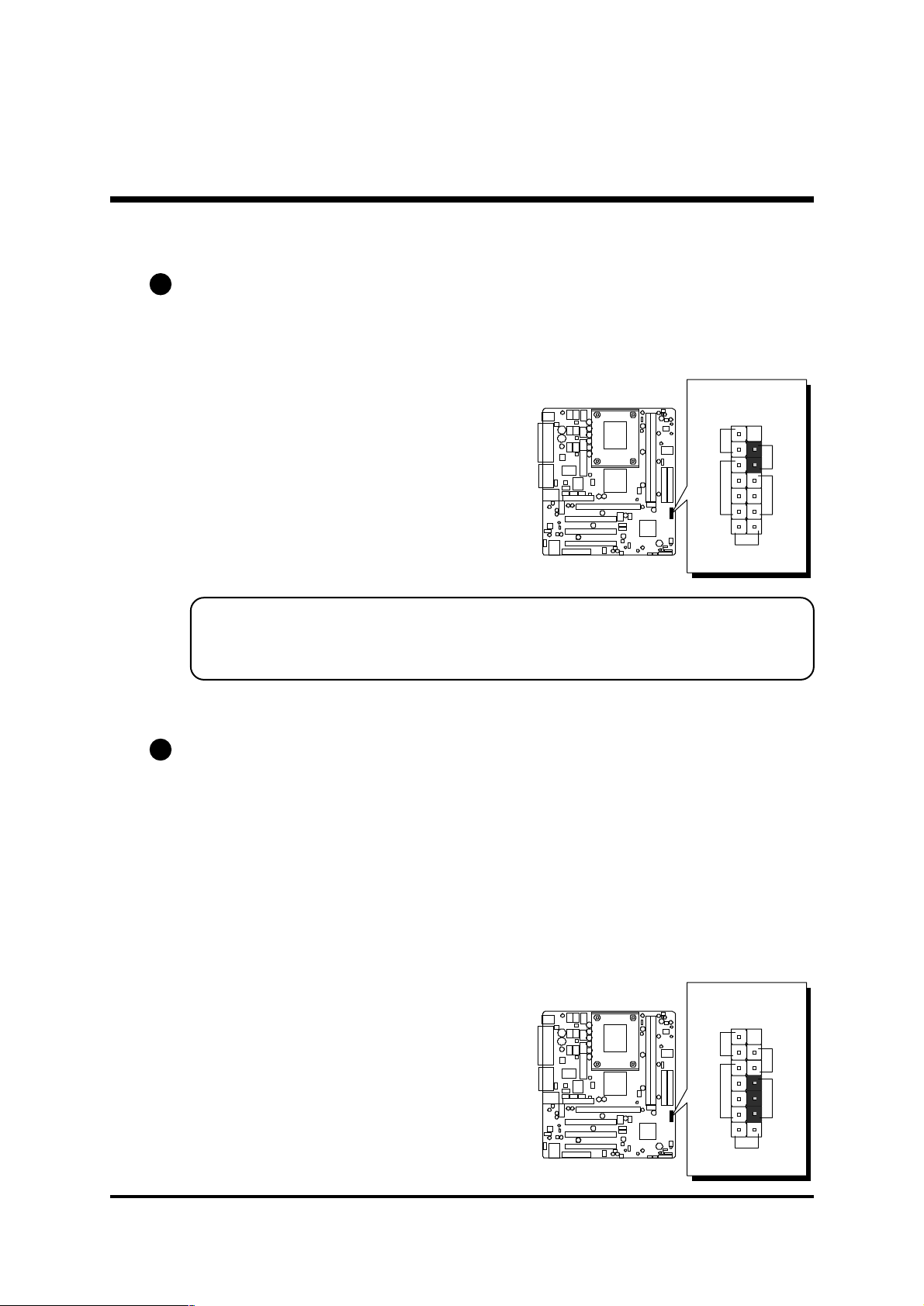

C1

ATX Power On/Off Switch Connector (PWR SW)

The Power On/Off Switch is a momentary type switch used for turning on or off
the system ATX power supply. Attach the connector cable from the Power
Switch to the 2-pin (PWR SW) header on the mainboard.

Note : Please notice all the LED connectors are directional. If your chassiss

LED does not light up during running, please simply change to the
opposite direction.

LPANEL1

SW

RST

+

SPEAKE R

HDD

LED

SW

PWR

+

LED

ACP I

1

+

C2

ACPI LED Connector (ACPI LED)

This header is dual color LED function.
Dual color LED function is defined by either Power LED or Green LED, the

header can be in these states.
The Green LED indicates that the system is currently in one of the power saving

mode (Doze/Standby/Suspend). When the system resumes to normal opera­tion mode, the Green LED will go off, power LED on.

This Power LED will go off during power saving mode.
Attach a 3-pin Green LED/Power LED cable to (ACPI LED) header.

LPANEL1

SW

RST

+

SPEAKE R

HDD

LED

SW

PWR

+

LED

ACP I

1

+

- 32 -

HDD LED Connector (HDD LED)

1

+

+

+

PWR

SW

LPANEL1

RST

SW

SPEAKE R

ACP I

LED

HDD

LED

C3

Attach the connector cable from the IDE device LED to the 2-pin (HDD LED)
header. The HDD LED lights up whenever an IDE device is active.

C4

Hardware Reset Connector (RST SW)

Attach the 2-pin hardware reset switch cable to the (RST SW) header. Pressing
the reset switch causes the system to restart.

LPANEL1

SW

RST

+

SPEAKE R

HDD

LED

SW

PWR

+

LED

ACP I

1

+

C5

Speaker Connector (SPEAKER)

Attach the PC speaker cable from the case to the 4-pin speaker connector
(SPEAKER).

- 33 -

LPANEL1

SW

RST

+

SPEAKE R

HDD

LED

SW

PWR

+

LED

ACP I

1

+

C6

Extended USB Headers (LUSB1/LUSB2)

The headers are used to connect the cable attached to USB connectors
which are mounted on front panel or back panel. But the USB cable is op­tional at the time of purchase.

USB port 4/6

2 4 6 8 10

LUSB1LUSB2

1

1

1 3 5 7 9

USB port 3/5

Pins Assignment:
1=USBPWR0 3=-DATA0 5=+DATA0
7=GROUND 9=GROUND

2=GROUND 4=KEY 6=+DATA1
8=-DATA1 10=USBPWR1

USB 3 & 4USB 5 & 6

- 34 -

F Internal Peripherals Connectors

1

1

IDE 1

IDE 2

FLOPPY1

D1

Enhanced IDE and Floppy Connectors

The mainboard features two 40-pin dual-channel IDE device connectors
(IDE1/IDE2) providing support for up to four IDE devices, such as CD-ROM
and Hard Disk Drives (H.D.D.).

This mainboard also includes one 34-pin floppy disk controller (FLOPPY1) to
accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard
comes with one 80-pin ATA 100/66/33 ribbon cable to connect to IDE
H.D.D. and one 34-pin ribbon cable for F.D.D. connection.

Important: Ribbon cables are directional, therefore, make sure to always

connect with the red cable stripe on the same side as pin #1 of
the IDE1/IDE2 or FLOPPY1 connector on the mainboard.

- 35 -

F Other Connectors

ATX2

ATX1

E1

ATX Power Supply Connectors (ATX1 and ATX2)

This motherboard uses 20-pin (ATX2) Pentium 4 standard ATX power
header, and one (ATX1 with 2X2-pin) +12V PC ATX power supply header.

Please make sure you plug in the right direction.
You can choice ATX1 power supply header to support CPU power.

P4 ATX Power supply headers

ATX2 ATX1

Note 1: The ATX power connector is directional and will not go in unless the guides

match perfectly making sure that pin#1 is properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into place to ensure a

solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI +5V standby power and

at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher speed processor

installed.

- 36 -

E2

1 2 3

1 2 3

CPU, Case Fan connectors - CPUFAN1/CHSFAN1/BAKFAN1

The mainboard provides three onboard 12V cooling fan power connectors
to support CPU (CPUFAN1), Case (CHSFAN1/BAKFAN1) cooling fans.

Note:

Both cable wiring and type of plug may
vary , which depends on the fan maker.
Keep in mind that the red wire should
always be connected to the +12V header
and the black wire to the ground (GND)
header.

GND +12V

1

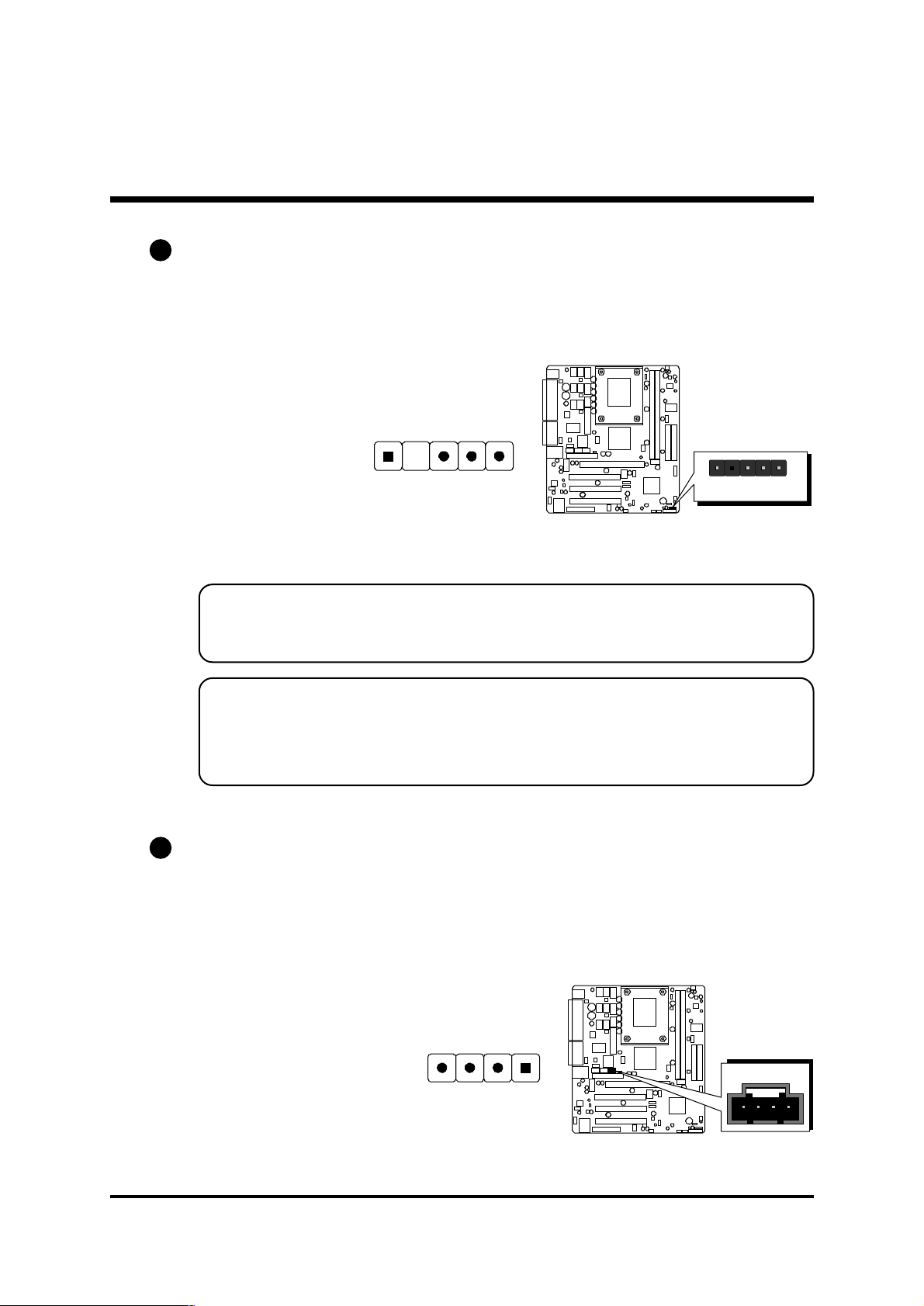

E3

Wake-On-LAN Connector (WOL1)

SENSE

CPUFAN1/CHSFAN1/BAKFAN1 with rotate sense.

Attach a 3-pin connector through the LAN card which supports the Wake-On­LAN (WOL1) function. This function lets users wake up the connected system
through the LAN card.

CPUFAN1

1

BAKFAN1

1

CHSFAN1

1

Pins Assignment:

1=5VSB 2=GND
3=SENSE

E4

Wake-On-Modem Connector (WOM1)

Attach a 3-pin connector through the Modem card which supports the Wake­On-Modem (WOM1) function. This function lets users wake up the connected
system through the Modem card.

Pins Assignment:

1=5VSB 2=GND
3=SENSE

- 37 -

WOL1

1

WOM1

1

E5

1 2 3 4 5

4 3 2 1

IR Header (LSIR1)

If you have an Infrared device, this mainboard can implement IR transfer
function. To enable the IR transfer function, follow these steps:

Pins Assignment:

1=VCC
2=KEY
3=IRRX
4=GND
5=IRTX

Note: Before connect your IR device, please be sure each IR on board pin

allocation is matchable with the pin of the IR device. Otherwise,
incorrect IR connection may do damage to your IR device.

Step 1. Attach the 5-pin infrared device cable to LSIR1.

(Refer to the above diagram for IR pin assignment.)

Step 2. This mainboard supports Normal, IrDA, ASKIR, or SCR transfer

modes.

E6

Modem_In Header (LMDN1)

Port LMDN1 can be used to connect a modem audio line to MS51/MS51N
mainboard. Typically, you would use this connector when running the voice
mail software on your system for audio input and output.

1

LSIR1

Pins Assignment:

1=MONO_OUT
2=GROUND
3=GROUND
4=PHONE_IN

- 38 -

LMDN1

1

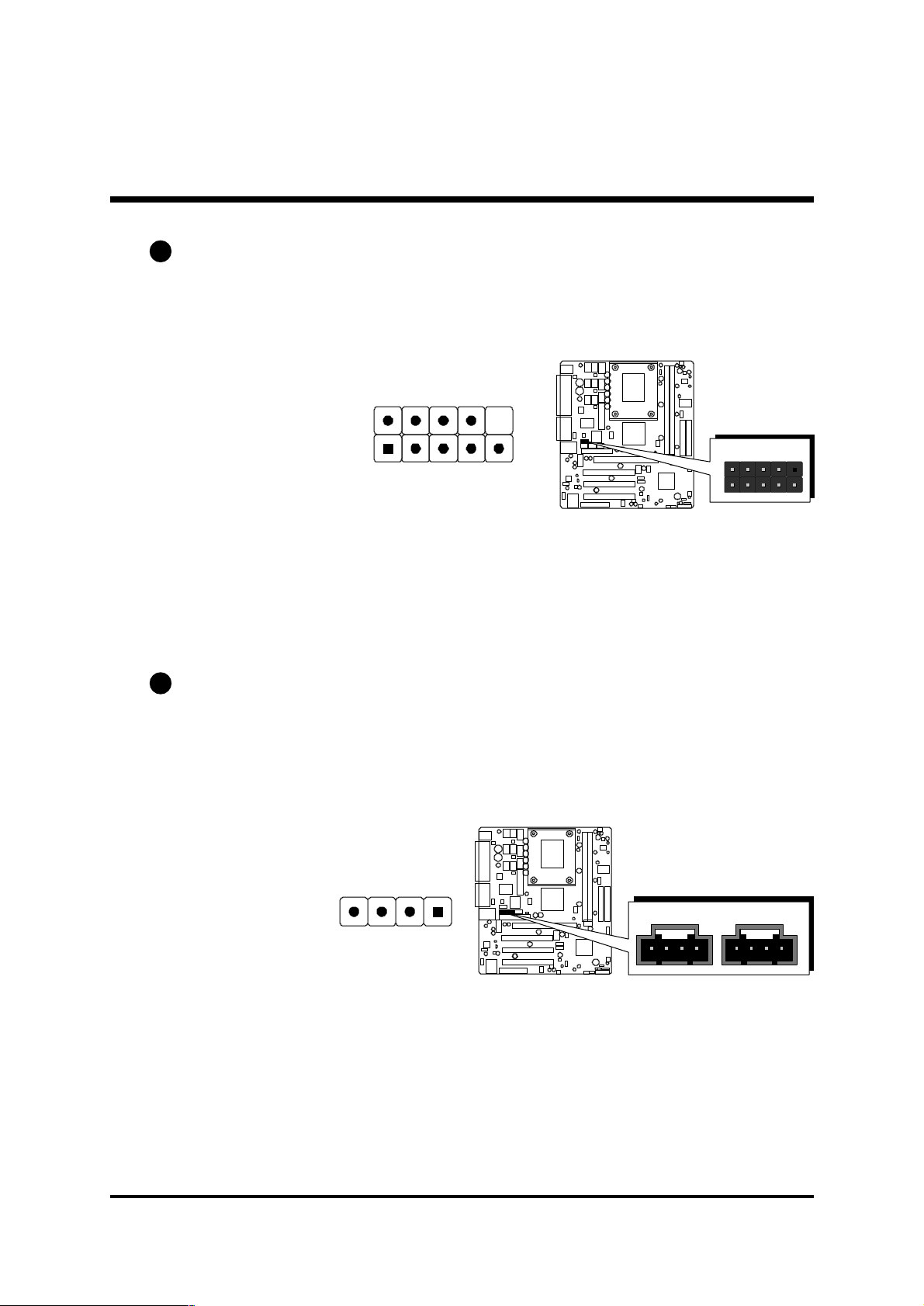

E7

1 3 5 7 9

2 4 6 8 10

4 3 2 1

COM2 Connector (COM2)

This mainboard comes with one 10-pin ribbon cable for COM2.

Pins Assignment:

1=DCD
2=RxD
3=TxD
4=DTR
5=GND
6=DSR
7=RTS
8=CTS
9=RI
10=KEY

E8

Audio CD_IN Connector (CDIN1/CDIN2)

COM2

1

Use the audio cable provided with the CD-ROM/DVD drive to connect to the
mainboard CD-in connector CDIN1 or CDIN2.

Pin Assignments:
1=CD-L
2=CD-GND
3=CD-GND

CDIN1

CDIN2

11

4=CD-R

- 39 -

E9

2468135

7

LED1

Front-Panel Audio Header (LAUDIO1)

This connector is used to attach to Audio equipment embedded into or at­tached to the case.

Pins Assignment:

1=MIC 2=AGND
3=FLOR 4=LNR
5=FLOL 6=LNL
7=AGND 8=KEY

Two mini jumpers must be setted on
pin 3-4 and pin 5-6, when this
header is not used.

E10

Memory module LED (LED1)

The red indicator LED1 turns on if your system is still powered, at which time
memory modules cannot be installed or uninstalled.

1
3
5
7

2
4
6
8

1

LAUDIO1

- 40 -

3.3 System Memory Configuration

DIMM

Socket

Memory Modules

Module

Quan ti ty

DIMM 1

64MB, 128MB, 256MB

,

512MB, and 1GB 184-pin

2.5V DDR SDRAM DIMM

x 1

DIMM 2

64MB, 128MB, 256MB

,

512MB, and 1GB 184-pin

2.5V DDR SDRAM DIMM

x 1

The MS51/MS51N mainboard has two 184-pin DIMM slots that allow you to
install from 64MB up to 2GB of system memory.

Each 184-pin DIMM (Dual In-line Memory Module) Slot can accommodate
64MB, 128MB, 256MB, 512MB, and 1GB of PC1600/PC2100/PC2700
compliant 2.5V single (1 Bank) or double (2 Bank) side 64-bit wide data path
DDR SDRAM modules.

Install Memory:

Install memory in any or all of the slots and in any combination shown as
follows.

Note: Maximum installed memory is 2GB.

Note: You do not need to set any jumper to configure memory since the
BIOS utility can detect the system memory automatically. You can check the
total system memory value in the BIOS

Standard CMOS Setup menu.

Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR
SDRAM modules in available DIMM slots. The total system memory is
calculated by simply adding up the memory in all DIMM slots. After up­grade, the new system memory value will automatically be computed and
displayed in the field "

Standard CMOS Setup" of BIOS setup program.

- 41 -

4 SOFTW ARE UTILITY

4.1 Mainboard CD Overview

Note: The CD contents attached in MS51/MS51N mainboard are subject to

change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and
the CD AutoRun screen should appear. If the AutoRun screen does not
appear, double click or run D:\Autorun.exe (assuming that your CD-ROM
drive is drive D:)

Navigation Bar Description:

F Install Mainboard MS51 Software - Installing SIS chipset, Audio, VGA

drivers.

F Install Mainboard MS51N Software - Installing SIS chipset, Audio, VGA

, and LAN drivers.

F Manual - MS51/MS51N Series mainboard user's manual in PDF format.
F Link to Shuttle Homepage - Link to shuttle website homepage.
F Browse this CD - Allows you to see contents of this CD.
F Quit - Close this CD.

] The NT Audio/VGA/LAN Device Driver and Win 9x LAN Device Driver

must be installed manually.

- 42 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
Autorun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the Install Mainboard
MS51 Software" or Install Mainboard MS51N Software" bar to run into
sub-menu.

The Mainboard MS51 Software include:

[4.2.A] Install SIS Chipset Driver
[4.2.B] Install Audio Device Driver
[4.2.C] Install VGA Deviec Driver

The Mainboard MS51N Software include:

[4.2.A] Install SIS Chipset Driver
[4.2.B] Install Audio Device Driver
[4.2.C] Install VGA Deviec Driver
[4.2.D] Install LAN Driver

- 43 -

4.2.A Install SIS Chipset Driver

Select using your pointing device (e.g. mouse) on the Install SIS Chipset
Driver bar to install SIS chipset driver.

MS51

MS51N

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

Note: The win NT don't need install this driver.

- 44 -

4.2.B Install Audio Driver

Select using your pointing device (e.g. mouse) on the Install Audio Device
Driver bar to install AC'97 Audio driver.

MS51

MS51N

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

Note: When Install Audio driver, please confirm your OS and correctly

install driver. If your OS is NT, please take the following next page
for reference. The other OS such as win 2000/XP/9x/ME can be
automatical installed.

- 45 -

Install WINNT Audio driver

The Audio Device Driver can't install automatically, you need double click
on My Computer -> Control Pnael -> Multimedia icon to bring up
Multimedia Properties screen.

Select tab "Devices" and choose Audio
Devices then select "Add" bar to install
driver.

Insert the support CD by the mainboard
manufacturer and choose "OK" bar to
continue next step.

Key in the driver's location as
"D:\audio\NT40\" (In this location CD

disk drive is supposed to be "D" letter.)
and click on "OK".

Select "SiS PCI Audio Accelerator" to
install then click on "OK".

- 46 -

Completing the upgrade device driver,
and click on "Restart Now" to restart

the system to take all the changes
effect.

After restart, you may check Multimedia
Properties under the location mentioned
at right figure. The Multimedia Properties
shows correctly.

- 47 -

4.2.C Install SIS VGA Driver

Select using your pointing device (e.g. mouse) on the Install VGA Device
Driver bar to install SIS VGA driver.

MS51

MS51N

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

Note: When Install VGA driver, please confirm your OS and correctly

install driver. If your OS is NT, please take the following next page
for reference and make sure install the service pack 3 or above.
The other OS such as win 2000/XP/9x/ME can be automatical
installed.

- 48 -

Install WINNT VGA driver

The VGA Device Driver can't install automatically, you need double click on

My Computer -> Control Pnael -> Display icon to bring up Display Proper-
ties screen.

Select tab "Settings" and "Display Type"
bar to continue.

The Display Type windows will appear
on your screen. Click on "Change" bar
to install driver.

Insert the support CD by the mainboard
manufacturer and choose "Have Disk"
bar to continue next step.

Key in the driver's location as
"D:\VGA\WINNT\SISGR.INF" (In this

location CD disk drive is supposed to be
"D" letter.) and click on "OK".

- 49 -

Select "SiS Compatible VGA" to install,
and then click on "OK".

Make sure "SiS Compatible VGA" driver,
and click on "Yes".

Completing the upgrade device driver,
and click on "OK" to restart the system
to take all the changes effect.

After restart, you may check Display
under the location mentioned at right
figure. The Display Properties shows
correctly.

- 50 -

4.2.D Install LAN Driver (MS51N only)

Select using your pointing device (e.g. mouse) on the Install LAN Driver
bar to install LAN driver.

MS51N

Once you made your selection, a Setup window run the installation
automatically.
When the copying files is done, make sure you reboot the system to take the

installation effect.

Note: When Install LAN driver, please confirm your OS and correctly

install driver. If your OS is win 9X/NT, please take the following
next page for reference. The other OS such as win 2000/XP/ME
can be automatical installed

- 51 -

Install WIN98 LAN driver

The LAN Device Driver can't install automatically, you need double click on

My Computer -> Control Pnael -> System icon to bring up System Proper-
ties screen.

Select tab "Device Manager".
You will find a yellow "?" mark at PCI

Ethernet Controller, that means the
driver is not recognize.

Double click on the Ethernet Controller.

Then PCI Ethernet Controller Properties
windows will appear on your screen.

Click on the "Reinstall Driver" bar to
install driver.

The Updade Device Driver Wizard
windows will appear on your screen.

Click on "Next" bar to continue.

- 52 -

Please choose "Display a list of the
drivers in a specific location, so you
can select the driver you want" to the

manual install driver, and click on
"Next" bar to continue.

Select "Network adapters" bar for LAN
device and click on "Next" bar to con-
tinue.

Insert the support CD by the mainboard
manufacturer and choose "Have Disk"
bar to continue next step.

Indicate the driver's location as
"D:\lan\WIN98\NETRTS5.INF" (In this

location CD disk drive is supposed to be
"D" letter.)

- 53 -

Select "Realtek RTL8139/810X Family
PCI Fast Ethernet NIC" to install, and

then click on "OK".

Make sure "Realtek RTL8139/810X
Family PCI Fast Ethernet NIC" driver,
and click on "Next".

Then the system will do the setup
procddure automatically.

Completing the upgrade device driver,
and click on "Finish" to restart the system

to take all the changes effect.

After restart, you may check Network
adapters under the location mentioned
at right figure.

The Network adapters shows correctly.

- 54 -

Install WINNT LAN driver

The LAN Device Driver can't install automatically, you need double click on
My Computer -> Control Pnael -> Network icon to bring up Network
screen.

Select tab "Adapters" and "Add" bar to
install driver.

Insert the support CD by the mainboard
manufacturer and choose "Have Disk"
bar to continue next step.

Key in the driver's location as
"D:\lan\WINNT4\" (In this location CD

disk drive is supposed to be "D" letter.)
and click on "OK".

Select "Realtek RTL8139/810X Family
PCI Fast Ethernet Adapter" to install
then click on "OK".

Chocse the proper Duplex Mode,
and click on "OK".

- 55 -

Make sure "Realtek RTL8139/810X Family
PCI Fast Ethernet Adapter" driver, and click

on "Close".

Setting yourself network.
Then the system will do the setup

procddure automatically.

Completing the upgrade device driver,
and click on "Yes" to restart the system

to take all the changes effect.

After restart, you may check Network
adapters under the location mentioned
at right figure. The Network adapters
shows correctly.

- 56 -

4.3 View the User's Manual

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen
should appear. If the AutoRun screen does not appear, double click on
AutoRun icon in My Computer to bring up Shuttle Mainboard Software
Setup screen.

Select using your pointing device (e.g. mouse) on the Manual bar.

Then Online Information windows will appear on your screen. Click on the
Install Acrobat Reader  bar if you need to install acrobat reader.

Then click on "MS51/MS51N Manual" bar to view user's manual.

- 57 -

5 BIOS SETUP

MS51/MS51N BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This information is stored in battery­backed RAM so that it retains the Setup information even if the system power
is turned off.

The system BIOS is managing and executing a variety of hardware related
functions in the system, including:

System date and time
Hardware execution sequence
Power management functions
Allocation of system resources

5.1 Enter the BIOS

To enter the BIOS (Basic Input / Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP
,or simultaneously press <Ctrl>, <Alt>, <Esc> keys

Note 1. If you miss trains of words meationed in step2 (the message

disappears before you can respond) and you still wish to enter BIOS
Setup, restart the system and try again by turning the computer OFF
and ON again or by pressing the <RESET> switch located at the
computers front-panel. You may also reboot by simultaneously
pressing the <Ctrl>, <Alt>, <Del> keys.

Note 2. If you do not press the keys in time and system does not boot, the

screen will prompt an error message, and you will be given the

following options:

Press F1 to Continue, DEL to Enter Setup

Step 3. As you enter the BIOS program, the CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 58 -

5.2 The Main Menu

Once you enter the AwardBIOS(tm) CMOS Setup Utility, the Main
Menu will appear on the screen. The Main Menu allows you to select
from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the
sub-menu.

Note that a brief description of each highlighted selection appears at the
bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall
that some systems may not include all entries.

Standard CMOS Features

Use this menu for basic system configuration.

Advanced BIOS Features

Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and opti­mize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 59 -

PnP / PCI Configurations

This entry appears if your system supports PnP / PCI.

PC Health Status

This entry shows the current system temperature, Voltage, and FAN
speed.

Frequency/Voltage Control

Use this menu to specify your settings for frequency/voltage control.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable
performance of your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory-set for
optimal performance system operation. While Award has designed the
custom BIOS to maximize performance, the factory has the right to
change these defaults to meet users' needs.

Set Password

Use this menu to change, set, or disable password. It allows you to limit
access to the system and Setup, or only to Setup.

Save & Exit Setup

Save CMOS value changes in CMOS and exit from setup.

Exit Without Saving

Abandon all CMOS value changes and exit from setup.

- 60 -

( Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 catego­ries. Each category includes no, one or more than one setup items.
Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

Date

<Month> <DD> <YYYY>
Set the system date. Note that the 'Day' automatically changes when

you set the date.

Time

<HH : MM : SS>
The time is converted based on the 24-hour military-time clock. For

example, 5 p.m. is 17:00:00.

IDE Primary Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Primary Slave

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

- 61 -

IDE Secondary Master

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IDE Secondary Slave

Options are in its sub menu.
Press <Enter> to enter the sub-menu of detailed options.

Drive A/Drive B

Select the type of floppy disk drive installed in your system.
Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Floppy 3 Mode Support

This Item enable/disable the Floppy mode 3 options. This mode is used
mostly in Japen PC.
Ø The choice: Disabled, Drive A, Drive B, or Both.

Video

Select the default video device.
Ø The choice: EGA/VGA, CGA 40, CGA 80, or MONO.

Halt On

Select the situation in which you want the BIOS to stop the POST
process and notify you.
Ø The choice: All Errors, No Errors, All, But Keyboard, All, But

Diskette, or All, But Disk/Key.

Base Memory

Displays the amount of conventional memory detected during boot up.
Ø The choice: N/A.

Extended Memory

Displays the amount of extended memory detected during boot up.
Ø The choice: N/A.

Total Memory

Displays the total memory available in the system.
Ø The choice: N/A.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu
to configure each hard disk drive.

- 62 -

IDE HDD Auto-Detection

Press <Enter> to auto-detect HDD on this channel. If detection is
successful, it fills the remaining fields on this menu.

Ø Press Enter

IDE Primary Master

Selecting 'manual' lets you set the remaining fields on this screen and
select the type of fixed disk. "User Type" will let you select the number
of cylinders, heads, etc., Note: PRECOMP=65535 means

NONE !

Ø The choice: None, Auto, or Manual.

Access Mode

Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity

Disk drive capacity (Approximated). Note that this size is usually
slightly greater than the size of a formatted disk given by a disk check­ing program.

Ø Auto-Display your disk drive size.

The following options are selectable only if the 'IDE Primary Master'
item is set to 'Manual'

Cylinder

Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head

Set the number of read/write heads.

Ø Min = 0, Max = 255

Precomp

Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535

Landing zone

Set the Landing zone size.

Ø Min = 0, Max = 65535

Sector

Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 63 -

( Advanced BIOS Features

This section allows you to configure your system for basic operation.
You have the opportunity to select the system's default speed, boot-up
sequence, keyboard operation, shadowing, and security.

Anti-Virus Protection

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot
sector protection. If this function is enables and someone attempts to
write data into this area, BIOS will show a warning message on screen,
and an alarm beep.

Enabled Activates automatically when the system boots up,

causing a warning message to appear when anything
attempts to access the boot sector or hard disk parti­tion table.

Disabled No warning message will appear when anything

attempts to access the boot sector or hard disk parti­tion table.

Ø The choice: Enabled or Disabled.

CPU L1 & L2 Cache

This item enables CPU L1 internal and CPU secondary cache to speed
up memory access.

Ø The choice: Enabled or Disabled.

- 64 -

Quick Power On Self Test

This item speeds up Power-On Self Test (POST) after you power on the
computer. If it is set to enabled, BIOS will shorten or skip some check
items during POST.

Ø The choice: Enabled, or Disabled.

First/Second/Third Boot Device

The BIOS attempts to load the operating system from the devices in the
sequence selected in these items.

Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1,

HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, USB­HDD, LAN, or Disabled.

Boot Other Device

Select Your Boot Device Priority.
Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If the system has two floppy drives, you can swap the logical drive
name assignment.

Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

Seeks disk drives during boot-Up. Disabling speed boots up.
Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

Selects power-on state for NumLock.
Ø The choice: Off or On.

Gate A20 Option

This entry allows you to select how the gate A20 is handled. The gate
A20 is a device used for above 1MByte of address memory. Initially,
the gate A20 was handled via a pin on the keyboard. Today, while a
keyboard still provides this support, it is more common and much faster
in setting to Fast for the system chipset to provide support for gate A20.

Ø The choice: Normal, or Fast.

Typematic Rate Setting

Keystrokes repeat at a rate determined by the keyboard controller.
When this controller enabled, the typematic rate and typematic delay
can be selected.

Ø The choice: Enabled or Disabled.

- 65 -

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repented in a
second when you hold the key down.
Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat
the keystroke.
Ø The choice: 250, 500, 750, or 1000.

Security Option

Select whether the password is required every time the system boots or
only when you enter setup.

System The system will not boot and access to Setup will be

denied if the correct password is not entered promptly.

Setup The system will boot, but access to Setup will be

denied if the correct password is not entered promptly.

Ø The choice: System or Setup.

Note: To disabled security, select PASSWORD SETTING at Main Menu, and

then you will be asked to enter password. Do not type anything and just
press <Enter>; it will disable security.

Once the security is disabled, the system will boot, and you can enter
Setup freely.

APIC Mode

Selects enable/disable IO APIC function
Ø The choice: Enabled or Disabled.

OS Select For DRAM > 64MB

Selects the operating system that is running with greater than 64MB of
RAM in the system.
Ø The choice: Non-OS2 or OS2.

HDD S.M.A.R.T. Capabiliry

This item enable/disable the HDD system management function.
Ø The choice: Enabled or Disabled.

Report No FDD For Win 95

Whether report no FDD runs for Win 95 or not.
Ø The choice: Yes or No.

Small Logo(EPA) Show

This item allows you to enable/disable the EPA Logo.
Ø The choice: Enabled or Disabled.

- 66 -

( Advanced Chipset Features

This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to sys­tem memory resources, such as DRAM and the external cache. It also coor­dinates communications between the conventional ISA bus and the PCI bus.
It states that these items should never need to be altered.

The default settings have been chosen because they provide the best operat­ing conditions for your system. If you discovered that data was being lost
while using your system, you might consider making any changes.

Advanced DRAM Control 1

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

System Performance

This item select the system timing(Safe/Normal/Fast/Ultra) for DDR
SDRAM,

Ø The Choice: Safe Mode, Normal Mode, Fast Mode, Turbo Mode, or

Ultra Mode.

CAS Latency Setting

This item select the CAS latency for DDR SDRAM
Ø The Choice: 2T, 2.5T, or 3T.

- 67 -

DRAM Addr/Cmd Rate

This item select the Cmd Rate of DDR SDRAM(1T/2T).
Ø The Choice: Auto Mode, 1T, or 2T.

Prefetch Caching

This item enable/disable the Prefetch cache function of DRAM controller
Ø The Choice: Enabled or Disabled.

Memory Hole at 15M-16M

You can reserve this area of system memory for ISA adapter ROM.
When this area is reserved, it cannot be cached. The user information
of peripherals that need to use this area of system memory ususlly
discusses their memory requirements.

Ø The Choice: Enabled or Disabled.

AGP Aperture Size (MB)

Select the size of Accelerated Graphics Port (AGP) aperture. The aper­ture is a portion of the PCI memory address range dedicated to graphics
memory address space. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.

Ø The Choice: 4M, 8M, 16M, 32M, 64M, 128M, or 256M.

Graphic Window WR Combin

This item enable/disable the write combine function for Graphic ad­dress space.

Ø The Choice: Enabled or Disabled.

- 68 -

( Integrated Peripherals

SIS OnChip IDE Device

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

Internal PCI/IDE

This chipset contains and internal PCI IDE interface with support for two
IDE channels.

Ø The choice: Disabled, Primary, Secondary, or Both.

IDE Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO
mode (0-4) for each of the four IDE devices that the onboard IDE inter­face supports. Modes 0 through 4 provide successively increased
performance. In Auto mode, the system automatically determines the
best mode for each device.

Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4.

Primary/Secondary Master/Slave UltraDMA

Ultra DMA/100 implementation is possible only if your IDE hard drive
supports it and the operating environment includes a DMA driver
(Windows 95 OSR2 or a third-party IDE bus master driver). If both of
your hard drive and your system software support Ultra DMA/100,
select Auto to enable BIOS support.

Ø The choice: Auto or Disabled.

- 69 -

IDE DMA transfer access

lnternal PCI/IDE field, above, is Disabled.
Ø The choice: Enabled or Disabled.

IDE Burst Mode

Selecting Enabled reduces latency between each drive read/write cycle,
but may cause instability in IDE subsystems that cannot support such
fast performance. If you are getting disk drive errors, try setting this
value to Disabled. This field does not appear when the lnternal PCI/IDE
field, above, is Disabled.

Ø The choice: Enabled or Disabled.

SIS OnChip PCI Device

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

SIS-7012 AC97 AUDIO

This item allows you to control the onboard AC 97 audio.
Ø The Choice: Enabled or Disabled.

SIS-7013 S/W Modem

This item allows you to control the onboard modem.
Ø The Choice: Enabled or Disabled.

System Share Memory Size

This Item will be disabled by BIOS code. It is for 650 chipsets.
Ø The choice: 4MB, 8MB, 16MB, 32MB, or 64MB.

Onboard Super IO Device

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) in­stalled on the system board and you want to use it. If you install add-on
FDC or the system has no floppy drive, select Disabled in this field.

Ø The choice: Enabled or Disabled.

Onboard Serial Port1/Port2

Select an address and corresponding interrupt for the first and second
serial ports.
Ø The choice: 3E8/IRQ4, 2E8/IRQ3, 3F8/IRQ4, 2F8/IRQ3,Auto, or

Disabled.

- 70 -

UART Mode Select

This item allows you to select which mode for the Onboard Serial Port

2.
Ø The choice: Normal, IrDA, ASKIR, or SCR.

UR2 Duplex Mode

This item allows you to selects the IR half/full duplex function.
Ø The choice: Full or Half.

Onboard Parallel Port

This item allows you to determine onboard parallel port controller I/O
address setting.

Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode

Select an operating mode for the onboard parallel (printer) port. Select
Normal, Compatible, or SPP unless you are certain your hardware and
software both support one of the other available modes.

Ø The choice: SPP, EPP, ECP, or ECP+EPP.

ECP Mode Use DMA

Select a DMA channel for the parallel port for use during ECP mode.
Ø The choice: 1 or 3.

Game Port Address

This item selects Game Port Address.
Ø The choice: Disabled, 201, or 209.

Midi Port Address

This item selects Midi Port Address.
Ø The choice: Disabled, 330, or 300.

Midi Port IRQ

This item selects Midi Port IRQ.
Ø The choice: 5 or 10.

USB Controller

Select Enabled if your system contains a Universal Serial Bus (USB)
controller and you have USB peripherals.

Ø The choice: Enabled or Disabled.

- 71 -

USB Keyboard Support

This item is used to defined USB Keyboard id Enabled or Disabled.
Ø The Choice: Enabled or Disabled.

Onboard LAN

This item is used to enabled/disabled onboard LAN.
Ø The Choice: Enabled or Disabled.

Onboard LAN Boot ROM

This item is used to enabled/disabled onboard LAN boot ROM.
Ø The Choice: Enabled or Disabled.

IDE HDD Block Mode

The chipset contains a PCI IDE interface with support for two IED
channels. Select Enabled to activate the primary and/or secondary IDE
interface. Select Disabled to deactivate this interface, if you install a
primary and/or secondary add-in IDE interface IDE interface.

Ø The choice: Enabled or Disabled.

SC Port Address

This item selects SC Port Address.
Ø The choice: Disabled, 700H, 720H, 740H, or 760H.

SC Port IRQ

This item selects SC Port IRQ.
Ø The choice: 11, 5, 10, or 9.

MS Port Address

This item selects MS Port Address.
Ø The choice: Disabled, 800H, 820H, 840H, or 860H.

MS Port IRQ

This item selects MS Port IRQ.
Ø The choice: 11, 5, 10, or 9.

SD Port Address

This item selects SC Port Address.
Ø The choice: Disabled, 808H, 828H, 848H, or 868H.

SD Port IRQ

This item selects SC Port IRQ.
Ø The choice: 11, 5, 10, or 9.

- 72 -

Init Display First

This item is used to determine initial device when system power on.
Ø The choice: AGP or PCI Slot.

AGP Auto Calibration

This item enable/disable the AGP driving functions.
Ø The choice: Enabled or Disabled.

IDE Access Interface

This item select the IDE data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: Embedded Bus or PCI Bus.

USB1 Access Interface

This item select the USB1 data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: Embedded Bus, or PCI Bus.

USB0 Access Interface

This item select the USB0 data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: Embedded Bus, or PCI Bus.

Audio Access Interface

This item select the Audio data transfer use PCI bus or Embedded(MuTIOL)
bus. The MuTIOL bus is faster.

Ø The choice: Embedded Bus or PCI Bus.

- 73 -

( Power Management Setup

The Power Management Setup allows you to configure your system to
most effectively saving energy while operating in a manner consistent
with your own style of computer use.

ACPI Function

This item allows you to enable/disable the Advanced Configuration and
Power Management (ACPI)

Ø The choice: Enabled or Disabled.

ACPI Suspend Type

This item allows you to select sleep state when suspend.
Ø The choice: S1(POS), S3(STR), or S1 & S3.

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a
power saving mode.

Always On Monitor will remain on during power saving

mode.

Suspend --> Off Monitor is blanked when the system enters the

Suspend mode.

Susp,Stby --> Off Monitor is blanked when the system enters

either Suspend or Standby modes.

All Modes --> Off Monitor is blanked when the system enters

any power saving mode.

Ø The choice: Always On, Suspend ->Off, Susp,stby -> Off, or All

Modes -> Off.

- 74 -

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization
ports and write blanks to the video buffer.

Blank Screened This option only writes blanks to the video

buffer.

DPMS Support Initial display power management signaling.

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS Supported.

MODEM Use IRQ

This determines the IRQ which the MODEM can use.
Ø The choice: 3, 4, 5, 7, 9, 10, 11, or Auto.

Hot Key Function As

This item allows you to set the Hot Key function.
Ø The choice: Disabled, Power off, or Suspend.

Hot Key Power on function

This item allows you to power on the system using hot keys.
Ø The choice: Enabled, Disabled.

USB S3 WakeUp Function

This item allows you to enabled/disabled USB device activity to wake
the system from S3.
Ø The choice: Enabled, Disabled.

HDD Off After

The IDE hard drive will spin down if it is not accessed within a specified
length of time. Options are from 1 Min to 15 Min and Disable.
Ø The choice: Disabled, 1 Min ~ 15 Min.

Power Button Override

Pressing the power button for more than 4 seconds forces the system to
enter the Soft-Off state when the system has "hung.".

Ø The choice: Instant-Off or Delay 4 Sec.

Power State Resme Control

This sets the power state after a shutdown due to an unexpected inter­rupt of AC power.

Ø The choice: Always off, Always on, Keep Pre-state.

- 75 -

PM Wake Up Events

Options are in its sub-menu.
Press <Enter> to enter the sub-menu of detailed options.

IRQ [3-7, 9-15], NMI

When enabled, any event occurring at IRQs 3 through 15 (excluding
IRQ 8) will awaken a system, which has been powered down.
Ø The choice: Enabled, Disabled.

IRQ 8 Break Suspend

This field allows you to enable or disable monitoring of IRQ8 so that it
does not awaken the system from a suspend mode.
Ø The choice: Enabled, Disabled.

RING/WOL/WOM Power Up Control

This item enabled/disabled LAN or modem activity to wakeup the
system from a power saving mode.
Ø The choice: Enabled, Disabled.

PCIPME Power Up Control

This item enabled/disabled PCI activity to wakeup the system from a
power saving mode.
Ø The choice: Enabled, Disabled.

Power Up by Alarm

When set to Enabled, the following three fields become available and
you can set the month, date (day of the month), hour, minute and
second to turn on your system.
Ø The choice: Enabled, Disabled.

Month Alarm

This is for specifying the alarm month which system will awaken
the system from suspend mode.
Ø The choice: NA, 1 ~ 12.

Day of Month Alarm

This item selects the alarm day.
Ø Key in a DEC number:Min=1, Max=31.

Time (hh : mm : ss) Alarm

This item selects the alarm Time.
[hh]
Ø Key in a DEC number:Min=0, Max=23.
[mm/ss]
Ø Key in a DEC number:Min=0, Max=59.

- 76 -

( PnP/PCI Configurations

This section describes the configuration of PCI bus system. PCI or
Personal Computer Interconnection is a system which allows I/O
devices to operate at the speed CPU itself keeps when CPU
communicating with its own special components.
This section covers some very technical items, and it is strongly
recommended that only experienced users should make any
changes to the default settings.

Reset Configuration Data

Normally, you leave this field Disabled. Select Enabled to reset
Extended System Configuration Data (ESCD) when you exit from Setup
if you have installed a new device or software and the system
reconfiguration has caused such a serious conflict that the operating
system can not boot.

Ø The choice: Enabled or Disabled .

Resource controlled By

The Award Plug-and-Play BIOS has the capacity to automatically
configure all of the boot and Plug-and-Play compatible devices.
However, this capability means absolutely nothing unless you are using
a Plug-and-Play operating system such as Windows 95.

If you set this field to "manual" , choose specific resources by going into
each of the sub-menu that follows this field (a sub-menu is proceeded
by a ">").

Ø The choice: Auto(ESCD) or Manual.

- 77 -

IRQ Resources

When resources are controlled manually, assign each system interrupt a
type, depending on the type of device using the interrupt.

IRQ3/4/5/7/9/10/11/12/14/15 assigned

This item allows you to determine the IRQ assigned to the ISA bus and
is not available to any PCI slot. Legacy ISA for devices is compliant with
the original PC AT bus specification; PCI/ISA PnP for devices is compli­ant with the Plug-and-Play standard whether designed for PCI or ISA
bus architecture.

Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

It determines whether the MPEG ISA/VESA VGA Cards can work with
PCI/VGA or not. If you have MPEG ISA/VESA VGA Cards and PCI/
VGA Card worked, Enable this field. Otherwise, please Disable it.

Ø The choice: Enabled or Disabled.

INT Pin 1-8 Assignment

Identifies the interrupt request (IRQ) line assigned to a device connected
to the PCI interface of your system.

Ø The choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

- 78 -

( PC Health Status

Shutdown Temperature

Enables you to set the maximum temperature the system can reach
before powering down.

Ø The choice: Disabled, 60°C/140°F, 65°C/149°F, 70°C/158°F.

System Component Characteristics

These fields provide you with information about the systems current
operating status. You cannot make changes to these fields.

The fields include

CPU Core Voltage
Vcc 1.8V
Vcc 3.3V
Vcc 5.0V
+12V
StandBy 3.3V
StandBy 5.0V
Voltage Battery
CPU Temperature
System Temperature
CPU Fan Speed
CHS Fan1 Speed
BAK Fan1 Speed

- 79 -

( Frequency/Voltage Control

CPU Clock Ratio

This item allows you to adjust CPU Ratio.
Min: 8
Max: 50
Ø Key in a DEC number: (Between Min and Max.) or left it auto detect.

Auto Detect DIMM/PCI Clk

This item allows you to enable/disable auto detection DIMM/PCI Clock.
Ø The choice: Enabled, or Disabled.

Spread Spectrum

This item allows you to enable/disable the spread spectrum modulation.
Ø The choice: Enabled, or Disabled.

CPU Host/DRAM/PCI Clock

This item allows the user to adjust CPU Host Clock/DRAM/PCI Clock.
Ø The choice: Default, 100/100/33 MHz, 100/133/33 MHz, 100/166/

33 MHz, 105/140/35 MHz, 108/144/36 MHz, 112/140/31 MHz,
100/200/33 MHz, 133/100/33 MHz, 133/133/33 MHz, 133/166/33
MHz, or 133/160/33 MHz.

- 80 -

( Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable,
minimal performance system operations.

( Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation
dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for
optimal performance system operation.

- 81 -

( Set Password

This item is to set supervisor password. Please follow below steps.

New Password Setting :

1. While pressing <Enter> key to start setting password function, a
dialog box appears to ask you Enter password: .

2. Key in a new password now. However, the password can not be
over eight characters or numbers.

3. Then system will request you to confirm new password by asking
you to key in new password again.

4. Once the confirmation is completed, new code takes effect.

No Password Setting :

5. If you want to delete password, just press <Enter> key instead of
new password while password input is requested. And the other
procedures are the same as above password setting.

If You Forget Password :

6. While being asked of password, you just forget it and you must
access the system. The only way is to turn off system and clear
CMOS memory. Please take reference in page 28 for clear CMOS
setting.

- 82 -

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a
special section of memory that stays on after you turn your system off.
The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving
the values the system is restarted again.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit from Setup without storing in CMOS any
change. The previous selections remain in effect. This exits from the
Setup utility and restarts your computer.

- 83 -
