MN31L

AMD Athlon XP/Athlon/Duron 462-pin Processor with 200/266/333/400 MHz FSB Based DDR MAINBOARD

User's Manual

Shuttle® MN31L

AMD Athlon XP/Athlon/Duron 462-pin Processor with 200/266/333/400 MHz FSB Based DDR Mainboard Manual Version 1.0

Disclaimer

Shuttle® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

This company makes no representations or warranties regarding the contents of this manual. Information in this manual has been carefully checked for reliability; however, no guarantee is given as to the correctness of the contents. In the interest of continued product improvement, this company reserves the right to revise the manual or include changes in the specifications of the product described within it at any time without notice and without obligation to notify any person of such revision or changes. The information contained in this manual is provided for general use by the customers.

Trademarks

Shuttle is a registered trademark of Shuttle Inc. nVIDIA is a registered trademark of nVIDIA Corporation. AMD, Athlon, and Duron are registered trademarks of AMD Corporation. PS/2 is a registered trademark of IBM Corporation. AWARD is a registered trademark of Award Software Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice: Other product names used in this manual are ascribed to their respective owners and acknowledged.

M896

WARNING

Thermal issue is highly essential for processors with a speed of 600MHz and above. Hence, we recommend you to use the CPU fan qualified by AMD or motherboard manufacturer. Meanwhile, please make sure CPU and fan are securely fastened well. Otherwise, improper fan installation not only gets system unstable but also could damage both CPU and motherboard because insufficient thermal dissipation.

If you would like to know more about thermal topic please see AMD website for detailed thermal requirement through the address:

http://www.amd.com

NOTICE

If you’ve changed your CPU or overclocked your system, the system may fail to boot up, even with a Clear CMOS jumper physically resetted. The reason is that nVIDIA’s new nForce2 chipset introduces a way to reset a Clear CMOS jumper without removing a chassis. Please follow the steps listed below:

1. Turn off your computer and unplug the power cable. Reconnect it after 30 seconds;

2. Press <Insert > and then press your computer’s start button. Continue holding <Insert> until the system begins the POST (Power-On Self Test);

3. Immediately press <Del> to enter the BIOS;

4. Select ‘Load Optimized Defaults’ to return your system to a bootable condition; then select ‘SAVE to CMOS and EXIT’;

5. Reboot your system.

Your system, however, may also not boot up after you’ve resetted the CPU FSB. The remedy is to highlight “SAVE to CMOS and EXIT” in the BIOS and then restart your computer. There will be on screen a message warning you not to reset or turn off your computer, a message described as:

Warning! New setting is updating now

Do not Reset or Shutdown the system

The system works after updating the BIOS.

Statement of Shuttle Mainboard via the EMI Test

Shuttle mainboards have been via the EMI test in terms of series of regulations: EN55022/ CISPR22/AS/NZS3548 Class B, EN55024 (1998/AS/NZS), EN4252.1 (1994), EN61000, ANSI C63.4 (1992), CFR47 Part 15 Subpart B, and CNS13438 (1997). The items tested are illustrated as follows:

(A) Voltage: AC 110V/60HZ & AC 230V/50HZ (B) Tested Product Information:

Product Name: PC Mainboard Status: Sample Model Name: MN31L S/N: N/A CPU:

External Frequency: 200 MHz

AMD Athlon XP: 3200+

External Frequency: 166 MHz

AMD Athlon XP: 2700+,2800+

External Frequency: 133 MHz

AMD Athlon XP: 1500+,1600+,1700+,1800+,1900+,2000+,2100+,2400+, 2600+

Mouse Port: one port with 6 pins Keyboard Port: one port with 6 pins Parallel Port: one port with 25 pins VGA Port: two ports with 15 pins respectively MIDI/Game Port: one port with 15 pins Line-Out & Line-In & Mic-In Ports: one port for each LAN Port: one port with 8 pins (10Mbps/100Mbps) USB 2.0 Port: two ports with 4 pins respectively DDR Memory: 256 MB *3

All CPUs have completely been tested, and values offered by the worst EMI combination of CPU external frequency are listed as follows:

Test Mode External Frequency CPU Case Open/Close

1 200 MHz Athlon XP 3200+ Close 2 200 MHz Athlon XP 3200+ Open 3 166 MHz Athlon XP 2800+ Close 4 166 MHz Athlon XP 2800+ Open 5 133 MHz Athlon XP 2600+ Close 6 133 MHz Athlon XP 2600+ Open

Remedy: N/A EMI Interference:

Crystal: 14.3 MHz(Y1)/ 32.768 KHz(Y2)/ 12 MHz(Y3)/ 24.576 MHz(Y4)/

25 MHz(Y5)/ 24.50 MHz(Y6)

(D) Supported Host Peripherals:

Host Peripheral Product Name Model Name S/N FCC ID

#1 Case KF45A N/A #2 Power Supply (300W) ENP-0730 (ATX12V) 1000002885 #3 IBM HDD (30.7GB) 91024UB YKFY7981 3892I168 #4 MITSUMI FDD D353M #5 SONY VCD Player CDU4811 3892A291 #6 AGP Card Winfast Geforce 2 MX 3892C520 #7 Power Cable Detachable and Shielded

TABLE OF CONTENTS

WHAT'S IN THE MANUAL.................................................................... 4

Quick Reference............................................................................................... 4

About This Manual ........................................................................................... 4

1 INTRODUCTION ................................................................................ 5

1.1 TO DIFFERENT USERS ............................................................................. 5

FIRST-TIME DIY SYSTEM BUILDER............................................................ 5

EXPERIENCED DIY USER ......................................................................... 5

SYSTEM INTEGRATOR............................................................................... 5

1.2 ITEM CHECKLIST: ...................................................................................... 6

2 FEATURES ........................................................................................ 7

2.1 SPECIFICATIONS ....................................................................................... 7

3 HARDWARE INSTALLATION.......................................................... 10

3.1 STEP-BY-STEP INSTALLATION............................................................... 10

STEP 1 Install the CPU ...............................................................................11

STEP 2 Set Jumpers ................................................................................. 12

STEP 3 Install DDR SDRAM System Memory............................................ 12

STEP 4 Install Internal Peripherals in System Case .................................... 13

STEP 5 Mount the Mainboard on the Computer Chassis............................ 14

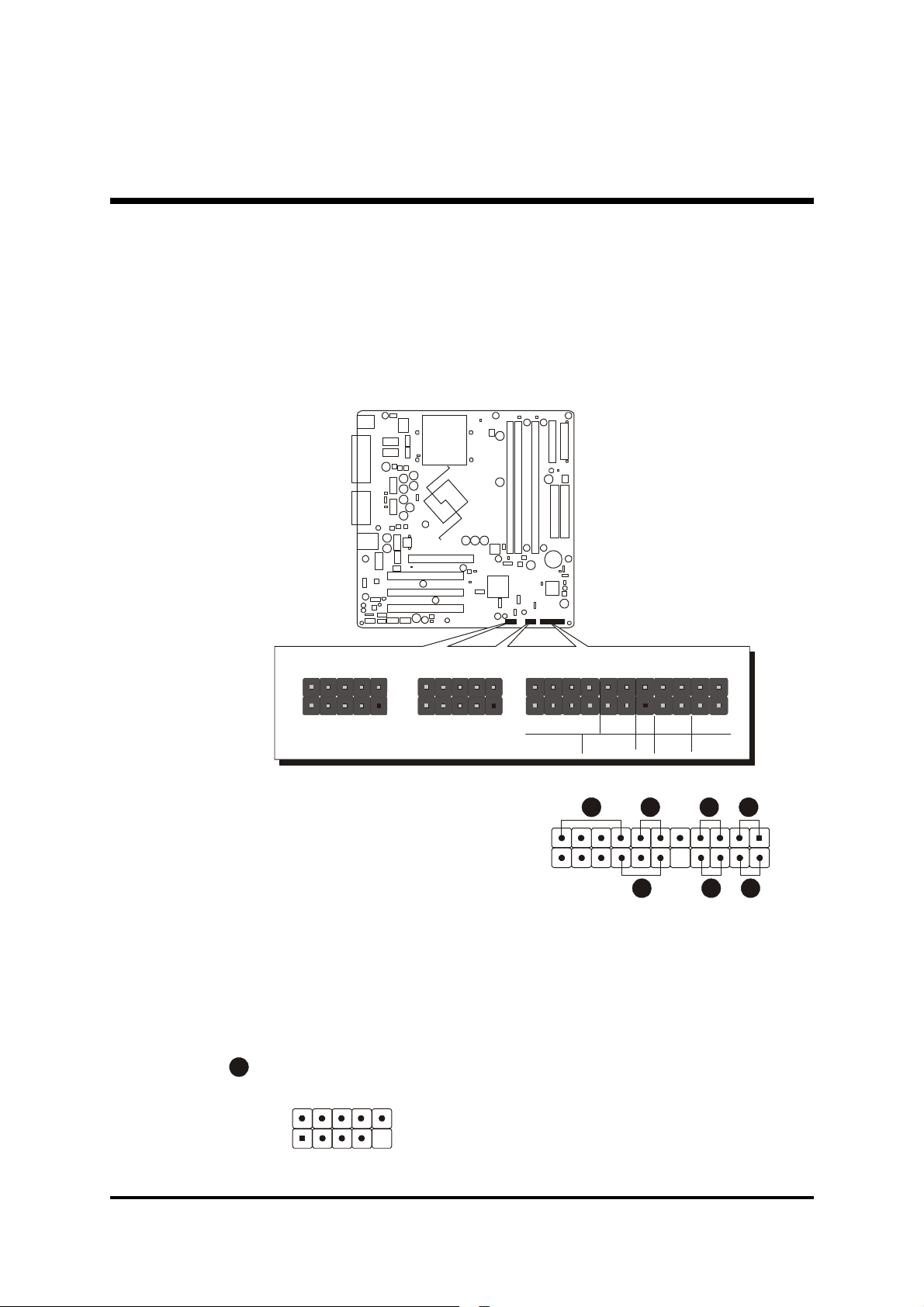

STEP 6 Connect Front-Panel LEDs/Switches/Speaker/USBs.................... 15

STEP 7 Connect IDE and Floppy Disk Drives ............................................ 16

STEP 8 Connect Other Internal Peripherals................................................ 17

STEP 9 Connect the Power Supplies......................................................... 18

STEP 10 Install Add-on Cards in Expansion Slots ...................................... 18

STEP 11 Connect External Peripherals to Back-Panel ............................... 19

STEP 12 System Boot Up For the First-Time ............................................. 20

STEP 13 Install Drivers & Software Components ....................................... 21

3.2 JUMPER SETTINGS ................................................................................. 22

JUMPERS & CONNECTORS GUIDE........................................................ 23

Jumpers

Clear CMOS Setting (JP1)........................................................................ 26

- 1 -

Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors................................................ 27

VGA Port Connectors ................................................................................ 27

Parallel Port Connector.............................................................................. 27

Line-Out Port Connector ............................................................................ 27

Line-In (Shared with Rear-Out) Port Connector........................................... 27

Mic-In (Shared with Center/Bass-Out) Port Connector ................................ 28

MIDI/Game Port Connector ........................................................................ 28

USB1/USB2 Port Connectors .................................................................... 28

LAN Port Connector................................................................................... 28

Front-Panel Connectors

HDD LED Connector (HLED) .................................................................... 29

Green LED Connector (GLED) .................................................................. 29

Hardware Reset Connector (Reset) ........................................................... 30

ATX Power On/Off Switch Connector (PWON) ........................................... 30

EPMI Connector (EPMI)............................................................................. 31

Power LED Connector (PLED) .................................................................. 31

Speaker Connector (Speaker) ................................................................... 31

Front-Panel Audio Header (JP9) ................................................................ 32

Extended USB Headers (JP2/JP3) ............................................................ 32

Internal Peripheral Connectors

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FLP1) ...................... 33

Other Connectors

ATX Power Supply Connectors (CN2/CN3)................................................ 34

CPU and System Fan Connectors (FAN1/2/3)............................................ 35

Audio Center/Bass Header (JP5)............................................................... 35

SPDIF Ext. Header (JP7)........................................................................... 36

Audio CD_IN Connectors (JP6/JP8) .......................................................... 36

Audio AUX_IN Connector (JP10)(White) .................................................... 37

Serial Port Connectors (COM1/COM2) ...................................................... 37

IR Header (JP4)......................................................................................... 38

AGP Protection LED (D1).......................................................................... 38

CPU Overtemperature LED (D30) ............................................................. 38

- 2 -

3.3 SYSTEM MEMORY CONFIGURATION ..................................................... 39

INSTALL MEMORY .................................................................................... 39

UPGRADE MEMORY................................................................................ 39

4 SOFTWARE UTILITY ......................................................................40

4.1 Mainboard CD Overview .......................................................................... 40

4.2 Install Mainboard Software ...................................................................... 41

4.2.A Install NVDIA Chipset driver ................................................................. 42

4.2.B Install VGA Device Driver...................................................................... 42

4.3 View the User's Manual............................................................................ 43

5 BIOS SETUP ...................................................................................44

5.1 ENTER BIOS ............................................................................................. 44

5.2 THE MAIN MENU ...................................................................................... 45

STANDARD CMOS FEATURES ............................................................... 47

ADVANCED BIOS FEATURES................................................................. 49

ADVANCED CHIPSET FEATURES .......................................................... 52

INTEGRATED PERIPHERALS .................................................................. 55

POWER MANAGEMENT SETUP.............................................................. 58

PNP/PCI CONFIGURATIONS .................................................................... 61

PC HEALTH STATUS................................................................................ 62

LOAD FAIL-SAFE DEFAULTS .................................................................. 63

LOAD OPTIMIZED DEFAULTS ................................................................. 63

SET SUPERVISOR/USER PASSWORD................................................... 64

Save & Exit Setup...................................................................................... 65

Exit Without Saving.................................................................................... 65

- 3 -

WHAT'S IN THE MANUAL

Quick Reference

Hardware Installation >> Step-by-Step ................................................Page 10

Jumper Settings >> A Closer Look.......................................................Page 22

Software Utility >> How to Install..........................................................Page 40

BIOS Setup >> How to Configure.........................................................Page 44

About This Manual

For First-Time DIY System Builder .........................................................Page 5

For Experienced DIY User ......................................................................Page 5

For System Integrator .............................................................................Page 5

- 4 -

1 INTRODUCTION

1.1 To Different Users

First-Time DIY System Builder

Welcome to the DIY world! Building your own computer system is not as difficult as you may think. To make your first computer DIY experience successful, right from the start, we have designed Chapter 3 Hardware Installation in a step-by-step fashion for all the first-time DIY system builders. Prior to installation, we suggest you read the whole manual to gain a complete understanding of your new MN31L mainboard.

Experienced DIY User

Congratulate on your purchase of the MN31L mainboard. You will find installing your new MN31L mainboard is quite easy. Bundled with an array of onboard functions, the highly-integrated MN31L mainboard provides you with a total solution to build the stablest and most reliable system. Referring to section 3.2 Jumper Settings and Chapter 4 Software Utility, you will find how to work out your new mainboard. Chapter 5 BIOS Setup also contains the relevant information on how to tune up your system to achieve higher performance.

System Integrator

You have wisely chosen MN31L to construct your system. MN31L incorporates all the state-of-the-art technology of the nForce2 IGP chipset from nVIDIA. Each integrates the most advanced functions you've ever found in a compact Micro ATX board.

- 5 -

1.2 Item Checklist:

W49V002AP

2204484Y2

Winbond

+++

--Reset

Speaker

DIMM1

DIMM2

DIMM3

FLP11ATXPWR

FAN21IDE1

IDE2

JP131JP1

CMOS1JP2

USB 3&4

JP3

USB 5&6

T A I W A N

V I

D I

n F O R C E

M C P

JP10

AUX_IN

JP3

CPU Overtemperature LED

Check all items with your MN31L mainboard to make sure nothing is missing. A complete package should include:

- One Shuttle MN31L Mainboard

IR JP4

CN1

VGA2

COM2

COM1

PRN1

VGA1

AUDIO1

FAN1

1 CN3

D30

- One ATA 133/100/66/33 Ribbon Cable

- One Floppy Ribbon Cable

- One Twin-Port USB Cable

- MN31L User's Manual

USB1 LAN1

ATX12V CN2

AGP1

FAN3

AGP Protection LED

PCI1

REALTEK

RTL8201BL

TAIWAN

PCI2

Front Audio

1 JP9

PCI3

ALC650

28200Q1 240E

JP5

JP8

JP7 1

JP6

CD_IN

SPDIF Ext.

1 1

216WFSA

HLED

EPMI

PWON

PLED

GLED

- I/O Shielding

- One Bundled CD-ROM, including: Ø MN31L user's manual in PDF format

Ø NVDIA Chipset driver Ø VGA Device Driver Ø Award Flashing Utility

- 6 -

2 FEATURES

MN31L mainboard is dedicatedly designed for demanding PC users who desire high performance and maximum intelligent features in a compact package.

2.1 Specifications

- CPU Support

AMD Athlon XP/Athlon/Duron, 462-pin processors with 200/266/333/400 MHz FSB.

- Chipset

Features nVIDIA nForce2 IGP N.B. and nVIDIA MCP S.B..

- Onboard 10/100Mb/s LAN

The Realtek RTL8201BL incorporated in the chipset provides the mainboard with integrated Fast Ethernet capabilities.

- AC'97 Audio

Realtek ALC650 Supports 18-bit ADC and DAC resolutions, and four analog line-level stereo inputs. Compliant with AC'97 2.3 specifications.

- On Board Graphical Controller

The nForce2 IGP Host Controller integrates a high performance and high quality 3D/2D Graphical Accelerator.

Ø Integrated Geforce4 MX GPU Ø Built-in a high performance and high quality 256-bit 3D/2D graphic accel-

erator.

Ø nView dual-display architecture supporting desktop VGA monitor and DVI

display.

Ø Dual CRTC/simultaneous Dual Display. Ø Integrated dual 300 MHz palette-DACs for analog VGA monitors up to

1920x1400.

- Versatile Memory Support

Features the dual-channel mode of 128-bit data transfer rate. Three 184-pin DDR SDRAM DIMM slots maximumly accommodate 3GB

of PC1600/2100/2700/3200.

- PCI Expansion Slots

Provides three 32-bit PCI slots.

- 7 -

- AGP Expansion Slot

Provides one AGP 1.5V slot that supports 8X/4X/2X AGP device.

- USB 2.0 Interface Onboard

Ø 2 x USB ports on back-panel and two extended USB headers (4 ports) on

front-panel.

- I/O Interface

Provides a variety of I/O interfaces:

Ø 2 x PS/2 ports for Mouse and Keyboard Ø 1 x Parallel port Ø 2 x VGA ports Ø 1 x MIDI/Game port Ø 1 x Line-Out port Ø 1 x Line-In (shared with Rear-Out) port Ø 1 x Mic-In (shared with Center/Bass-Out) port Ø 1 x LAN port Ø 2 x USB ports

- PCI Bus Master IDE Controller Onboard

Two ultra DMA 100 bus master dual-channel IDE ports support up to four IDE devices (one Master and one Slave per channel).

The IDE bus implements data transfer speeds to 133/100/66/33MB/sec and supports enhanced PIO modes.

80-pin cable backward compatible legacy ATAPI devices, ATAPI IDE CD-ROM, CD-R, CD-RW, and LS-120 supports.

- ATX Power Supply Connector

ATX power supply unit can be connected to the onboard 20-pin ATX power connector, and 4-pin ATX power connector. The unit supports Suspend and Soft-On/Off modes by the dual-function power button.

- Advanced Configuration and Power Interface

Features four power-saving modes: S1 (Snoop), S3 (Suspend to RAM), S4 (Suspend to DISK), and S5 (Soft-Off). ACPI provides more efficient energysaving features controlled by your operating system that supports OS Direct Power Management (OSPM) functionality.

- 8 -

- System BIOS

Provides licensed Award BIOS V6.0 PG on the 2Mb Flash EEPROM, and supports Green PC, Desktop Management Interface (DMI).

- Form Factor

System board conforms to the Micro ATX specification. Board dimension: 244mm x 244mm.

- Advanced Features

Ø Low EMI - Built in spread spectrum. Unused PCI/SDRAM slots are shut off

by the automatic clock for reducing EMI.

Ø Dual Function Power Button - The system can be in any of the two

states: one is Suspend mode and the other is Soft-Off mode. Pushing the power button for less than 4 seconds places the system into Suspend mode. When the power button is pressed for longer than 4 seconds, the system will enter Soft-Off mode.

Ø Modem Ring Power-On - The system can be powered on automatically

by the activation of modem ringing.

Ø CPU Host/SDRAM - This item allows users to adjust CPU Host Clock, and SDRAM in BIOS.

- Intelligent Features

Ø Voltage Monitoring - Monitors various voltages of key elements, such as

the CPU, and other critical system voltage levels to ensure a stable current passing through mainboard components.

Ø Fan Status Monitoring - To prevent the CPU from overheating, the CPU

fan is monitored by RPM, with which the cooling fan is required.

Ø Temperature Monitoring - This item allows users to make sure whether

the CPU or system runs under a suitable temperature.

- 9 -

3 HARDWARE INSTALLATION

W49V002AP

2204484Y2

Winbond

+++

--Reset

Speaker

DIMM1

DIMM2

DIMM3

FLP1

FAN21IDE1

IDE2

JP131JP1

CMOS1JP2

USB 3&4

JP3

USB 5&6

T A I

W A N

V I

D I

n F O R C E

M C P

JP10

AUX_IN

JP31D30

CPU Overtemperature LED

FAN1

Extended USB Headers - JP2/JP3

nVIDIA

SOCKET462

IR Header - JP4

COM1/COM2

Before removing/installing any of these devices: CPU, DIMMs, Add-On Cards, and Cables, please unplug the onboard power connector.

This section outlines how to install and configure your mainboard. Referring to the following mainboard layout helps you identify various jumpers, connectors, slots, and ports. Steps described herein will lead you to a quick and correct installation of your system.

3.1 Step-by-Step Installation

Accessories Of MN31L

JP4

FAN1

COM2

COM1

PS/2 Keyboard & Mouse Connectors

VGA Port 2 Connector

Parallel Port Connector

VGA Port 1 Connector

CN1

VGA2

PRN1

VGA1

AUDIO1

Line-Out/ Line-In (Rear-Out)/ Mic-In (Center/

Bass-Out) & MIDI/Game Port

Connectors

AGP Protection LED - D1

USB Port & LAN Port Connectors

ATX12V Connector - CN2

One AGP Slot

FAN3 Realtek 8201BL

Three PCI Slots

Front Panel Audio Header - JP9

Realtek ALC650 Center/Bass Header - JP5

SPDIF Ext. Header - JP7

CD_IN Connector - JP6/JP8

USB1 LAN1

Front Audio

JP9

JP5

JP7

SPDIF Ext.

ATX12V CN2

AGP1

FAN3

AGP Protection LED

PCI1

REALTEK

RTL8201BL

TAIWAN

PCI2

PCI3

ALC650

28200 Q1 240E

JP8

JP6 1

CD_IN

216WFSA

EPMI

PLED

PWON

AUX_IN Connector - JP10

CN3 ATXPWR

1 1

HLED

GLED

Floppy Connector

ATXPWR Connector

- CN3

Three DIMM Slots

CPU Overtemperature LED - D30

FAN2

Two IDE Connectors

nForce2 IGP

Clear CMOS Jumper - JP1

nVIDIA MCP

Front Panel Header - JP13

- 10 -

Step 1

Notch

SOCKET462

SSEMBLED IN MALAYSI

Lever

Blank

OCKET46

Install the CPU:

1. Locate the CPU ZIF (Zero Insertion Force) socket on the upper-right sector of your mainboard (between the back-panel connectors and the

DIMM memory slots).

2. Pull the CPU ZIF socket lever slightly sideways away from the socket to unlock the lever, and then bring it to an upwardly vertical position.

3. Place your AMD AthlonXP/Athlon/Duron processor in the socket A. Note that the CPU's edges have been purposely designed non-symmetrically

to prevent from inserting the processor in the wrong direction. The following diagram demonstrates the correct placement of the CPU in the ZIF socket. You can see that the two blunt-edged corners should face towards the socketlever.

AMD CPU

4. Slightly push the AMD AthlonXP/Athlon/Duron processor into the socket

without applying excessive force while making sure there is no gap between

CPU and socket. Then lower the socket-lever all the way down to its horizontal position and lock it to secure the CPU in place.

5. The AMD AthlonXP/Athlon/Duron processor requires a set of heatsink/ fan to ensure proper cooling of the processor. If heatsink/fan have not been

already mounted on your CPU, you must purchase the heatsink/fan separately and have it installed. Plug the cable throught the heatsink/fan in the CPU fan power connector located nearby. Note that there are several types of CPU fan connectors. Normally, if your mainboard supports the hardware monitoring function, a 3-pin fan power connector should allow your system to detect the CPU fan's speed. The CPU fan can also run with a 2pin fan power connector, however, detection of CPU fan's speed is not supported. Another type of CPU fan may feature a large 4-pin fan power connector, which does not support CPU fan's speed detection and must be directly connected to the system's power supply unit. Please refer to the following diagram.

- 11 -

Step 2.

Set Jumpers

The default jumper settings have been set for the common usage standard of this mainboard. Therefore, you need not to reset the jumpers unless you require special adjustments as the following case:

Clear CMOS Setting

For first-time DIY system builders, we recommend that you not change the default jumper settings if you are not quite familiar with the mainboard configuration procedures. The factory-set default settings are tuned for optimum system performance. For advanced users who prefer to customize their system, section 3.2 Jumper Settings provides the detailed information on how to configure your mainboard manually.

Step 3

Install DDR SDRAM System Memory

To install memory, insert DDR SDRAM memory module(s) in the DIMM banks. Note that DDR SDRAM modules are directional and will not go in the DIMM banks if they are not properly oriented. After the module is fully inserted into the DIMM bank, lift the clips of both sides of the DIMM bank to lock the module in place.

DDR SDRAM

- 12 -

Step 4

Install Internal Peripherals in System Case

Before you place the mainboard into your system case, we recommend that you first assemble all the internal peripheral devices into the computer housing, including, but not limited to, the hard disk drive (IDE/HDD), floppy disk drive (FDD), CD-ROM drive, and ATX power supply unit.

To install IDE & FDD drives, follow these procedures:

1. Set the required jumpers on each device according to the instructions provided by the manufacturer. (IDE, HDD, and CD-ROM have to set jumpers to Master or Slave mode depending on whether you install more than one device of each kind.)

2. Connect the IDE cable and FDD cable on the back-panel of the internal peripheral devices to the corresponding headers on board. Note that the cable should be oriented with its colored stripe (usually red or magenta) connected to pin#1 of the IDE or FDD connector on the mainboard and on the device as well.

3. Connect an available power cable from your system power supply unit to the back-panel of each peripheral device. Note that the power cable is directional and cannot fit in if not properly positioned.

- 13 -

Step 5

Mount the Mainboard on the Computer Chassis

1. You may find there are a lot of mounting holes on your computer chassis and mainboard. To match the holes on both properly, the key point is to make the back-panel of the mainboard in a close fit with your system case, as shown below.

2. Position the studs between the chassis and the mainboard. The studs are used to fix the mainboard and to keep a certain distance between the them, for avoiding any electrical shorts in-between.

(If your computer case is already equipped with mounting studs, you need to tighten the screws to attach the mainboard.)

Note: In most computer housings, you can find 4 or more holes to place

studs for fixing the mainboard. If there aren't enough matching holes, screw at least 4 studs to ensure the proper attachment of the mainboard.

- 14 -

Step 6

Reset

Speaker

JP13

12345

13579

2=POWER (5V)

Connect Front-Panel LEDs/Switches/Speaker/USBs

You can find there are several cables existing in the system case and originating from the front-panel devices (HDD LED, Green LED, Reset switch, PC Speaker, and USB devices etc.). These cables serve to connect the front-panel LEDs, switches, speaker, and USB connectors to JP13 and JP2/JP3, as shown below.

JP3

USB 5&6

JP2

USB 3&4

1. HDD LED (HLED)

2. Green LED (GLED)

3. Hardware Reset Switch (Reset)

4. ATX Soft Power On/Off (PWON)

5. Hardware System Management Interface (EPMI)

6. Power LED (PLED)

7. PC Speaker (Speaker)

8. Extended USB Headers (USB 3&4/USB 5&6)

USB 3&4/USB 5&6

2 4 6 8 10

JP2/JP3

1=POWER (5V) 3=DATA35=DATA3+ 7=GND 9=KEY

EPMI

PLED

PWON

DATA4-

DATA4+ 8=GND 10=NC

HLED

GLED

JP13

- 15 -

Step 7

IDE2

Connect IDE and Floppy Disk Drives

1. IDE cable connectors

IDE1

2. Floppy cable connector

FLP1

- 16 -

Step 8

JP10

AUX_IN

Connect Other Internal Peripherals

1. CD_IN (JP6/JP8), AUX_IN (JP10), and Center/Bass (JP5) connectors

JP5

2. IR header (JP4)

JP6

CD_IN

JP4

JP8

- 17 -

Step 9

ATX12V

ATXPWR

Connect the Power Supplies

1. System power connectors (CN2/CN3)

CN3

CN2

Step 10

Install Add-On Cards in Expansion Slots

1. Accelerated Grapics Port (AGP) Card

2. PCI Card

- 18 -

Step 11

579

1026

Connect External Peripherals to Back-Panel

You are now ready to connect the external peripherals to your system's backpanel.

1. PS/2 Mouse Port

2. PS/2 Keyboard Port

3. Parallel Port

4. VGA Ports1/2

5. MIDI/Game Port

6. Audio Line-Out Port

7. Audio Line-In (Shared with Rear-Out) Port

8. Audio Mic-In (Shared with Center/Bass-Out) Port

9. LAN Port

10. USB Ports1/2

1 3

foxconn

- 19 -

Step 12

System Boot Up For the First-Time

To ensure your system completedly and correctly installed, please refer to the above installation steps once again before first booting up your system.

1. Insert a system-bootable floppy disk (DOS 6.2X, Windows 9X/NT, or others), which contains the FDISK and FORMAT utilities.

2. Turn on the system power.

3. First, you need to use the FDISK utility to create a primary partition of the hard disk. You can also add an extended partition if your primary partition does not use all of the available hard disk space. If you choose to add an extended partition, you will have to create one or more logical partitions to occupy all the space available to the extended partition. The

FDISK utility will assign a drive letter (i.e. C:, D:, E:,......) to each partition

shown in the FDISK program. After the FDISK procedure, reboot your system by using the same disk.

Note : DOS 6.2X and Windows 95A can only support up to 2.1GB of HDD

partition. If you use the FDISK utility with one of the operating systems mentioned above, you can only install your HDD into any partitions no larger than 2.1GB.

4. Now, use the FORMAT utility to format all the partitions you've created. When formatting the primary partition (C:), key in the command, "FORMAT C:/S."

Note: FORMAT C:/S can transfer all the necessary system files into the pri-

mary partition of your hard disk. Afterwards, your HDD will become a bootable drive.

5. Install all the necessary drivers for CD-ROM, Mouse, etc.

6. Setup the complete operating system according to your OS installation guide.

- 20 -

Step 13

Install Drivers & Software Components

Please note that all the system utilities and drivers are designed for Win 9x/ 2000/ME/NT/XP operating systems. Make sure your operating system is already installed before running the installation programs on CD-ROM.

1. Insert the MN31L bundled CD-ROM into your CD-ROM drive. The

auto-run program will display the main installation window on screen.

2. Choose "Install Nvidia Chipset driver" and complete it.

3. Choose "Install VGA Device Driver" and complete it.

4. Quit (from the auto-run installation program).

- 21 -

3.2 Jumper Settings

Several hardware settings are made through the use of mini jumpers to connect jumper pins on the mainboard. Pin #1could be located at any corner of jumpers, and the corner with a white right angle stands for Pin #1. There are several types of Pin #1 as shown below:

3-pin and multi-pin (>3) jumpers shown as follows: Pin #1 to the left:

Pin #1 on the top:

Pin #1 to the right:

Pin #1 on the bottom:

Jumpers with two pins capped are shown as for Close [On] or for Open [Off]. To do this, please place a plastic mini cap on the desired pair of pins.

Caution!

1. Do not remove the mainboard from its antistatic protective packaging until you are ready to install it.

2. Carefully hold the mainboard by its edges and avoid touching its components. When putting the mainboard down, place it on top of its original packaging film, with the component side up.

3. Wear an antistatic wrist strap or take other suitable measures to prevent electrostatic discharge (ESD) as handling this equipment.

- 22 -

Jumpers & Connectors Guide

E5E6C1~C7

A1D1D1E2D1E1D1

E10E9C9

Refer to the mainboard layout on page 10 and this section to help you identify jumpers, slots, and connectors along with their assigned functions during installation:

B4~B7

B8~B9

E3 E4

CPU/Memory/Expansion Slots

Socket A : CPU socket for AMD Athlon XP/Athlon/Duron, 462-pin

processors

DIMM1/2/3 : Three DIMM slots for 128, 256, 512 MB, and 1GB of

2.5V DDR SDRAM

(The total installed memory does not exceed 3GB.) AGP : One AGP slot supports 8X/4X/2X AGP device. PCI : Three 32-bit PCI expansion slots

- 23 -

Jumpers

JP1 : Clear CMOS setting

Back-Panel Connectors

B1 B2 B3 B4

B5 B6 B7 B8 B9

KB : PS/2 keyboard port MS : PS/2 mouse port VGA1/VGA2 : VGA1/VGA2 ports PRN1 : Parallel port (printer) LINE-OUT : Line-Out port LINE-IN : Line-In (shared with Rear-Out) port MIC-IN : Mic-In (shared with Center/Bass-Out) port MIDI/GAME : MIDI/Game port USB : USB1/USB2 ports LAN1 : LAN port

Front-Panel Connectors

C3 C4

HLED : HDD LED GLED : Green LED Reset : Hardware reset switch PWON : ATX power on/off switch

C5 C6

C7 C8

EPMI : EPMI connector PLED : Power LED Speaker : Speaker connector JP9 : Front-panel audio header JP2/ JP3 : Extended USB headers (USB 3&4/USB 5&6)

Internal-Peripheral Connectors

IDE1 : IDE primary interface (dual-channel) IDE2 : IDE secondary interface (dual-channel) FLP1 : Floppy disk drive interface

- 24 -

Other Connectors

CN2/CN3 : ATX power supply connectors FAN1 : CPU fan connector FAN2 : System fan connector FAN3 : System fan connector JP5 : Audio Center/Bass header

E10

JP7 : SPDIF Ext. header JP6/JP8 : Audio CD_IN connectors JP10 : Audio AUX_IN connector COM1/COM2 : Serial port connectors JP4 : IR header D1 : AGP protection LED D30 : CPU overtemperature LED

- 25 -

F Jumpers

JP1

CMOS

Clear CMOS Setting (JP1)

JP1 is used to clear CMOS data. Clearing CMOS will result in permanently erasing previous system configuration settings and the original factory-set system settings.

Pin 1-2 (Normal)(Default)

Pin 2-3 (Clear CMOS)

Step 1. Turn off the system power (PC-->Off). Step 2. Remove the ATX power cable from the ATX power connector. Step 3. Remove the jumper cap from pins 1-2. Step 4. Place the jumper cap on pins 2-3 for a few seconds. Step 5. Restore the jumper cap to pins 1-2. Step 6. Plug the ATX power cable into the ATX power connector. Step 7. Turn on the system power (PC-->On).

- 26 -

F Back-Panel Connectors

PS/2 Keyboard & PS/2 Mouse Connectors

Two 6-pin female PS/2 Keyboard & Mouse connectors are located on the rear panel of the mainboard. In a desktop computer, the PS/2 Mouse connector is situated on the top of the PS/2 Keyboard connector. In a tower computer, the PS/2 Mouse connector is located on the rightside of the PS/2 Keyboard connector.

VGA Port Connectors

Two 15-pin VGA connectors are located on the rear panel of the mainboard.

Parallel Port Connector

One DB25 female parallel connector is located on the rear panel of the mainboard. Plug the cable from your parallel device (printer, scanner, etc.) into this connector.

PS/2 Mouse

PS/2 Keyboard

VGA Port2

Parallel Port

VGA Port1

foxconn

Line-Out Port Connector

Line-Out is a stereo output port through which the combined signal of all internal and external audio sources on the board is output. It can be connected to 1/8-inch TRS stereo headphones or to amplified speakers.

Line-In (Shared with Rear-Out) Port Connector

Line-In is a stereo line-level input port that accepts a 1/8-inch TRS stereo plug. It can be used as a source for digital sound recording, a source to be mixed with the output, or both.

- 27 -

Line-Out Port

Line-In (Shared with Rear-Out) Port

Mic-In (Shared with Center/Bass-Out) Port Connector

Mic-In is a 1/8-inch jack that provides a mono input. It can use a dynamic mono or stereo microphone with a resistance of not more than 600 Ohms.

Mic-In (Shared with Center/Bass-Out) Port

MIDI/Game Port Connector

The MIDI/Game port is a 15-pin female connector. This port can be connected to any IBM PC compatible game with a 15pin D-sub connector.

MIDI Instrument Connection

You will need a MIDI adapter to connect a MIDI compatible instrument to the sound card. The MIDI adapter can in turn be connected to the Joystick/MIDI port. You will also need the MIDI sequencing software to run MIDI instruments with your computer into this connector.

USB1/USB2 Port Connectors

This mainboard offers 2 USB ports on back-panel. Plug each USB device jack into an available USB1/USB2 connector.

MIDI/Game Port

USB Port2

USB Port1

LAN Port Connector

This mainboard can accommodate one device on LAN. Attach a RJ-45 cable to

this LAN port connector on back-panel.

LAN Port

- 28 -

F Front-Panel Connectors

JP13

HLED

Reset

Speaker

JP13

HLED

Reset

Speaker

HDD LED Connector (HLED)

Attach a connector cable from the IDE device LED to the 2-pin (HLED) header. The HDD LED lights up whenever an IDE device is active.

EPMI

Green LED Connector (GLED)

The Green LED (GLED) indicates that the system is currently in one of the power saving modes (Doze/Standby/Suspend). When the system resumes to the normal operation mode, the Green LED will go off. Attach a 2-pin Green LED cable to the GLED header.

EPMI

PWONPLED

GLED

- 29 -

PWONPLED

+ -

GLED

JP13

HLED

Reset

Speaker

JP13

HLED

Reset

Speaker

Hardware Reset Connector (Reset)

Attach a cable to the 2-pin (Reset) header. Pressing the reset switch causes the system to restart.

EPMI

ATX Power On/Off Switch Connector (PWON)

The Power On/Off Switch is a momentary type switch used for turning on or off the ATX power supply. Attach a connector cable to the 2-pin (PWON) header on the mainboard.

EPMI

PWONPLED

GLED

Note : Please notice all the LED connectors are directional. If your chassis's

LED does not light up during running, please change it to the opposite direction.

- 30 -

EPMI Connector (EPMI)

JP13

HLED

Reset

Speaker

JP13

HLED

Reset

Speaker

A Hardware System Management Interface (EPMI) header may be attached to a 2-pin momentary switch. Press the switch to force the system into a power saving mode; press it again to resume it to a normal operation situation.

EPMI

Power LED Connector (PLED)

Attach a 3-pin Power LED connector cable to the (PLED) header. The power LED stays light while the system is on.

Speaker Connector (Speaker)

Attach a PC speaker cable to the 4-pin speaker connector (Speaker).

EPMI

PWONPLED

GLED

HLEDResetEPMISpeaker

JP13

PWONPLED

GLED

- 31 -

JP2

USB 3&4

JP2/JP3

13579

246810

Front-Panel Audio Header (JP9)

This header allows users to install an auxiliary Front-Oriented Audio port for easier access. Either the Line-Out port connector on back-panel or Front-Panel Audio header is available at the same time. If you would like to use this header on front-panel, please remove all jumpers from the Audio header and install your special extra audio cable instead. Two mini jumpers must be setted on pins 5-6 and pins 9-10, when this header is not used.

Pin Assignments: 1=MIC_IN 2=AGND

2 4 6 8 10

3=MIC_POWER

1 3 5 7 9

4=AVDD (5V) 5=FRONT OUT (RIGHT)

JP9

6=BACK OUT (RIGHT) 7=NC 8=NC

Front Audio

9=FRONT OUT (LEFT) 10=BACK OUT (LEFT)

Extended USB Headers (JP2/JP3)

Headers JP2 (USB 3&4) and JP3 (USB 5&6) are used to connect cables to USB connectors mounted on front-panel or back-panel. The USB cable is optional at the time of purchase.

Pin Assignments: 1=POWER (5V) 2=POWER (5V) 3=DATA3- 4=DATA45=DATA3+ 6=DATA4+ 7=GND 8=GND 9=KEY 10=NC

- 32 -

JP3

USB 5&6

F Internal Peripheral Connectors

IDE2

Enhanced IDE and Floppy Connectors (IDE1/IDE2 & FLP1)

MN31L mainboard features two 40-pin dual-channel IDE device connectors (IDE1/IDE2), providing support for up to four IDE devices, such as CD-ROM and Hard Disk Drive (HDD). This mainboard also includes one 34-pin floppy disk controller (FDC) to accommodate the Floppy Disk Drive (FDD). Moreover, this mainboard comes with one 80-pin ATA 133/100/66/33 ribbon cable to connect IDE HDD, and one 34-pin ribbon cable for FDD connection.

FLP1

IDE1

Important: Ribbon cables are directional; therefore, connect the red

cable stripe to the same side.

- 33 -

F Other Connectors

ATX12V

ATXPWR

ATX Power Supply Connectors (CN2/CN3)

This motherboard uses 20-pin ATX power header (ATXPWR, CN3), and comes with the other one header (ATX12V, CN2). Please make sure you plug each in the right direction. It is essential to have these two power supply connectors plugged or your system won't boot up.

CN3

ATXPWR

CN3 CN2

A traditional ATX system remains in the power-off stage when AC power resumes from power failure. However, it is inconvenient for a network server or workstation if there is not an UPS to execute power-on. Thus, this motherboard supports an AC Power Auto Recovery function to solve this problem. You may enable the function, "PWRON After PWR-Fail," in the sub-menu of "Power Management Setup" within the BIOS setup program.

ATX12V

CN2

Note 1: The ATX power connector is directional and will not go in

unless the guides match perfectly, making sure that pin#1 is properly positioned.

Note 2: Make sure the latch of the ATX power connector clicks into

place to ensure a solid attachment.

Note 3: Your ATX power supply must be supplied to ACPI+5V stand-

by power and at least 720mA compatible.

Note 4: Make sure your power supply have enough power for higher

speed processor installed.

- 34 -

JP5

123

FAN2

FAN3

CPU and System Fan Connectors (FAN1/2/3)

The mainboard provides three onboard 12V cooling fan power connectors to support CPU (FAN1) & the system (FAN2/FAN3).

GND +12V

SENSE

Note: Both cable wiring and type of plug may vary, which depend on the fan maker. Keep in mind that the red wire should always be connected to the +12V header and the black wire to the ground (GND) header.

Audio Center/Bass Header (JP5)

Port JP5 can be used to connect a cable attached to center/bass amplified speakers.

FAN1

Pin Assignments: 1=CENTER 2=GND 3=GND 4=BASS

JP5

- 35 -

SPDIF Ext.

JP7

97531

108642

JP8

CD_IN

JP6

234

JP8

123

SPDIF Ext. Header (JP7)

Port JP7 can be used to connect a special device.

Pin Assignments: 1=+12V 2=VCC 3=N/A 4=SPDIF-OUT 5=SPDIF-IN 6=GND 7=N/A 8=N/A 9=KEY 10=GND

Audio CD_IN Connectors (JP6/JP8)

Ports CD_IN JP6 (White)/JP8 (Black) can be used to connect stereo audio inputs from CD-ROM, TV-tuner or MPEG card.

Pin Assignments: 1=CD In-LEFT 2=CD-GND 3=CD-GND 4=CD In-RIGHT

Pin Assignments:

JP7

1=CD In-LEFT 2=CD-GND 3=CD-GND 4=CD In-RIGHT

- 36 -

JP6

JP10

AUX_IN

JP10

123

Audio AUX_IN Connector (JP10) (White)

Port JP10 can be used to connect a stereo audio input from CD-ROM, TVtuner or MPEG card.

Pin Assignments: 1=AUX-LEFT 2=AGND 3=AGND 4=AUX-RIGHT

Serial Port Connectors (COM1/COM2)

Port COM1/COM2 can be used to connect serial port connectors.

COM2

COM1

- 37 -

IR Header (JP4)

If you have an Infrared device, this mainboard can implement IR transfer function. This mainboard supports Normal, IrDA, ASKIR, or SCR transfer mode. To enable this function, attach a 6-pin infrared device cable to the IR (JP4) header. Please note that every pin is properly allocated. If not, your IR device may be damaged.

Pin Assignments: 1=NC 2=KEY 3=POWER (5V) 4=GND 5=IRTX 6=IRRX

AGP Protection LED (D1)

The mainboard provides one 1.5V AGP card which supports up to 8X. If you plug the 3V AGP card on the mainboard, the AGP Protection LED will flash and you can't turn on the computer.

JP4

2 4 6

1 3 5

AGP Protection LED

E10

CPU Overtemperature LED (D30)

When CPU temperature over 850C, the system will cut off the power supply directly, and the CPU Overtemperature LED will flash. You must remove AC Power and check the CPU and heatsink are securely fastened well.

CPU Overtemperature LED

D30

- 38 -

3.3 System Memory Configuration

The MN31L mainboard has three 184-pin DIMM slots that allow you to install from 128MB up to 3GB of system memory. Each 184-pin DIMM (Dual In-line Memory Module) slot can accommdate 128MB, 256MB, 512MB, and 1GB of PC1600/PC2100/PC2700/PC3200 compliant 2.5V single or double side 64-bit wide data path DDR SDRAM modules. You do not need to set any jumper to configure memory since the BIOS utility can detect the system memory automatically. You can check the total system memory value in the BIOS Standard CMOS Setup menu.

1. Install Memory:

Install memory in any or all of the banks. The combination shown as follows.

DIMM

Socket

DIMM 1

DIMM 2

DIMM 3

Memory Modules

128MB, 256MB, 512MB and 1GB184-pin 2.5V DDR SDRAM DIMM

Module

Quantity

x 1

Note: The total installed memory does not exceed 3GB.

Note: Installing a DIMM in one of the three slots leads to a 64-bit

data transfer rate. If you are about to install additional DIMMs, install them in any of the following sequences to activize a dual-channel feature of a 128-bit data transfer rate:

ØDIMMs 1 & 3, ØDIMMs 2 & 3, or ØDIMMs 1 & 2 & 3.

2. Upgrade Memory:

You can easily upgrade the system memory by inserting additional DDR SDRAM modules in available DIMM banks. The total system memory is calculated by simply adding up the memory in all DIMM banks. After upgrade, the new system memory value will automatically be computed and displayed in the field "Standard CMOS Setup" of BIOS setup program.

- 39 -

4 SOFTWARE UTILITY

4.1 Mainboard CD Overview

Note : The CD contents attached in MN31L mainboard are subject

to change without notice.

To start your mainboard CD disc, just insert it into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click or run D:\Autorun.exe (assuming that your CD-ROM drive is drive D:)

Navigation Bar Description:

F Install Mainboard MN31L Series Driver -

Installing NVDIA Chipset driver, VGA Device Driver.

F Install Utility - Installing Acrobat Reader and Winflash Utility.

F Manual - MN31L series user's manuals in PDF format.

F Link to Shuttle Homepage - Link to shuttle website homepage.

F Browse this CD - Allows you to see contents of this CD.

F Quit - Close this CD.

- 40 -

4.2 Install Mainboard Software

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Select using your pointing device (e.g. mouse) on the "Install Mainboard MN31L Series Driver" bar to run into sub-menu.

The Mainboard MN31L Software include:

[4.2.A] Install NVDIA Chipset driver [4.2.B] Install VGA Device Driver

- 41 -

4.2.A Install NVDIA Chipset driver

Select using your pointing device (e.g. mouse) on the " Install NVDIA Chipset driver " bar to install chipset system driver.

Once you made your selection, a Setup window run the installation

automatically. When the copying files

is done, make sure you reboot the system to take the installation effect.

4.2.B Install VGA Device Driver

Select using your pointing device (e.g. mouse) on the “ Install VGA Device Driver "bar to install raid driver.

Once you made your selection, a Setup window run the installation

automatically. When the copying files

is done, make sure you reboot the system to take the installation effect.

- 42 -

4.3 View the User's Manual

Insert the attached CD into your CD-ROM drive and the CD AutoRun screen should appear. If the AutoRun screen does not appear, double click on AutoRun icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Select using your pointing device (e.g. mouse) on the “Manual" bar.

Then Online Information windows will appear on your screen. Click on the “Install Acrobe Reader" bar if you need to install acrobe reader.

Then click on " MN31L Manual " bar to view user's manual.

- 43 -

5 BIOS SETUP

MN31L BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This information is stored in battery-backed RAM so that it retains the Setup information even if the system power is turned off.

The system BIOS is managing and executing a variety of hardware related functions in the system, including:

System date and time Hardware execution sequence Power management functions Allocation of system resources

5.1 Enter BIOS

To enter the BIOS (Basic Input /Output System) utility, follow these steps:

Step 1. Power on the computer, and the system will perform its

POST (Power-On Self Test) routine checks.

Step 2. Press <Del> key immediately, or at the following message:

Press DEL to enter SETUP, or simultaneously press <Ctrl>,

<Alt>, <Esc> keys.

Note1. If you miss trains of words mentioned in step2 (the message

disappears before you can respond) and you still wish to enter BIOS Setup, restart the system and try again by turning the computer OFF and ON again or by pressing the <RESET> switch located at the computer Front-panel. You may also reboot by simultaneously pressing the <Ctrl>, <Alt>, <Del> keys.

Note2. If you do not press the keys in time and system does not

boot, the screen will prompt an error message, and you will be given the following options:

"Press F1 to Continue, DEL to Enter Setup"

Step 3. As you enter the BIOS program, CMOS Setup Utility will

prompt you the Main Menu, as shown in the next section.

- 44 -

5.2 The Main Menu

Once you enter the Award BIOS(tm) CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

Note that a brief description of each highlighted selection appears at the bottom of the screen.

Setup Items

The main menu includes the following main setup categories. Recall that some systems may not include all entries.

Standard CMOS Features

This menu displays the basic information about your system.

Advanced BIOS Features

Use this menu to set the advanced features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system's performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

- 45 -

PnP/PCI Configurations

This option configures how PnP (Plug and Play ) and PCI expansion cards operate in your system.

PC Health Status

This entry shows the current system temperature, voltage, and fan speed.

Load Fail-Safe Defaults

Use this menu to install fail-safe defaults for all appropriate items in the setup utility.

Load Optimized Defaults

Use this menu to install optimized defaults for all appropriate items in the setup utility.

Set Supervisor/User Password

Use this menu to change, set, or disable supervisor/user password. It allows you to limit access to the system and Setup, or only to Setup.

Save & Exit Setup

Save the changes that you have made in the Setup Utility and exit the Setup Utility.

Exit Without Saving

Abandon all changes that you have made in the Setup Utility and exit the Setup Utility.

- 46 -

@ Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

Date (mm : dd : yy)

Set the system date. Note that if you are running a Windows OS, this items are automatically updated whenever you make changes to the Windows Date.

Time (hh : mm : ss)

Set the system time. The time is converted based on the 24-hour militarytime clock. For example, 5:00:00 p.m. is 17:00:00.

IDE Primary/Secondary Master/Slave

Press <Enter> to enter the sub-menu of detailed options.

Drive A/DriveB

Select the type of floppy disk drive and installed in your system. Ø The choice: None, 360K, 5.25 in, 1.2M, 5.25 in, 720K, 3.5 in,

1.44M, 3.5 in, or 2.88M, 3.5 in.

Video

This item define the video mode of the system. This mainboard has a built-in VGA graphics system; leave this item at the default value. Ø The choice: EGA / VGA, CGA 40, CGA 80, or MONO.

Halt On

This item defines the operation of the system POST (Power-On Self Test) routine. You can use this item to select which situation you want the BIOS to stop the POST process and notify you. Ø The choice: All Errors, No Errors, All, But Keyboard, All, But Diskette,

or All, But Disk/Key.

- 47 -

Base Memory/Extended Memory/Total Memory

These items are automatically detected by the system at start up time. These are display-only fields. You can't make change to these fields.

******************************************************

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub-menu to configure each hard disk drive.

IDE HDD Auto-Detection Press <Enter> to auto-detect HDD on this channel. If detection is successful, it fills the remaining fields on this menu.

IDE Primary Master Selecting 'Manual' lets you set the remaining fields on this screen and select the type of fixed disk.

Ø The choice: None, Auto, or Manual.

Access Mode Choose the access mode for this hard disk.

Ø The choice: CHS, LBA, Large, or Auto.

Capacity Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking program.

The following options are selectable only if the 'IDE Primary Master' item is set to 'Manual', and the 'Access Mode' item is set to 'CHS'.

Cylinder Set the number of cylinders for this hard disk.

Ø Min = 0, Max = 65535

Head Set the number of read/write heads.

Ø Min = 0, Max = 255

Precomp Warning: Setting a value of 65535 means no hard disk.

Ø Min = 0, Max = 65535 Note: PRECOMP=65535 means NONE!

Landing Zone Set the Landing Zone size.

Ø Min = 0, Max = 65535

Sector Number of sector per track.

Ø Min = 0, Max = 255

******************************************************

- 48 -

@ Advanced BIOS Features

This section allows you to configure your system for basic operation.

Bios Write Protect

This item let you enable or disable the Bios Write Protect. Ø The choice: Enabled or Disabled.

Virus Warning

Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enables and someone attempts to write data into this area, BIOS will show a warning message on screen, and an alarm beep.

Enabled Activates automatically when the system boots up, caus-

ing a warning message to appear when anything attempts to access the boot sector or hard disk partition table.

Disabled No warning message will appear when anything attempts

to access the boot sector or hard disk partition table.

Ø The choice: Enabled or Disabled.

CPU Internal Cache

All processors that can be installed in this mainboard use internal level 1 (L1) cache memory to improve performance. Leave this item at the default value for better performance. Ø The choice: Enabled or Disabled.

External Cache

Most processors that can be installed in this system use external level 2 (L2) cache memory to improve performance. Leave this item at the default value for better performance. Ø The choice: Enabled or Disabled.

- 49 -

Quick Power On Self Test

Enable this item to shorten the power on testing (POST) and have your system start up faster. You might like to this item after you are confident that your system hardware is operating smoothly.

Ø The choice: Enabled or Disabled.

First/Second/Third Boot Device

Use these three items to select the priority and order of the devices that your system searches for an operating system at start-up time.

Ø The Choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-

2, HDD-3, ZIP100, USB-FDD, USB-ZIP,USB-CDRAM, USB-HDD, LAN, or Disabled.

Boot Other Device

If you enable this item, the system searches all other possible locations for and operating system if it fails to find one in the devices specified under the First, Second, and Third boot devices.

Ø The choice: Enabled or Disabled.

Swap Floppy Drive

If you have two floppy diskette drives in your system, this item allows you to swap the assigned drive letters so that drive A becomes drive B, and drive B becomes drive A.

Ø The choice: Enabled or Disabled.

Boot Up Floppy Seek

If this item is enabled, it checks the size of the floppy disk drives at startup time. You don't need to enable this item unless you have a legacy diskette drive with 360k capacity.

Ø The choice: Enabled or Disabled.

Boot Up NumLock Status

This item defines if the keyboard Num Lock key is active when your system is started.

Ø The choice: Off or On.

Gate A20 Option

This item defines how the system handles legacy software that was written for an earlier generation of processors. Leave this item at the deafult value.

Ø The choice: Normal or Fast.

- 50 -

Typematic Rate Setting

If this item is enabled, you can use the following two items to see the typematic rate and the typematic delay settings for your keyboard.

Ø The choice: Enabled or Disabled.

Typematic Rate (Chars/Sec)

This item sets how many times the keystroke will be repeated in a second when you hold a key down.

Ø The choice: 6, 8, 10, 12, 15, 20, 24, or 30.

Typematic Delay (Msec)

Sets the delay time after a key is held down. Ø The choice: 250, 500, 750, or 1000.

Security Option

If you have installed password protection, this item defines if the password is required at system start up, or if it is only required with a user tries to enter the Setup Utility.

Ø The choice: Setup or System.

APIC Mode

This option is used to enable or disable APIC (Advanced Programmable Interrupt Controller) functionality. The APIC is an Intel chip that provides symmetric multiprocessing (SMP) for its Pentium system.

Ø The choice: Enabled or Disabled.

MPS Version Control For OS

Selects the operating system multiprocessor support version. Ø The choice: 1.1 or 1.4

OS Select For DRAM > 64MB

This item is only required if you have installed more than 64 MB of memory and you are running the OS/2 operating system. Otherwise, leave this item at the default.

Ø The choice: Non-OS2 or OS2.

Small Logo(EPA) Show

This item allows you to enable or disable the EPA Logo. Ø The choice: Enabled or Disabled.

- 51 -

@ Advanced Chipset Features

These items define critical timing parameters of the mainboard. You should leave the items on this page at their default values unless you are very familiar with the technical, specifications of your system hardware. If you change the values incorrectly, you may introduce fatal errors or recurring instability into your system.

System Performance

[ Optimal ] - Use the most stable settings.

[ Aggressive/Turbo ] - Use over clocked settings for higher performance but with higher risk of instability.

[ Expert ] - Allows fall custemization of performance options. Advanced users only.

Ø The choice: Optimal, Aggressive, Turbo, or Expert.

FSB Frequency

This item select FSB frequency.

Ø The Choice: 100MHz, 102~123MHz, 125MHz, 127~148MHz,

150MHz, 152~175MHz, 177~200MHz, 202~223MHz, 225MHz, 227~250MHz.

CPU Interface

[ Optimal ] - Use most stable CPU/FSB parameters.

[ Aggressive ] - Use overclocked CPU/FSB parameters.

Ø The choice: Optimal or Aggressive.

Memory Frequecny

This item select DDR SDRAM frequency. Select [Auto] for best performance.

- 52 -

Ø The choice: By SPD, 50%, 60%, 66%, 75%, 80%, 83%, 100%,

120%, 125%, 133%, 150%, 166%, 200%, or Auto.

Resulting Frequecny

This item presents the DDR SDRAM frequency you've selected in the previous item.

Memory Timings

This item allows you to set the Memory Timings. The following four items become available as this item is set to Expert.

Select [Expert] to enter timings manually. Ø The choice: Optimal, Aggressive, Turbo, or Expert.

T(RAS)

This item defines the timing delay for DRAM precharge. Row-active delay - Set System Performance to [Optimal] to use the delay

recommended by the DIMM's manufacturer. Ø The choice: 1~15.

T(RCD)

This item defines the timing of the transition from RAS (row address strobe) to CAS (column address strobe) as both rows and columns are separately addressed shortly after DRAM is refreshed.

RAS-to-CAS delay - Set System Performance to [Optimal] to use the delay recommended by the DIMM's manufacturer.

Ø The choice: 1~7.

T(RP)

This item defines the numbers of cycles for RAS to be allowed to precharge. Row-precharge delay - Set System Performance to [Optimal] to use the

delay recommended by the DIMM's manufacturer. Ø The choice: 1~7.

CAS Latency

This item defines the timing delay in clock cycles before SDRAM starts a read command after receiving it.

CAS Latency - Set System Performance to [Optimal] to use the delay recommended by the DIMM's manufacturer.

Ø The choice: 2.0, 2.5, or 3.0.

FSB Spread Spectrum

This item allows you to set the spread spectrum modulation. Ø The choice: Disabled, 0.50%, or 1.00%.

- 53 -

AGP Spread Spectrum

This item allows you to set the spread spectrum modulation. Ø The choice: Disabled or 0.50%.

DRAM Auto-Precharge

This item allows you to set the DRAM Auto-Precharge. Write with Auto Precharge: If Auto-Precharge is "enabled", the row being

accessed will be precharged at the end of the WRITE burst; If AutoPrecharge is "disabled", the row will remain open for subsequent accesses.

Ø The Choice: Disabled or Enabled.

Frame Buffer Size

This item allows you to set the VGA frame buffer size. Ø The Choice: 8M, 16M, 32M, 64M, 128M, or Disabled.

AGP Aperture Size (MB)

Select the size of Accelerated Graphics Port(AGP) aperture. The aperture is a portion of the PCI memory address range dedicated to graphics memory address space. Host cycles that hit the aperture range are forwarded to tha AGP without any translaton.

Ø The choice: 32M, 64M, 128M, 256M, or 512M.

AGP 8X Support

This item allows you to enable or disable AGP 8X Support. Ø The choice: Enabled or Disabled.

AGP Fast Write Capability

This item enables an end sure to manually select the AGP output buffer driver strength.

Ø The Choice: Enabled or Disabled.

System BIOS Cacheable

Select Enable allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program is written to this memory area, a system error may result.

Ø The Choice: Enabled or Disabled.

Video RAM Cacheable

Select Enable allows caching of the video BIOS, resulting in better system performance. However, if any program is written to this memory area, a sysem error may result.

Ø The Choice: Enabled or Disabled.

- 54 -

@ Integrated Peripherals

Onboard IDE Device

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. OnChip IDE Channel0/Channel1 The chipset contains a PCI IDE interface with support to two IDE chan-

nels. Select Enabled to activate the primary/secondary IDE interface. select Disabled to deactivate the primary/secondary interface.

Ø The Choice: Enabled or Disabled. Primary/Secondary Master/Slave PIO The four IDE PIO (Programmed Input/Output) fields let you set a PIO

mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.

Ø The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, or Mode 4. Primary/Secondary Master/Slave UDMA Ultra DMA/100 implementation is possible only if your IDE hard drive

supports it and the operating environment includes a DMA driver (Windows 95 OSR2 or a third-party IDE bus master driver). If both of your hard drive and your system software support Ultra DMA/100, select Auto to enable BIOS support.

Ø The choice: Auto or Disabled. IDE Prefetch Mode The onboard IDE drive interface support IDE prefetching for faster drive

access. If you install a primary and/or secondary add-on IDE interface, set this field to Disabled if the interface does not support prefetching.

Ø The Choice: Enabled or Disabled.

- 55 -

IDE DMA transfer access

Internal PCI/IDE field, above, is Disabled.

Ø The choice: Enabled or Disabled. IDE HDD Block Mode Block mode is also called block transfer, multiple commands, or mul-

tiple sector read/write. If your IDE hard drive supports block mode(most new drivers do), select Enabled for automatic detection of the optimal number of block read/write per sector the drive can support. Ø The Choice: Enabled or Disabled.

Onboard PCI Device

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. Init Display First This item is used to determine initial device when system power on.

Ø The choice: Onboard/AGP or PCI Slot. OnChip USB This should be enabled if your system has a USB installed on the system

board and you want to use it. Ø The choice: Disabled, V1.1+V2.0, or V1.1.

USB Keyboard Support Select Enabled if your system contains a Universal Serial Bus(USB)

controller and you have a USB keyboard. Ø The Choice: Enabled or Disabled.

OnChip Audio This item allows you to control the onboard Audio.

Ø The Choice: Auto or Disabled. OnChip Lan This item allows you to set the the onboard Lan.

Ø The Choice: Auto or Disabled.

Onboard Super IO Device

Options are in its sub-menu. Press <Enter> to enter the sub-menu of detailed options. Onboard FDC Controller This item specifices onboard floppy disk drive controller. This setting

allows you to connect your floppy disk drives to the onboard floppy connector. Ø The choice: Enabled or Disabled.

- 56 -

Onboard Serial Port 1/Port 2 This option is used to assign the I/O address and interrupt request(IRQ)

for the onboard serial port 1/port 2 (COM1/COM2). Ø The Choice: Disabled, 3F8-IRQ4, 2F8-IRQ3, 3E8-IRQ4, 2E8-IRQ3,

or Auto.

UART Mode Select This item allows you to select IrDA infrared through COM2 port.

Ø The choice: Normal, IrDA, ASKIR, or SCR.

UR2 Duplex Mode This item allows you to select the IR half or full duplex function.

Ø The choice: Full or Half.

Onboard Parallel Port Allows you to determine an I/O address and interrupt request(IRQ) for

the onboard parallel port. Ø The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, or Disabled.

Parallel Port Mode Select an operating mode for the onboard parallel port. Select SPP

unless you are certain your system supports other modes. Ø The choice: SPP, EPP, ECP, or ECP+EPP.

ECP Mode Use DMA When the parallel port mode is set to ECP, this item becomes seletable.

Ø The choice: 1 or 3.

Game Port Address This item defines an I/O address for the game port.

Ø The choice: Disabled, 201, or 209.

Midi Port Address This item defines an I/O address for the MIDI port.

Ø The choice: Disabled, 330, or 300.

Midi Port IRQ This item defines an interrupt request for the MIDI port.

Ø The choice: 5 or 10.

- 57 -

@ Power Management Setup

The Power Management Setup allows you to configure your system to most effectively saving energy while operating in a manner consistent with your own style of computer use.

ACPI Function

This item allows you to enable the ACPI (Advanced Configuration and Power Management) feature.

Note: ACPI is a power management specification that makes hard-

ware status information available to the operating system. ACPI enables a PC to turn its peripherals on or off for improving the power management. It also allows a PC to be turned on or off by external devices, so that a mouse or keyboard can wake up the computer.

ACPI Suspend Type

This item allows you to select sleep state when suspend. In the default, S1(POS), the suspend mode is equivalent to a software power down. If you select S3(STR), the suspend mode is a suspend to RAM. i.e., the system shuts down with the exception of a refresh current to the system memory. Ø The choice: S1(POS), S3(STR), or S1&S3.

Power Management

This category allows you to select the type (or degree) of power saving mode settings.

- 58 -

Min Saving Minimum power management.

Suspend Mode=1 hr.

Max Saving Maximum power management.

Suspend Mode=1 min.

User Define Allows you to set each mode individually.

Suspend Mode= Disabled or 1 min ~1 hr.

Ø The choice: Min Saving, Max Saving, or User Define.

Video Off Method

This determines the manner in which the monitor is blanked.

V/H SYNC+Blank This selection will cause the system to turn off

the vertical and horizontal synchronization ports and write blanks to the video buffer.

Blank Screen This option only writes blanks to the video

buffer.

DPMS Support Initial display power management signaling.

Ø The choice: V/H SYNC+Blank, Blank Screen, or DPMS Support.

HDD Power Down

The IDE hard drive will spin down if it is not accessed within a specified

length of time. Options are from 1 Min to 15 Min and Disabled.

Ø The choice: Disabled or 1 Min~15 Min.

HDD Down In Suspend

The item allows you to enable or disable the HDD Down In Suspend.

Ø The choice: Enabled or Disabled.

Soft-Off By PBTN

Pressing the power button for more than 4 seconds forces the system to enter the Soft-Off state when the system has " hung".

Ø The choice: Delay 4 Sec or Instant-Off.

WOL(PME#) From Soft-Off

If this item sets to Enabled, the system power will be turned on when the LAN port receives an incoming signal. You have to connect the fax/ modem to the mainboard Wake-On-LAN connector for this feature to work.

Ø The choice: Enabled or Disabled.

- 59 -

WOR(RI#) From Soft-Off

If this item is enabled, it allows the system to resume from a software power down or power-saving mode whenever there is an incoming call to an installed fax/modem. You have to connector the fax/modem to the mainboard.

Ø The choice: Enabled or Disabled.

USB Resume From S3

If you are using a USB keyboard, and the ACPI suspend type is set to S3, you can enable this item to allow a keystroke to wake up the system from power saving mode.

Ø The choice: Enabled or Disabled.

Power-On by Alarm

When set to Enabled, the following three fields become available and you can set the hour, minute and second to turn on your system.

Ø The choice: Enabled or Disabled.

Time(dd : hh : mm) of Alarm This item selects the alarm Time.

[dd] Ø Key in a DEC number: Min=0, Max=31. [hh] Ø Key in a DEC number: Min=0, Max=23. [mm] Ø Key in a DEC number: Min=0, Max=59.

PS2 Keyboard Power ON

Set a password or a key to awaken the system from a keyboard. Ø The choice: Disabled, Password, or Hot KEY.

KB Power ON Password

Press <Enter> to set a password to awaken the system from a keyboard.

Hot Key Power ON

Set a key to awaken the system from a keyboard. Ø The choice: Any Key or Ctrl-F1~F12.

PS2 Mouse Power ON

Enable or disable the function of awakening the system from a mouse. Ø The choice: Enabled or Disabled.

PWRON After PWR-Fail

This item allows you to select power on function when power fail. Ø The choice: Off, On, or Former-Sts.

- 60 -

@ PnP/PCI Configurations

This category configures how PnP and PCI operate in your system. Correctly setting up the IRQ and DMA (both PnP and PCI use) assignments will make your system work stably. It is strongly recommended that only technical users make changes to the default settings.

Reset Configuration Data

When enabled, any PnP configuration data stored in the BIOS will be cleared from memory, with new data created. Ø The choice: Enabled or Disabled.

Resources Controlled By

As stays auto(ESCD), the system will dynamically allocate resources to PnP devices as they are required. As set to manual, the following item become available. Ø The choice: Auto(ESCD) or Manual.

IRQ Resources

When the previous item is set to manual, this item allows you respectively assign an interruptive type for IRQ-3, 4, 5, 7, 9, 10, 11, 12, 14, and 15. Ø The choice: PCI Device or Reserved.

PCI/VGA Palette Snoop

The item is designed to solve problems caused by some non-standard VGA cards. A built-in VGA system does not need this function. Ø The choice: Enabled or Disabled.

INT Pin 1~4 Assignment

Names the interrupt request(IRQ) line assigned to a device connected to the PCI interface on your system. Ø The Choice: Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, or 15.

- 61 -

@ PC Health Status

Shutdown Temperature

Enable you to set the maximum temperature that system can reach before powering down.

Ø The choice: 60°C/140°F, 65°C/149°F, 70°C/158°F, or Disabled.

The following items provide you with information about the system's current operating status. You cannot make changes to one of them, including:

CPU Voltage AGP Voltage

3.3V VIN +5V VIN +12V VIN

-12V VIN Chipset Voltage 5V SBVIN Voltage Battery System Temperature CPU Temperature PWM Temperature FAN1 Speed FAN2 Speed FAN3 Speed

- 62 -

@ Load Fail-Safe Defaults

When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing 'Y' loads the BIOS default values for the most stable, minimal performance system operations.

@ Load Optimized Defaults

When you press <Enter> on this item, you will get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing 'Y' loads the default values that are factory-set for optimal performance system operation.

- 63 -

@ Set Supervisor/User Password

Steps to set supervisor/user password are described as follows:

New Password Setting:

1. While pressing <Enter> to set a password, a dialog box appears to ask you enter a password.

2. Key in a new password. The password can not exceed eight characters.

3. System will request you to confirm the new password again.

4. When completed, new code takes effect.

No Password Setting:

If you want to disable the password, just press <Enter> as a password input is requested.

If You Forget Password:

If you forget the password, the only way to access the system is to clear the CMOS memory. Please refer to page 26 on clear CMOS setting.

- 64 -

@ Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

SAVE to CMOS and EXIT (Y/N)? Y

Pressing "Y" stores the selections made in the menus of CMOS - a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

@ Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit Without Saving (Y/N)? N

This allows you to exit from Setup without storing in CMOS any change. The previous selections remain in effect. This exits from the Setup utility and restarts your computer.

- 65 -

Shuttle MN31L MN31L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
