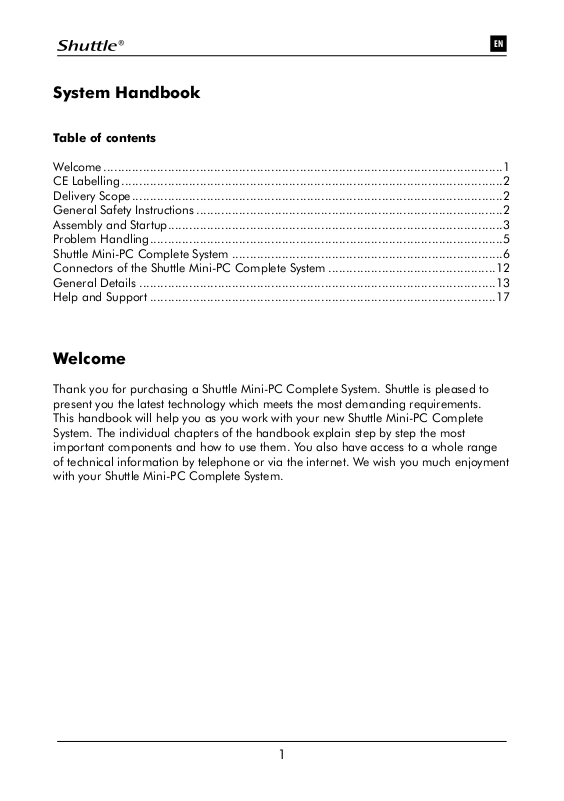

Shuttle Mini PC all models User Guide
EN
System Handbook
Table of contents
Welcome ................................................................................................................1
CE Labelling ...........................................................................................................2
Delivery Scope ........................................................................................................2
General Safety Instructions ......................................................................................2
Assembly and Startup ..............................................................................................3
Problem Handling ...................................................................................................5
Shuttle Mini-PC Complete System ............................................................................6
Connectors of the Shuttle Mini-PC Complete System ...............................................12
General Details ....................................................................................................13
Help and Support .................................................................................................17
Welcome
Thank you for purchasing a Shuttle Mini-PC Complete System. Shuttle is pleased to
present you the latest technology which meets the most demanding requirements.
This handbook will help you as you work with your new Shuttle Mini-PC Complete
System. The individual chapters of the handbook explain step by step the most
important components and how to use them. You also have access to a whole range
of technical information by telephone or via the internet. We wish you much enjoyment
with your Shuttle Mini-PC Complete System.
1
EN
CE Labelling
This device meets the requirements of the EU-Directives for CE labelling.
The corresponding CE label on the Shuttle is evidence of this. Please check whether the
Shuttle displays the CE label. If there is no CE label please contact your dealer.
Delivery Scope
The following accessories are included in the delivery with your Shuttle Mini-PC
Complete System. If one of the components listed is not included in the package,
please inform your dealer.
Shuttle Mini-PC Complete System 1.
Power connection cable2.
Quick Installation Guide3.
Warranty Card4.
Your Shuttle Mini-PC Complete System can also be accompanied by further
accessories depending on the system.
General Safety Instructions
The information below will help you to use your Shuttle Mini-PC Complete System
correctly and carefully. Please always follow the instructions on the safety notices and
in this handbook:
Do not operate your Shuttle Mini-PC Complete System in a cabinet or in a closed 1.
space (such as a box or chest etc.).
Never put objects through the openings of the casing. If you should do this you 2.
could be exposed to dangerous voltages.
Your Shuttle Mini-PC Complete System is supplied with a cold appliance connection 3.
cable. This is for your safety. Therefore refrain as far as possible from connecting
the device with a power source with another cable. If you are unsure please consult
your local dealer.
Do not place any objects on the power cable, and ensure that the cable is 4.
positioned so that people do not trip over it.
If you connect the Shuttle Mini-PC Complete System to a connector strip, please 5.
ensure that the required amperage of all of the products connected does not exceed the capacity of the connector strip.
2
EN
You should always disconnect your Shuttle Mini-PC Complete System and the 6.
connected appliances from the power and from one another before cleaning.
Your Shuttle Mini-PC Complete System must never come into contact with water or 7.
other liquids.
Assembly and Startup
Only place your Shuttle Mini-PC Complete System on surfaces which are stable,
firm, non-slip and even. Do not cover, obstruct or block any of the Shuttle Mini-PC
Complete System‘s openings. These are to prevent overheating. After the suitable
place has been found, you can unp ack your Shuttle Mini-PC Complete System and
the accessories. Please be very careful when unpacking as all of the components are
sensitive to shock. If you do not take care the hard drive can be damaged very easily.
Therefore prevent any shocks to and any unnecessary transporting of the Shuttle
Mini-PC Complete System.
If you do have to open the casing (e.g. when upgrading your system), please adhere
to the following:
Disconnect the Shuttle Mini-PC Complete System from the power network and also 1.
remove all connections to connected appliances.
Always ensure that the casing is closed firmly and that all of the screws have been 2.
screwed tight before you re-connect the Shuttle Mini-PC Complete System or other
connected appliances to the power network.
Please take a moment to inspect the outside of your Shuttle Mini-PC Complete System.
This also includes components such as the monitor, speakers and other peripherals.
If you notice any external defects such as scratches or dents, please contact the dealer
from whom you bought your Shuttle device. Before you start to connect the peripherals
such as the monitor, speakers or joystick, we recommend that you connect a highvoltage protection device or a UPS (uninterruptible power supply) to the power cable.
Ensure that no long cables are used and that the nearest power source is used.
3
EN
1. Connecting the keyboard
Connect your keyboard via the jack marked as “Tastatur“
(keyboard) which is located at the back of your computer.
Please take care that both connections are the same colour
(violet). Carefully plug the connector in to the jack.
If you have a USB-keyboard, please connect it via the jack
marked as “USB”.
2. Connecting the mouse
Connect your mouse via the jack marked as “Maus“ (mouse)
which is located at the back of your computer. Please take
care that both connections are the same colour (green).
Carefully plug the connector in to the jack.
If you have a USB-mouse, please connect it via the jack
marked as “USB”.
3. Connecting the monitor
Connect the monitor cable (15-pin) to your VGAoutput or directly to the graphics card. As an option
for some models, you can also use the DVI or HDMIoutput for connecting monitor and graphics card.
4. Power connection
Connect the power supply cable with the power supply
unit of the PC and a wall socket. For devices with an
external power supply, first connect the external power
supply to the PC and then connect the power supply
cable to the wall socket. Ensure that your monitor is
also connected to a secured power supply.
4
EN
Problem Handling
If you notice any problems with the Shuttle Mini-PC Complete System, you should only
try to correct these in accordance with the instructions detailed here in the handbook.
Improper use of the Shuttle Mini-PC Complete System can be a safety risk and cause
permanent damage to the Shuttle Mini-PC Complete System. You should disconnect
the Shuttle Mini-PC Complete System from the power supply and call the support hotline number stated on the warranty card. You should also indicate immediately if one
of the following problems exists:
The power cable is damaged or frayed.•
Liquids have penetrated into the Shuttle Mini-PC Complete System.•
The Shuttle Mini-PC Complete System was exposed to rain, water or any other fluids.•
You have dropped the Shuttle Mini-PC Complete System or the casing was •
damaged.
The Shuttle Mini-PC Complete System is showing changes in its performance •
which indicate that repair is necessary.
There are some important details which you should have available to be able to use
our technical hotline. You can find these on your invoice or on your Shuttle Mini-PC
Complete System:
Dealer•
Purchase date•
Invoice number•
Product name•
Shuttle ID (you can find this on the bottom of your Shuttle Mini-PC Complete System)•
If you require help or support concerning your Shuttle Mini-PC Complete System,
please visit our website:
Shuttle Complete Systems with Windows Operating System:
http://systemsupport.eu.shuttle.com
Shuttle Complete Systems with Linux Operating System:
http://eu.shuttle.com/linuxsupport
5
EN
Shuttle Mini-PC Complete System
A computer consists of many different components which are both inside and outside
the case. These components are called “hardware“. Each individual hardware
component has an important function.
In order to be able to work in the best possible way with the Shuttle Mini-PC Complete
System, you should get to know the fundamental components and their functions. This
also includes their maintenance.
The Shuttle Mini-PC Complete Systems connections and
operating controls
Your Shuttle Mini-PC Complete System has the following connectors and operating
controls. Please note that there may be differences in the positioning and what is
included depending on the system. The illustrations should provide you with an overview of the most important connectors.
G2 Models (e.g. G2 3100)
3
10 11
1
2
4 7
23
9
26
30
8
13
12
13
36
31
32
33
47
12
35
34
24
45
46
29
48
28
44
6
