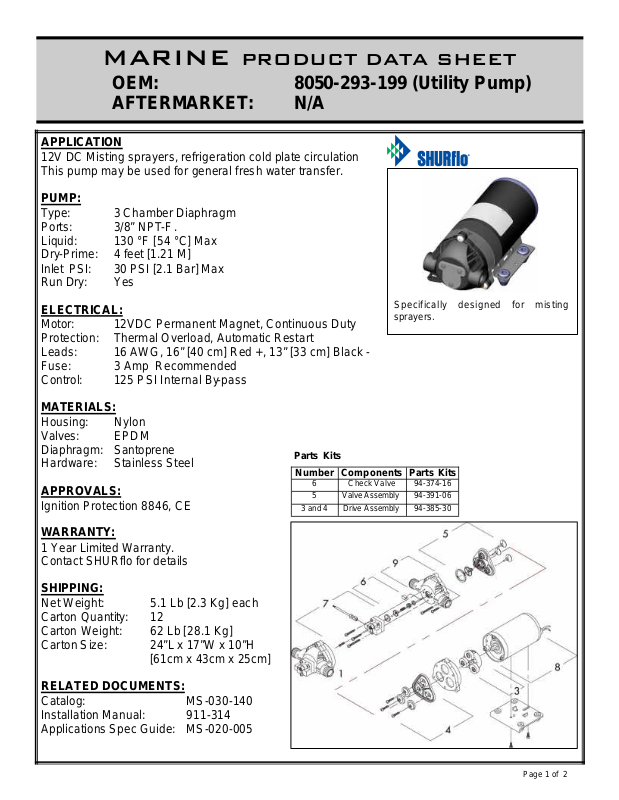

Shurflo 8050-293-199 User Manual
MARINE PRODUCT DATA SHEET
OEM: 8050-293-199 (Utility Pump)
AFTERMARKET: N/A
APPLICATION
12V DC Misting sprayers, refrigeration cold plate circulation
This pump may be used for general fresh water transfer.
PUMP:
Type: 3 Chamber Diaphragm
Ports: 3/8” NPT-F.
Liquid: 130 °F [54 °C] Max
Dry-Prime: 4 feet [1.21 M]
Inlet PSI: 30 PSI [2.1 Bar] Max
Run Dry: Yes
ELECTRICAL:
Motor: 12VDC Permanent Magnet, Continuous Duty
Protection: Thermal Overload, Automatic Restart
Leads: 16 AWG, 16” [40 cm] Red +, 13” [33 cm] Black Fuse: 3 Amp Recommended
Control: 125 PSI Internal By-pass
MATERIALS:
Housing: Nylon
Valves: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel
APPROVALS:
Ignition Protection 8846, CE
WARRANTY:
1 Year Limited Warranty.
Contact SHURflo for details
SHIPPING:
Net Weight: 5.1 Lb [2.3 Kg] each
Carton Quantity: 12
Carton Weight: 62 Lb [28.1 Kg]
Carton Size: 24”L x 17”W x 10”H
[61cm x 43cm x 25cm]
RELATED DOCUMENTS:
Catalog: MS-030-140
Installation Manual: 911-314
Applications Spec Guide: MS-020-005
Parts Kits
Number Components Parts Kits
6 Check Valve 94-374-16
5 Valve Assembly 94-391-06
3 and 4 Drive Assembly 94-385-30
Specifically designed for misting
sprayers.
Page 1 of 2
PRESSURE CURRENT
TYPICAL PERFORMANCE
FLOW
BAR PSI GPH LPH AMPS
0.0 0 22 83 0.64
2.0 30 18 68 1.2
4.1 60 16 60 1.7
6.2 90 12 45 2.1
8.2 120 3 11 2.5
MOTOR SHELL T-RISE @ 105 PSI, 12V
160
140
120
100
80
TEMPERATURE (F)
60
0 60 120 180 240
TIME (MINUTES)
DIMENSIONS [mm]
Visit our Web Site at http://www.shurflo.com
Shurflo reserves the right to update specifications,
change prices, or make substitutions without notice.
SHURflo SHURflo East SHURflo Europe, Middle East, Africa
5900 Katella Avenue 52748 Park Six Court Pentair Water Belgium bvba
Cypress, CA 90630 Elkhart, IN 46514-5427 Industriepark Wolfstee, Toekomstlann 30
Phone (562) 795-5200 Phone (562) 795-5200 B-2200 Herentals, Belgium
Toll Free (800) 854-3218 Toll Free (800) 854-3218 Phone +32-14-283500
Fax (562) 795-7564 Fax (574) 264-2169 Fax +32-14-283505
8050-293-199 Rev. July 2010
© 2007 - 2010 SHURflo All Rights Reserved Page 2 of 2
FLOW TECHNOLOGIES GROUP
5900 Katella Ave, Cypress, CA 90630
Phone (800) 854-3218 • (562) 795-5200 • Fax (562) 795-7564
www.shurflo.com
