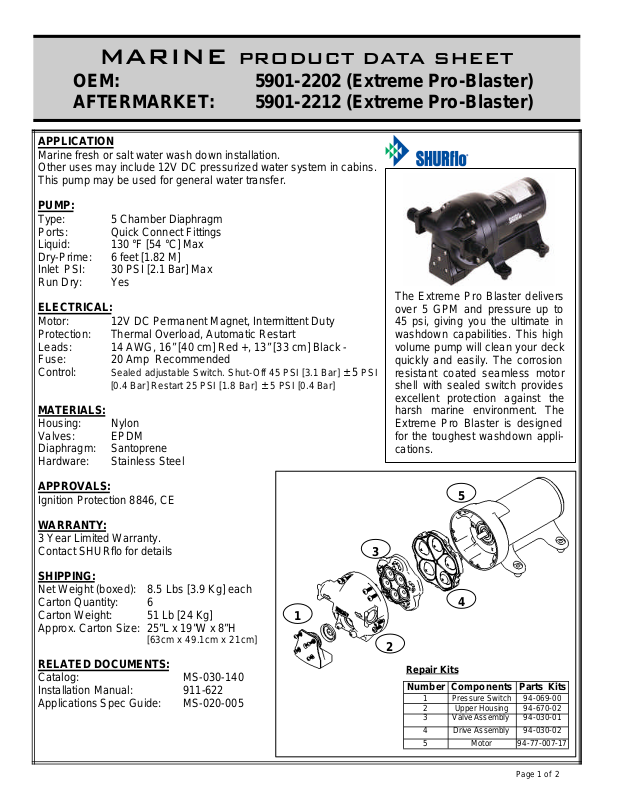

MARINE PRODUCT DATA SHEET

OEM: 5901-2202 (Extreme Pro -Blaster)
AFTERMARKET: 5901-2212 (Extreme Pro -Blaster)

APPLICATION

Marine fresh or salt water wash down installation.
Other uses may include 12V DC pressurized water system in cabins.
This pump may be used for general water transfer.

PUMP:

Type: 5 Chamber Diaphragm
Ports: Quick Connect Fittings
Liquid: 130 °F [54 °C] Max
Dry-Prime: 6 feet [1.82 M]
Inlet PSI: 30 PSI [2.1 Bar] Max
Run Dry: Yes

ELECTRICAL:

Motor: 12V DC Permanent Magnet, Intermittent Duty
Protection: Thermal Overload, Automatic Restart
Leads: 14 AWG, 16” [40 cm] Red +, 13” [33 cm] Black -
Fuse: 20 Amp Recommended
Control: Sealed adjustable Switch. Shut -Off 45 PSI [3.1 Bar] ± 5 PSI

[0.4 Bar] Restart 25 PSI [1.8 Bar] ± 5 PSI [0.4 Bar]

MATERIALS:

Housing: Nylon
Valves: EPDM
Diaphragm: Santoprene
Hardware: Stainless Steel

APPROVALS:

Ignition Protection 8846, CE

WARRANTY:

3 Year Limited Warranty.
Contact SHURflo for details

SHIPPING:

Net Weight (boxed): 8.5 Lbs [3.9 Kg] each
Carton Quantity: 6
Carton Weight: 51 Lb [24 Kg]
Approx. Carton Size: 25”L x 19”W x 8”H

[63cm x 49.1cm x 21cm]

RELATED DOCUMENTS:

Catalog: MS-030-140
Installation Manual: 911-622
Applications Spec Guide: MS-020-005

1

The Extreme Pro Blaster delivers
over 5 GPM and pressure up to
45 psi, giving you the ultimate in
washdown capabilities. This high
volume pump will clean your deck
quickly and easily. The corrosion
resistant coated seamless motor
shell with sealed switch provides
excellent protection against the
harsh marine environment. The
Extreme Pro Blaster is designed
for the toughest washdown appli­cations.

5

3

4

2

Repair Kits

Number Components Parts Kits

1 Pressure Switch 94-069-00
2 Upper Housing 94-670-02
3 Valve Assembly 94-030-01

4 Drive Assembly 94-030-02
5 Motor 94-77-007 -17

Page 1 of 2

CURRENT (AMPS)

TYPICAL PERFORMANCE

BAR PSI GPM LPM AMPS

0.0 0 5.5 20.8 5.2

0.7 10 4.0 15.1 7.5

1.4 20 3.5 13.2 9.2

2.1 30 2.8 10.5 11

2.8 40 2.2 8.3 12.4

6.0

5.0

4.0

3.0

2.0

FLOW (GPM)

1.0

0.0
0 10 20 30 40

DIMENSIONS [mm]

PRESSURE CURRENT

FLOW

FLOW AMPS

PRESSURE (PSI)

12.0

9.0

6.0

3.0

0.0

Visit our Web Site at http://www.shurflo.com

Shurflo reserves the right to update specifications,

change prices, or make substitutions without notice.

SHURflo SHURflo East SHURflo Europe, Middle East, Africa

5900 Katella Avenue 52748 Park Six Court Pentair Water Belgium bvba
Cypress, CA 90630 Elkhart, IN 46514-5427 Industriepark Wolfstee, Toekomstlann 30
Phone [phone] Phone [phone] B-2200 Herentals, Belgium
Toll Free [phone] Toll Free [phone] Phone [phone]
Fax [phone] Fax [phone] Fax [phone]

5901-2202 [12] Rev. July 2010
© 2008 - 2010 SHURflo All Rights Reserved. May be covered by one or more of the following patents listed: 6623245/083392/6048183 Page 2 of 2
