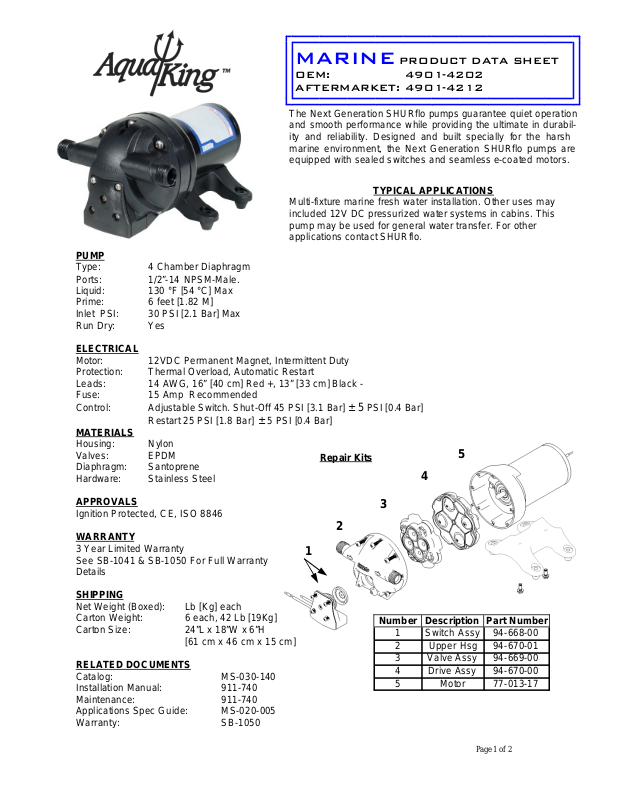

MARINE PRODUCT DATA SHEET

PUMP

Type: 4 Chamber Diaphragm Ports: 1/2”-14 NPSM-Male. Liquid: 130 °F [54 °C] Max Prime: 6 feet [1.82 M] Inlet PSI: 30 PSI [2.1 Bar] Max Run Dry: Yes

ELECTRICAL

Motor: 12VDC Permanent Magnet, Intermittent Duty Protection: Thermal Overload, Automatic Restart Leads: 14 AWG, 16” [40 cm] Red +, 13” [33 cm] Black Fuse: 15 Amp Recommended

Control: Adjustable Switch. Shut -Off 45 PSI [3.1 Bar] ± 5 PSI [0.4 Bar] Restart 25 PSI [1.8 Bar] ± 5 PSI [0.4 Bar]

MATERIALS

Housing: Nylon Valves: EPDM Diaphragm: Santoprene Hardware: Stainless Steel

APPROVALS

Ignition Protected, CE, ISO 8846

WARRANTY

3 Year Limited Warranty See SB-1041 & SB-1050 For Full Warranty Details

SHIPPING

Net Weight (Boxed): Lb [Kg] each Carton Weight: 6 each, 42 Lb [19Kg] Carton Size: 24”L x 18”W x 6”H [61 cm x 46 cm x 15 cm]

RELATED DOCUMENTS

Catalog: MS-030-140 Installation Manual: 911-740 Maintenance: 911-740 Applications Spec Guide: MS-020-005 Warranty: SB-1050

Page 1 of 2

OEM: 4901-4202 AFTERMARKET: 4901-4212

The Next Generation SHURflo pumps guarantee quiet operation and smooth performance while providing the ultimate in durability and reliability. Designed and built specially for the harsh marine environment, the Next Generation SHURflo pumps are equipped with sealed switches and seamless e-coated motors.

TYPICAL APPLICATIONS

Multi-fixture marine fresh water installation. Other uses may included 12V DC pressurized water systems in cabins. This pump may be used for general water transfer. For other applications contact SHURflo.

Repair Kits

Number Description Part Number

1 Switch Assy 94-668-00 2 Upper Hsg 94-670-01 3 Valve Assy 94-669-00 4 Drive Assy 94-670-00 5 Motor 77-013-17

PERFORMANCE @ 12V DC

PRESSURE CURRENT

FLOW

BAR PSI GPM LPM AMPS

0.0 0 4.0 15.1 4.1

PRESSURE

FLOW

CURRENT

0.7 10 3.3 12.5 6.3

1.4 20 2.9 10.9 7.6

2.1 30 2.7 10.2 8.8

2.8 40 2.4 9.0 10.0

FLOW AMPS

4.0

3.0

2.0

FLOW (GPM)

1.0

0.0 0 10 20 30 40

PRESSURE (PSI)

DIMENSIONS [mm]

10.0

8.0

6.0

4.0

2.0

0.0

CURRENT (AMPS)

SHURflo reserves the right to update specifications, prices, or make substitutions.
