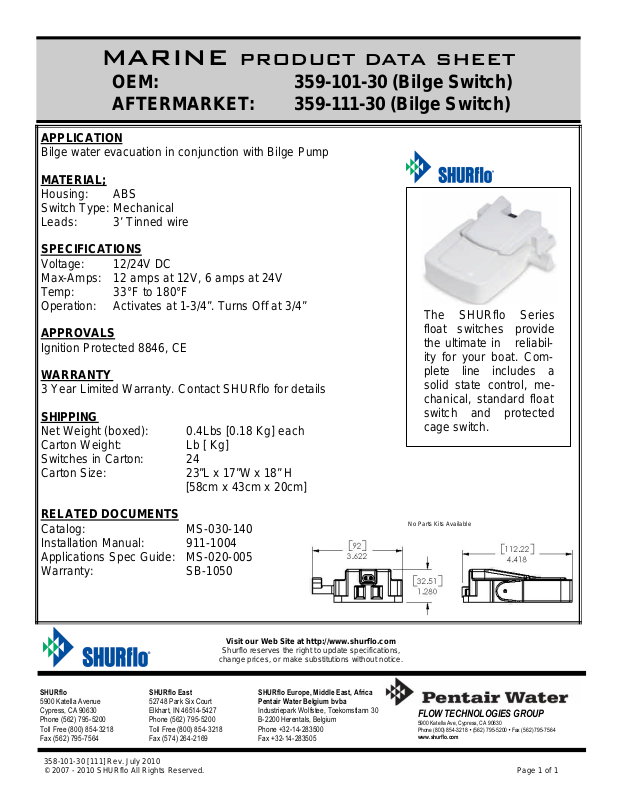

MARINE PRODUCT DATA SHEET
OEM: 359-101-30 (Bilge Switch)
AFTERMARKET: 359-111-30 (Bilge Switch)
APPLICATION
Bilge water evacuation in conjunction with Bilge Pump
MATERIAL;
Housing: ABS
Switch Type: Mechanical
Leads: 3’ Tinned wire
SPECIFICATIONS
Voltage: 12/24V DC
Max-Amps: 12 amps at 12V, 6 amps at 24V
Temp: 33°F to 180°F
Operation: Activates at 1-3/4”. Turns Off at 3/4”
APPROVALS
Ignition Protected 8846, CE
WARRANTY
3 Year Limited Warranty. Contact SHURflo for details
SHIPPING
Net Weight (boxed): 0.4Lbs [0.18 Kg] each
Carton Weight: Lb [ Kg]
Switches in Carton: 24
Carton Size: 23”L x 17”W x 18” H
[58cm x 43cm x 20cm]
RELATED DOCUMENTS
Catalog: MS-030-140
Installation Manual: 911-1004
Applications Spec Guide: MS-020-005
Warranty: SB-1050
The SHURflo Series
float switches provide
the ultimate in reliability for your boat. Complete line includes a
solid state control, mechanical, standard float
switch and protected
cage switch.
No Parts Kits Available
Visit our Web Site at http://www.shurflo.com
Shurflo reserves the right to update specifications,
change prices, or make substitutions without notice.
SHURflo SHURflo East SHURflo Europe, Middle East, Africa
5900 Katella Avenue 52748 Park Six Court Pentair Water Belgium bvba
Cypress, CA 90630 Elkhart, IN 46514-5427 Industriepark Wolfstee, Toekomstlann 30
Phone (562) 795-5200 Phone (562) 795-5200 B-2200 Herentals, Belgium
Toll Free (800) 854-3218 Toll Free (800) 854-3218 Phone +32-14-283500
Fax (562) 795-7564 Fax (574) 264-2169 Fax +32-14-283505
358-101-30 [111] Rev. July 2010
© 2007 - 2010 SHURflo All Rights Reserved. Page 1 of 1
