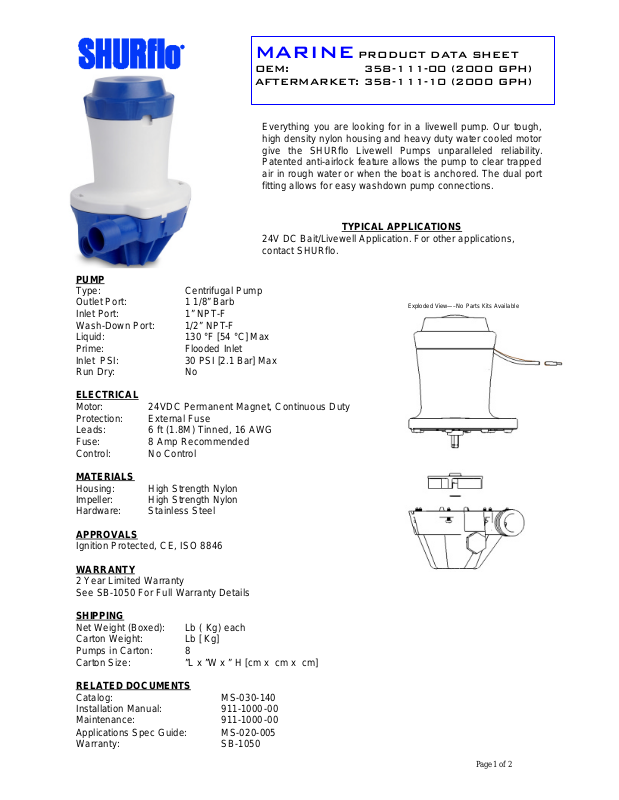

MARINE PRODUCT DATA SHEET
OEM: 358-111-00 (2000 GPH)
PUMP
Type: Centrifugal Pump
Outlet Port: 1 1/8” Barb
Inlet Port: 1” NPT-F
Wash-Down Port: 1/2” NPT-F
Liquid: 130 °F [54 °C] Max
Prime: Flooded Inlet
Inlet PSI: 30 PSI [2.1 Bar] Max
Run Dry: No
ELECTRICAL
Motor: 24VDC Permanent Magnet, Continuous Duty
Protection: External Fuse
Leads: 6 ft (1.8M) Tinned, 16 AWG
Fuse: 8 Amp Recommended
Control: No Control
MATERIALS
Housing: High Strength Nylon
Impeller: High Strength Nylon
Hardware: Stainless Steel
APPROVALS
Ignition Protected, CE, ISO 8846
WARRANTY
2 Year Limited Warranty
See SB-1050 For Full Warranty Details
SHIPPING
Net Weight (Boxed): Lb ( Kg) each
Carton Weight: Lb [ Kg]
Pumps in Carton: 8
Carton Size: ”L x ”W x ” H [cm x cm x cm]
RELATED DOCUMENTS
Catalog: MS-030-140
Installation Manual: 911-1000-00
Maintenance: 911-1000-00
Applications Spec Guide: MS-020-005
Warranty: SB-1050
AFTERMARKET: 358-111-10 (2000 GPH)
Everything you are looking for in a livewell pump. Our tough,
high density nylon housing and heavy duty water cooled motor
give the SHURflo Livewell Pumps unparalleled reliability.
Patented anti-airlock feature allows the pump to clear trapped
air in rough water or when the boat is anchored. The dual port
fitting allows for easy washdown pump connections.
TYPICAL APPLICATIONS
24V DC Bait/Livewell Application. For other applications,
contact SHURflo.
Exploded View —–No Parts Kits Available
Page 1 of 2
PERFORMANCE @ 24V DC
HEAD/LIFT (FT)
CURRENT (AMPS)
10
8
6
4
2
0
1800 1900 2000 2100 2200
DIMENSIONS [mm]
PRESSURE CURRENT
FLOW
METERS FT OF HEAD GPH LPH AMPS
0.0 0 2200 8327 5.0
1.20 4 1950 7380 4.4
2.40 8 1800 6813 4.1
FLOW AMPS
FLOW (GPH)
5
4
3
2
1
0
SHURflo reserves the right to update specifications, prices, or make substitutions.
SHURflo, LLC Headquarters
5900 Katella Avenue
Cypress, California 90630
Phone (562) 795-5200 Ÿ Toll Free (800) 854-3218
Fax (562) 795-7564
358-111-00 Rev 01/09
© 2007 SHURflo, LLC All Rights Reserved Page 2 of 2
SHURflo, LLC East
52748 Park Six Court
Elkhart, Indiana 46514-5427
Phone (562) 795-5200 Ÿ Toll Free (800) 854-3218
Fax (574) 264-2169
SHURflo Europe, Middle East, Africa
Pentair Water Belgium bvba,
Industriepark Wolfstee, Toekomstlaan 30
B-2200 Herentals, Belgium
Phone +32-14-283500Ÿ Fax +32-14 -283505
