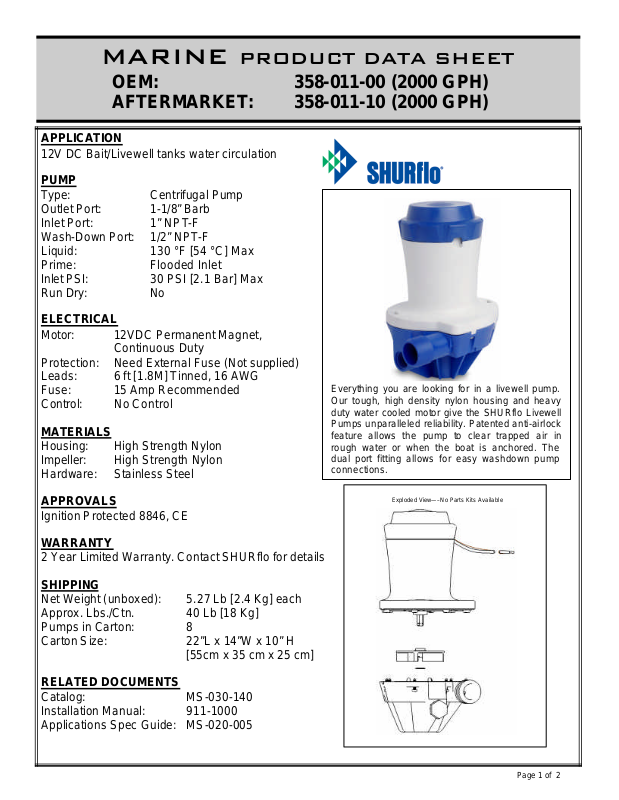

MARINE PRODUCT DATA SHEET
OEM: 358-011-00 (2000 GPH)
AFTERMARKET: 358-011-10 (2000 GPH)
APPLICATION
12V DC Bait/Livewell tanks water circulation
PUMP
Type: Centrifugal Pump
Outlet Port: 1-1/8” Barb
Inlet Port: 1” NPT-F
Wash-Down Port: 1/2” NPT-F
Liquid: 130 °F [54 °C] Max
Prime: Flooded Inlet
Inlet PSI: 30 PSI [2.1 Bar] Max
Run Dry: No
ELECTRICAL
Motor: 12VDC Permanent Magnet,
Continuous Duty
Protection: Need External Fuse (Not supplied)
Leads: 6 ft [1.8M] Tinned, 16 AWG
Fuse: 15 Amp Recommended
Control: No Control
MATERIALS
Housing: High Strength Nylon
Impeller: High Strength Nylon
Hardware: Stainless Steel
APPROVALS
Ignition Protected 8846, CE
WARRANTY
2 Year Limited Warranty. Contact SHURflo for details
SHIPPING
Net Weight (unboxed): 5.27 Lb [2.4 Kg] each
Approx. Lbs./Ctn. 40 Lb [18 Kg]
Pumps in Carton: 8
Carton Size: 22”L x 14”W x 10” H
[55cm x 35 cm x 25 cm]
RELATED DOCUMENTS
Catalog: MS-030-140
Installation Manual: 911-1000
Applications Spec Guide: MS-020-005
Everything you are looking for in a livewell pump.
Our tough, high density nylon housing and heavy
duty water cooled motor give the SHURflo Livewell
Pumps unparalleled reliability. Patented anti-airlock
feature allows the pump to clear trapped air in
rough water or when the boat is anchored. The
dual port fitting allows for easy washdown pump
connections.
Exploded View —–No Parts Kits Available
Page 1 of 2
TYPICAL PERFORMANCE
PRESSURE FLOW CURRENT
METERS FT OF HEAD GPH LPH AMPS
0.0 0 2200 8327 10.5
1.20 4 1950 7380 10.2
2.40 8 1800 6813 10
FLOW AMPS
10
8
6
4
HEAD/LIFT (FT)
2
0
1800 1900 2000 2100 2200
FLOW (GPH)
DIMENSIONS [mm]
12
10
8
6
4
CURRENT (AMPS)
2
0
Visit our Web Site at http://www.shurflo.com
Shurflo reserves the right to update specifications,
change prices, or make substitutions without notice.
SHURflo SHURflo East SHURflo Europe, Middle East, Africa
5900 Katella Avenue 52748 Park Six Court Pentair Water Belgium bvba
Cypress, CA 90630 Elkhart, IN 46514-5427 Industriepark Wolfstee, Toekomstlann 30
Phone (562) 795-5200 Phone (562) 795-5200 B-2200 Herentals, Belgium
Toll Free (800) 854-3218 Toll Free (800) 854-3218 Phone +32-14-283500
Fax (562) 795-7564 Fax (574) 264-2169 Fax +32-14-283505
358-011-00 [10] Rev. July 2010
© 2007 - 2010 SHURflo All Rights Reserved. Patent Number: 7371045 Page 2 of 2
