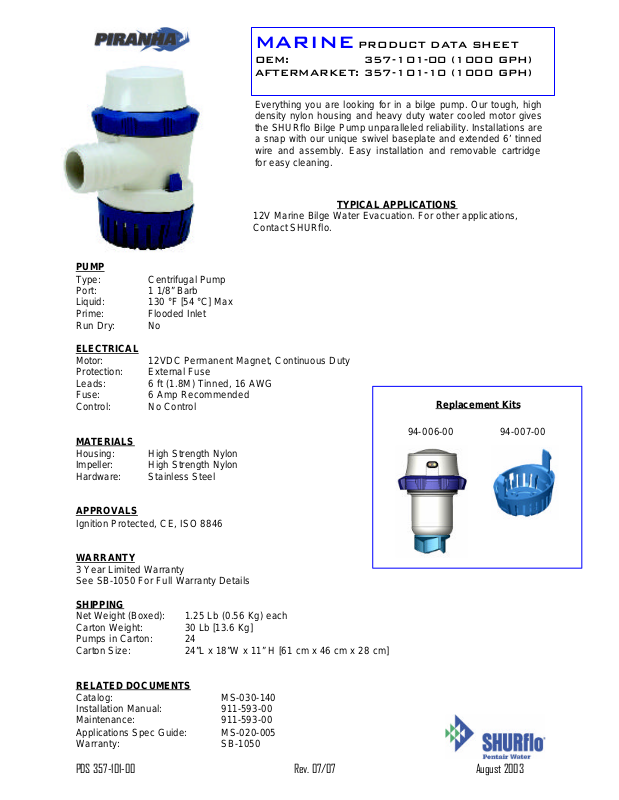

MARINE PRODUCT DATA SHEET
OEM: 357-101-00 (1000 GPH)
PUMP
Type: Centrifugal Pump
Port: 1 1/8” Barb
Liquid: 130 °F [54 °C] Max
Prime: Flooded Inlet
Run Dry: No
ELECTRICAL
Motor: 12VDC Permanent Magnet, Continuous Duty
Protection: External Fuse
Leads: 6 ft (1.8M) Tinned, 16 AWG
Fuse: 6 Amp Recommended
Control: No Control
MATERIALS
Housing: High Strength Nylon
Impeller: High Strength Nylon
Hardware: Stainless Steel
APPROVALS
Ignition Protected, CE, ISO 8846
WARRANTY
3 Year Limited Warranty
See SB-1050 For Full Warranty Details
SHIPPING
Net Weight (Boxed): 1.25 Lb (0.56 Kg) each
Carton Weight: 30 Lb [13.6 Kg]
Pumps in Carton: 24
Carton Size: 24”L x 18”W x 11” H [61 cm x 46 cm x 28 cm]
RELATED DOCUMENTS
Catalog: MS-030-140
Installation Manual: 911-593-00
Maintenance: 911-593-00
Applications Spec Guide: MS-020-005
Warranty: SB-1050
AFTERMARKET: 357-101-10 (1000 GPH)
Everything you are looking for in a bilge pump. Our tough, high
density nylon housing and heavy duty water cooled motor gives
the SHURflo Bilge Pump unparalleled reliability. Installations are
a snap with our unique swivel baseplate and extended 6’ tinned
wire and assembly. Easy installation and removable cartridge
for easy cleaning.
TYPICAL APPLICATIONS
12V Marine Bilge Water Evacuation. For other applications,
Contact SHURflo.
Replacement Kits
94-006-00 94-007-00
PDS 357-101-00 Rev. 07/07 August 2003
PERFORMANCE @ 13.6V DC
HEAD/LIFT (FT)
CURRENT (AMPS)
METERS FT OF HEAD GPH LPH AMPS
0.0 0 1020 3860 4.14
1.20 4 777 2940 4.07
2.40 8 532 2013 3.90
10.0
8.0
6.0
4.0
2.0
0.0
500 600 700 800 900 1000 1100
DIMENSIONS [mm]
PRESSURE CURRENT
FLOW
FLOW AMPS
FLOW (GPH)
5.00
4.00
3.00
2.00
1.00
0.00
*ISO Registered Facility
SHURflo, LLC*
5900A Katella Ave.
Cypress, Ca. 90630
Phone: 800 854 3218
Fax: 562 795 7554
Shipping: 5900C Katella Ave.
Cypress, Ca. 90630
SHURflo reserves the right to update specifications, prices, or make substitutions.
SHURflo East
52748 Park Six Court
Elkhart, IN 46514-5427
Phone: 800 854 3218
Fax: 574 264 2169
Http://www.shurflo.com
© 2001
SHURflo Ltd.*
Unit 5, Sterling Park
Gatwick Road, Crawley
West Sussex, RH10 9QT
United Kingdom
Phone: 0044 (0) 1293 424 000
Fax: 0044 (0) 1293 421 880
PDS 357-101-00 Rev. 07/07 August 2003
