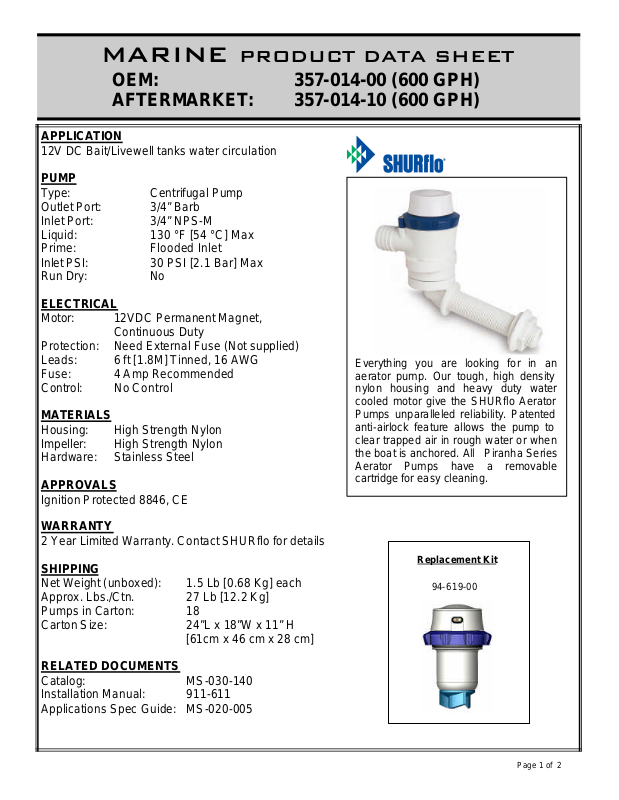

MARINE PRODUCT DATA SHEET
OEM: 357-014-00 (600 GPH)
AFTERMARKET: 357-014-10 (600 GPH)
APPLICATION
12V DC Bait/Livewell tanks water circulation
PUMP
Type: Centrifugal Pump
Outlet Port: 3/4” Barb
Inlet Port: 3/4” NPS-M
Liquid: 130 °F [54 °C] Max
Prime: Flooded Inlet
Inlet PSI: 30 PSI [2.1 Bar] Max
Run Dry: No
ELECTRICAL
Motor: 12VDC Permanent Magnet,
Continuous Duty
Protection: Need External Fuse (Not supplied)
Leads: 6 ft [1.8M] Tinned, 16 AWG
Fuse: 4 Amp Recommended
Control: No Control
MATERIALS
Housing: High Strength Nylon
Impeller: High Strength Nylon
Hardware: Stainless Steel
APPROVALS
Ignition Protected 8846, CE
WARRANTY
2 Year Limited Warranty. Contact SHURflo for details
SHIPPING
Net Weight (unboxed): 1.5 Lb [0.68 Kg] each
Approx. Lbs./Ctn. 27 Lb [12.2 Kg]
Pumps in Carton: 18
Carton Size: 24”L x 18”W x 11” H
[61cm x 46 cm x 28 cm]
RELATED DOCUMENTS
Catalog: MS-030-140
Installation Manual: 911-611
Applications Spec Guide: MS-020-005
Everything you are looking for in an
aerator pump. Our tough, high density
nylon housing and heavy duty water
cooled motor give the SHURflo Aerator
Pumps unparalleled reliability. Patented
anti-airlock feature allows the pump to
clear trapped air in rough water or when
the boat is anchored. All Piranha Series
Aerator Pumps have a removable
cartridge for easy cleaning.
Replacement Kit
94-619-00
Page 1 of 2
FLOW (GPH)
HEAD/LIFT (FT)
CURRENT (AMPS)
TYPICAL PERFORMANCE
PRESSURE FLOW CURRENT
METERS FT OF HEAD GPH LPH AMPS
0.0 0 620 2346 1.4
1.2 4 210 794 1.5
2.4 8 0.0 0.0 1.3
FLOW AMPS
8.0
2.0
6.0
4.0
2.0
0.0
0 100 200 300 400 500 600 700
DIMENSIONS [mm]
1.5
1.0
0.5
0.0
SHURflo SHURflo East SHURflo Europe, Middle East, Africa
5900 Katella Avenue 52748 Park Six Court Pentair Water Belgium bvba
Cypress, CA 90630 Elkhart, IN 46514-5427 Industriepark Wolfstee, Toekomstlann 30
Phone (562) 795-5200 Phone (562) 795-5200 B-2200 Herentals, Belgium
Toll Free (800) 854-3218 Toll Free (800) 854-3218 Phone +32-14-283500
Fax (562) 795-7564 Fax (574) 264-2169 Fax +32-14-283505
357-014-00 [10] Rev. July 2010
© 2003 - 2010 SHURflo All Rights Reserved. Patent Number: 6715994 Page 2 of 2
Visit our Web Site at http://www.shurflo.com
Shurflo reserves the right to update specifications,
change prices, or make substitutions without notice.
