Shurflo 340-000 User Manual

Product: In-line Check Valve

SHURflo, LLC Headquarters

SHURflo

, LLC

East

SHURflo Europe, Middle East, Africa

Models: 340-000/001, 1/2” [13mm] Barb OEM/Aftermarket

Caution: Do not use for Water Heaters

Technical Specifications
Cracking Pressure: 1 psi [ .1 bar ]
Max. Pressure: 100 psi [ 6.9 bar ]
Overall Dimensions: 4-1/4” x 1-5/8” [ 108 mm x 42 mm ]
Temperature Limits: 34°F – 120°F [ 1°C – 49°C ]
Fitting Configuration: 1/2” x 1” [ 13 x 25mm ] Straight Barb
Materials: Nylon, EPDM. All materials are NSF Listed.

Installation

1. Arrow on body must be pointed in the same direction as the flow.

2. Do not use with fluids that contain particulate matter.

3. Be sure connections are secured with properly sized hose clamps.

4. Make sure all connections are in accordance with application.

5. Check for leaks after installation.

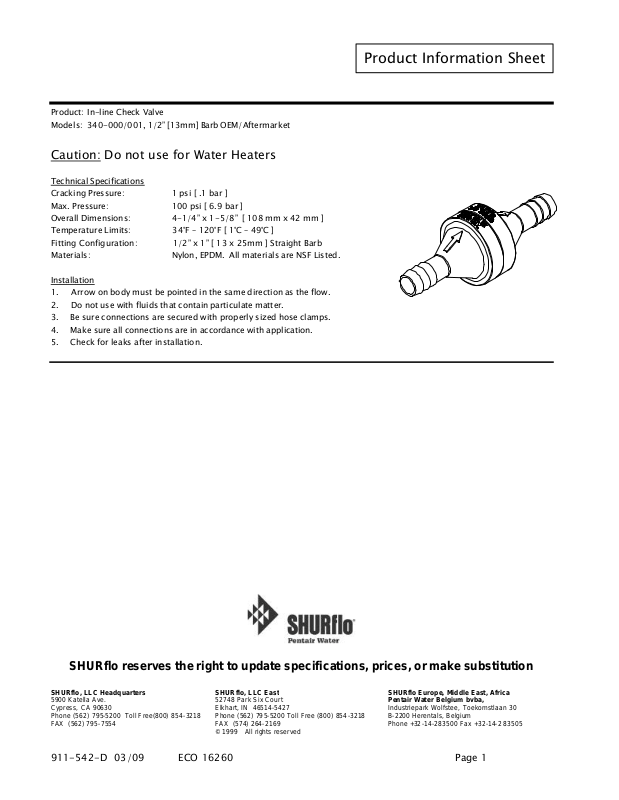

Product Information Sheet

SHURflo reserves the right to update specifications, prices, or make substitution

5900 Katella Ave.
Cypress, CA 90630
Phone [phone] Toll Free(800) 854 -3218
FAX [phone]

911-542-D 03/09 ECO 16260 Page 1
