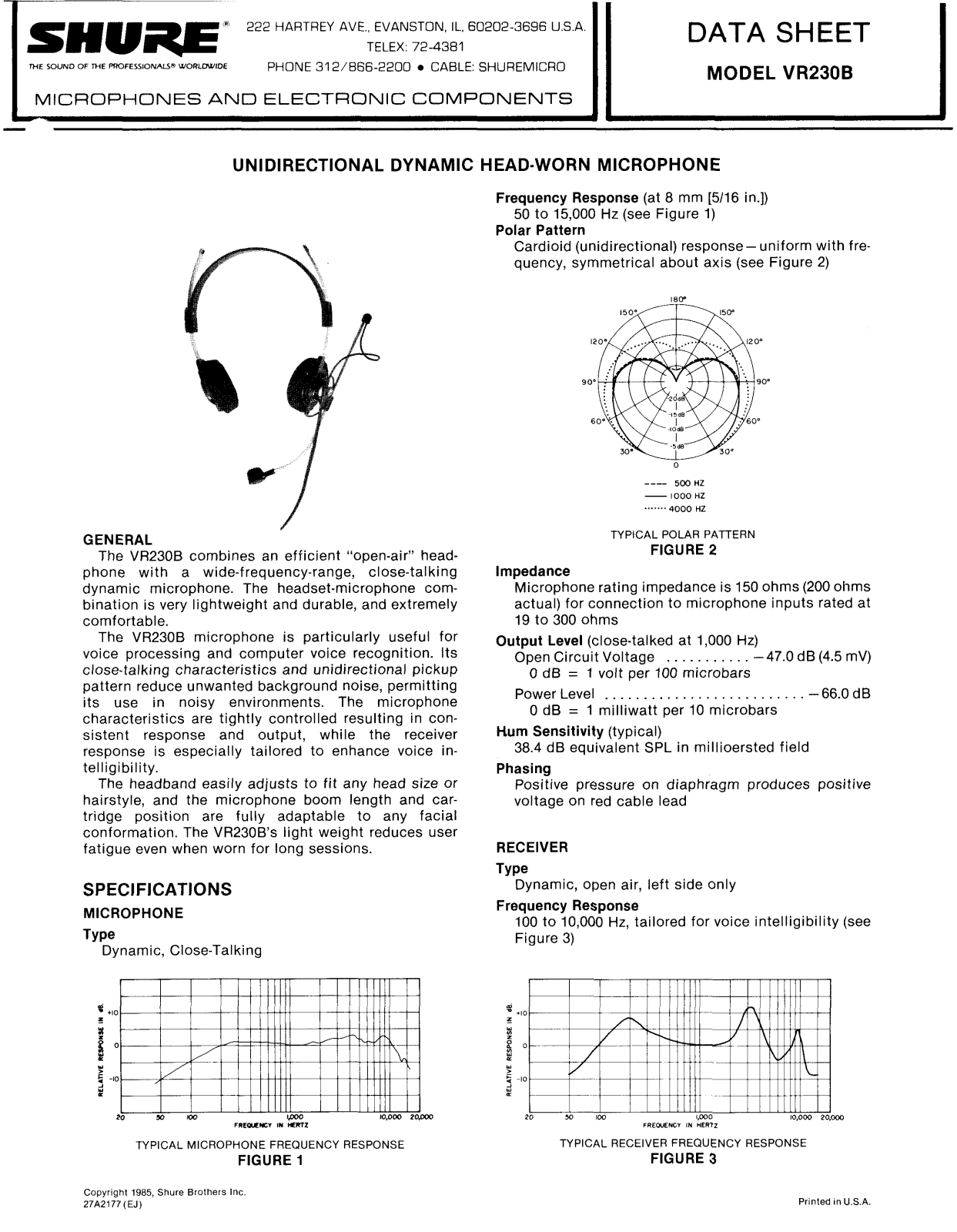

Page 1
"
222 HARTREY AVE EVANSTON, IL, 60202-3696
TELEX 72-4381
ME
SOUND
OF
ME
PROFESSIONALS~
WORLDWIDE
PHONE 31 2/866-2200 CABLE SHUREMlCRO
MICROPHONES AND ELECTRONIC COMPONENTS
J
-
UNIDIRECTIONAL DYNAMIC HEAD-WORN MICROPHONE
US
A
DATA
MODEL
SHEET
VR230B
I
GENERAL
The VR230B combines an efficient "open-air" headphone with a wide-frequency-range, close-talking
dynamic microphone. The headset-microphone combination is very lightweight and durable, and extremely
comfortable.
VR230B microphone is particularly useful for
The
voice processing and computer voice recognition. Its
close-talking characteristics and unidirectional pickup
pattern reduce unwanted background noise, permitting
its use in noisy environments. The microphone
characteristics are tightly controlled resulting in consistent response and output, while the receiver
response is especially tailored to enhance voice intelligibility.
The headband easily adjusts to fit any head size or
hairstyle, and the microphone boom length and cartridge position are fully adaptable to any facial
conformation. The
VR230B's light weight reduces user
fatigue even when worn for long sessions.
SPECIFICATIONS
MICROPHONE
Type
Dynamic, Close-Talking
Frequency Response
50 to 15,000
(at 8 mm (5116 in.])
Hz
(see Figure 1)
Polar Pattern
Cardioid (unidirectional) response- uniform with frequency, symmetrical about axis (see Figure 2)
TYPICAL POLAR PATTERN
FIGURE
2
Impedance
Microphone rating impedance is 150 ohms (200 ohms
actual) for connection to microphone inputs rated at
19 to 300 ohms
Output Level
Open Circuit Voltage
(close-talked at 1,000 Hz)
...........
-47.0 dB (4.5
0 dB = 1 volt per 100 microbars
Power Level
..........................
-
66.0 dB
0 dB = 1 milliwatt per 10 microbars
Hum Sensitivity
(typical)
38.4 dB equivalent SPL in millioersted field
Phasing
Positive pressure on diaphragm produces positive
voltage on red cable lead
RECEIVER
Type
Dynamic, open air, left side only
Frequency Response
100 to 10,000 Hz, tailored for voice intelligibility (see
Figure 3)
mV)
TYPICAL MICROPHONE FREQUENCY RESPONSE
Copyright 1985, Shure Brothers
27A2177
(EJ)
FIGURE
Inc.
TYPICAL RECEIVER FREQUENCY RESPONSE
1
FIGURE
3
Printed in
U.S.A.

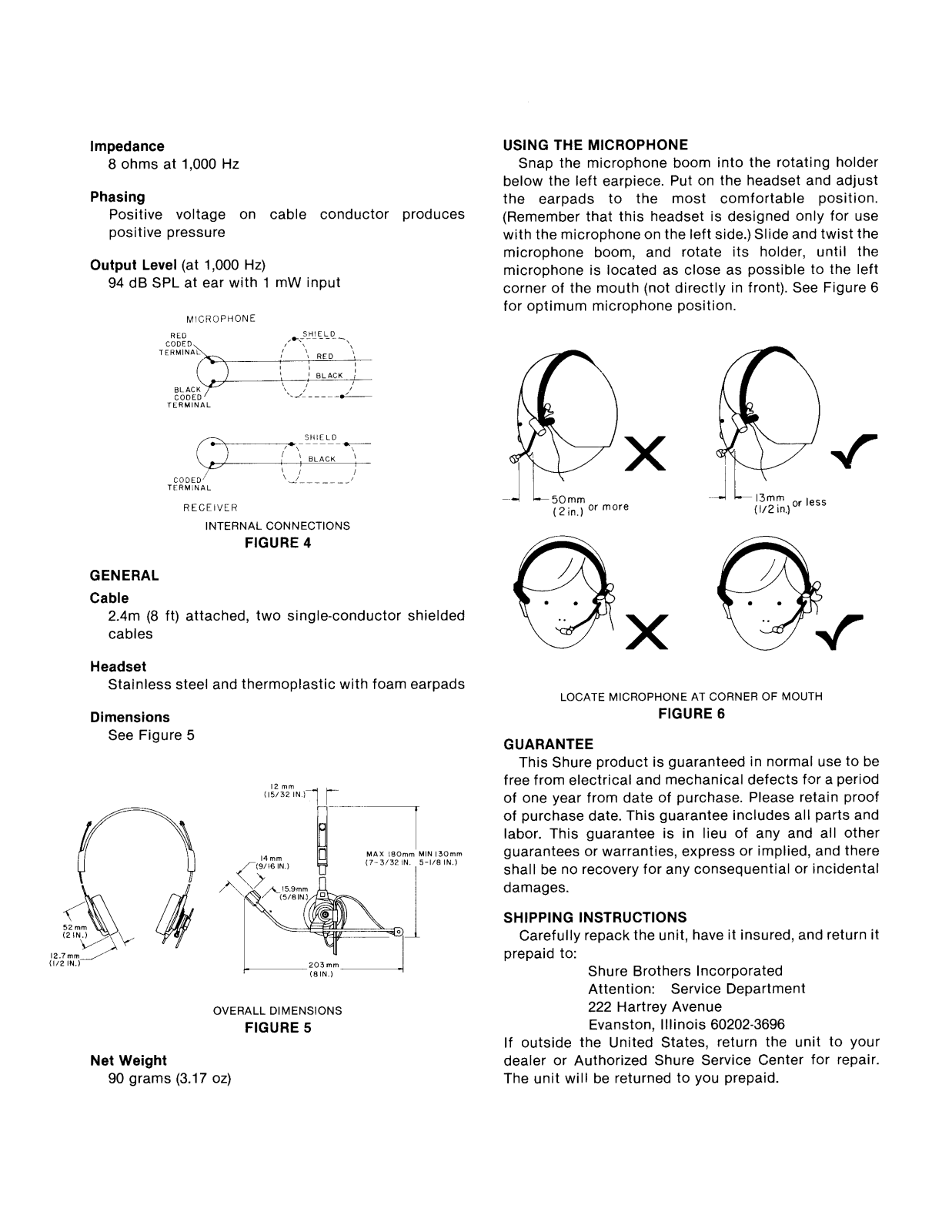

Page 2
Impedance
8
ohms at 1,000
Hz
Phasing
Positive voltage on cable conductor produces
positive pressure
Output Level
94 dB SPL at ear with 1
(at 1,000 Hz)
mW input
RED SHIELD
CODED
i,
/
\
.
_'-
CODED
TERMINAL
CODED
TERMINAL
RECEIVER
INTERNAL CONNECTIONS
FIGURE
- - - - -
SHIELD
------
4i
BLACK
1)
-
- - - - -
4
L
-
-
-
GENERAL
Cable
2.4m
(8
ft) attached, two single-conductor shielded
cables
USING THE MICROPHONE
Snap the microphone boom into the rotating holder
below the left earpiece. Put on the headset and adjust
the
earpads to the most comfortable position.
(Remember that this headset is designed only for use
with the microphone on the left side.) Slide and twist the
microphone boom, and rotate its holder, until the
microphone is located as close as possible to the left
corner of the mouth (not directly in front). See Figure 6
for optimum microphone position.
-4
L:i:~
or
mare
t13mm
(112
in.)''
less
12.7mmJ
(112
IN.)
Headset
Stainless steel and thermoplastic with foam earpads
Dimensions
See Figure
5
OVERALL DIMENSIONS
FIGURE
5
Net Weight
90 grams (3.17 oz)
LOCATE MICROPHONE AT CORNER OF MOUTH
FIGURE
6
GUARANTEE
This Shure product is guaranteed in normal use to be
free from electrical and mechanical defects
for a period
of one year from date of purchase. Please retain proof
of purchase date. This guarantee includes all parts and
labor. This guarantee is in lieu of any and all other
guarantees or warranties, express or implied, and there
shall be no recovery for any consequential or incidental
damages.
SHIPPING INSTRUCTIONS
Carefully repack the unit, have it insured, and return it
prepaid to:
Shure Brothers Incorporated
Attention: Service Department
222 Hartrey Avenue
Evanston, Illinois 60202-3696
If outside the United States, return the unit to your
dealer or Authorized Shure Service Center for repair.
The unit will be returned to you prepaid.
