Shure UA506 User Guide

UA506 SINGLE RACK MOUNT KIT

Ñ

Ñ

ÑÑÑÑÑ

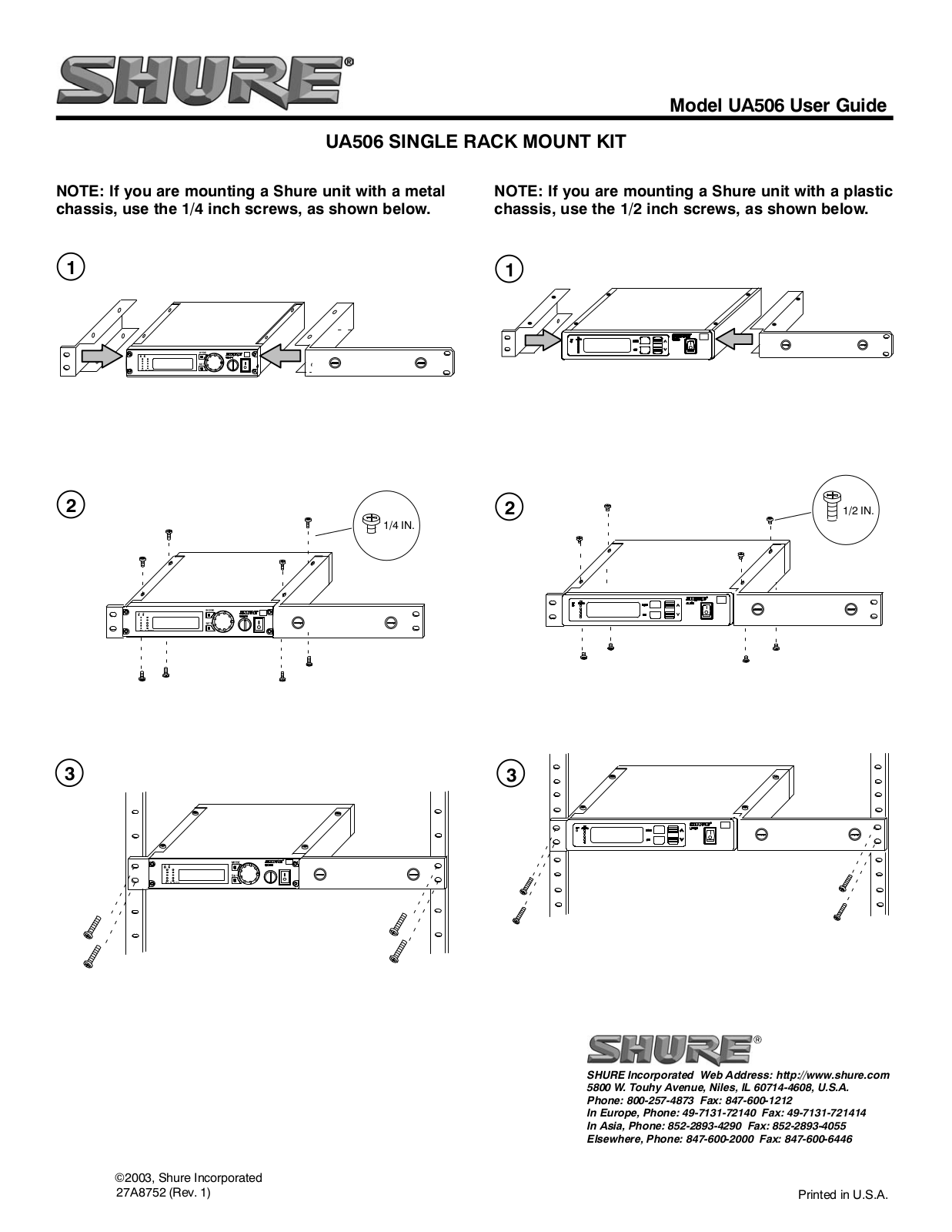

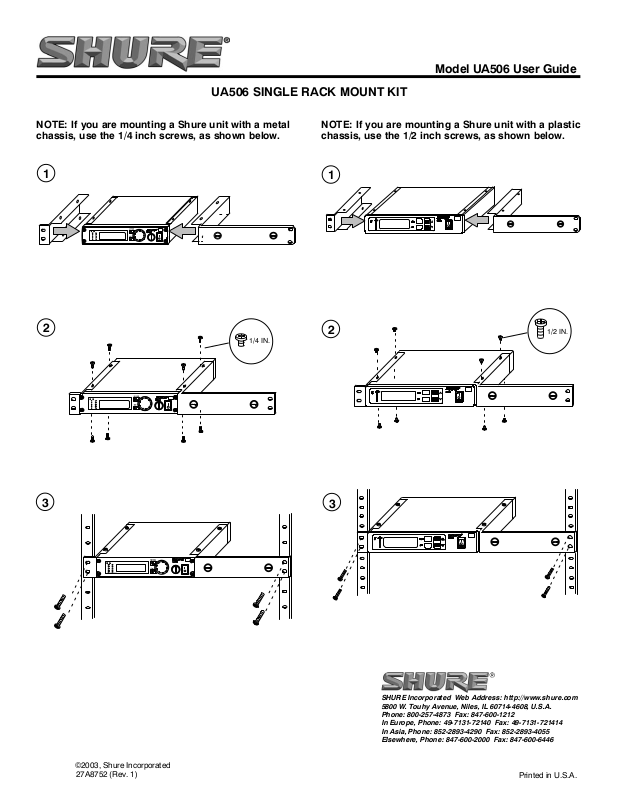

Model UA506 User Guide

NOTE: If you are mounting a Shure unit with a metal
chassis, use the 1/4 inch screws, as shown below.

1

2

1/4 IN.

NOTE: If you are mounting a Shure unit with a plastic
chassis, use the 1/2 inch screws, as shown below.

1

2 1/2 IN.

3

2003, Shure Incorporated

27A8752 (Rev. 1)
