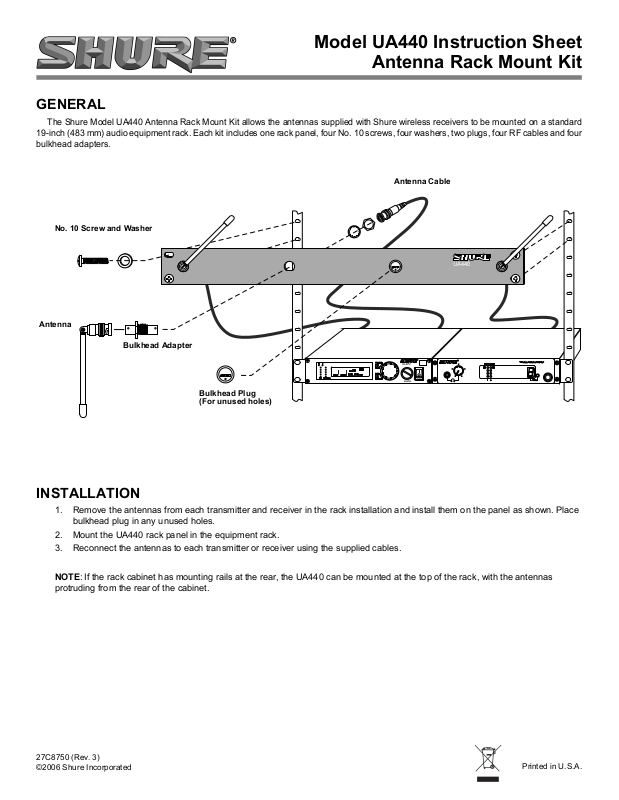

Model UA440 Instruction Sheet

Antenna Rack Mount Kit

GENERAL

The Shure Model UA440 Antenna Rack Mount Kit allows the antennas supplied with Shure wireless receivers to be mounted on a standard
19-inch (483 mm) audio equipment rack. Each kit includes one rack panel, four No. 10 screws, four washers, two plugs, four RF cables and four
bulkhead adapters.

Antenna Cable

No. 10 Screw and Washer

Antenna

Bulkhead Adapter

Bulkhead Plug
(For unused holes)

INSTALLATION

1. Remove the antennas from each transmitter and receiver in the rack installation and install them on the panel as shown. Place
bulkhead plug in any unused holes.

2. Mount the UA440 rack panel in the equipment rack.

3. Reconnect the antennas to each transmitter or receiver using the supplied cables.

If the rack cabinet has mounting rails at the rear, the UA440 can be mounted at the top of the rack, with the antennas

NOTE:
protruding from the rear of the cabinet.

27C8750 (Rev. 3)
©2006 Shure Incorporated

Printed in U.S.A.
