The Twin Pro Wireless Microphone System

User Guide

The Twin Pro

Wireless Microphone System User Guide

Printed in U.S.A.

TABLE OF CONTENTS -- ENGLISH

Introduction .................................................................................................................................... English - 1

Description ..................................................................................................................................... English - 1

Using the T88 Wireless Receiver ................................................................................................. English - 3

Using the T2 Hand-Held Microphone Transmitter ...................................................................... English - 3

Using the T1 Body-Pack Transmitter ........................................................................................... English - 4

Tips and Troubleshooting ............................................................................................................ English - 5

Speciﬁcations and Information .................................................................................................... English - 6

INTRODUCTION

The Twin Proä Wireless System is the finest in its class. This

system will give you excellent performance for years to come.

System Contents

The Twin Pro Wireless System contains the following

components:

• One T88 dual channel wireless receiver

• Two transmitters available in one of three different combinations (see System Combinations below)

• One PS20 (120 Vac) or PS20E (230 Vac) power adapter

• One plastic screwdriver for squelch adjustment

ENGLISH

DESCRIPTION

T88 Wireless Receiver (Figure 1)

FRONT

System Combinations

The Twin Pro system includes one of the following three transmitter combinations:

• Two handheld microphone transmitters (includes two swivel adapters and two anti-roll devices)

• Two body-pack transmitters with lavalier microphones

• One handheld microphone and one body-pack transmitter (includes one swivel adapter and one anti-roll device)

1234

FIGURE 1

1 Power Indicators. 2 RF Signal Indicators. Yellow indicates when RF (radio

frequency) signals are received from the transmitter.

3 Audio Peak Indicators. These lights flicker occasionally

in normal operation. They are ON steadily when the audio input is overloaded.

4 Volume Controllers. Controls the audio output level. 5 Telescoping Antennas. Receive signals from the

transmitters. Make sure the antennas are fully extended vertically.

6 Power Input Connector. Connects to a PS20 (120 Vac)

or PS20E (230 Vac) power adapter.

7 Independent Audio Output Connectors. There is a

separate, unbalanced 1/4 channel.

BACK

inch phone jack for each

T2 Handheld Microphone Transmitter (Figure 2)

ÑÑ

Ñ Ñ

ÑÑÑ

ССССС

СССССС

ССССС

ÑÑ

ÑÑÑ

OFF PWR

Ñ Ñ

MUTE

ССССССССССССССССССССССССССС

ÑÑ

СССССССССССССССС СССС

ССССССССССССССССССССССССССС

ÑÑ

ÑÑÑÑ Ñ

ÑÑÑÑÑÑ ÑÑÑ

ÑÑÑÑ

3 4

ENGLISH

T1 Body-Pack Transmitter (Figure 3)

FIGURE 2

1 POWER ON/OFF Switch. Turns transmitter on and off. 2 POWER Indicator. Lights when transmitter is turned on. 3 LOW BATTERY Indicator. Red light glows when you

have one hour or less of useful operating time; when this light glows, change the battery.

4 MIC ON/MUTE Switch. Lets you turn the microphone

audio on and off (muting the microphone).

5 Audio Gain Control. Provides audio level adjustment to

accomodate different sound sources.

6 9V Alkaline Battery (shown installed). Provides power

to the microphone-transmitter. Typical battery life is 18 hours.

7 Battery Cover. Unscrews for access to the 9V alkaline

battery and gain control.

FIGURE 3

1 Battery Compartment. 2 Antenna. For best operation, the antenna must hang

vertically, and should not be coiled or bundled.

3 Belt Clip. Allow transmitter to be attached to belt. 4 POWER Indicator. 5 POWER ON/OFF Switch. Turns transmitter on and off. 6 Audio ON/MUTE Switch. Mutes the transmitter to pre-

vent unwanted sounds from being picked up by the receiver without turning the transmitter off.

7 LOW BATTERY Indicator. When this red light is glow-

ing, you have one hour or less of useful operating time; change the battery.

8 Audio Gain Control. Provides audio level adjustment to

accommodate different sound sources (e.g., speaking or playing an instrument). The factory setting is at mid-point. A small screwdriver is supplied to make adjustments.

9 Microphone Input Connector. 4-Pin miniature connec-

tor provides connection to a variety of lavalier and headset microphone cables, and the Shure WA302 instrument adapter cable.

10 Lavalier Microphone. Condenser lavalier microphone

supplied with a mount that clips onto a tie, lapel, or acoustic instrument.

ENGLISH

USING THE T88 WIRELESS RECEIVER

Connecting the T88 Wireless Receiver

T88 BACK

ÑÑÑ

1. Connect the receiver outputs for channels 1 and 2 to the mixer or karoake unit using unbalanced, single-conductor, shielded cables with1/4-inch phone plugs.

2. Connect the ac adapter to the POWER jack on the rear panel of the receiver.

3. Plug the ac adapter into an appropriate power outlet.

AUDIO MIXER

ÑÑ

or KARAOKE UNIT

AC ADAPTER

FIGURE 4

USING THE T2 HAND HELD MICROPHONE

TRANSMITTERS

Operating the T2 Hand Held Microphone Transmitters

1. Press the POWER switch on the T88 receiver ON.

2. Slide the transmitter POWER ON/OFF switch to the ON position. Check the battery level. If the LOW BATTERY indicator is lit, see Transmitter Battery Installation.

3. Check the RF indicator on the T88 receiver to see if the radio signal is being received.

4. Slide the MIC ON/MUTE switch to the ON position and begin speaking or singing.

NOTE: If the red PEAK light on the receiver does not flicker during the loudest sounds, the transmitter gain may need to be increased. See the Transmitter Audio Gain Adjustment section.

5. During the performance or presentation, slide the MIC ON/ MUTE switch to the MUTE position when the microphone is not being used.

6. When the performance or presentation is over, slide the transmitter POWER ON/OFF switch to the OFF position to conserve battery power.

TRANSMITTERS

Squelch Adjustment

SQUELCH

DECREASE

FIGURE 5

The receiver squelch control is factory preset at the 12

o'clock position for optimum performance. No further adjustment is normally required. However, it is possible to adjust the

squelch control to emphasize either signal quality or system range.

• To raise the squelch threshold, rotate the control clockwise. This causes the receiver to demand a higher quality signal (less noise before muting), but it reduces the operating range.

• To lower the squelch threshold, rotate the control counterclockwise. This allows a lower quality signal through (more noise before muting), but it extends the operating range.

INCREASE

T88

RECEIVER

FIGURE 6

Transmitter Battery Installation

1. Slide the transmitter POWER ON/OFF switch to the OFF position.

2. Unscrew the transmitter battery cover to expose the battery terminals, as shown in Figure 7.

ÑÑ Ñ

ÑÑ

FIGURE 7

3. Insert a fresh 9V alkaline battery into the battery compartment as shown in Figure 7 (Alkaline recommended and included with the system). A fresh 9V alkaline battery should typically provide 18 hours of performance time. A fully charged 8.4V NiCad battery should provide 2 hours of performance time. When the LOW BATTERY light on the transmitter turns on, you have 1 hour or less of useful battery life remaining; change the battery at your first opportunity.

IMPORTANT: Carbon-zinc and zinc-chloride batteries will not provide adequate power and are not recommended.

4. Replace the battery cover.

ÑÑÑÑ

ENGLISH

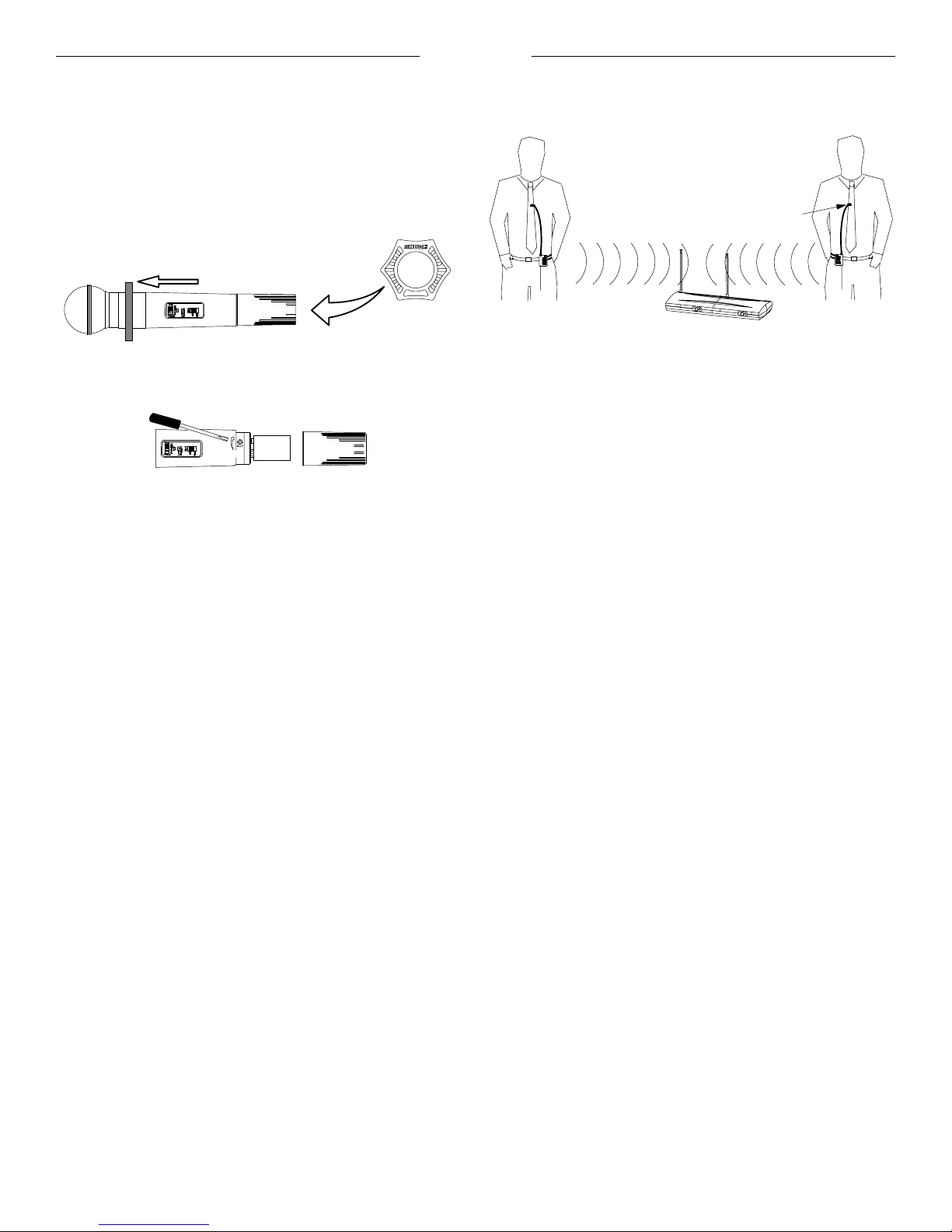

Installing the Anti-Roll Device

The rubber anti-roll device prevents hand-held microphones from rolling off onto the ground when they are set down on a flat surface, such as a table or speaker cabinet. The anti-roll device proves an important safeguard in stage situations where the T2 may be used by inexperienced microphone handlers.

To install the anti-roll device, simply slip it over the microphone handle and slide it up so that it is positioned just below the label under the microphone grille, as shown in Figure 8.

USING THE T1 BODY-PACK TRANSMITTERS

Operating T1 Body-Pack Transmitters

LAVALIER

MIC

СССССССССССССС

ССССССССССССССССССССССССССССССССССССССС

ÑÑ

FIGURE 8

Gain Adjustment

ССССССССС

СССССССССССССССС СССС

СССССССССССССССССССССССССССССС

FIGURE 9

The transmitter audio gain control has been factory preset to provide satisfactory output. However, if the PEAK light on the T88 receiver is constantly on or never on, the transmit audio level may require adjustment. Use the gain controls as follows to adjust the equipment for the best sound quality.

To adjust the audio gain, locate the transmitter audio gain control and use the supplied screwdriver to adjust the control.

• If the PEAK light is always on, decrease the audio gain by turning the gain control counter-clockwise (while the vocalist is singing or the musical instrument is being played) until the PEAK light on the receiver flickers only occasionally.

• If the PEAK light is never on, increase the audio gain by turning the gain control clockwise (while the vocalist is singing or the musical instrument is being played) until the PEAK light on the receiver flickers only occasionally.

СССССС

ÑÑ

T88 RECEIVER

ССССССССССС

FIGURE 10

NOTE: The T1 body-pack system is designed for use with

other equipment, such as lavalier microphones, guitars, headset microphones, etc. See your Shure dealer for details on ordering the proper equipment for your needs.

1. Clip the T1 body pack transmitter to your belt or guitar strap.

2. Connect the lavalier microphone, headset or instrument adapter cable to the body-pack transmitter.

3. Turn the transmitter POWER switch ON. Check Power/Battery fuel gauge.

4. Check the RF Signal Indicator on the T88 receiver to see if the RF signal is being received.

5. Slide the transmitter ON/MUTE switch to the ON position and begin speaking or playing your instrument.

NOTE: If the red PEAK light on the receiver does not flicker during the loudest sounds, the transmitter gain may need to be increased. See the Transmitter Audio Gain Adjustment section.

6. During the performance or presentation, slide the ON/MUTE switch to the MUTE position when the system is not being used.

7. When the performance or presentation is over, slide the transmitter POWER ON/OFF switch to the OFF position to conserve battery power.

ENGLISH

Transmitter Battery Installation

1. Slide the transmitter ON/OFF switch to the OFF position.

2. Press down on the OPEN side of the battery compartment cover, slide it back and flip it open, as shown in Figure 11.

ıˇ

FIGURE 11

3. Insert a fresh 9V alkaline battery into the battery compartment as shown in Figure 11 (Duracell MN1604 recommended and included with the system). A fresh 9V alkaline battery should typically provide 18 hours of performance time. A fully charged 8.4V NiCad battery should provide 2 hours of performance time. When the red LOW BATTERY light on the transmitter glows, you have 1 hour or less of useful battery life remaining; change the battery at your first opportunity.

IMPORTANT: Carbon-zinc and zinc-chloride batteries will not provide adequate power and are not recommended.

4. Replace the battery cover.

Transmitter audio gain adjustment

FIGURE 12

To adjust the audio gain, locate the transmitter audio gain control and use the supplied screwdriver to adjust the control.

TIPS AND TROUBLESHOOTING

Tips for getting the best performance

• Maintain a line-of-sight between the transmitter and receiver antennas.

• Keep the receiver and antennas away from large metal objects.

• Avoid placing the receiver near computers or other RF generating equipment.

• Point the receiver antennas straight up.

• Avoid placing the receiver in the bottom of an equipment rack unless the antennas are remotely located.

Troubleshooting

Some common problems and their solutions are identified in the table below. If you are unable to solve a problem, contact your dealer.

Problem

No sound; RF light(s) not glowing.

No sound; RF and Audio Level meter lights glowing.

Received signal is noisy or contains extraneous sounds with transmitter on.

Noise from receiver with transmitter off.

Momentary loss of sound as transmitter is moved around performing area.

• Make sure the transmitter POWER switch is ON and the receiver is plugged into a power source.

• Check battery.

• Check receiver squelch setting.

• Check receiver antenna connection(s).

• Make sure antennas are in line of sight of transmitter.

• Turn up receiver audio VOLUME control.

• Check for proper connection between receiver and karaoke unit.

• Talk into microphone and observe receiver audio level lights. If they glow, the problem is elsewhere in the sound system.

• Check battery.

• Remove local sources of RF interference.

• If using a guitar or other instrument, check connections.

• Two transmitters may be operating on the same frequency. Locate and turn one off.

• Signal may be too weak. Reposition antennas. If possible, move them closer to transmitter.

• Adjust receiver squelch control.

• Remove local sources of RF interference.

• Reposition receiver or antennas.

• Reposition receiver and perform another “walkthrough” test and observe the RF indicators. If audio dropouts persist, mark these “dead spots” in performing area and avoid them during performance.

Solution

SPECIFICATIONS AND INFORMATION

Specifications

RF Carrier Frequency Range

169.445 to 216.000 MHz

Working Range

100 m (approximately 300 ft) under typical conditions.

Audio Frequency Response

50 to 15,000 Hz, ±2 dB

Audio Output Level (±15 kHz deviation, 1 kHz tone)

1/4 inch connector (into 3 kW load)

Audio Connectors

Model: T88 T1

Connector Type: 1/4-inch

Configuration: active

Actual

Impedance:

Maximum

Input Level:

Maximum

Output Level:

Assignments:

sleeve = ground

Phantom Power

Protection:

Voltage: -+5 V

T1 P in Connections

MICROPHONE

ELEMENT

NOTE: LAVALIERMIC TIES PINS 3 AND 4 TOGETHER; GUITAR CABLE DOES NOT.

-8.8 dBV (Hi Z)

4-Pin miniature

phone plug

connector

(female)

unbalanced

3 kW 18 kW

with lavalier

-12.2 dBu

0 dBu -

Tip = hot

pin 1= ground

pin 2 = +5 V

pin 3 = audio

pin 4 = through

20 kW resistor

to ground

yes -

T1 MIC JACK BOARD

500

27 pF

(TA4F)

active

27 pF

20K

ENGLISH

RF Sensitivity

-101 dBm typical

System Distortion (ref. ±15 kHz deviation, 1 kHz modulation)

0.7%

Power Requirements

T1, T2/14A: 9V alkaline battery (Duracell MN1604 recommended). 8.4V Nicad (rechargeable) are optional but not recommended. T88: 12 Vdc (PS20, 120Vac; PS20E, 230 Vac Power Supply)

Current Drain

T1: 31 mA average (40 mA max) T2/14A: 30 mA average (35 mA max) T88: 160 mA average (195 mA max)

Operating Temperature Range

-20 limit this range.

Overall Dimensions

T1: 82.6 mm H x 63.5 mm W x 26.2 mm D T2/14A: 241 mm L x 50.8 mm Dia. T88: 44 mm H x 349 mm W x 194 mm D

Net Weight

T1: 79.5 g without battery T2/14A: 294.8 g without battery T88: 435 g

Certification

T1, T2: Type-accepted under FCC Parts 90 and 74; IC certified under TRC-78 T88: Approved under the Notification provision of FCC Part 15 PS20 Power Supply: Conforms to safety standard UL1310. Canada/CSA 22 2 No. 223.

PS20E Power Supply: Conforms to safety standard EN 60065 PS20UK Power Supply: Conforms to safety standard EN 60065.

Furnished Accessories

Optional Accessories

+5 V

AUDIO

GROUND

Replacement Parts

° to 50°C (-4° to 122° F). NOTE: Battery characteristics may

Plastic Screwdriver ...........................................65A1659

Swivel Adapter (hand-held only)....................... WA370A

Anti-Roll Device (hand-held only) .....................66A8043

Microphone Adapter Cable (T1)...........................WA310

4-Pin Female Mini Connector TA4F (T1) .............WA330

In-Line Audio Switch (T1).....................................WA360

1.8 Meter (6 ft.) Receiver-Mixer Cable.................WA410

6.1 Meter (20 ft.) Antenna Extension Cable.........WA421

14A Cartridge with Grille.........................................R200

AC Adapter ................PS20 (120 Vac)/PS20E (230 Vac)

Grille (T2/14A)....................................................RK143G

Belt Clip (T1)...................................................53A8247A

1/4 Wave Antenna ............................................90A8380

T88 Output Wiring (1/4 inch male plug to output connector)

Gain Adjustment Range

T1: 40 dB T2/14A: 25 dB

RF Power Output

T1, T2/14A: 50 mW maximum (complies with FCC and IC regulations)

SLEEVE

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

TIP +

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

ENGLISH

Licensing Information

Changes or modifications not expressly approved by Shure Inc. could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies other than standard frequencies.

Warranty Information

Shure Incorporated (“Shure”) hereby warrants that these products will be free from defects in material and workmanship for a period of two years from the date of purchase. At its option, Shure will repair or replace the defective product and promptly return it to you, or refund the purchase price. Retain proof of purchase to validate the purchase date and return it with any warranty claim. If you believe this product is defective within the warranty period, carefully repack the unit, insure it, and return it postpaid to:

Shure Incorporated

Attention: Service Department

5800 W. Touhy Avenue

Niles, IL 60714-4608 U.S.A.

Telephone: 1-800-516-2525

For service outside the United States, return the product to any authorized Shure Distribution Center.

All claims of defects or shortage should be directed to the above address. Please furnish model number, operating frequency, and date, place and proof of purchase (such as a copy of your sales receipt) to establish warranty. Your letter should include all pertinent details including applicable model or part numbers and a brief description of the problem. Do not mail any units or parts to Shure unless requested to do so by Shure's Service Department. Any returned items must have prior authorization. Unauthorized returns are delayed in handling; these delays can be avoided by contacting Shure in advance and furnishing the necessary information.

Shure reserves the right to make design changes and product improvements on any previously manufactured products. Shure also reserves the right to ship new and/or improved products which are similar to the form, fit and function of the originally ordered products.

SHURE Incorporated http://www.shure.com United States, Canada, Latin America, Caribbean: 5800 W. Touhy Avenue, Niles, IL 60714-4608, U.S.A. Phone: 847-600-2000 U.S. Fax: 847-600-1212 Intl Fax: 847-600-6446 Europe, Middle East, Africa: Shure Europe GmbH, Phone: 49-7131-72140 Fax: 49-7131-721414 Asia, Pacific: Shure Asia Limited, Phone: 852-2893-4290 Fax: 852-2893-4055

Shure THE TWIN PRO 27C8642, Twin Pro, T88, PS20, PS20E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
