SHURE T SERIES USER GUIDE

This user guide provides detailed instructions for your T series wireless system. To get your system up and running in
minutes, see the T Series Quick Set Up Guide.

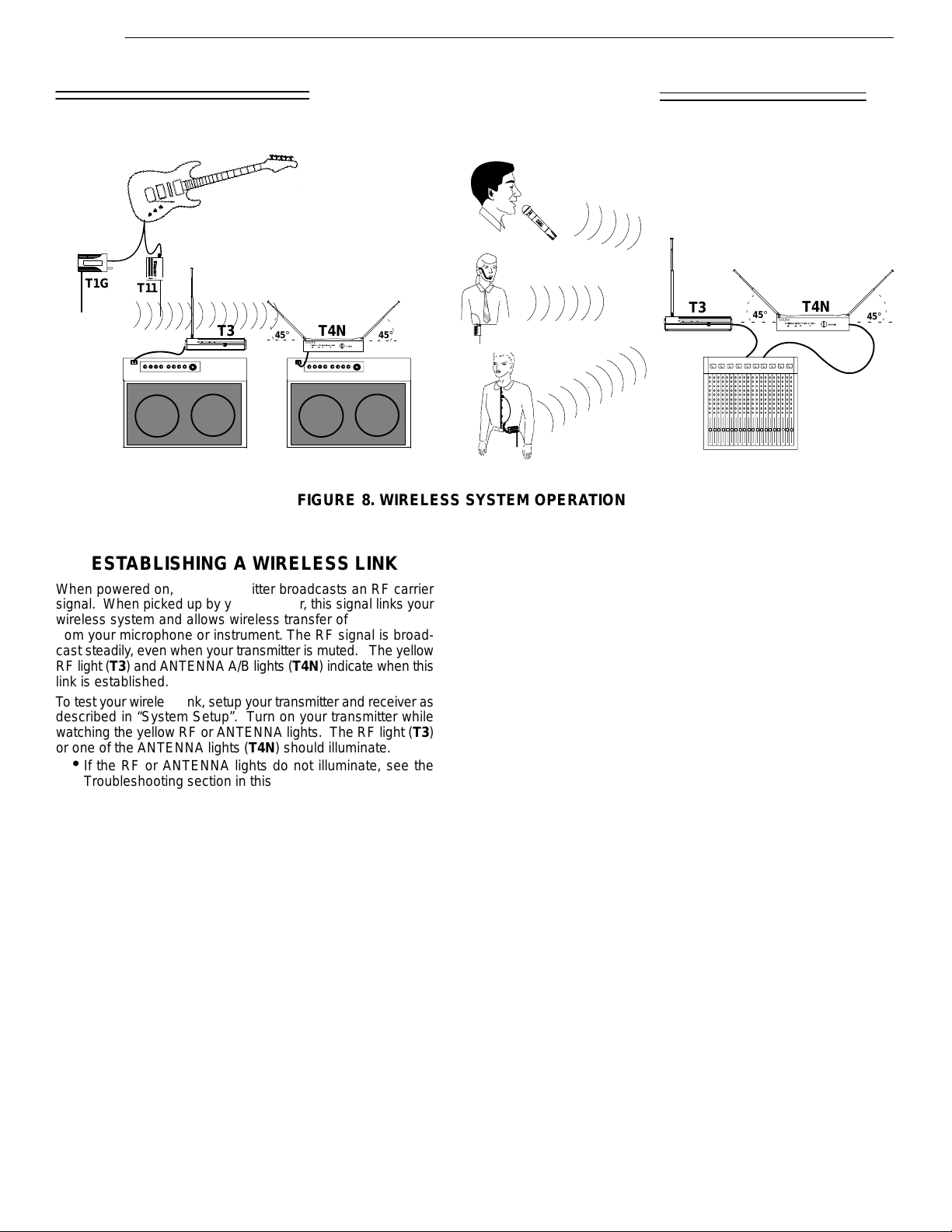

Your new T Series system is designed to give you both the freedom of a wireless system and world-famous Shure sound
quality. This manual covers both Standard and Diversity versions of each of the T Series systems: The Guitarist, The
Vocal Artist, The Presenter , The Headset, and The Bodypack Wireless systems.

Wireless

System

The Vocal Artist

Hand-held system

Components

Transmitter T2 Handheld

Microphone

SM58 or PG58

for singers.

Transmitter



The Guitarist

Bodypack system for

electric and bass gui-

tarists. Can also be

used with other elec-

tric instruments

T1G Bodypack

Transmitter (T11 Europe)

–– WH20 Headset

The Headset

Bodypack system for
applications requiring
hands-free operation,

such as aerobics or

percussion

Microphone

The Presenter

Bodypack system for

public speaking, the-

ater, or business pre-

sentations.

WL93 omnidirectional

lavalier, WL185 cardioid

or WL184 super cardioid

Receiver T3 single antenna or T4N Diversity

Power Supply PS20 (105–125 VAC, 60 Hz) or PS20E (230 VAC, 50 Hz) or PS20UK (230 VAC, 50 Hz)

Battery 9–volt alkaline (Duracell MN 1604)

Supplied Carrying and storage case; Receiver feet; Hook and loop fastening strips; gain adjustment screwdriver

Accessories

microphone stand

adapter

1/4” to 1/4” cables (2);

(Europe: 1/4” to Mini Con-

nector and 1/4” to 1/4”)

RECEIVER FEATURES

6

8

5

8

6

1

2

3

4

T3

7

UNBALANCE D

HIGH Z

5

.

.

.

.

.

.

.

.

1

2

3

.

4

.

Configurable systems

for use with various

T1 Bodypack

Transmitter (T11 Europe)

7

SHURE BOTHERS INC.

EVANSTON IL 60202 USA

SQUELCH

DC INPUT

MIN MAX

12–18 VDC

BALANCED

T4N

The Bodypack

Wireless

microphones.

––

9

1. Power On Indicator: Glows green when the receiver is
powered on.

2. RF Signal Indicator: T3: Glows yellow when RF (radio fre­quency) signals are received. T4N: One of two indicator
lights glows when RF is received by antenna A or B.

3. Transmitter Audio Peak Indicator: Flashes red when the
audio signal received approaches overload clipping level.

4. Volume Control: Adjusts the output volume of the receiver.

Does not affect Transmitter Audio Peak indicator.

5. Telescoping Antenna(s): Receives signals from the trans-
mitter.

FIGURE 1. T3 AND T4N RECEIVER FEATURES

6. Audio Output: Provides mic level signal for connection to
amplifiers or mixing consoles. T3: 1/4 inch phone jack. T4N:
1/4 inch phone jack and male XLR connector.

7. Squelch Control: This control is factory pre-set and nor­mally requires no adjustment. See “Wireless System Ad­justments.”

8. Power Input: Accepts power from supplied AC adapter.

9. Power Cable Retainer: T4N only. Secures the AC adapter
cable to the receiver.

1

English

Á

Á

Á

ÁÁÁ

ÁÁÁ

ÁÁÁ

ÁÁÁÁ

ÁÁÁ

ÁÁÁ

ÁÁÁ

ÁÁ

ÁÁÁ

TRANSMITTER FEATURES

3

4

5

6

1

10

7

8

9

2

T1/T1G Bodypack

T1G

FIGURE 2. T1, T1G, AND T11 BODYPACK TRANSMITTER FEATURES

1. Battery Compartment. Holds one 9V alkaline battery.

2. Antenna. For best operation, the antenna must hang verti-
cally, and should not be coiled or bundled.

3. Belt Clip. Secures the transmitter to a belt, waistband or gui­tar strap.

4. Power On Indicator. Glows green when transmitter is pow-
ered on.

5. Power Switch. Recessed to prevent accidental turn-off.

6. Mute Switch. Slide to ON for normal operation. Slide to
MUTE to prevent sounds from being transmitted to the re­ceiver. Muting the transmitter does not turn off transmitter

power.

7. Low Battery Indicator. Glows red when one hour or less of
operating time remains and transmitter battery should be
changed.

8. Audio Gain Control. Provides audio level adjustment to a c­commodate dif ferent sound sources (e.g., speaking or play-

11

2

9

1

8

3

9

10

6

5

4

7

11

T11 Bodypack

ing an instrument). Affects Transmitter Audio Peak indicator
on receiver. A small screwdriver is supplied to make adjust­ments.

9. Input Connector. T1, T11:

10.Mini Connector provides connection to a variety of lavalier
and headset microphone cables and to the Shure WA302
instrument adapter cable. T1G: Accepts a standard 1/4 inch
or guitar cable plug.

11. Lavalier Microphone (Presenter System only). WL93
omnidirectional condenser microphone, WL185 cardioid
condenser microphone, or WL184 super cardioid condens­er supplied with a mount that clips onto a tie, lapel, or acous­tic instrument.

12. Cables. T1G: Guitar cable for electric guitar or other electric
instruments. T11: WA302 Instrument adapter cable for con­necting electric instruments to the T11’s Mini connector.

1. Power Switch. Recessed to prevent accidental turn-off.

2. Power On Indicator. Glows green when power is on.

3. Low Battery Indicator. Glows red when one hour or less of

4. Mute Switch. Slide to ON for normal operation. Slide to

1

2

3
4

FIGURE 3. T2 HANDHELD TRANSMITTER FEATURES

operating time remains. Replace battery when illuminated.
MUTE to prevent sounds from being transmitted to the re-

ceiver. Muting the transmitter does not turn off power.

5

6

7

5. Audio Gain Control. Allows you to adjust the transmitter
level with the supplied screwdriver. (See “Wireless System
Adjustments”.)

6. 9V Alkaline Battery (shown installed). Provides power to
the microphone-transmitter.

7. Battery Cover. Unscrews for access to the 9V alkaline bat-
tery and gain control.
