PSM® Personal Monitor Systems
PSM 300 | PSM 900 | PSM 1000
PSM
1000
PERSONAL
MONITOR
SYSTEM
The PSM1000 Personal Monitor System from Shure
brings personal monitoring to its most advanced level yet.
The full-rack, dual-channel, networkable transmitter is ideally
suited for the demands of professional touring and installation
applications, and the diversity bodypack receiver delivers
pristine RF signal and audio quality. Networkability over
Ethernet connection enables remote control of transmitter
functions and comprehensive frequency coordination via
Wireless Workbench
®
software.
APPLICATIONS
Touring Sound
House Of Worship
Broadcast
Theater
PRODUCT HIGHLIGHTS
Touring-Grade Features
and Design
Robust RF Performance
and Networked control
Advanced Lithium-Ion
Rechargeability
PSM®1000 System Specifications
RF Carrier Range 470–952 MHz (regionally dependent)
Compatible Frequencies 49 per band
Tuning Bandwidth 72 MHz – 80 MHz (regionally dependent)
Operating Range (environment dependent) 90m (300ft)
Audio Frequency Response 35Hz – 15kHz
Stereo Separation 60 dB
Signal-To-Noise Ratio (A-Weighted) 90 dB (typical)
Total Harmonic Distortion
(ref. ±34 kHz deviation @1 kHz)
Companding Patented Shure Audio Reference Companding
Spurious Rejection (ref. 12 dB SINAD) >80 dB (typical)
Frequency Stability ±2.5 ppm
MPX Pilot Tone 19 kHz (±0.3 kHz)
Modulation FM, MPX Stereo (±34 kHz deviation, nominal)
Operating Temperature -18 to +57 °C
Frequency Range
Band Range Country RF Output Power***
G10 470-542 MHz US, IA 10 / 50 / 100 mW
G10E 470-542 MHz UK, EU, Peru 10 / 50 mW
H8Z 518-582 MHz NZ, Korea 10 / 50 mW
J8 554-626 MHz US, IA 10 / 50 / 100 mW
J8E 554-626 MHz EMEA 10 / 50 mW
K10E 596-668 MHz UK, EU, Australia 10 / 50 mW
L8 626-698 MHz US, IA, Australia 10 / 50 / 100 mW
L8E 626-698 MHz EMEA 10 / 50 mW
L9E 670-742 MHz China 10 / 50 mW
L10 670-742 MHz Hong Kong 10 / 20 mW
P8 710-790 MHz EU 10 / 50 mW
Q21 710-787 MHz China 10 / 50 mW
Q22E 750-822 MHz EU 10 / 50 mW
Q23 750-806 MHz Taiwan 6 / 10 mW
R27 794-806 MHz Thailand, EMEA 10 / 50 mW
A24 779-788 MHz
X1 944-952 MHz US 10 / 50 / 100 mW
797-806 MHz
<0.5% (typical)
Japan 6 / 10 mW
NOTE:
This Radio equipment is intended for use in musical pro-
fessional entertainment and similar applications. This Radio
apparatus may be capable of operating on some frequencies
not authorized in your region. Please contact your national
authority to obtain information on authorized frequencies and
RF power levels for wireless microphone products.
Furnished Accessories
P10R Antenna
UA700 470–542 MHz
UA710 540–626 MHz
UA720 596–692 MHz
UA730 692–830 MHz
UA740 830–952 MHz
P10T Antenna
UA820G10 470–542 MHz
UA820H8 518–582 MHz
UA820J8 554–626 MHz
UA820K1 596–668 MHz
UA820L8 626–698 MHz
UA820LCH 670–742 MHz
UA820P8 710-790 MHz
UA820Q2 750–822 MHz
UA820X 944–952 MHz
95A9023 Front Mount Antenna Cable
95A2313 Zipper Bag
53B8443 Link Bar
90AR8100 Hardware Kit (Rackmounting Screws)
90B8977 Bumper Kit
Antennas, Combiners and Accessories
PA821SWB 8-to-1 antenna combiner for better RF performance
PA421SWB 4-to-1 antenna combiner with power distribution
PA805SWB Passive Directional Antenna
PA301 Protective Cover for P9RA and P10R body pack
HA-8089 Helical Antenna (470-900 MHz)
HA-8241 Helical Antenna (944-952 MHz)
UA860SWB Passive Omnidirectional Antenna
UA802 Coaxial Cable, BNC-BNC, RG58C/U type,
UA806 Coaxial Cable, BNC-BNC, RG58C/U type,
UA825 Coaxial Cable, BNC-BNC, RG8X/U type,
UA850 Coaxial Cable, BNC-BNC, RG8X/U type,
UA8100 Coaxial Cable, BNC-BNC, RG8X/U type,
to 4 transmitters (better RF performance
and eliminates need for external
power supply)
receivers
50 Ohm, 2 ft length (0.6 m)
50 Ohm, 6 ft length (2 m)
50 Ohm, 25 ft length (7.5 m)
50 Ohm, 50 ft length (15 m)
50 Ohm, 100 ft length (30 m)
Rechargeable Power Management
SB900A Rechargeable Battery
The P10R bodypack is compatible with the SB900A lithium-
ion rechargeable battery, which provides extended usage time
of up to 10 hours and precise tracking of remaining life and
charge cycle details.
SBC800 Recharging Station
This compact and portable unit charges up to 8 SB900A
batteries to full capacity within 3 hours, with status LEDs to
indicate power levels. SB900A batteries fit securely in the
charger for easy, efficient storage and transport.
www.shure.com ©2016 Shure Incorporated

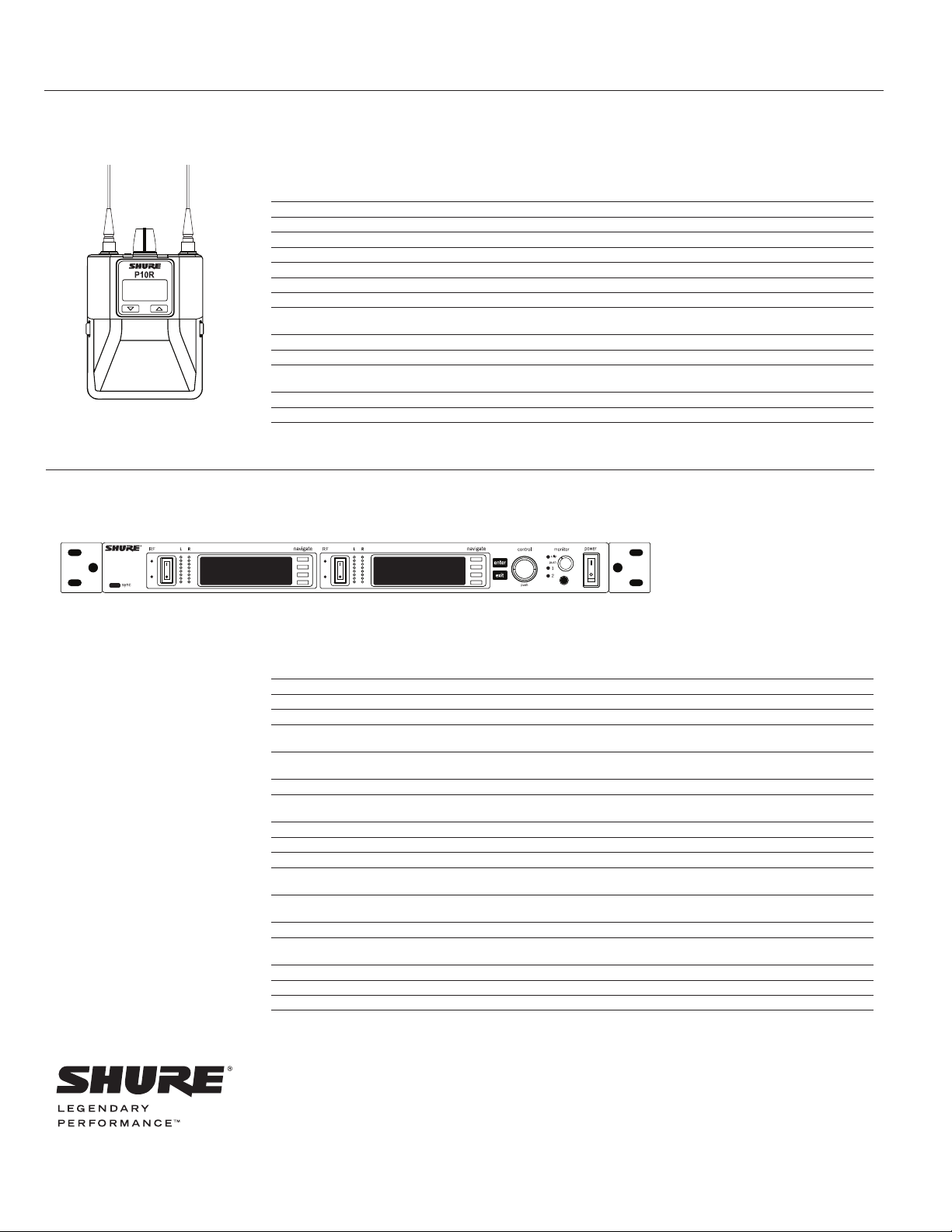

Component Specifications
P10R
Wireless Bodypack Receiver
P10T
Dual Wireless Transmitter
CLIP CLIP
The P10R is a low profile, diversity bodypack receiver for use with the PSM®1000 Wireless Personal Monitor System. It offers premium features like
full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor
available. Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick
and easy mix reference. Optional advanced rechargeability eliminates the need for disposable batteries and provides extended usage times with reliable
battery life, cycle count, and health metering.
Tri-band RF Filtering –3 dB point 30.5 MHz from the center frequency of each band
Active RF Gain Control 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
RF Sensitivity (20 dB SINAD) 2.2 μV
Squelch Threshold (±3 dB SINAD) 22 dB SINAD
Adjacent Channel Rejection >70 dB
Intermodulation Attenuation >70 dB
Blocking >80 dB
Image Rejection >90 dB
Audio Output Power
(1kHz @ <1% distortion, peak power, @32Ω)
Minimum Load Impedance 9.5 Ω
High Boost Selectable: +2 dB, +4 dB @ 10 kHz
Volume Limiter Selectable: 3-9
Battery Life 4–6 hours (continuous use)
Net Weight 186 g with batteries
Dimensions 99mm x 66mm x 23mm
100 mW per output
Limits volume adjustment knob. Selected value analogous to volume knob increment.
The P10T is a networkable, full-rack, dual channel wireless transmitter used in conjunction with the P10R Bodypack receiver as part of the PSM®1000
Wireless Personal Monitor System. It offers a 72 MHz wide tuning bandwidth, networked remote control via Wireless Workbench software, advanced
rechargeability options, and PSM 900 backwards compatibility. Connections include balanced ¼” and XLR, loop out, dual Ethernet ports, and
headphone monitor out. Comes with front or back mountable antennas, and power and Ethernet jumper cables.
RF Output Power selectable: 10, 50, 100 mW (regionally dependent)
RF Output Impedance 50 Ω (typical)
Net Weight 4.7 Kg (10.4 lb)
Dimensions 483 mm X 343 mm X 44 mm
Power Requirement
(RF on, 100 mW power mode, no audio)
Audio Input
Connector Type Combination XLR and 6.35 mm (1/4”) TRS
Polarity XLR: Non-inverting (pin 2 positive with respect to pin 3)
Configuration Electronically balanced
Impedance 70.2 kΩ (actual)
Nominal Input Level switchable: +4 dBu, –10 dBV
Maximum Input Level +4 dBu: +29.2 dBu
Pin Assignments XLR: 1=ground, 2=hot, 3=cold
Phantom Power Protection up to 60 V DC
Audio Output
Connector Type 6.35 mm (1/4”) TRS
Configuration Electronically balanced
Impedance Connected directly to inputs
Input: 100-240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
Output: 100-240V AC, 5A max, unswitched
6.35 mm (1/4”) TRS: Tip positive with respect to ring
–10 dBV: +12.2 dBu
6.35 mm (1/4”) TRS: Tip=hot, Ring=cold, Sleeve=ground
www.shure.com ©2016 Shure Incorporated
