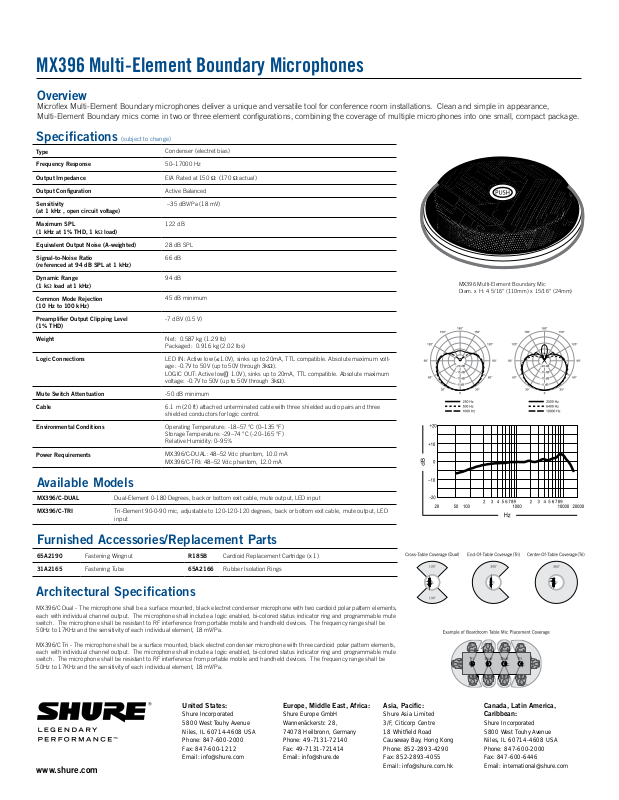

Shure MX396 Specification Sheet

MX396 Multi-Element Boundary Microphones

Overview

Microflex Multi-Element Boundary microphones deliver a unique and versatile tool for conference room installations. Clean and simple in appearance,
Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.

Specifications

Type

Frequency Response

Output Impedance

Output Configuration

Sensitivity
(at 1 kHz , open circuit voltage)

Maximum SPL
(1 kHz at 1% THD, 1 kΩ load)

Equivalent Output Noise (A-weighted)

Signal-to-Noise Ratio
(referenced at 94 dB SPL at 1 kHz)

Dynamic Range
(1 kΩ load at 1 kHz)

Common Mode Rejection
(10 Hz to 100 kHz)

Preamplifier Output Clipping Level
(1% THD)

Weight

Logic Connections

Mute Switch Attentuation

Cable

Environmental Conditions

Power Requirements

(subject to change)

Condenser (electret bias)

50–17000 Hz

EIA Rated at 150 Ω (170 Ω actual)

Active Balanced

–35 dBV/Pa (18 mV)

122 dB

28 dB SPL

66 dB

94 dB

45 dB minimum

-7 dBV (0.5 V)

Net: 0.587 kg (1.29 lb)
Packaged: 0.916 kg (2.02 lbs)

LED IN: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum volt­age: -0.7V to 50V (up to 50V through 3kΩ).
LOGIC OUT: Active low (I 1.0V), sinks up to 20mA, TTL compatible. Absolute maximum
voltage: -0.7V to 50V (up to 50V through 3kΩ).

-50 dB minimum

6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three
shielded conductors for logic control.

Operating Temperature: -18–57 °C (0–135 °F)
Storage Temperature: -29–74 °C (-20–165 °F)
Relative Humidity: 0–95%

MX396/C-DUAL: 48–52 Vdc phantom, 10.0 mA
MX396/C-TRI: 48–52 Vdc phantom, 12.0 mA

MX396 Multi-Element Boundary Mic
Diam. x H: 4 5/16“ (110mm) x 15/16“ (24mm)

Available Models

MX396/C-DUAL

MX396/C-TRI

Dual-Element 0-180 Degrees, back or bottom exit cable, mute output, LED input

Tri-Element 90-0-90 mic, adjustable to 120-120-120 degrees, back or bottom exit cable, mute output, LED
input

Furnished Accessories/Replacement Parts

65A2190

31A2165

Fastening Wingnut

Fastening Tube

R185B

65A2166

Cardioid Replacement Cartridge (x 1)

Rubber Isolation Rings

Architectural Specifications

MX396/C Dual - The microphone shall be a surface mounted, black electret condenser microphone with two cardioid polar pattern elements,
each with individual channel output. The microphone shall include a logic enabled, bi-colored status indicator ring and programmable mute
switch. The microphone shall be resistant to RF interference from portable mobile and handheld devices. The frequency range shall be
50Hz to 17KHz and the sensitivity of each individual element, 18 mV/Pa.

MX396/C Tri - The microphone shall be a surface mounted, black electret condenser microphone with three cardioid polar pattern elements,
each with individual channel output. The microphone shall include a logic enabled, bi-colored status indicator ring and programmable mute
switch. The microphone shall be resistant to RF interference from portable mobile and handheld devices. The frequency range shall be
50Hz to 17KHz and the sensitivity of each individual element, 18 mV/Pa.
