SHURE MX393/S MX39x_guide_en-US.pdf

MX392 MX393

Boundary Microphones

The Shure small, surface-mounted electret condenser microphone series, MX392-393, user guide.

Version: 4 (2019-J)

Table of Contents

MX392 MX393Boundary Microphones 3

General Description 3

Features 3

Model Variations 3

Interchangeable Cartridges 3

Permanent Installation 5

MX392 and MX393 5

Microphone Placement 6

MX392BE 6

Configuration 8

DIP Switches 8

Shure Incorporated

Wiring Diagram 8

Mute Button Configuration 9

Connecting to an Automatic Mixer 10

Logic Wiring 10

Changing SWITCH OUT to Always Momentary 11

Painting 11

Specifications 12

Furnished Accessories 15

Certifications 15

2/16

Shure Incorporated

MX392 MX393 Boundary Microphones

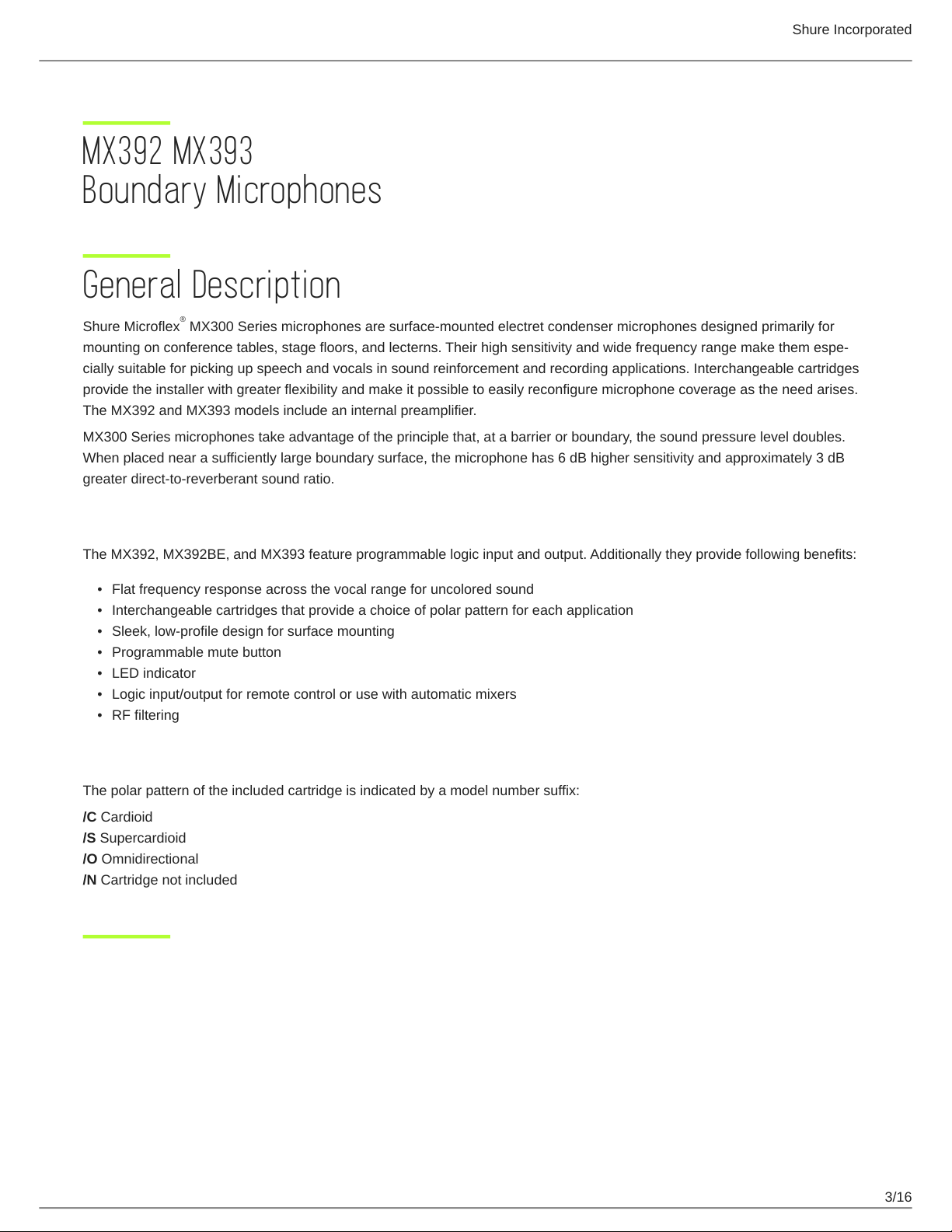

General Description

Shure Microflex MX300 Series microphones are surface-mounted electret condenser microphones designed primarily for

mounting on conference tables, stage floors, and lecterns. Their high sensitivity and wide frequency range make them espe

cially suitable for picking up speech and vocals in sound reinforcement and recording applications. Interchangeable cartridges

provide the installer with greater flexibility and make it possible to easily reconfigure microphone coverage as the need arises.

The MX392 and MX393 models include an internal preamplifier.

MX300 Series microphones take advantage of the principle that, at a barrier or boundary, the sound pressure level doubles.

When placed near a sufficiently large boundary surface, the microphone has 6 dB higher sensitivity and approximately 3 dB

greater direct-to-reverberant sound ratio.

®

Features

The MX392, MX392BE, and MX393 feature programmable logic input and output. Additionally they provide following benefits:

•

Flat frequency response across the vocal range for uncolored sound

•

Interchangeable cartridges that provide a choice of polar pattern for each application

•

Sleek, low-profile design for surface mounting

•

Programmable mute button

•

LED indicator

•

Logic input/output for remote control or use with automatic mixers

•

RF filtering

Model Variations

The polar pattern of the included cartridge is indicated by a model number suffix:

/C Cardioid

/S Supercardioid

/O Omnidirectional

/N Cartridge not included

3/16

Interchangeable Cartridges

Shure Incorporated

Microflex microphones use interchangeable cartridges that allow you to choose the polar pattern for different installations.

4/16

Shure Incorporated

Permanent Installation

MX392 and MX393

1.

Remove grille to access mounting key holes.

2.

Cut slots into pads.

3.

Slide microphone forward to engage screws in slots.

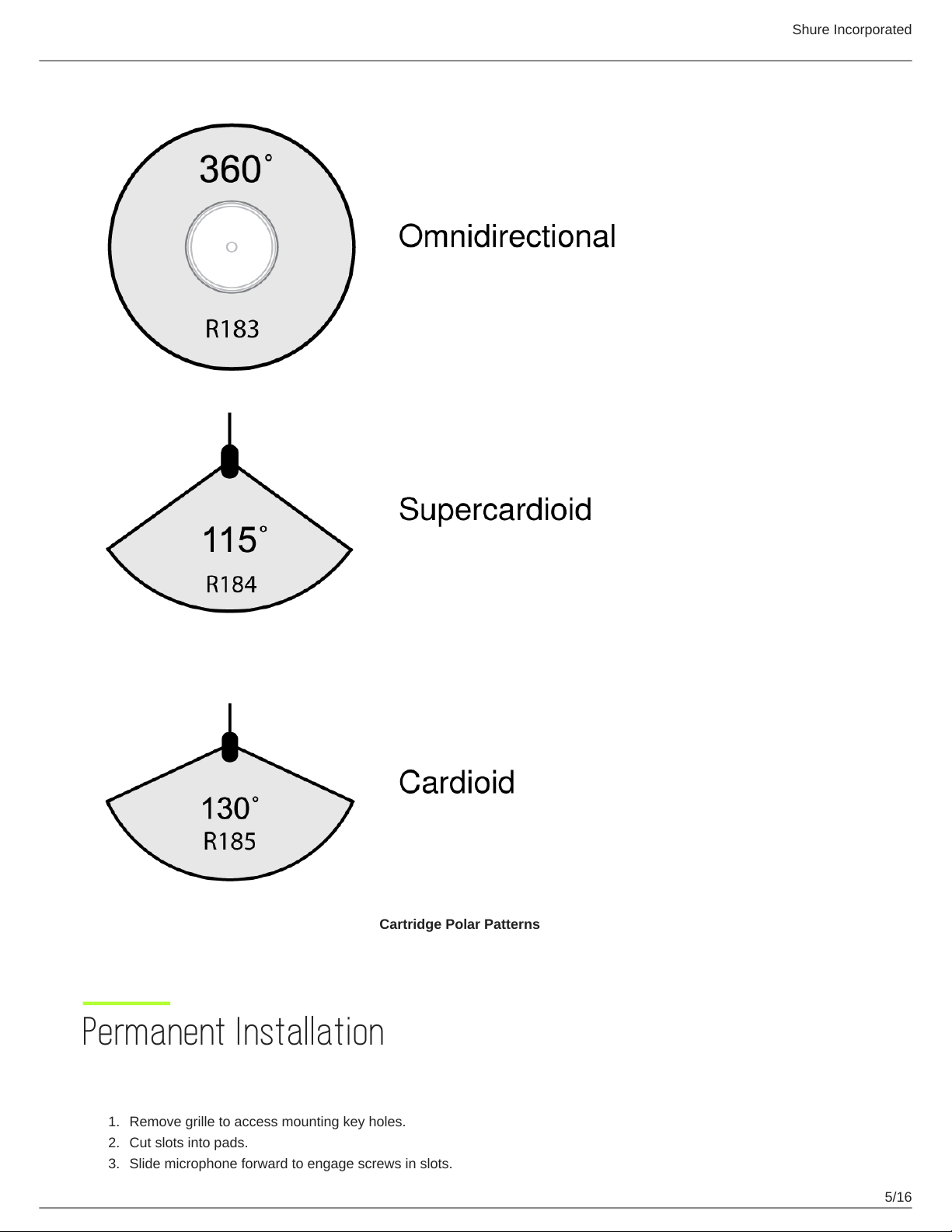

Cartridge Polar Patterns

5/16

Note: If using rear side-exit cable option, only drill two outer holes.

Shure Incorporated

Microphone Placement

For best low-frequency response and rejection of background noise, place the microphone on a large, flat surface, such as a

floor, table, or lectern.

To reduce reverberance, avoid reflective surfaces above or to the side of the microphone, such as beveled sides of pulpits or

overhanging shelves.

MX392BE

Once placement has been determined, the microphones can be permanently installed. First, drill the hole in the selected area

to allow the bottom entry cable to be conveniently routed out of sight. Then use the pressure sensitive adhesive to keep the mi

crophone firmly in place.

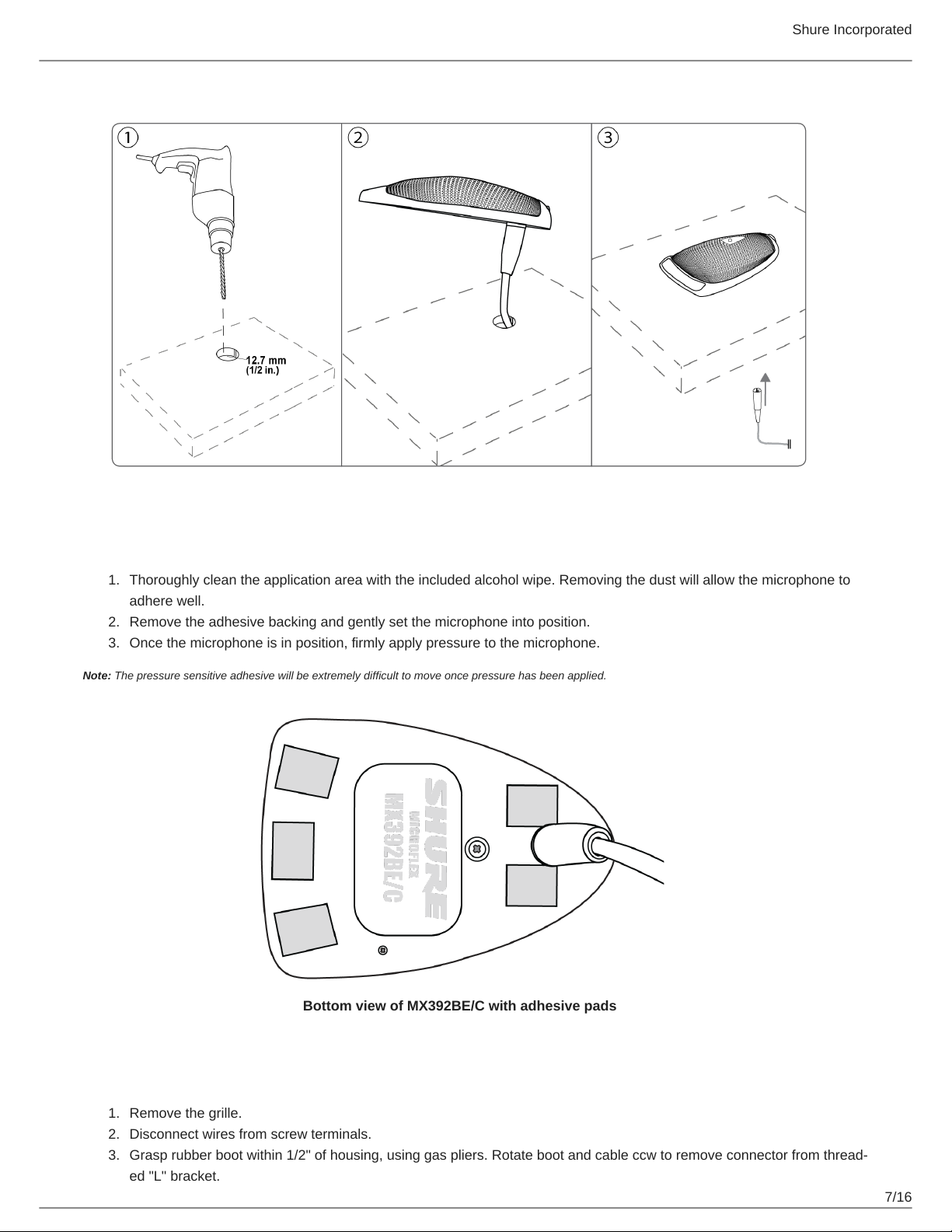

Drilling the hole:

1.

Determine the cutting area for the bottom exit cable and drill a 1/2" (12.7 mm) circular hole. Remove all debris from the

mounting surface.

2.

Route the cable through the drilled hole.

3.

Connect the cable to a mixer or P.A. system.

6/16

Shure Incorporated

Pressure Sensitive Adhesive

1.

Thoroughly clean the application area with the included alcohol wipe. Removing the dust will allow the microphone to

adhere well.

2.

Remove the adhesive backing and gently set the microphone into position.

3.

Once the microphone is in position, firmly apply pressure to the microphone.

Note: The pressure sensitive adhesive will be extremely difficult to move once pressure has been applied.

Bottom view of MX392BE/C with adhesive pads

Re-Routing Cable for Bottom Exit (If your MX392 is not BE configured)

1.

Remove the grille.

2.

Disconnect wires from screw terminals.

3.

Grasp rubber boot within 1/2" of housing, using gas pliers. Rotate boot and cable ccw to remove connector from thread

ed "L" bracket.

7/16

4.

Remove cable from microphone housing.

5.

Insert cable through access hole in microphone base.

6.

Insert cable connector through hole and thread it into "L" bracket.

7.

If desired, rubber strain relief can be reattached to cable end or removed from cable before fastening it to bracket.

8.

Re-connect wires to proper screw terminals on circuit board.

9.

Insert supplied round rubber plug into unused side cable exit.

10.

Reinstall grille and foam screen.

11.

Insert cable through hole in mounting surface. Secure microphone to mounting surface.

Configuration

DIP Switches

Use the DIP switches to configure logic settings and mute button behavior.

The DIP switches are covered with a piece of clear tape at the factory. Remove tape to modify the switch settings.

Shure Incorporated

OFF (factory default) ON

1 Momentary Toggle

2 Push-to-mute Push-to-talk

3 Mute button enabled, LED illuminates when mic is active

4 -- --

Disable mute button (microphone always on), logic controls

LED

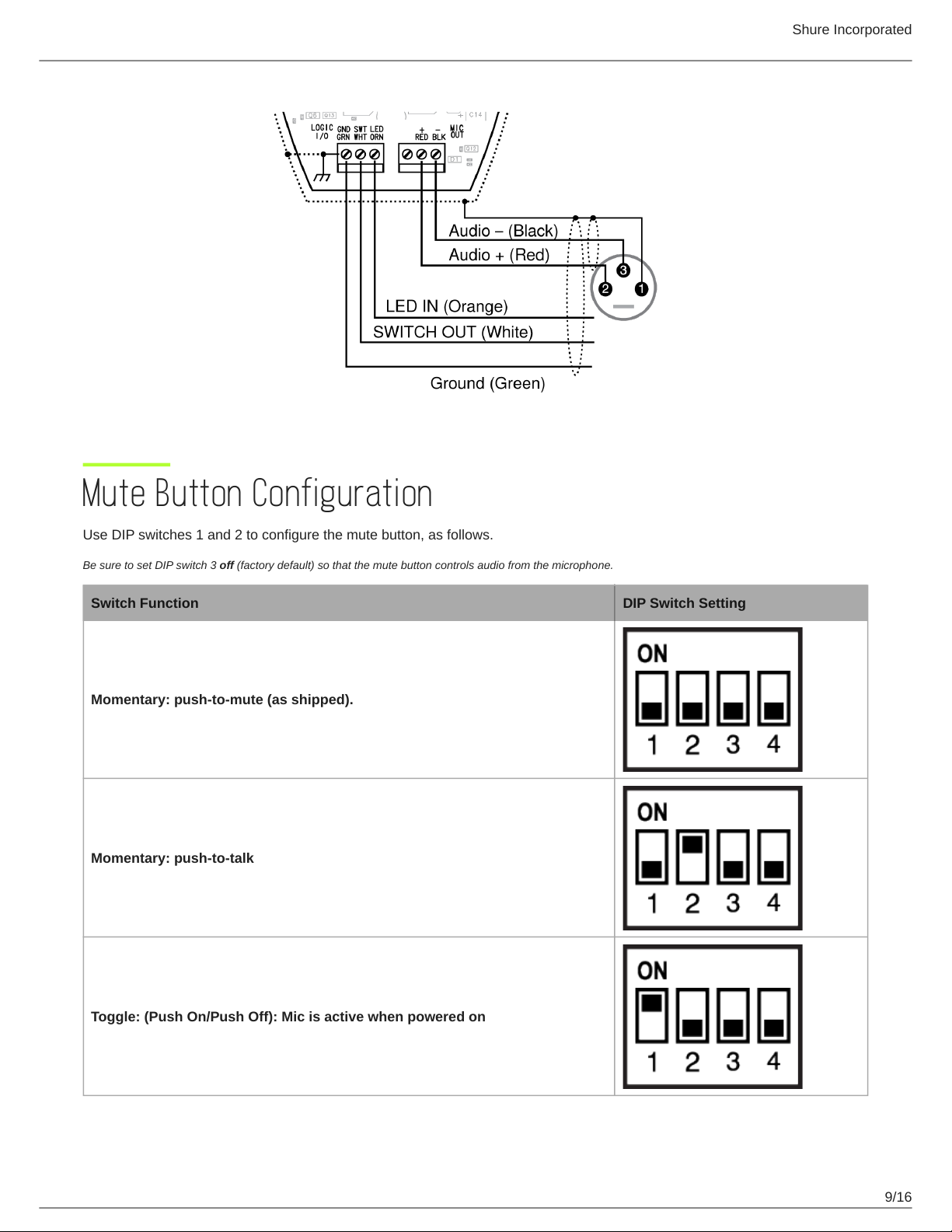

Wiring Diagram

NOTE: Audio and logic ground are connected at microphone base.

8/16

Shure Incorporated

Mute Button Configuration

Use DIP switches 1 and 2 to configure the mute button, as follows.

Be sure to set DIP switch 3 off (factory default) so that the mute button controls audio from the microphone.

Switch Function DIP Switch Setting

Momentary: push-to-mute (as shipped).

Momentary: push-to-talk

Toggle: (Push On/Push Off): Mic is active when powered on

9/16

Shure Incorporated

Switch Function DIP Switch Setting

Toggle: (Push On/Push Off): Mic is mute when powered on

Connecting to an Automatic Mixer

Use these settings if connecting the microphone to an automatic mixer or other device that mutes audio and controls the LED.

1.

Connect logic leads to the automatic mixer. Connect the LED IN to the gate output to illuminate the LED when that

channel is gated on.

2.

Set DIP switch 3 on. This disbles the mute button (the microphone passes audio regardless of whether the button is

pressed or not).

3.

Set DIP switch 1 to configure how the mute button sends SWITCH OUT logic:

Momentary: push = 0 Vdc, release = 5 Vdc

Toggle: initial = 5 Vdc, push = 0 Vdc

Logic Wiring

Green (LOGIC GROUND): Connects to the logic ground of an automatic mixer, switcher, or other equipment.

10/16

Shure Incorporated

Orange (LED IN): Set DIP switch 3 on to use LED IN. When shorted to LOGIC GROUND, the LED turns on.

White (SWITCH OUT): Provides TTL logic (0 Vdc or 5 Vdc) in response to the mute button. Set DIP switch 1 for momentary or

toggle. When phantom power is applied, logic initializes high (5 Vdc). DIP switch 2 has no effect on SWITCH OUT.

Changing SWITCH OUT to Always Momentary

Use the following modification in situations where your logic interface requires momentary closure of the SWITCH OUT, but

you want the mute button to toggle the microphone (DIP switch 1 ON, 3 OFF):

1.

Access the circuit board inside the microphone base.

2.

Remove the resistor at R45 and reinstall it at location R46.

Painting

A supplied plastic paint shield

B retainer

C grille

D foam screen

E supplied adhesive masking strip

F supplied rubber plug

11/16

Shure Incorporated

1.

Remove foam screen from grille before painting

2.

Clean surfaces to be painted with denatured alcohol or naphtha.

3.

To avoid filling grille holes, apply paint in thin layers.

4.

Important: Use fine sandpaper to remove paint from the bottom edges of the grille. This ensures electrical continuity

for proper shielding.

Specifications

All measurements taken with microphone mounted on a wooden surface (76 x 76 cm)

Type

Electret Condenser

Frequency Response

50–17000 Hz

Polar Pattern

MX392/C, MX392BE/C, MX393/C Cardioid

MX392/S, MX392BE/S, MX393/S Supercardioid

MX392/O, MX392BE/O, MX393/O Omnidirectional

12/16

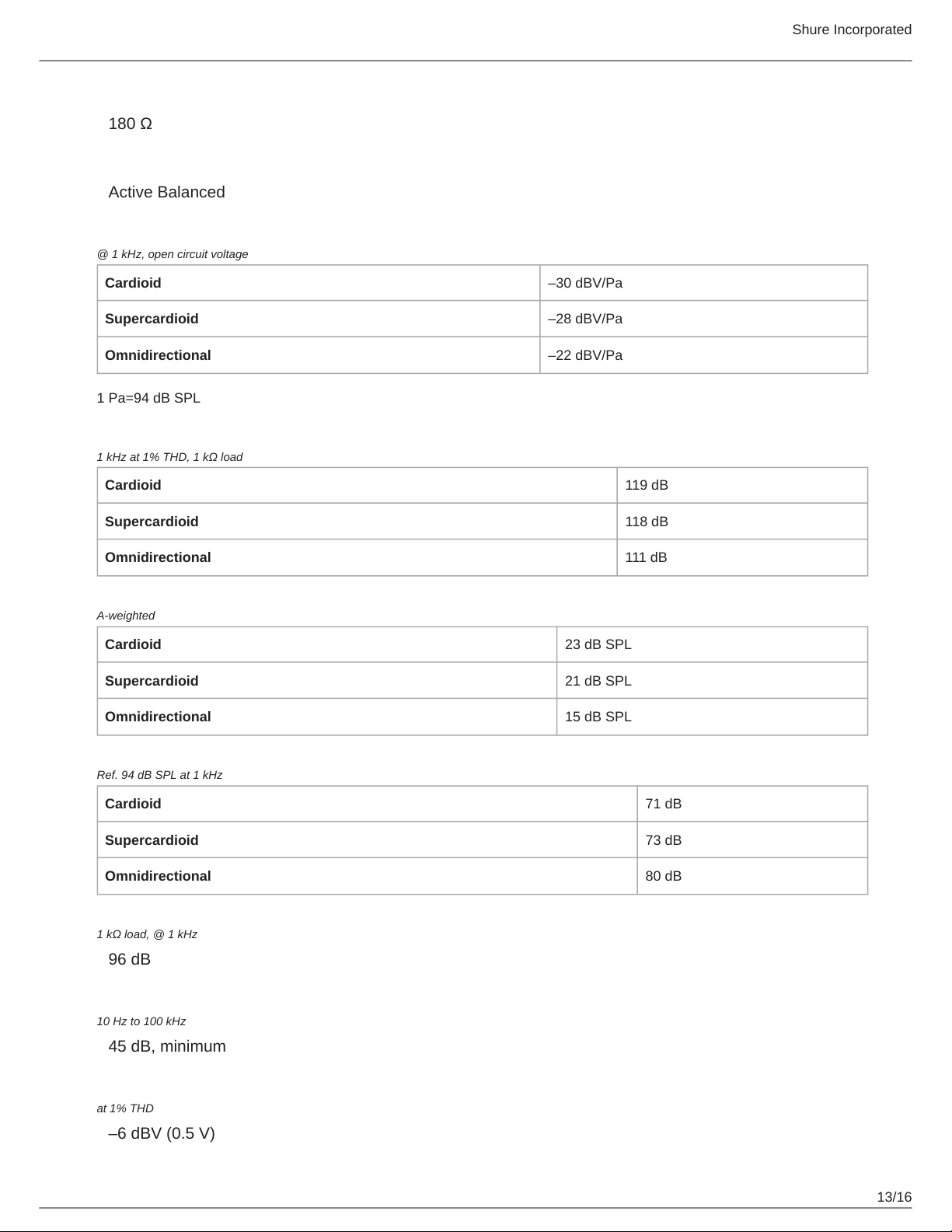

Output Impedance

180 Ω

Output Configuration

Active Balanced

Sensitivity

@ 1 kHz, open circuit voltage

Cardioid –30 dBV/Pa

Supercardioid –28 dBV/Pa

Omnidirectional –22 dBV/Pa

1 Pa=94 dB SPL

Maximum SPL

1 kHz at 1% THD, 1 kΩ load

Shure Incorporated

Cardioid 119 dB

Supercardioid 118 dB

Omnidirectional 111 dB

Self Noise

A-weighted

Cardioid 23 dB SPL

Supercardioid 21 dB SPL

Omnidirectional 15 dB SPL

Signal-to-Noise Ratio

Ref. 94 dB SPL at 1 kHz

Cardioid 71 dB

Supercardioid 73 dB

Omnidirectional 80 dB

Dynamic Range

1 kΩ load, @ 1 kHz

96 dB

Common Mode Rejection

10 Hz to 100 kHz

45 dB, minimum

Clipping Level

at 1% THD

–6 dBV (0.5 V)

13/16

Shure Incorporated

Polarity

Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR

connector

Mute Switch

50–20000 Hz

–50 dB minimum

Logic Connections

LED IN Active low (≤1.0V), TTL compatible. Absolute maximum voltage: 0.7V to 50V.

LOGIC-

OUT

Active low (≤0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: 0.7V to 24V (up to 50V

through 3kΩ).

Cable

MX392 3½ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated

MX392BE

MX393 3½ m (12 ft) detachable cable with 3-pin audio connector

3½ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated, bot

tom exit

Weight

172 g (0.38 lbs)

Environmental Conditions

Operating Temperature -18-57 °C(0-135 °F)

Storage Temperature -29-74 °C(-20-165 °F)

Relative Humidity 0-95%

Power Requirements

11-52V DC , 2.0 mA

14/16

Shure Incorporated

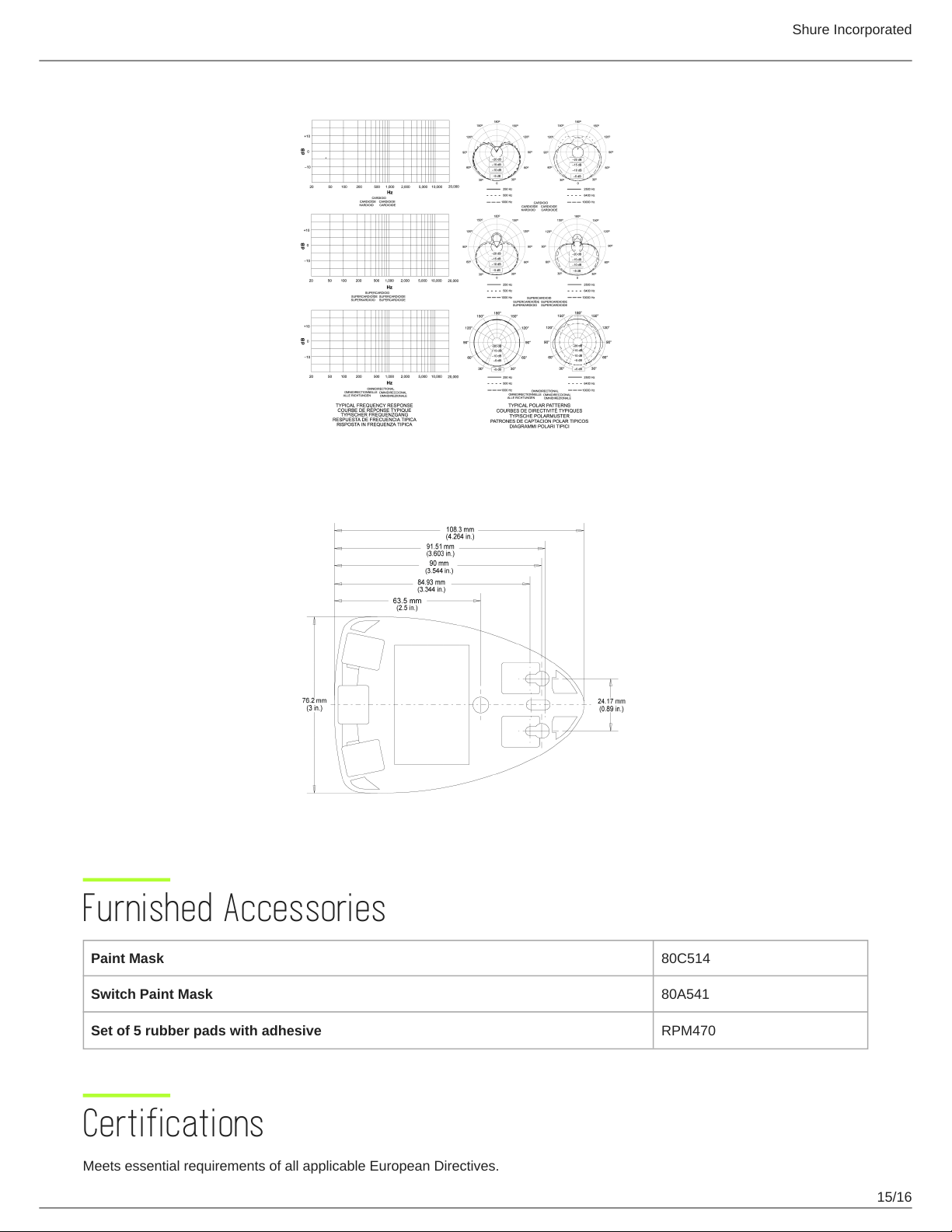

Furnished Accessories

Paint Mask 80C514

Switch Paint Mask 80A541

Set of 5 rubber pads with adhesive RPM470

Certifications

Meets essential requirements of all applicable European Directives.

15/16

Shure Incorporated

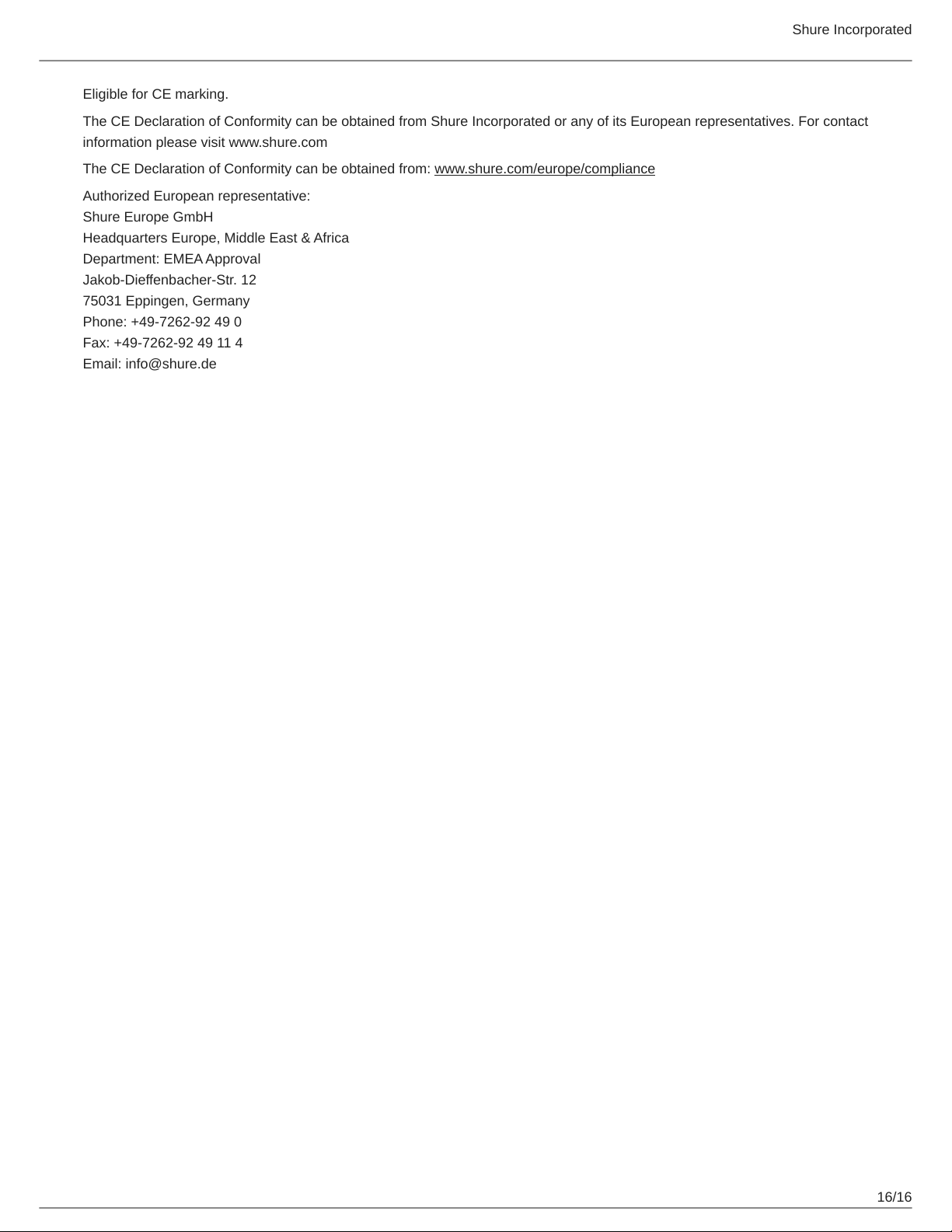

Eligible for CE marking.

The CE Declaration of Conformity can be obtained from Shure Incorporated or any of its European representatives. For contact

information please visit www.shure.com

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance
