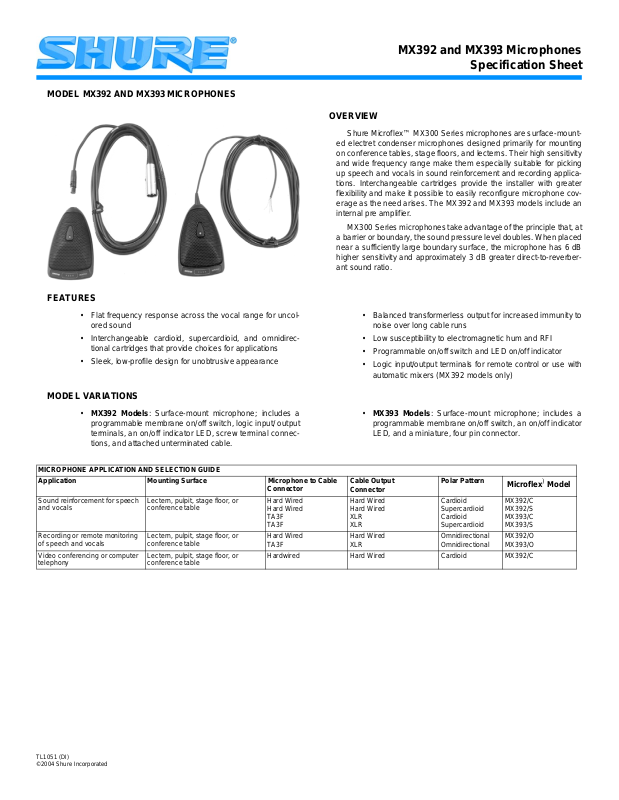

MX392 and MX393 Microphones
Specification Sheet
MODEL MX392 AND MX393 MICROPHONES
FEATURES
•Flat frequency response across the vocal range for uncolored sound
•Interchangeable cardioid, supercardioid, and omnidirectional cartridges that provide choices for applications
•Sleek, low-profile design for unobtrusive appearance
OVERVIEW
Shure Microflex™ MX300 Series microphones are surface-mount- ed electret condenser microphones designed primarily for mounting on conference tables, stage floors, and lecterns. Their high sensitivity and wide frequency range make them especially suitable for picking up speech and vocals in sound reinforcement and recording applications. Interchangeable cartridges provide the installer with greater flexibility and make it possible to easily reconfigure microphone coverage as the need arises. The MX392 and MX393 models include an internal pre amplifier.
MX300 Series microphones take advantage of the principle that, at a barrier or boundary, the sound pressure level doubles. When placed near a sufficiently large boundary surface, the microphone has 6 dB higher sensitivity and approximately 3 dB greater direct-to-reverber- ant sound ratio.
•Balanced transformerless output for increased immunity to noise over long cable runs
•Low susceptibility to electromagnetic hum and RFI
•Programmable on/off switch and LED on/off indicator
•Logic input/output terminals for remote control or use with automatic mixers (MX392 models only)
MODEL VARIATIONS
•MX392 Models: Surface-mount microphone; includes a programmable membrane on/off switch, logic input/ output terminals, an on/off indicator LED, screw terminal connections, and attached unterminated cable.
•MX393 Models: Surface-mount microphone; includes a programmable membrane on/off switch, an on/off indicator LED, and a miniature, four pin connector.
MICROPHONE APPLICATION AND SELECTION GUIDE |
|
|
|
|
|
Application |
Mounting Surface |
Microphone to Cable |
Cable Output |
Polar Pattern |
Microflex) Model |
|
|
Connector |
Connector |
|
|
Sound reinforcement for speech |
Lectern, pulpit, stage floor, or |
Hard Wired |
Hard Wired |
Cardioid |
MX392/C |
and vocals |
conference table |
Hard Wired |
Hard Wired |
Supercardioid |
MX392/S |
|
|
TA3F |
XLR |
Cardioid |
MX393/C |
|
|
TA3F |
XLR |
Supercardioid |
MX393/S |
|
|
|
|
|
|
Recording or remote monitoring |
Lectern, pulpit, stage floor, or |
Hard Wired |
Hard Wired |
Omnidirectional |
MX392/O |
of speech and vocals |
conference table |
TA3F |
XLR |
Omnidirectional |
MX393/O |
|
|
|
|
|
|
Video conferencing or computer |
Lectern, pulpit, stage floor, or |
Hardwired |
Hard Wired |
Cardioid |
MX392/C |
telephony |
conference table |
|
|
|
|
TL1051 (DI)
©2004 Shure Incorporated
MX392 AND MX393 MICROPHONES SPECIFICATION SHEET
SPECIFICATIONS
All measurements taken with microphone mounted on a wooden surface 76.2 cm x 76.2 cm (30 in. x 30 in.).
Frequency Response (Figure 1) 50 to 17,000 Hz
Polar Pattern (Figure 2)
Cardioid (MX392/C, MX393/C) Supercardioid (MX392/S, MX393/S) Omnidirectional (MX392/O, MX393/O)
Output Impedance
EIA Rated at 150 Ω (180 Ω actual)
Sensitivity (at 1 kHz, open circuit voltage)
Cardioid Cartridge: –27.5 dBV/Pa (42.2 mV) Supercardioid Cartridge: –26.5 dBV/Pa (47.3 mV) Omnidirectional: –22.0 dBV/Pa (79.4 mV)
1 Pascal=94 dB SPL
Maximum Sound Pressure Level (1 kHz at 1% Total Harmonic Distortion, 1 kΩ load)
Cardioid: 117.0 dB Supercardioid: 116.0 dB Omnidirectional: 111.5 dB
Signal to Noise Ratio (referenced at 94 dB SPL)
Cardioid: 71.0 dB Supercardioid: 72.0 dB Omnidirectional: 76.5 dB
Equivalent Output Noise (A-weighted)
Cardioid: 23.0 dB Supercardioid: 22.0 dB Omnidirectional: 17.5 dB
Dynamic Range
94.0 dB
Common Mode Rejection
45 dB minimum, 10 Hz to 100 kHz
Switch Attenuation
50 dB minimum
Preamplifier Output Clipping Level
–6 dBV (0.5 V)
Polarity
Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
Logic Connections (MX392 Only)
LED IN: Active low (v1.0v), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
SWITCH OUT: Active low (v0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3kΩ).
Power Requirements
11 to 52 Vdc phantom
2.0 mA current consumption
Environmental Requirements
Operating Temperature Range: –18° C to 57° C (0° F to 135° F) Relative Humidity: 0 to 95%
Dimensions (Figure 3)
Certification
Eligible to bear CE Marking. Conforms to European EMC Directive 89/336/EEC. Meets applicable tests and performance criteria in European Standard EN55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.
REPLACEMENT PARTS
Omnidirectional Cartridge .................................................. |
R183 |
Supercardioid Cartridge..................................................... |
R184 |
Cardioid Cartridge.............................................................. |
R185 |
12' (3.7m) Cable 3-Pin Miniature Connector (TA3F) |
|
to male XLR ....................................................................... |
C119 |
