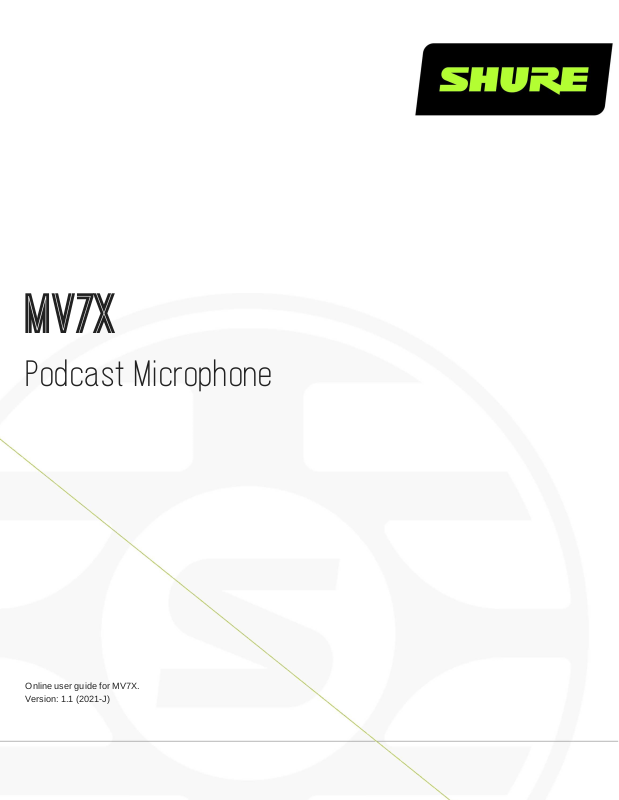

Shure MV7X USER GUIDE

MV7X

Podcast Microphone

Online user guide for MV7X.

Version: 1.1 (2021-J)

Shure Incorporated

Table of Contents

		Windscreen	4
MV7X Podcast Microphone	3
		Specifications	4

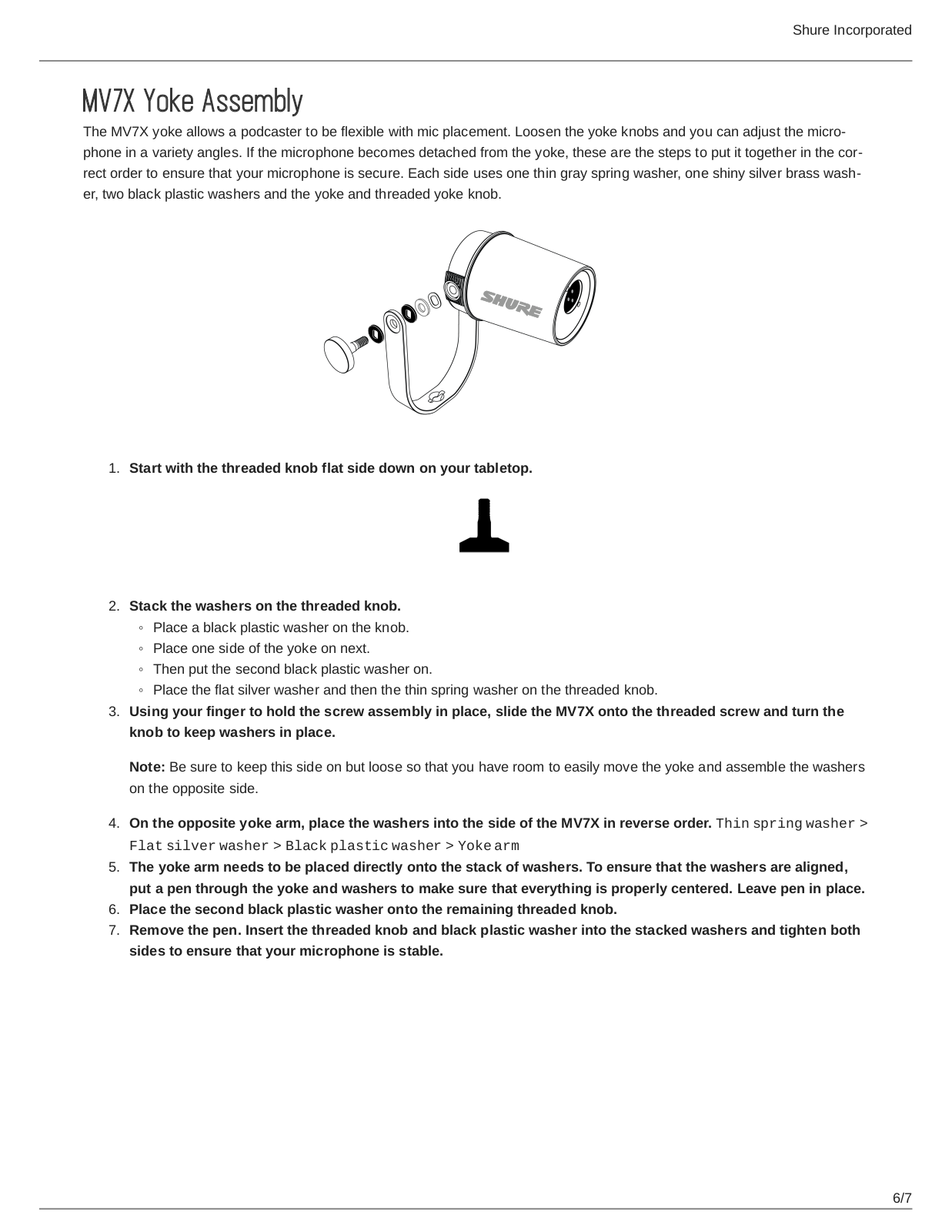

General Description	3	MV7X Yoke Assembly	6
Features	3

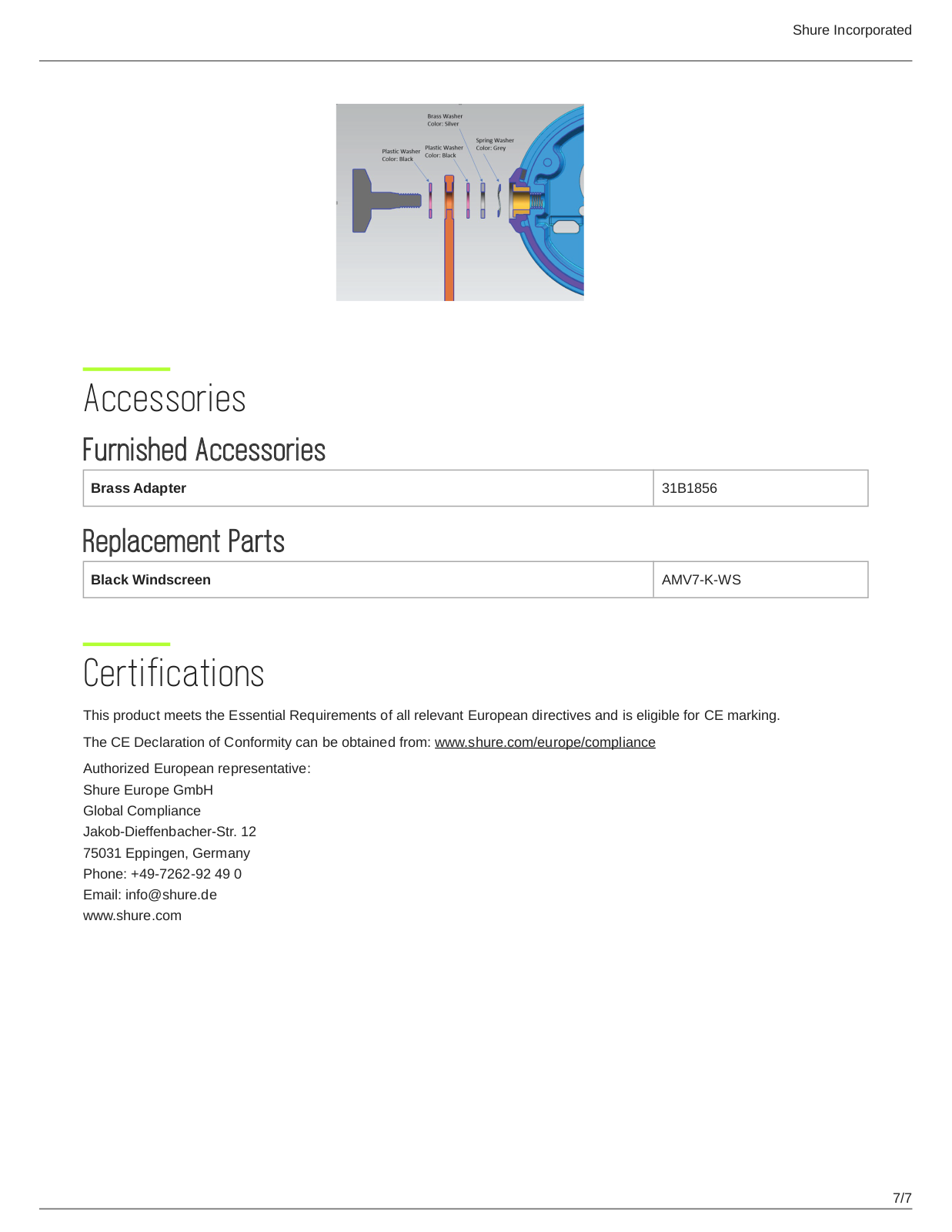

		Accessories	7
The MV7X Microphone	3	Furnished Accessories	7
MV7X Output	3	Replacement Parts	7
Mounting Instructions	3	Certifications	7

2/7

Shure Incorporated

MV7X

Podcast Microphone

General Description

The Shure MV7X is a professional-quality dynamic microphone, ideal for close mic applications that require vocal intelligibility with a balanced tone. The attractive and durable all-metal design features an adjustable yoke that can be mounted onto a variety of microphone stands for flexible placement options.

Features

Voice Isolation Technology

Highly directional cardioid pattern isolates your voice and removes unwanted background noise

Durable, Versatile Design

Rugged, all-metal construction and excellent cartridge protection for outstanding reliability

The MV7X Microphone

The MV7X features a dynamic capsule with a cardioid pattern, which uses Voice Isolation Technology to pick up sound directly in front of the microphone.

MV7X Output

• Passive XLR output: Connect to XLR mixers and interfaces.

3/7
