Shure DH5 User Manual

DH5

™

DuraPlex Omnidirectional Headset

The Shure Omnidirectional DuraPlex Headset user guide.

Version: 1.0 (2020-J)

General Description

Shure Incorporated

The DuraPlex DH5 omnidirectional headset microphone is ideal for both speech and performance applications that require

durability and minimal visibility. The bendable lightweight headset features switchable boom mounting placement and a neutral

cleardesigntobeusedwithanyDH5colorvariant.ThecertifiedIP57ratedheadsetcanwithstandchallengingconditionsin

volving sweat and dust for use in theater, corporate events, and TV broadcast applications. Each microphone is supplied with a

storage pouch, single tie clip, vocal presence frequency response cap, snap fit windscreen, foam windscreen, and TA4F

threaded adapter.

Features

•

IP57 Certified dust resistant and waterproof/sweatproof headset

•

5mm omnidirectional subminiature design for discrete placement and improved gain before feedback

•

1.6mm PLEX Cable technology, paintable cable, and no memory effect

•

Professional sound quality for speech and performance applications

•

High RF immunity, compatible with digital wireless systems without RF interference

•

Attachable Presence Cap included for tailored frequency response in speech applications

•

Included furnished accessories for storage, mounting options, and wind protection

•

TA4F and LEMO terminations for variable wireless system connectivity

•

Universal clear headset frame with switchable boom mount placement

•

Available in Black, Tan, Cocoa finishes

3/14

Shure Incorporated

Care and Maintenance

The DuraPlex omnidirectional microphone has been IP57 dust-protected, waterproof rated by extensive internal tests, so you

can clean it using distilled water and a mild detergent when necessary.

Adjusting the Headband and Microphone

➀ Adjust headband width.

➁ Adjust the earhooks,

slide the boom arm in the

boom pivot, and twist the

pivot to adjust height and

length.

4/14

➂ Bend boom arm into

place. Adjust position.

Shure Incorporated

➃ Use presence cap or

leave off.

Important:

Use slide-fit windscreen

with the presence cap

Use snap-fit windscreen

without the presence cap

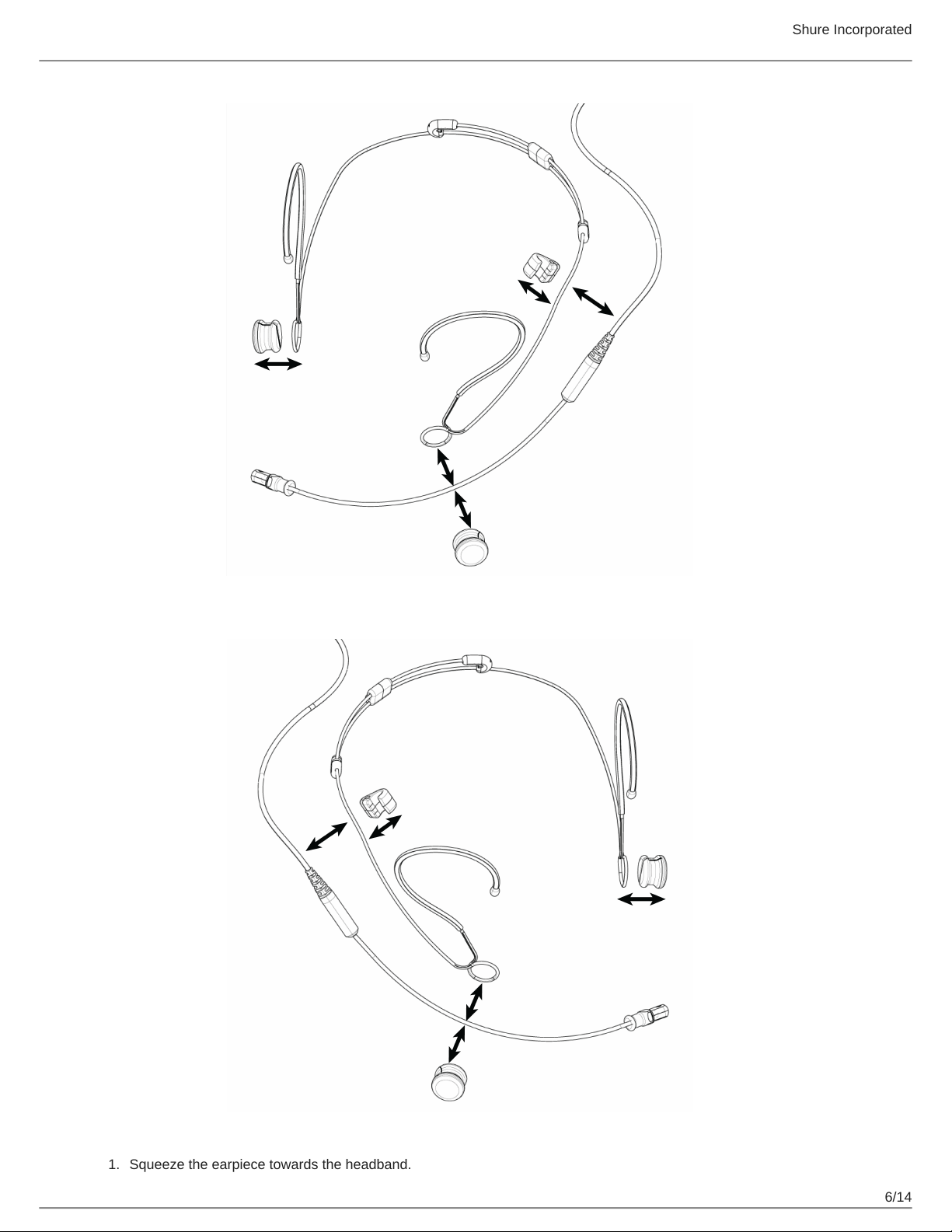

Reversing the Boom

The microphone boom can be positioned on the left or right side of the head.

5/14

Shure Incorporated

1. Squeeze the earpiece towards the headband.

6/14

2.

Push out the boom arm and boom pivot.

3.

On the other side, repeat the steps to remove the boom pivot.

4.

Move the boom arm to the preferred side, ensuring that the boom arm is placed in the slot in the boom pivot.

5.

Squeeze each earpiece towards the headband to push boom pivots back into place.

Presence Cap

Shure Incorporated

Frequency Response

Attaching the Windscreen

There are two windscreens for use with the DuraPlex microphone:

1.

A slide-fit windscreen for use with the presence cap

7/14

2. A snap-fit windscreen for use without the presence cap

Note: Do not use the snap-fit windscreen with the presence cap--the presence cap can become caught inside the snap-fit windscreen.

Shure Incorporated

Using the Collar Clip

8/14

Accessories

Furnished Accessories

Furnished Accessories DH5 Black DH5 Tan DH5 Cocoa

Single Tie Clip 95A43715 95A43715 95A43715

Presence Cap 65A44182 65B44182 65C44182

Snap-Fit Windscreen 95A16167 95B16167 95C16167

Foam Windscreen 95A43438 95B43438 95C43438

Sticky Mount 66A44183 66A44183 66A44183

Case 95A44075 95A44075 95A44075

Threaded TA4F Adapter 95A29490 95A29490 95A29490

Shure Incorporated

Accessories are available in Black (/B), Tan (/T), AND Cocoa (/C) color varieties. Please consult your Shure representative for

available options.

Optional Accessories

TA4F/TQG XLR Preamplifier RPM400TQG

Lemo XLR Preamplifier RPM400LEMO

Replacement Parts

Description Black Tan Cocoa

1 Presence Cap, qty. 5 RPMDL4FC/B RPMDL4FC/T RPMDL4FC/C

2 Foam Windscreen, qty. 3 RPMDL4WS/B RPMDL4WS/T RPMDL4WS/C

3 Snap-fit Windscreen, qty. 3 RPMDL4SFWS/B RPMDL4SFWS/T RPMDL4SFWS/C

9/14

Description Black Tan Cocoa

Shure Incorporated

Microphone Boom Arm and Cable Assembly, Lemo Con

4

nector

Microphone Boom Arm and Cable Assembly, MTQG Con

nector

5 Boom Pivot, qty. 4 RPMDH5PIVOT RPMDH5PIVOT RPMDH5PIVOT

6 Boom Mount, qty. 4 RPMDH5BM RPMDH5BM RPMDH5BM

7 Headset Frame, qty. 1 RPMDHSF RPMDHSF RPMDHSF

Single Tie Clip, qty. 3 RPMDL4STC/B RPMDL4STC/T RPMDL4STC/C

Dual Tie Clip, qty. 3 RPMDL4DTC/B RPMDL4DTC/T RPMDL4DTC/C

DL4 Sticky Mount, qty. 3 RPMDL4SM RPMDL4SM RPMDL4SM

DH5 Case, Headsset RPMDH5CASE RPMDH5CASE RPMDH5CASE

TA4F XLR Preamp RPM400TQG RPM400TQG RPM400TQG

LEMO XLR Preamp RPM400LEMO RPM400LEMO RPM400LEMO

RPMDH5B/O-

LM3

RPMDH5B/O-

MTQG

RPMDH5T/O-

LM3

RPMDH5T/O-

MTQG

RPMDH5C/O-

LM3

RPMDH5C/O-

MTQG

Threaded Mount Instructions

10/14

Wiring and Termination

Typical Wiring Table

Shure Incorporated

Series

DL4-

LEMO

DL4-

MTQG

Cable

Con

struc

tion

1.6mm

cable

with

single

con

ductor

and

shield

1.6mm

cable

with 2

con

duc

tors, 2

shield

wires

and

shield

Elec

trical

De

sign

3 wire

with

addi

tional

bias

on pin

3

3-Wire

Polari

ty

Posi

tive

with

re

spect

to

ground

Posi

tive

with

re

spect

to

ground

Re

place

ment

Con

nector

WA416

WA430

For Use

With

Shure Lemo

Bodypacks

(AD1/ADX1-

Lemo, Shure

UR1M-

Lemo,

ULXD1-

Lemo)

All Shure

TA4FBody

packs

Wiring Line Art (From Solder Side)

Red wire: Audio/

Bias(2)

Blue wire: Audio(3

Shield: Ground(1)

Red wire: Bias(2)

Blue wire: Audio(3)

Shield wire: Ground(1)

Shield: Ground (Shell)

Note: The conductors have a black, protective coating that you must remove with isopropyl alcohol to see their actual color.

MTQG Connector Assembly

Exploded View

11/14

Note: Make sure to solder the shield to ground collar.

Assembled View

Specifications

Note:

•

All specification values are based on using a typical bodypack with 5 V bias input or the RPM400MTQG preamplifier.

When using the RPM400LEMO amplifier, refer to the RPM400LEMO specifications.

•

All specifications measured with a 48 Vdc phantom power supply. The microphone operates at lower voltages, but with

slightly decreased headroom and sensitivity.

Shure Incorporated

Microphone Capsule

MEMS

Polar Pattern

Omnidirectional

Frequency Response

20 Hz to 20 kHz

Sensitivity

-42.5dBV at 1 kHz

[1]

Self-Noise, A-Weighted, Equivalent Acoustical

31dBSPLA

Signal-To-Noise Ratio

63.0dB

Maximum SPL

132.0dBSPL,1 kHz at 1% THD, typical

[3]

[2]

Dynamic Range

101.0dB typical

Microphone Current Draw

220µA,maximum

12/14

Bias Voltage

Recommended Operating Voltage

5VDC, 2.6VDC minimum

Housing

Molded ABS

Polarity

Shure Incorporated

MTQG

LEMO

Positive pressure on diaphragm produces positive voltage

on pin 3 with respect to pin 1

Positive pressure on diaphragm produces positive voltage

on pin 3 with respect to pin 1

Cable Diameter

1.6mm

Cable Length

66 in. (1.67m)

Net Weight

DL4 15.0g(0.53 oz.)

DH5 20.0g(0.7 oz.)

[1] [2]

1 Pa=94 dB SPL

S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted

[3]

THD of microphone preamplifier when applied input signal level is equivalent to cartridge output at specified SPL

Dimensions

13/14

Shure Incorporated

Cable Length Cable Diameter Microphone Length Microphone Diameter Boom Length

DH5-MTQG, DH5-

LEMO

66 in. (1.67M) 1.6MM 14.5MM 5.2MM 13.6CM

Certifications

This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: +49-7262-92 49 0

Fax: +49-7262-92 49 11 4

Email: info@shure.de

14/14
