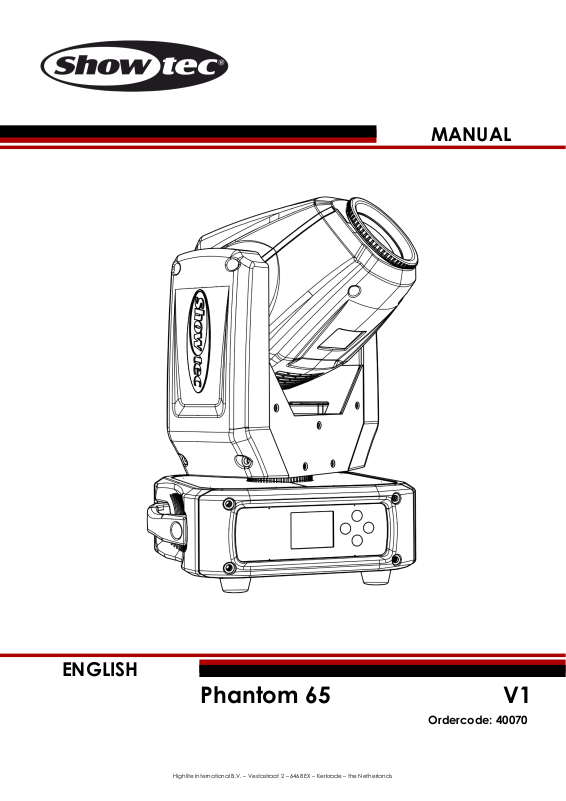

Phantom 65 V1
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 40070
MANUAL
ENGLISH
1
Ordercode: 40070
Phantom 65
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 5
Claims .............................................................................................................................................................................. 5
Description of the device ................................................................................................................................................. 6
Features .......................................................................................................................................................................... 6
Frontside.......................................................................................................................................................................... 6
Backside ......................................................................................................................................................................... 7
Installation ........................................................................................................................................................................... 7
Set Up and Operation ....................................................................................................................................................... 7
Control Modes ............................................................................................................................................................... 8
One Phantom (Auto, Manual) ................................................................................................................................ 8
One Phantom (Sound-controlled) ......................................................................................................................... 8
Multiple Phantoms (Master/Slave control) ........................................................................................................... 8
Multiple Phantoms (DMX Control) .......................................................................................................................... 9
Fixture Linking ...............................................................................................................................................................10
Data Cabling ...............................................................................................................................................................10
Control Panel ...............................................................................................................................................................11
Control Mode ..............................................................................................................................................................11
DMX Addressing ..........................................................................................................................................................11
Menu Overview ...........................................................................................................................................................12
Main Menu Options ....................................................................................................................................................13
DMX Addressing ..........................................................................................................................................................13
Built-in Programs Mode ..............................................................................................................................................14
1. DMX Mode ............................................................................................................................................................14
2. Slave Mode ...........................................................................................................................................................14
3. Auto Mode ............................................................................................................................................................14
4. Sound-controlled Mode .....................................................................................................................................14
5. Manual Mode ......................................................................................................................................................15
Advanced Settings .....................................................................................................................................................16
System Information .....................................................................................................................................................16
DMX Channels .............................................................................................................................................................17
8 Channels ................................................................................................................................................................17
13 Channels ..............................................................................................................................................................19
Maintenance ....................................................................................................................................................................21
Replacing the Fuse .....................................................................................................................................................21
Replacing a Gobo From the Rotating Gobo Wheel ...........................................................................................22
Glass Gobo Orientation .............................................................................................................................................23
Rotating Gobo Wheel + Color Wheel .....................................................................................................................23
Troubleshooting ...............................................................................................................................................................24
No Light .........................................................................................................................................................................24
No Response to DMX..................................................................................................................................................24
Product Specifications ....................................................................................................................................................26
Dimensions ........................................................................................................................................................................27
Notes ..................................................................................................................................................................................28
2
Ordercode: 40070
Phantom 65
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
Your shipment includes:
Showtec Phantom 65
Pro power cable (1,5 m)
1 x quick lock bracket
User manual
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
be qualified
follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
3
Ordercode: 40070
Phantom 65
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Never loosen the screws of the rotating gobo otherwise you risk opening of the ball bearing.
• Do not insert objects into air vents.
• Do not connect this device to a dimmer pack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only use the device indoors, avoid contact with water or other liquids.
• Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always keep the case closed while operating.
• Always allow a free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the lens is obviously damaged, it has to be replaced, so that its functions are not impaired due to
cracks or deep scratches.
• If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. Moving head must be installed beyond the reach of children. Never leave the unit
running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• The user is responsible for correct positioning and operating of the Phantom. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
4
Ordercode: 40070
Phantom 65
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
• The maximum ambient temperature t
a
= 40°C must never be exceeded.
• The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
• If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
• If the Phantom is lowered from the ceiling or high joists, professional trussing systems have to be used.
• Use a clamp to mount the Phantom, with the mounting bracket, to the trussing system.
• The Phantom must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
• When rigging, derigging or servicing the projector, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.
The Phantom can be placed on a flat stage floor or mounted to any kind of truss with quick locks and a
clamp.
Improper installation can cause serious injuries and/or damage of property!
5
Ordercode: 40070
Phantom 65
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.
6
Ordercode: 40070
Phantom 65
Description of the device
Features
The Phantom 65 is a moving head with high output and great effects.
• Input voltage: 100-240V AC, 50/60Hz
• Power consumption: 125W
• Light source: 1 x 65W White LED
• Light output: 1870 Lux @ 5 m
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Beam angle: 16°
• Focus: Manual focus
• DMX control: via standard DMX controller
• DMX channels: 8, 13 channels
• Built-in automatic programs + built-in sound-activated programs
• Reverse Pan / Tilt movement
• Special: Pan / Tilt movement blackout
• Pan 0º -- 540º, Tilt 0º -- 270º
• Pan/Tilt resolution: 16 bit
• Control: Stand alone, Manual, Sound-controlled, Master/Slave, DMX-512
• Color wheel: 8 dichroic colors + white
• Rotating gobo wheel: 6 metal gobos + 1 glass gobo
Gobo size:
Glass gobo: 23,75 mm (gobo size); 21 mm (image diameter); 1,31 mm (gobo thickness)
Metal gobo: 24 mm (gobo size); 20 mm (image diameter); 0,29 mm (gobo thickness)
• Color functions: Split colors, Rainbow-flow effect
• Gobo functions: Gobo-flow effect, Gobo shake
• Rotation: Bi-directional
• Prism: 3-facet prism
• Housing: Metal & flame-retardant plastic
• Connection: 3-pin XLR IN/OUT, Pro power connector IN/OUT
• Fuse: F3AL/250V
• Dimensions: 230 x 200 x 365 mm (LxWxH)
• Weight: 6,2 kg
Frontside
Fig. 01
01) 1 x 65W White LED
02) LCD display + control buttons
7
Ordercode: 40070
Phantom 65
Backside
Fig. 02
03) 3-pin DMX signal connector IN
04) 3-pin DMX signal connector OUT
05) Built-in microphone
06) Fuse F3AL/250V
07) Ground/earth connection
08) 100-240V Pro power connector IN
09) 100-240V Pro power connector OUT
Installation
Remove all packing materials from the Phantom 65. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
8
Ordercode: 40070
Phantom 65
Control Modes
There are 5 modes:
• Stand-alone (Auto)
• Manual
• Sound-controlled
• Master/Slave
• DMX-512 (8CH, 13CH)
One Phantom (Auto, Manual)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Phantom is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 14-15 for more information about the Auto mode and Manual mode.
One Phantom (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Phantom will react to the beat of
the music. Please see page 14 for more information about the sound-control options.
Multiple Phantoms (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the Phantom.
The pins:
01) Earth
02) Signal -
03) Signal +
03) Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on page 14-15 (Auto mode,
Manual mode or Sound-controlled mode). This means that you can set your desired operation
mode on the master device and all slave devices will react the same as the master device.
Multiple Phantoms (Master/Slave control)
Fig. 03
9
Ordercode: 40070
Phantom 65
Multiple Phantoms (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Phantoms and other devices.
04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX signal cable. Repeat this process to link the second, third, and fourth units.
05) Supply electric power: Plug electric mains power cords into each unit's Pro power socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Phantoms DMX Set Up
Fig. 04
Note : Link all cables before connecting electric power
10
Ordercode: 40070
Phantom 65
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Maximum recommended number of fixtures on a power link @ 110V: 7 fixtures
Maximum recommended number of fixtures on a power link @ 230V: 15 fixtures
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin.
Ordercode FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
11
Ordercode: 40070
Phantom 65
The Phantom 65 can be operated with a controller in control mode or without the controller in standalone mode.
Control Panel
Fig. 05
A) LCD display
B) UP button
C) ENTER button
D) DOWN button
E) MENU button
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address, next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first
channel with which the Phantom will respond to the controller.
Please note, when you use the controller, the unit has 13 channels.
When using multiple Phantoms, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Phantom should be 1(001); the DMX address of the second
Phantom should be 1+13=14 (014); the DMX address of the third Phantom should be 14+13=27 (027), etc.
Please, be sure that you do not have any overlapping channels in order to control each Phantom
correctly. If two or more Phantoms are addressed similarly, they will work similarly.
Controlling:
After having addressed all Phantom fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Phantom will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
If not, the problem may be:
• The XLR cable from the controller is not connected with the input of the Phantom 65.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
Display Off after 35 seconds
When no button is pressed for 35 seconds, the display will turn off.
To light up the display, you have to press the MENU or ENTER button.
Once you have pressed the button, the display will light up.
12
Ordercode: 40070
Phantom 65
Menu Overview
13
Ordercode: 40070
Phantom 65
Main Menu Options
DMX Addressing
DMX mode / Master-Slave / Auto / Sound-controlled / Manual
Pan and Tilt Reverse / Screen Reverse / Pan and Tilt Angle / Sound Sensitivity /
Reset / Factory Reset
System Information
Upon start-up, the device will show its currently active mode, as well as the information concerning Pan
and Tilt. Press the MENU or ENTER buttons to enter the main menu.
DMX Addressing
With this menu you can set the DMX address.
01) Press the UP/DOWN buttons, until the display shows .
02) Press the ENTER button to confirm. You can choose 512 different DMX addresses.
03) Press the UP/DOWN buttons to select the required address from 001-512.
04) Press the ENTER button to confirm the address.
14
Ordercode: 40070
Phantom 65
Built-in Programs Mode
You can run the auto programs when using the Phantom.
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to select one of the 5 modes:
1. DMX Mode
01) When the display shows DMX, press the ENTER button to open the menu.
02) Press the UP/DOWN buttons to toggle between the 2 channel modes:
8 channels
13 channels
03) Press the ENTER button to confirm your choice.
2. Slave Mode
01) Press the UP/DOWN buttons until the display shows SLAVE.
02) Press the ENTER button to open the menu.
03) Press the UP/DOWN buttons to set the device as the first, second, third or fourth slave device (Slave1-
Slave4).
04) Press the ENTER button to save changes.
05) The device is now operating in the slave mode. It means that it will react the same as the master
device. You can connect up to 4 slave devices to one master device.
3. Auto Mode
01) Press the UP/DOWN buttons until the display shows AUTO.
02) Press the ENTER button to activate the Auto mode.
03) The device will now run the built-in auto show.
4. Sound-controlled Mode
01) Press the UP/DOWN buttons until the display shows SOUND.
02) Press the ENTER button to activate the Sound-controlled mode.
03) The device will now react to the beat of the background music by means of the built-in
microphone.
15
Ordercode: 40070
Phantom 65
5. Manual Mode
01) Press the UP/DOWN buttons until the display shows MANUAL.
02) Press the ENTER button to activate the Manual mode.
03) The display will show:
04) Press the UP/DOWN buttons to choose one of the following options:
Pan (Pan position: 0-540°)
Tilt (Tilt position: 0-270°)
Color (0-255)
Gobo (0-255)
Gobo Rotate (0-255, clockwise, counterclockwise, gobo bounce)
Prism (0-255)
Dimmer (0-255, from dark to brightest)
Shutter (0-255)
05) Press the ENTER button to edit the desired option. The adjustment range for each option is between
0-255.
06) Press the UP/DOWN buttons to set the value.
07) Press the ENTER button to save changes.
08) The options correspond with the functions described in the DMX charts, pages 17-21.
16
Ordercode: 40070
Phantom 65
Advanced Settings
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the menu.
03) The display will show:
04) Press the UP/DOWN buttons to toggle between the following options:
Pan Reverse (ON/OFF)
Tilt Reverse (ON/OFF)
Screen Reverse (ON/OFF)
Pan Angle (180º/360º/540º)
Tilt Angle (90º/180º/270º)
Dimmer Speed (Fast/Smooth)
Sensitivity (001-100, from low to high sound sensitivity)
Reset (Pan/Tilt reset)
Factory Reset (Full reset, restores factory settings)
05) Press the ENTER button to edit the desired option.
06) Press the UP/DOWN buttons to set the value.
07) Press the ENTER button to save changes.
System Information
In this menu you can see the currently active mode, the DMX starting address, the current software
version and the temperature of the device.
01) While in the main menu, press the UP/DOWN buttons until the display shows .
02) Press the ENTER button to open the menu and view the parameters.
17
Ordercode: 40070
Phantom 65
DMX Channels
8 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Dimmer intensity
0-255
From dark to brightest
Channel 4 – Strobe
0-7
Not functional
8-15
Open
16-131
Synchronized strobe, from low to high frequency
132-167
Fast close/slow open strobe, from low to high frequency
168-203
Slow close/fast open strobe, from low to high frequency
204-239
Pulse strobe, from low to high frequency
240-250
Random strobe effect, from low to high frequency
251-255
Open
Channel 5 – Color wheel
Linear color change following the movement of the slider. Between 196-224 and 227-255, the color wheel
rotates continuously (so-called “Rainbow” effect).
0-6
Open / White
7-13
Red
14-20
Yellow
21-27
Green
28-34
Light Blue
35-41
Orange
42-48
Pink
49-55
Light Green
56-64
UV
65-71
Split color White/Red
72-78
Split color Red/Yellow
79-85
Split color Yellow/Green
86-92
Split color Green/Light Blue
93-99
Split color Light Blue/Orange
100-106
Split color Orange/Pink
107-113
Split color Pink/Light Green
114-120
Split color Light Green/UV
121-127
Split color UV/White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
18
Ordercode: 40070
Phantom 65
Channel 6 – Rotating Gobo wheel + Gobo Shake
0-7
Open / White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Metal)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7 from slow to fast
72-79
Gobo Shake 6 from slow to fast
80-87
Gobo Shake 5 from slow to fast
88-95
Gobo Shake 4 from slow to fast
96-103
Gobo Shake 3 from slow to fast
104-111
Gobo Shake 2 from slow to fast
112-119
Gobo Shake 1 from slow to fast
120-127
Open / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
Channel 7 – Gobo rotation
0-7
No function
8-119
Clockwise rotation (CW) from slow to fast
120-231
Counterclockwise rotation (CCW) from slow to fast
232-255
Gobo bouncing, from quick short bounce to longer rotation bounce
Channel 8 – Prism
0-15
Not functional
16-255
Prism
19
Ordercode: 40070
Phantom 65
13 Channels
Channel 1 – Horizontal movement (Pan)
Move the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540° and stopped at any position you wish.
Channel 2 – Vertical movement (Tilt)
Move the slider up, in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270° and stopped at any position you wish.
Channel 3 – Pan fine 16 bit
Channel 4 – Tilt fine 16 bit
Channel 5 – PAN/TILT Speed
0-255
From Max Speed (0) to Min. Speed (255)
Channel 6 – Dimmer intensity
0-255
From dark to brightest
Channel 7 – Strobe
0-7
Not functional
8-15
Open
16-131
Synchronized strobe, from low to high frequency
132-167
Fast close/slow open strobe, from low to high frequency
168-203
Slow close/fast open strobe, from low to high frequency
204-239
Pulse strobe, from low to high frequency
240-250
Random strobe effect, from low to high frequency
251-255
Open
Channel 8 – Color wheel
Linear color change following the movement of the slider. Between 196-224 and 227-255, the color wheel
rotates continuously (so-called “Rainbow” effect).
0-6
Open / White
7-13
Red
14-20
Yellow
21-27
Green
28-34
Light Blue
35-41
Orange
42-48
Pink
49-55
Light Green
56-64
UV
65-71
Split color White/Red
72-78
Split color Red/Yellow
79-85
Split color Yellow/Green
86-92
Split color Green/Light Blue
93-99
Split color Light Blue/Orange
100-106
Split color Orange/Pink
107-113
Split color Pink/Light Green
114-120
Split color Light Green/UV
121-127
Split color UV/White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
20
Ordercode: 40070
Phantom 65
Channel 9 – Rotating Gobo wheel + Gobo Shake
0-7
Open / White
8-15
Gobo 1 (Glass)
16-23
Gobo 2 (Metal)
24-31
Gobo 3 (Metal)
32-39
Gobo 4 (Metal)
40-47
Gobo 5 (Metal)
48-55
Gobo 6 (Metal)
56-63
Gobo 7 (Metal)
64-71
Gobo Shake 7 from slow to fast
72-79
Gobo Shake 6 from slow to fast
80-87
Gobo Shake 5 from slow to fast
88-95
Gobo Shake 4 from slow to fast
96-103
Gobo Shake 3 from slow to fast
104-111
Gobo Shake 2 from slow to fast
112-119
Gobo Shake 1 from slow to fast
120-127
Open / White
128-191
Clockwise rotation (CW) rainbow effect from slow to fast
192-255
Counterclockwise rotation (CCW) rainbow effect from slow to fast
Channel 10 – Gobo rotation
0-7
No function
8-119
Clockwise rotation (CW) from slow to fast
120-231
Counterclockwise rotation (CCW) from slow to fast
232-255
Gobo bouncing, from quick short bounce to longer rotation bounce
Channel 11 – Prism
0-15
Not functional
16-255
Prism
Channel 12 – Channel Functions
0-7
Not functional
8-27
Blackout during Pan/Tilt movement
28-47
Blackout during gobo wheel movement
48-67
Blackout during Pan-Tilt/gobo wheel movement
68-107
Blackout during color wheel movement
108-127
Blackout during color wheel/gobo wheel movement
128-147
Blackout during Pan-Tilt/color wheel movement/gobo wheel movement
148-157
Reset Pan
158-167
Reset Tilt
168-177
Reset Color wheel
178-187
Reset Gobo wheel
188-197
Reset prism (CH11 must be on and then set to off, then the prism wheel will reset)
198-207
Reset all
208-255
Not functional
Channel 13 – Built-in Programs + Sound-controlled Programs
0-7
No Function
8-23
Built-in Program 1
24-39
Built-in Program 2
40-55
Built-in Program 3
56-71
Built-in Program 4
72-87
Built-in Program 5
88-103
Built-in Program 6
104-119
Built-in Program 7
120-135
Built-in Program 8
136-151
Sound-controlled Program 1
21
Ordercode: 40070
Phantom 65
152-167
Sound-controlled Program 2
168-183
Sound-controlled Program 3
184-199
Sound-controlled Program 4
200-215
Sound-controlled Program 5
216-231
Sound-controlled Program 6
232-247
Sound-controlled Program 7
248-255
Sound-controlled Program 8
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Phantom 65 requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light
output very quickly.
The cooling fans, color wheel, the gobo wheel, the gobos and the internal lenses should be cleaned
monthly, with a soft brush.
Please clean internal components once a year with a light brush and vacuum cleaner.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the unit from electric power source.
02) Insert a screwdriver into the fuse holder. Turn the fuse holder counterclockwise. The fuse holder will
come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse holder. Be sure
to use a fuse of the same type and specification. See the product specification label for details.
22
Ordercode: 40070
Phantom 65
Replacing a Gobo From the Rotating Gobo Wheel
01) Disconnect mains power supply and set the switch to OFF.
02) Make sure that the gobo you want to insert has the same size. For the right size, see below.
Fig. 06
Fig. 07
03) Remove the lamp cover by unscrewing the 4 screws (see fig. 07).
04) Gently tilt the head so that the small metal housing can slide out more easily.
05) Turn the gobo wheel, with the gobo you want to remove, to the upside.
06) Gently lift up the gobo holder by 10º and then gently pull out the gobo from its position.
Fig. 08
07) Very carefully take the gobo out of the gobo holder with a pair of pliers.
08) Place the new gobo in the gobo holder. Carefully put the pinchcock back. You can use a pair of
pliers to press the pinchcock a little bit together.
09) Put the gobo holder back under the pressing snap and push it back.
10) Replace the maintenance caps and fasten all screws.
23
Ordercode: 40070
Phantom 65
Glass Gobo Orientation
Coated glass gobos are inserted with the coating against the rim of the holder (away from the spring).
Textured gobos are inserted with the smooth side against the spring. This provides the best results when
combining rotating gobos.
When an object is held up to the coated side
there is no space between the object and its
reflection. The back edge of the gobo cannot
be seen when looking through the coated side.
When an object is held up to the uncoated side
there is a space between the object and its
reflection. The back edge of the gobo can be
seen when looking through the uncoated side.
Rotating Gobo Wheel + Color Wheel
Rotating gobo wheel
Color wheel
Fig. 09
24
Ordercode: 40070
Phantom 65
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect three potential problem areas as: the power supply, the LEDs, the fuse.
01) Power supply. Check if the unit is plugged into an appropriate power supply.
02) The LEDs. Return the Phantom to your Showtec dealer.
03) The fuse. Replace the fuse. See page 21 for replacing the fuse.
04) If all of the above appears to be O.K., plug the unit in again.
05) If you are unable to determine the cause of the problem, do not open the Phantom, as this may
damage the unit and the warranty will become void.
06) Return the device to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
25
Ordercode: 40070
Phantom 65
Problem
Probable cause(s)
Remedy
One or more
fixtures do not
function at all
No power to the fixture.
Check if power is switched on and
cables are plugged in.
Primary fuse blown.
Replace fuse.
Fixtures reset
correctly, but all
respond erratically
or not at all to the
controller.
The controller is not connected.
Connect controller.
3-pin XLR Out of the controller does
not match XLR Out of the first fixture
on the link (i.e. signal is reversed).
Install a phase reversing cable between
the controller and the first fixture on the
link.
Fixtures reset
correctly, but some
respond erratically
or not at all to the
controller.
Poor data quality
Check data quality. If much lower than
100 percent, the problem may be a
bad data link connection, poor quality
or broken cables, missing termination
plug, or a defective fixture disturbing
the link.
Bad data link connection
Inspect connections and cables.
Correct poor connections. Repair or
replace damaged cables.
Data link not terminated with 120
Ohm termination plug.
Insert termination plug in output jack of
the last fixture on the link.
Incorrect addressing of the fixtures.
Check address setting.
One of the fixtures is defective and
disturbs data transmission on the
link.
Bypass one fixture at a time until normal
operation is regained: unplug both
connectors and connect them directly
together.
Have the defective fixture serviced by a
qualified technician.
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed).
Install a phase-reversing cable between
the fixtures or swap pin 2 and 3 in the
fixture, that behaves erratically.
Shutter closes
suddenly
The color wheel, gobo wheel or a
gobo has lost its index position and
the fixture is resetting the effect.
Contact a technician for servicing the
problem persists.
No light or LEDs cut
out intermittently
Fixture is too hot.
Allow fixture to cool.
Clean fan.
Make sure air vents are not blocked.
Turn up the air conditioning.
LEDs damaged
Disconnect fixture and return to your
dealer.
The power supply settings do not
match local AC voltage and
frequency.
Disconnect fixture. Check settings and
correct if necessary.
26
Ordercode: 40070
Phantom 65
Product Specifications
Model:
Showtec Phantom 65
Input voltage:
100-240V AC, 50/60Hz
Power consumption:
125W (full output)
DMX linking:
30pcs
Fuse:
F3AL/250V
Dimensions:
230 x 200 x 365 mm (LxWxH)
Weight:
6,2 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
8, 13 channels
Signal input:
3-pin XLR IN
Signal output:
3-pin XLR OUT
Electro-mechanical effects:
Light source:
1 x 65W White LED
Light output:
1870 Lux @ 5 m
Focus:
Manual
Beam angle:
16º
Dimmer:
0-100%
Strobe:
0-20Hz
Housing:
Metal & flame-retardant plastic
DMX control:
via standard DMX controller
Onboard:
LCD display for easy setup
User-selectable Pan range:
540°/360°/180°
User-selectable Tilt range:
270°/180°/90°
Special:
Pan/Tilt movement blackout
Reverse Pan/Tilt movement
Pan/Tilt resolution:
16 bit
Color wheel:
8 dichroic colors + white
Color functions:
Rainbow-flow effect, split colors, bi-directional rotation
Rotating gobo wheel:
6 metal gobos + 1 glass gobo
Gobo size:
Glass gobo: 23,75 mm (gobo size); 21 mm (image diameter); 1,31 mm
(gobo thickness)
Metal gobo: 24 mm (gobo size); 20 mm (image diameter); 0,29 mm (gobo
thickness)
Gobo functions:
Gobo-flow effect, Gobo shake
Control:
Stand alone, Manual, Sound-controlled, Master/Slave, DMX-512
Prism:
3-facet prism
Connections:
3-pin XLR IN/OUT, Pro power connector IN/OUT
Cooling:
Cooling fan
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
70°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
