Dataflower
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
USER MANUAL
ENGLISH
V1
1
Dataflower Product code: 43168
Preface
Thank you for purchasing this Showtec product.
The purpose of this user manual is to provide instructions for the correct and safe use of this product.
Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
This user manual contains information concerning:
Safety instructions
Intended and non-intended use of the device
Installation and operation of the device
Maintenance procedures
Troubleshooting
Transport, storage and disposal of the device
Non-observance of the instructions in this user manual may result in serious injuries and damage of property.
©2020 Showtec. All rights reserved.
No part of this document may be copied, published or otherwise reproduced without the prior written consent of Highlite International.
Design and product specifications are subject to change without prior notice.
For the latest version of this document, please visit our website www.highlite.com or contact us at
service@highlite.com.
Highlite International and its authorized service providers are not liable for any injury, damage, direct or indirect loss, consequential or economic loss or any other loss arising from the use of, or inability to use or reliance on the information contained in this document.
2
Dataflower Product code: 43168
Table of contents
1. Introduction .......................................................................................................................................................... 4
Before Using the Product .................................................................................................................................. 4
Intended Use ....................................................................................................................................................... 4
Product Lifespan ................................................................................................................................................. 4
LEDs Lifespan ....................................................................................................................................................... 4
Text Conventions ................................................................................................................................................ 4
Symbols and Signal Words ................................................................................................................................ 5
Symbols on the Information Label .................................................................................................................. 5
2. Safety .................................................................................................................................................................... 6
Warnings and Safety Instructions .................................................................................................................... 6
Requirements for the User ................................................................................................................................. 8
3. Description of the Device ................................................................................................................................... 9
Front View ............................................................................................................................................................ 9
Back View ..........................................................................................................................................................10
Product Specifications ....................................................................................................................................11
Dimensions .........................................................................................................................................................12
4. Installation .......................................................................................................................................................... 13
Safety Instructions for Installation ..................................................................................................................13
Personal Protective Equipment .....................................................................................................................13
Installation Site Requirements ........................................................................................................................13
Rigging ...............................................................................................................................................................13
Angle Adjustment .......................................................................................................................................14
Focus Adjustment .......................................................................................................................................15
Connecting to Power Supply .........................................................................................................................16
Power Linking of Multiple Devices .................................................................................................................16
5. Setup ................................................................................................................................................................... 17
Warnings and Precautions .............................................................................................................................17
Stand-alone Setup ...........................................................................................................................................17
DMX Connection ..............................................................................................................................................17
DMX-512 Protocol .......................................................................................................................................17
DMX Cables .................................................................................................................................................18
Master/Slave Setup ....................................................................................................................................18
DMX Linking ..................................................................................................................................................19
DMX Addressing ..........................................................................................................................................19
6. Operation ........................................................................................................................................................... 20
Safety Instructions for Operation ...................................................................................................................20
Control Modes ..................................................................................................................................................20
Control Panel ....................................................................................................................................................21
Start-up ...............................................................................................................................................................21

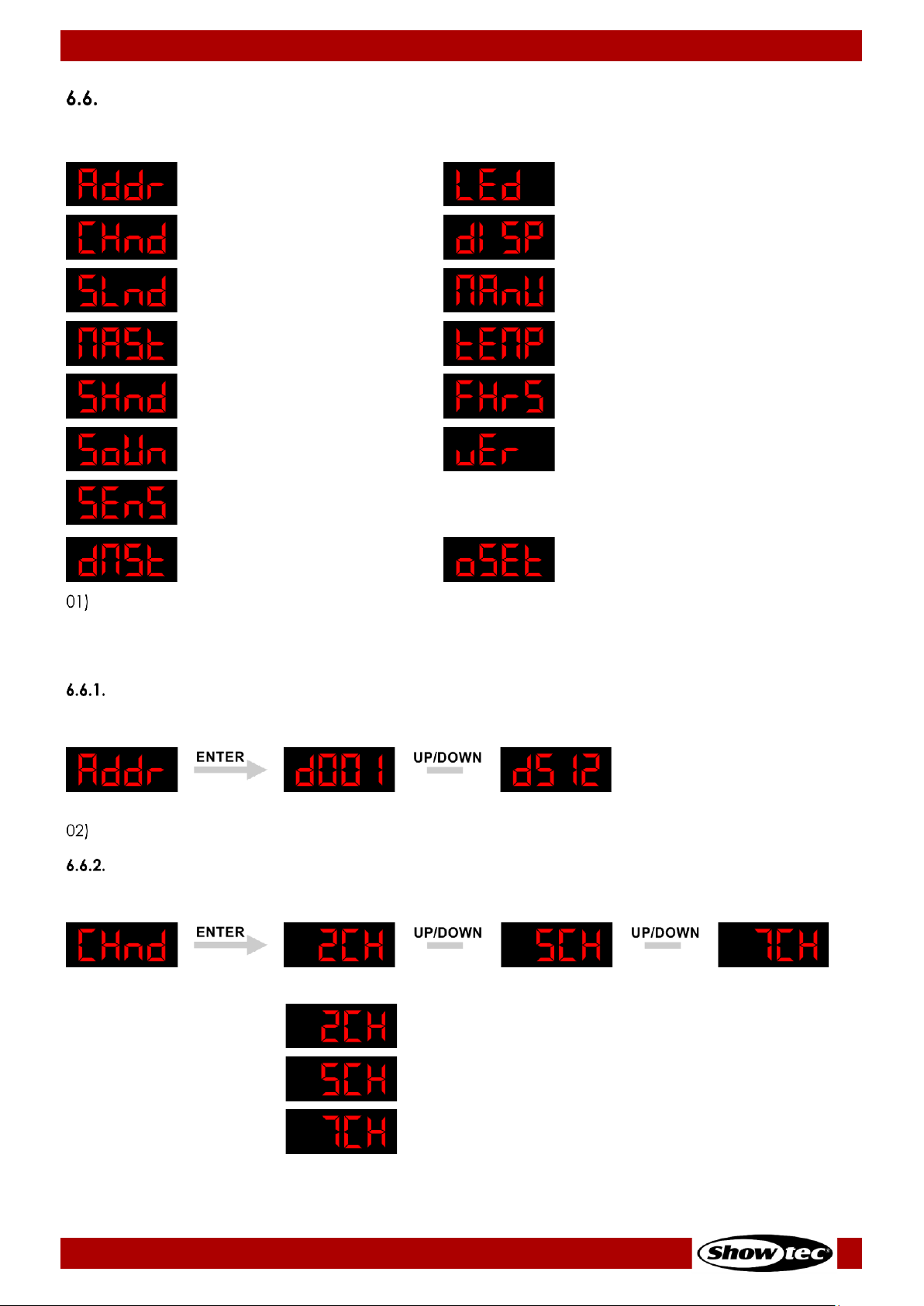

Menu Overview ................................................................................................................................................22
Main Menu Options .........................................................................................................................................23
DMX Address ...............................................................................................................................................23
DMX Channel Mode ..................................................................................................................................23
Slave Mode ..................................................................................................................................................24
Master Mode ...............................................................................................................................................24
Show Mode ..................................................................................................................................................24
Sound Mode ................................................................................................................................................25
Sensitivity Settings .......................................................................................................................................25
DMX Fail ........................................................................................................................................................25
Display LEDs .................................................................................................................................................25
Display Settings .......................................................................................................................................26
Manual Control .......................................................................................................................................26
Temperature ............................................................................................................................................27
3
Dataflower Product code: 43168
Fixture Hours .............................................................................................................................................27
Version ......................................................................................................................................................27
Offset Mode ............................................................................................................................................27
DMX Channels ..................................................................................................................................................28
2 Channels ...................................................................................................................................................28
5 Channels, 7 Channels .............................................................................................................................28
Gobo Wheel and Color Wheel......................................................................................................................30
7. Troubleshooting ................................................................................................................................................. 31
8. Maintenance ..................................................................................................................................................... 32
Safety Instructions for Maintenance .............................................................................................................32
Preventive Maintenance ................................................................................................................................32
Basic Cleaning Instructions .......................................................................................................................33
Corrective Maintenance ................................................................................................................................33
Replacing the Fuse .....................................................................................................................................33
9. Deinstallation, Transportation and Storage .................................................................................................... 34
Instructions for Deinstallation ..........................................................................................................................34
Instructions for Transportation ........................................................................................................................34
Storage ...............................................................................................................................................................34
10. Disposal .............................................................................................................................................................. 34
11. Approval ............................................................................................................................................................. 34
4
Dataflower Product code: 43168

1. Introduction

Before Using the Product

Important Read and follow the instructions in this user manual before installing, operating or servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer.
Your shipment includes:
Showtec Dataflower
Schuko to IEC (C13) power cable
User manual
Fig. 01

Intended Use

This device is intended for professional use as a stage light effect. It is suitable only for indoor installation. This device is not suitable for households and for general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.

Product Lifespan

This device is not designed for permanent operation. Disconnect the device from the electrical power supply when the device is not in operation. This will reduce the wear and will improve the device’s lifespan.

LEDs Lifespan

The light output of the LEDs gradually decreases over time (lumen depreciation). High operating temperatures contribute to this process. You can extend the lifespan of the LEDs by providing adequate ventilation and operating the LEDs at the lowest possible brightness.

Text Conventions

Throughout the user manual the following text conventions are used:
Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons”
References: References to chapters and parts of the device are in bold lettering, for example:
“Refer to 2. Safety”, “turn the adjustment screw (02)
0255: Defines a range of values
Notes: Note: (in bold lettering) is followed by useful information or tips
5
Dataflower Product code: 43168

Symbols and Signal Words

Safety notes and warnings are indicated throughout the user manual by safety signs.
Always follow the instructions provided in this user manual.
DANGER
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.
Attention
Indicates important information for the correct operation and use of the product.
Important
Read and observe the instructions in this document.
Electrical hazard
Hot surface
Eye damage hazard
Provides important information about the disposal of this product.

Symbols on the Information Label

This product is provided with an information label. The information label is located on the backside of the device.
The information label contains the following symbols:
This device is designed for indoor use.
This device shall not be treated as household waste.
6
Dataflower Product code: 43168

2. Safety

Important Read and follow the instructions in this user manual before installing, operating or servicing this product.
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual.

Warnings and Safety Instructions

DANGER Danger for children
For adult use only. The device must be installed beyond the reach of children.
Do not leave various parts of the packaging (plastic bags, polystyrene foam, nails, etc.) within
children’s reach. Packaging material is a potential source of danger for children.
DANGER Electric shock caused by dangerous voltage inside
There are areas within the device where dangerous touch voltage (> 120 V DC) may be present.
Do not open the device or remove any covers.
Do not operate the device if the covers or the housing are open. Before operation, check if the
housing is firmly closed and all screws are tightly fastened.
Disconnect the device from electrical power supply before service and maintenance, and when the
device is not in use.
DANGER Electric shock caused by short-circuit
This device falls under IEC protection class I.
Make sure that the device is electrically connected to ground (earth). Connect the device only to a
socket-outlet with ground (earth) connection.
Do not cover the ground (earth) connection.
Do not bypass the thermostatic switch or fuses.
For replacement use fuses of the same type and rating only.
Do not let the power cable come into contact with other cables. Handle the power cable and all
connections with the mains with caution.
Do not modify, bend, mechanically strain, put pressure on, pull or heat up the power cable.
Make sure that the power cable is not crimped or damaged. Examine the power cable periodically
for any defects.
Do not immerse the device in water or other liquids. Do not install the device in a location where
flooding may occur.
Do not use the device during thunderstorms. Disconnect the device from the electrical power supply
immediately.
7
Dataflower Product code: 43168
WARNING Risk of burns due to hot surface
The surface and the inner parts of the device can become very hot during operation.
Do not touch the device during operation.
Allow the device to cool down for at least 15 minutes before handling.
WARNING Risk of epileptic shock
Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights.
WARNING Possible eye damage caused by high light intensity
Possibly hazardous optical radiation emitted from this device.
Do not look at the operating light source. May be harmful to the eye.
Do not look at the light source with optical instruments that may concentrate the light output.
Make sure that persons are not looking directly into the light source when the device lights up
suddenly. This can happen when the device is powered or when it receives DMX signal, or when certain menu items are selected.
Disconnect power supply before servicing.
Wear protective goggles if looking into light source during service or maintenance.
Attention Power supply
Before connecting the device to the power supply, make sure that the current, voltage and
frequency match the input voltage, current and frequency specified on the information label on the device.
Make sure that the cross-sectional area of the extension cords and power cables is sufficient for the
required power consumption of the device.
Attention General safety
Do not insert objects into the air vents.
Do not connect the device to a dimmer pack.
Do not switch the device on and off in short intervals. This decreases the device’s life.
Do not shake the device. Avoid brute force when installing or operating the device.
Change the lens or the LEDs if they are visibly damaged to such an extent that their effectiveness is
impaired, for example by cracks or deep scratches. Contact your Highlite International dealer for more information, as servicing can be performed only by instructed or skilled persons.
If the device is dropped or struck, disconnect the device from the electrical power supply
immediately.
8
Dataflower Product code: 43168
If the device is exposed to extreme temperature variations (e.g. after transportation), do not switch it
on immediately. Let the device reach room temperature before switching it on, otherwise it may be damaged by the formed condensation.
If the device fails to work properly, discontinue the use immediately.
Attention For professional use only This device shall be used only for the purposes it is designed for.
This device is designed to be used as a professional stage light effect. Any incorrect use may lead to hazardous situations and result in injuries and material damage.
This device is not suitable for households and for general lighting.
This device is not designed for permanent operation.
This device does not contain user-serviceable parts. Unauthorized modifications to the device will
render the warranty void. Such modifications may result in injuries and material damage.
Attention Before each use, examine the device visually for any defects.
Make sure that:
All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
The safety devices are not damaged.
There are no deformations on housings, fixations and installation points.
The lens is not cracked or damaged.
The power cables are not damaged and do not show any material fatigue.
Attention Do not expose the device to conditions that exceed the rated IP class conditions.
This device is IP20 rated. IP (Ingress Protection) 20 class provides protection against solid objects greater than 12 mm, such as fingers, and no protection against harmful ingress of water.

Requirements for the User

This product may be used by ordinary persons. Maintenance may be carried by ordinary persons. Installation and service shall be carried out only by instructed or skilled persons. Contact your Highlite International dealer for more information.
Instructed persons have been instructed and trained by a skilled person, or are supervised by a skilled person, for specific tasks and work activities associated with the installation, service and maintenance of this product, so that they can identify risks and take precautions to avoid them.
Skilled persons have training or experience, which enables them to recognize risks and to avoid hazards associated with the installation, service and maintenance of this product.
Ordinary persons are all persons other than instructed persons and skilled persons. Ordinary persons include not only users of the product but also any other persons that may have access to the device or who may be in the vicinity of the device.
9
Dataflower Product code: 43168

3. Description of the Device

The Showtec Dataflower is a stage light effect suitable for projection of gobo patterns on walls or dance floors. In combination with smoke or haze, it produces stunning aerial effects. Vivid colors and an optimized selection of gobos make Dataflower the ideal device for various gigs.

Front View

Fig. 02
01) Mounting bracket
02) 2 adjustment screws
Lens Cooling fan
10
Dataflower Product code: 43168

Back View

Fig. 03
3-pin DMX connector OUT 3-pin DMX connector IN Fuse T2AL, 250 V IEC (C14) power connector IN, 100–240 V, 10 A, 50/60 Hz IEC (C13) power connector OUT, 100–240 V, 8 A, 50/60 Hz Safety eye Built-in microphone Control panel: 4-digit LED display and control buttons
11
Dataflower Product code: 43168

Product Specifications

Model:
Dataflower
Electrical:
Input voltage:
100–240 V AC, 50/60 Hz
Power consumption:
117 W
Fuse:
T2AL, 250 V
Physical:
Dimensions:
308 x 265 x 202 mm (L x W x H)
Weight:
3,8 kg
Optics:
Light source:
100 W LED
Color temperature:
7400 K
Dimmer:
0–100 %
Strobe:
0–20 Hz
Beam angle:
40°
Effects:
Color wheel:
9 dichroic filters and white
Gobo wheel:
11 gobo patterns and open
Operation and control:
Control:
Stand-alone (auto, manual, sound-controlled) Master/Slave (auto, manual, sound-controlled) DMX-512
DMX channels:
2, 5, 7
Control panel:
4-digit LED display and control buttons
Connections:
Power connections:
IEC (C14) power connector IN, 100–240 V, 10 A, 50/60 Hz IEC (C13) power connector OUT, 100–240 V, 8 A, 50/60 Hz
Data connections:
3-pin DMX connectors IN/OUT
Signal pinouts:
Pin 1 (ground), pin 2 (-), pin 3 (+)
Construction:
Housing:
Metal
Color:
Black
IP rating:
IP20
Cooling:
Cooling fan
Thermal:
Maximum ambient temperature ta:
40 °C
Maximum housing temperature tc:
70 °C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
0,5 m
12
Dataflower Product code: 43168

Dimensions

Fig. 04
Fig. 05
13
Dataflower Product code: 43168

4. Installation

Safety Instructions for Installation

WARNING Incorrect installation can cause serious injuries and damage of property.
If trussing systems are used, installation must be carried out only by instructed or skilled persons.
Follow all applicable European, national and local safety regulations concerning rigging and trussing.

Personal Protective Equipment

During installation and rigging wear personal protective equipment in compliance with the national and site-specific regulations.

Installation Site Requirements

The device can be used only indoors.
The device can be mounted to a truss or another rigging structure in any orientation.
The minimum distance to other objects must be bigger than 0,5 m.
The maximum ambient temperature t
a
= 40 °C must never be exceeded.
The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.

Rigging

The device can be positioned on a flat surface or mounted to a truss or other rigging structure. Make sure that all loads are within the pre-determined limits of the supporting structure.
CAUTION Restrict the access under the work area during rigging and/or derigging.
14
Dataflower Product code: 43168
To mount the device, follow the steps below:
Use a clamp to attach the device to the supporting structure, as shown in Fig. 06. Make sure that the
device cannot move freely.
Secure the device with a secondary suspension, for example a safety cable. Make sure that the
secondary suspension can hold 10 times the weight of the device. If possible, the secondary suspension should be attached to a supporting structure independent of the primary suspension. Put the safety cable through the safety eye (10), as shown in Fig. 06.
Fig. 06

Angle Adjustment

You can adjust the angle of the device with the adjustment screws (02).
01) Turn the adjustment screws (02) counterclockwise to release them.
Tilt the device at the desired angle (see Fig. 07). Turn the adjustment screws (02) clockwise to tighten them. Make sure that the device cannot move
freely after the adjustment screws (02) are tightened.
Fig. 07
15
Dataflower Product code: 43168

Focus Adjustment

Turn the lens (03) clockwise or counterclockwise to adjust the focus.
Fig. 08
16
Dataflower Product code: 43168

Connecting to Power Supply

DANGER Electric shock caused by short-circuit
The device accepts AC mains power at 100–240 V and 50/60 Hz. Do not supply power at any other voltage or frequency to the device.
This device falls under IEC protection class I. Make sure that the device is always electrically connected to the ground (earth).
Before connecting the device to the socket-outlet:
Make sure that the power supply matches the input voltage specified on the information label on
the device.
Make sure that the socket-outlet has ground (earth) connection.
Connect the device to the socket-outlet with the power plug. Do not connect the device to a dimmer circuit, as this may damage the device.

Power Linking of Multiple Devices

This device supports power linking. Power can be relayed to another device via the power OUT connector. Note that the input and the output connectors have different designs: one type cannot be connected to the other.
Power linking of multiple devices must be carried out only by instructed or skilled persons.
WARNING Incorrect power linking may lead to overload of the electrical circuit and result in serious injuries and damage of property.
To prevent overload of the electrical circuit, when power linking multiple devices:
Use cables with sufficient current-carrying capacity. The power cable supplied with the device is not
suitable for power linking of multiple device.
Make sure that the total current draw of the device and all connected devices does not exceed the
rated capacity of the power cables and the circuit breaker.
Do not link more devices on one power link than the maximum recommended number.
Maximum recommended number of devices:
at 100120 V: 8 devices Dataflower
at 200240 V: 15 devices Dataflower
17
Dataflower Product code: 43168

5. Setup

Warnings and Precautions

Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables.

Stand-alone Setup

When the Dataflower is not connected to a controller or to other devices, it functions as a stand-alone device. It can be operated manually, in auto mode or in sound-controlled mode.
For more information about the control modes, refer to 6.2. Control Modes on page 20.

DMX Connection

DMX-512 Protocol

You need a DMX serial data link to run light shows of one or more devices using a DMX-512 controller or to run synchronized shows of two or more devices set in a master/slave operating mode.
The Dataflower has 3-pin DMX signal IN and OUT connectors.
The pin assignment is as follows: pin 1 (ground), pin 2 (-), pin 3 (+).
Devices on a serial data link must be daisy-chained in a single line. The number of devices that you can control on one data link is limited by the combined number of the DMX channels of the connected devices and the 512 channels available in one DMX universe.
To comply with the TIA-485 standard, no more than 32 devices should be connected on one data link. In order to connect more than 32 devices on one data link, you must use a DMX optically isolated splitter/booster, otherwise this may result in deterioration of the DMX signal.
Note:
Maximum recommended DMX data link distance: 300 m
Maximum recommended number of devices on a DMX data link: 32 devices
18
Dataflower Product code: 43168

DMX Cables

Shielded twisted-pair cables with 3-pin XLR connectors must be used for reliable DMX connection. You can purchase DMX cables directly from your Highlite International dealer or make your own cables.
If you use XLR audio cables for DMX data transmission, this may lead to signal degradation and unreliable operation of the DMX network.
When you make your own DMX cables, make sure that you connect the pins and wires correctly as shown in Fig. 09.
Fig. 09

Master/Slave Setup

The Dataflower supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below:
Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
3-pin DMX cable.
Repeat step 1 to connect all devices as shown in Fig. 10. Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device in the setup. Set the first device on the data link as a master device. See 6.6.4. Master Mode on page 24 for more
information.
Set the remaining devices as slave devices. See 6.6.3. Slave Mode on page 24 for more information.
Fig. 10
19
Dataflower Product code: 43168

DMX Linking

To connect multiple devices on one DMX data link, follow the steps below:
Use a 3-pin DMX cable to connect the DMX OUT connector of the lighting controller to the DMX IN
connector of the first device.
Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a
3-pin DMX cable.
Repeat step 2 to connect all devices in a daisy-chain as shown in Fig. 11. Connect a DMX terminator (120 Ω resistor) to the DMX OUT connector of the last device on the data
link.
Fig. 11

DMX Addressing

In a setup with multiple devices, make sure that you set the DMX starting address of each device correctly. The Dataflower has 3 personalities: 2 channels, 5 channels, and 7 channels.
If you want to connect multiple devices on one data link and use them in 7-channel mode, for example, follow the steps below:
Set the starting address of the 1
st
device on the data link to 1 (001).
Set the starting address of the 2
nd
device on the data link to 8 (008), as 1 + 7 = 8.
Set the starting address of the 3
rd
device on the data link to 15 (015) as 8 + 7 = 15.
Continue assigning the starting addresses of the remaining devices by adding each time 7 to the
previous number.
Make sure that you do not have any overlapping channels in order to control each Dataflower correctly. If two or more devices are addressed similarly, they will work similarly.
20
Dataflower Product code: 43168

6. Operation

Safety Instructions for Operation

Attention This device must be used only for the purposes it is designed for.
This device is intended for professional use as a stage light effect. It is suitable only for indoor installation. This device is not suitable for households and for general lighting.
Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use.
Attention Power supply
Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.

Control Modes

The Dataflower can be operated with a DMX controller, and as a stand-alone device or in a master/slave setup without a DMX controller.
The Dataflower supports the following control modes:
Stand-alone: Auto operation mode (built-in programs), manual operation, sound-
controlled operation mode (built-in programs)
Master/Slave: Auto operation mode (built-in programs), manual operation, sound-
controlled operation mode (built-in programs)
DMX-512: 2 channels, 5 channels and 7 channels
For more information about how to connect the devices, refer to 5. Setup on pages 17–19.
To operate the device manually as a stand-alone device or in a master/slave setup:
01) Select Manual Control in the main menu.
02) Adjust the values for dimmer, strobe, color, gobo and gobo rotation in the respective submenus. See
6.6.11. Manual Control on page 26 for more information.
To run one of the built-in programs in auto operation mode without a DMX controller:
01) Select Show Mode in the main menu.
02) Select one of the 8 built-in programs or run all built-in programs in random order. See 6.6.5. Show
Mode on page 24 for more information.
You can additionally activate sound-controlled operation when running the built-in programs. See 6.6.6. Sound Mode on page 25 for more information.
To operate the device with a DMX controller:
01) Set the DMX starting address of the device in the DMX Address menu. See 5.3.5. DMX Addressing on
page 19 and 6.6.1. DMX Address on page 23.
02) Select the DMX channel mode. See 6.6.2. Set DMX Channel Mode on page 23 for more information.
See 6.7. DMX Channels on pages 28–29 for complete overview of all DMX channels.
21
Dataflower Product code: 43168

Control Panel

A) 4-digit LED display B) ENTER button C) DOWN button D) UP button E) MENU button
Fig. 12
Use the MENU button to exit the current submenu, to return to the main menu and to scroll through
the main menu.
Use the UP/DOWN buttons to navigate through the menus or to increase/decrease numeric values.
Use the ENTER button to open the desired menu, to confirm your choice or to set the currently
selected value.

Start-up

Upon start-up the display will show the following screen:
Immediately afterwards the display will show the start screen. The start screen provides information about the current control mode of the device:
DMX control mode with DMX starting address 001 A dot at the bottom right corner of the display indicates that DMX signal is present.
The device is not receiving DMX signal. The settings in the DMX fail menu apply. See 6.6.8. DMX Fail on page 25 for more information.
Note: If no button is pressed, after 5 seconds of inactivity the display will return to the start screen
and after 10 more seconds it will turn off. Press any button to turn the display on. See 6.6.9.
Display LEDs on pages 25–26 for more information.
22
Dataflower Product code: 43168

Menu Overview

23
Dataflower Product code: 43168

Main Menu Options

The main menu has the following options:

DMX address

Display LEDs

DMX channel mode

Display settings
Slave mode
Manual control
Master mode
Temperature
Show mode
Fixture hours
Sound-controlled mode
Version
Sensitivity settings
DMX fail
Offset mode
Press the UP/DOWN buttons or the MENU button to navigate through the main menu.
02) Press the ENTER button to open the submenus.
Note: To open the offset mode menu, refer to 6.6.15. Offset Mode on page 27.
DMX Address
In this menu you can set the DMX starting address of the device.
01) Press the UP/DOWN buttons to select the DMX starting address. The selection range is 001–512. Press the ENTER button to confirm the selection.
DMX Channel Mode
In this menu you can select the DMX channel mode.
01) Press the UP/DOWN buttons to select the desired DMX channel mode. There are 3 options available:
2 channels
5 channels
7 channel
02) Press the ENTER button to confirm the selection.
24
Dataflower Product code: 43168

Slave Mode

In this menu you can set the device as a slave device in master/slave control mode.
01) Press the UP/DOWN buttons to select one of the following 2 options:
Slave 1:
The device will operate as a slave device in master/slave mode on line 1
Slave 2:
The device will operate as a slave device in master/slave mode on line 2
02) Press the ENTER button to confirm the selection.
Note: Make sure that all slave devices in one master/slave setup are set to the same slave line,
otherwise they will not operate as the master device. Select either Slave 1 or Slave 2 for all slave devices in the same master/slave setup.

Master Mode

In this menu you can set the device as a master device in master/slave control mode.
01) Press the UP/DOWN buttons to select one of the following 2 options:
On:
The device will operate as a master device in master/slave mode
Off:
The device will not operate as a master device in master/slave mode
02) Press the ENTER button to confirm the selection.

Show Mode

In this menu you can play the built-in programs.
01) Press the UP/DOWN buttons to select one of the following options:
Show 0:
SH-0
All 8 built-in programs will be played randomly
Show 1 – Show 8: Select one of the 8 built-in programs
02) Press the ENTER button to confirm the selection and to enable the speed adjustment.
03) Press the UP/DOWN buttons to set the speed of the selected built-in program. The adjustment range
is 00–99, from slow to fast.
04) Press the ENTER button to set the speed.
25
Dataflower Product code: 43168

Sound Mode

In this menu you can activate the sound-controlled operation mode.
01) Press the UP/DOWN buttons to select one of the following 2 options:
On:
Sound-controlled operation mode is activated. The device will run the selected built-in program reacting to the beat of the music
Off:
Sound-controlled operation mode is disabled
02) Press the ENTER button to confirm the selection.

Sensitivity Settings

In this menu you can adjust the sensitivity of the built-in microphone.
01) Press the UP/DOWN buttons to increase or decrease the sensitivity of the built-in microphone. The
adjustment range is 000–100, from low to high sensitivity.
02) Press the ENTER button to confirm the selection.

DMX Fail

In this menu you can determine the behavior of the device in case there is no DMX signal.
01) Press the UP/DOWN buttons to select one of the following 3 options:
Blind:
The device will black out the light output
Last:
The device will use the last properly received DMX signal
Master:
The device will continue working as a stand­alone device
02) Press the ENTER button to confirm the selection.

Display LEDs

In this menu you can select whether the display LEDs will remain on or will turn off after 15 seconds of inactivity.
01) Press the UP/DOWN buttons to select one of the following 2 options:
On:
The LED display will remain on
26
Dataflower Product code: 43168
Off:
The LED display will turn off after 15 seconds of inactivity
02) Press the ENTER button to confirm the selection.

Display Settings

In this menu you can select the orientation of the display.
01) Press the UP/DOWN buttons to select one of the following 2 options:
dISP:
Normal orientation of the LED display
dSIP:
The LED display will be rotated at 180°
02) Press the ENTER button to confirm the selection.

Manual Control

In this menu you can manually control the device.
01) Press the UP/DOWN buttons to select one of the following 5 options:
Dimmer
Strobe
Color
Gobo
Gobo rotation
02) Press the ENTER button to confirm the selection and to enable the adjustment of the values.
03) Press the UP/DOWN buttons to adjust the values. The adjustment range is 000–255.
04) Press the ENTER button to confirm the selection.
27
Dataflower Product code: 43168

Temperature

In this menu you can view the temperature of the LEDs.

Fixture Hours

In this menu you can view the total hours of operation of the LEDs and of the device.

Version

In this menu you can view the firmware version of the device.

Offset Mode

In this menu you can adjust the home position of the color wheel and the gobo wheel.
01) Press the MENU button to enter the main menu.
02) Press and hold the ENTER button for 3 seconds to enter the offset mode menu.
03) Press the UP/DOWN buttons to select one of the following 5 options:
Color wheel
Gobo wheel
04) Press the ENTER button to confirm the selection and to enable the adjustment of the values.
05) Press the UP/DOWN buttons to adjust the values. The adjustment range is between -127 and 127.
06) Press the ENTER button to confirm the selection.
28
Dataflower Product code: 43168

DMX Channels

2 Channels

2 CH
Function
Value
Setting
1
Show
000–012
Output blackout
013–039
Show 0 (all built-in programs)
040–066
Show 1
067–093
Show 2
094–120
Show 3
121–147
Show 4
148–174
Show 5
175–201
Show 6
202–228
Show 7
229–255
Show 8
2
Show Speed
000–255
Speed adjustment, from slow to fast

5 Channels, 7 Channels

5 CH
7 CH
Function
Value
Setting
1
1
Master Dimmer
000–255
From low to high intensity (0–100 %)
2
2
Strobe
000–031
Output blackout
032–063
Open
064–095
Strobe, from slow to fast
096–127
Open
128–159
Pulse strobe, from slow to fast
160–191
Open
192–223
Random strobe, from slow to fast
224–255
Open
3
3
Color Wheel
000–015
Open
016–022
Color 1 (Red)
023–029
Color 2 (Red/Blue)
030–036
Color 3 (Blue)
037–043
Color 4 (Blue/Pink)
044–050
Color 5 (Pink)
051–057
Color 6 (Pink/Yellow)
058–064
Color 7 (Yellow)
065–071
Color 8 (Yellow/Green)
072–078
Color 9 (Green)
079–085
Color 10 (Green/Orange)
086–092
Color 11 (Orange)
093–099
Color 12 (Orange/Cyan)
100–106
Color 13 (Cyan)
107–113
Color 14 (Cyan/UV)
114–120
Color 15 (UV)
121–127
Color 16 (3200K)
128–191
Color scroll clockwise, from slow to fast
192–255
Color scroll counterclockwise, from slow to fast
29
Dataflower Product code: 43168
5 CH
7 CH
Function
Value
Setting
4
4
Static Gobo Wheel
000–017
Open
018–027
Gobo 1
028–037
Gobo 2
038–047
Gobo 3
048–057
Gobo 4
058–067
Gobo 5
068–077
Gobo 6
078–087
Gobo 7
088–097
Gobo 8
098–107
Gobo 9
108–117
Gobo 10
118–127
Gobo 11
128–191
Gobo scroll counterclockwise, from fast to slow
192–255
Gobo scroll clockwise, from slow to fast
5
5
Mirror Dish
000–127
Mirror dish indexing
128–191
Mirror dish rotation clockwise, from fast to slow
192–255
Mirror dish rotation counterclockwise, from slow to fast
6 Show
000
Open
001–012
Output blackout
013–039
Show 0 (all built-in programs)
040–066
Show 1
067–093
Show 2
094–120
Show 3
121–147
Show 4
148–174
Show 5
175–201
Show 6
202–228
Show 7
229–255
Show 8
7 Show Speed
000–255
Speed adjustment, from slow to fast
Note: Make sure that the Master Dimmer and the Strobe channels are open in 5-CH and 7-CH
mode in order to see the light output.
30
Dataflower Product code: 43168

Gobo Wheel and Color Wheel

Static gobo wheel
Color wheel
Fig. 13
31
Dataflower Product code: 43168

7. Troubleshooting

This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts.
Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage.
Refer servicing to instructed or skilled persons. Contact your Highlite International dealer in case the solution is not described in the table.
Problem
Probable cause(s)
Solution
The device does not function at all
No power to the device
Check if power is switched on and
cables are plugged in
Main fuse is blown
Replace the fuse. See 8.3.1. Replacing
the Fuse on page 33
The device does not respond to DMX control
The controller is not connected
Connect the controller
The signal is reversed. The 3-pin/5­pin DMX OUT of the controller does not match the DMX IN of the device
Install a phase-reversing cable
between the controller and the device
The controller is defective
Try using another controller
The device responds erratically to DMX control
Bad data link connection
Examine connections and cables.
Correct poor connections. Repair or replace damaged cables
The data link is not terminated with a 120 Ω termination plug
Insert a termination plug in the DMX
OUT connector of the last device on the link
Incorrect addressing
Check address settings and correct, if
necessary
In case of a setup with multiple devices, one of the devices is defective and disturbs data transmission on the link
To find out the defective device,
bypass one device at a time until normal operation is restored
No light or LEDs cut out intermittently
LEDs are damaged
Disconnect the device and contact
your Highlite International dealer
The power supply settings do not match local AC voltage and frequency
Disconnect the device. Check the
settings and correct, if necessary
32
Dataflower Product code: 43168

8. Maintenance

Safety Instructions for Maintenance

DANGER Electric shock caused by dangerous voltage inside
Disconnect power supply before servicing or cleaning.
WARNING Risk of burns due to hot surface
Allow the device to cool down for at least 15 minutes before servicing or cleaning.

Preventive Maintenance

Attention Before each use, examine the device visually for any defects.
Make sure that:
All screws used for installing the device or parts of the device are tightly fastened and are not
corroded.
The safety devices are not damaged.
There are no deformations on housings, fixations and installation points.
The lens is not cracked or damaged.
The power cables are not damaged and do not show any material fatigue.
33
Dataflower Product code: 43168

Basic Cleaning Instructions

The external lens of the device must be cleaned periodically in order to optimize the light output. The cleaning schedule depends on the conditions at the site where the device is installed. When smoke or fog machines are used at the site, the device will need more frequent cleaning. On the other hand, if the device is installed in well-ventilated area, it will need less frequent cleaning. To establish a cleaning schedule, examine the device at regular intervals during the first 100 hours of operation.
To clean the device, follow the steps below:
Disconnect the device from the electrical power supply. Allow the device to cool down for at least 15 minutes. Remove the dust collected on the external surface with dry compressed air and a soft brush. Clean the lens with a damp cloth. Use a mild detergent solution. Dry the lens carefully with a lint-free cloth. Clean the DMX and other connections with a damp cloth.
Attention
Do not immerse the device in liquid.
Do not use alcohol or solvents.
Make sure that the connections are fully dry before connecting the device to the power supply and
to other devices.

Corrective Maintenance

The device does not contain user-serviceable parts. Do not open the device and do not modify the device.
Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.

Replacing the Fuse

DANGER Electric shock caused by short-circuit
Do not bypass the thermostatic switch or fuses.
For replacement use fuses of the same type and rating only.
Power surges, short-circuit or incorrect electrical power supply may cause a fuse to burn out. If the fuse burns out, the device will not function anymore. If this happens, follow the steps below:
01) Disconnect the device from the electrical power supply.
02) Allow the device to cool down for at least 15 minutes.
03) Pry up the integrated fuse holder with a flat-blade screwdriver.
04) If the fuse is brown or unclear, it is burned out. Remove the old fuse.
05) Insert a new fuse in the fuse holder. Make sure that the type and the rating of the replacement fuse
are the same as the ones specified on the information label of the product.
06) Replace the integrated fuse holder in the opening and push it gently back in its place.
34
Dataflower Product code: 43168

9. Deinstallation, Transportation and Storage

Instructions for Deinstallation

WARNING Incorrect deinstallation can cause serious injuries and damage of property.
Let the device cool down before dismounting.
Disconnect power supply before deinstallation.
Always observe the national and site-specific regulations during deinstallation and derigging of the
device.
Wear personal protective equipment in compliance with the national and site-specific regulations.

Instructions for Transportation

Use the original packaging to transport the device, if possible.
Always observe the handling instructions printed on the outer carton box, for example: “Handle with
care”, “This side up”, “Fragile”.

Storage

Clean the device before storing. Follow the cleaning instructions in chapter 8.2.1. Basic Cleaning
Instructions on page 33.
Store the device in the original packaging, if possible.

10. Disposal

Correct disposal of this product
Waste Electrical and Electronic Equipment
This symbol on the product, its packaging or documents indicates that the product shall not be treated as household waste. Dispose of this product by handing it to the respective collection point for recycling of electrical and electronic equipment. This is to avoid environmental damage or personal injury due to uncontrolled waste disposal. For more detailed information about recycling of this product contact the local authorities or the authorized dealer.

11. Approval

Check the respective product page on the website of Highlite International (www.highlite.com) for an available declaration of conformity.
©2020 Showtec
Loading...
