Data Flash Strobe V3
Highlite Interna t ional B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands
Ordercode: 40296
MANUAL
ENGLISH
Ordercode: 40296
Data Flash Strobe
Table of contents
Warning ............................................................................................................................................................................... 2
Safety Instructions ......................................................................................................................................................... 2
Operating Determinations .......................................................................................................................................... 4
Rigging ............................................................................................................................................................................ 4
Connection with the mains......................................................................................................................................... 5
Return Procedure .......................................................................................................................................................... 6
Claims .............................................................................................................................................................................. 6
Description of the device ................................................................................................................................................. 7
Frontside.......................................................................................................................................................................... 7
Backside ......................................................................................................................................................................... 8
Installation ........................................................................................................................................................................... 8
Set Up and Operation ....................................................................................................................................................... 8
Control Modes ............................................................................................................................................................... 9
One Data Flash Strobe (Auto Run Mode and Built-in programs) ..................................................................... 9
One Data Flash Strobe (Sound-controlled) .......................................................................................................... 9
Multiple Data Flash Strobes (Master/Slave control) ............................................................................................ 9
Multiple Data Flash Strobes (DMX Control) .........................................................................................................10
Fixture Linking ...............................................................................................................................................................11
Data Cabling ...............................................................................................................................................................11

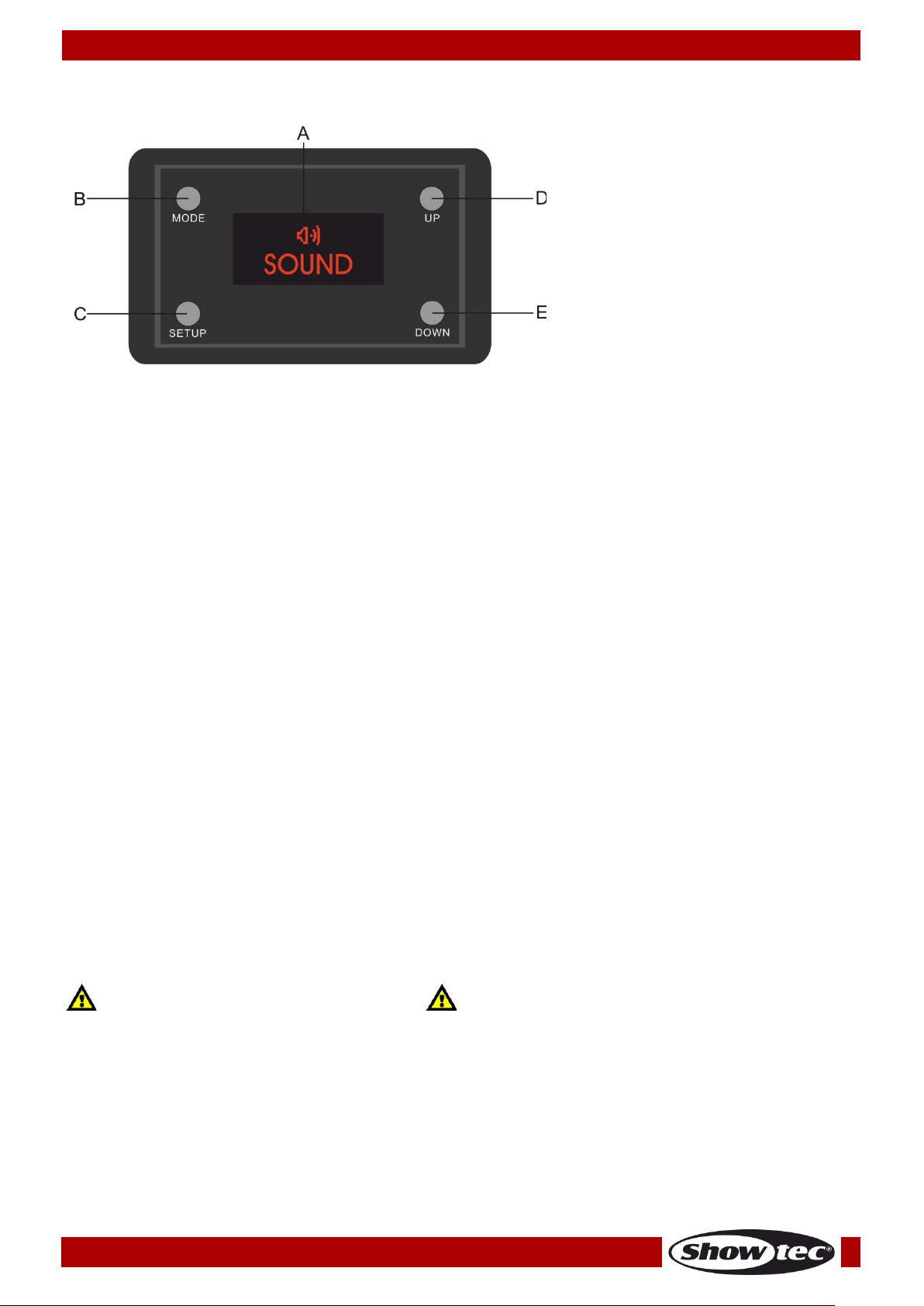

Control Panel ...............................................................................................................................................................12
Control Mode ..............................................................................................................................................................12
DMX Addressing ..........................................................................................................................................................12
Menu Overview ...........................................................................................................................................................13
Main Menu Options ....................................................................................................................................................14
1. Auto Run Mode ....................................................................................................................................................14
2. Built-in Programs ...................................................................................................................................................14
3. Slave Mode ...........................................................................................................................................................14
4. DMX Addressing ...................................................................................................................................................15
5. Sound control Mode ...........................................................................................................................................15
6. Dimmer ..................................................................................................................................................................15
7. Settings ...................................................................................................................................................................16
8. Info ..........................................................................................................................................................................18
DMX Channels .............................................................................................................................................................18
2 channels .................................................................................................................................................................18
3 channels .................................................................................................................................................................18
12 channels ...............................................................................................................................................................19
Maintenance ....................................................................................................................................................................20
Troubleshooting ...............................................................................................................................................................20
No Light .........................................................................................................................................................................20
No Response to DMX..................................................................................................................................................20
Product Specifications ....................................................................................................................................................22
Dimensions ........................................................................................................................................................................23
Notes ..................................................................................................................................................................................24
1
Ordercode: 40296
Data Flash Strobe
Your shipment includes:
• Showtec Data Flash Strobe
• Pro power cable (1,5 m)
• User manual
• be qualified
• follow the instructions of this manual
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be
returned to the factory, it is important that the fixture be returned in the original factory box and packing.
LED Expected Lifespan
LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration
of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular
optimum conditions. For this reason, when all color LEDs are used at their fullest intensity, life of the LEDs is
significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower
operational temperatures. This may include climatic-environmental and the reduction of overall
projection intensity.
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
2
Ordercode: 40296
Data Flash Strobe
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
• Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
• Never remove warning or informative labels from the unit.
• Never use anything to cover the ground contact.
• Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always
hold the fixture by the transport handles.
• Never place any material over the lens.
• Never look directly into the light source.
• Never leave any cables lying around.
• Do not connect this device to a dimmerpack.
• Do not switch the device on and off in short intervals, as this will reduce the device’s life.
• Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Allow the fixture to cool for at least 5 minutes before handling.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Only use the device indoors, avoid contact with water or other liquids.
• Only operate the fixture after having checked if the housing is firmly closed and all screws are tightly
fastened.
• Only operate the device after having familiarized with its functions.
• Avoid flames and do not put close to flammable liquids or gases.
• Always keep the case closed while operating.
• Always allow a free air space of at least 50 cm around the unit for ventilation.
• Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
• Make sure that the device is not exposed to extreme heat, moisture or dust.
• Make sure that the available voltage is not higher than stated on the rear panel.
• Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
• If the lens is obviously damaged, it has to be replaced.
• If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
• If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
• If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
• For adult use only. The fixture must be installed beyond the reach of children. Never leave the unit
running unattended.
• Never attempt to bypass the thermostatic switch or fuses.
• For replacement use fuses of same type and rating only.
• The user is responsible for correct positioning and operating of the Data Flash Strobe. The
manufacturer will not accept liability for damages caused by the misuse or incorrect installation of
this device.
• This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
3
Ordercode: 40296
Data Flash Strobe
• Repairs, servicing and electric connection must be carried out by a qualified technician.
• WARRANTY: Till one year after date of purchase.
Operating Determinations
• This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
• The minimum distance between light output and the illuminated surface must be bigger than 1
meter.
• The maximum ambient temperature t
• The relative humidity must not exceed 50 % with an ambient temperature of 40° C.
• If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
• Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
= 40°C must never be exceeded.
a
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
• If the Data Flash Stobe is lowered from the ceiling or high joists, professional trussing systems have to
be used.
• Use a clamp to mount the Data Flash Strobe, with the mounting bracket, to the trussing system.
• The Data Flash Strobe must never be fixed swinging freely in the room.
• The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
• When rigging, derigging or servicing the Data Flash Strobe, always make sure, that the area below
the installation site is secured and that there are not any unauthorized people around.
4
Ordercode: 40296
Data Flash Strobe
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
The Data Flash Strobe can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
5
Ordercode: 40296
Data Flash Strobe
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail aftersales@highlite.nl
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
and request an RMA prior to shipping the fixture.
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any shortcomings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.
6
Ordercode: 40296
Data Flash Strobe
Frontside
Fig. 01
Description of the device
Features
The Data Flash Strobe is a compact LED strobe with an intense strobe effect. It has 8 sections which can
be used for creating dynamic strobe effects.
• 8 controllable sections
• Double mounting bracket
• Pro power connections
• Input voltage: 110-240V AC, 50/60Hz
• Power consumption: 120W
• DMX channels: 2, 3, 12 channels
• LCD display for easy setup
• Light source: SMD LEDs
• Control modes: Auto, Built-in Programs, Sound-controlled, Master/Slave, DMX
• Control protocol: DMX-512
• Dimmer: 0-100%
• Strobe: 0-20Hz
• Protection rate: IP-20
• Housing: Aluminum
• Cooling: Convection
• Connections: Pro power connector IN/OUT (Blue/Gray) & 3-pin XLR IN & OUT
• Dimensions: 263 x 83 x 293 mm (LxWxH)
• Weight: 2,6 kg
01) 8 sections SMD LEDS
02) Adjustment screw
03) Mounting bracket with inclination screw
7
Ordercode: 40296
Data Flash Strobe
Backside
Fig. 02
04) 3-pin DMX signal connector IN
05) 3-pin DMX signal connector OUT
06) LCD display + menu buttons
07) 110-240V AC Pro power connector OUT (Gray)
08) 110-240V AC Pro power connector IN (Blue)
09) Ground/earth connection
Installation
Remove all packing materials from the Data Flash Strobe. Check if all foam and plastic padding is
removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
Connect the device to the main power supply.
8
Ordercode: 40296
Data Flash Strobe
There are 5 modes:
• Auto run
• Built-in programs
• Sound-controlled
• Master/slave
• DMX-512 (2CH, 3CH, 12 CH)
The pins:
1. Earth
2. Signal (-)
3. Signal (+)
Fig. 03
Control Modes
One Data Flash Strobe (Auto Run Mode and Built-in programs)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Data Flash Strobe is not connected with a DMX cable, it functions as a stand-alone
device. Please see page 14 for more information about Auto Run Mode and the Built-in programs.
One Data Flash Strobe (Sound-controlled)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) Turn on the music. If the device is set to sound-control, then the Data Flash Strobe will react to the
beat of the music. Please see page 15 for more information about the sound-control options.
Multiple Data Flash Strobes (Master/Slave control)
01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Data Flash Strobe and other devices.
04) Link the units as shown in fig. 03, connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can
use the same functions on the master device as described on page 14 (Built-in Programs). This means
you can set your desired operation mode on the master device and all slave devices will react the
same as the master device.
Multiple Data Flash Strobes (Master/Slave control)
9
Ordercode: 40296
Data Flash Strobe
Fig. 04
Multiple Data Flash Strobes (DMX Control)
01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Data Flash Strobes and other devices.
04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
05) Supply electric power: Plug electric mains power cords into each unit's Pro power socket, then plug
the other end of the mains power cord into proper electric power supply sockets, starting with the
first unit. Do not supply power before the whole system is set up and connected properly.
Multiple Data Flash Strobes Set Up
10
Note : Link all cables before connecting electric power
Ordercode: 40296
Data Flash Strobe
Important:
Fixtures on a serial data link must be daisy-chained in a single line. To comply with the
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to
run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures the
data link can support.
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 fixtures on one serial data link without the use of a DMX optically
Maximum recommended number of fixtures on a DMX data link: 30 fixtures
Data Cabling
To link fixtures together, you must obtain data cables. You can purchase DAP Audio certified DMX cables
directly from a dealer/distributor or construct your own cable. If you choose to create your own cable,
please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic
interference.
DAP Audio DMX Data Cables
• DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
• DAP Au di o X -type data cable XLR/M 3-pin > X LR /F 3-pin. Ordercode FLX0175 (0,75 m ),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
• DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
• DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
• DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
The Data Flash Strobe can be operated with a controller in DMX mode or without the controller in standalone mode.
11
Ordercode: 40296
Data Flash Strobe
Control Panel
A) LCD display
B) MODE button
C) SETUP button
D) UP button
E) DOWN button
Fig. 05
Display Off after 60 seconds
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address, next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign DMX fixture addresses, which is the first
channel with which the Data Flash Strobe will respond to the controller.
Please note, when you use the controller, the unit has 12 channels.
When using multiple Data Flash Strobes, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Data Flash Strobe should be 1(001); the DMX address of the
second Data Flash Strobe should be 1+12=13 (013); the DMX address of the third Data Flash Strobe
should be 13+12=25 (025), etc. Please, be sure that you do not have any overlapping channels in order
to control each Data Flash Strobe correctly. If two or more Data Flash Strobes are addressed similarly,
they will work similarly.
Controlling:
After having addressed all Data Flash Strobe fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Data Flash Strobe
received or not. If there is no data received at the DMX-input, the “LED “ on the control panel will not
flash.
If not, the problem may be:
• The XLR cable from the controller is not connected with the input of the Data Flash Strobe.
• The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.
will automatically detect whether DMX 512 data is
It is possible to set a time for turning off the display. When no button is pressed for 10, 20, 30 or 60 seconds,
the display will turn off. To light up the display, you have to press the MODE, SETUP, UP or DOWN buttons.
Once you have pressed the button, the display will light up.
12
Ordercode: 40296
Data Flash Strobe
Menu Overview
13
Ordercode: 40296
Data Flash Strobe
Strobe frequency, from 00-99
Main Menu Options
1. Auto run
2. Built in programs
3. Slave mode
4. DMX addressing
5. Sound-controlled mode
6. Dimmer options
7. Settings
8. Info
On start-up, the device will show the current software version: .
1. Auto Run Mode
With this menu you can start Auto Run mode.
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) The Data Flash Strobe will now run all the built-in programs in a sequence.
2. Built-in Programs
With this menu you can you can set the built-in programs.
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) Press the SETUP button to open the menu.
03) Press the UP/DOWN buttons to toggle through the 25 built-in programs.
04) Once you have selected one of the programs , press the SETUP button to
open the program.
05) Press the SETUP button several times to toggle between strobe frequency and program speed
settings.
06) Press the UP/DOWN buttons to change the values.
Program speed, from 001-100
3. Slave Mode
With this menu you can set the device as a slave.
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) If the device has not been set to slave, it is automatically classified as a master device. All slave
devices will follow the master. If the device has been set to slave, it will react the same as its master
device.
14
Ordercode: 40296
Data Flash Strobe
4. DMX Addressing
With this menu you can set the DMX address and control the DMX configuration.
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) Press the SETUP button to open the menu. You can choose 512 different DMX addresses.
03) Press the UP/DOWN buttons to select the required address from .
Once you have set the desired DMX address, you can also see the DMX mode.
04) Press the SETUP button again to proceed to the channel mode settings.
05) Press the UP/DOWN buttons to choose one of the 3 channel modes. The available options are
.
5. Sound control Mode
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) Press the SETUP button to open the menu.
03) Press the UP/DOWN buttons to set the sound sensitivity. The adjustment range is between
, from OFF to high sound sensitivity.
6. Dimmer
With this menu you can display the 8 sections of the device at once, or choose one or multiple sections.
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) Press the SETUP button to open the menu.
03) Press the SETUP button to toggle through the menu and choose the desired sections.
04) Set the intensity of the sections by pressing the UP/DOWN buttons.
05) Be aware of the fact that, in order to display a section, you will have to set the Dimmer value (000-
255).
15
Ordercode: 40296
Data Flash Strobe
7. Settings
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) Press the SETUP button to open the menu.
03) Press the UP/DOWN buttons to choose between the 6 available options, , , ,
, and .
04) Press the SETUP button to open one of the 6 options.
16
Ordercode: 40296
Data Flash Strobe
05) In menu you can select one of the 4 dimming curves, by pressing the UP/DOWN buttons.
06) With the menu , you can set the dimmer speed, by pressing the UP/DOWN buttons. You can
choose Smooth or Fast.
07) In the menu you can set how long the display will remain ON, when no button is pressed.
08) Press the UP/DOWN buttons to choose between 10, 20, 30 or 60 seconds. If you choose the option
“ON”, the display will remain continuously ON, when no button is pressed.
09) The last option is for resetting the device to the factory settings.
10) Press the SETUP button to open the menu and then press the UP/DOWN buttons to choose Yes or No.
11) Press the SETUP button again to confirm your choice. If you have chosen Yes, the factory settings will
be restored.
12) In the menu you can set the device’s behavior in case of a DMX signal error.
13) Press the SETUP button to open the menu and then press the UP/DOWN buttons to choose Off or
Hold. If you have chosen Off, the device will black out. If you have chosen Hold, the device will use
the last properly received DMX signal until DMX connection is restored.
14) Press the SETUP button to confirm your choice.
15) In the menu you can set synchronous DMX.
16) Press the SETUP button to open the menu and then press the UP/DOWN buttons to choose On or Off.
17) Press the SETUP button to confirm your choice.
17
Ordercode: 40296
Data Flash Strobe
Channel 1 – Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 2 – Strobe ( Dimmer must be open )
0-4
Closed
5-127
Linear strobe, from low to high frequency (0-20Hz) ALL LEDs
128-189
Random strobe, from low to high frequency ALL LEDs
190-255
Random strobe RANDOM LED RINGS
Channel 1 – Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 2 – Strobe ( Dimmer and CH3 must be open )
0-4
Closed
5-255
Strobe flash frequency, from low to high frequency (0-20 Hz)
Channel 3 – Strobe mode ( Dimmer and CH2 must be open )
0-127
Linear strobe, from low to high frequency (0-20Hz) ALL LEDs
128-149
Random strobe, from low to high frequency ALL LEDs
150-172
Random strobe RANDOM LED RINGS
173-199
Blinder mode (25Hz) ALL LEDs
200-231
Sound sensitivity, from OFF to high sensitivity
232-255
Single flash mode
8. Info
01) Press the MODE button and then the UP/DOWN buttons, until the display shows .
02) Press the SETUP button to open the menu.
03) Press the UP/DOWN buttons to choose between the 2 options, and .
04) Press the SETUP button to open one of the 2 options.
05) In the menu , the device will display if the temperature from the device is too high or not.
06) In the menu you can view the current software version.
DMX Channels
2 channels
3 channels
18
Ordercode: 40296
Data Flash Strobe
Channel 1 – Dimmer intensity
0-255
Gradual adjustment, from dark to brightest 0-100%
Channel 2 – Section 1 ( Dimmer must be open )
0-255
Gradual adjustment section 1, from dark to brightest 0-100%
Channel 3 – Section 2 ( Dimmer must be open )
0-255
Gradual adjustment section 2, from dark to brightest 0-100%
Channel 4 – Section 3 ( Dimmer must be open )
0-255
Gradual adjustment section 3, from dark to brightest 0-100%
Channel 5 – Section 4 ( Dimmer must be open )
0-255
Gradual adjustment section 4, from dark to brightest 0-100%
Channel 6 – Section 5 ( Dimmer must be open )
0-255
Gradual adjustment section 5, from dark to brightest 0-100%
Channel 7 – Section 6 ( Dimmer must be open )
0-255
Gradual adjustment section 6, from dark to brightest 0-100%
Channel 8 – Section 7 ( Dimmer must be open )
0-255
Gradual adjustment section 7, from dark to brightest 0-100%
Channel 9 – Section 8 ( Dimmer must be open )
0-255
Gradual adjustment section 8, from dark to brightest 0-100%
Channel 10 – Built-in Programs ( Dimmer and dimmer speed must be open )
1-9
Program 01
10-19
Program 02
20-29
Program 03
30-39
Program 04
40-49
Program 05
50-59
Program 06
60-69
Program 07
70-79
Program 08
80-89
Program 09
90-99
Program 10
100-109
Program 11
110-119
Program 12
120-129
Program 13
130-139
Program 14
140-149
Program 15
150-159
Program 16
160-169
Program 17
170-179
Program 18
180-189
Program 19
190-199
Program 20
200-209
Program 21
210-219
Program 22
220-229
Program 23
12 channels
19
Ordercode: 40296
Data Flash Strobe
230-239
Program 24
240-249
Program 25
250-255
Sound-controlled
Channel 11 – Dimmer speed ( Dimmer must be op en )
0-255
From slow to fast
250-255
Sound sensitivity 0-31, from low to high sensitivity (CH10 must be set between 250-255)
Channel 12 – Strobe ( Dimmer must be open )
0-4
Closed
5-255
Strobe flash frequency, from low to high (0-20 Hz)
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Data Flash Strobe requires almost no maintenance. However, you should keep the unit clean.
Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and
then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and
a soft cloth. Do not use alcohol or solvents.
The front lens will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the lightoutput very quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect two potential problem areas as: the power supply, the LEDs.
01) Power supply. Check that the unit is plugged into an appropriate power supply.
02) The LEDs. Return the Data Flash Strobe to your Showtec dealer.
03) If all of the above appears to be O.K., plug the unit in again.
04) If you are unable to determine the cause of the problem, do not open the Data Flash Strobe, as this
may damage the unit and the warranty will become void.
05) Return the device to your Showtec dealer.
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
20
Ordercode: 40296
Data Flash Strobe
Problem
Probable cause(s)
Solution
• Check if power is switched on and
Fixtures reset
controller
The controller is not connected.
• Connect controller.
• Install a phase reversing cable
• Check data quality. If much lower
disturbing the link
• Inspect connections and cables.
or replace damaged cables
Data link not terminated with 120
Ohm termination plug
• Insert termination plug in output
jack of the last fixture on the link
Incorrect addressing of the fixtures
• Check address setting
• Bypass one fixture at a time until
serviced by a qualified technician
• Install a phase-reversing cable
erratically
• Allow the fixture to cool down
• Turn up the air conditioning
• Disconnect the fixture and return it
to your dealer
The power supply settings do not
frequency
• Disconnect fixture. Check settings
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
One or more
fixtures do not
function at all
correctly, but all
respond
erratically or not
at all to the
Fixtures reset
correctly, but
some respond
erratically or not
at all to the
controller
No light or LEDs
cut out
intermittently
No power to the fixture
3-pin XLR Out of the controller
does not match XLR Out of the first
fixture on the link (i.e. signal is
reversed)
Poor data quality
Bad data link connection
One of the fixtures is defective and
disturbs data transmission on the
link
3-pin XLR Out on the fixtures does
not match (pins 2 and 3 reversed)
Fixture is too hot
LEDs damaged
cables are plugged in
between the controller and the
first fixture on the link
than 100 percent, the problem
may be a bad data link
connection, poor quality or
broken cables, missing termination
plug, or a defective fixture
Correct poor connection s. Repair
normal operation is restored:
unplug both connectors and
connect them directly together.
• Have the defective fixture
between the fixtures or swap pin 2
and 3 in the fixture that behaves
• Make sure air vents in control
panel and the front lens are not
blocked
match local AC voltage and
21
and correct if necessary
Ordercode: 40296
Data Flash Strobe
Model:
Showtec Data Flash Strobe
Input Voltage:
110-240V AC, 50/60Hz
Power consumption:
120W (full output)
DMX linking:
30 pcs
Protection rate:
IP-20
Dimensions:
263 x 83 x 293 mm (LxWxH)
Weight:
2,6 kg
Operating and Programming:
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX Mode:
2, 3, 12 channels
Signal input:
3-pin DMX IN
Signal output:
3-pin DMX OUT
Electro-mechanical effects:
Light source:
SMD LEDs
Dimmer:
0-100%
Strobe:
0-20Hz
Housing:
Aluminum
DMX-control:
via standard DMX-controller (DMX-512)
On Board:
LCD display for easy setup
Control:
Auto, Built-in Programs, Sound-controlled, Master/Slave,
DMX
Connections:
Pro power (Blue/Gray) & 3-pin XLR IN & OUT
Cooling:
Convection
Protection rate:
IP20
Max. ambient temperature ta:
40°C
Max. housing temperature tB:
80°C
Minimum distance:
Minimum distance from flammable surfaces:
0,5 m
Minimum distance to lighted object:
1 m
Product Specifications
Design and product specifications are subject to change without prior notice.
Website:
Email: service@highlite.nl
22
www.Showtec.info
Ordercode: 40296
Data Flash Strobe
Dimensions
23
Ordercode: 40296
Data Flash Strobe
Notes
24
Ordercode: 40296
Data Flash Strobe
25
Ordercode: 40296
Data Flash Strobe
26
©2016 Showtec
Loading...
