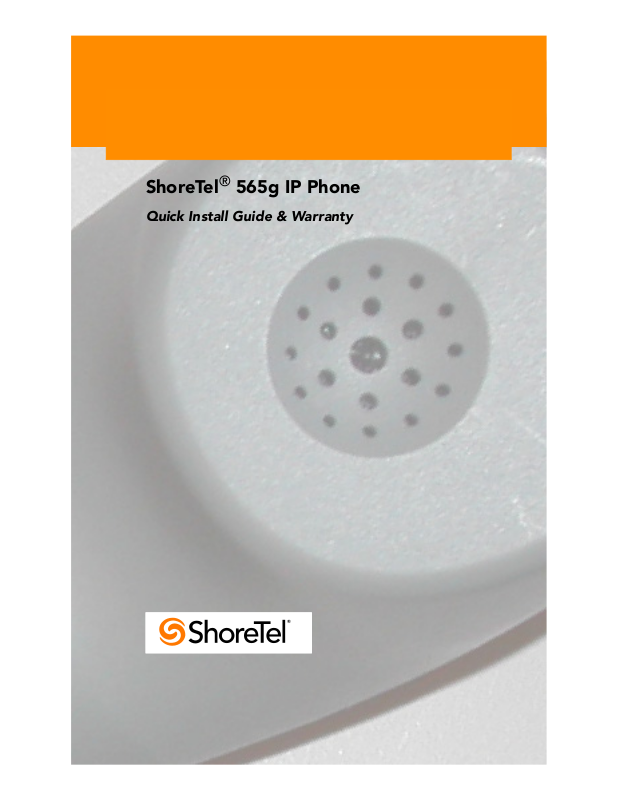

ShoreTel® 565g IP Phone
Quick Install Guide & Warranty
Document and Software Copyrights
Copyright © 1998–2009 by ShoreTel, Inc., Sunnyvale, California, U.S.A. All rights reserved.
Printed in the United States of America. Contents of this publication may not be reproduced or
transmitted in any form or by any means, electronic or mechanical, for any purpose, without
prior written authorization of ShoreTel, Inc.
ShoreTel, Inc. reserves the right to make changes without notice to the specifications and
materials contained herein and shall not be responsible for any damage (including
consequential) caused by reliance on the materials presented, including, but not limited to,
typographical, arithmetic, or listing errors.
Trademarks
ShoreTel®, ShoreCare®, ShoreWare®, ShoreGear® and ControlPoint® are registered trademarks
of ShoreTel, Inc. in the United States and/or other countries. ShorePhone
ShoreTel, Inc. in the United States and/or other countries. All other copyrights and trademarks
herein are the property of their respective owners.
™
is a trademarks of
Patents
This product is covered by one or more of the following patents: United States Patent
6,996,059, United States Patent 7,003,091, United States Patent 7,167,486, United States
Patent 7,379,540, and United States Patent 7,386,114. ShoreTel, Inc. All rights reserved.
Version Information
PN 800-1100-02
ShoreTel 565g IP Phone Quick Install Guide & Warranty
Date: January 6, 2009
Company Information
ShoreTel, Inc.
960 Stewart Drive
Sunnyvale, California 94085
USA
Phone: +1.408.331.3300 OR +1.800.425.9385
Fax: +1.408.331.3333
www.shoretel.com
Installing Your ShoreTel 565g IP Phone
This section shows how to install a ShoreTel 565g IP Phone. Instructions are provided
for connecting phones with and without the AC power adapter. (This adapter may be
necessary for networks that do not support the IEEE 802.3af standard for Power-overEthernet).
Package Contents
ShoreTel 565g IP Phone
Vinyl overlay with
international symbols
(for Function Keys)
Phone base
Handset & handset cord
Quick Install
Guide
Network cable with ferrite EMI filter
Spare “snap-on” ferrite EMI filter
AC Power Adapter Package (Optional)
Power-over-Ethernet adapter and
power cord
Note: In order to achieve gigabit performance when
using a power adapter with the 565g, a gigabitcapable adapter is needed.
Additional network cable (7-foot)
3
1 Attach phone to base
Connect the base to the larger of the
three tabs on the back of the phone.
Rotate the two pillars down onto the
ba
smaller tabs and snap into place.
4
2a Connect to powered network
(no AC adapter required)
If the LAN to which this phone will be connected supports power-over-Ethernet,
no AC adapter is needed. The phone draws power from the Ethernet network.
Connect the network
cable between the
LAN port on the back
of the phone and an
Ethernet jack in the
workspace (or on a
data switch/router that
supports Power-overEthernet).
To prevent electro-magnetic
interference, make sure to connect the
included Ethernet cable to the phone
such that the ferrite EMI filter is closer
to the phone.
optional
If desired, you can daisy-chain a PC off
the second Ethernet port on your phone,
with the phone and computer sharing a
single LAN wall jack (as shown).
If you choose this optional configuration,
you must attach the spare ferrite EMI
filter (included) to an Ethernet cable (not
included) such that the filter is within
1 to 2 inches of the body of the phone.
This is to prevent the leakage of electromagnetic radiation.
5
